Comnet FVT40SFP Series User manual

INS_FVT/FVR40SFP_REV–
05/07/10
PAGE 1
INSTALLATION AND OPERATION MANUAL
FVT/FVR40SFP
4-CHANNEL DIGITALLY ENCODED VIDEO USING
SMALL FORM-FACTOR PLUGGABLE (SFP) OPTICAL DEVICES
The FVT/FVR40SFP series optical video link provides transmission of four 10-bit
medium-haul quality digitally encoded video channels through a selectable
small form factor pluggable module (SFP). See instructions included with SFP
for installation of selected module.
Bi-color (Red/Green) LED indicators are provided for confirming operating
status. See Figure 4 on Page 3 for LED indication explanations.
These units are interchangeable between stand-alone or card mount
configurations. See Figure A on Page 4 for mounting instructions.

INS_FVT/FVR40SFP_REV–
05/07/10
PAGE 2
INSTALLATION AND OPERATION MANUAL FVT/FVR40SFP
TECH SUPPORT: 1.888.678.9427
NOTE: Remove Electrical Connector for Rack Mount Units
FIGURE 2 – FVT40SFP TRANSMITTER
FIGURE 1 – FVT/FVR40SFP TRANSMITTER AND RECEIVER
FIGURE 3 – FVR40SFP RECEIVER
REAR PANEL REAR PANELFRONT PANEL FRONT PANEL
OPTICAL FIBER DETERMINED BY
SELECTION OF SFP MODULE
BLACK
BLACK WITH WHITE STRIPE

INS_FVT/FVR40SFP_REV–
05/07/10
PAGE 3
FIGURE 4 – LED INDICATORS
TECH SUPPORT: 1.888.678.9427
INSTALLATION AND OPERATION MANUAL FVT/FVR40SFP
LINK VIDEO POWER
GREEN Communication link has been
established over optical fiber
An active video signal is present
on the BNC connector.
Unit powered up
RED Communication link has not
been established.
No Video Signal –
OFF Not powered up correctly – Unit powered down

INS_FVT/FVR40SFP_REV–
05/07/10
PAGE 4
© 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
3 CORPORATE DRIVE | DANBURY, CT 06810 | USA
T: 83.796.5300 | F: 83.796.5303 | TECH SUPPORT: 1.888.678.9427 | [e-mail]
8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE
T: [phone] | F: [phone] | [e-mail]
MECHANICAL INSTALLATION INSTRUCTIONS
INSTALLATION CONSIDERATIONS
This fiber-optic link is supplied as a Standalone/Rack module. Units
should be installed in dry locations protected from extremes of
temperature and humidity.
C1-US, C1-EU, C1-AU OR C1-CH CARD CAGE RACKS
CAUTION: Although the units are hot-swappable and may be installed
without turning power off to the rack, ComNet recommends that
the power supply be turned off and that the rack power supply
is disconnected from any power source. Note: Remove electrical
connector before installing in card cage rack.
1. Make sure that the card is oriented right side up, and slide it into
the card guides in the rack until the edge connector at the back
of the card seats in the corresponding slot in the rack’s connector
panel. Seating may require thumb pressure on the top and bottom
of the card’s front panel.
CAUTION: Take care not to press on any of the LEDs.
2. Tighten the two thumb screws on the card until the front panel of
the card is seated against the front of the rack.
WARNING: Unit is to be used with a Listed Class 2 or LPS power supply rated
9-12 VDC @ 1A.
IMPORTANT SAFEGUARDS:
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may
be greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.

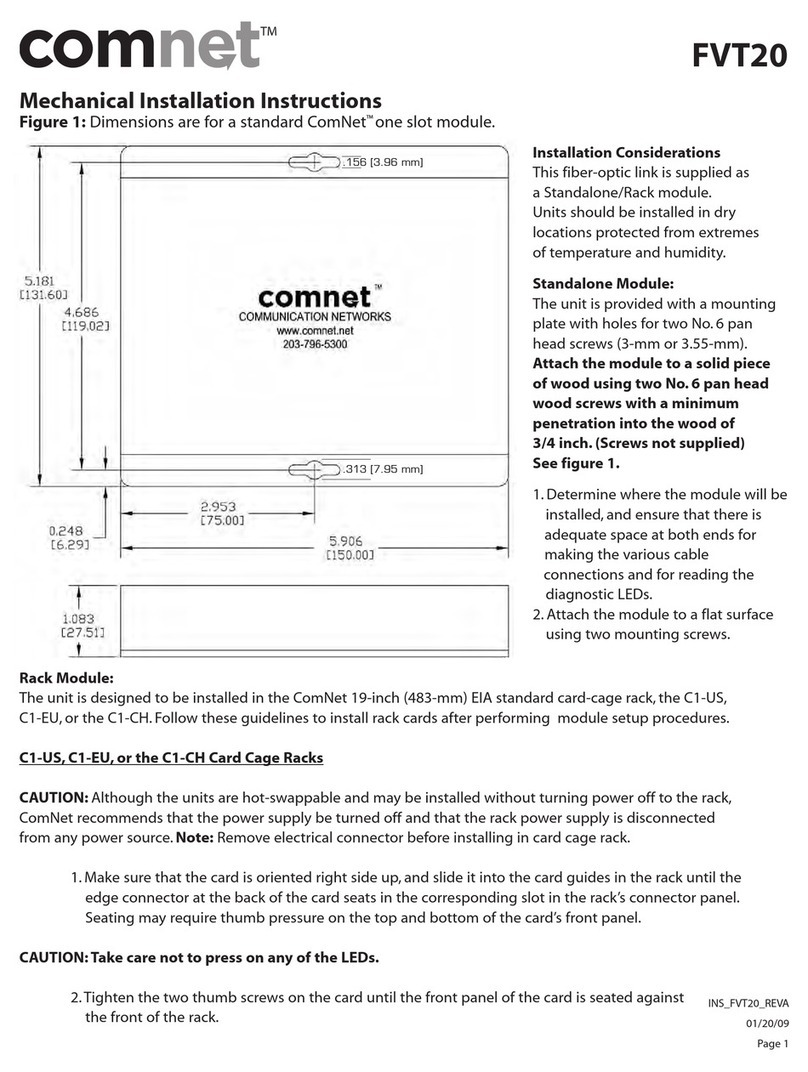

FIGURE A
Dimensions are for a standard ComNet™ one slot module
.156 [3.96 mm]
.313 [7.95 mm]
