Compex PS2216 User manual

Quick Install Guide
Compex
16-Port 10/100 Mbps
Fast Ethernet
Desktop Switch
PS2216
Version 1.2
1. Introduction

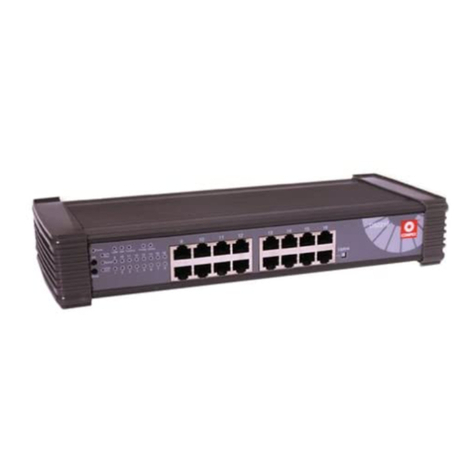

Figure 1 Compex PS2216
Compex PS2216 – A perfect switch for home and small offices. This is a fast
Ethernet Switch that provides 16 10/100Mbps ports capable of delivering full
or half duplex transmission with flow control. This cost-effective switch
allows the setting of priority ports, trunking groups or VLAN groups. In
addition, PS2216 is designed for full auto negotiation functionality that self
configures for the highest possible operation mode between nodes, coupled
with the collision-free packet switching capability makes this a perfect device
for your expanding network.
2. Panel View
3
11
910
1 2
12 13 14
465FLW Ctrl
1615
78
Figure 2 Front View of Compex PS2216
Figure 3 Back Panel View of Compex PS2216
Figure 4 Side View of Compex PS2216
3. Panel Descriptions
Indicator Description
1 Power LED ON indicates switch is receiving power.
STEADY AMBER 10M Link
BLINK AMBER 10M Activity
STEADY GREEN 100M Link
2 Port LED
BLINK GREEN 100M Activity
3 16 RJ-45 Ports 16 UTP ports
4 DIP Switch To activate the VLANs, Trunking and Priority ports.
Please refer to Section 6 “Usage of Dip Switch” on the
following page.
5 FLW/Ctrl LED No function assigned to this LED. This will not be lighted.
6 DC Power Jack Jack for connection to an external power adapter
ReadyLINK ®
1
2 5

4. Specifications
♦Industrial Standards Complies with IEEE 802.3 10Base-T, IEEE 802.3u
100Base-TX and ANSI/IEEE 802.3 N-Way auto-
negotiation standards; FCC Class A; CE mark.
♦Interface Each unit has 16 10/100Mbps UTP ports (RJ-45).
♦Port Speed/Mode
Selection
Auto-negotiation
♦Link Distance 100Base-TX: can support up to 100M of ‘Category 5’
UTP cable to PC, hub or another switch.
10Base-T: can support up to 100M of ‘Category 3, 4,
and 5’ UTP cable to PC, hub or another switch.
♦LED Indicators LED indicators are provided for status monitoring.
These include LEDs for system power, port speed,
traffic activity and link.
♦Dynamic memory
sharing In/Out buffer
4M Bit
♦Forwarding Method Store-and-Forward.
♦Number of MAC
Addresses
8K MAC Addresses
♦Dynamic Addresses
Learning / Filtering
Yes.
♦Power Supply External 3.3VDC, 3A
♦Environment
Requirements
Operating Temperature::
Storage Temperature::
Operating Humidity:
Storage Humidity::
(non-condensing)
)
0°C to 40°C
-5°C to 60°C
10% RH to 90% RH
5% to 80% RH
♦Physical Dimensions 151 x 92x 35mm (L x W x H)
♦Weight About 0.26 kg
♦Safety UL, CSA, TUV/GS
5. Installation of Compex PS2216
Compex PS2216 can be installed on a flat surface (desktop) or mounted on a
wall. Follow the steps below for proper installation.
Desktop installation
1. Unpack the switch.
2. Choose a location which is near to the electrical outlet. It is preferable to
place Compex PS2216 on a desktop with clear and sturdy surface.
3. Ensure that there is enough clearance around the unit to allow attachment
of network cables and power adapter.
4. Connect the power adapter to the switch. The POWER LED and the
respective PORT LED should be lighted up.
Wall installation
1. Measure the distance between the mounting holes at the bottom of the
switch and mark the wall to match the location of the mounting holes on
the switch.
2. Drill pilot holes at the two marked locations.
3. Fix two 5/16-inch diameters flat-head mounting screws into the wall,
with the heads of the screws protruded 1/8 inch out from the wall.
4. Carefully set the switch over the screws in the wall; then slide the switch
down onto the screws, pressing it slight to the wall.
5. Connect the power adapter to the switch. The POWER LED and PORT
LED for each connected port should be lighted up.
Now, Compex PS2216 is ready to operate.
6. Usage of DIP switch
Actions Taken Descriptions
Enabled Trunk 1 Port 1,2,9 and 10 are set as Trunking Ports.
Enabled Trunk 2 Port 3, 4,11 and 12 are set as Trunking Ports.
Enabled Priority Port 8 and 16 (High Priority) are set as Priority Ports.
Enabled VLAN VLAN Port 1 will become an overlapping port in Compex
PS2216. The other ports will be separated into 15 individual
VLANs.
For example,
If VLAN DIP Switch is enabled, Port 1 will be able to link to any
of the ports from Port 2 to 16. However, the ports between 2 to 16
will not be able to communicate with each other.
Please note that the enabling of VLAN and Port Trunking cannot be set at the
same time.
