user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
SAFETY INSTRUCTIONS
Attention! This user manual is an essential part of this product.
The user manual should be read carefully before you use the product
for the first time. If the product is given to someone for temporary
use, be sure to enclose user manual to it.
- Do not misuse the product
- Do not remove warning signs and protect them from abrasion,
because they contain information about safe operation of the
product.
-Do not look into the laser beam or its reflection, with unprotected
eye or through an optical instrument. Do not point the laser beam at
people or animals without the need. You can dazzle them.
-To protect your eyes close them or look aside.
- Always install the product in such a way, so that laser line is below
or above eye level.
- Do not let unauthorized people enter the zone of product operation.
- Store the product beyond reach of children and unauthorized
people.
- It is prohibited to disassemble or repair the product yourself. Entrust
product repair to qualified personnel and use original spare parts
only.
- Do not use the product in explosive environment, close to flammable
materials.
- Laser intensive glasses are used for better recognition of the laser
beam, do not use them for other purposes. Laser glasses do not
protect from laser radiation as well as ultraviolet radiation and reduce
color perception.
Laser radiation!
Do not stare into beam
Class 2 laser


Laser radiation!
Do not stare into beam
Class 2 laser
<1 mW 520nm


55
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
PRODUCT DESCRIPTION
Cross line laser NEO G220 CONDTROL is intended to build and check
vertical and horizontal planes and lines, as well as up and down laser
dots (zenith and nadir).
The product has 2 operating modes:
- locked compensator, to build inclined planes and lines;
- automatic levelling to project horizontal and vertical planes
and lines. Levelling function allows to automatically compensate
irregularities within self-levelling range of ±4,5°.
Pulse mode allows using laser receiver to increase working range of
the instrument or to work when laser is hard to be defined in bright
lighting conditions.
- Avoid heating the batteries to avoid the risk of explosion and
electrolyte leakage. In case of liquid contact with skin, wash it
immediately with soap and water. In case of contact with eyes, flush
with clean water during 10 minutes and consult the doctor.

66
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
1
23
6
9

8
42-5


user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
1 - Laser lines exit window
2 – Plumb-up and down beam exit windows
3 – Control panel
4 – Battery cover
5 – 5/8’’ mounting thread
6 – Switch bar

8 – Mounting clip
9 – Belt mount hole

88
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
Control panel
1 Turn on/off laser lines in unlocked mode
2 Turn on/off:
- Pulse mode
- Laser lines in locked mode
3 Battery charge level indication
4 Locked pendulum indication
5 Pulse mode indication
1
3
4
5
2

99
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
TECHNICAL SPECIFICATIONS
Working range 50 m
Self-leveling accuracy ±0,3 mm/m
Self-leveling range ± 4,5°
Operating temperature 0°C ... +50°C
Storage temperature 
Tripod mounting thread 5/8’’,1/4”
Laser type Green: class II 520 nm < 1 mW

Power supply 
Dust and moisture
protection rate IP54
Dimensions 
Weight 0,5 kg
PACKAGE
NEO G220 Set
Laser level, tripod 5/8’’, adapter 5/8’’ – 1/4’’, cable tie, batteries 3pcs.,
user manual, hard case.
NEO G220 Kit
Laser level, magnetic holder, adapter 5/8-1/4, cable tie, batteries
3pcs., magnetic target, wall mount, glasses, user manual, plastic case.

1010
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
OPERATION
Before start operation remove the battery cover, insert the batteries,
observing correct polarity. Put battery cover back.
Use alkaline AA batteries only, all batteries should be of the same type
and brand with the same charge level. Replace batteries if battery
charge level indicator turns red while operation.
Place an instrument on a firm and stable surface or a tripod.
Move the switch bar to choose necessary operating mode:
1) Automatic levelling, to build horizontal and vertical planes and
lines:
Move the switch bar to unlocked position . Compensator is
unlocked. If the product is out of the range of automatic compensation
it will emit sound signal.
Short press button to turn on necessary laser planes.
Short press button to turn on/off pulse mode that allows
working with laser receiver. In this mode pulse mode indicator will
turn green.
To switch off the product move the switch bar to locked position .
1) Locked compensator, to build inclined planes and lines:
Move the switch bar to locked position . Compensator is locked.
Short press button to turn on the product. Horizontal plane
will switch on. Locked pendulum indicator turns red.
Short press button to turn on necessary laser planes.

1111
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
ACCURACY CHECK
Check of horizontal line

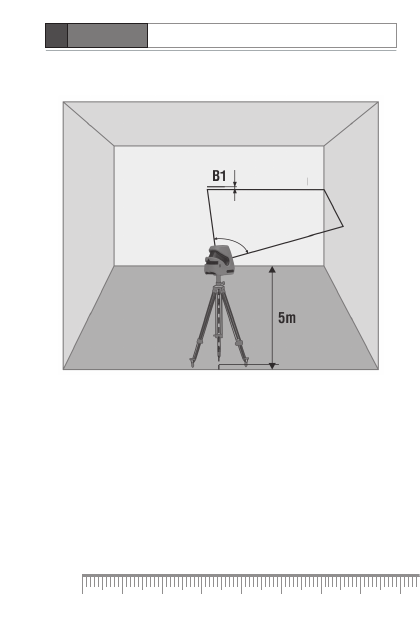

Check of horizontal line is carried out by using 2 walls located opposite
each other at a distance of 5m.
1. Put the instrument as close as possible to the wall so that laser
emitters are located opposite the wall.
2. Move lever lock to unlocked position and switch on horizontal
plane.
Mark location of horizontal line on the wall as A1.
3. Turn the instument by 180° and mark location of horizontal line on
another wall as B1.
4. Turn the instrument to the right. Measure vertical deviation of
horizontal line from point B1. If deviation exceeds 1,5 mm – please
contact service center.

1212
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
5. Repeat actions in paragraph 4 by turning the instrument to the left.
max 1.5 mm

1313
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
6. Install the instrument closer to the opposite wall. Mark location of
horizontal line on the wall as B2.

the opposite wall as A2.
8. Measure vertical distance between marks A1, A2 and B1, B2. If
distance between measured values exceeds 3 mm – please contact
service center.

1414
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
Check of vertical line

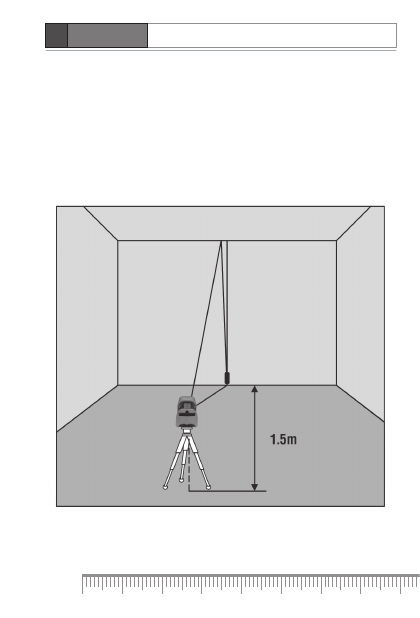

Use a plumb bob as a reference of a vertical. Place the instrument at
distance of 1,5 m from the plumb bob.
1. Move lever lock to unlocked position, then switch on vertical
plane and align vertical laser line with the low point of plumb bob.
2. If deviation between the laser line and the plumb line exceeds
±0,3 mm per 1 m of the plumb bob length (for a 2,5 m plumb bob


1515
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
CARE AND MAINTENANCE
Attention! The product is an accurate optical mechanic device and
requires careful handling. Check the accuracy before using.
To increase the operating time and avoid the risk of unintentional
blindness switch the laser on only when you are ready to make
measurements.
If operated near objects or air streams with different from the
environment temperature the laser line may tremble due to
heterogeneity of the atmosphere. The longer is the distance, the more
trembling can be observed
The width of the laser line increases with the increasing of the
operating distance. The layout should be made along the axis of the
laser line. For maximum accuracy, use the middle portion of the laser
line.
It should be noted that the shape of the laser line on the object’s
surface (e.g., walls, ceilings, etc.) depends on the curvature and tilt of
the surface relative to the laser plane.
Maintenance of the following recommendations will extend the life
of the device:
- Transport and carry the product only with locked compensator.
- Keep the product clean and protected from any bumps, dust and
dampness; do not allow getting moisture, dust or other dirt inside of
the product.
- In case if any moisture goes into the product, remove the batteries
and take it to the service center.
- Do not keep or use the device for a long time at high humidity
conditions.
- Keep the instrument clean and wipe it with a clean and soft cloth.
Mishandling of the following rules can cause electrolyte leakage
from the batteries or other damages:
- Remove the batteries from the product if you do not use it for a long
time.
- Do not use different battery types with different charge levels.
- Do not leave discharged batteries in the product.

1616
user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
UTILIZATION
Expired tools, accessories and package should be passed for waste
recycle. Please send the product to the following address for proper
recycle:
CONDTROL GmbH
Im Wiegenfeld 4

Germany
Do not throw the product in municipal waste!

and their components must be collected separately and submitted to
environmentally friendly recycle of wastes.
WARRANTY
All CONDTROL GmbH products go through post-production control
and are governed by the following warranty terms. The buyer’s
right to claim about defects and general provisions of the current
legislation do not expire.
1) CONDTROL GmbH agrees to eliminate all defects in the product,
discovered while warranty period, that represent the defect in
material or workmanship in full volume and at its own expense.
2) The warranty period is 24 months and starts from the date of
purchase by end consumer (see the original supporting document).
3) The Warranty doesn’t cover defects resulting from wear and tear
or improper use, malfunction of the product caused by failure to
observe the instructions of this user manual, untimely maintenance
and service and insufficient care, the use of non-original accessories
and spare parts. Modifications in design of the product relieve the
seller from responsibility for warranty works. The warranty does not
cover cosmetic damage, that doesn’t hinder normal operation of the
product.
4) CONDTROL GmbH reserves the right to decide on replacement or
repair of the device.
5) Other claims not mentioned above, are not covered by the warranty.


user manual
CROSS
LINE LASER
EN
CONDTROL NEO G220
6) After holding warranty works by CONDTROL GmbH warranty period
is not renewed or extended.
    
associated with a defect of the device, rental cost of alternative
equipment for the period of repair.
This warranty applies to German law except provision of the United
Nations Convention on contracts for the international sale of goods
(CISG).
In warranty case please return the product to retail seller or send it
with description of defect to the following address:
CONDTROL GmbH
Im Wiegenfeld 4

Germany

1818
Bedienungsanleitung
KREUZLINIENLASERDE
CONDTROL NEO G220
SICHERHEITSHINWEISE
         
Geraets alle Anweisungen. Warnschilder muessen stets sichtbar
und erkennbar sein. Bewahren Sie diese Bedienungsanleitung auf
und werfen Sie sie nicht weg. Bei nicht fachgerechter Anwendung
koennen Sie Laserstrahlung ausgesetzt sein.
Sie erhalten Ihr Geraet mit einem Warnschild in Englisch. Bitte
beachten Sie das hier abgebildete Warnschild in Deutsch.
Richten Sie den Laserstrahl niemals auf Personen oder Tiere. Blicken
Sie nicht in den Laserstrahl, auch nicht mit optischen Instrumenten.
Sie gefaehrden Ihr Augenlicht. Ihr Geraet erzeugt Laserstrahlung
der Klasse 2 gemaess EN60825-1. Die Laserbrille dient nicht als
Schutzbrille, sondern zur besseren Sichtbarkeit des Laserstrahls. Sie
bietet keinen Schutz vor Laserstrahlung. Die Laserbrille kann nicht
als Sonnenbrille verwendet werden. Der Einsatz im Strassenverkehr
        
verringert die Wahrnehmung von Farbunterschieden. Reparatur
und Wartung duerfen nur durch Fachpersonal mit Qualifikation
erfolgen, das originale Ersatzkomponenten einsetzt. Kinder duerfen
aus Sicherheitsgruenden das Geraet nur unter Aufsicht benutzen.

da im Geraet Funken entstehen koennen. Die Halterung des Geraets

Herzschrittmachern, da deren Funktion durch Magnetfelder gestoert
        
Datentraegern oder Geraeten, die auf Magnetfelder reagieren. Die
Folge koennen Datenloeschungen oder –zerstoerung sein.
Laserstrahlung!
Nicht in den strahl blicken
Laser Klasse 2


Laserstrahlung!
Nicht in den strahl blicken
Laser Klasse 2
<1 mW 520nm


1919
Bedienungsanleitung
KREUZLINIENLASERDE
CONDTROL NEO G220
BESTIMMUNGSGEMAESSER GEBRAUCH
Der Multiline –Kreuzlinienlaser NEO G220 CONDTROL wird zur
Ermittlung und Ueberpruefung von horizontalen und vertikalen
Linien und Loten verwendet. Er ist fuer den Innen- und Außenbereich
geeignet.
Das Gearet hat zwei Betriebsarten:
- Zum Erzeugen Laser- Linien und –Ebene mit jeglichen Neigungen;
- Mit Nivellierautomatik der Gehaeuseneigung bis zum ±4,5° zum
Erzeugen waagrechten und senkrechten Laser- Linien und –Ebenen.
Empfaengerbetrieb ist dazu bestimmt, Reichweite zu erweitern und
Laserstrahlen von Linienlaser bei Tageslicht zu lokalisieren.

2020
Bedienungsanleitung
KREUZLINIENLASERDE
CONDTROL NEO G220
1
23
6
9

8
42-5
