Connects2 CAM-KIT15 User manual

CAM-KIT15
Solar Wireless
Digital Reversing System
User Manual

Welcome
Thank you for purchasing the CAM-KIT15.
This solar-powered wireless digital reversing system is designed to make it easier and safer
to manoeuvere and park your vehicle. Please read the instructions carefully before installing
and using the product.
We reserve the right to modify printing errors or update specifications without prior notice.

1. Components..................................................
2. Getting Started.............................................
2.1 Charge the Battery..................................
2.2 Test the System........................................
3. Installation.....................................................
3.1 Adjust Camera Angle..............................
3.2 Mount the Monitor...................................
3.3 Install Remote Control...........................
4. Operation.......................................................
4.1 Activate the Camera...............................
1
2
2
3
4
5
6
8
8
8
9
10
10
11
12
17
17
4.2 Operate the Monitor..............................
4.3 Choose the Size of Guideline.............
5. Indication of Battery Power....................
6. Battery Replacement of the
Remote Control..........................................
7. Troubleshooting..........................................
8. Care and Maintenance..............................
9. Specifications..............................................
- CONTENTS-

1
1
Components
Backup Camera Assembly
( Backup camera, solar battery unit )
Car Charger Line (3.5 meters) Battery Charging Cable (1.5 meters ) User Manual
Monitor Monitor Suction MountRemote Control
Solar Wireless
Digital Reversing System
User Manual

2
Micro USB plug
OUTPUT：5V/≥1A
2
Getting Started
2.1 Charge the Battery
Use your existing USB charging port to initially charge your device before you install it on your vehicle and charge
it when needed.
1. Connect the included USB cable to the Micro USB port of the solar battery unit.
2. Plug the USB cable into any standard USB charger with an output rating of 1000mA or higher.
3. Charge for 3 to 4 hours.
In normal use, the camera pack will remain charged while exposed to sunlight. When the backup camera is
working, a battery status indicator will appear on the monitor. If the vehicle is parked in the garage for more than
a month, or the camera is not regularly exposed to the sun, you may need to charge it through the micro USB
charging port before using.

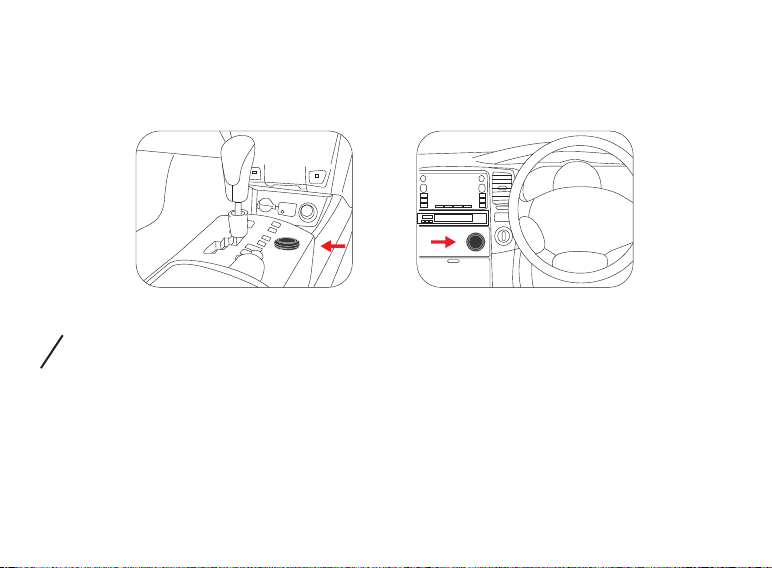

Jump starter
Charging
Full charged

3
Attention：
1. If the vehicle is parked for more than 2 months, turn off the solar battery unit switch to disable the camera and
prevent the battery from discharging.
2. If you use a power bank or a jump starter to charge the device, make sure that its battery capacity is no less
than 4000mA.
2.2 Test the System
To ensure that all components are working properly, please test the
system before connecting the components to the vehicle.
1. When the monitor is powered, the indicator light will light to indicate
that the monitor is on and ready to work.
2. Turn on the solar battery unit switch of the rear camera.The working
indicator light flashes once and then lights up for about 5 seconds
and goes out, which indicates that the backup camera is turned on
and ready to work.
3. Press the remote control once, the indicator light of the monitor flashes twice
and then the monitor displays image. If not, please refer to the troubleshooting
pages of this manual
Note:
By default, the monitor will stop displaying images and enter into standby mode after 60 seconds.

4
3
Installation

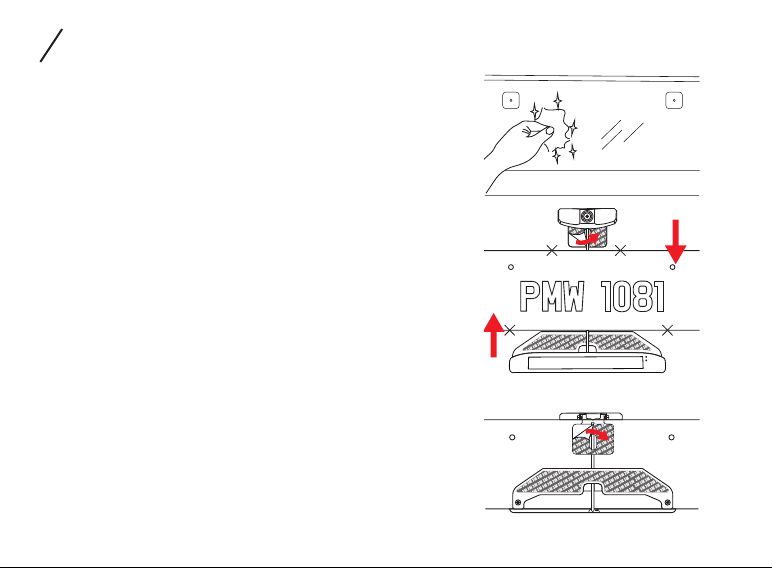

1. Remove the license plate from the vehicle. Clean the
mounting surface of the licence plate on the car.
2.1. Mark the mounting location of the solar battery unit and
backup camera on the license plate.
2.2. Remove the 3M glue on the front of solar battery bracket
and the backup camera bracket.
2.3. Attach the solar battery bracket and the backup camera
bracket to the marking location.
3. Remove the 3M glue behind the solar battery bracket
and the backup camera bracket.

5
3.1 Adjust Camera Angle
Adjust the angle of the camera as needed:
● Tilt the camera to the correct angle.
● The camera should be adjusted to a horizontal position relative to the ground in order to provide the best view
of the objects behind the vehicle.
● Carefully tighten the 2 screws to prevent the camera angle from deviating due to vibration during driving.
4. Put your license plate back on your vehicle and fix it.

3.2 Mount the Monitor
Find a mounting surface where the monitor can be easily seen inside the car, and does not obstruct your vision
when driving.
Note:
Before permanently mounting the monitor, test the reception of the camera signal in several selected locations
within easy reach as one may have better reception than another. Finally, choose the best location with the best
signal reception.
1. Clean and dry the mounting surface before fixing the suction cup bracket.
2. Press the suction cup bracket against the mounting surface and push the suction cup lock lever down to lock
the suction cup.
6
Monitor suction mount: Monitor swivel
Locking lever
Monitor arm
Locking screw
Suction cup base
( 1 ) ( 2 )
