Consort CN2LSTRX User manual

62001210 Iss 02
IF YOUR HEATER DOES NOT WORK
 Check that power is available to the heater. The neon in the control switch should be
illuminated.
 Check that the fuse in the spur unit has not blown. This can be done by replacing the
fuse with another suitable fuse.
 Should neither of the above remedies work, then telephone the helpline number
shown in these instructions (UK ONLY).
 Check that the thermal cut-out has not operated. Follow the reset instructions given
under the section headed ‘Thermal Operated Cut-out’.
 Check that the heater is connected to wireless programmable thermostat CRX2.
Follow the instructions given in the user instruction manual for CRX2.
 Check battery in wireless programmable thermostat. The low battery symbol should
not appear.
 Do not attempt to repair the heater.
CLEANING
Always disconnect the heater from the mains before cleaning.
The heater should not require any maintenance, but it is strongly advised that it is kept
clean. An occasional wipe over with a soft cloth is all that should be necessary.
 Do NOT use metal or furniture polish on any part of the heater
 Do NOT touch the heater with wet hands or in any way bring water into contact with
it.
If the supply cord on this appliance is damaged, it must be replaced by a special cord
which is only available from an Authorised Service Agent, or your supplier.
GUARANTEE
This guarantee is offered to you as an extra benefit and does not affect your legal rights.
All electrical appliances produced for the Company are guaranteed for one year against
faulty material or workmanship. This applies only if the appliance has been used for purposes
in accordance with the instructions provided and has not been connected to an unsuitable
electricity supply, or subject to misuse, neglect, damage or modified or repaired by any
person not authorised by us.
The correct electricity supply voltage is shown on the rating label attached to the
appliance.
CUSTOMER HELPLINE
Should you need any advice on the use of your new Consort product, or should you require
service or repair, please contact our Helpline:
Operating hours: Mon to Thu 8.30am to 4.30pm
Fri 8:30am to 3:30pm
Consort Equipment Products Limited
Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT
Tel: [phone] Fax: [phone]
Email: [email protected]
Web: www.consortepl.com
Quality Space Heaters
Using and looking after your
CN2LSTRX & CN2MLSTRX
2 kW LOW SURFACE TEMPERATURE HEATERS
FOR WIRELESS CONTROL

62001210 Iss 02
OPERATION
This heater can only be used when connected to a CRX2 wireless programmable timer.
Each CRX2 can control any number of heaters. The heater has an indicator light positioned on
the fascia panel. The light may be:
Green -when no heat is needed
Yellow -when some heat is needed to maintain the room temperature
Red -when the heater is on full power
Fast Flashing Red - when the heater has overheated and the Electronic Safety Control
has switched the heater off.
Please refer to the CRX2 user and operating instructions for full operational details.
CONNECTION TO THE MAIN SUPPLY
Electrical installation should be carried out by a competent installer, preferably registered
with NICEIC (National Inspection Council for Electrical Installation Contracting) in accordance
with the 16 edition of the IEE Wiring Regulations, (BS.7671: 1992), and any relevant Local
Authority Bye-Laws.
This heater is fitted with a 3-core mains supply cable and should be permanently
connected to the electricity supply via a double pole switch having 3mm gap on each pole.
A switched Fused Connection unit to BS.1363. Part 4 is a recommended mains supply
connection accessory to ensure compliance with safety requirements applicable to fixed-
wiring installation.
ELECTRONIC SAFETY CONTROL
The appliance is fitted with an Electronic Safety Control (ES). This is a safety device which
switches the heater off if, for any reason, the appliance overheats. The overheating is
indicated by a fast flashing red light. The ES control can only be re-set after the appliance has
cooled down. In order to re-set the ES control, proceed as follows:
 Switch the appliance
off at the mains by using
isolator switch and leave
to cool down for
approximately 5
minutes.
 Switch appliance back
on and the ES control
will re-set.
 Ensure that the
appliance is functioning
correctly. If the ES
control operates again,
the appliance should be
checked by a competent
electrician.
WALL MOUNTING
The heater must not be located
immediately below a fixed socket
outlet.
The Wall Mounting bracket is packed
separately in the carton.

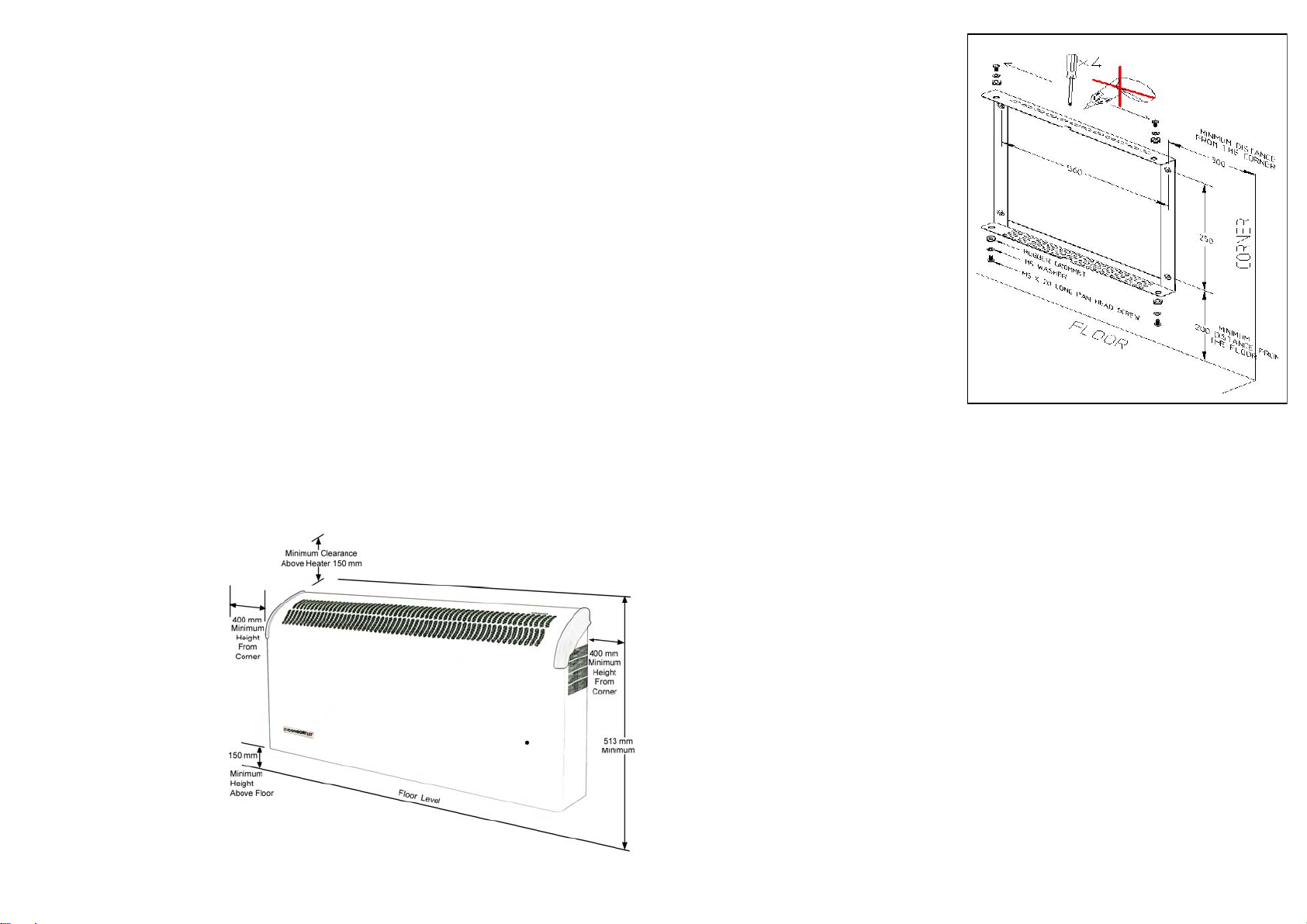

Fit the mounting brackets to the wall at
the height and centers shown in
the diagram.
Rest your appliance on the bottom of
the mounting bracket and secure with
the two top locking screws including the
plain washers. Do not over tighten.
Now secure the appliance with two
bottom locking screws including plain
washers. Do not over tighten.
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: ALWAYS RETAIN YOUR USER INSTRUCTIONS FOR FUTURE REFERENCE
SAFETY
This equipment has been designed and manufactured to the highest international
standards, but, like all electrical appliances which are operated by mains voltage, care must
be taken if you are to obtain the best results and safety is to be assured.
NOTE: The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
Children should be supervised to ensure that they do not play with the appliance
 Do NOT site the appliance into a corner.
 Do NOT site this heater in the immediate vicinity of a bath, a shower or a swimming
pool.
 Do NOT operate the appliance with wet hands.
 Do NOT use the appliance in workshops or rooms where excessive dust is generated
or present.
 Ensure that nothing is pushed into any aperture of this appliance.
 Do NOT touch outlet grille when the appliance is in use.
(NB: the LST heaters have a maximum surface temperature of 430C)
 Do NOT cover or restrict any aperture of the appliance when in use.
 Do NOT use the appliance if damaged.
 Do NOT leave the appliance unattended where young children are present.
This appliance meets the requirements of EU Directive 89/336 for EMC.
