Conti TOUTAUTO 388 Guide

- 01/2010
SACOME, CONFIDENTIAL Document, it is forbitten to duplicate or communicate this document without previous authorization
INSTALLATION - OPERATION
V 1.20

1
1. INSTALLATION...........................................................................................................2
1.1 Machine presentation...............................................................................................................2
1.1.1 Models available...........................................................................................................................2
1.1.2 Accessories supplied with the machine:.......................................................................................2
1.2 Water supply connection..........................................................................................................2
1.3 Boiler volume............................................................................................................................3
1.4 Power connection.....................................................................................................................3
1.5 First installation – Coffee boiler filling......................................................................................4
1.6 Safety for the user....................................................................................................................5
2 OPERATION ..................................................................................................................6
2.1 Presentation .............................................................................................................................6
2.1.1 The machine.................................................................................................................................6
2.1.2 Control panel.................................................................................................................................7
2.1.3 Programming buttons....................................................................................................................8
2.2 Switch on & off..........................................................................................................................9
2.3 Delivery of beverages............................................................................................................ 10
2.3.1 Coffee delivery............................................................................................................................10
2.3.2 Decaf delivery – decaf slot..........................................................................................................11
2.3.3 Tea delivery ................................................................................................................................12
2.3.4 Heating-up a product with steam................................................................................................13
2.3.5 Cappuccino delivery....................................................................................................................14
2.4 Rinsing................................................................................................................................... 15

2
1. INSTALLATION
1.1 Machine presentation
1.1.1 Models available
Standard unit: coffee & hot water
Token slot unit: coffee (+ hot water option)
Combined unit: coffee/hot water / steam
Cappuccino unit: coffee / hot water / steam / milk drinks
1.1.2 Accessories supplied with the machine:
Ref. 466190 Including the following parts:
1 Ref: 132400 Measuring spoon 7gr
1 Ref. 369830 Hose 1M 3/8 FF
2 Ref: 258000 Gasket 8*14.7*1.5
1 Ref: 408247 Angle 3/8M–3/8F brass
1 Ref 406465 Connector bar BJM6 3 poles
2 Ref: 408821 Water hardness tester
1 Ref: 465279 Door key
1 Ref. 466215 Cleaning tablets
1 Ref: 466353 Cleaning brush
1 Ref: 4664002 Technical programming card
1 Ref: 4664003 User programming (BAR) card
1 Ref: 4664004 Download card
Additional accessories for Cappuccino version:
1 Ref. 4652041 125 ml of cleaning product for the cappuccinatore
1 Ref. 465520 Nylon brush diam. 4
1.2 Water supply connection
Main water supply: Water shut-off tap compulsory. Connection: 3/8
Water treatment BRITA recommended
Connect the hose + gasket as shown below,
Connect the drain hose to the bassin outlet,
Open the water supply tap.
Check that there is no leaking before connecting the power supply.
Freestanding version: KIT SOLO: see chapter 14: option Kit solo
Water supply flexible
Ref. 369830
Drain hose

3
1.3 Boiler volume
Steam Boiler : 3.5 liters
Coffee Boiler : 1.2 liters
1.4 Power connection
Connect the machine to the power supply observing the wires Phases / Neutral / Earthing.
s tandard supply: 400 V AC (400 Volts three phase + Neutral) 3P N PE
L1
L2
L3
N
N N
380V
 Switch to 230 V AC (230 V single phase): 1P N PE
Open right side panel.
Place the connector bar (supplied with accessories) on the terminal as shown below:
220V
N
L2
L3
N
L1
N
 Other voltages: See chapter 10: electrical drawings
 When switching the machine on the Display shows:
--------
--------
Cable 5 x 2.5
2
Cable 3 x 2.5
2

4
1.5 First installation – Coffee boiler filling
For the first installation the coffee boiler has to be filled. This operation has to be carried out by a
technician of the CONTI network with the Technical card.
(See chapter 2 - presentation of the control panel).
The display shows:
Insert the Technical card into the reader (under the control panel). The display will show:
Press 5 times " + " to get:
Press ENTER to fill the coffee boiler. The display will show:
Then:
When water is coming out from the coffee outlet, press the blinking key to stop the filling.
The display shows:
Then:
Remove the card from the reader: the display will show:
SET UP
FILLING UP
FILLING UP
Please wait
- - - - - - - -
- - - - - - - -
FILLING UP
Press Stop Button
FILLING UP
Please wait
Filling up
- - - - - - - -
- - - - - - - -

5
1.6 Safety for the user
In order to have an optimal use of the machine, some safety devices have been put in the machine:
IWhen the user remove the coffee ground drawers:
2 cases :
 If the user remove the coffee ground drawer when the machine is on a waiting mode:
The machine return to a normal functionning when the user replace the drawer
(Do not forget to empty it, because the coffee ground counter is erased after 10 secondes)
 If the user remove the coffee ground drawer when the machine is making a coffee:
The machine finishes the coffee in progress
The coffee group do not eject the coffee ground. There is no piston moving
The machine wait for the coffee ground drawer, to be replaced.
The machine come back to the "waiting mode" when the user put the coffee drawer
The On/Off touch must be pushed to activate the machine
(as the same: Do not forget to empty the coffee drawer,…)
II When the user opens the door :
When the user opens the door, the machine stops any operation immediately.
The machine goes back in waking state, when the user closes again the door.
The display shows:
To reactivate it, it is necessary to press on button ON/OFF located under the machine.
--------
--------

6
2 OPERATION
2.1 Presentation

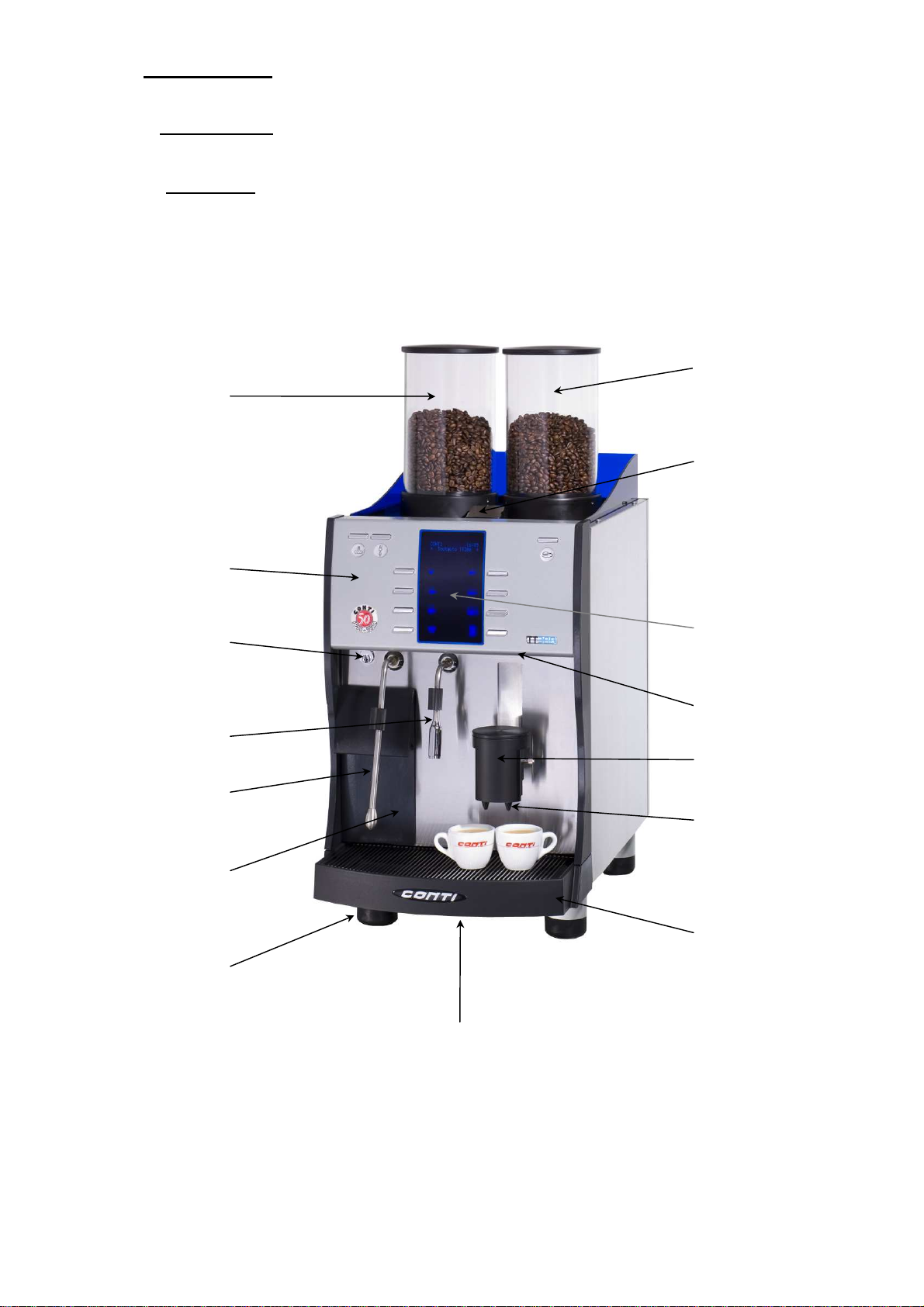

2.1.1 The machine
Coffee outlet
Height
adjustable outlet
Lock with key
Hot water outlet
Control panel
Decaf’ slot
Basin
Feet
ON/OFF switch
(under the basin)
Indicator
Card reader
Coffee hopper
for left grinder
Coffee hopper
for right grinder
Steam outlet
Coffee
grounds
drawer

7

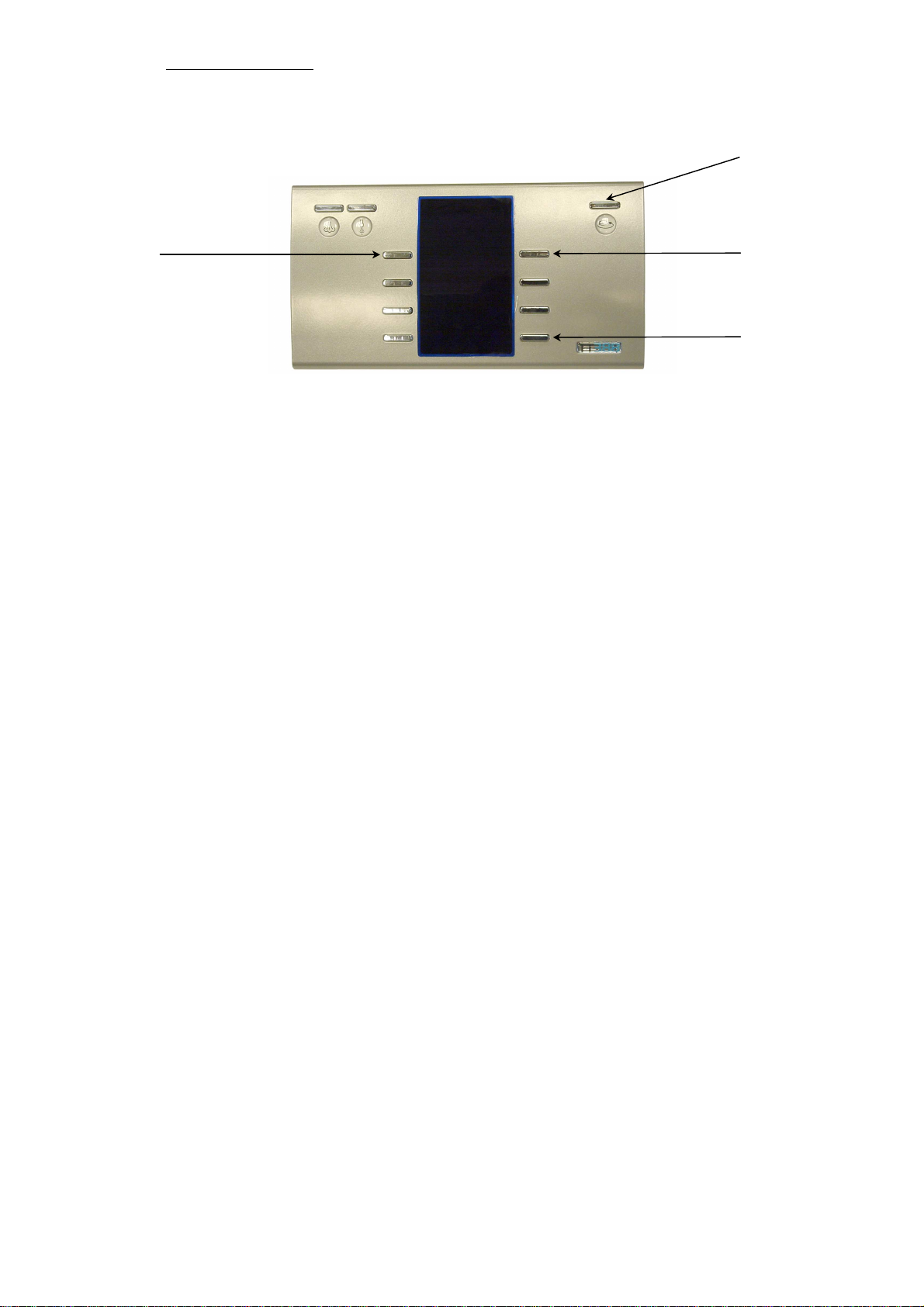

2.1.2 Control panel
RINSING / CLEANING :
Simple click: to carry out 1 or several Rinse cycles according to the programmation.
Keep pressed 5 sec: to carry out 1 or several Clean cycles according to the programmation.
STEAM :
Simple click: Delivers steam for a programmed time T1 (to be programmed).
Double click: Delivers steam for a programmed time T2 (to be programmed).
HOT WATER:
Simple click: Delivers hot water for a programmed time T1 (to be programmed).
Double click: Delivers hot water for a programmed time T2 (to be programmed).
8 PRODUCT BUTTONS:
To deliver coffee beverages (according to the machine version)
Double click: same product delivered
But different quantities (to be programmed)
Usually used for double quantity of a product
ON/OFF SWITCH:
To switch the machine on and off.
DISPLAY
CLEANING
/ RINSING
STEAM / HOT
WATER
8 DUAL PRODUCT
BUTTONS
CARD READER
STEAM / HOT WATER

8
2.1.3 Programming buttons
Function of the buttons in programming mode:
+ and - : To change the values of the parameters.
To browse and choose a menu.
ENTER : To choose the programm
To go forward in the menu
ESC : To go back in the programmation

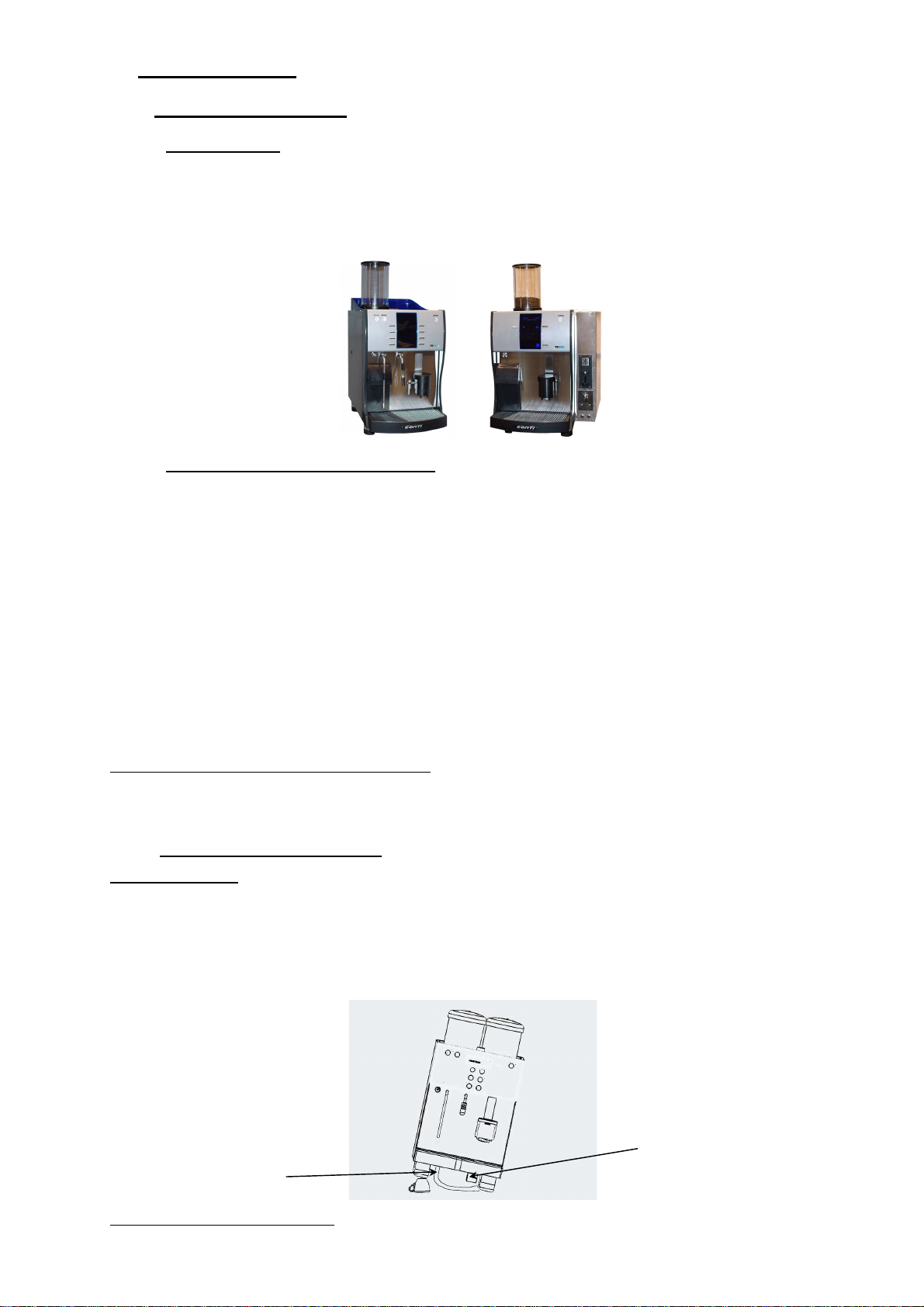

Under the machine :
ON/OFF : To go back in the programmation
+
-
ENTER
ESC

9
2.2 Switch on & off
Switch on:
Machine switched off: the display shows:
Press ON/OFF under the machine. The group will be initialized. The display will show for a moment:
Then the display will show:
The asterisks indicate that the machine is heating.
Left asterisk: coffee boiler
Right asterisk: steam boiler
When the machine reach within 3 minutes the required temperature, the left asterisk disappear. The
machine is ready for coffee delivery.
Switch OFF:
The machine has to be switched OFF when it is not used.
Shut the main water supply.
Press ON/OFF under the machine to switch off the machine:
The display shows:
Programmation of AUTOMATIC ON/OFF SWITCHING:
(See chapter 3: programmation)
Stillstand of the machine for a certain period:
Disconnect the power supply (remove the electric cord)
Shut the main water supply
If the temperature goes below 5°C, empty the water circuit in the machine.
--------
--------
CONTI HH:mm
* Toutauto TT388 *
--------
--------
Steam boiler filling

10
2.3 Delivery of beverages

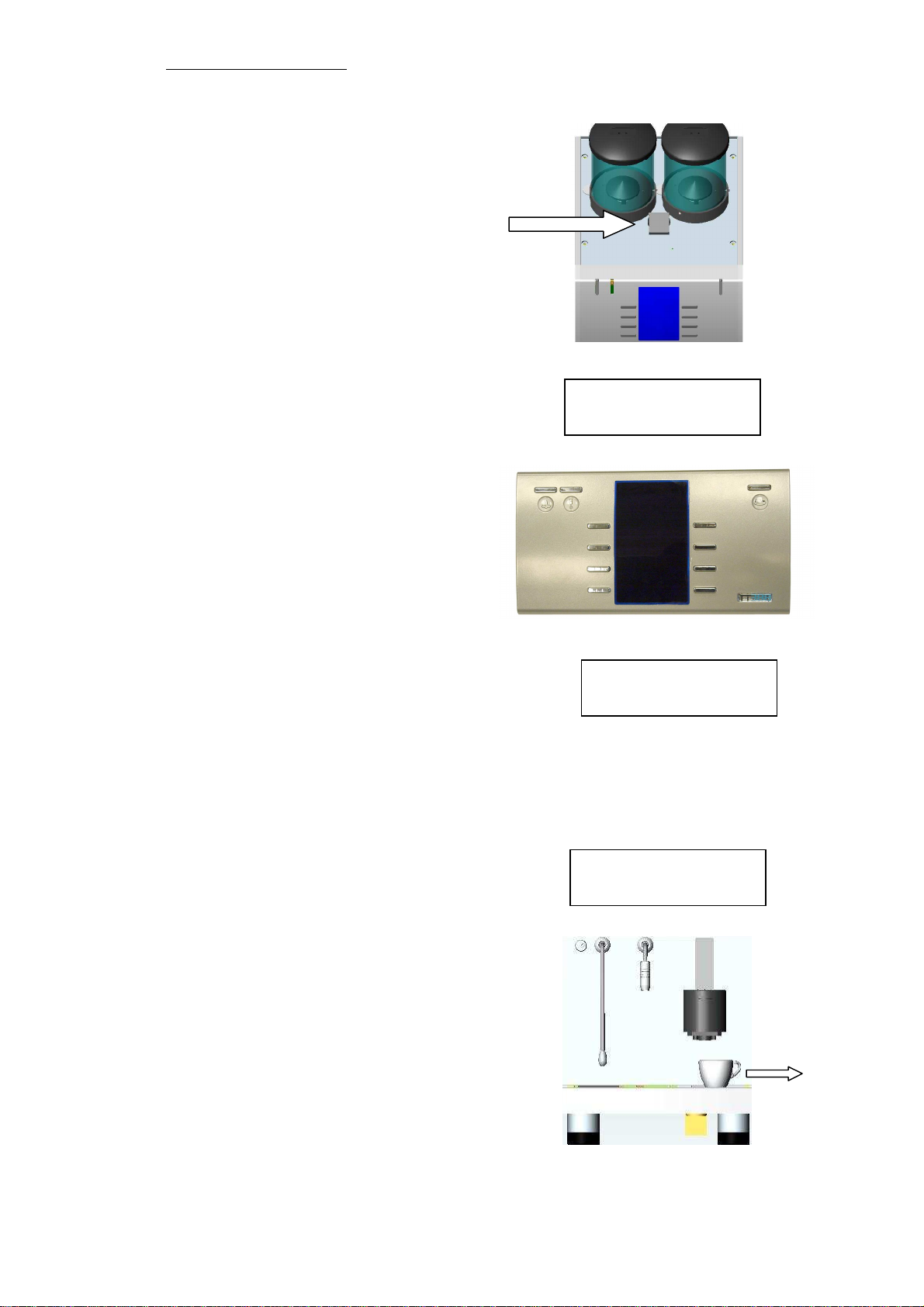

2.3.1 Coffee delivery
The machine is switched on and ready.
The display shows:
Place the cups beneath the coffee outlet:
Press the coffee button:
Simple click: one espesso
Double click: 2 of the same product
(if the option is activated)
The display will show the product delivered:
For example: double click on Espresso button
Remove the cups:
CONTI HH:mm

Espresso ( * 2 )

11
2.3.2 Decaf delivery – decaf slot
With the measuring spoon fill into the slot a
measure of decaffeinated coffee powder (8 grams)
The machine is switched on and ready.
The display shows:
Place the cups beneath the coffee outlet:
Press the Decaf button:
No double click for this function.
The display will show:
At this moment:
Open the slot cover.
Insert the coffee ground with the measuring spoon
Press again the decaf button.
(If the button is not pressed within 10 seconds, the machine will be reinitialised)
The decaf is delivered.
The display shows:
When the cycle is finished remove the cups:
CONTI HH:mm
Insert coffee
Press again
Decaf


12
2.3.3 Tea delivery
The machine is switched on and ready.
The display shows:
Place a pitcher beneath the water outlet:
Press the tea button:
The hot water is flowing.
The display shows:
Simple click or double click: delivery of different measures:
The measures are controlled by the flow time (sec)
The cycle is finished when the programmed
measure is reached. The display shows:
Remove the pitcher:
Tea



CONTI HH:mm
CONTI HH:mm

13
2.3.4 Heating-up a product with steam
The machine is switched on and ready.
The display shows:
Plunge the steam wand into the cup or the pitcher:
Press the steam button:
The machine delivers steam.
The display shows:
Simple or double click: delivery of different
quantities of steam.
The quantity is controlled by the delivery time (sec).
When the delivery time is passed, the steam
delivery will stop.
Remove the pitcher.
STEAM

CONTI HH:mm

14
2.3.5 Cappuccino delivery
The machine is switched on and ready.
The display shows:
Place the cappuccino cup beneath the outlet.
Adjust the height of outlet according to the height of
the cup.
Press the Cappuccino button:
Simple click: 1 cappuccino
Double click: a double cappuccino
(if the option is activated)
The display will show the product delivered:
Remove the cup when the cycle is finished:
CONTI HH:mm

Cappuccino ( * 2 )

15
2.4 Rinsing
The rinsing has to be carried out regularly (see chapter Maintenance)
After a certain number of coffees delivered
After a stillstand of the machine
The machine is switched on and ready.
The display shows:
The rinse button is at the right upper side
Press the RINSE button (simple click)
The machine carries out a rinse cycle.
The display shows:
According to the machine parameters:
1 or several cycles can be carried out.
The rinse cycle can be programmed automatically (see programmation).
The cycle includes several pauses:
The machine seams to be waiting, the rinsing is not yet finished.
The cycle is finished when the display shows:
CONTI HH:mm

Rinsing
CONTI HH:mm
