Converters.TV 750 User manual

DVI over CAT5 Transmitter - ID# 750
DVI over CAT5 100m Receiver Box - ID# 752
Operation Manual

Introduction
DVI transmitter and receiver over CAT 5 is a pair of extender for DVI
signal - up to 100 meters long. Not onl can this device transfer the HD
image signal but also the analog/digital audio signal with coaxial and
L/R audio port. This extender is perfect for extending high resolution
digital displa with cr stal clear images over low cost CAT5 solution
Applications
 For long distance DVI source displa in a separate room or class.
 For long distance digital and analog sounds transferring up to 100M long.
 An PC source equipment with output DVI connector.
System
Requirements
PC/DVI source with DVI output connector, DVI to DVI cable(s), CAT 5 cable(s)
and DVI displa monitor.
Features
 Compliant with HDMI 1.2, and DVI 1.0 specifications.
 Support Equalizer, and Gain adjustment.
 Supports high definition input up to 1080P/WUXGA, output resolution
follows input.
 Eas to install and simple to operate.
 Connect CAT 5 back to DVI without signal loss after 100 meter's
transmission.
 Not compatible with HDCP Source.
 Build-in EDID at transmitter.
 Support both external Coaxial and Stereo Sound.

Operating Functions
and
Controls

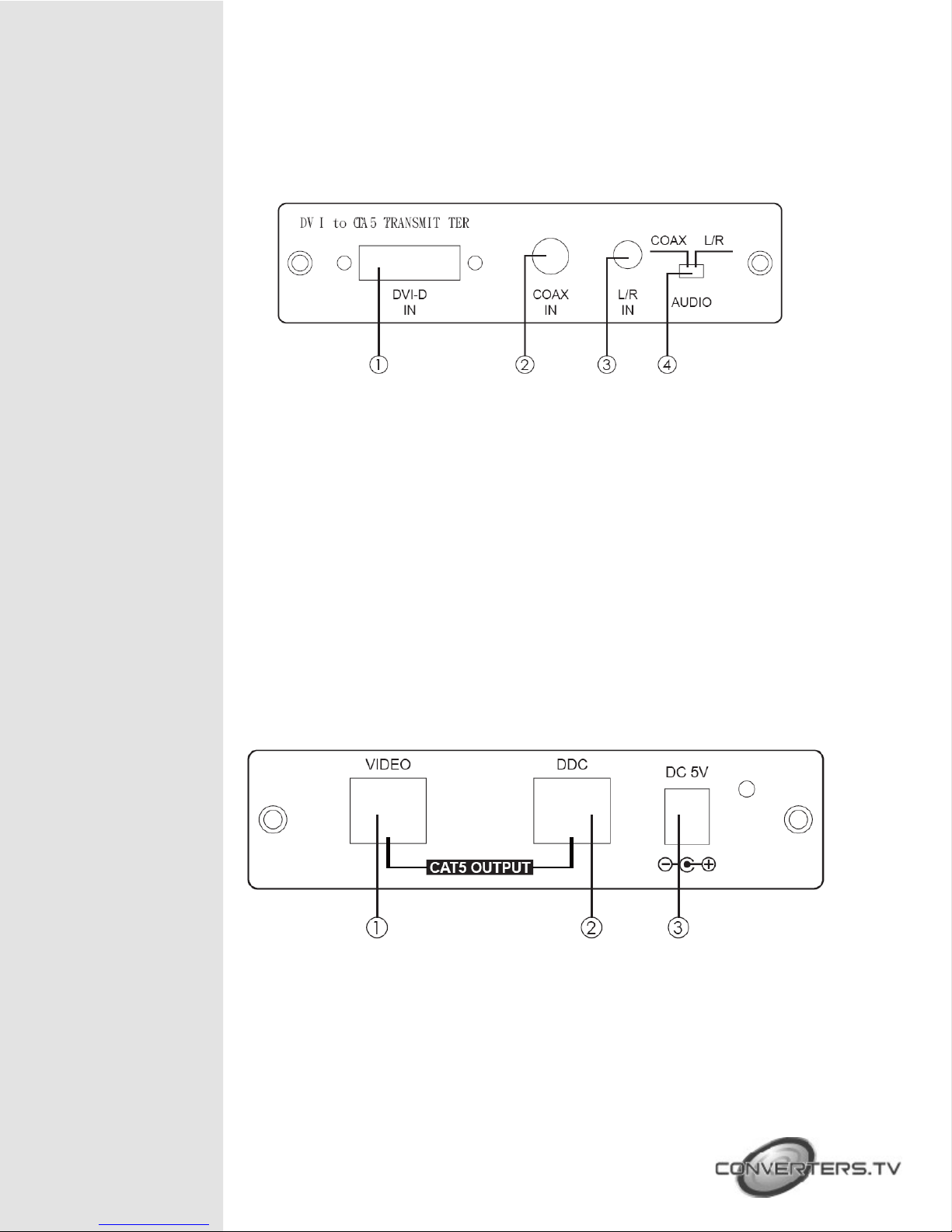

Transmitter’s Front Panel
① DVI-D IN – Plug from DVI/HDMI source equipment’s video output with DVI
in cable.
② COAX IN – Plug from DVI/HDMI source equipment’s audio output with
coaxial cable.
③ L/R IN – Plug from DVI/HDMI source equipment’s audio output with L/R
phone jack cable.
④ AUDIO switch – Switch our audio source b COAX in or L/R in.
Note 1.When Coax-in's audio format is bitstream (AC3, DTS and....etc.) Coax-
out will perform the some format, but L/R out will perform no sound therefore,
audio source format will need to be change to LPCM in order to get L/R out
to perform.
2.When inputing HDMI Source with audio signal throug HDMI to DVI-D adaptor
and output DVI-D with DVI-D to HDMI adaptor, the audio will remain with
HDMI instead of COAX or L/R IN.
Tr ansm it t er’ s Re ar Pan el
①VID O C AT 5 OUTPUT- c onn ect the VIDE O outpu t to th e V ID EO i npu t
of receiver with CAT-5/CAT-5E cable.
②Power Jack – Connect with 5V / 2.6A power adaptor with power suppl .
Note 1.When using video connector onl for signal transmit with
transmitter and receiver, the DVI-D output signal will have auto HDCP
protection.
2.When using both video and DDC connector for signal transmit

with transmitter and receiver, the DVI-D output signal's HDCP protection will
depend on input signal.
● Input with HDCP protection, Output with HDCP protection.
● Input without HDCP protection, Output without HDCP protection.
Receiver’s Front Panel
① EQUALIZER – Use this switch to adjust Sharpness/Peak over long distance
b turning right or left.
②GAIN – Use this switch to adjust Brightness/Contrast b turning right or left.
③VIDEO CAT 5 INPUT – Connect the VIDEO input to the Video output of the
transmitter with CAT-5/CAT-5E cable.
(Suggest using solid UTP CAT5 cable for better performance)
④Power Jack – Connect with 5V / 2.6A power adaptor with power suppl .
Receiver’s Rear Panel
① DVI-D OUT – Connect to DVI displa monitor with DVI cable.
②COAX OUT – Connect to audio amplifier or audio equipment’s input with
coaxial cable.
③L/R OUT – Connect to audio equipment’s input with 3.5mm phone jack.

Connection and
Installation

Specifications
Transmitter Input port 1 x DVI-I female port (Accept DVI-D signal
only)
1 x Coaxial
1 x L/R Audio
Transmitter Output port 2 x CAT5 RJ 45 8pin
Receiver Input port 2 x CAT5 RJ 45 8pin
Receiver Output port 1 x DVI-I female port (Output DVI-D Signal
only)
1 x Coaxial
1 x L/R Audio
Resolution HD- 480i/p 60, 576p 50, 720P 50/60,
1080i 50/60Hz, 1080p 50/60Hz
PC- 640 x 480=VGA72, VGA75, VGA85
800 x 600=SVGA56, SVGA60, SVGA72,
SVGA75, VGA85
1024 x 768=XGA60, XGA70, XGA75,
XGA85
1280 x 1024=SXGA60, SXGA75, SXGA85
1600 x 1200=UXGA60
1920 x 1200=Reduced blanking WUXGA
Power Supply 5V / 2.6A DC power supply
Dimensions (mm) 125 x 130 x 30 / each
Weight (g) 700 /each
Material Aluminum
Color Silver
Power Consumption Transmitter 7W
Receiver 6W
