Converters.TV 948 User manual

HDMI HD Wireless Transmitter
& Receiver System - ID# 948
Operation Manual

Introduction
Wireless HD AV Transmitter & Receiver Kits run at 5GHz operation
frequency to deliver uncompressed HD video audio 20 meters open field
and 10 meters through wall with hidden antenna. This device kits make
wireless connection by using WHDI Technology from HD Media Source
Devices such as HD Disc Player, PC, Game Console, Settop Box to Display
Device for example LCD, Plasma or LED TV, Projector... while keep wire-
equivalent quality and no latency
Features
•The Wireless HD AV Transmitter & Receiver Kit allows you to stream
your HD contents wirelessly from HD media devices to your
television.
•It is ideal when your media player is located in your living room,
while you want to watch your Full HD movies on your LCD, Plasma
or LED television in your bedroom. You can just install the
Wireless HD Transmitter and Receiver Kit and let the air do the
work. Furthermore, you can operate the media player with the
original remote control in your bedroom.
•Up to four different HD media devices such as HD media player,
Blue-ray player, Settop Box and game Console can be connected to
the transmitter unit via enclosed 4port HDMI switch. You can select
one video source to be sent wirelessly to the television which
connected with the receiver unit. And you can also choose
another video source and display it on the TV which connected
with the output port on the switch unit with an HDMI cable (Note:
Only one HDMI cable is included in the package).
•Support HDMI 1.3 video format and HDCP 1.2 with video
encryption.
•Support video resolution up to 1080p (30fps 60fps)

Operation Controls
and Functions
Transmitter
Image 1
1. IR: Connect with IR Out port (9 in Image 3) of the HDMI Switch.
Note: If you are not using enclosed HDMI Switch, you can only connect
one HD Media Device with the Transmitter unit: Please connect the IR
port with enclosed Infrared Eye Cable and place the IR flasher close to
the IR sensor of the Media Device. Then you can control the Media
Device by using its remote control at the Wireless Receiver side.
2. HDMI IN: Connect with HDMI Out B port (10 in Image 3) of the
HDMI Switch. Note: If you are not using enclosed HDMI Switch, please
connect this port with your HD Media Device by HDMI Cable directly.
Connect to the HDMI equipped source equipment such as DVD or Blu-
ray player.
10 LAN 1/2/3
The LAN connections can e used to connect and share up to 6
ethernet connections (3 at the receiver end, 3 at the transmitter end),
including computers, routers and media servers.
Connection
3. DC IN: Connect with DC Power port (11 in Image 3) of the HDMI
Switch.
Note: If you are not using enclosed HDMI Switch, please connect this port
with enclosed power supply (DC 5V Power Adapter).

1 . ON OFF Switch: Power on off the Wireless Transmitter unit.
2 . Wireless Link Indicator: Indicate that the wireless connection is linked
up.
3 . Video Signal Indicator: Indicate that the video signal connection is
linked up.
4 Power Indicator: Indicate when the Wireless Transmitter Unit is
powered on.
5 Future use.
Receiver
Image 2
1 HDMI OUT: Connect with a Display Device (e.g. LCD, Plasma or LED
TV) via HDMI cable.
Note: The display device should have an HDMI IN port.
2 DC IN: Connect with the power supply (enclosed DC 5V Power
Adapter).
3 ON/OFF Switch: Power on off the Wireless Receiver unit.
4 Video Signal Indicato : Indicate that the video signal connection is
linked up.
5 Wi eless Link Indicato : Indicate that the wireless connection is linked
up.
6 Powe Indicato : Indicate when the Wireless Receiver Unit is powered
on.
7 IR Senso : IR sensor for receiving IR signal from the Remote Control of
your HD media device.
8 Future use.

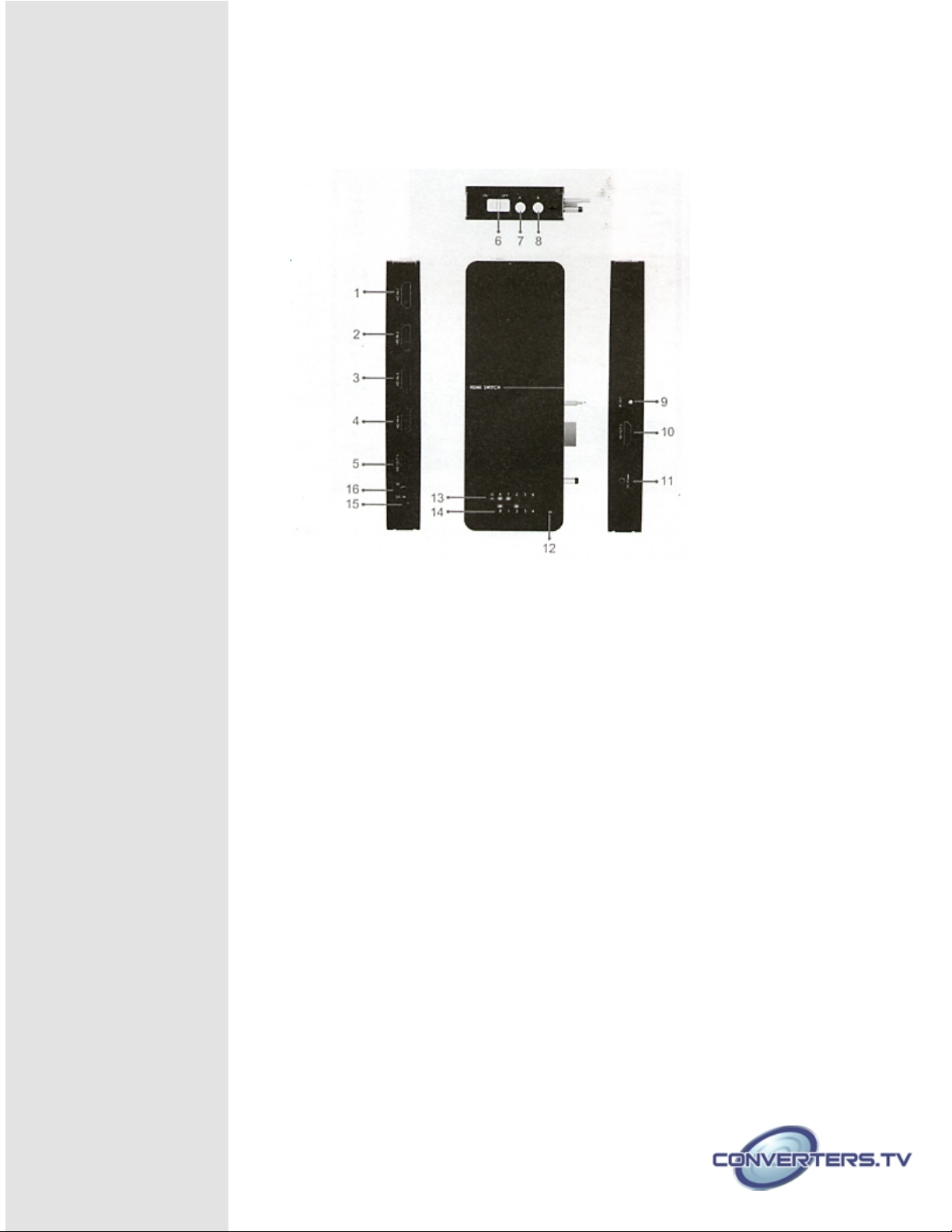

Matrix 4 In 2 Out HDMI Switch
Image 3
1. HDMI IN 1: Connect with HD Media Device via HDMI Cable.
2. HDMI IN 2: Connect with HD Media Device via HDMI Cable.
3. HDMI IN 3: Connect with HD Media Device via HDMI Cable.
4. HDMI IN 4: Connect with HD Media Device via HDMI Cable.
5. HDMI OUT A: Connect with Display Device directly via an HDMI Cable. It
can output any Media Source from the HD Media Devices connected with
the 4 HDMI IN ports of the switch.
6. ON OFF Switch: Power on off the HDMI Switch.
7. A Channel Selection Button: Press the button to switch the media source
from HDMI IN 1 to HDMI IN 4 manually. The selected media source will be
output from the HDMI OUT A port.
8. B Channel Selection Button: Press the button to switch the media source
from HDMI IN 1 to HDMI IN 4 manually. The selected media source will be
sent to the Display Device connected with the Receiver unit wirelessly.
9. IR Out: Connect with the IR port on the Wireless Transmitter unit.
10. HDMI OUT B: Connect with the HDMI IN port on the VVireless
Transmitter unit.
11. DC Power: Connect with the DC IN port on the Wreless Transmitter
unit.

12. IR Remote Sensor: Work with enclosed remote control for media
source selection.
13. A Channel Indicator: Indicate selected media input source for HDMI
OUT A output.
14. B Channel Indicator: Indicate selected media input source for HDMI
OUT B output.
15. DC IN: Connect with the power supply (enclosed DC 5V Power Adapter).
16. I : Connect wit IR Extender Box. User can control up to 4 HD Media
Devices by using t eir original remote control at t e Wireless Receiver side.
Please find detailed connection guide of t e IR Extender Box in t e c apter
below.

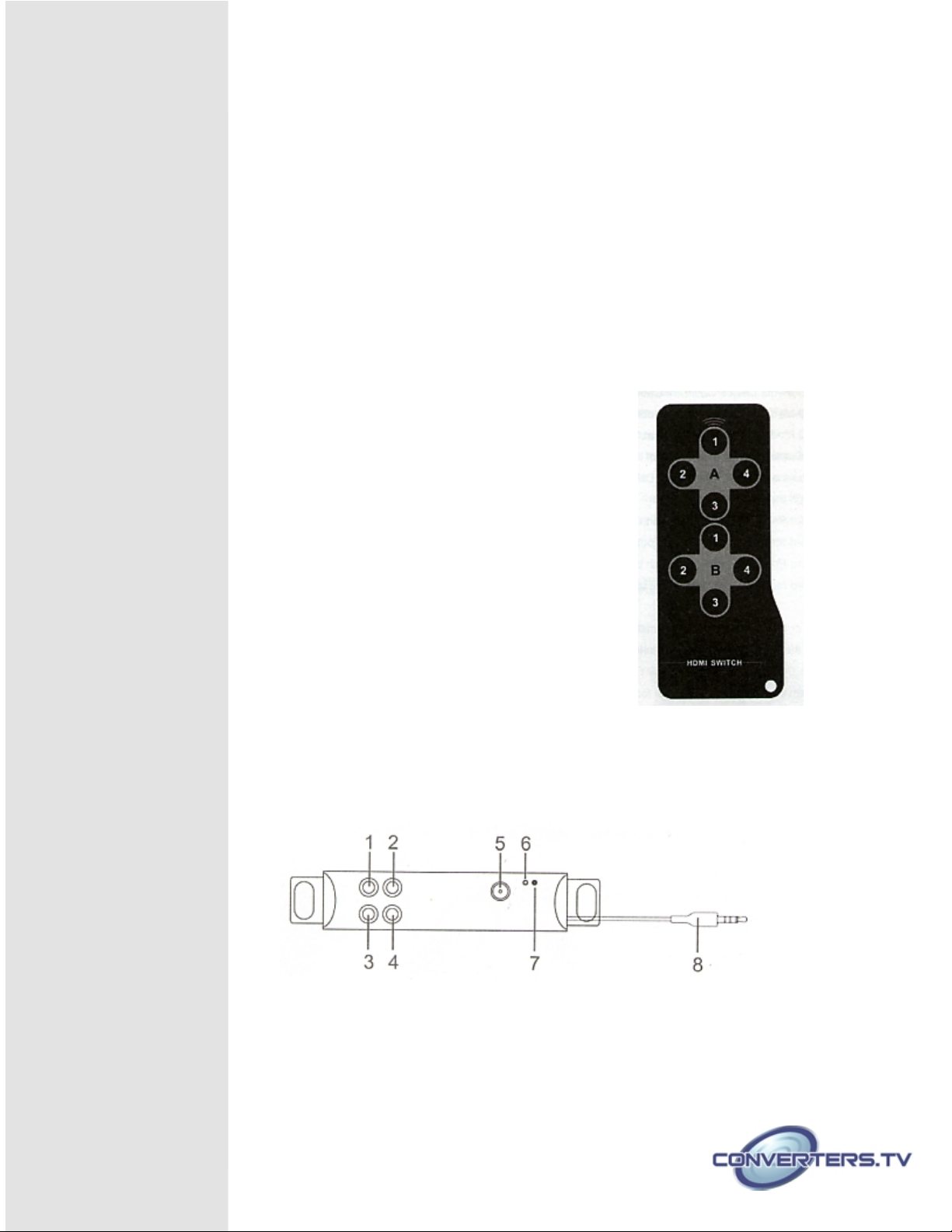

emote
1.A-1 Select HDMI IN 1 device. Connect HDMI IN
1 to HDMI OUTA Channel.
2.A-2 Select HDMI IN 2 device. Connect HDMI IN 2 to
HDMI OUT A Channel.
3.A-3 Select HDMI IN 3 device. Connect HDMI IN 3 to
HDMI OUT A Channel.
4.A-4 Select HDMI IN 4 device. Connect HDMI IN
4 to HDMI OUTA Channel.
5.B-1 Select HDMI IN 1 device. Connect HDMI IN 1 to
HDMI OUT B Channel.
6. B-2 Select HDMI IN 2 device. Connect HDMI IN 2 to
HDMI OUT B Channel.
7. B-3 Select HDMI IN 3 device. Connect HDMI IN 3 to
HDMI OUT B Channel.
8. B-4 Select HDMI IN 4 device. Connect HDMI IN 4 to
HDMI OUT B Channel.
IR Extender Box
Note: You only need to use the IR Extender Box when you use the Transmitter unit with the HDMI
Switch.
1-4. IR: Connect up to 4 HD media devices with enclosed IR extension
cables. Place the IR flasher on the extension cables close to the IR
receivers of the media devices.
5. DC IN: Connect with the power supply (enclosed DC 5V Power
Adapter).
6. Link Indicator: Indicate IR signal connection.

7. Power Indicator: Indicate when the extension box is powered on.
8. IR Plug: Connect with IR port on the Switch (16 in Image 3)
Image 6

Installation Diagram for Matrix Display
How to install the Transmitter unit:
•You can connect up to 4 HD media devices with the Wireless Transmitter unit
via the HDMI Switch.
•Plug the HDMI Switch to the Transmitter unit and place them near your
HD media devices.
•Connect your HD media devices with the HDMI Switch via HDMI Cables.
•Connect IR Extender Box with your HD media devices via enclosed IR
Extension Cables. Please place the IR flasher on the extension cables close
to the IR receivers of your HD media devices.
•Connect the IR Extender Box with the IR port on the Switch.
•You can connect one display device (Display A) with the Switch via the HD
OUT port. It can show video source from HD IN 1 to HD IN 4.
How to install the Receiver unit:
•Place the Receiver unit near your display device (Display B).
•Connect the HDMI cable to the 'HD OUT' port of the Receiver unit.
•Connect the other side of the HDMI cable to the HDMI connection of
your display device (Display B).
•Now connect the power supply of both the Transmitter and Receiver unit
to a wall outlet and to the 'DC IN' connection of the Transmitter and
Receiver unit.

Standard Package
Image 7
Installation Diagram for Single Display
How to install the Transmitter unit:
•Place the Transmitter unit near your HD media device.
•Connect the Infrared Eye Extension Cable to the 'IR' port on the
Transmitter unit.

•Place the IR flasher near the IR receiver of the HD media devices.
•Connect the HDMI cable to the 'HD IN' connection of the
Transmitter unit.
•Connect the other side of the HDMI cable to your HD media
device.
How to install the Receiver unit:
•Place the Receiver unit near your display device.
•Connect the HDMI cable to the 'HD OUT' port of the Receiver unit.
•Connect the other side of the HDMI cable to the HDMI connection
of your display device.
•Now connect the power supply of both the Transmitter and Receiver
unit to a wall outlet and to the 'DC IN' connection of the Transmitter
and Receiver unit.
Using Wireless HD AV Kit
The Wireless HD Transmitter & Receiver Kit has now been setup. You can
enjoy the full potential of wireless Full HD streaming!
Make sure all devices have been started. Bear in mind that starting the
Transmitter & Receiver Kit can take up to 12 minutes.
Use enclosed remote control to select the video source from HD IN 1 to
HD IN 4 to display on Display A. You can also use the remote control to
select the video source for showing on Display B.
Please make sure you have chosen the right video channel on your display
device. If correct, the screen or main menu of the media device will be
shown between 5 to 10 seconds when change media source.
You can control the media device with its original remote control at the
Receiver side.

Specifications
Video Format Support
TV: 1080p, 1080i, 720p, 576p, 480p PC:
VGA(640x480), SVGA(800x600),
XGA(1024x768), SXGA(1280x1024)
Audio Format Support PCM, DTS, DOLBY DIGITAL
F Communication SystemMIMO
Modulation OFDM
Maximum Transmission
Power 12dBm
Image Transmission
Distance
30 meters open field and 10 meters t roug
wall
Image Delay < 1 ms
Antenna Hig Performance Internal Antennas
Operating Frequency 5.1GHz to 5.9GHz
I Carrier Modulation
Frequency Support 38KHz
Power Supply AC In 100-240V, DC Out 5V Power Adapter
Operation Temperature 0 V to 40 V
FAQ
Q: How to eset the device?
A: Shut down the Transmitter and Receiver units by slide the power switch to
OFF. Wait for a few second and slide the power switch's to ON again.
Q: Why I cannot control my media device at the Receiver side?
A: Please check the Transmitter side. If you are not using the switch, please
make sure the Infrared Eye Ca le is connected with the IR port and the IR flasher
is placed close to your media device's IR receiver. If you are using the HDMI
switch, please check the connection etween the IR Extender Box and the
switch. Please also check the connection etween the IR Extender Box and
your media devices IR receivers.
