COOLIUS Y10 User manual

Doc.No.: 22082-Rev.03.02
Original operating instructions
Operating manual
Y10
A/C service-units for refrigerant R1234yf

2COOLIUS Y10
Introduction
Dear Customer,
Thank you for purchasing this product.
To ensure this condition and ensure safe operation, you must observe these operating instructions!
Read the entire operating instructions before using the machine for the rst time. Observe all operating
instructions and safety instructions!
All company names and product names are trademarks of their respective owners. All rights reserved.
If you have any questions, please contact the respective service partner of your country
See chapter 9 Con-
tact and support p. 40.
This machine meets the requirements of valid EU directives.
2014/68/EU (PED)
2006/42/EU
2014/30/EU
2014/35/EU
The declaration of conformity can be obtained from: www.coolius-ac.com
WOW! Würth Online World GmbH
Via della Punta 6/2
48018 Faenza (RA)
Italy

3COOLIUS Y10
Contents
1 Important notes on the operating instructions..............................................................................................................5
The purpose of this operating manual is: .....................................................................................................................5
Disclaimer ................................................................................................................................................................................5
1.1 Important information about refrigerant...........................................................................................................................6
Safety Classication and information about refrigerant:.........................................................................................6
1.2 Symbols ......................................................................................................................................................................................7
1.3 Intended use ............................................................................................................................................................................7
2 Important safety instructions .................................................................................................................................................7
2.1 Glossary of terms ....................................................................................................................................................................7
2.2 General safety rules ...............................................................................................................................................................8
2.3 Guidelines for handling refrigerants .................................................................................................................................8
2.4 Safety devices ..........................................................................................................................................................................9
2.5 Not condensable gas discharge ........................................................................................................................................9
2.6 Ventilation safety system......................................................................................................................................................9
2.7 The work environment...........................................................................................................................................................9
3 Use of the machine .................................................................................................................................................................. 10
3.1 Unpacking and checking the components .................................................................................................................. 10
3.2 Machine description............................................................................................................................................................. 10

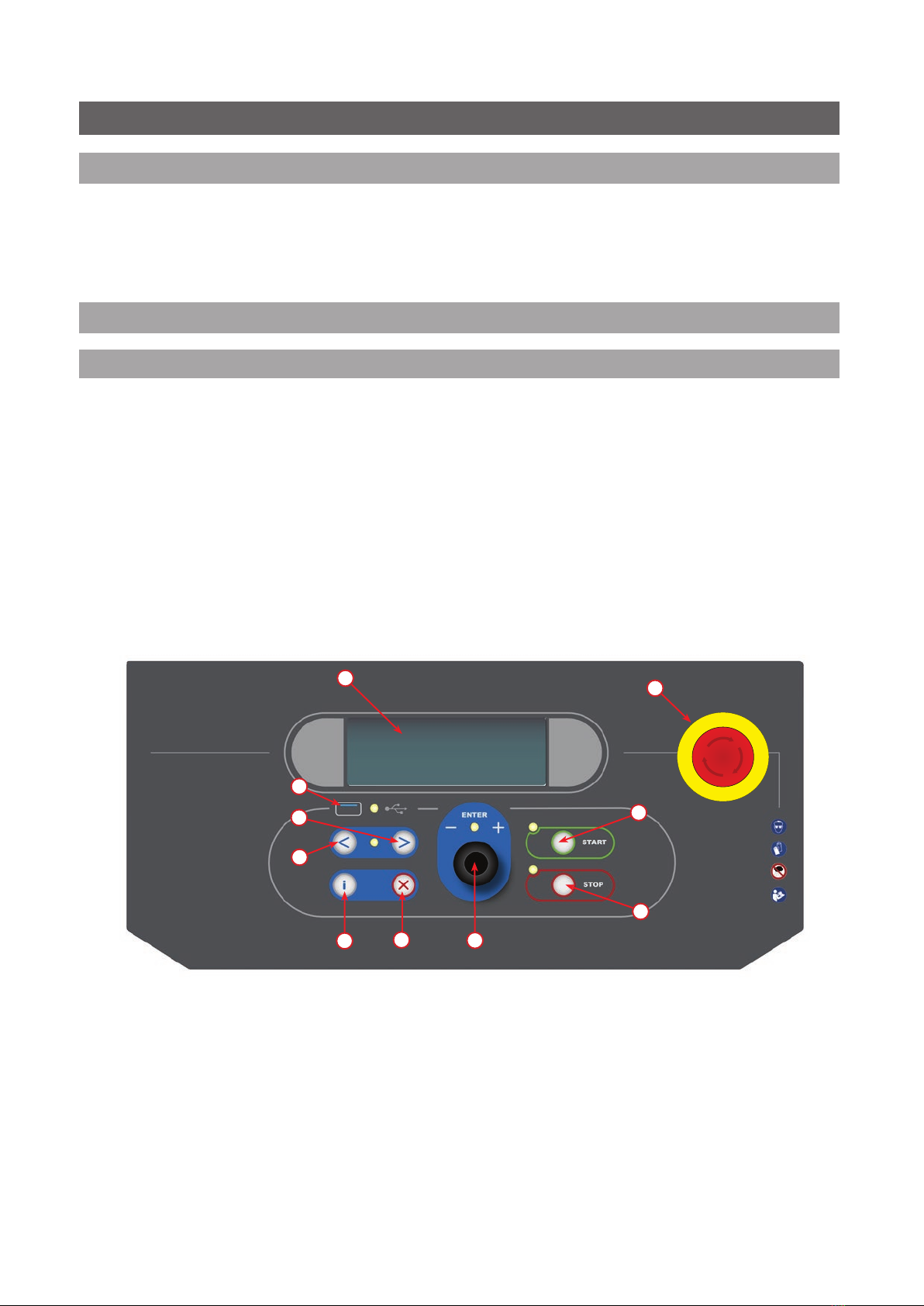

3.2.1 Control panel .................................................................................................................................................................. 10
3.2.2 The machine....................................................................................................................................................................11
3.2.3 Transport lock................................................................................................................................................................. 12
3.3 Machine handling ................................................................................................................................................................. 12
3.4 On/O󰀨 and stopping ............................................................................................................................................................ 12
4 Preparation for the use and settings ............................................................................................................................... 13
4.1 Switch on the machine ....................................................................................................................................................... 13
Switch on the machine for the rst time..................................................................................................................... 13
4.2 Using the printer.................................................................................................................................................................... 14
Unlocking the machine..................................................................................................................................................... 14
4.3 Download the service report ............................................................................................................................................ 15
4.4 Program selection ................................................................................................................................................................ 17
Overview of the menu contents .................................................................................................................................... 17
4.5 Setting....................................................................................................................................................................................... 18
4.5.1 Machine set-up .............................................................................................................................................................. 18
4.5.2 Time-Date
....................................................................................................................................................................... 19
4.5.3 Company data................................................................................................................................................................ 20
4.6 Maintenance messages..................................................................................................................................................... 20
4.7 Error messages..................................................................................................................................................................... 21
4.8 Vessel charge ........................................................................................................................................................................ 21
5 Programs
...................................................................................................................................................................................... 23
5.1 New oil bottle change ........................................................................................................................................................ 23
5.2 Fast service ............................................................................................................................................................................ 24
Recovery ............................................................................................................................................................................... 24
Vacuum / A/C system charge......................................................................................................................................... 24
5.3 Full service.............................................................................................................................................................................. 26
5.4 A/C database ........................................................................................................................................................................ 27
5.5 Owner Database................................................................................................................................................................... 28
5.5.1 Creation of a vehicle.................................................................................................................................................... 28

4COOLIUS Y10
5.5.2 Selection of a vehicle .................................................................................................................................................. 29
5.5.3 How to modify or delete a saved vehicle ............................................................................................................. 29
5.6 Open program ...................................................................................................................................................................... 30
5.6.1 Recovery.......................................................................................................................................................................... 30
5.6.2 Vacuum............................................................................................................................................................................. 31
5.6.3 A/C system charge....................................................................................................................................................... 31
5.6.4 A/C pressure test .......................................................................................................................................................... 31
5.7 A/C ushing (UNLOCK CODE required) ..................................................................................................................... 32
6 Maintenance
................................................................................................................................................................................ 33
6.1 Operation history .................................................................................................................................................................. 33
6.2 Next service............................................................................................................................................................................ 34
6.3 Counter reset (UNLOCK CODE required) .................................................................................................................. 34
6.4 Filter replacement................................................................................................................................................................. 35
6.5 Vacuum pump oil replacement........................................................................................................................................ 36
6.6 Report....................................................................................................................................................................................... 37
6.7 Scale reset ............................................................................................................................................................................. 37
7 Technical features..................................................................................................................................................................... 38
8 Disposal ......................................................................................................................................................................................... 39
8.1 Storage for long periods .................................................................................................................................................... 39
8.2 Disposal of used uids........................................................................................................................................................ 39
8.3 Disposal of packaging material ....................................................................................................................................... 39
8.4 Scrapping the old unit......................................................................................................................................................... 39
9 Contact and support.............................................................................................................................................................. 40
9.1 Service Portal COOLIUS-AC.COM .............................................................................................................................. 40

5COOLIUS Y10
1 Important notes on the operating instructions
COOLIUS Y10 (the machine) has been designed and built to ensure long lasting, high-level operating
reliability with maximum safety for user.
This operating manual is part of the machine.
Read carefully before use.
• The user is responsible for the proper use of the machine in accordance with the instructions found in
this operating manual.
• The manufacturer cannot be held responsible for damage to persons, animals and/or objects due to
improper use di󰀨erent to that illustrated in this instruction manual.
• The manufacturer reserves the right to make technical and aesthetic alterations to the machine without
prior notication.
The purpose of this operating manual is:
• To supply the user with all the information needed to use the unit starting from purchase on through to
the disposal of this same machine.
• To ensure maximum support for the personnel assigned to the use and the maintenance of the ma-
chine.
For any special information or requests for technical assistance or spare parts, please contact the Service
partner of your country.
Disclaimer
This manual was created with great care. However, if you notice any omissions or inaccuracies,
please inform the service partner of your country in writing.
The manufacturer shall not be liable for technical or typographical errors and reserves the right at
any time without prior notice to the product and the instruction manuals make.
The illustrations in this document may di󰀨er from the machine actually supplied with this manual.

6COOLIUS Y10
1.1 Important information about refrigerant
Note: All the information here is current as of the date of printing of this manual..
Warning! The machine is designed exclusively for 1234yf (HFO). The design meets all the
guidelines of the European standard EN 378:2010
Safety Classication and information about refrigerant:
The refrigerant is classied in Table E.1 (Refrigerants designation) of Annex E (Normative) of the European
standard EN 378-1:2008 + A1: 2010 (E) (EN 378-1:2011)
• PROPANE series: 1234yf (2,3,3,3-tetrauoro-1-propene CF3CF=CH2)
• Safety group: A2
• PED uid group: 1
The refrigerant (R) 1234yf (HFO) is classied FLAMMABLE
The refrigerant can assume di󰀨erent names depending on the manufacturer!
For more information relating to the refrigerant refer to the SAFETY DATA SHEET according to
Regulation (EC) No. 1907/2006 (MSDS).
The SAFETY DATA SHEET (MSDS) must be delivered to the operator (s) employee (s) using the
machine!
HAZARDS IDENTIFICATION
Classication REGULATION (EC) No 1272/2008 Flammable gases 1
• H220 Extremely ammable gas.
• Gases under pressure Liqueed gas
• H280 Contains gas under pressure; may explode if heated.
DIRECTIVES 67/548/EEC or 1999/45/EC
• F+ Extremely ammable
• R12 Extremely ammable.
Tank label elements REGULATION (CE) N. 1272/2008
Hazard pictograms:
Signal word: Danger
Hazard statements:
• H220 Extremely ammable gas.
• H280 Contains gas under pressure; may explode if heated.
Precautionary statements:
P281 Use personal protective equipment as required.
P210 Keep away from heat/sparks/open ames/hot surfaces. No smoking.
P260 Do not breathe dust/ fume/ gas/ mist/vapours/ spray.
P308 + P313 IF exposed or concerned: Get medical advice/ attention.
P410 + P403 Protect from sunlight. Store in a well-ventilated place.
DIRECTIVES 67/548/EEC o 1999/45/EC Symbol(s):
R-phrase(s): R12 Extremely ammable.
S-phrase(s): S 9 Keep container in a well-ventilated place.
S16 Keep away from sources of ignition – No smoking.

7COOLIUS Y10
1.2 Symbols
This safety alert symbol indicate that this message involves personal safety. Works danger,
warning and caution indicate degree of hazard. Death, personal injury and/or property damage
may occur unless instructions are followed carefully.
Do not operate this machine if you have not read and understood the following safety items.
Read this entire Operating Manual.
1.3 Intended use
The machine is designed solely for use in automobile air-conditioning system maintenance.
Caution! Risk of injury due to improper use.
This machine is intended for use by Qualied personnel only. Such users must have a knowl-
edge of the basics of refrigeration, refrigeration system, refrigerants and the potential hazards
that unit under high pressure can cause.
2 Important safety instructions
The user should follow the “general safety rules”, and use the machine according to the “intended use” and
the instructions of this operating manual.
Therefore, the user is not exposed to any risk if the general safety rules reported below are followed with
proper use and maintenance of the machine.
2.1 Glossary of terms
• Machine: The machine relative to this operating manual.
• Refrigerant: Fluid reported on the identication label.
• A/C system: Air-conditioning system in the vehicle.
• External container: New Refrigerant used to ll the internal container.
• Internal container: Refrigerant storage tank.
• Process: Execution of an individual function (Ex. Recovery).
• Cycle: Execution of more processes.
• Recovery: The recovery of refrigerant in any condition and its storage in a container outside the A/C
system, without necessarily undergoing analysis or treatment of any kind.
• Recycling: A reduction of the contaminating substances in used refrigerants through oil separation, the
recovery of incondensable and their single or multiple passages through elements that enable a reduc-
tion in humidity, acidity and gasses.
• Disposal: Recovery of refrigerant to store it for subsequent distribution or disposal.
• Vacuum: Phase in which air and moisture are evacuated from an A/C system solely by means of a
vacuum pump.
• Oil charge: Introduction of oil inside an A/C system for the purpose of maintaining the amount of oil
specied by the manufacturer.
• UV tracer charge: Introduction of UV tracer inside an A/C system in order to detect possible leaks by
means of a UV lamp.
• Refrigerant charge: Phase during which refrigerant is introduced into an A/C system in the amount
specied by the manufacturer.

8COOLIUS Y10
• Flushing: at the purpose to clean the A/C system or components, liquid refrigerant is ushed through it,
in order to do so a special device and adapters are needed.
2.2 General safety rules
• This machine is intended for use by QUALIFIED PERSONNEL only. Such users must have a knowl-
edge of the basics of refrigeration, refrigeration system, refrigerants and the potential hazards that unit
under high pressure can cause.
• It’s essential to supervise the machine at all times.
• DO NOT modify the safety devices
• DO NOT use external tanks or other storage tanks that have not been type-approved or that lack safety
valves.
• DO NOT use the machine near open ames and hot surfaces. At high temperatures, the refrigerant de-
composes, releasing toxic and chemical substances that are hazardous for users and the environment.
• It’s essential to use only the refrigerant indicated on the identication label. Mixtures with other types of
refrigerant will seriously damage the cooling and refrigeration system, as well as the machine.
• Gloves and Goggles should be worn - contact with the refrigerant can cause blindness and other physi-
cal injury to the user.
• Avoid inhalation of vapours from the refrigerants and contact of the refrigerant with skin.
• Do not switch on the machine unless the machine is going to be used immediately. Cut o󰀨 the electrical
power supply prior to long intervals in which the machine will not be used.
• Attention: Ensure that all valves are closed before making connections between the machine and an
A/C system or an external tank.
• Attention: Ensure that the process has been completed and that all valves are closed before discon-
necting the machine.
• Attention: All of the exible hoses may contain refrigerant under high pressure.
• Attention: The machine and A/C system in vehicles containing refrigerant should not be tested with
compressed air. Some mixtures of air and refrigerant have proven to be combustible at high pressure
levels. These mixtures are potentially hazardous and there is a risk of re and explosions that can
cause damage to property and personal injury.
Additional medical and safety information can be obtained from the manufacturers of the oils and refrig-
erants.
2.3 Guidelines for handling refrigerants
Precautions for refrigerant storage
The refrigerant to be removed from a system must be handled carefully in order to prevent or minimise the
possibilities of di󰀨erent refrigerants mixing.
The tank used for storing refrigerants must be assigned to specic refrigerants to avoid di󰀨erent refrigerants
mixing
Recycling of refrigerants
The recycling machine’s lter system should be replaced regularly in order to maintain the e󰀩ciency of the
recycling machine
General Notions
Before re-introducing refrigerant into the system, the system itself must be evacuated and cleaned.

9COOLIUS Y10
In order to be sure that the system is free of contaminating agents before introducing the refrigerant, all the
procedures described in this instruction manual must be followed.
Clean and maintain the machine regularly, especially when highly contaminated refrigerant is used: it
is extremely important that contamination from the previous operation is not transferred to subsequent
operations.
2.4 Safety devices
The machine is equipped with the safety devices required from the European Directives:
• Electric safety switch
• Safety valve
Caution! Danger of injury due to manipulation.
DO NOT MODIFY THE SAFETY DEVICES.
2.5 Not condensable gas discharge
A not condensable gas discharge valve is installed to allow these gasses to be released.
The not condensable gas discharge valve could generate noises.
Warning! Risk of injury from escaping gases under high pressure..
Make sure that you never come in contact with the drain valve!
2.6 Ventilation safety system
The machine is designed for the refrigerant 1234yf classied as ammable.
For this reason, the machine is equipped with a ventilation security system which has the task, in case of
leakage of the circuit, to avoid the formation of pockets of refrigerant.
It is forbidden to obstruct the inlet grid of the fan.
The user must monitor the e󰀩ciency of the ventilation security system and in case of anomaly of the same
must switch o󰀨 the machine.
In addition, the internal vessel is equipped with a normally closed electric valve which is activated only when
the machine is ON.
2.7 The work environment
• The machine must be used in open environments or in places equipped with good ventilation (at least 4
changes of air per hour).
• The unit has been designed for use at a maximum altitude of 1000 m above sea level, within a tempera-
ture range of +10 and +49°C and with a maximum humidity of 50% at +40°C.
• Operate in su󰀩ciently lit conditions.

10 COOLIUS Y10
3 Use of the machine
3.1 Unpacking and checking the components
Remove the machine packaging and ensure that the following parts are present:
• EC/PED documentation
• Refrigerant Tank adapter
3.2 Machine description
3.2.1 Control panel
1. Display
2. START button / LED
3. STOP button / LED
4. Information button (i)
5. Cancel button (X)
6. COOLIUS SELECT with ENTER button / LED
7. Right button / LED
8. Left button / LED
9. USB-Port /LED
10. Emergency switch
g. 001 Control panel
1
9
2
3
456
8
7
S
T
O
P
E
M
E
R
G
E
N
C
Y
10

11COOLIUS Y10

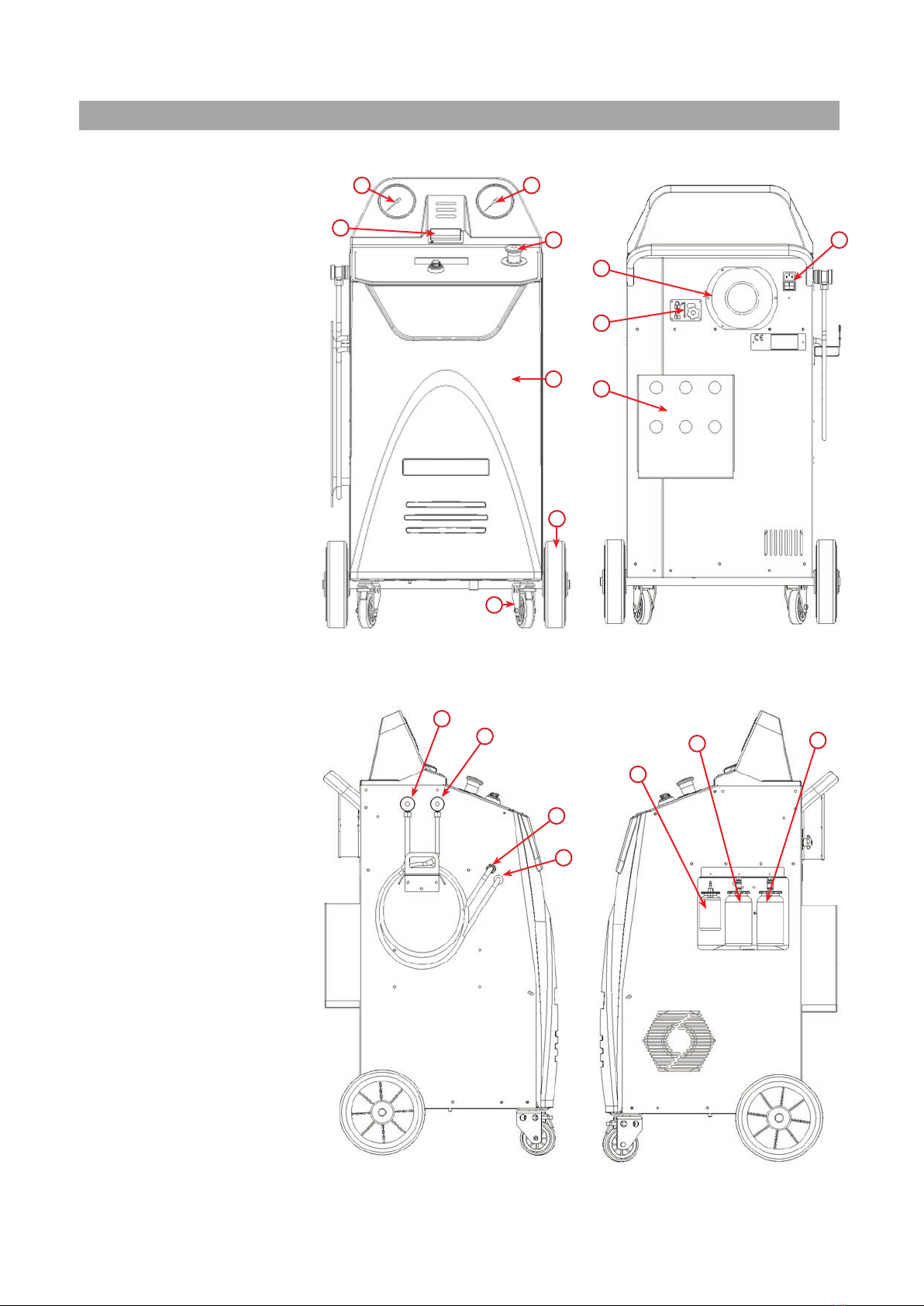

3.2.2 The machine
1 LP-pressure gauge
2 HP-pressure gauge
3 Printer
4 Emergency switch
5 Front cover
6 Rear wheel
7 Front wheel with brake
8 Ventilation Security System
inlet grid
9 Main switch
10 Transport safety of the
scale
11 Storage box for accesso-
ries
12 Container for UV leakage
additive 100ml
13 Container for new oil 250
ml
14 Container for absorbed oil
250 ml
15 LP-quick coupling
16 HP-quick coupling
17 LP-hose
18 HP-hose
1 2
5
7
6
4
3
g. 002 View Front
8
9
10
11
g. 003 View back
g. 004 View left
15
16
18
17
12
13 14
g. 005 View right

12 COOLIUS Y10
3.2.3 Transport lock
The transport lock secures the scale of the internal refrigerant vessel and protects it from damage during
transport..
Attention! Damage of the scale during transport
The transport lock must be locked before transporting the A/C service unit.
Unlocking
Unscrew the star grip screw of the transport lock.
Raise the star grip screw, then move to the right and down to the unlocked position.
Retighten the star grip screw slightly.
locking
Unscrew the star grip screw.
Move the star grip screw upwards and then to the left to the locked position.
Retighten the star grip screw slightly.
g. 007 Scale locked g. 008 Scale unlocked, workposition
3.3 Machine handling
In spite of the fact that the heaviest components have been assembled on the base in order to lower the
centre of gravity, it has not been possible to eliminate the risk of overturning completely.
The machine is moved on the four wheels.
On rough ground, the machine must be moved by tilting it and balancing the weight on the two rear wheels.
3.4 On/O󰀨 and stopping
start-up: Move the main switch to the ON position (I)
Stopping: Move the main switch to the OFF position (O)
Attention! Damage to the machine.
Do not switch o󰀨 the machine by unplugging the mains plug!

13COOLIUS Y10
4 Preparation for the use and settings
4.1 Switch on the machine
Press the Power Switch (I) to turn on the Machine.
The ventilation security system starts.
Switch on the machine for the rst time
Select the display language
Turn COOLIUS SELECT to select the language, then con-
rm by ENTER.
After selecting the language, you have two possibilities to
work with the machine.
1. Demo-Mode
You can now activate the machine or work in demo mode.
NOTE: All functions will be full working except for the
„Time-Date“ menu, that is not available.
1. Press STOP to use the machine in DEMO MODE. (The
machine start-up and skip the activation procedure).
• The display shows the number of days before the
activation will be necessary to use the machine.
2. Press START to go to Stand-by mode.
2. Machine activation
1. Press START to activate the machine.
NOTE: After 7 days, starting from the rst switch on,
the display will show only this print screen at the
start-up.
2. To perform the activation, go to website
www.coolius-ac.com or call the hotline [phone] and request the UNLOCK CODE related to
the Serial Number written on the display (in this case, the Serial Number is AA000000).
3. Press START to continue with activation.
4. Press STOP to skip the activation procedure and START-up the machine in DEMO MODE.
NOTE: STOP key is available only if there is at least one day left for DEMO MODE, otherwise the
activation is compulsory and only the START key is available.
Select:
Language 03

“START” to activate
the machine.
www.coolius-ac.com
Machine is working
now in DEMO MODE!
Day(s) left 7
Get UNLOCK CODE
register: AA000000
www.coolius-ac.com

14 COOLIUS Y10
4.2 Using the printer
The machine has a built-in roll-up printer which can be
used to print the vehicle data and the results of the main-
tenance work.
• Paper width: W 58 mm
• Diameter: D 40 mm
• Paper feed 1
Before a process:
Turn COOLIUS SELECT to select the character then con-
rm by ENTER.
Max 20 characters (plate, chassis, etc...)
.
At the end of a process:
Press START key for printing.
Press STOP key to end.
1
g. 006 roll-up printer
CAR DATA:_
C
567890 AB DEFGHIJKLM
Press “START“ to
print
Service report
Unlocking the machine
The following procedure requires the knowledge of the UNLOCK CODE.
1. By the COOLIUS SELECT enter the UNLOCK CODE.
Once done, conrm by START.
• If the UNLOCK CODE is wrong, repeat the proce-
dure just described.
• If the UNLOCK CODE is correct, press START to
conrm. The machine is activated and shows the
Stand-by mode.
The machine is now activated and displays the standby
mode.
_
A
34567890 BCDEFGHIJK
COOLIUS Y10
01-01-2017 10:20:30

15COOLIUS Y10
4.3 Download the service report
Starting from the rst switch on of the new year, the display
shows:
Press STOP to by-pass or START to download.
NOTE: At the 3rd year, if the data has not been downloaded and deleted yet, only START is available. In
this case, to unlock the STOP key is required to delete the data of at least one year.
Press START to conrm, then the display shows:
Type the password: 200200
NOTE: This password can be also used at any time in
Other selections > SERVICE
Then the display shows:
Turn COOLIUS SELECT to select the year to be downloaded then press START to conrm, the display
shows:
Insert an empty USB stick.
NOTE: The le-system of the USB stick must be FAT32,
if not please format it.
The download starts when the stick is detected and the dis-
play shows:
In the last line of the screen is indicated the progress of the
downloading process.
NOTE: Please do not remove the USB stick during the process, to avoid damages to the stick and to the
machine.
When the download is completed, the display shows:
Download
SERVICE DATA!
_
A
34567890 BCDEFGHIJK
Insert a USB stick!
Downloading!
Please wait!
Record xx/XX
Download
Completed!
Remove USB stick

16 COOLIUS Y10
Remove the USB stick, then the display shows:
Press START to delete the data or press STOP to exit and
keep the data stored in the machine.
IMPORTANT NOTE:
Before deleting data, be sure that the downloaded le is kept in a safe place. The erasing
process is not reversible!!
NOTE: At the 3rd year, if the data has not been downloaded and deleted yet, the “STOP” key is not
available and it is required to delete the data of at least one year to enable it.
Press START to conrm, the display shows:
Press START to conrm or STOP to go back to previous
screen.
Press START to conrm, the display shows:
Wait a few seconds. The recorded data for the selected year
is now deleted.
Year 2018
Delete data?
Confirm by “START”
Delete data?
Confirm again!
Please wait!

17COOLIUS Y10
4.4 Program selection
Press ikey to check the refrigerant available.
Press ikey to come back in stand-by mode.
Press ENTER to select a menu item.
Turn COOLIUS SELECT to select the required program.
The symbol shows the current position of the cursor.
The number of symbols shows the number of available
menu points of this level.
Overview of the menu contents
1. OTHER SELECTIONS
• SERVICE
• A/C PRESSURE TEST
• A/C FLUSHING
• NEW OIL BOTTL.CHANGE
• MACHINE SET-UP
• TIME-DATE
• COMPANY DATA
• SCALE RESET
• MAINTENANCE
2. A/C DATABASE
3. FULL SERVICE
4. OPEN PROGRAM
5. VESSEL CHARGE
Available quantity:
Refrigerant g. /////
01-01-2018 10:20:30
Full Service


18 COOLIUS Y10
4.5 Setting
4.5.1 Machine set-up
The procedure allows to set the machine.
Turn COOLIUS SELECT to select. Press ENTER to conrm.
Recovery data:
• 1The data are reported on the ticket (refrigerant
quantity and oil).
• 0The data are not reported.
Turn COOLIUS SELECT to select 1or 0.
Press ENTER to conrm.
Refrigerant residual check:
The default value is applied in:
A/C DATABASE and FULL SERVICE
Turn COOLIUS SELECT to set. Press ENTER to conrm.
The next menu item is displayed.
Leak test:
The default value is applied in:
A/C DATABASE AND FULL SERVICE
Turn COOLIUS SELECT to set. Press ENTER to conrm.
The next menu item is displayed.
Fresh oil:
The default value is applied in:
A/C DATABASE AND FULL SERVICE
Turn COOLIUS SELECT to set. Press ENTER to conrm.
The next menu item is displayed.
UV Dye:
The default value is applied in:
A/C DATABASE AND FULL SERVICE
Turn COOLIUS SELECT to set the value. Press ENTER
key to conrm.
NOTE: Set 0to bypass the process
The next menu item is displayed.
Print recovery
data?
1
Residual refrigerant
check
min. 2
Leak test min. 2
PAG Oil ml. 10
UV Dye ml. 6

19COOLIUS Y10
Hoses length
Press ENTER key:
Turn COOLIUS SELECT to set the service hoses length,
then conrm by ENTER.
Language:
Turn COOLIUS SELECT to select the language, then con-
rm by ENTER.
The next menu item is displayed.
Unlock Code:
These eight digits are necessary to obtain the UNLOCK
CODE for the counter reset. Request the new UNLOCK
CODE on the website www.coolius-ac.com or by phone call
to the hotline [phone].
1 Printer built in.
0 Printer o󰀨 line or not installed.
Turn COOLIUS SELECT to select 1 or 0.
Press ENTER to conrm, then press STOP key to exit.
4.5.2 Time-Date
Turn COOLIUS SELECT to select.
Press ENTER to conrm.
Turn COOLIUS SELECT to modify the blinking value.
Press ENTER to conrm. The next value blinks.
When the data is right press START key to conrm.
Hoses length
Set the HP hose
length (red hose)
cm. 300
Select:
Language 03

UNLOCK CODE:
BB111111
Serial Number:
AA000000
Optional
Printer 1
Time: 10:20:30
Date: 01/01/17

20 COOLIUS Y10
4.5.3 Company data
Turn COOLIUS SELECT to select.
Press ENTER to conrm.
5 lines are available:
1_________ Company name (Workshop)
2_________ Address (road, etc..)
3_________ City
4_________ Phone
5_________ FAX
The above setting is an example only.
NOTE: The ve lines are reported on the service report.
Procedure:
• Turn COOLIUS SELECT to select the character.
Press ENTER to conrm.
The character is reported on the rst line (left).
• If required, press Xkey to delete.
• It is possible to move in the line by LEFT / RIGHT
• Turn COOLIUS SELECT to select the next character.
Press ENTER to conrm.
The character is reported on the rst line.
• Press START key to conrm the setting.
The display shows the following line.
• Press STOP when the 5 lines are set.
1_________
C
567890 AB DEFGHIJKLM
4.6 Maintenance messages
At the start-up is possible to see the following messages:
Notice: “MAINTENANCE WILL EXPIRE SOON!” or “MAINTENANCE EXPIRED”
The message MAINTENANCE WILL EXPIRE SOON! can be skipped.
Press STOP to continue with the start-up of the machine.
1. At the message MAINTENANCE EXPIRED!
UNLOCK CODE REQUIRED press the STOP key, then
the display shows.
2. Write down the code shown at the end of the sec-
ond line and use it to get the UNLOCK CODE on the
website www.coolius-ac.com or by hotline phone call
[phone].
3. Press STOP to continue with the start-up of the ma-
chine.
NOTE:
See chapter 6.3 Counter reset (UNLOCK CODE required) p. 34 to reset the maintenance counter.
Maintenance expired!
UNLOCK CODE required
Get UNLOCK CODE
register: BB111111
www.coolius-ac.com
