POST TOP
1001
COOPER LIGHTING
SHAPER™
MATERIAL
Post: 3 5/8" Diameter
seamless pure copper
tube attached to a sand
cast bronze base covered
by a spun copper alloy
cover.
Fixture: One (1)
8" H x 16 1/8" dia. sand
cast and spun copper
alloy housing with a clear
frosted glass lense.
Optional tempered clear
lense for full cut-off [Dark
Sky Compliant]. Aluminum
components are used
with a painted finish.
BALLAST
One (1) low temperature
(0°F,-18°C) AC electronic
CFL multi-watt, multi-volt
120/277V (347V-Canada)
ballast. One (1) 70W
electronic metal halide
ballast. CFL and MH
electronic ballast
mounted in post.
LAMP/SOCKET
Two (2) 26W (GX24q-3
base), 32W (GX24q-3
base) or 42W (GX24q-4
base) 4-pin triple tube CFL
lamps or one (1) 70W T-6
CDM (G12 bi-pin base)
metal halide lamp or
two (2) 75W A-19
incandescent lamps. CFL
socket injection molded
plastic. MH socket is
ceramic rated for 5KV.
INC socket fired ceramic
rated for 4KV. Lamps
furnished by others.
INSTALLATION
Pole mounted on an
EPDM pad with three
3/4"-10 UNC-2A X 18"
J-bolts on a 61/2" dia. bolt
circle. Three conduit
feeds in base (by others).
Wiring connection via
hand hole in post (ground
lug at hand hole).
Supplied with mounting
pad, bolts, mounting
hardware and template.
FINISH AND OPTIONS
See page 1020 for finish
details and options.

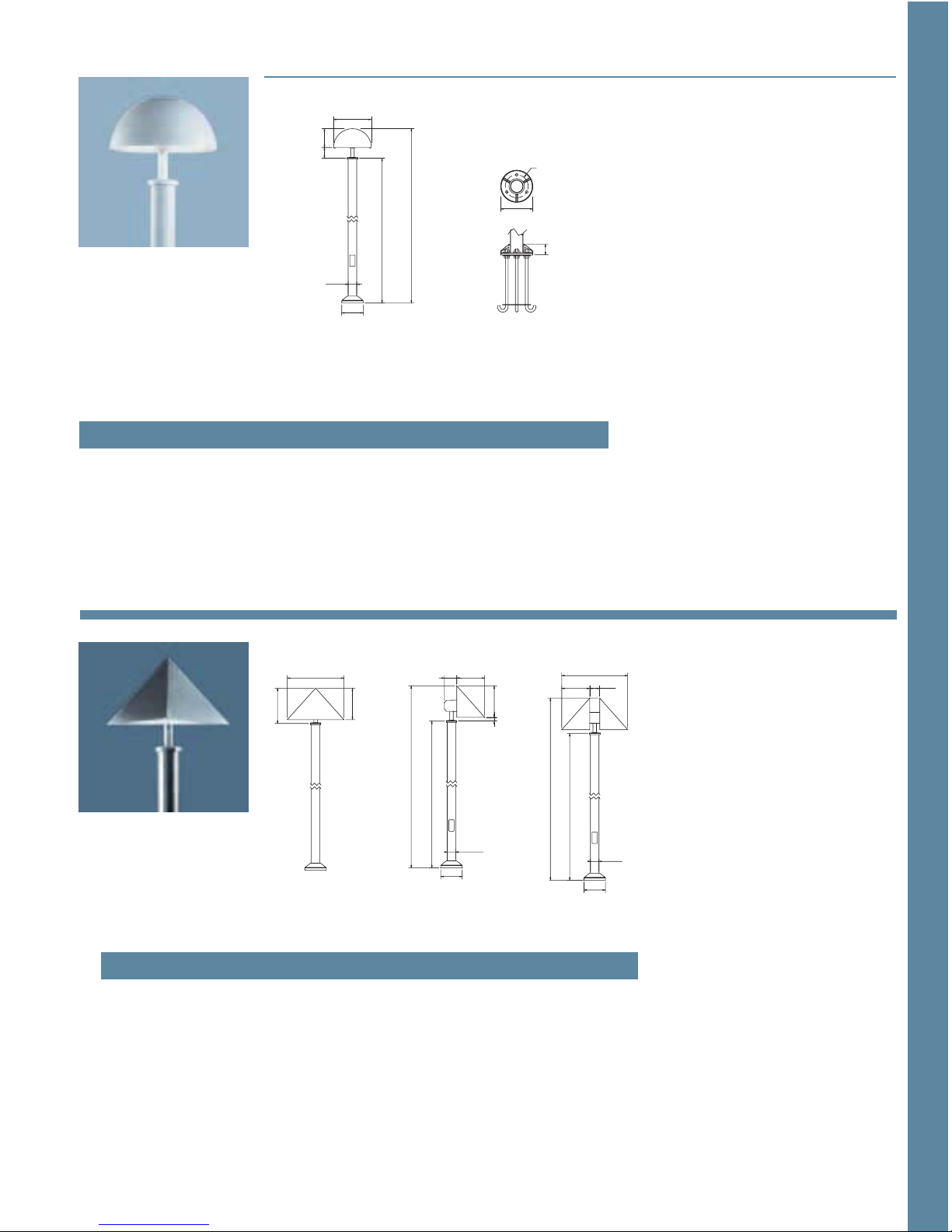

The 994 Post Top luminaire features a
single architectural dome. The fixture
provides a direct, glare free
symmetrical distribution with compact
fluorescent, incandescent or metal
halide lamp technology.
994-PT SERIES
9'-4"
9-1/8" ø
3-5/8" ø
16-1/8" ø
8"
4-1/2"
99-1/2"
Notes:
1 Available with CFL only.
2 Copper alloy or premium TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear.
MATERIAL
Post: 3 5/8" Diameter
seamless pure copper
tube attached to a sand
cast bronze base covered
by a spun copper alloy
cover.
Fixture: Available with
one (1) or two (2) 13 3/8" H
x 24" W formed natural
copper alloy housing with
either a clear refractive
glass lense for (MH, INC)
or a white acrylic lense
for (CFL). Optional
tempered clear lense for
full cut-off [Dark Sky
Compliant]. Aluminum
components are used
with a painted finish.
BALLAST
One (1) low temperature
(0°F,-18°C) AC electronic
CFL multi-watt, multi-volt
120/277V (347V-Canada)
ballast. One (1) 70W
(120V only) electronic
metal halide (contact
factory for 277V) or one
(1) 100W metal halide
core and coil 120V or
277V potted and encased
HPF magnetic ballast. CFL
and MH electronic ballast
mounted in post and MH
magnetic ballast mounted
in fixture.
LAMP/SOCKET
Two (2) 26W (GX24q-3
base), 32W (GX24q-3 base)
or 42W (GX24q-4 base)
4-pin triple tube CFL lamps
or one (1) 70W or 100W
ED-17 medium base metal
halide lamp or two (2) 75W
A-19 incandescent lamps.
CFL socket injection
molded plastic. MH and
INC socket fired ceramic
rated for 4KV. Lamps
furnished by others.
INSTALLATION
Pole mounted on an
EPDM pad with three
3/4"-10 UNC-2A X 18"
J-bolts on a 6 1/2" dia.
bolt circle. Three conduit
feeds in base (by others).
Wiring connection via
hand hole in post (ground
lug at hand hole).
Supplied with mounting
pad, bolts, mounting
hardware and template.
FINISH AND OPTIONS
See page 1020 for finish
details and options.
The 995 Post Top luminaire features a
classic architectural half-pyramid
geometric in a one or two fixture
configuration.
995-PT SERIES
Notes:
1 Available with CFL or 100W magnetic MH only.
2 Available with CFL only.
3 Copper alloy or premium TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear.
4 Available with 100W magnetic MH only.
Sample Number: 995-PT-1-CFL/2-277V-GRM-GM-10-6
Series
995-PT =
Architectural Half
Pyramid Luminaire
Lamp
CFL/2
(26/32/42W-Triple)
INC/2/75
MH/1/70
MH/1/100
Voltage
120V
277V1
347V2
Finish3
CA
(standard),
BK, BM,
CC, DP,
GM, GRM,
GY, SM,
VG, WH
Mounting
Height
8’-6”
9’-6”
10’-6”
11’-6”
12’-6”
13’-6”
14’-6”
Options
PH
QR4
TGL
Sample Number: 994-PT-CFL/2-277V-GRM-GM-14-4
Series
994-PT =
Architectural
Dome Luminaire
Lamp
CFL/2
(26/32/42W-Triple)
INC/2/75
MH/1/70
Voltage
120V
277V
347V1
Post Finish2
CA (standard),
BK, BM, CC, DP,
GM, GRM, GY,
SM, WH
Finish2
CA (standard),
BK, BM, CC, DP,
GM, GRM, GY,
SM, VG, WH
Mounting
Height
8’-4”
9’-4”
10’-4”
11’-4”
12’-4”
13’-4”
14’-4”
MOUNTING DETAILS
3"
9-1/8" ø
ø 6.5"
1-5/8"
11-7/8"5-1/4"
9'-6"
9-1/8" ø
3-5/8" ø
13-3/8"
99"
995-PT SIDE
9'-6"
9-1/8" ø
3-5/8" ø
4-1/4"11-7/8"
28"
DUAL HEAD VERSION
99"
Fixture
Number
1=1 Fixture
2= 2 Fixtures
Post
Finish2
CA
(standard),
BK, BM,
CC, DP,
GM, GRM,
GY, SM,
WH
