Tribute
Area Luminaire

THE RIGHT CHOICE
From the parking lot to the highway,
Tribute is the ideal lighting solution for
area and roadway applications. Tribute’s
rugged die-cast construction and classic
form provide enduring performance and
universal appeal. Coupled with contractor-
friendly features such as toolless entry and
an optional electrical power tray, Tribute is
a breeze to install and maintain.
OPTIMAL PERFORMANCE
Tribute is available with nine (9) uniquely
shaped optical distributions, each
classifying as dark sky friendly IESNA full
cutoff. Whether selecting a high efficiency
hydroformed optic or a premium 95%
reflective segmented reflector, Tribute’s
optical versatility provides custom tailored
lighting solutions for exacting site
requirements. Tribute also features
Cooper’s-exclusive SLE Spill Light
Eliminator optic which provides
outstanding cutoff behind the pole and
maximum street-side reach.
MOUNTING VERSATILITY
Tribute is offered in five (5) distinct
mounting configurations, providing
unrivaled versatility in mounting.
Choose from arm mount, mast arm or
wall mount for horizontal fixture
attachment, or trunnion or slipfitter
mount for vertical tilt adjustment.
TOOLLESS ENTRY SLE—SPILL LIGHT ELIMINATOR WALL MOUNT
TRU TRIBUTE
Area Luminaire

DESIGN FEATURES
CONSTRUCTION
Rugged one piece die cast
aluminum housing and door frame.
One piece silicone gasket protects
the optical chamber from
performance degrading
contaminants. One (1) stainless
spring latch and two (2) stainless
steel hinges allow toolless opening
and removal of door frame.
REFLECTOR
Choice of nine (9) high efficiency
optical distributions, including five
(5) segmented optical systems
constructed of premium 95%
reflective anodized aluminum
sheet. Optical segments are rigidly
mounted inside a thick gauge
aluminum housing for superior
protection. All segment faces are
clean of rivet heads, tabs or other
means of attachment which may
cause streaking in the light
distribution. Optical modules are
field rotatable in 90° increments
and offered standard with mogul
base lampholders for 150 400W
assemblies or medium base
lampholders for 100W and below.
ELECTRICAL
Ballast and related electrical
componentry are hard mounted to
die cast housing for optimal heat
transfer and operating efficiency.
Optional swing down galvanized
steel power tray with integral
handle and quick disconnects
allows tray to be completely
removed from housing providing
ample room for fixture installation
and maintenance.
MOUNTING
Extruded 8" aluminum arm features
internal bolt guides for easy
positioning of fixture during
installation to pole or wall surface.
Standard single carton packaging
of housing, square pole arm and
round pole adapter allow for
consolidated product arrival to site.
Optional internal mast arm mount
accepts a 1 1/4" to 2 3/8" O.D.
horizontal tenon, while 4 bolt
clamping mechanism secures
fixture. Cast in leveling guides
provide ±5° vertical leveling
adjustment.
FINISH
Housing and arm finished in a
5 stage premium TGIC bronze
polyester powder coat paint.
Optional colors include black,
grey, white, dark platinum and
graphite metallic. RAL and
custom color matches available.
COMPLIANT Full Cutoff
DARK SKY FCO
ROTATIONAL FLEXIBILITY
Optical assemblies can be rotated in 90° increments, allowing for
manipulation of distribution orientation independent of fixture
orientation.

OPTIONS + ACCESSORIES [Order Separately]
MOUNTING CONFIGURATIONS
Wall Mount Arm Mount Single
EPA: 1.62 Arm Mount 2 @ 180°
EPA: 3.24 Arm Mount 2 @ 90° EPA: 3.24 Arm Mount 3 @ 120°
(Round Pole Only)
EPA: 4.43
Arm Mount 4 @ 90°
EPA: 5.03
Arm Mount 3 @ 90°
EPA: 4.43
DRILLING PATTERNS
Type “M” Wall Mount Trunnion Mount
3/4" [20mm]
dia. hole
(2)5/8" [16mm]
dia. holes
4 7/8"[124mm]
2 7/16" [124mm]
2 5/16"
[59mm]12"
[305mm]
4 7/8"
[124mm]
9/16" [14mm]
Dia. Hole (4)
6 1/2"
[165mm]
8"
[203mm]
10 1/2"
[267mm]
ELECTRICAL POWER TRAY [PT]
Electrical componentry mounted
to an optional swing-down
galvanized steel power tray with
integral handle. Electrical
disconnects allow tray to be
completely removed from housing
providing ample hand and tool
room during fixture maintenance
and installation.
EXTERNAL HOUSE SIDE SHIELD
[MA1221]
External house side shield designed
to provide sharp cutoff behind pole
while shielding the lamp from
direct view. Mounted to the door
via four (4) stainless steel fasteners,
the MA1221 external house side
shield provides industry leading
glare and spill light control.
VANDAL SHIELD [TR/VS]
Door mounted 3/16" thick
polycarbonate shield prevents lens
damage from particulates and
projectiles. Treated with a UV
inhibitor to discourage the gradual
discoloration that results from
exposure to UV emitting sources.
PREMIUM SEGMENTED OPTICS
Five (5) optional high efficiency
segmented optical systems
constructed of premium 95%
reflective anodized aluminum
sheet. Optical segments are rigidly
mounted inside a thick gauge
aluminum housing for superior
protection. All segment faces are
clean of rivet heads, tabs or other
means of attachment which may
cause streaking in the light
distribution.
QUARTZ RESTRIKE [Q, EM]
Optional quartz restrike [Q]
energizes auxiliary quartz lamp
upon power reactivation and
extinguishes once HID lamp
re-ignites. Quartz restrike
with time delay [EM] adds
cold start activation.
NEMA TWISTLOCK
PHOTOCONTROL RECEPTACLE [4]
Gasketed photocontrol receptacle for
mounting a standard NEMA
photocontrol (order separately).
Button-style photocontrol [P] also
available.
INTERNAL MAST ARM MOUNT [S]
Optional internal mast arm mount
accepts a 1 1/4" to 2 3/8" O.D.
horizontal tenon while 4-bolt
clamping mechanism secures
fixture. Cast-in leveling guides
provide ±5° vertical leveling
adjustment.
ADJUSTABLE SLIPFITTER [OA1090]
Optional knuckle mount with
internal wireway enables vertical
tilt adjustment. Knuckle slip fits over
vertical 2 3/8" O.D tenon and is
secured by two (2) 1/2" bolts.
3" [77mm]
1 1/2"
[39mm]
13/32"
[11mm]
slot
1"
[25mm]
7/16" [12mm]
x 3/4" [20mm]
slot (2)

PHOTOMETRICS [Complete IES files available at www.cooperlighting.com]
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle line.
Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
TRU40MXX3S / TRU40MXX4S
20' 3.00 1.50 0.75 0.30 0.15
25' 2.00 1.00 0.50 0.20 0.10
30' 1.38 0.69 0.34 0.13 0.06
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle line.
Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
TRU40MXX3F / TRU40MXX5F
20' 3.00 1.50 0.75 0.30 0.15
25' 2.00 1.00 0.50 0.20 0.10
30' 1.38 0.69 0.34 0.13 0.06
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle line.
Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
TRU40SXX3F / TRU40SXX4F
20' 3.00 1.50 0.75 0.30 0.15
25' 2.00 1.00 0.50 0.20 0.10
30' 1.38 0.69 0.34 0.13 0.06
TRU40MXX3S
400-Watt MH
40,000-Lumen Clear Lamp
Type III Segmented
TRU40MXX4S
400-Watt MH
40,000-Lumen Clear Lamp
Type IV Segmented
TRU40SXX4F
400-Watt HPS
50,000-Lumen Clear Lamp
Type IV Formed
TRU40MXX3F
400-Watt MH
40,000-Lumen Clear Lamp
Type III Formed
TRU40MXX5F
400-Watt MH
40,000-Lumen Clear Lamp
Type V Formed
TRU40SXX3F
400-Watt HPS
50,000-Lumen Clear Lamp
Type III Formed
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle line.
Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
TRU40MXX3SB / TRU40MXXSL
20' 3.00 1.50 0.75 0.30 0.15
25' 2.00 1.00 0.50 0.20 0.10
30' 1.38 0.69 0.34 0.13 0.06
TRU40MXXSL
400-Watt MH
40,000-Lumen Clear Lamp
SL Spill Light Eliminator
TRU40MXX3SB
400-Watt MH
40,000-Lumen Clear Lamp
Type III Segmented w/ House Side Shield

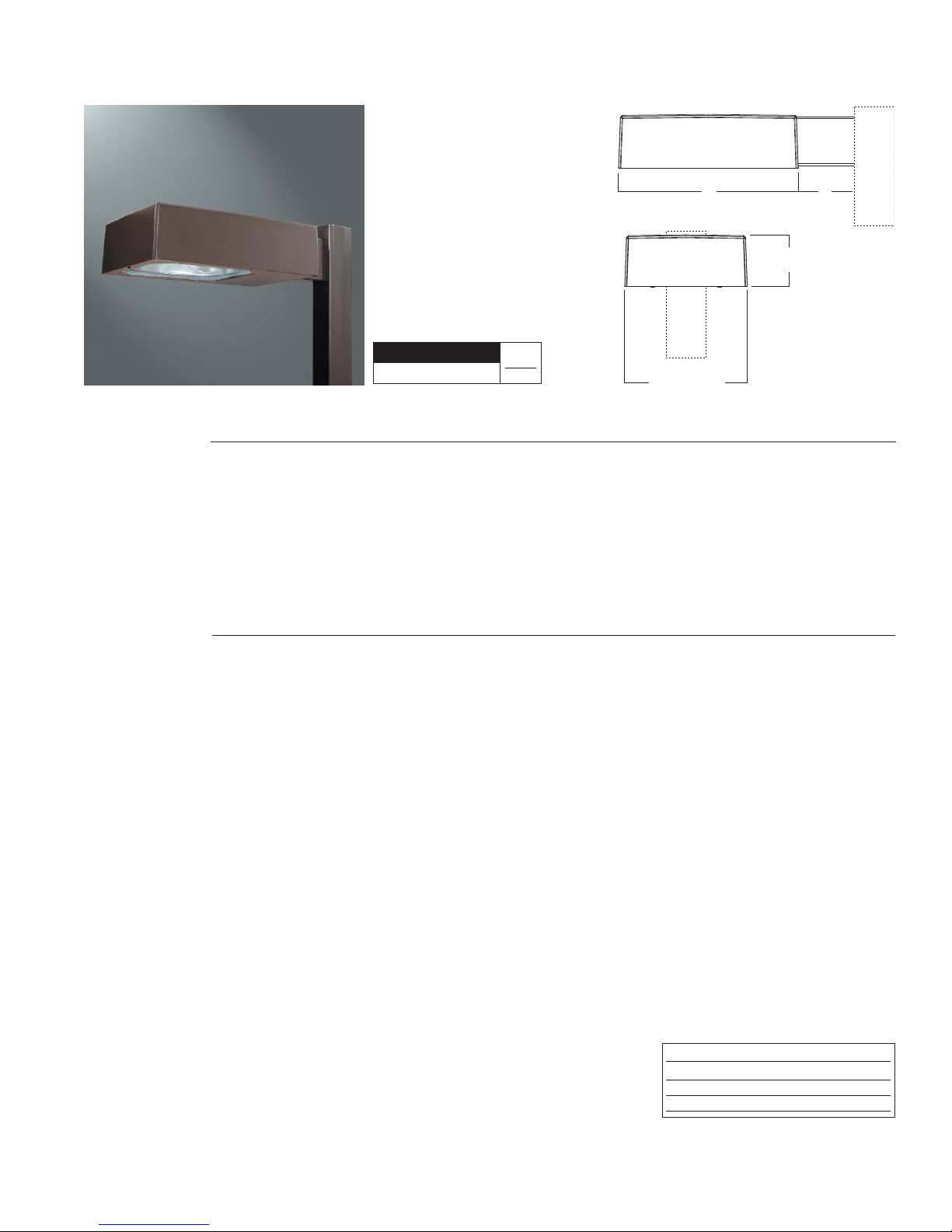

AREA LUMINAIRE
TRU TRIBUTE 70-400W MH/HPS/SMH
STREETWORKS IP55 RATING
COMPLIANT Full Cutoff
DARK SKY FCO
6 1/2"
[165mm]
8"
[203mm]
15 1/2" [394mm]
22"
[559mm]
CONSTRUCTION
Rugged one piece die cast
aluminum housing and door
frame. One piece silicone gasket
protects the optical chamber
from performance degrading
contaminants. One (1) stainless
spring latch and two (2) stainless
steel hinges allow toolless
opening and removal of door
frame.
REFLECTOR
Choice of nine (9) high efficiency
optical distributions, including
five (5) segmented optical
systems constructed of premium
95% reflective anodized
aluminum sheet. Optical
segments are rigidly mounted
inside a thick gauge aluminum
housing for superior protection.
All segment faces are clean of
rivet heads, tabs or other means
of attachment which may cause
streaking in the light distribution.
Optical modules are field
rotatable in 90° increments and
offered standard with mogul base
lampholders for 150 400W
assemblies or medium base
lampholders for 100W and
below.
ELECTRICAL
Ballast and related electrical
componentry are hard mounted
to die cast housing for optimal
heat transfer and operating
efficiency. Optional swing down
galvanized steel power tray with
integral handle and quick
disconnects allows tray to be
completely removed from
housing providing ample room
for fixture installation and
maintenance.
MOUNTING
Extruded 8" aluminum arm
features internal bolt guides for
easy positioning of fixture during
installation to pole or wall
surface. Standard single carton
packaging of housing, square
pole arm and round pole adapter
allow for consolidated product
arrival to site. Optional internal
mast arm mount accepts a 1 1/4"
to 2 3/8" O.D. horizontal tenon,
while 4 bolt clamping
mechanism secures fixture.
Cast in leveling guides provide
±5° vertical leveling adjustment.
FINISH
Housing and arm finished in a
5 stage premium TGIC bronze
polyester powder coat paint.
Optional colors include black,
grey, white, dark platinum and
graphite metallic. RAL and
custom color matches available.
EPA
Effective Projected Area (Sq. Ft):
1.19 (Without Arm)
SHIPPING DATA
Approximate Net Weight:
39 lbs. (17.73 kgs.)
MA1201-XX=Direct Wall Mount Kit 1
MA1216-XX=8" Tribute Arm [EPA=0.43] 1
(Includes Round Pole Adapter)
MA1218-XX=Direct Mount for Pole 1
MA1219-XX=Wall Bracket with 8" Arm 1
OA1090-XX=Adjustable Slipfitter Arm for Tenon
Mount 2 3/8" O.D. 1
TR/VS=Field Installed Vandal Shield 7
MA1221-XX=External House Side Shield Kit
[EPA=0.38]
MA1222=Internal House Side Shield Kit for
2S/3S
MA1223=Internal House Side Shield Kit for 4S
MA1224=Internal House Side Shield Kit for
2F/3F
MA1225=Internal House Side Shield Kit for 4F
OA/RA1016=Photoelectric Control 105-285V
NEMA Type
OA/RA1027=Photoelectric Control 480V
NEMA Type
OA/RA1201=Photoelectric Control 347V
NEMA Type
OA/RA1013=Shorting Cap
MA1010-XX=Single Tenon Adapter for 3 1/2"
O.D. Tenon
MA1011-XX=2 @ 180° Tenon Adapter for 3 1/2"
O.D. Tenon
MA1012-XX=3 @ 120° Tenon Adapter for 3 1/2"
O.D. Tenon
MA1013-XX=4 @ 90° Tenon Adapter for 3 1/2"
O.D. Tenon
MA1014-XX=2 @ 90° Tenon Adapter for 3 1/2"
O.D. Tenon
MA1015-XX=2 @ 120° Tenon Adapter for 3 1/2"
O.D. Tenon
MA1016-XX=3 @ 90° Tenon Adapter for 3 1/2"
O.D. Tenon
MA1017-XX=Single Tenon Adapter for 2 3/8"
O.D. Tenon
MA1018-XX=2 @ 180° Tenon Adapter for 2 3/8"
O.D. Tenon
MA1019-XX=3 @ 120° Tenon Adapter for 2 3/8"
O.D. Tenon
MA1045-XX=4 @ 90° Tenon Adapter for 2 3/8"
O.D. Tenon
MA1048-XX=2 @ 90° Tenon Adapter for 2 3/8"
O.D. Tenon
MA1049-XX=3 @ 90° Tenon Adapter for 2 3/8"
O.D. Tenon
OPTIONS (add as suffix)
1=Single Fused, Internally Mounted
(120 or 277V) 4
2=Double Fused, Internally Mounted
(208, 240 or 480V) 4
4=NEMA Twistlock Photocontrol Receptacle
Q=Quartz Restrike (Hot Restrike Only) 5
EM=Quartz Restrike with Delay
(Also Strikes at Cold Start) 5
H=Plug-In Starter Receptacle
S=1 1/4"-2 3/8" Internal Mast Arm Mount
TM=Trunnion Mount
PT=Electrical Power Tray
WH=White
BK=Black
AP=Grey
DP=Dark Platinum
GM=Graphite Metallic
K=Level Indicator
P=Button Photocontrol
B=House Side Shield 6
LA=Less Arm (Order Mounting Separately)
U=U.L. Listed
OPTIONS + ACCESSORIES [Must be listed in the order shown and separated by a dash]
LAMP TYPE WATTAGE
Metal Halide 70, 100, 175, 250, 400W
High Pressure Sodium 70, 100, 150, 250, 400W
Super Metal Halide 175, 250, 400W
NOTES: 1 8" arm and round pole adapter included with fixture. Specify Less Arm “LA” option when mounting accessory is ordered separately. 2 Standard with mogul base socket for 150 400W and
medium base socket for 100W and below. 3 Requires reduced envelope lamp. 4 Must specify voltage. 5 Quartz options not available with SL optics. 6 House side shield not available on 5S,
5F and SL optics. 7 Not available with SLE or House Side Shield. 8 Specifications and dimensions subject to change without notice.
ORDERING INFORMATION
SAMPLE NUMBER: TRU40MWWSLAP
OPTIONS +
ACCESSORIES
(See Below)
PRODUCT FAMILY 1
TRU=Tribute
(Arm Included)
LAMP WATTAGE 2
70=70W
10=100W
15=150W
17=175W
20=200W
25=250W
40=400W 3
24=250/400W wired 250W
42=250/400W wired 400W
LAMP TYPE
S=HPS
R=SMH
M=MH
VOLTAGE
2=120V
0=208V
4=240V
7=277V
8=480V
9=347V
W=Multi-Tap wired 120V
N=Multi-Tap wired 277V
DISTRIBUTION
2F=Type II Formed
2S=Type II Segmented
3F=Type III Formed
3S=Type III Segmented
4F=Type IV Formed
4S=Type IV Segmented
5F=Type V Formed
5S=Type V Segmented
SL=Spill Light Eliminator
BALLAST TYPE
H=Reac./HPF
N=Hi. Reac./NPF
P=Hi. Reac./HPF
R=Reac./NPF
W=CWA
C=CWI
K=10KV CWA
ACCESSORIES (order separately/replace XX with color designation)

Cooper Lighting
Customer First Center
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
F: 770-486-4801
www.cooperlighting.com
International Sales, USA
Cooper Lighting
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
F: 770-486-4801
Canada
Cooper Lighting
5925 McLaughlin Road
Mississauga, Ontario L5R 1B8
P: 905-507-4000
F: 905-568-7049
The Cooper Lighting Family
Halo
Metalux
Lumark
Sure-Lites
Neo-Ray
Corelite
Portfolio
Iris
Shaper
io
Lumière
Invue
McGraw-Edison
Streetworks
Fail-Safe
MWS
DLS
RSA
Ametrix
Printed in USAADW071181
Domestic Facilities
Cranbury, New Jersey
Elk Grove Village, Illinois
Irving, Texas
Ontario, California
Peachtree City, Georgia
Canadian Facilities
Calgary, Alberta T2E 7V9
Chomedey, Laval P.Q.
Cooper Industries, Ltd.
600 Travis, Ste 5800
Houston, TX 77002-1001
P: 713-209-8400
www cooperindustries com
Cooper Lighting and Streetworks are valuable trademarks of Cooper Industries in the United States and other countries
You are not permitted to use the Cooper Trademarks without the prior written consent of Cooper Industries
