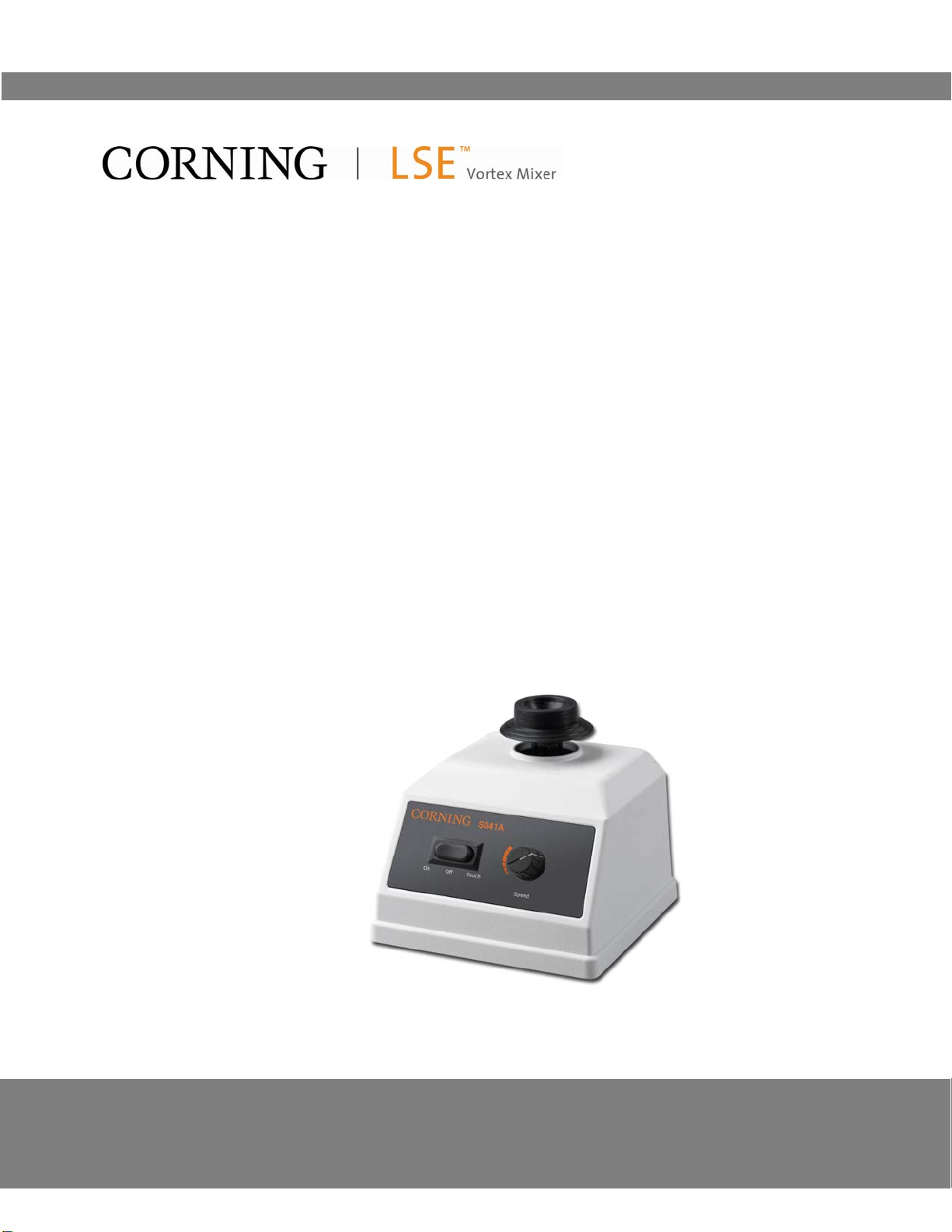

CORNING LSE 6775 - 120V US User manual

INSTRUCTION MANUAL
Models:
6775 – 120V US
6776 -- 230V EU
6777 -- 230V UK
6778 -- 100V JP
CLS‐E
Q
‐98March2010,Document01,Revision01

Warnings
The following precautions should be taken when operating or working near the Corning
LSEVortex Mixer:
•Always wear safety glasses and other appropriate protection when operating this
equipment.
•Never operate the unit without a shaking head securely attached.
•Shake hazardous samples in appropriate containment vessels.
•Do not stir volatile materials.
•Do not immerse the unit for cleaning.
•Do not modify or substitute the grounded power plug. Use only power cords
supplied by the manufacturer. Use only properly grounded outlets to avoid shock
hazard.
•Do not modify the unit electrically or mechanically as personal injury or product
damage may occur.
•Not explosion or spark proof.
•Not for industrial use. These units are designed for use in laboratory
environments by persons knowledgeable in safe laboratory practices.
•Do not use equipment in a manner other than stated in Operating Conditions
(Page # 2) since the protection provided by the equipment may be impaired.
•Do not turn speed knob counterclockwise from the “0” or off position.
•Repair should be performed only by qualified individuals.

Contents
Operating Conditions ……………………………………………………………... 1
General Information ……………………………………………………………….. 2
Technical Specifications …………………………………………………………. 2
Unpacking the CorningLSEVortex Mixer …………………………………. 2
Installation …………………………………………………………………………... 2
Operating the Corning LSE Vortex Mixer………………………………………. 3
Preventative Maintenance ………………………………………………………... 3
Service and Repair Information …………………………………………………. 3
Optional Accessories ……………………………………………………………... 4
Warranty …………………………………………………………………………….. 5
Declaration of Conformity ………………………………………………………... 6
Product Disposal …………………………………………………………………... 7

1

Operating Conditions
The CorningLSEVortex Mixer is designed to be safe under the following conditions:
For indoor use only
Altitude up to 2000 meters
Ambient temperature of 4°C to 65°C
Maximum relative humidity 80% for temperatures up to 31°C then decreasing linearly to 50%
relative humidity at 40°C
Main supply voltage fluctuations not to exceed 10% of the nominal voltage
Installation Category II
Pollution Degree 2
Position at least 30 cm from walls, 30 cm from ceilings and 30 cm between mixers if using
multiple units

2

General Information
The CorningLSEVortex Mixer is a general purpose laboratory vortex mixer. Mixing speed is
adjustable up to 3,000 rpm. A three position switch allows the mixer to be operated continuously or by
“touch” activation. The heavy metal base and rubber feet prevent the unit from “walking” across the
bench, even at maximum speed.
Read this manual thoroughly before attempting to operate the Corning LSE Vortex Mixer. All persons
operating this piece of equipment should review the Safety Precautions section of this manual.
Technical Specifications
Model Catalog
Number Operating Mode Power (Volts/Hz/ Amp) Speed Range
Weight
LSE Vortex
Mixer 120V 6775 Touch or Continuous 120V/60Hz/0.6 200-3400 rpm 6.0 lbs.
2.5 kg.
LSE Vortex
Mixer 230V
EU Plug
6776 Touch or
Continuous 230V/50Hz/0.3 200-2850 rpm 6.0 lbs.
2.5 kg.
LSE Vortex
Mixer 230V
UK Plug
6777 Touch or
Continuous 230V/50Hz/0.3 200-2850 rpm 6.0 lbs.
2.5 kg.
Unpacking the Corning LSE Vortex Mixer
Upon receipt of the Corning LSE Vortex Mixer, examine the exterior carton for damages. In the event of
shipping damage, a claim must be filed with the transportation carrier within 10 days of receipt. Save all
packaging for inspection by the carrier.
Carefully unpack the unit and check for completeness. Included in the carton should be the following:
Vortex mixer with cup head
Instruction manual
Warranty card
If any of these items are missing, contact Corning Customer Service immediately at:
1.800.492.1110 (for toll-free calling within the U.S. and Canada)
1.978.442.2200 (outside the U.S.), or
Contact your local Corning support office listed on the back cover of this manual.
Save the original packaging until the unit has been shown to be operating properly.
Verify that the unit is rated for the proper voltage by checking electrical / serial no. label on the bottom.
Installation
Locate the mixer on a level, stable surface near a grounded electrical outlet. The surface should be clean
and free of dust to ensure that the feet grip the surface firmly. Allow sufficient clearance on all sides of
the unit for proper ventilation.
With the power switch in the OFF position, plug the power cord into a grounded receptacle.

3

Operating the CorningLSEVortex Mixer
All operating controls are located on the front panel. The power switch, located on the left side of the
panel, has three positions - TOUCH, OFF and ON. When set to the TOUCH position, the mixer is
activated by depressing the mixing head. When pressure is released from the mixing head, operation will
stop. When set to the ON position, the mixer will operate continuously until the switch is moved to either
the OFF or TOUCH position.
The speed control, located on the right side of the panel, is continuously adjustable. Oscillating speed
increases at a nonuniform rate to a maximum of 3,400 rpm (2850 for 230V units) as the knob is turned
clockwise. Before turning on the mixer, set the speed control to the minimum.
To begin operation, move the power switch to either the TOUCH or ON position and turn the speed
control to the desired setting. If the power switch is in the ON position, the shaking head will begin
moving immediately. If the power switch is in the TOUCH position, operation will begin when an object is
placed on the shaking head and slight pressure is applied to depress the head. Shaking will cease when
the object is removed and pressure released.
Preventative Maintenance
Warning: Disconnect CorningLSEVortex Mixer from power source before
attempting any cleaning or maintenance procedures.
After each use, wipe down the mixer with a soft cloth. Do not immerse the unit or pour liquids over it as
electrical shock may occur. Clean up any spills immediately taking the proper precautions. If required,
the shaking head may be removed. First, disconnect the vortexer from the power source and then slowly
pull the shaking head straight up and off the shaking post. The head may then be cleaned with a mild
detergent. Be sure the head is thoroughly dry before replacing on the unit.
The motor and shaking mechanism in the Corning LSE Vortex Mixer requires no routine maintenance or
lubrication. To ensure a long life for the mixer, it should be used in a dry, non-corrosive environment.
Service and Repair Information
If you have a question about the Corning LSEVortex Mixer or have a service inquiry, contact Corning
Customer Service immediately at:
1.800.492.1110 (for toll-free calling within the U.S. and Canada)
1.978.442.2200 (outside the U.S.), or
Contact your local Corning support office listed in the back of this manual.
Before returning any unit for service, a Return Authorization (RA) number must first be obtained.
Equipment sent in without out prior authorization will be returned at the customer’s expense. When
returning a unit to Corning for service, it should be sent in the original packaging. If this is not possible,
be sure that the unit is sufficiently packed. Any damage resulting from improper packaging is the
responsibility of the customer. A written explanation should accompany the unit along with the RA
number.

4

Optional Accessories
Several additional shaking heads are available for the CorningLSEVortex Mixer. To change heads,
disconnect the vortexer from the power source and then remove the vortexing head by slowly peeling it
straight upward off the post. An optional head can then be placed on the post and secured by applying
firm pressure.
Optional shaking heads are as follows:
480100 Optional head, 3 inch, for processing larger numbers of tubes
480101 Optional head for 24 x 1.5/2.0 mL tubes, 24 x 0.5 mL tubes and 32x 0.2
mL tubes (or 4 tube strips)
480102 Optional head for 1 microplate or 64 x 0.2 mL tubes or 8 x 0.2 mL tube
strips
480103 Optional head for 8 x 15 mL and 8 x 12/13 mm diameter tubes
480104 Optional head attachment for 6 x 50 mL tubes
480105 Optional head for 12 x 1.5/2.0 mL tubes, held horizontally
480106 Optional head for 4 x 15 mL tubes, held horizontally
480107 Optional head for 2 x 50 mL tubes, held horizontally
Accessories may be ordered from your Corning dealer or directly from Corning.

5

Warranty Statement
Corning Incorporated (Corning) warrants that this product will be free from defects in material and
workmanship for a period of two (2) years from date of purchase. CORNING DISCLAIMS ALL OTHER
WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. Corning’s sole obligation shall
be to repair or replace, at its option, any product or part thereof that proves defective in material or
workmanship within the warranty period, provided the purchaser notifies Corning of any such defect.
Corning is not liable for any incidental or consequential damages, commercial loss or any other damages
from the use of this product.
This warranty is valid only if the product is used for its intended purpose and within the guidelines
specified in the supplied instruction manual. This warranty does not cover damage caused by accident,
neglect, misuse, improper service, natural forces or other causes not arising from defects in original
material or workmanship. This warranty does not cover motor brushes, fuses, light bulbs, batteries or
damage to paint or finish. Claims for transit damage should be filed with the transportation carrier.
In the event this product fails within the specified period of time because of a defect in material or -
workmanship, contact Corning’s Customer Service at the following numbers: USA: 1-800-492-1110;
Canada: 1-978-442-2200. For other regions of the world, please visit www.corning.com/lifesciences or
see the included instruction manual for a list of World Wide Support Offices.
Corning’s Customer Service team will help arrange local service where available or coordinate a return
authorization number and shipping instructions. Products received without proper authorization will be
returned. All items returned for service should be sent postage prepaid in the original packaging or other
suitable carton, padded to avoid damage. Corning will not be responsible for damage incurred by
improper packaging. Corning may elect for onsite service for larger equipment.
Some states do not allow limitation on the length of implied warranties or the exclusion or limitation of
incidental or consequential damages. This warranty gives you specific legal rights. You may have other
rights which vary from state to state.
No individual may accept for, or on behalf of Corning, any other obligation of liability, or extend the period
of this warranty.
For your reference, make a note of the serial number, date of purchase and supplier
here.
Serial No. ____________________ Date Purchased _________________
Supplier _____________________________________________________

6

DeclarationofConformity



CorningLifeSciencesherebyconfirmsthattheproduct

CorningLSEVortexMixer

Isinaccordancewiththefollowingdirectivesandstandards:

2006/95/EC LowVoltageDirective
2004/108/EC EMCDirective
98/37/EC MachineDirective
2002/95/EC RoHS
2006/96/EC WEEE

EN61010‐1   
EN61010‐2‐020
EN61326‐1:2006






_____________________________________
QualityManager

Thisequipmenthas
beentestedandfound
tocomplywiththe
limitsforaClassA
digitaldevice,pursuant
tobothPart15ofthe
FCCRulesandtheradio
interferenceregulation
oftheCanadian
Departmentof
Communications.These
limitsaredesignedto
providereasonable
protectionagainst
harmfulinterference
whentheequipmentis
operatedina
commercial
environment.This
equipmentgenerates
usesandcanradiate
radiofrequencyenergy
and,ifnotinstalledand
usedinaccordancewith
theinstructionmanual,
manycauseharmful
interferencetoradio
communications.
Operationofthis
equipmentina
residentialareaislikely
tocauseharmful
interferencewhichcase
theuserwillberequired
tocorrecttheinterface
athisownexpense.

  

7

Product Disposal
This symbol, if present on the product, indicates that the product was planned for use in a country
complying with the Waste Electrical and Electronic Equipment EU Directive, 2002/96/ED. This
symbol indicates that this equipment must not be disposed of with unsorted municipal waste. It is
the product user’s responsibility to correctly dispose of waste equipment by handing it over to an
authorized facility for separate collection and recycling. It is the product user’s responsibility to
decontaminate waste equipment from biological, chemical, and/or radiological hazards prior to
disposal.
Additional information pertaining to the disposal of Corning per the WEEE Directive can be
obtained at www.corning.com/weee.



Pleaseregisteryourwarrantyonlineat
http://www.corning.com/lifesciences/warranty


CorningIncorporated
LifeSciences
Worldwide
SupportOffices

ASIAEUROPE

Tower2,4thFloorAustralia/NewZealandFrance
900ChelmsfordSt.t0402‐794‐347t0800916882
Lowell,MA01851 f0800918636

t800.492.1110ChinaGermany
t978.442.2200t8621‐5467‐4666t08001011153
f978.442.2476f8621‐5407‐5899f08001012427

IndiaTheNetherlands
www.corning.com/lifesciencest91‐124‐4604000t31206557928
f91‐124‐4604099f31206597673

JapanUnitedKingdom
t813‐35861996t08003768660
f813‐35861291f08002791117

Korea
t822‐796‐9500
f822‐796‐9300

AllotherEuropeanCountries
t31(0)206596051
F31(0)206597673
Singapore
t656733‐6511
f656861‐2913

Taiwan
t886‐2‐2716‐0338
f8862‐2716‐0339


LATINAMERICA
Brasil
t(55‐11)3089‐7419
f(55‐11)3167‐0700

Mexico
t(52‐81)8158‐8400
f(52‐81)8313‐8589


Corning is a registered trademark of Corning Incorporated, Corning, NY
LSEis a trademark of Corning Incorporated, Corning, NY
Corning Incorporated, One Riverfront Plaza, Corning, NY 14831-0001
2010. All rights reserved 
PrintedinU.S.A.
