Corsair iCUE 7000X RGB User manual

iCUE 7000X RGB
iCUE 7000X RGB
全塔式 PC 机箱
Full-Tower PC Case
官方网站：corsair.com
技术服务热线：400 841 7130
支持：support.corsair.com
博客：corsair.com/blog
论坛：forum.corsair.com
微信：CorsairRMA
© 2021 CORSAIR MEMORY, Inc. 版权所有。
实物可能与所示图片不同。进口商：可赛尔 (深圳) 贸易有限公司
产地：中国 | 产 品 ：机 箱 | 49-002332 AA
© 2021 CORSAIR MEMORY, Inc. All rights reserved.

簡體中文........................................................ 1
ENGLISH ..................................................... 13

1 2
机箱规格󾙝
长度 .................................................................................................................................................................550mm
宽度 .................................................................................................................................................................248mm
高度 .................................................................................................................................................................600mm
GPU 长度上限..................................................................................................................................................330mm
CPU 高度上限..................................................................................................................................................175mm
PSU 长度上限 ..................................................................................................................................................225mm
风扇位置:
前部 .................................................. 4 个 120mm 风扇 / 3 个 140mm 风扇（随附 3 个 SP RGB ELITE 140mm 风 扇 ）
顶部 .................................................................................................................. 3 个 120mm 风扇 / 3 个 140mm 风扇
背面 ................................................................. 140mm 风扇 / 120mm 风扇（随附 1 个 SP RGB ELITE 140mm 风扇）
主板托架 ..........................................................................................................4 个 120mm 风扇（需要拆卸电缆护盖）
散热器兼容性:
前部 ................................................................................................................................................. 480mm / 420mm
顶部 ................................................................................................................................................. 420mm / 360mm
背面 ................................................................................................................................................. 140mm / 120mm
主板托架 .......................................................................................................................................... 480mm / 420mm
中文 中文
x20
风扇螺丝（短型）
x18
MBD / HDD 螺丝
x8
ODD / SSD 螺丝
x3
主板压铆螺柱
x8
垫片
x6
x2
Velcro 扎带
长显卡螺柱
248mm 550mm
600mm
x3
带橡胶帽的压铆螺柱
x10
束线带
配件目录󾙝

3 4
带铰链的侧面板󾙝机箱特点
A— 钢化玻璃侧面板
B— 钢化玻璃前面板和顶部面板
C— 4 个 SP RGB ELITE 140MM 风扇
D— 4 个滤尘器
E— 3 个 SSD 托架
F— 6 个 HDD 托架
G— 主板托架风扇支架
H— 前部风扇支架
I— 顶部风扇支架
J— 电源护盖(可替换)
K— 电缆护盖
L— 主板钢制门
M— 实心侧板
N— COMMANDER CORE XT
中文 中文
拆卸正面和顶部饰板
A
B
D
I
D
E
FN
C
D
C
C
C
J
J
H
DG
L
M
K
B

5 6
拆卸线缆杆󾙝
中文 中文
C
D
拆卸线缆杆󾙝
A
B

ATX
E-ATX
MATX
ITX
I/O Area
7 8
中文 中文
安装󾙝HDD
移动󾙝HDD󾙝托 架
安装 PSU
安装主板󾙝

910
中文 中文
可拆卸式󾙝PSU󾙝窗口󾙝󾙝
安装󾙝PCI-e󾙝卡
安装󾙝SSD
A
B

USB 3.1 Type-C
USB 3.0
HD AUDIO
POWER SW
RESET SW POWER LED
+
POWER LED –
11 12
中文 中文
垂直安装󾙝GPU
安装前置󾙝I/O󾙝连 接 器
可选配 PSU 盖板 主板附件托架
包装盒中的内容物󾙝
1. 极性是否影响 I/O 板电源和重置接头？
不，仅影响 LED 接头。
2. 如果我收到的机箱受损或其中一台风扇不再工作，我该与谁联系？
请前往 support.corsair.com 申请 RMA，我们可以更换损坏部件。
3. 风扇可安装的位置？
要了解本机箱的详细信息，请登录 corsair.com 访问产品页面。
风扇安装位置
前部 4x 120mm / 3x 140mm
顶部 3x 120mm / 3x 140mm
背面 120mm / 140mm
主板托架 4x 120mm
常见问题
主板压铆螺柱
发货配置 可选垂直配置
x2
美商海盗船
PCIe 延长线
*单独出售*

ACCESSORY KIT CONTENTS
13 14

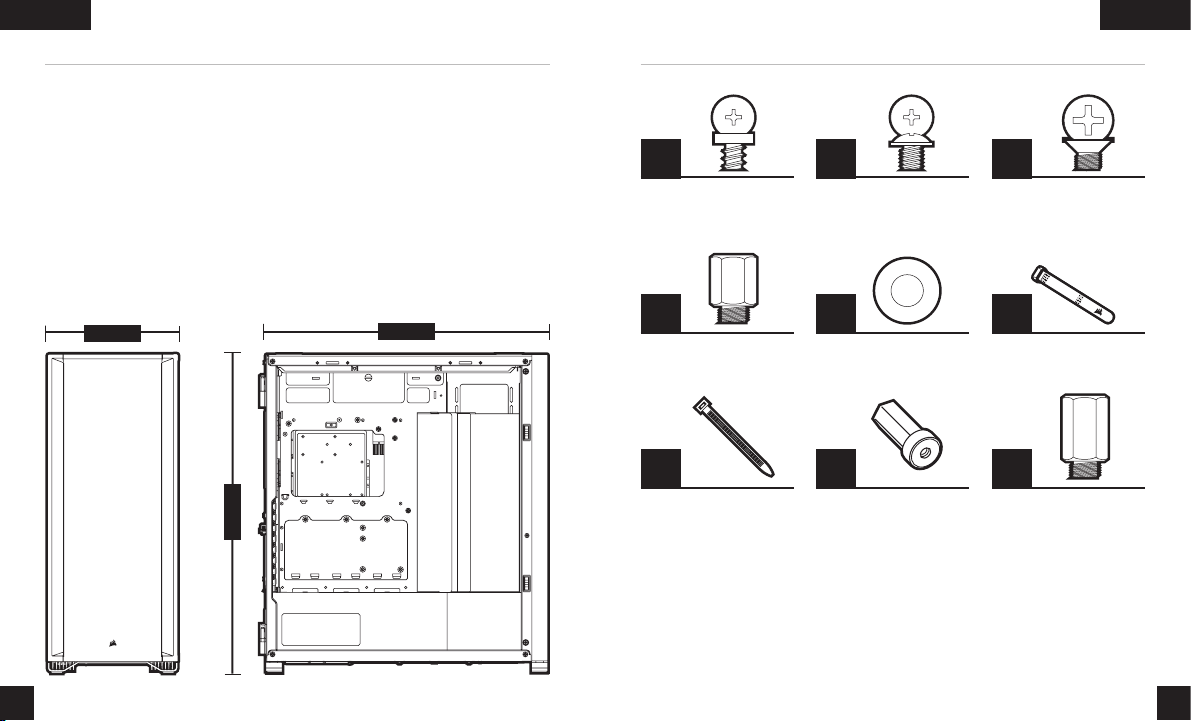

CASE SPECIFICATIONS
Length .............................................................................................................................................................550mm
Width ...............................................................................................................................................................248mm
Height ..............................................................................................................................................................600mm
Maximum GPU length .....................................................................................................................................330mm
Maximum CPU height .....................................................................................................................................175mm
Maximum PSU length......................................................................................................................................225mm
Fan locations:
Front ....................................................................................................4x 120mm / 3x 140mm (3x 140mm Included)
To p ..........................................................................................................................................3x 120mm / 3x 140mm
Rear ...............................................................................................................120mm / 140mm (1x 140mm Included)
Motherboard tray................................................................................. 4x 120mm (Requires removal of cable cover)
Radiator compatibility:
Front ................................................................................................................................................ 480mm / 420mm
To p ................................................................................................................................................... 420mm / 360mm
Rear ................................................................................................................................................. 140mm / 120mm
Motherboard tray............................................................................................................................. 480mm / 420mm
ENGLISH ENGLISH
248mm 550mm
600mm
x20
Fan screws (short)
x18
MBD / HDD screws
x8
SSD screws
x8
x3
Washers
Standoffs with rubber cap
x6
Velcro straps
x3
x10
Motherboard standoffs
Cable ties
x2
Long GPU standoffs

15 16
HINGED SIDE PANELSCASE FEATURES
A— TEMPERED GLASS SIDE PANEL
B— TEMPERED GLASS FRONT AND TOP PANELS
C— 4x SP RGB ELITE 140MM FANS
D— 4x DUST FILTERS
E— 3xSSD TR AYS
F— 6xHDD TRAYS
G— MOTHERBOARD TRAY FAN BRACKET
H— FRONT FAN BRACKET
I— TOP FAN BRACKET
J— PSU SHROUD COVER (ALTERNATE)
K— CABLE COVER
L— MOTHERBOARD STEEL HINGED DOOR
M— SOLID SIDE PANEL
N— COMMANDER CORE XT
A
B
D
I
D
E
FN
C
D
C
C
C
J
J
H
DG
L
M
ENGLISH ENGLISH
K
B
REMOVING THE FRONT AND TOP BEZEL

17 18
REMOVING THE CABLE BAR
ENGLISH ENGLISH
C
D
REMOVING THE CABLE BAR
A
B

ATX
E-ATX
MATX
ITX
I/O Area
19 20
ENGLISH ENGLISH
INSTALLING HDDS
MOVING THE HDD CAGE
INSTALLING PSU
INSTALLING THE MOTHERBOARD

A
B
21 22
ENGLISH ENGLISH
REMOVABLE PSU WINDOW
INSTALLING PCI-e CARDS
INSTALLING SSDS

USB 3.1 Type-C
USB 3.0
HD AUDIO
POWER SW
RESET SW POWER LED
+
POWER LED –
23 24
ENGLISH ENGLISH
VERTICAL MOUNT GPU
INSTALLING THE FRONT I/O CONNECTORS
PSU optional cover plateMotherboard accessory tray
Shipping
configuration Optional vertical
configuration
ACCESSORIES IN THE BOX
FREQUENTLY ASKED QUESTIONS
1. Does the polarity matter with the I/O panel’s power and reset header?
No, only the LED headers.
2. Who should I contact if I received my case damaged or one of the fans is no longer working?
Please go to support.corsair.com and request an RMA so that we can replace
the damaged part(s).
3. Where can I mount a fan?
To learn more about this case visit the product page at corsair.com.
Fan mount locations
Front 4x 120mm / 3x 140mm
Top 3x 120mm / 3x 140mm
Rear 120mm / 140mm
Motherboard tray 4x 120mm
x2
Motherboard standoffs
CORSAIR PCIe
extension cable
*sold separately*
