Cortex LP-10 User manual

Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
NOTE:
This manual may be subject to updates or changes. Up to date manuals are available through our
website at www.lifespanfitness.com.au
LP-10
45 Degree Leg Press and Hack
Squat Combo Machine
USER MANUAL

2
TABLE OF
CONTENTS
I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
II. Care Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
III. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
IV. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08
V. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09
VI. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
VII. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
VIII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
| TABLE OF CONTENTS

3
I. IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all instructions before using this machine.
To ensure your safety, read the following precautions before using this product.
1. Please read, study and understand the instructions and all warning labels before use.
(It is recommended to be familiar with the normal operation and use methods of the device before
using this product. Information is available on this manual and at local retailers).
2. Please keep this manual and ensure that all the warning labels are clear and complete.
3. This product is recommended to install by more than two people.
4. Please consult your doctor’s advice before starting the exercise.
5. Please ensure safety when the children are present.
6. Be careful when using it with children present.
7. Please check any signs of wear of the wire rope regularly. If there is wear, it may cause some danger
to you.
8. Please keep your hands, limbs and clothes stretch to use the device.
9. Please note any signs of machinery that may occur, including part wear, loose hardware, and welding
cracks. Stop using the device with the above signs immediately and contact the after-sales service
department of our company.
10. You can complete the assembly with a wrench, or an inner hexagon wrench.
11. The user weight of this product shall not exceed 100kg.
12. The product is subject to change without notice and the final interpretation belongs to the Division.
IMPORTANT SAFETY INSTRUCTIONS |

4
II. CARE INSTRUCTIONS
•Lubricate moving joints with silicon spray after periods of usage.
•Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
•The machine can be kept clean by wiping it down using dry cloth.
•Check and adjust the tension of wire rope on a regular basis.
•Regularly check all moving parts and make sure there are signs of wear and damage, if any the use of
the device must be stopped immediately and contact our after-sales department.
•During inspection, it is necessary to make sure that all bolts and nuts are completely fixed. If any bolt
or nut connection is loosened, please re-tighten.
•Check weld for cracks.
•Failure to perform daily maintenance may result in personal injury or equipment damage.
| CARE INSTRUCTIONS

5
III. PARTS LIST
PARTS LIST |
No. Name Qty
1 Main frame 1
3 Left connection column 1
5 Front paste landlord frame 1
7 Left safety handle 1
9 Left handle 1
11 Mobile connecting frame 1
13 Squat hand 1
15 Φ50 Butterfly card spring 8
17 Backplane 1
19 Outer shell 1
21 Back cushion 1
23 Upper counterweight shaft 2
25 The sleeve tube 4
27 Stainless steel short sleeve 2
29 Restricted horizontal frame welding 1
31 M18 Pin 2
33 Thick shock pad 2
35 Pan bolt M10*20 4
37 External hexagon bolt M10*120 6
39 External hexagon bolt M10*75 6
41 External hexagon bolt M10*40 4
43 External hexagon bolt M10*20 8
45 Nut M12 4
47 Foam 2
49 Φ10 Washer 84
No. Name Qty
2 Right side connecting column 1
4 Bottom connection frame 1
6 Right safety handle 1
8 Right handle 1
10 Smith guide rod 2
12 Welding of top back pattern plate 1
14 Heavy frame 1
16 Foot pedal pattern plate 1
18 Seat pad 1
20 Inside the casing 1
22 Seat cushion 1
24 Lower counterweight shaft 1
26 Stainless steel long sleeve 2
28 Plastic sleeve 4
30 Black plastic wheel 4
32 Ball Pin 1
34 Internal limit tube 1
36 External hexagon bolt M12*80 4
38 External hexagon bolt M10*100 4
40 External hexagon bolt M10*70 12
42 External hexagon bolt M10*30 5
44 M18 Pull pin 1
46 Nut M10 35
48 Φ12 Washer 4
50 Head bolt M8*20 7

6| PARTS LIST
162.5cm
20cm
1
6
11
16
21
31
36
41
46
26
2
7
12
17
22
32
37
42
47
27
3
8
13
18
23
33
38
43
48
28
4
9
14
19
24
34
39
44
49
29
5
10
15
20
25
35
40
45
50
30

7ASSEMBLY INSTRUCTIONS |
IV. ASSEMBLY INSTRUCTIONS
IMPORTANT NOTE:
37
39
40
M10*120 x 6
M10*75 x 4
M10*70 x 12
43
46
49
M10*20 x 2
M10 x 22
Ø10 x 46

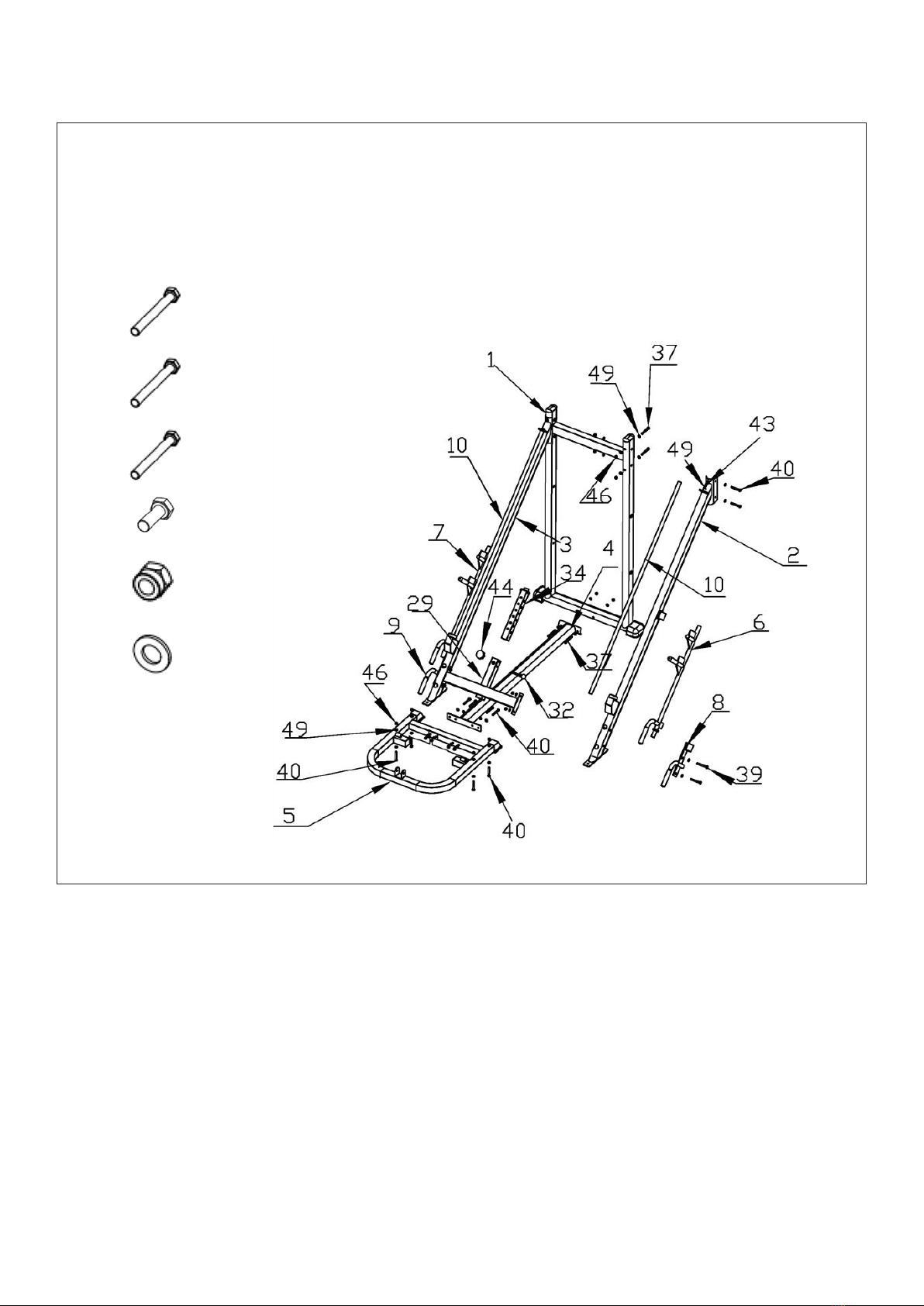

1. Attach the main frame (1 #) and side connector (37 #) with (40 #) bolts (49 #) nuts (46 #). Then install
(10 #) on (2 #) with bolts (43 #) and gasket (49 #) nuts (46 #). The other side is the same.
2.Connect the bottom connecting frame (4 #), the landlord frame (5 #) in front, the main frame (1 #) and
the side connection frame (3 #) (2 #) and fix with bolts (37 #) and (40 #) gasket (49 #) nuts (46 #).
3.Install the right left safety handrail (6 #), right small handle (8 #) and limit horizontal holder (29 #) on
(2 #) with bolts (39 #), gasket (49 #) and nut (46 #). The other side is the same.
Place the inner limit tube (34 #) into the limit horizontal support frame (29 #) according to the diagram,
and fix it with the pull pin (44 #) and pin (32#).
1. The gasket shall be placed at both ends of the bolt (against bolt head and nut),
unless otherwise indicated.
2. Preliminary assembly is to tighten all bolts and nuts by hand and tighten with
wrench for complete assembly.
3. Some spare parts have been pre-assembled by the factory.
4. This product is recommended to install in more than two people.
STEP 1

8| ASSEMBLY INSTRUCTIONS
38 46
49
30
39
M10*100 x 2 M10 x 4
Ø10 x 8
M8*20 x 7
M10*75 x 2
1. Connect the jacket (19 #) and the front post holder (5 #) according to the drawing, and fix with bolts
(39 #), gasket (49 #), and nut (46 #). Then place the inner sleeve (20 #) in (19 #) and fix with pumping
pin (31 #).
2. Connect the pedal pattern plate (16 #) with the front anchor holder (5 #) and inner casing (20 #) as
shown and fix with bolts (38 #), (39 #), gasket (49 #) and nut (46 #).
3. Install the back cushion (21 #) on the backrest plate (17 #) with bolts (50 #) and fix the cushion (22 #)
on the cushion plate (18 #) with (50 #).
STEP 2

9
M10*100 x 2
M10*40 x 4
M10*20 x 2
M10 x 14
Ø10 x 21
M12*80 x 4
M10*30 x 5
M12 x 4
Ø12 x 4
38
41
43
46
49
36
42
45
48
ASSEMBLY INSTRUCTIONS |

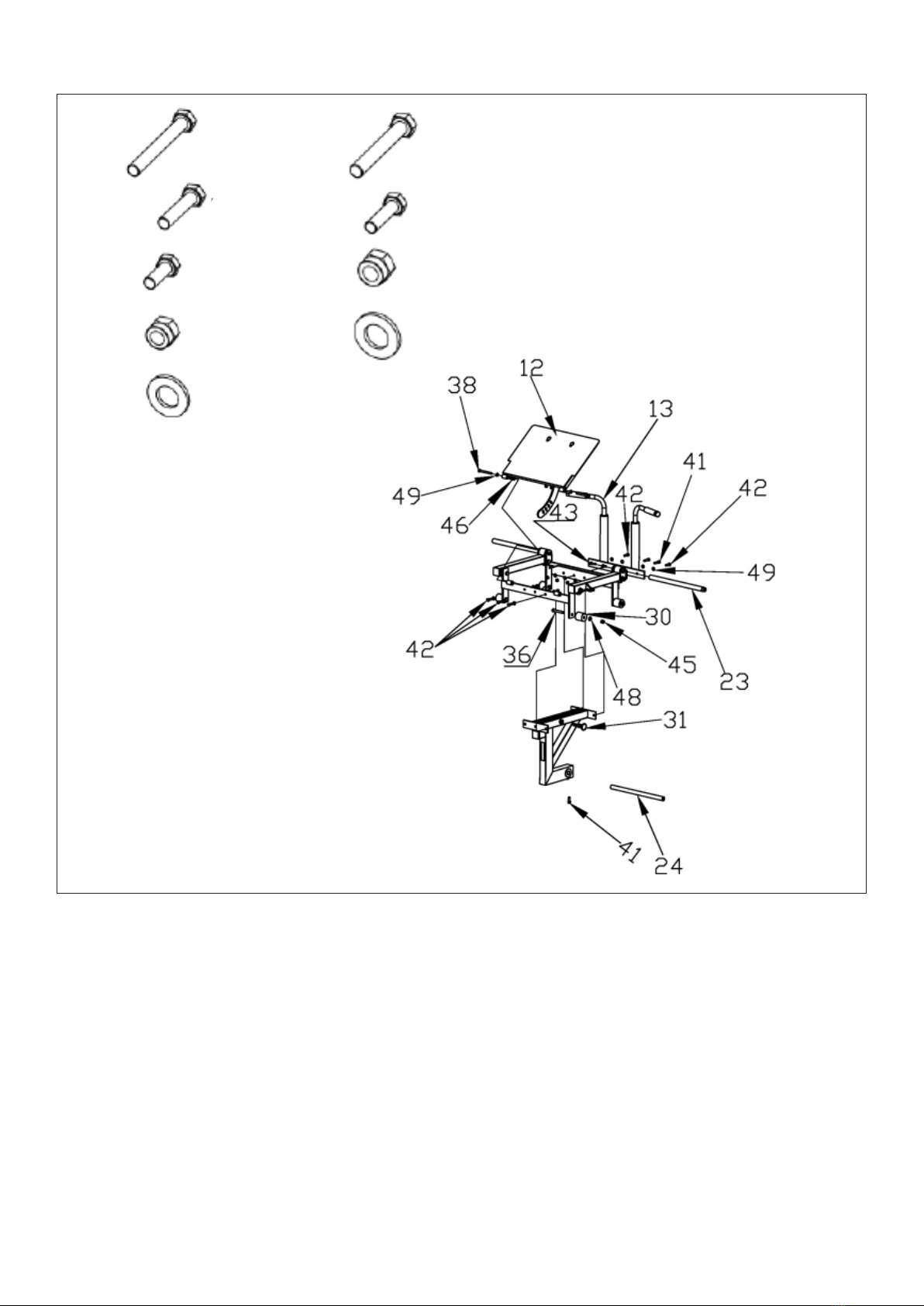

1. Attach the lower counter frame (14 #) and the moving carrier (11 #) crouching handle (13 #) with bolts
(41 #) and (42 #) (49 #) nuts (46 #).
2. Fixed the upper backrest pattern plate (12 #) and the moving frame (11 #) with the bolt (38 #) gasket
(49 #) nut (46 #), and put the installed moving frame on (2 #) and (3 #).
3. Connect the black plastic wheel (30 #) and (11 #) as per the diagram, and secure with the bolt (36 #)
gasket (48 #) nut (45 #).
4. Connect the upper counterweight shaft (23 #) and (11 #) as shown, secure with bolts (43 #) gasket (49
#), and insert the lower counterweight shaft (24 #) into (14 #) with bolts (41 #).
5. Attach the pin (31 #) to (14 #) as shown.
STEP 3

10 | ASSEMBLY INSTRUCTIONS
43
51
49
M10*20 x 4
M10*20 x 4
Ø10 x 8
1. Connect the sleeves (26 #) and (23 #) as shown and (27 #) and (24 #), secure with nuts (35 #) and
gasket (49 #).
2. Connect the sleeve (25 #) and the main frame (1 #) as shown and secure with bolts (43 #) and gaskets
(49 #). Then the sleeve (28 #), connect and secure with the sleeve (25 #).
3. The other side is the same. Please tighten with the wrench on all the bolts and nuts.
Your device is now fully assembled.
STEP 4

11
VI. EXERCISE GUIDE
PLEASE NOTE:
Before beginning any exercise program, consult your physician. This is important especially if you are
over the age of 45 or individuals with pre-existing health problems.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and
stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.
The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to
your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough
energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work
so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.
So as you can see, the fitter you are, the healthier and greater you will feel.

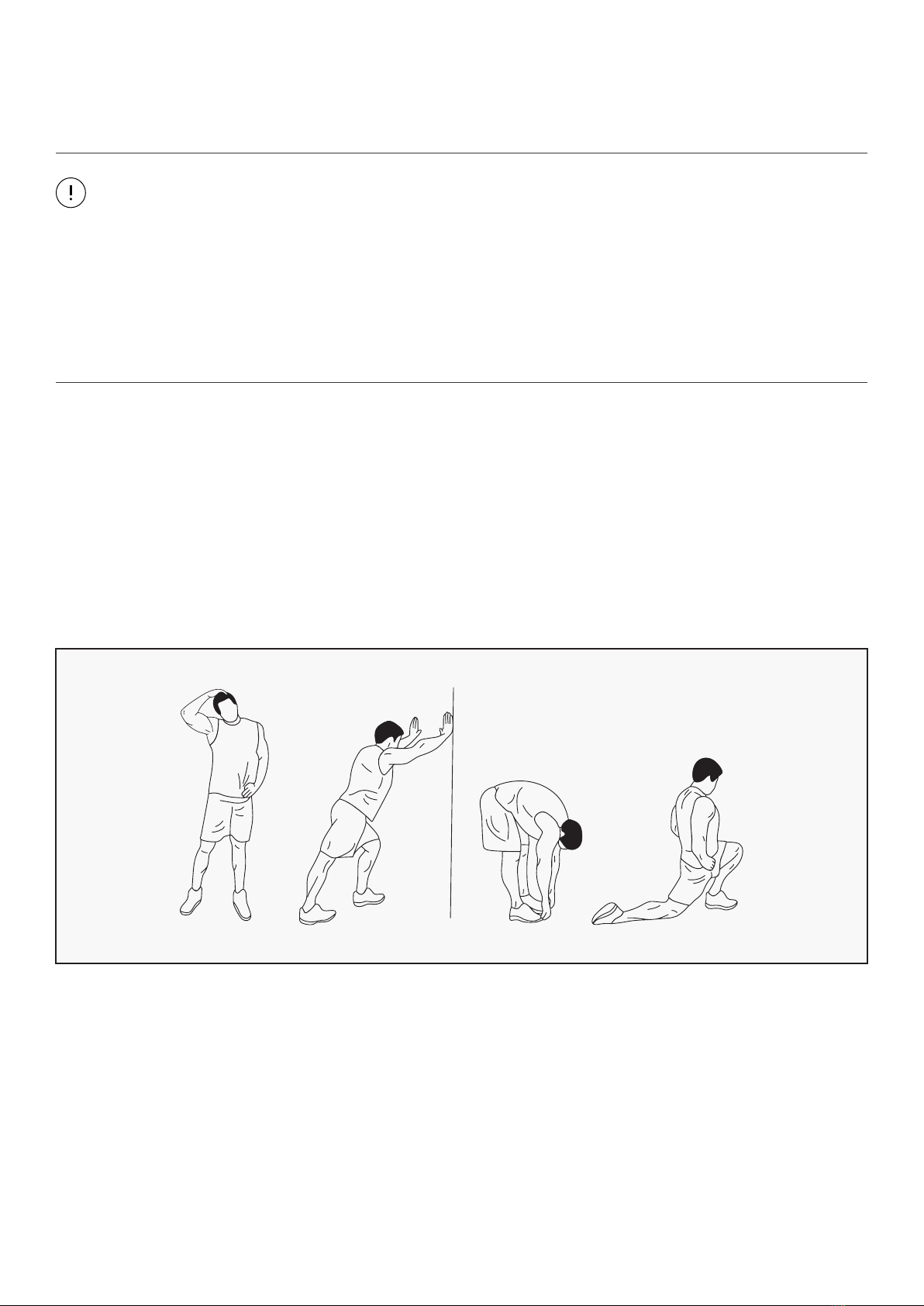

WARM UP
Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up
increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your
exercise.
After warming up, increase the intensity to your desired exercise program. Be sure to maintain your
intensity for maximum performance. Breathe regularly and deeply as you exercise.
| EXERCISE GUIDE

12
COOL DOWN
Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of
stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-
exercise problems.
WORKOUT GUIDELINES
This is how your pulse should behave during general fitness exercise. Remember to warm up and
cool down for a few minutes.
TARGET ZONE
MAXIMUM
85%
70%
COOL DOWN
AGE
HEART RATE
200
180
160
140
120
100
80
20 25 30 35 40 45 50 55 60 65 70 75
EXERCISE GUIDE |

13
VII. MAINTENANCE
MAINTENANCE METHOD:
To extend the service life of the device, the parts must be lubricated on time. The product has been
initially lubricated before leaving the factory, but lubrication is required between the guide rod and
the weight plate over time.
1. Pulley and wire ropes should be regularly checked for signs of wear.
2. Check and adjust the tension of the wire rope regularly.
3. Check all moving parts regularly. If there is a damaged part, stop using the device immediately and
contact the store.
4. Ensure all bolts and nuts are fully fixed and re-tighten them when it is loose.
5. Check the welding for cracks.
6. Failure to perform routine maintenance may cause personal injury or equipment damage.
7. Ensure any handle attachments are fully secured before use to prevent from injury.
NOTE: Silicon oil/spray is recommended for lubrication.
| MAINTENANCE

14
VIII. WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come
with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss
or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. Full details of your consumer rights may be found at
www.consumerlaw.gov.au.
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanfitness.com.au/warranty-repairs
WARRANTY AND SUPPORT
Any claim against this warranty must be made through your original place of purchase.
Proof of purchase is required before a warranty claim may be processed.
If you have purchased this product from the Official Lifespan Fitness website, please visit
https://lifespanfitness.com.au/warranty-form
For support outside of warranty, if you wish to purchase replacement parts or request a repair or
service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service
Request Form or Parts Purchase Form.
Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form
WARRANTY |

WWW.LIFESPANFITNESS.COM.AU
