Cortex GSL1 User manual

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

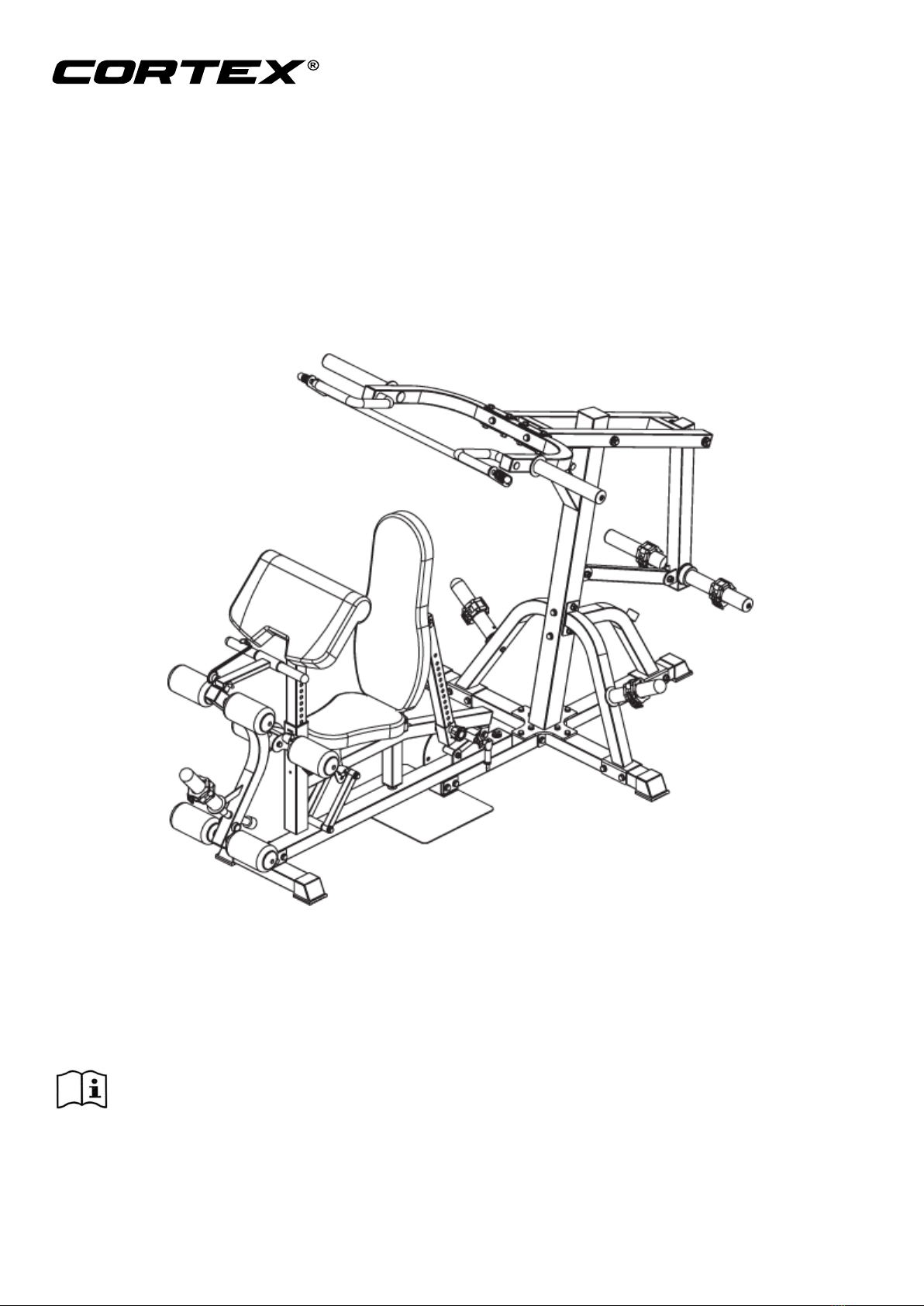

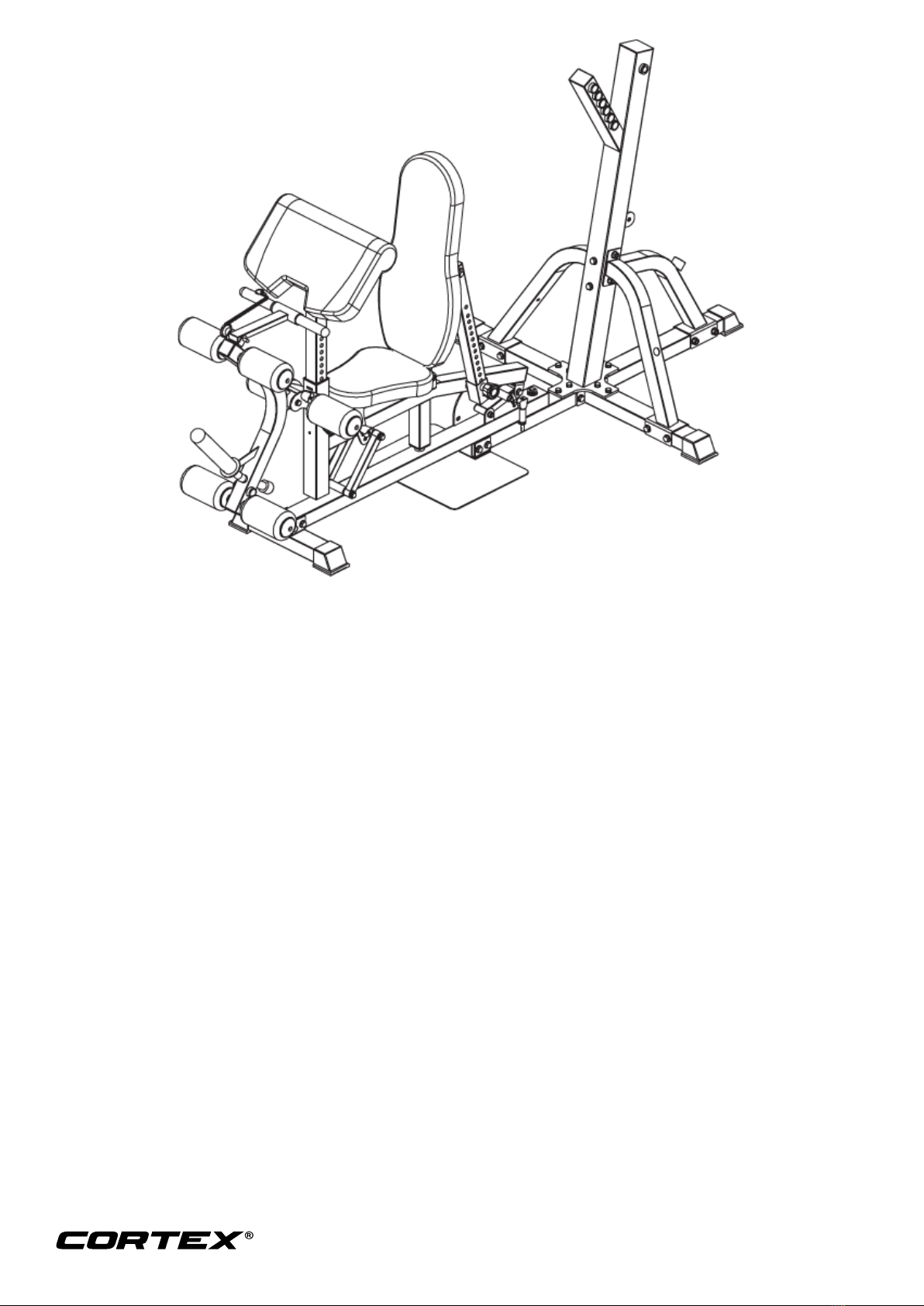

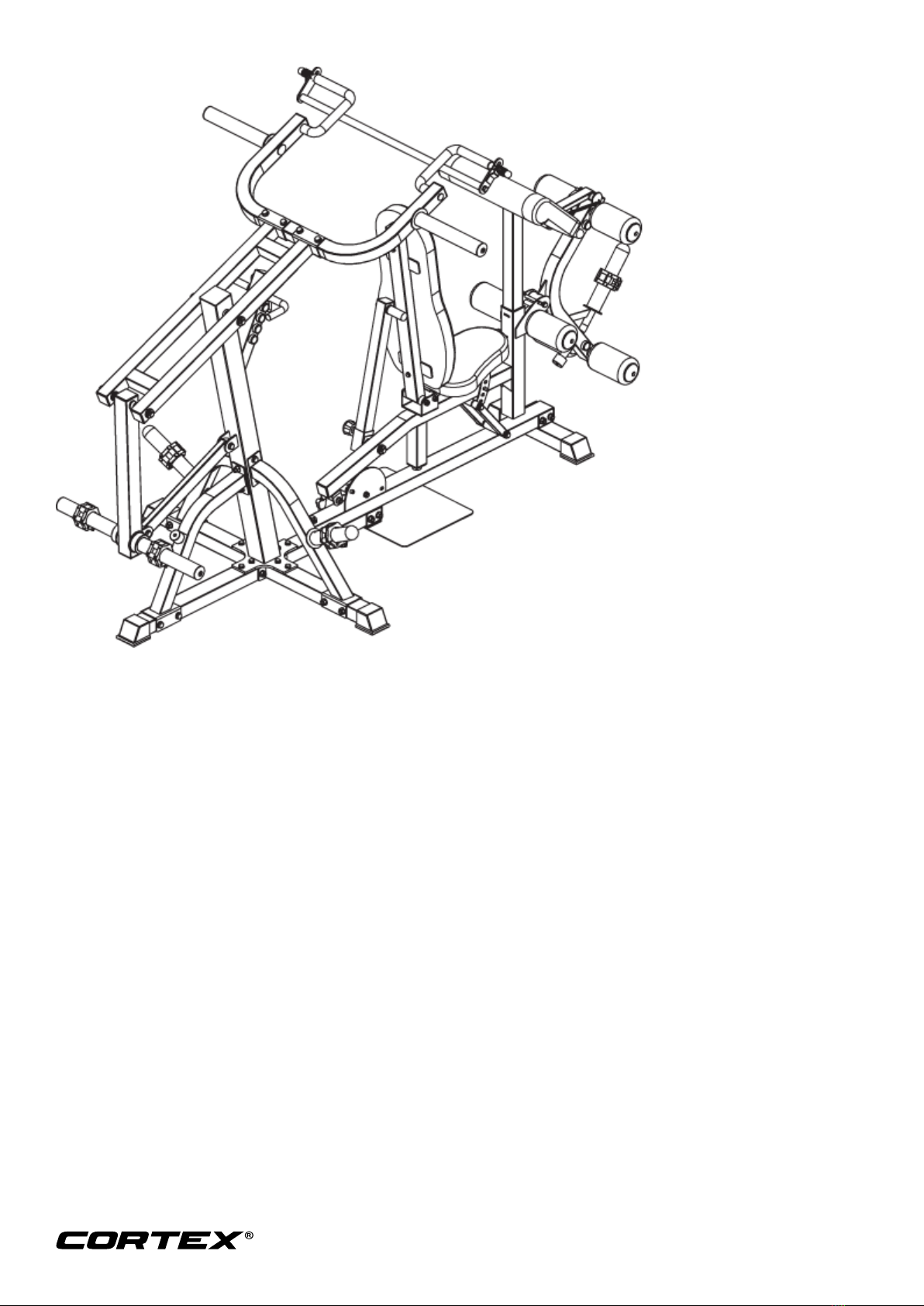

GSL1 LEVER MULTI
STATION
OWNER’S MANUAL
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner’s manual for future
reference.

2
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. CARE INSTRUCTIONS 4
3. PARTS LIST 5
4. ASSEMBLY INSTRUCTIONS 7
5. WARRANTY 15

3
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this product.
Please keep this manual with you at all times
a. It is important to read this entire manual before assembling and using the equipment. Safe and effective
use can only be achieved if the equipment is assembled, maintained and used properly.
Please note: It is your responsibility to ensure that all users of the equipment are informed of all warnings
and precautions.
b. Before starting any exercise program, you should consult your doctor to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using the
equipment properly. Your doctor’s advice is essential if you are taking medication that affects your heart
rate, blood pressure or cholesterol level.
c. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these symptoms, you should consult your doctor before continuing with your exercise
program.
d. Keep children and pets away from the equipment. This equipment is designed for adult use only.
e. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure
safety, the equipment should have at least 2 meters of free space around it.
f. Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any
unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the
equipment until the problem has been rectified.
g. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in
the equipment or that may restrict or prevent movement.
h. This equipment is designed for indoor and family use only
i. Care must be taken when lifting or moving the equipment so as not to injure your back.
j. Always keep this instruction manual and assembly tools at hand for reference.

4
k. The equipment is not suitable for therapeutic use.
2. CARE INSTRUCTIONS
•Lubricate moving joints with silicon spray after periods of usage.
•Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
•The machine can be kept clean by wiping it down using dry cloth.
•Regularly check all moving parts and grasp whether there are signs of wear and damage, and if any,
stop using the device immediately and contact the rear of my department.
•During inspection, all bolts and nuts must be fully fixed. If bolts or nuts are loose, please secure
them in place.
•Check that the weld is free of cracks.
•Failure to perform daily maintenance may result in personal injury or equipment damage.

5
3. PARTS LIST
No. Description Note Qty.
1 Under main frame 1
2 Feet pad 1
3 Side ground tube 2
4 Stand tube 1
5 Right side support tube 1
6
Left side support tube
1
7 Back support tube 1
8 Hexagon bolt M12*95 10
9 Washer φ12 28
10 Lock nut M12 14
11 Hexagon bolt M10*25 8
12 Washer φ10 8
13 Hexagon bolt M12*105 4
14 Side support tube 2
15 Ground tube 1
16
Short ground tube
1
17 Back slope support tube 1
18 Bend frame 1
19 Flat head bolt 1
20 Rotation axle φ12*92 1
21 Hexagon bolt M12*80 1
22 Lock nut M10 2
23 Big washer φ
10*
φ
25
4
24 Big washer φ
10*
φ
30
1
25 Inside adjustable tube 1
26
Back cushion adjust rotation part
1
27 Leg lift bending tube 1
28 Pull bar 1
29 Magnetic pin 1
30 Chest pad adjust tube 1
31 Chest pad 1
32 Washer φ
8
6
33 Seat cushion 1
34 Hexagon bolt M8*55 4
35
Hexagon bolt
M8*25
2
36 New back cushion 1
37 Back cushion tube 1
38 Sponge rod-new 3
39 Seat cushion support frame 1
40 Shoulder press double connecting 1
41 Back barbell hanging tube 1
42 High pull connecting tube 1

6
43 Shoulder press bending tube 1
44 Push shoulder part 1
45
Barbell bar plate inner rod
2
46
L shape safely hook
1
47 Hexagon bolt M12*75 4
48 Hexagon bolt M12*70 2
49 Hexagon bolt M12*55 2
50 Barbell clamp collar φ50 5
75 Bolt M12X70 2
76 Bolt M12X75 4
77 Shoulder press set 1
78 Barbell plate inside tube 2
79 Tube cap φ60*60 1
80
Stainless steel outer casing
φ51*t1.0*310
4
81 Aluminium cap 4
82 Handlebar grip 2
83 Shoulder press connecting plate 1
84 Pin 1
85 Shoulder press connecting plate 1

7
4. ASSEMBLY INSTRUCTIONS

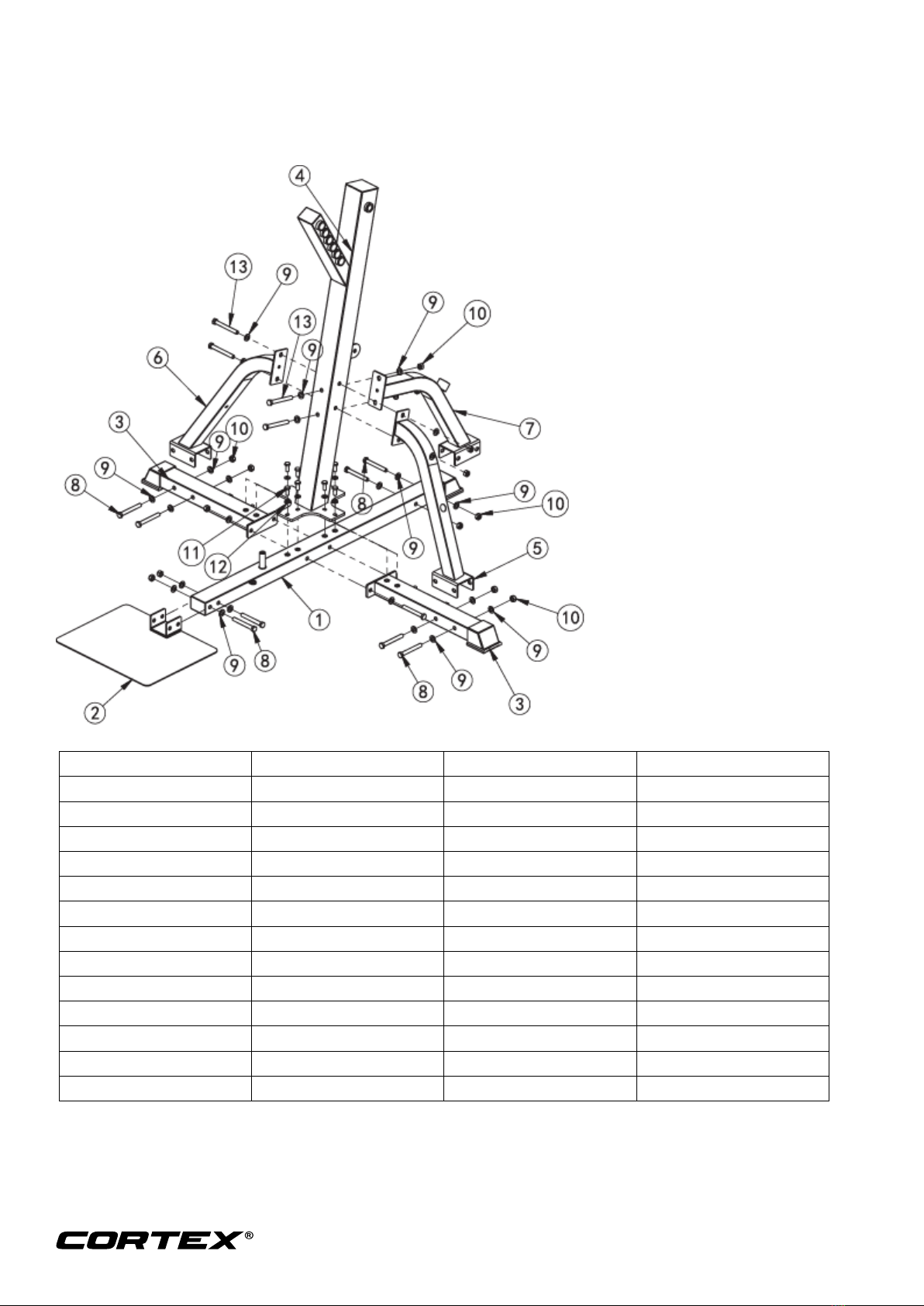

Step 1 – Exploded diagram
No.
Description
Note
Qty.
1 Under main frame 1
2 Feet pad 1
3 Side ground tube 2
4 Stand tube 1
5 Right side support tube 1
6 Left side support tube 1
7 Back support tube 1
8 Hexagon bolt M12*95 10
9 Washer φ
12
28
10 Lock nut M12 14
11
Hexagon bolt
M10*25
8
12
Washer
φ
10
8
13 Hexagon bolt M12*105 4

8

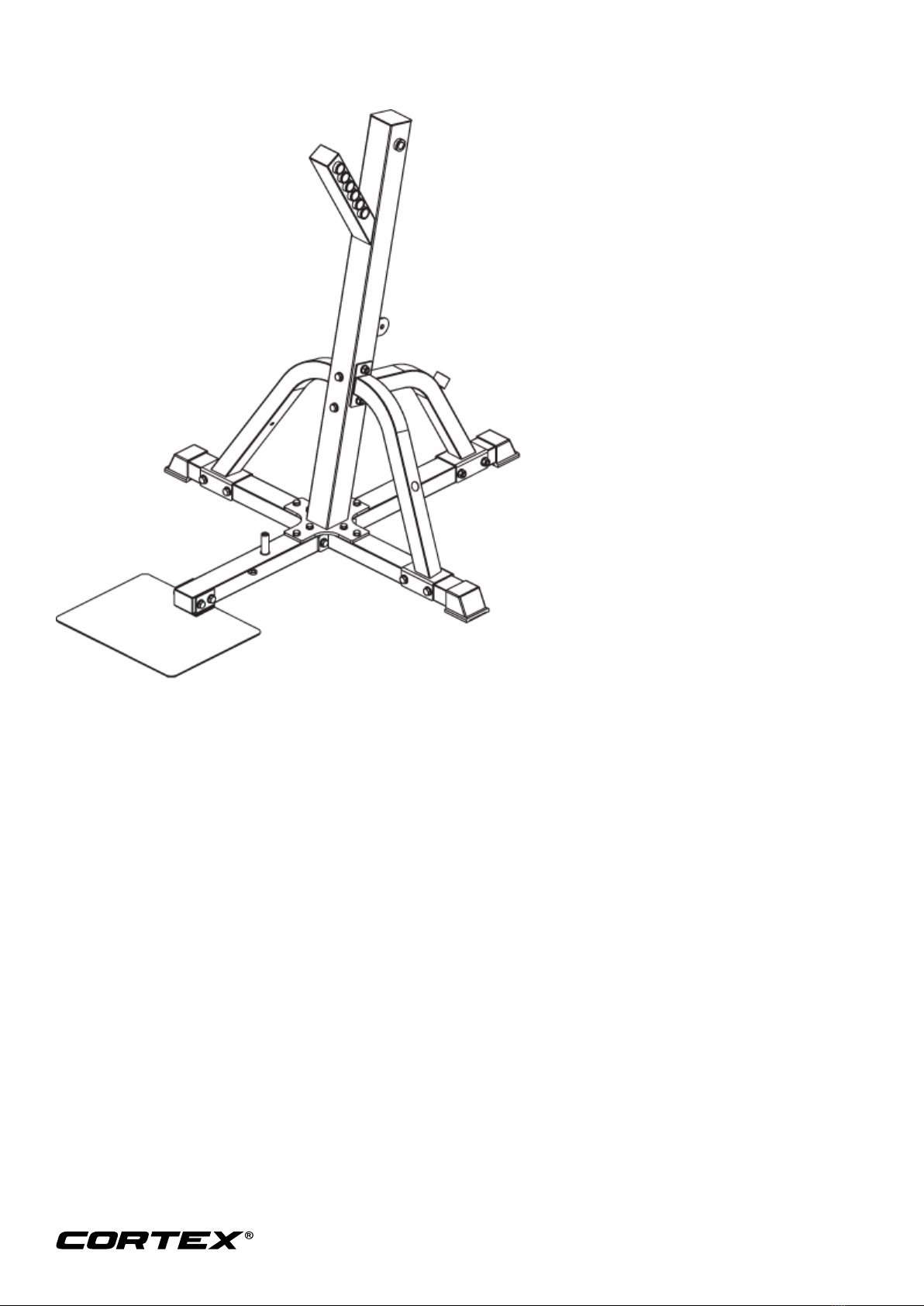

Step 1 – Instructions
1. Connect feet pad-2 and under main frame-1 using M12*95 hexagon bolt- 8, φ12 washer-9 and lock it using
M12 lock nut-10.
2. Assemble side ground tube-3 on two side of the under main frame-1 using M12*95 hexagon bolt-8, φ12
washer-9 and lock it using M12 lock nut-10.
3. Assemble stand tube-4 on under main frame-1 using M10*25 hexagon bolt-11, φ10 washer-12.
4. Assemble right side support tube-5, left side support tube-6 on two side of the stand tube-4 using M12*105
hexagon bolt-13, φ12 washer-9 and lock it using M12 lock nut-10.
Then assemble them on ground tube-3 using M12*95 hexagon bolt-8, φ12 washer-9 and lock it using M12
lock nut-10.
5. Assemble back support tube-7 on stand tube-4 using M12*105 hexagon bolt-13, φ12 washer-9 and lock it
using M12 lock nut-10.
Then assemble it on under main frame-1 using M12*95 hexagon bolt-8, φ12 washer-9 and lock it using M12
lock nut-10.

9
Step 2 – Exploded diagram
No.
Description
Note
Qty.
14 Side support tube 2
15 Ground tube 1
16 Short ground tube 1
17 Back slope support tube 1
18 Bend frame 1
19 Flat head bolt 1
20 Rotation axle φ12*92 1
8 Hexagon bolt M12*95 2
9 Washer φ
12
6
10 Lock nut M12 3
11
Hexagon bolt
M10*25
5
12
Washer
φ
10
2
21 Hexagon bolt M12*80 1
22 Lock nut M10 2
23 Big washer φ10*φ25 4
24 Big washer φ10*φ30 1

10
Step 2 – Instructions
1. Assemble short ground tube-16 on ground tube-15 using M12*95 hexagon bolt-8, φ12 washer-9 and lock it
using M12 lock nut-10.
2. Assemble ground tube-15 on under main frame-1 using M10*25 hexagon bolt-11, φ10*φ30 big washer-24
and plug flat head bolt-19 in suitable position.
3. Assemble side support tube-14 on ground tube-15 using M10*25 hexagon bolt-11, φ10*φ25 big washer-23.
4. Assemble back slope support tube-17 on ground tube-15 using M10 lock nut-22, φ10 washer-12, rotation
axle-20.
5. Assemble side support tube-14 on bend frame-18 using M10*25 hexagon bolt-11, φ10*φ25 big washer-23
6. Assemble back slope support tube-17 on bend frame-18 using M12*80 hexagon bolt-21, φ12 washer-9.
Assemble back support tube-7 on stand tube-4 using M12*105 hexagon bolt-13, φ12 washer-9 and lock it
using M12 lock nut-10.
Then assemble it on under main frame-1 using M12*95 hexagon bolt-8, φ12 washer-9 and lock it using M12
lock nut-10.
