Children’s Toy Beach Car
TQ10077US
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US:[e-mail]
UK:[e-mail]
AU:[email protected]
US office: Fontana UK office: Ipswich AU office: Truganina

Before You Start
General Warnings:
The product must be installed and used under the supervision of an adult.
Read through each step carefully and follow the proper order.
Remove all packaging, separate and count all parts and hardware.
Please ensure that all parts are correctly installed, incorrect installation can lead to
a danger.
We recommend that, where possible, all items are assembled near the area in
which they will be placed in use, to avoid moving the product unnecessarily once
assembled.
Ensure a secure surface during installation, and place the product always on a flat,
steady and stable surface.
Please use this product with caution. The use of this product requires superb skills
to avoid accidents to the user or others due to a fall or collision.
Please wear suitable protective equipment during use, e.g. protective helmet,
gloves, knee pads, elbow pads etc.
Warnings:
Attention! Use it with protective equipment.
Attention! Not use it in the traffic.
Attention! The product is not suitable for the children under 3 years.
Please read all instructions carefully and keep it for future reference. About Your New Ride-On │ 1
On the purchase of your new Ride-On.
This ride-on will provide your child with many miles of riding of
enjoyment. To help assure you and your rider a safe ride, we ask you
to please read this manual carefully, and keep it for future reference.
Follow the recommendations in this manual, they are designed to
improve the safety and operation of your ride-on car and it’s rider.
Suitable age:
Load Capacity:
Speed:
Size of car:
Power way:
Charge time:
37-96 months
Under 30kg
3-6km/h
98 * 61 * 72 cm
Charging type
8-12 hours
SPECIFICATIONS:
Battery
Charger
12V7AH*1
12V1000mA
Styles and colo(u)rs may vary.
Made in China.
The owner’s manual contains important safety information as well as
assembly, use and maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and
understood the instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
02 03

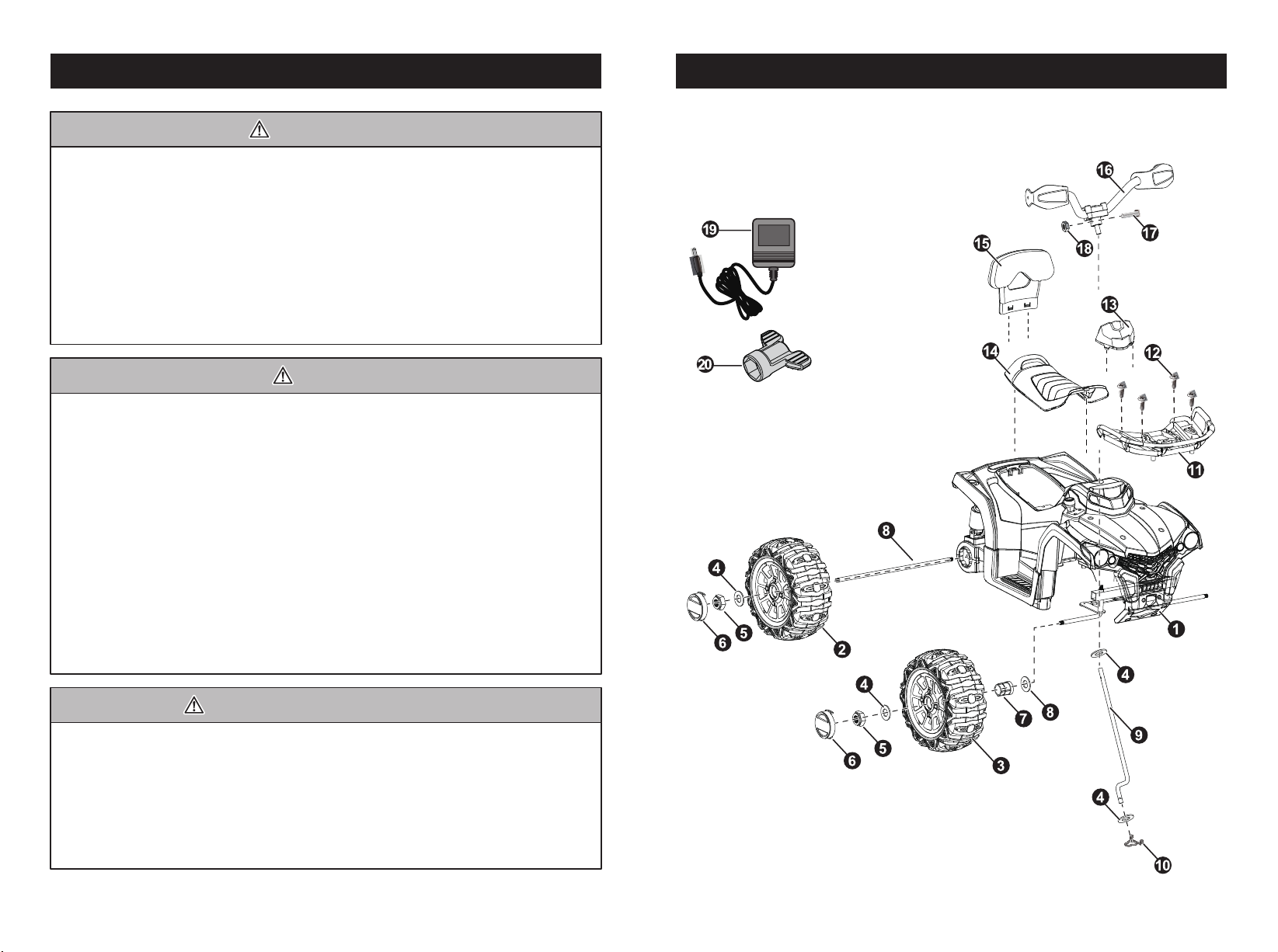

User Notice │ 2 Parts Diagram │ 3
HINT: Some parts shown are assembled on both sides of vehicle
WARNING!
• CHOKING HAZARD - Small parts. Not suitable for children under 36
months. The product contains small parts, keep children away when
assembling.
• ADULT ASSEMBLY REQUIRED.
• Always remove protective material and poly bags and dispose before
assembly.
• Protective equipment should be worn. Always wear shoes and sit in the
seat when operating the vehicle.
• Only drive on level ground. Never use on the lawn.
• Never leave a child unattended.
• Keep your hands, hair, and clothes away from moving parts.
SAFETY
The following safety hazards may result in serious injury or death:
• Never leave child unattended. Direct adult supervision is required. Always
keep child in view when child is in vehicle.
• To reduce the risk of injury, adult supervision is required. Never use in
roadways, near motor vehicles, on or near steep inclines or steps,
swimming pools or other bodies of water. Always wear shoes, and never
allow more than 1 rider.
• Never use in unsafe conditions such as snow, rain, loose dirt, mud, sand, or
gravel, otherwise it may result in an unexpected accident such as tipping
over, and could damage the electrical system or battery
• Not to be used in traffic.
• This toy should be used with caution since skill is required to avoid falls or
collisions causing injury to the user or third parties.
• This toy is unsuitable for children under 36 months due to its maximum
speed; Maximum user weight is 30kg.
• This toy has no brake.
BATTERY INFORMATION
● Non-rechargeable batteries are not to be recharged.
● Rechargeable batteries are to be removed from the toy before being
charged.
● Rechargeable batteries are only to be charged under adult supervision.
● Different types of batteries or new and used batteries are not to be mixed.
● Batteries are to be inserted with the correct polarity.
● Exhausted batteries are to be removed from the toy.
● The supply terminals are not to be short-circuited.
04 05

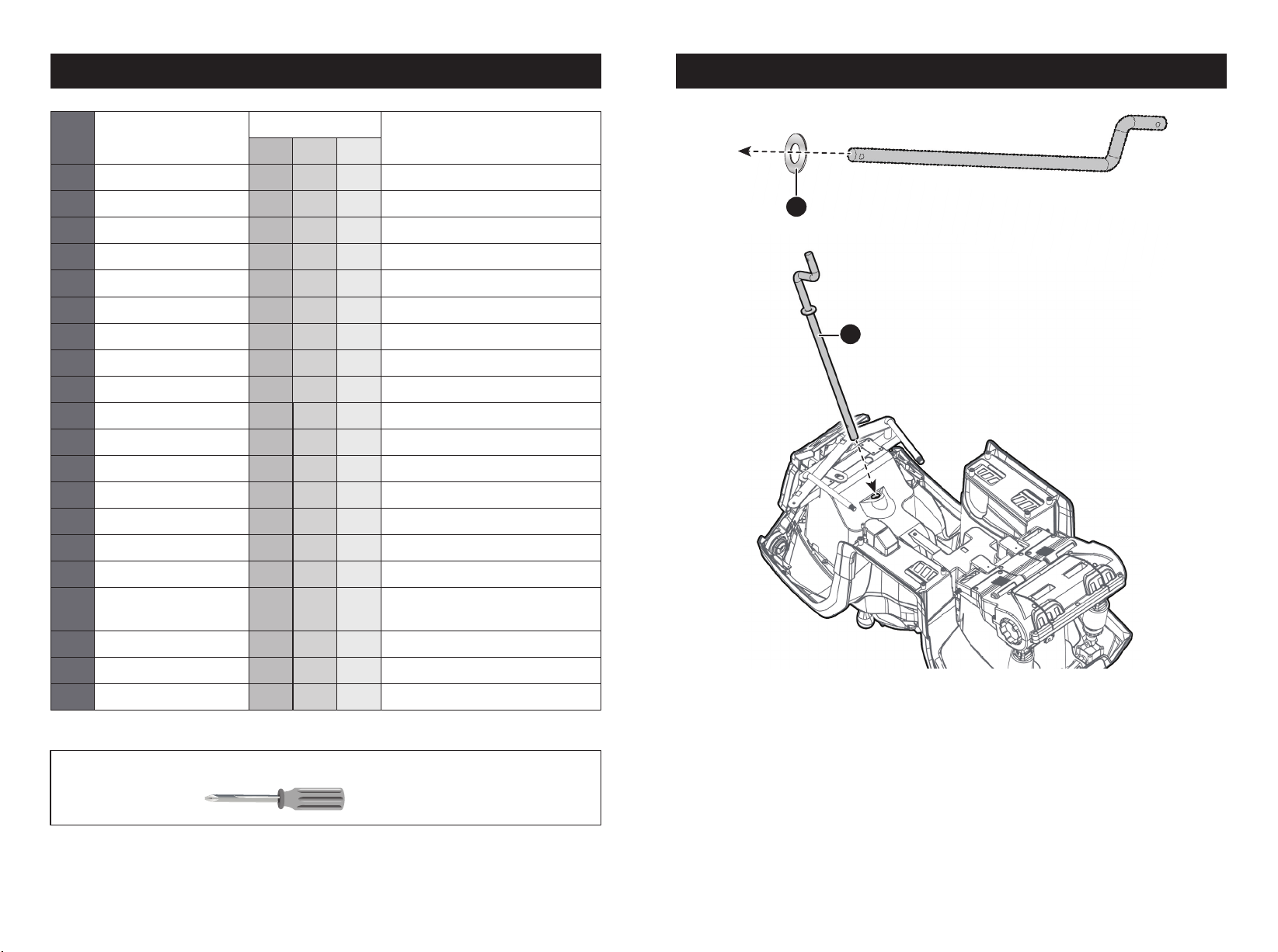

Parts List │ 4 Attach the Steering Column │ 5
Turn the vehicle body downside up.
1. Slide a Ø12 washer onto the steering column from the straight end.
2. Insert the straight end of the steering column through the hole on bottom
of the vehicle body, and out through hole on the dash.
1
2
Assembly tools required (not included):
Screwdriver
PART
NO.
11
PART NAME
Vehicle body
Rear wheel
REMARKS
Q’ty (pcs)
22
32
Front wheel
48
Ø12 washer
54
Lock nut
64
Hubcap
72
Bushing
81
Rear axle
91
Steering column
10 1
Split pin
11 1
Basket
12 4
Ø4x12 screw
13 1
Dash
14 1
Seat
15 1
Back rest
16 1
Handle bar
17 1
M5x35 machine
screw
18 1
Ø5 nut
19 1
Charger
20 2
Spanner
Placed on the handle bar
Placed on the handle bar
06 07

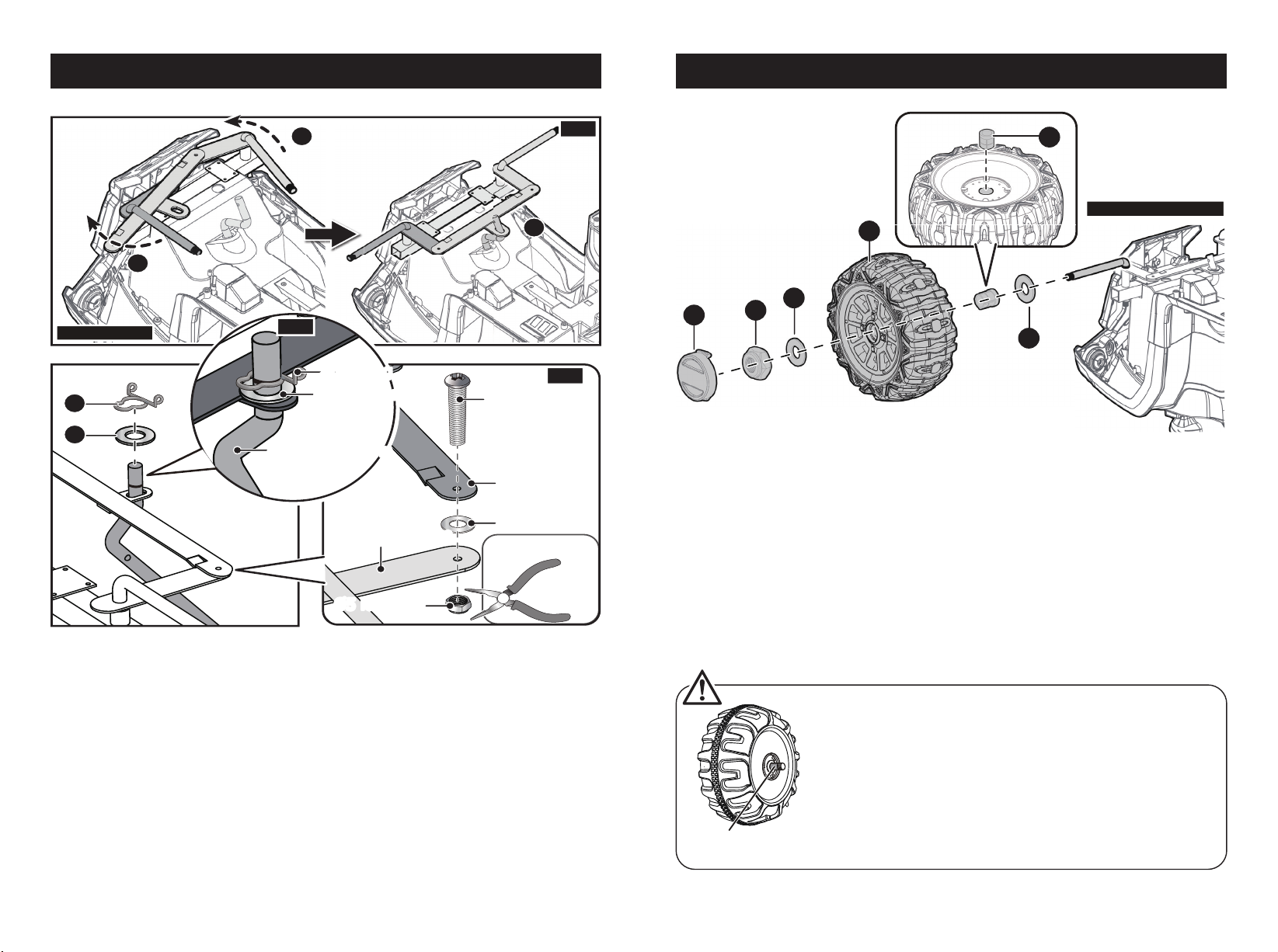

Attach the Front Axle │ 6 Reset the Front Wheels │ 7
Cut off the plastic tie on the front axle with scissors.
1. Adjust the front axle plate so that the axle is in the correct position as shown 6-1.
2. Ensure the bent end of the steering column is inserted into the hole in the front
axle linkage.
3. Slide a Ø12 washer onto the bent end of the steering column.
4. “Snap” the snap ring onto the bent end of the steering column, AS IMG 6-2.
5. Remove the M5x20 machine screw, Ø5 washer and Ø5 lock nut from the front
axle linkage. Reinsert the M5x20 machine screw through the hole on the front axle
linkage, the Ø5 washer and the hole on the front axle plate, then fasten the Ø5 lock
nut to the opposite end of the screw with a Long Nose Pliers(Not included). AS IMG
6-3.
Remove all the parts from the front axle.
1. Slide a Ø12 washer onto the front axle.
2. Insert the bushing into the hole in the wheel inside the wheel.
3. Slide the wheel onto the front axle.
4. Slide a Ø12 washer onto the front axle.
5. Tighten a lock nut to the end of the front axle with a spanner. DO NOT
over tgithen.
6. “Snap” the hubcap to the wheel.
Repeat the above procedures to assemble the other normal wheel.
After assembling any wheel to the axles, please check the gap
between the screw thread and the axle, if the gap is too big,
please add two or three washers
inside the wheel, but after tightening the nut outside the
wheel, please turn the wheel by your finger to check if the
wheel can run smoothly, this is very important, because if the
wheel can run smoothly, it is ok, but if the nut presses the
wheel and the wheel can’t run smoothly, the motor will be
broken easily! Then you need to decrease one or two washers
to make sure the wheel can run smoothly!
GAP
1
1
2
3
4
6-1
6-2
6-3
Ø5 lock nut
M5X20
machine
screw
Front axle
linkage
Front axle plate
Front Bottom View
Ø5 washer
Tools required (not included):
Long nose pliers
Ø12 washer
Steering column
Snap ring
3
6
4
5
1
2
Front Bottom View
08 09

4
5
6
End of steering column
Reset the Rear Wheels │ 8
1. Insert the rear axle through holes in the vehicle body.
2. Slide the rear wheel onto the rear axle, ensure the driver inside the wheel
matches up with the gear box.
3. Slide a Ø12 washer onto the rear axle.
4. Tighten a lock nut to the end of the front axle with a spanner.
• Repeat the above procedures to assemble the other rear wheel. HINT: An
extra spanner has been provided to hold the Lock Nut on the other side of
the rear axle while tightening the Lock Nut on the other side. DO NOT over
tighten.
5. “Snap” the hubcaps to the wheels.
1. Fit the tabs on dash into the slots in the vehicle body and push it to click
into place.
2. Fit the basket to the bonnet.
3. Insert four Ø4x16 screws and
tighten.
4. Fit the handle bar to the end
of the steering column.
5. Align the holes on each side
of handle bar with the holes at
the end of the steering column.
6. Fasten a nut on the opposite
end of the screw to secure the
handle bar to the steering
column.
2
3
4
5
1
Rear Bottom View
2
3
1
Attach the Dash, Basket & Handle Bar │ 9
10 11

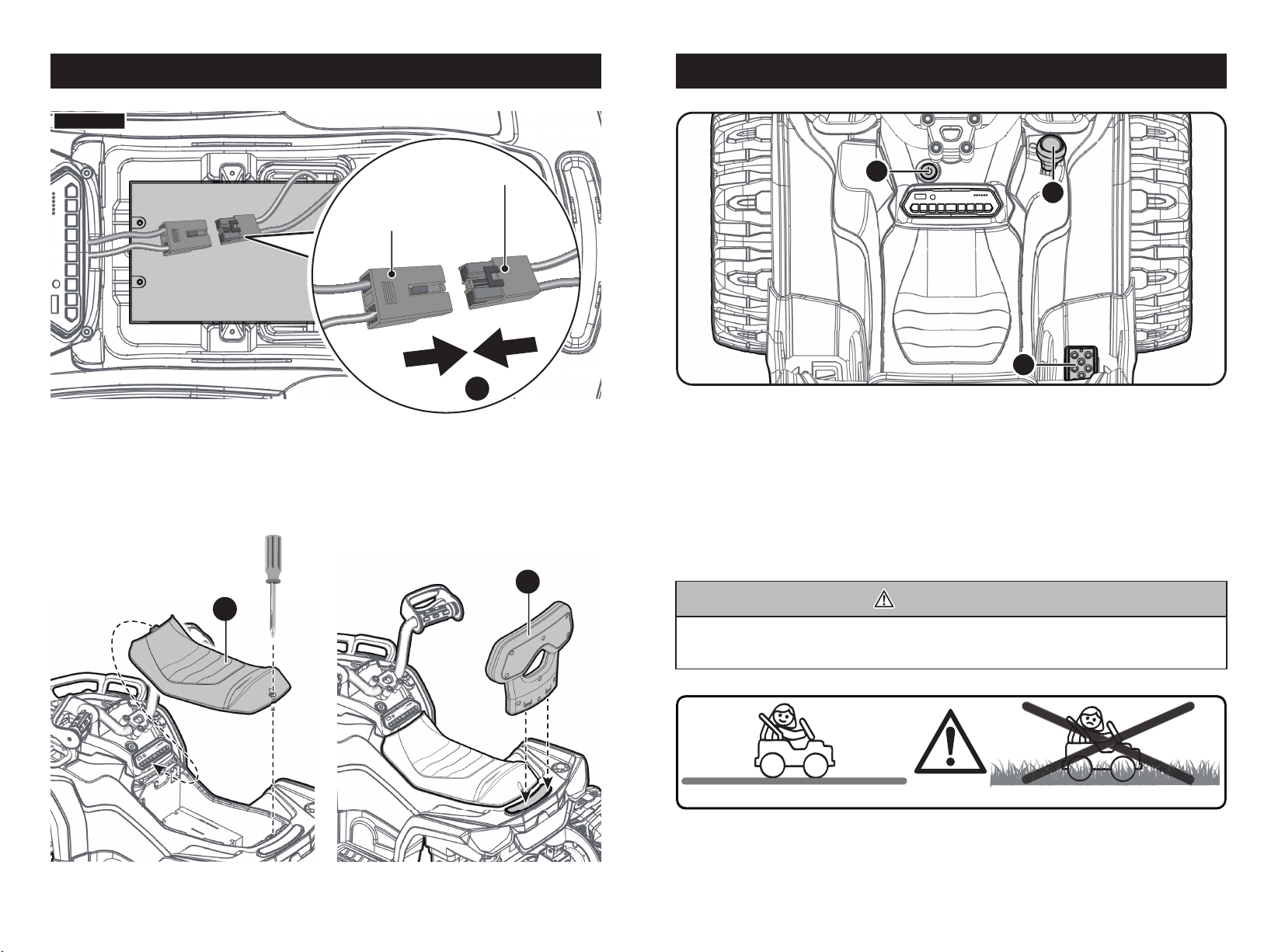

1. Plug the battery connector into the vehicle connector.
2. Fit the seat to the vehicle body. Using a screwdriver to tighten the M5X16
machine screw on the back of the seat into the vehicle body.
3. Insert seat back into the groove on the back of the vehicle body.
1. Power button: Turns the vehicle on and off.
2. Low speed forward/reverse shifter: Changes the direction that vehicle
moves from forward to reverse.
● To move the vehicle forward, shift the lever to top position.
● To move the vehicle backward, shift the lever to lower position.
3. Foot pedal: Applies power (speed) to the vehicle.
● To move the car, press the pedal down.
● To brake or slow down, release pressure from the pedal.
Use Your Ride-on │ 11
Connect the Power Supply & Attach the Seat, Seat Back │ 10
1
Battery connector
Vehicle connector
Top View
3
2
2
1
3
IMPORTANT
Always stop vehicle when changing the speed (if equipped) or direction to
avoid damage to the gears and motor.
Use the vehicle on generally level ground ONLY! DO NOT Use the vehicle on Lawn space!
12 13

Using the High Speed │ 12
A. Remove the two screws on the top of the high speed protective cover with
a screwdriver.
B. Remove the high speed protective cover.
Then you can push the shifter into the “high speed” position.
C. Press down the foot pedal.
HINT: When reversing, the car can only operate at low speed.
• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not
recharge the battery for more than 10 hours to avoid overheating the
charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month, the minimum recharge time is 8 to 12
hours, less than 20 hours at most.
• Use the only rechargeable battery and charger supplied with your vehicle.
NEVER substitute the battery or the charger with another brand. Using
another battery or charger may cause a fire or explosion.
• Do not use the battery or charger for any other product.
• If your ride-on with a Digital voltmeter(IF EQUIPPED), the magnitude of
voltage will tell you how much power is remaining in the battery when you
must recharge the battery. Make sure the vehicle is stopped!
1. Plug the charger port into the input socket (the socket below the seat).
2. Plug the charger plug into a wall outlet. The battery will begin charging.
Charging │ 13
WARNING!
• ONLY an adult is allowed to charge and recharge the battery!
• This product with Charging Protection: when charging, all functions will
be cut off.
IMPORTANT
● The High Speed Protective cover must be removed by an adult.
● Before remove the HIGH SPEED protective cover: Make sure your child
knows how to steer, how to start and stop the car and knows the rules for
safe driving.
B
A
Reverse
Low speed
forward
High speed forward
12V product less than 12.5V
The battery needs to be charged.
2
1
14 15

Troubleshooting Guide │ 14
Battery Disposal
The battery will eventually lose the ability to hold a charge. Depending on the
amount of use, and varying conditions, the battery should operate for one to
three years.
Important! Recycle the dead battery responsibly. The battery contains lead
acid (electrolyte) and must be disposed of properly and legally. It is illegal in
most areas to incinerate lead acid batteries or dispose of them in landfills.
Take it to a federal or state-approved lead acid battery recycler, such as local
automotive battery retailer.
Do not throw the battery away with your regular household waste!
Problem Possible Cause Solution
Vehicle is overloaded Reduce weight on vehicle.
Vehicle needs a
push to go
forward
Poor contact of wires
or connectors
Check that the battery connectors are
firmly plugged into each other. If wires are
loose around the motor, contact us
please.
“Dead Spot” on motor
A dead spot means the electric power is
not being delivered to the terminal
connection and the vehicle needs repair.
Contact us please.
Vehicle is being used
in harsh conditions
Avoid using vehicle in harsh conditions.
Vehicle runs
sluggishly Battery low on power Recharge battery, contact us please.
Battery is old Replace battery, contact us please.
Difficult shifting
from forward to
reverse or
vice-versa
Attempting to shift
while the vehicle is in
motion
Completely stop the vehicle and shift.
Loud grinding
or clicking
noises coming
from motor or
gear box
Motor or gears are
damaged
Contact us please.
Battery will not
recharge
Battery connector or
adapter connector is
loose
Check that the battery connectors are
firmly plugged into each other.
Charger is a
little hot when
recharging
Charger not plugged
in
Check that the battery charger is plugged
into a working wall outlet.
Charger is not working
This is normal and not
a cause for concern
Contact us please.
Completely read through this manual and the troubleshooting
guide table before calling.
If you still need help resolving the problem
Contact us please.
Problem Possible Cause Solution
Vehicle does
not run
Battery low on power Recharge battery.
Motor is damaged Contact us please.
Battery is dead Replace battery, contact us please.
Electrical system is
damaged Contact us please.
Thermal fuse has
tripped Reset fuse.
Vehicle does
not run very
long
Battery is under
charged
Check that the battery connectors are
firmly plugged into each other when
recharging
Battery is old Replace battery, contact us please.
Battery connector or
wires are loose
Check that the battery connectors are
firmly plugged into each other. If wires are
loose around the motor contact us
please.
16 17

Maintaining │ 15
• Parents are responsible for inspecting the main parts of the toy
before use and regularly checking for potential hazards, such as
batteries, the charger, cables or wires, plugs, screws. Check whether
these parts are damaged. If there is any damage, do not use the
product until it is repaired.
• Park the vehicle indoors or cover it with a tarp to protect it from
wet weather.
• Recharge the battery after each use. Only an adult can handle the
battery. Recharge the battery at least once a month when the vehicle
is not in use.
• Do not wash the vehicle with a hose. Do not wash the vehicle with
soap and water.
Do not drive the vehicle in rainy or snowy weather. Water will
damage the motor, electric system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic
parts, use a non-wax furniture polish. Do not use car wax. Do not use
abrasive cleaners.
• When not in use, all the electrical source should be turned off. Turn
off the power switch and disconnect the battery connection.
Fuse
The battery features a thermal fuse with a rest fuse that will
automatically trip and cut all power to the vehicle if the motor,
electric system or battery is overloaded. The fuse will reset and
power will be restored after the unit is turned OFF for 20 seconds and
then turned ON again. If the thermal fuse trips repeatedly during
normal use, the vehicle may need repair. Contact us please.
To avoid losing power, follow these guidelines:
● Do not overload the vehicle.
● Do not tow anything behind the vehicle.
● Do not drive up steep slopes.
● Do not drive into fixed objects, which may cause the wheels to spin,
causing the motor to overheat.
● Do not drive in very hot weather, components may overheat.
● Do not allow water or other liquids to come in contact with the
battery or other electric components.
● Do not tamper with the electric system. Doing so may create a
short, causing the fuse to trip.
Our products are suitable for
ASTM F963; GB6675; EN71 and EN62115 standard.
18 19
