Costway TQ10120 User manual

TQ10120
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Kids Ride-On Car
Voiture pour Enfants
If you're having difficulty, our friendly
customer team is always here to help.
USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville
USA:[email protected]
AUS:[e-mail]
GBR:[e-mail]
FRA:[e-mail]

The product must be installed and used under the supervision of an adult.
Read through each step carefully and follow the proper order.
Remove all packaging, separate and count all parts and hardware.
Please ensure that all parts are correctly installed, incorrect installation can
lead to a danger.
We recommend that, where possible, all items are assembled near the area
in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Ensure a secure surface during installation, and place the product always on
a flat, steady and stable surface.
Please use this product with caution. The use of this product requires
superb skills to avoid accidents to the user or others due to a fall or
collision.
Please wear suitable protective equipment during use, e.g. protective
helmet, gloves, knee pads, elbow pads etc.
Attention! Use it with protective equipment.
Attention! Not use it in the traffic.
Attention! Children should use this product under the parental supervision.
Before You Start
Please read all instructions carefully and keep it for future reference.
EN
General Warnings
Warnings
Le produit doit être installé et utilisé sous la surveillance d’un adulte.
Lisez attentivement chaque étape et suivez l’ordre correct.
Retirez tous les emballages, séparez et comptez toutes les pièces et le matériel.
Assurez-vous que toutes les pièces sont correctement installées, une installation
incorrecte peut entraîner un danger.
Nous recommandons que, dans la mesure du possible, tous les articles soient
assemblés à proximité de la zone dans laquelle ils seront utilisés, afin d’éviter de
déplacer inutilement le produit une fois assemblé.
Assurez-vous que la surface soit solide pendant l’assemblage et placez toujours le
produit sur une surface plane et stable.
Veuillez utiliser le produit avec précaution, car le produit nécessite une grande habileté,
évitez les accidents de l’utilisateur ou d’autres personnes, par chute ou collision.
Veuillez porter un équipement de protection approprié pendant l’utilisation, par exemple,
le casque de protection, les gants, les genouillères, les coudières, etc.
Attention ! Utilisez ce produit avec un équipement de protection.
Attention ! Ne l’utilisez pas dans la circulation routière.
Attention ! Les enfants doivent utiliser ce produit sous la surveillance de leurs parents.
Avant de Commencer
Veuillez lire attentivement toutes les instructions et les conserver pour la référence ultérieure.
FR
Avertissements Généraux
Avertissements
02 03

EN PLEASE READ THE INSTRUCTIONS
Styles and colors may vary
◎Suitable age for 3-8 Years
◎Maximum user weight: 59kg/130lbs
◎Adult assembly required
Charge for 4-6 hrs before initial use.
After initial charge, follow the normal recommended charging time.
INSTRUCTION
MANUAL
SAFETY Please retain these instructions for future reference.
NOTE: For best performance,only use this vehicle on flat and hard surfaces.
AGE RANGE: 3 to 8 years old
WEIGHT CAPACITY:
59kg/130lbs is the maximum weight for 2 riders (combined).
The following safety hazards may result in serious injury or death:
• This product contains small parts.Keep children away during assembly.Make
sure to remove all packaging material and parts from underneath the vehicle
body.
• Never open the battery.Batteries contain lead and lead compounds(acids).
• Limbs,hair,and clothing can get caught in moving parts.Always wear
shoes,keep limbs away from moving parts,and do not wear loose clothing
while operating this vehicle.
• This vehicle does not have brakes or braking capability.Do not leave a child
unattended during operation.Do not use this in a location that may require
braking capability as this could result in loss of control,which may cause
serious injury or death.
• Use of this vehicle near streets,motor vehicles,steps,bodies of water,sloped
surfaces,hills,wet areas,flammable vapors,in alleys,at night,or in the dark
could result in an unexpected accident.
• Use of this vehicle in unsafe conditions such as snow,rain,loose
dirt,mud,sand,or gravel may result in an unexpected accident such as tipping
over,and could damage the electrical system or battery.
• Do not operate this vehicle in an unsafe manner.Examples include but are
not limited to:
-Pulling the vehicle with another vehicle or similar device
-Allowing more than two children to ride
-Pushing the user
-Traveling at an unsafe speed
04 05

BATTERY WARNINGS USER WARNINGS
SPECIFICATIONS
The following safety hazards may result in serious injury or death:
• Use of a battery or charger other than the supplied rechargeable battery and
charger may cause a fire or explosion.Only use the supplied battery and
charger.
• Use of the rechargeable battery and charger for any other product may result
in overheating,fire,or explosion.Never use the supplied rechargeable battery
and charger with another product.
• Explosive gases are created during charging.Charge the battery in a
well-ventilated area.Do not charge the battery near heat or flammable
materials.
• Contact between the positive and negative terminals may result in fire or
explosion.Avoid direct contact between the terminals.Picking up the battery
by the wires or charger can cause damage to the battery and may result in a
fire.Always pick up the battery by its case or handles.
• Liquids on the battery may cause fire or electric shock.Always keep all
liquids away from the battery and keep the battery dry.Contact or exposure
to battery leakage(lead acid)may cause serious injury.If contact or exposure
occurs,please call your physician immediately.If the chemical is on the skin
or in the eyes,flush with cool water for 15 minutes.If the chemical was
swallowed, give the person water or milk immediately.Do not give water or
milk if the patient is vomiting or has a decreased level of alertness.Do not
induce vomiting.
• Battery posts,terminals,and related accessories contain lead and lead
compounds(acid).
• Tampering or modifying the electric circuit system may cause a shock,fire or
explosion and permanently damage the system.Exposed wiring and circuitry
in the charger may cause electric shock.Always keep the charger housing
closed.
The following safety hazards may result in serious injury or death:
• Never leave a child unattended.
• Always sit in the seat when using this vehicle.
• Keep your hands,hair,and clothes away from moving part.
• Always wear shoes when operating this vehicle.
• Maximum of two children are allowed in the vehicle at a time.
• Children under 3 years of age cannot use the vehicle.
• Only drive on level ground.
• Do not go near swimming pools or other bodies of water,drop-offs,or up and
down steep inclines.
• Do not drive the vehicle into loose dirt,mud,sand,fine gravel,or on wet surfaces.
• Do not drive the vehicle on streets or near cars.
Item
Batteries
Motor
Age
Max Weight
Dimension
Speed
Play Time
Charger
Specification
12V
12V
3-8years
59KG/130LBS
126*78*79CM/49.6"*30.7"31.1"
12V 3-5km/hr
1-2 hours / recharger time 8-12hours
Output DC 12V
06 07

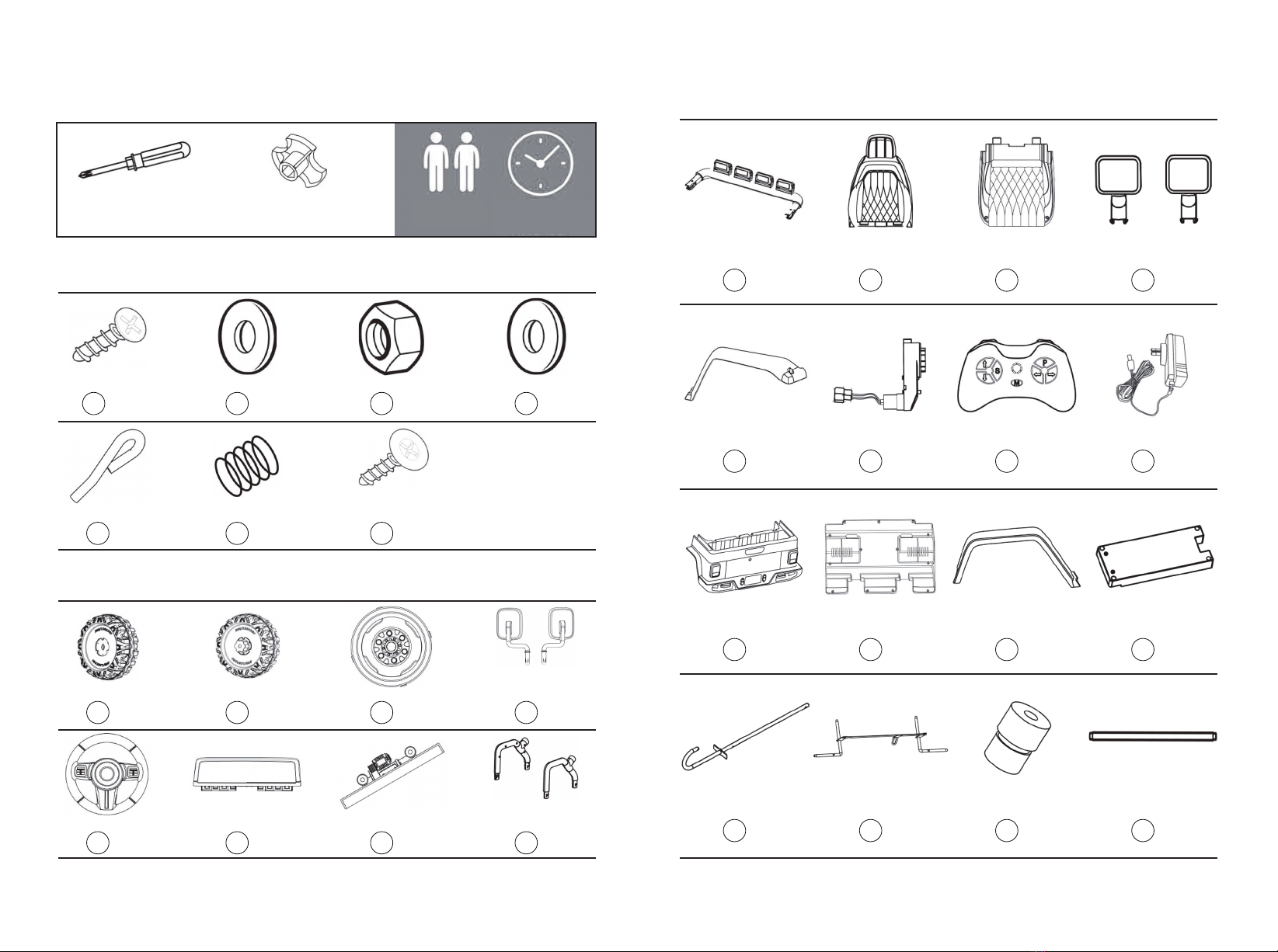

TOOLS REQUIRED
HARDWARE
PARTS
SCREWDRIVER
(BRING YOUR OWN)
SCREWDRIVER
(BRING YOUR OWN)
1 x47 2 x6 3 x6 4 x3
5 x1 7 x2 8 x2
M4*12mm SCREW φ12 GASKETS M10 NUTS
COTTER PIN SPRING
M4*14mm
SCREW
φ10 GASKETS
A x2 B x2 C x4 D x1
FRONT WHEEL REAR WHEEL WHEEL HUD MIRROR(L/R)
I x1 J x2 K x2 L x2
SEARCHLIGHT UPPER SEAT
COVER
LOWER SEAT
COVER DECORATIVE LAMP
M x2 N x2 O x1 P x1
FRONT FENDER
(L/R) GEAR BOX (L/R) REMOTE CONTROL CHARGERS
R x1 S x1 T x2 U x1
REAR SUPPORT REAR BRACKET
REAR FENDER
(L/R) SEAT SUPPORT
W x1 X x1 Y x2 Z x1
STEERING LEVER
DUAL DRIVE
FRONT BRACKET SPRING SLEEVE REAR AXLE
E x1 F x1 G x1 H x1
STEERING WHEEL WINDSHIELD FRONT BUMPER TAILSTOCK(L/R)
08 09

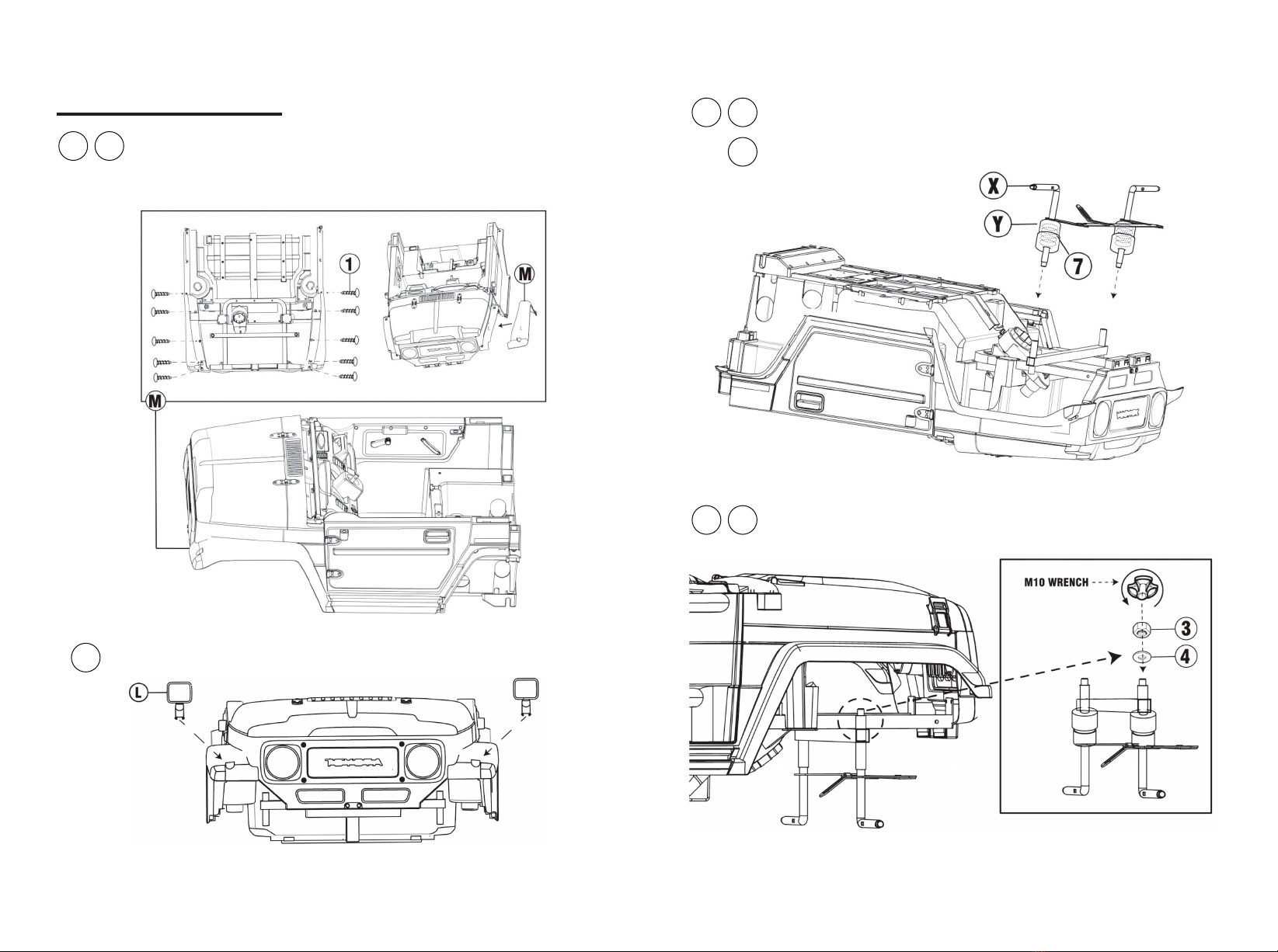

PRODUCT ASSEMBLY
Clip front fender (L / R) into the body (Note: front fender
distinguish left and right).
Turn over the car body and fix with M4 * 12 screw.
Clip the decorative lamp into the front fender of the body.
L
M 1
Insert spring and spring sleeve into the dual drive front support.
Y7
In turn put the φ10 gaskets and nut into the dual drive front
bracket, fix the nut with the M10 wrench.
34
Insert the dual drive front bracket into the body square tube
X
10 11

Insert the steering lever into the steering motor hole. Stuck the front bumper into the car.
Fix with M4 * 12 screw.
Fix with M4 * 14 screw.
W
Insert φ10 gaskets on steering lever.
4
After the steering lever is installed in place, insert the cotter pin to
bend and fix it.
5
G14
Turn the car body over so that it faces up.
Insert the rear axle into the car
Z
12 13

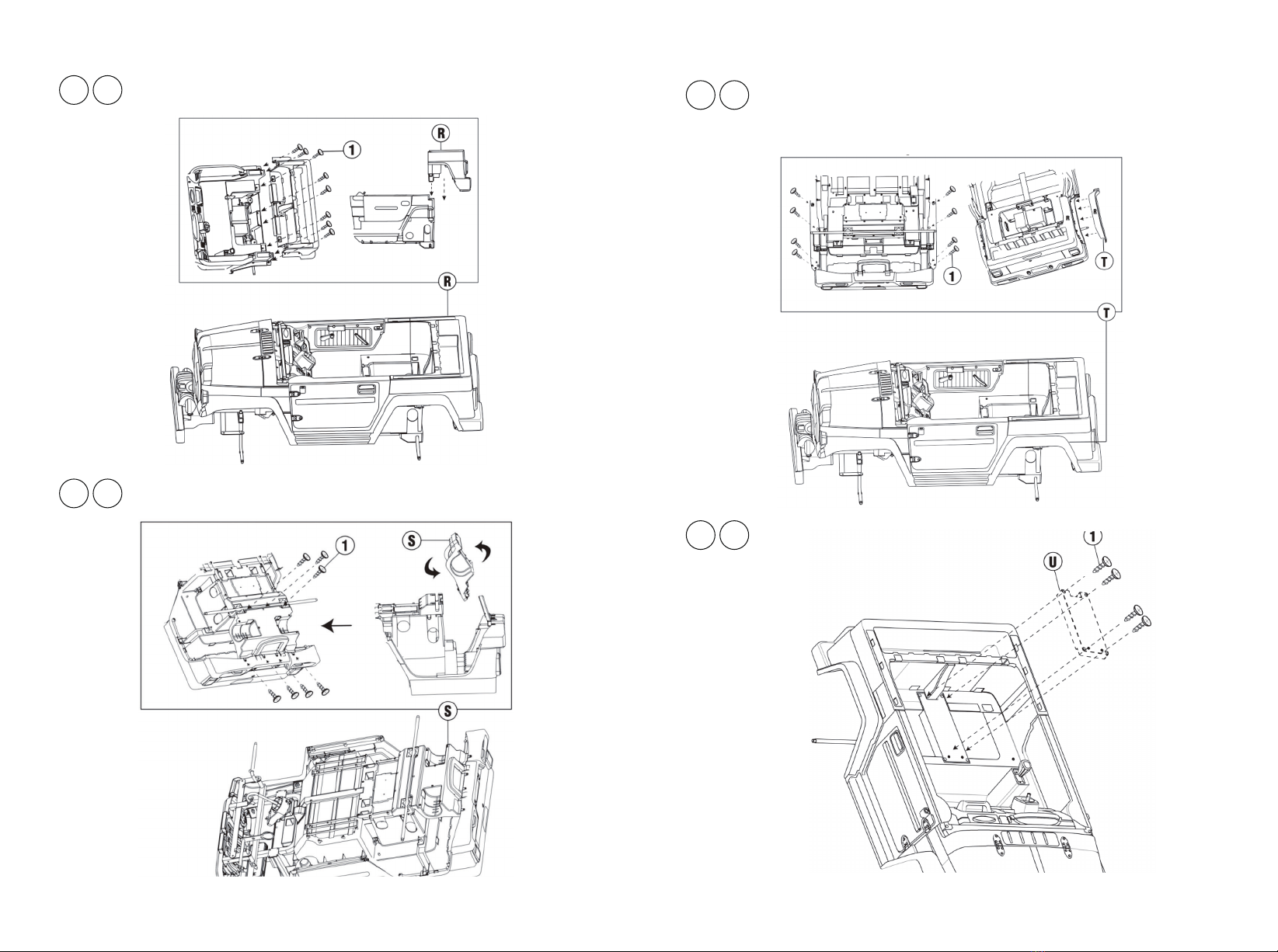

Clip the rear bumper into the body. Fix with M4 * 12 screw.
R1Clip Rear fender (L / R) into the body（Note: Rear fender
distinguish left and right）.
Turn over the car body and fix with M4 * 12 screw.
T1
Clip rear support into the body. Fix with M4 * 12 screw.
S1
Clip seat support into the body.
Fix with M4 * 12 screw.
U1
14 15

Attach the steering wheel.
• Remove the nut and bolt from the steering wheel.
• Connect the wires coming from the steering column to the wires on the
steering wheel.
• Insert the steering wheel over the steering and secure with nut and bolt.
Fix the mirror (L/R)
• Stuck the mirror into the car.
Put the gaskets, front wheel, gaskets and nut into the front axle in turn.
Fix the nut with the M10 wrench and then attach the wheel cover to the wheel.
Place the gear box,rear wheel,gaskets and nut on the rear axle in turn.
Fix the nut with the M10 wrench and then attach the wheel cover to the wheel.
Put the car upside down
Find the main power cord under the seat, and insert the plug of the power cord
into the corresponding socket of the receiver. The plug of the drive motor cable
is docked with the plug on the receiver (the plug on the receiver is not
differentiated left and right).
Follow the assembly steps in the order listed below.
E
D
Fix the searchlight.
• Butt and fix the tailstock
with the searchlight. Use
M4×12 screws to fix the
inside of the two butted
brackets and snap them
into the car.
I
16 17

Fix the windshield
• Stuck the windshield into the corresponding slot on the body
F
Fix the seat
• Insert the upper seat cover into the lower seat cover
• Stuck the seat buckle into the vehicle slot
• Fix with screws
J
Use a screwdriver to remove the searchlight battery cover screws and
install them in sequence.
• Put the battery into the battery card slot after distinguishing the positive
and negative poles;
• Cover the battery cover and fix it with screws;
• Power switch: (-)=on, (o)=off;
1. Pedal button: step on the button, the car will move, when release, the car
slowly stop
2. Shift Switch: change the direction of the car, Forward-Backward
3. Horn button: press to play the horn
4. Control board
I

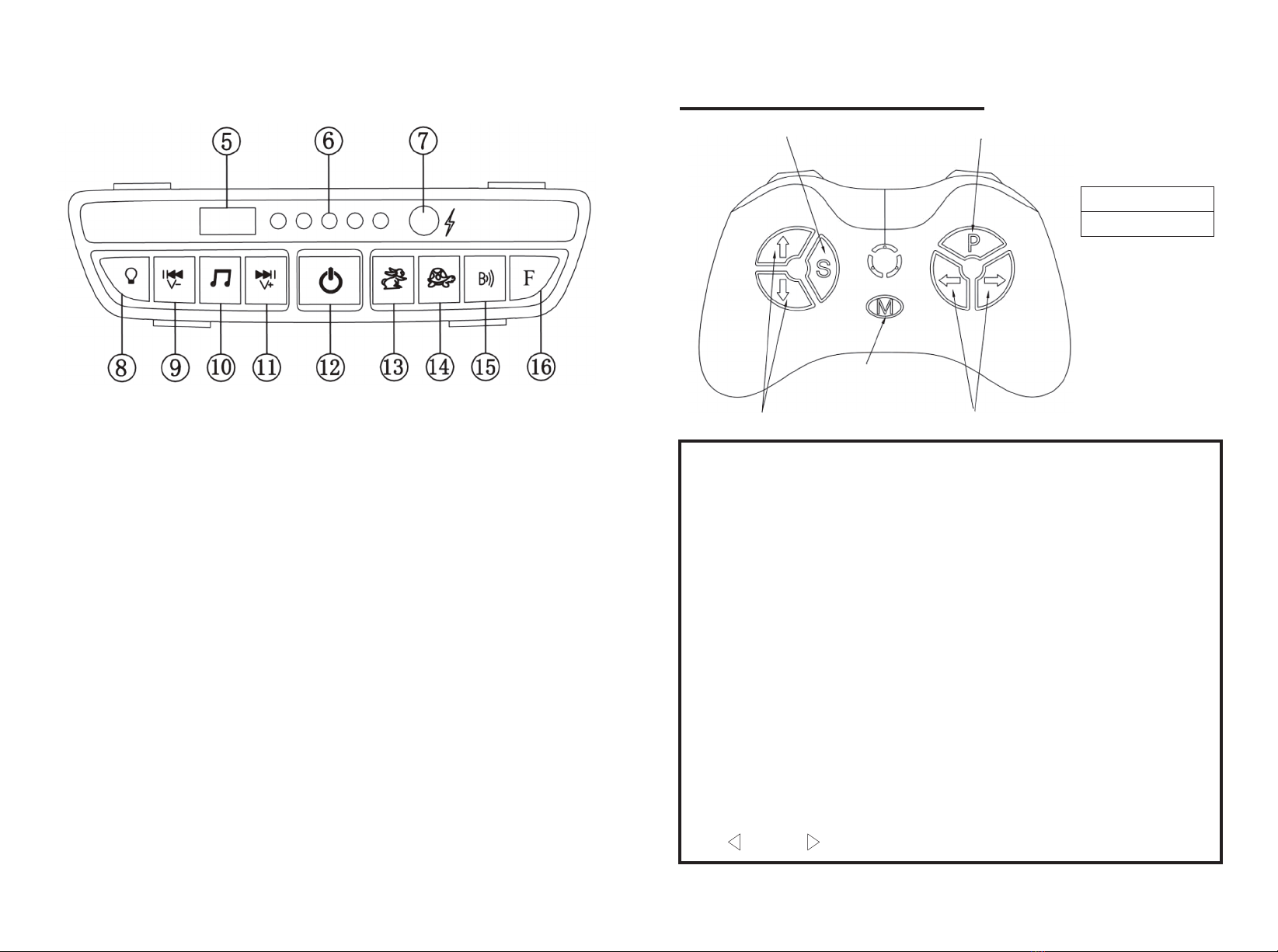

DASHBOARD DIAGRAM
18 19

5) USB port
6) Power display: clearly see the battery power and help judge whether the
battery needs to be charged；
7) Socket: charge
8) Light button: press it to switch the light；
9) Last song/volume-：press it to switch to the last song and long press can
decrease volume；
10) Music Button: press it to play music；
11) Next song/volume+: press it to switch to the next song and long press can
increase volume；
12) Power button: long press for 3 seconds can turn the vehicle on or off; short
press for 1 second can stop the music;
13) High speed button: press it to change the car to the high-speed movement;
14) Low speed button: press it to change the car to the low-speed movement;
15) Wireless Technology: after connected your mobile phone and the wireless
device ,the car can play music from your mobile phone;
16) FM: FM radio;
REMOTE CONTROL DIAGRAM
Warning
Remote control first. When the remote control is on, foot pedal
is not workable
forward backward turn left turn right
Long Press: frequency
Press it: Waver
speed emergency brake
low speed
middle speed
high speed
Only used by adults
Operation Manual:
Take out the remote control, open the battery compartment on the back of
the remote control and add two AAA LRO3 alkaline batteries. Pay
attention to the polarity of the batteries. When the alignment light and
speed indicator light up, it indicates that the battery installed is correct.
This product does not provide dry batteries.
<Button Description >
(1）Long press on the frequency key(M) 2-4 seconds, Low speed LED
light flashing. Turn on the power of the car, Low speed LED light keep
flashing to long lighting, then frequency bind succeed. If
the frequency bind failed (Low speed LED light flashing) , remove the
battery and repeat steps
P: Press to brake.
S: Speed: press to change speed(low,middle and high speed).
△Forward ▽Backward
Turn left Turn right
20 21

• Charge the battery 15 to 18 hours before initial use.
• On average,you will need to charge the battery between 8 and 12 hours.Do
not charge the battery for more than 20 hours.Failure to charge the battery
as directed could cause permanent damage to the battery.
• Damage to the battery may occur if it is allowed to drain completely.Do not
allow the battery to drain completely.
• Check the battery and charger (supply cord,connector) for wear and damage
before charging.DO not charge the battery if damage has occurred.
• Only an adult who has read and understood the safety warnings should
handle,charge and recharge the battery.
CHARGING INSTRUCTIONS
2) Brake button: Press it to stop moving; press it again to move.
3) Speed selection key and speed indication: used to select speed of the
car. Press the key once to switch the speed once. 3 speeds are cyclically
switched, and the switching sequence is: low-medium-high. The speed
indicator is arranged from top to bottom on the remote control:
high-speed lamp, medium-speed lamp, low-speed lamp; when switching
to one speed, the corresponding indicator lamp will light up. Note: The
speed grade changes only when moving forward.
4) Forward/backward keys: used for forward and backward movement
control. When one of the keys is pressed, the moving speed will slowly
increase to reach the set speed level. Therefore, children will not have a
sudden impact.
5) Left turn/right turn key: used for left and right direction control.
Note: without operation after 10 seconds, indication light will off into
power saving mode
Warning: The remote control is not a toy. It is for the adult use only,
and should not be used by a child. A close adult supervision is always
required. Reception range may change significantly with weather, battery,
and other environmental conditions.
1. Insert the charger jack into the charging hole of the car.
2. Plug the charger plug into the stable matching AC power supply as shown in
the picture.
22 23

• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Do not leave the vehicle in the sun for long periods of time or fading may
occur. Store in shade or cover with tarp.
• Do not wash the vehicle with a hose.
• Do not wash the vehicle with soap.
• Charge battery at least once a month to prolong the life of the battery.
CARING FOR YOUR RIDE-ON
The battery on the vehicle is not replaceable.
• DO not mix old and new batteries.
DO not mix alkaline,standard(carbon-zinc),or rechargeable batteries.
• Non-rechargeable batteries should not be charged.
• Rechargeable batteries shall be charged by adult or by children at least 8 years old.
• Exhausted batteries should be removed.
• The supply terminals should not be short-circuited.
WARNINGS REGARDING BATTERIES
TROUBLESHOOTING
PROBLEM REASON SOLUTION
Vehicle does not move
Battery is warm and
makes a slight noise
while charging
Normal Normal
Vehicles shakes while
driving
Loose connection to
motor
Ensure the motor is
properly connected to the
battery
Difficulty shifting
between forward /
reverse
Attempting to shift while
vehicle in motion
Only shift when the
vehicle is at a stop
Forward and reverse
switch is flipped
Gear boxes are installed
incorrectly
Make sure the L gear box
is on the left and R gear
box is on the right
Slow speed Low battery Fully charge the battery
Overloaded vehicle Reduce the weight on the
vehicle
Uneven or sloped road Drive on flat pavement
Low battery Fully charge the battery
Electrical protection Stop use for several
minutes and restart
Switch not in the correct
position
Completely press in
switches
Battery connectors
disconnected
Plug in battery connectors
Battery connectors
disconnected
Plug in battery connectors
Charge not connected to
socket or outlet
Completely plug in the
charger
Battery does not have a
full charge
Battery does not
recharge
Battery does not last Fully charge the battery
24 25

• Do not put batteries next to or in a heat source(fire,electronic heating device,etc.)
• Do not hit batteries against hard objects.
• Do not submerge batteries in water.
• Batteries should be inserted with the correct polarity.
• Only use the battery specified by the manufacturer.
• Only use the charger specified by the manufacturer.
• Protective equipment should be worn. Not to be used in traffic.
• The toy should be used with caution since skill is required to avoid falls or collisions
causing injury to the user or third parties.
• To reduce the risk of injury, adult supervision is required. Never use in roadways,
near motor vehicles, on or near steep inclines or steps, swimming pools or other
bodies of water; always wear shoes, and never allow more than 2 rider.
• Always charge battery for a FULL 4-6hrs the first time you use it.
• Always charge battery for a FULL 10hrs after each use.
• Charge the battery once a month even if you are not using your vehicle.
IMPORTANT
WARNING:
FCC Statement
Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference. (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult an experienced radio/TV technician for help.
Warning: ADULT ASSEMBLY REQUIRED
Warning: Not to be used in traffic
Warning: CHOLING HAZARD-Small parts. Not for children under 3yrs.
26 27

FR VEUILLEZ LIRE LES INSTRUCTIONS
Les styles et les couleurs peuvent varier
◎Seul âge pour les 3-8 ans
◎Poids maximal de l'utilisateur : 59kg/130lbs
◎Assemblage par un adulte requis
Chargez pendant 4,6 heures avant de l'utiliser.
Après la première charge, suivez les recommandations de charge normales.
MANUEL
D'UTILISATION
SÉCURITÉ Veuillez conserver ces instructions pour toute référence
ultérieure.
REMARQUE : Pour une performance optimale, n'utilisez ce véhicule que sur
des surfaces plates et dures.
ÂGE APPROPRIÉ : 3 à 8 ans
CAPACITE DE POIDS : 59kg/130lbs est le poids maximum pour 2 cavaliers
(combinés).
Les risques de sécurité suivants peuvent entraîner des blessures graves ou la mort :
• Ce produit contient de petites pièces. Tenez les enfants à l'écart pendant le montage.
Veillez à retirer tous les matériaux d'emballage et les pièces se trouvant sous la
carrosserie du véhicule.
• N'ouvrez jamais la batterie, qui contient du plomb et des composés de plomb
(acides).
• Les membres, les cheveux et les vêtements peuvent se prendre dans les pièces
mobiles. Portez toujours des chaussures, tenez vos membres éloignés des pièces
mobiles et ne portez pas de vêtements amples lorsque vous conduisez ce véhicule.
• Ce véhicule n'a pas de freins ou de capacité de freinage. Ne laissez pas un enfant
sans surveillance pendant l'utilisation. Ne l'utilisez pas dans un endroit qui pourrait
nécessiter une capacité de freinage car cela pourrait entraîner une perte de contrôle,
ce qui pourrait causer des blessures graves ou la mort.
• L'utilisation de ce véhicule à proximité de rues, de véhicules à moteur, de marches,
de plans d'eau, de surfaces en pente, de collines, de zones humides, de vapeurs
inflammables, dans des allées, la nuit ou dans l'obscurité peut entraîner un accident
inattendu.
• L'utilisation de ce véhicule dans des conditions dangereuses telles que la neige, la
pluie, l’argile molle, la boue, le sable ou le gravier peut entraîner un accident
inattendu tel qu'un basculement, et pourrait endommager le système électrique ou la
batterie.
• Ne pas utiliser ce véhicule de manière dangereuse. Les comportements non
sécuritaires incluent, mais ne sont pas limités à :
- Tirer le véhicule avec un autre véhicule ou un dispositif similaire.
- Permettre à plus de deux enfants de monter dans le véhicule
- Pousser l'utilisateur
- Rouler à une vitesse dangereuse.
28 29

AVERTISSEMENTS DE BATTERIE AVERTISSEMENTS DE L'UTILISATEUR
SPÉCIFICATIONS
Les risques de sécurité suivants peuvent entraîner des blessures graves ou la mort :
• L'utilisation d'une batterie ou d'un chargeur autre que la batterie rechargeable et le
chargeur fournis peut provoquer un incendie ou une explosion. Utilisez uniquement la
batterie et le chargeur fournis.
• L'utilisation de la batterie rechargeable et du chargeur pour tout autre produit peut
entraîner une surchauffe, un incendie ou une explosion. N'utilisez jamais la batterie
rechargeable et le chargeur fournis avec un autre produit.
• Des gaz explosifs sont créés pendant la charge. Chargez la batterie dans un endroit
bien ventilé. Ne chargez pas la batterie à proximité d'une source de chaleur ou de
matériaux inflammables.
• Le contact entre les bornes positives et négatives peut provoquer un incendie ou une
explosion. Évitez tout contact direct entre les terminaux. Ramasser la batterie par les
fils ou le chargeur peut endommager la batterie et provoquer un incendie. Ramasser
toujours la batterie par son boîtier ou ses poignées.
• Les liquides présents sur la batterie peuvent provoquer un incendie ou un choc
électrique. Tenez toujours tous les liquides éloignés de la batterie et gardez la
batterie au sec. Le contact ou l'exposition à une fuite de batterie (plomb acide) peut
provoquer des blessures graves. En cas de contact ou d'exposition, appelez
immédiatement votre médecin. Si le produit chimique est sur la peau ou dans les
yeux, rincez à l'eau froide pendant 15 minutes. Si le produit chimique a été avalé,
donnez immédiatement de l'eau ou du lait à la personne. Ne donnez pas d'eau ou de
lait si le patient vomit ou a un niveau de vigilance diminué. Ne provoquez pas de
vomissements.
• Les poteaux, bornes et accessoires de la batterie contiennent du plomb et des
composés de plomb (acide).
• L'altération ou la modification du système de circuit électrique peut provoquer un
choc, un incendie ou une explosion et endommager le système de façon
permanente. Les fils et circuits exposés dans le chargeur peuvent provoquer un choc
électrique. Gardez toujours le boîtier du chargeur fermé.
Les risques de sécurité suivants peuvent entraîner des blessures graves ou la mort :
• Ne laissez jamais un enfant sans surveillance.
• Asseyez-vous toujours sur le siège lorsque vous utilisez ce véhicule.
• Gardez vos mains, vos cheveux et vos vêtements éloignés de la partie mobile.
• Portez toujours des chaussures lorsque vous utilisez ce véhicule.
• Deux enfants au maximum sont autorisés dans le véhicule à la fois.
• Les enfants de moins de 3 ans ne peuvent pas utiliser le véhicule.
• Ne conduisez que sur un terrain plat.
• N'allez pas à proximité de piscines ou d'autres plans d'eau, des pentes abruptes ou des
pentes raides.
• Ne conduisez pas le véhicule dans l’argile molle, de la boue, du sable, du gravier fin ou
sur des surfaces humides.
• Ne conduisez pas le véhicule dans les rues ou près des voitures.
Article
Piles
Moteur
Âge
Poids maximum
Dimension
Vitesse
Temps de jeu
Chargeur
Spécification
12V
12V
3-7 ans
59KG/130LBS
126*78*79CM/49,6"*30,7"31,1"
12V 3-5km/h
1-2 heures / temps de recharge 8-12 heures
Sortie DC 12V
30 31

OUTILS REQUIS
ACCESSOIRE
PIÈCES
TOURNEVIS
(APPORTEZ LE VÔTRE）
CLÉ M10 (FOURNIE)
1 x47 2 x6 3 x6 4 x3
5 x1 7 x2 8 x2
VIS M4*12 mm RONDELLE φ12 ÉCROUS M10
GOUPILLE FENDUE RESSORT VIS M4*14 mm
RONDELLE φ10
A x2 B x2 C x4 D x1
ROUE AVANT ROUE ARRIÈRE MOYEU DE ROUE
RÉTROVISEUR
(GAUCHE/DROITE)
I x1 J x2 K x2 L x2
PROJECTEUR HOUSSE DE SIÈGE
SUPÉRIEURE
HOUSSE DE
SIÈGE INFÉRIEURE
LAMPE
DÉCORATIVE
M x2 N x2 O x1 P x1
GARDE-BOUE AVANT
(GAUCHE/DROITE)
BOÎTE DE VITESSES
(GAUCHE/DROITE) TÉLÉCOMMANDE CHARGEURS
R x1 S x1 T x2 U x1
SUPPORT ARRIÈRE SUPPORT ARRIÈRE
GARDE-BOUE
ARRIÈRE SUPPORT DE SIÈGE
W x1 X x1 Y x2 Z x1
LEVIER DE DIRECTION
SUPPORT AVANT
À DOUBLE
ENTRAÎNEMENT
MANCHON
DE RESSORT ESSIEU ARRIÈRE
E x1 F x1 G x1 H x1
VOLANT PARE-BRISE PARE-CHOCS AVANT
CONTRE-POINTE
(GAUCHE/DROITE)
MONTAGE PAR
2 PERSONNES
ENVIRON 45
MIN. ASSEMBLAGE
32 33

ASSEMBLAGE DU PRODUIT
Fixez le garde-boue avant (GAUCHE/DROITE) dans la carrosserie
(Note : le garde-boue avant distingue la gauche et la droite).
Retourner la carrosserie et la fixer avec la vis M4 * 12.
Fixez la lampe décorative dans le garde-boue avant de la carrosserie.
L
M 1
Insérez le ressort et la douille de ressort dans le support avant à
double entraînement.
Y7
Mettez à votre tour les rondelles φ10 et l'écrou dans le support
avant à double entraînement, fixez l'écrou avec la clé M10.
34
XInsérez le support avant à double entraînement dans le tube
carré de la carrosserie.
CLÉ M10
34 35

Insérez le levier de direction dans le trou du moteur de direction. Enfoncer le pare-chocs avant dans la voiture.
Fixer avec la vis M4 * 12.
Fixer avec la vis M4 * 14.
W
Insérez les rondelles φ10 sur le levier de direction.
4
Après avoir installé le levier de direction en place, insérez la
goupille fendue pour le plier et le fixer.
5
G14
Retournez la carrosserie de la voiture pour qu'elle soit orientée vers le haut.
Insérez l’essieu arrière dans la
voiture
Z
36 37

Fixez le pare-chocs arrière dans la carrosserie.
Fixez avec une vis M4 * 12.
R1Fixez le garde-boue arrière ( gauche / droite ) dans la carrosserie
（Note : le garde-boue arrière se distingue à gauche et à droite）.
Retournez la carrosserie et fixer avec la vis M4 * 12.
T1
Fixez le support arrière dans la carrosserie.
Fixez avec la vis M4 * 12.
S1
Fixez le support de siège dans la carrosserie.
Fixez avec la vis M4 * 12.
U1
38 39
