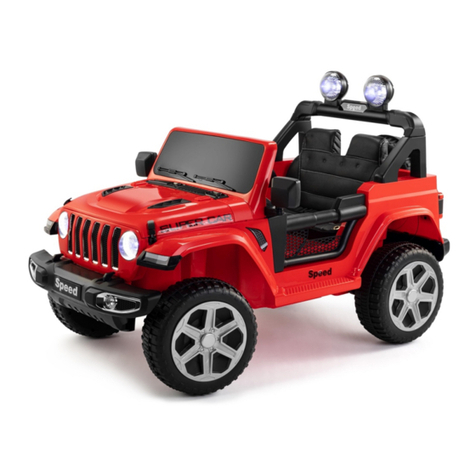

Costway TQ10124US User manual

TQ10124US
12V Battery Operated Ride On
Voiture Électrique pour Enfants
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
If you're having difficulty, our friendly
customer team is always here to help.
USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville
USA:[email protected]
AUS:[e-mail]
GBR:[e-mail]
FRA:[e-mail]

Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the area in
which they will be placed in use, to avoid moving the product unnecessarily once
assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from babies
and children as they potentially pose a serious choking hazard.
FR
Veuillez lire attentivement toutes les instructions.
Conservez les instructions pour vous y référer ultérieurement.
Vérifiez toutes les pièces et les accessoires.
Lisez attentivement chaque étape et suivez l’ordre correct.
Nous recommandons que, dans la mesure du possible, tous les produits
soient assemblés à proximité de la zone où ils seront utilisés, afin d’éviter tout
déplacement inutile du produit une fois assemblé.
Placez toujours le produit sur une surface plane et stable.
Conservez toutes les petites pièces de ce produit et les matériaux d’emballage
hors de portée des bébés et des enfants, car ils pourraient présenter un risque
d’étouffement.
Avant de Commencer
EN
OWNER'S MANUAL
Please read entire manual before starting assembly.
Keep this manual along with your purchase receipt for future
reference.
CHOKING HAZARD-Small parts. Not for children under 3 yrs.
EN
WARNING
Toy must be assembled by adult before use.
WARNING
Screws contain potentially hazardous sharp points or sharp edges.
Adult assembly required.
CAUTION
To reduce the risk of injury, adult supervision is required. Never
use on road ways, near motor vehicles, on or near steep inclines
or steps, swimming pools or other bodies of water. Always wear
shoes, and never allow more than two riders.
WARNING
02 03

IMPORTANT
You must charge your battery for 12 hours before you use your
vehicle for the first time.
Remember to. . .
Charge the battery immediately after each use.
Charge the battery at least once a month during storage, even if
the vehicle has not been used.
The battery will be permanently damaged if you fail to follow the
instructions. Please refer to the Battery Care Section in this manual
for more information.
Important Information
• IMPORTANT INFORMATION:
YOUR NEW VEHICLE
REQUIRES ADULT ASSEMBLY.
PLEASE SET ASIDE AT LEAST
60 MINUTES FOR ASSEMBLY.
• You must charge your battery
for 12 hours before you use your
vehicle for the first time.
• Read this manual carefully for
important safety information and
operating instructions before
using your vehicle. Keep these
instructions for future reference
as they contain important
information.
• This vehicle is designed for use
on: concrete, asphalt or other
hard surfaces; on generally level
terrain; by children ages 3 and
up.
• Instruct the children on
operation and safe driving rules
before they take their first drive:
- always sit in the seal.
- always wear shoes.
- maximum two (2) riders at a
time.
- do not place hands, feet or any
part of the body, clothing or other
articles near moving parts while
the vehicle is in operation.
- do not allow other children near
the car when driving.
• Use this vehicle ONLY
outdoors. Most interior flooring
can be damaged by riding this
vehicle indoors.
• To prevent damaging the
motors and gears, do not tow
anything behind the vehicle or
overload it. Do not exceed the
maximum weight capacity of 88
lbs. (40 kg).
To Prevent Serious
Injuries
• This product is intended for use
by children ages 3 and up, and
is not intended for children under
3 years of age due to lack of
ability to operate safely.
• Maximum weight 88 lbs. (40
kg). Maximum 2 riders at a time.
• Do not leave children
unattended. Adult supervision
required.
• This package contains small
parts. Keep away from the
children until assembled.
• Read manual for detailed
safety information prior to use.
• Inspect product at regular
intervals for wear or loose
hardware and tighten as
required. Remove from service if
any abnormal conditions such as
cracks or breaks exist.
• Check all coverings regularly to
make sure they are in place.
• Batteries can fall out and injure
a child if the vehicle tips over.
Always use the battery cover.
• When the temperature falls
below 0° F(-18°C), outdoor use
of this product is not
recommended.
• In extreme cold, plastic
materials might lose resilience
and may become brittle and
crack upon impact. Store in a
warmer and protected place.
• Do not operate the vehicle
outdoors if it is raining. Keep it in
a dry area when not in use.
• Disconnect the battery power
supply when the vehicle is not in
use to prevent the children
driving the car without adult
supervision.
• Always make sure the seat is
securely attached.
• The charger and battery are
not toys and must be regularly
examined for damage to the
cord, plug, enclosure and other
parts. In the event of damage,
the damage or worn part must
not be used until replaced.
• Never modify the electrical
system. Use of the wrong type
battery or charger could cause a
fire or explosion.
• Battery compartment and area
under seat are not storage
areas. Storing other articles may
create a fire hazard. Do not store
any articles in or near motor
compartment.
Warning
04 05

Battery can fall out and injure a child if vehicle tips over. Always
use battery cover.
PREVENT FIRE
- Never modify the electrical system. Alterations could cause a fire
resulting in serious injury and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a fire or
explosion resulting in serious injury.
• The battery must be handled by adults only. The battery is heavy
and contains sulfuric acid (electrolyte). Dropping the battery could
result in serious injury.
• Never allow children to charge the battery.
• Battery charging must be done by adults only. A child could be
injured by the electricity involved in charging the battery.
• Never lift or carry the battery by the wires or connector. This can
damage the battery and possibly cause a fire resulting in serious
injury. Lift and carry the battery by the case only.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive
wear or damage each time you charge the battery. If damage or
excessive wear is detected, do not use the charger or the battery
until you have replaced the worn or damaged part.
WARNING
Only use the charger in dry locations.
CAUTION
Safe Driving Rules
• ADULT SUPERVISION
REQUIRED. MAKE SURE
CHILDREN KNOW AND
FOLLOW THESE RULES FOR
SAFE DRIVING.
• Restrict children to safe riding
areas:
■ Away from swimming pools
and other bodies of water to
prevent drowning.
■ Level ground to prevent tip
overs and unintended downhill
motion.
■ Away from steps, hills,
driveways, roads and alleys.
• Teach and learn the safety first:
Although most children can
master the physical driving skills
to control the vehicles. they do
not have the mature judgment
skills. Never let a child drive at
any time without adult
supervision, and take the time to
carefully evaluate child's skill
levels and abilities to operate the
vehicle safely. Children can not
always recognize the hazards
even after instruction. So teach
appropriate safety rules before
allowing any child to operate
vehicle, and remember that
THERE IS NO SAFE
SUBSTITUTE FOR DIRECT
ADULT SUPERVISON.
• Riding rules:
■ Always sit on the seat and
wear shoes.
■ Maximum 2 riders at a time.
■ Do not operate in the street or
near moving vehicles.
■ Do not operate near bodies of
water, obstructions or drop-offs.
■ Do not operate on sand, dirt or
gravel.
■ Do not operate in the dark.
Unexpected obstacles could
cause an accident.
■ Do not operate on inclines or
steep slopes.
■ Do not operate near flammable
vapors (e.g. gasoline, paint
thinner, acetone, liquid wax, etc.)
Using the vehicle near
flammable liquids can or vapors
could cause an explosion or fire.
■ Do not place anything near
moving parts such as motors,
gears or wheels. Rotating parts
can snag hair, fingers, etc.,
which may cause serious injury.
ELECTRICAL HAZARD
Battery Warning
06 07

About Thermal Fuses
• Your 12 volt battery is equipped with a built-in thermal fuse. The
thermal fuse is a self-resetting safety device which automatically
trips and shuts down operation of the vehicle if the vehicle is
overloaded or the driving conditions too severe. Once a fuse has
tripped, it will automatically reset itself after approximately 10
seconds and allow the vehicle to resume normal operations. To
avoid repeated automatic shut downs, do not overload the vehicle
by exceeding the 88 lbs (40kg) maximum weight capacity or by
towing anything behind the vehicle. Avoid severe driving conditions,
such as driving up very steep slopes or running into fixed objects,
which can cause the wheels to stop spinning while power is still
being supplied to the motors.
Important Notes
• Your new battery must be charged for at least 12 hours before you
use it in your vehicle for the first time.
• You do not need to remove the battery from your vehicle to
recharge it.
• The battery must be upright while charging.
• The charger is not a toy.
• Do not short circuit the battery.
• We recommend that you start charging your battery before
beginning assembly of your new vehicle.
• Before charging the battery, examine the battery case for cracks
and other damage which may cause sulfuric acid (electrolyte) to leak
during the charging process.
• If damage is detected, do not charge the battery or use it in your
vehicle. Battery acid is very corrosive and can cause severe
damage to surfaces It contacts.
• Do not charge the battery on a surface which could be damaged by
the acid contained inside the battery. Take precautions to protect the
surface on which you charge your battery.
• If your battery is old and will not accept a charge, do not leave it in
the vehicle. Always remove a dead battery from the vehicle.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are only to be charged under adult
supervision.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the toy.
• The supply terminals are not to be short-circuited.
• Non-rechargeable batteries are not to be recharged.
• Make sure the charger connector is matching with the battery
connector.
• Make sure the brand, voltage and frequency of the charger are in
accordance with the wall outlet.
• Batteries are to be Inserted with the correct polarity.
• The supply terminals are not to be short circuited.
Charge the Battery
The first charge will take about 12 hours.
Tips 1:
1. Open the battery charger port (located on the
seat of near by).
2. Insert the battery charger connector into the
charger port.
3. Plug the charger into a standard 120V or
230V wall outlet. Note:The charger may feel
warm during charging. This is normal and not a
cause for concern.
4. After charging is complete (at least 8-10
hours, but not more than 24 hours, with the first
charge taking about 12 hours), unplug the
charger from the wall outlet and unplug the
battery connector from the charger port.
CAUTION
Battery Charging
Tips 2:Charge the
battery separately
Take out the battery
Charge the battery
same as tips 1.
08 09

• Plug the battery connector into the charger port.
• Plug the charger into a standard wall outlet.
• Only use the 12 volt charger to charge your 12 volt battery.
• Note: if power flow to the wall outlet is controlled by a switch, make
sure the switch is 'ON'.
• Before first-time use, charge the battery for at least 12 hours.
Never charge the battery longer than 24 hours.
• Recharge the battery for at least 8-10 hours after each use of your
vehicle.
• Do not charge the battery longer than 24 hours.
• Do not charge or store battery upside down. Charging produces
explosive gases. Charge away from flames, sparks and lit
cigarettes. Charge in a well ventilated area.
• Once the battery is charged, disconnect the battery connector from
the charger connector. Unplug the charger from the wall outlet. The
battery is now ready to be installed in your vehicle.
Care
• If a battery leak develops,
avoid contact with the leaking
acid and place the damaged
battery in a plastics sealed bag.
• If acid comes in contact with
skin or eyes, flush with cool
water for at least 15 minutes and
call a physician immediately.
• If acid is Internally ingested,
give water, milk of magnesia or
egg whites immediately. Never
give emetics or induce vomiting.
Call a physician immediately.
• Charge a new battery for at
least 18 hours before first use.
• Never charge the battery
longer than 24 hours.
• Overcharging or undercharging
the battery may shorten battery
life and decrease vehicle running
time.
• After the first charge, recharge
the battery for at least 12 hours
after each use. Never charge the
battery longer than 24 hours.
Charge the battery after each
use, regardless of how long the
vehicle was used.
• The battery must be upright
while charging.
• Do not allow the battery to run
down completely
before charging.
• Charge the battery before
storing the vehicle.
• Charge the battery at least
once per month, even if the
vehicle has not been used.
• Leaving the battery in a
discharged condition will ruin it
• If the vehicle win be stored for
more than two months, be sure
to disconnect the motor harness
from the battery.
• Do not store the battery in
temperatures above 75°F or
below -10°F.
• Prevent the battery from
moving freely inside the battery
compartment. Make sure all
screws for battery cover tighten.
• Examine the battery, charger
and its connector for excessive
wear or damage each time you
charge the battery. If damage is
detected, do not use the charger
or the battery until you have
replaced the worn or damaged
part.
• Remember to remove an
exhausted battery from the
vehicle.
• Battery leakage and corrosion
can damage the vehicle.
Battery Replacement
1.Lift the seat out.
2.Disconnect the battery
connectors.
3.Remove the eight screws on the
sides of the battery.
4.Take the battery out of the battery
compartments.
Battery Care and Disposal
10 11

Screwdriver Washer x2
Φ(12x1.5mm)
Screw x2
(Φ4 x 12mm)
Pin x2
Disposal
• Your battery is a sealed lead-acid battery. It must be recycled or
disposed of it in an environmentally sound manner.
• Never dispose your battery in the regular, household trash. The
incineration, landfilling or mixing of sealed lead-acid batteries with
household trash is prohibited by law in most areas.
• Always remove exhausted batteries from your toy.
• Dispose of dead batteries properly. Never burn or bury them.
• Do not dispose of a lead-acid battery in a fire. The battery may
explode or leak.
TO PROLONG BATTERY LIFE, YOU MUST RECHARGE THE
BATTERY AFTER EACH USE. YOU MUST ALSO CHARGE
YOUR BATTERY IF IT HAS NOT BEEN USED FOR 30 DAYS
OR MORE.
• Please identify all parts before assembly and save all packaging
material until assembly is completed to ensure that no parts are
discarded.
• Metal parts have been coated with lubricant for protection during
shipment. Wipe all metal parts with a paper towel to remove any
excess lubricant.
Parts List
Main Body x1 Steering wheel x1 Side mirror x2(L/ R)
Front Wheel (size no.: 12
hole) x2
Rear Wheel (size no.:
15 hole) x2
Side Support Frame
x2 (L/R)
Rear Bumper Support
Frame x1
Rear Window x1
Wheel cover x4
Washer x8
Φ(12x1.5mm)
Pin x4 Charger x1 Manual x1
Screw x27
(Φ4 x 12mm)
Windshield x 1
Seat x1
For wheels:
Tools needed:
(Not included)
Spare parts:
Manual
Remote Control Operation, please read the attached manual
separately.
12 13
Ｒｅｍｏｔｅ Ｃｏｎｔｒｏｌ x1

1 2
Screw x27
(Φ4 x 12mm)
Children can be harmed by small parts, sharp edges and sharp
points in the vehicles unassembled state, or by electrical items.
Care should be taken in unpacking and assembling the vehicle.
Children should not handle parts, including the battery, or help in
the assembly of the vehicle.
Insert the rear bumper support frame
under the main body. Fasten it with 11
screws.
Insert the side support (left) under the
main body as picture show above , and
fasten it with 7 screws. (The same steps
for the right)
“Snap” the wheel cover into the right
place, Repeat the process for the other
three wheels.
Plug connectors. Place the steering
wheel onto the turning shaft, press it to
the right place.
Insert the windshield to the slots on the
main body and fasten with 2 screws.
Battery Assembly
Plug connect as the picture shows.
Front Wheel Assembly
Assemble all the parts in sequence as
picture shown. Insert a pin to the hole of
the front axle and make it to "M" shape by
a plier. "Snap" a hubcap into the center.
Repeat the process for the other side.
Rear Wheel Assembly
Assemble all the parts in sequence as
picture shown. Insert a pin to the hole of
the front axle and make it to "M" shape
by a plier. "Snap" a hubcap into the
center. Repeat the process for the other
side.
WARNING
Assembly Assembly
3 4
5 6
7 8
1 2 3 1 2 3
14 15

Forward
Push the shifter in downward
position and press the
accelerator slowly.
Reverse
Push the shifter in up ward
position and press the
accelerator slowly.
Low speed
Vehicle has been pre-set to operate at low speed (2.5 mph, (4 km/h)
maximum). Once your child has mastered safe driving skills and
understands the Safe Driving Rules.
High speed
Vehicle to be driven at the higher speed (5 mph, (8 km/h) maximum)
as well as the the lower speed (2.5 mph, (4 km/h) maximum).
Make sure your child can safely steer and operate the vehicle and
knows the rules for safe driving.
Stop
Vehicle will automatically stop after the accelerator is released.
Sound effect
Press the buttons on the sides of the steering wheel.
Each button will make a different sound effect.
Port for MP3
Turn on the power switch.
Plug in MP3 cable.
Adjust volume when need.
Safety device
AUTO POWER OFF. If the motor is overloaded for any reason,
including improper usage, an electrical circuit breaker will
automatically cut off the power, then resume after the parts have
cooled!
Insert the seat to the slots of the main
body. Press the backrest to the right
place.
Spot lights Assembly
Insert the light to the slot of the rear
window. (picture is the right one).
Repeat the process for the other one .
Rear window Assembly
Insert the window to the slot of the main
body.Press each side to the right place.
Insert the seat to the slots of the main
body. Press the backrest to the right
place.
Assembly Operating Your Vehicle
9 10
11 12
Light button High &
Low speed Forward &
Reverse
Power switch
16 17

Maintenance
• Clean with a dry, soft cloth only. Do not wash with water or
corrosive agents.
• Store vehicle in a dry area when not in use, since moisture could
cause the metal components and electrical parts to corrode.
• Remember to charge the battery monthly while the vehicle is not in
regular use.
• Check and tighten all screws and coverings regularly.
• Check all plastic parts for cracks. Replace as necessary.
Trouble Shooting
Problem Possible Cause Solution
car does
not move
Car was
running
but
suddenly
stopped
Loose wire or
connectors
Circuit breaker
tripped
Circuit breaker
tripped
Loose wire or
connectors
Dead battery
Undercharged
battery
Charger is not
working
Electricity switch
damages
Circuit breaker may "trip" and stop the
vehicle if it is overloaded or the driving
conditions too severe. The breaker will
automatically reset after approximately 10
seconds, and the vehicle will operate
normally. To avoid repeated automatic shut
downs, do not overload the vehicle by
exceeding the weight limit of 88lbs (40kg), or
by towing anything behind the vehicle. Do not
drive uphill or run into fixed objects, which
can cause the wheels to stop spinning while
power is still being supplied to the motors.
Check all wires and connectors. Make sure
that the motor harness connector is plugged
in tightly to the battery, and that there are no
loose wires around the motor.
An old or improperly cared battery may be
dead.
A new battery should have been charged for
at least 12 hours before using the vehicle for
the first time. After that, it must be recharge
the battery for at least 8-10 hours after each
use. Never charge longer than 24 hours.
Check all connectors; make sure the charger
is plugged into the wall. Make sure the power
flow to the outlet is on.
You must have a volt meter in order to tell
whether the charger is working or not.
When exposed to water or moisture,
electricity can become corroded, or can jam
due to loose dirt, sand or gravel.
Check all wires and connectors. Make sure that
the motor harness connector is plugged into the
battery tightly, and that there are no loose wires
around the motor.
Circuit breaker may "trip" and stop the vehicle if
it is overloaded or the driving conditions too
severe. The breaker will automatically reset
after approximately 10 seconds, and the vehicle
will operate normally. To avoid repeated
automatic shut downs, do not overload the
vehicle by exceeding the weight limit of 88lbs
(40kg), or by towing anything behind the
vehicle. Do not drive uphill or run into fixed
objects, which can cause the wheels to stop
spinning while power is still being supplied to
the motors.
Problem Possible Cause Solution
Short
operating
time (less
than 1
hour per
charge)
Vehicle is
sluggish
Undercharged
battery
Overcharge battery
Old battery will not
accept a full
charge
Undercharged
battery
Old battery will not
accept a full
charge
Battery needs
charging
Vehicle is
overloaded
Driving conditions
are too stressful
A new battery should have been charged for at
least 12 hours before using the vehicle for the
first time. After that, it must be recharge the
battery for at least 8-10 hours after each use.
Never charge longer than 24 hours. Check all
connectors; make sure the charger is plugged
into the wall. Make sure the power flow to the
outlet is on.
Never charge battery longer than 24 hours.
Even with proper care, a rechargeable battery
does not last forever. Average battery life is 1 to
3 years depending on vehicle use and use
conditions. Replace the battery with a new 12
volt rechargeable battery.
A new battery should have been charged for at
least 12 hours before using the vehicle for the
first time. After that, it must be recharge the
battery for at least 8-10 hours after each use.
Never charge longer than 24 hours. Check all
connectors; make sure the charger is plugged
into the wall. Make sure the power flow to the
outlet is on.
Be sure to charge the battery after each use.
Even with proper care, a rechargeable battery
does not last forever. Average battery life is 1 to
3 years depending on vehicle use and use
conditions. Replace the battery with a new 12
volt rechargeable battery.
Allow no more than 2 rider at a time, follow the
88 lbs (40 kg) weight capacity and don't tow
anything behind the vehicle.
Use only on a generally level ground.
18 19
