Courtyard Creations RTS493C User manual

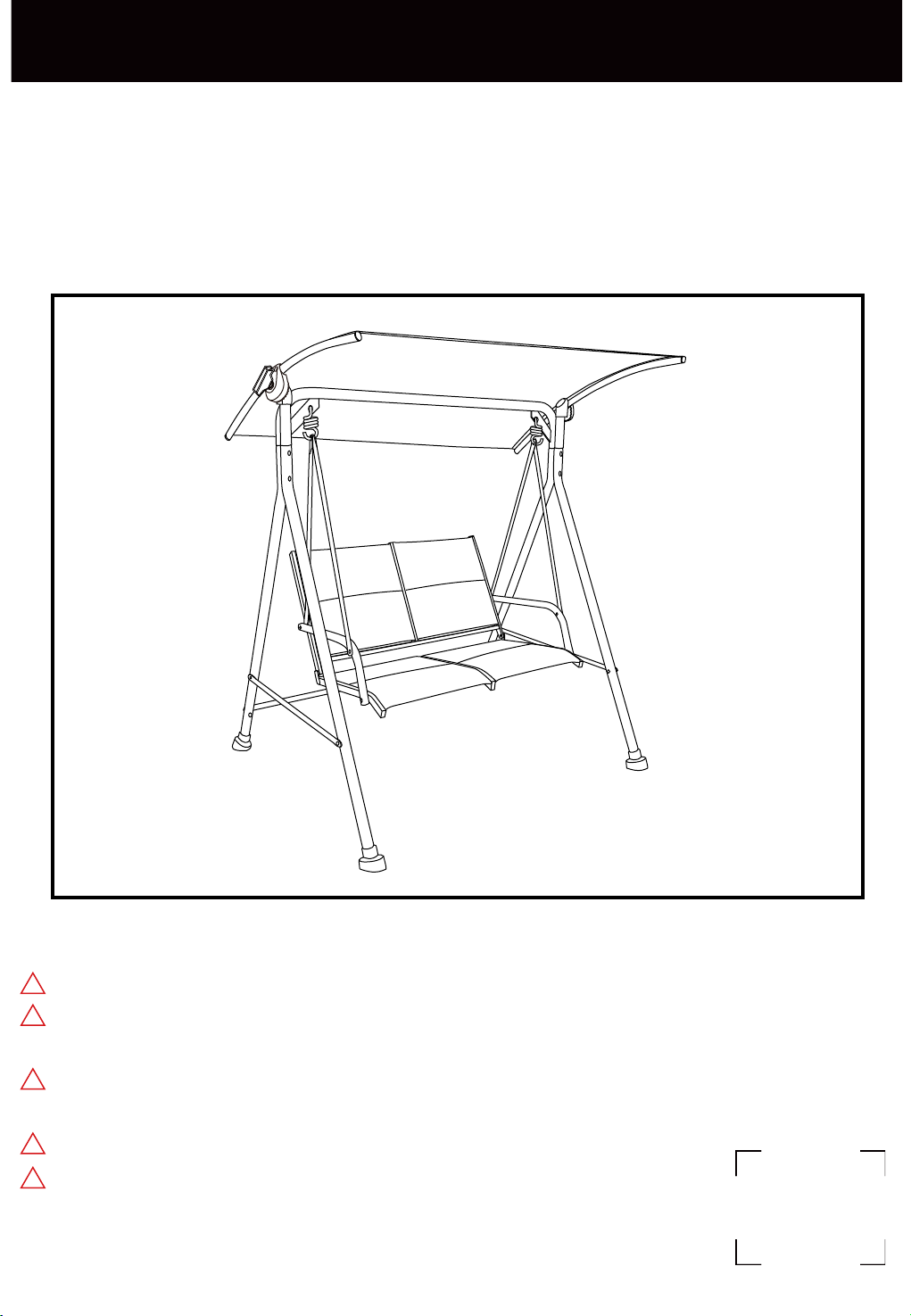

ASSEMBLY INSTRUCTIONS
PAGE 1 OF 5 COURTYARD CREATIONS INC.
Use the correct bolts as indicated. Do not tighten any of the bolts until the swing is completely assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
Quote the following FQC NO. when contacting the service center.
SERVICE CENTER TOLL FREE NO.
TEL: [phone]
FAX: [phone]
!
!
!
!
!
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
INTENDED FOR RESIDENTIAL USE ONLY.
RTS493C
E-2

A. Read instructions thoroughly. Acquaint yourself with the inventory of parts and
the accompanying drawings to ensure safe and proper assembly.
B. You will need the following tools:
- Phillips Screwdriver
- Nut Wrench (See Part #24)
- Hex. Key Wrench (See Part #22 and #23)
C. Lay out all parts and identify using the table below.
PAGE 2 OF 5
PARTS LIST
PART
NO.
1
2
3
4
5
6
7
8
9
10
11
12
141
15
16
17
18
19
20
21
22
23
24
25 1
1
1
2
8
4
10
18
4
2
2
2
2
1
2
1
4
4
2
4
6
2
RTS493C-CS09-8 17FA08060601-YX
17FA05050401-YX
18000C06001
18000C23001
18000626028
28000221044
17GA06081101
18000018001
17KAA0201----Y4
17KAB1201----Y4
RTS493C-CS18-1
BOLT M6*55
BOLT M6*45
CANOPY/FRAME CONNECTOR
LEG CAP
PLASTIC SCREW
HEX.KEY WRENCH 6MM
NUT WRENCH 13&17MM
CANOPY
62RUS4040N101
62RUS4040N201
62RUS423EI101
62RLS409AH102
RTS493C-CS11-1
RTS493C-CS01-1
62RTS493CM101
17C01A0844061YX
17C40A0719001YX
17C40A0716001YX
17C01A0816071YX
TOP CROSS BEAM W/ADJUSTABLE TEETH
REAR CROSS BRACE
LATERAL CROSS BRACE
FRONT UPRIGHT SUPPORT
REAR UPRIGHT SUPPORT
SWING ARM
SEAT ASSEMBLY
SWING ARM TUBE
MATERIAL
CODE PART Q’TY
1
17KAA0101----Y4
HEX.KEY WRENCH 4MM
BOLT M8*45
WASHER d6.5*D16*1.2
SUSPENSION SPRING
PLASTIC NUT M6*P1.0
PLASTIC NUT M8*P1.25
WASHER d8.5*D17*1.6
BOLT M8*95
13 4
17C17A1306001YX
SCREW ST4.2*16
E-2

PAGE 3 OF 5
Fig. A
Fig. B
Step 1:
Fasten the front and rear upright support (#2
and #3) at the top, by using bolts (#9), washers
(#14), and plastic nuts (#16). Do the same
procedure for both sides. Do not fully tighten
the plastic nuts and bolts yet.
See Fig. A – Step 1.
Step 5:
Open the seat assembly (#6) and fasten a
swing arm tube (#8) and a swing arm (#7) to
the seat back by using bolt (#11), and washers
(#15). Do the same procedure for both sides.
Fasten another swing arm tube (#8) to the
swing arm (#7) at the front bend by using bolt
(#11), washers (#15), and plastic nut (#17).
Do the same procedure for both sides. Fasten
the other end of the swing arm (#7) to the front
of the seat assembly (#6) by using bolt (#12),
and washers (#14)
. Do the same procedure for
both sides. See Fig. B.
Step 1
Step 2
Step 3
Step 4
Step 5
88
11 15
21
21
21
21
10
5
10
3
2
3
3
4
3
1
2
23
3
1
14
14
16
2
3
14
2
4
15
88
Do not tighten bolts
after Step 1. Fasten
all bolts after Fig A.
9
16
14 9
15
17
15
17
12
14
7
7
7
6
6
Note:
When fastening with bolts and nuts, always use
a washer (#14 and #15) between the tube and
the bolt and the tube and the nut.
Step 2:
At both ends, insert the assembled upright
supports (#2 and #3) into the top cross beam
w/adjustable teeth (#1). Tighten all plastic nuts
and bolts now. See Fig. A – Step 2.
Step 3:
Fasten the lateral cross braces (#4) to the
upright supports (#2 and #3) by using bolts
(#10), washers (#15), and plastic nuts (#17).
Do the same procedure for both sides.
See Fig. A – Step 3.
Step 4:
Fasten the rear cross brace (#5) to the rear
upright supports (#3) by using bolts (#10),
washers (#15), and plastic nuts (#17). Insert
the leg caps (#21) into all of the base feet.
Tighten all of the plastic nuts and bolts.
See Fig. A – Step 4 and Step 5.
11
15
17
15
88
15
E-2

PAGE 4 OF 5
Fig. E
Step 6:

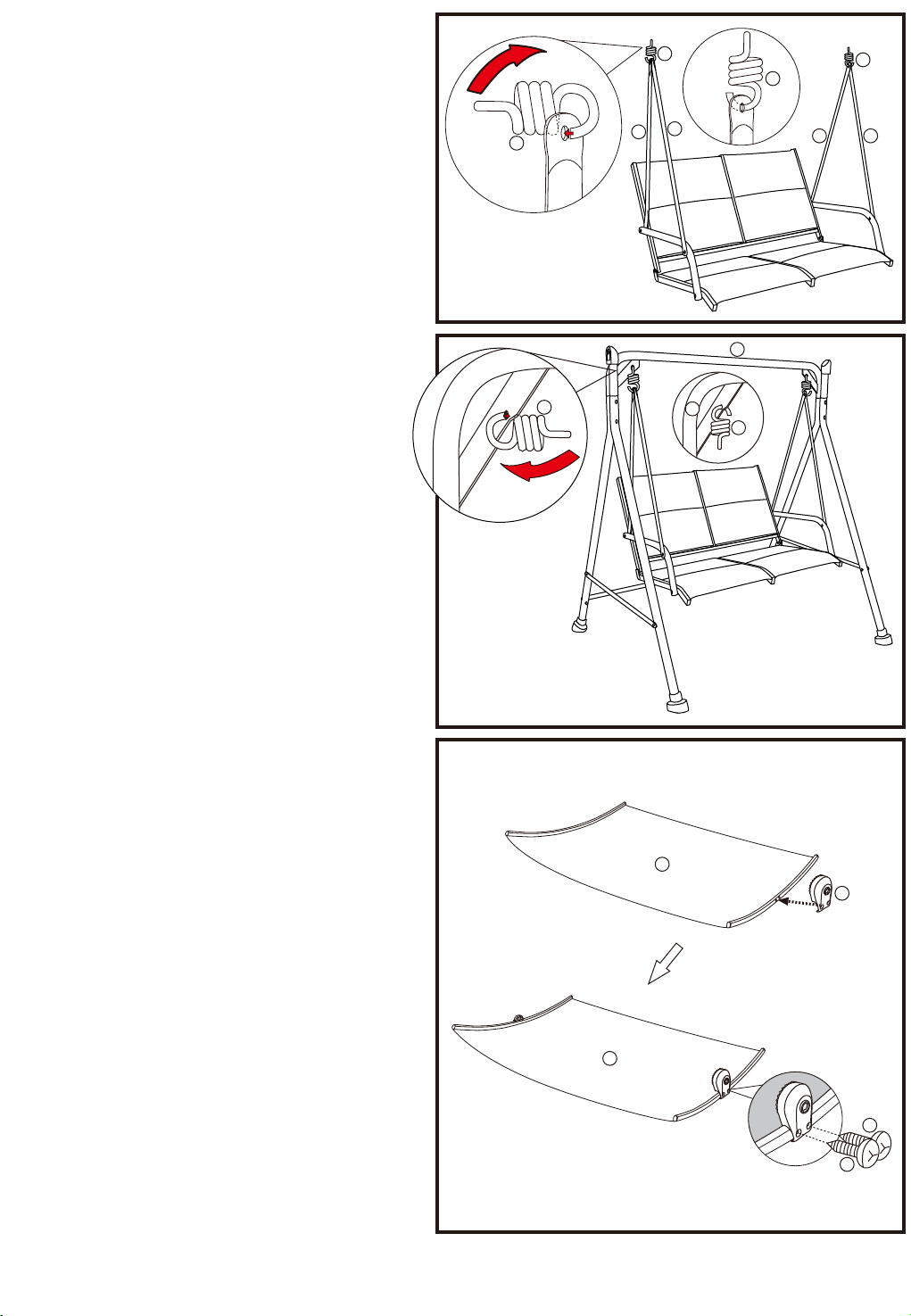

Hook the suspension springs (#18) into the top of
both swing arm tubes (#8). Do the same procedure
for both sides. See Fig. C.
Warning:
Make sure that both ends of the suspension springs
(#18) go completely through the holes on the top
cross beam w/adjustable teeth (#1) and the swing
arm tubes (#8).
Fig. C
Fig. D
Step 7:
Hang the opposite ends of the suspension springs
(#18) into the holes located on the angled braces
of the top cross beam w/adjustable teeth (#1).
Do the same procedure for both sides.
See Fig. D.
Step 8:
Slide the canopy/frame connectors (#19) into
the canopy (#25). Fasten them together by using
screws (#13) in the pre-drilled holes. Make sure
that the teeth of the canopy/frame connectors are
facing toward the inside of the frame.
See Fig. E - Step 1 and Step 2. Step 1
Step 2
888 8
18
18
18
18
18
1
18
25
19
13
13
25
1
E-2

PAGE 5 OF 5
Note:
To avoid danger of suffocation, keep plastic
bags or small parts away from babies and
children. Fig. F
Fig. G
Step 9:
Attach and fasten the canopy assembly
onto the adjustable teeth on top cross beam
w/adjustable teeth (#1) with plastic screws (#20)
to each side of canopy/frame connectors (#19).
See Fig. F and Fig. G.
25
1
19
20
19
20
Cleaning and Maintenance
• Wash frame and fabric parts with mild
soap and water, rinse thoroughly, and dry
completely. Do not use bleach, acid, or other
solvents on the frame or fabric parts.
• The canopy may be surface washed with
mild soap and water if necessary. Commercial
foaming upholstery cleaner may also be
used. Rinse well and hang to dry. Do not
machine wash or dry.
• We recommend the use of furniture covers
to protect your swing when not in use.
• Inspect and tighten all bolts and fasteners
on a regular basis to ensure the proper
performance and safety of your swing.
• In order to prolong the life and beauty of
your swing, we recommend that it be stored
in a dry and protected area during off season
periods.
Special Warnings
1. The user of this swing should always inspect it before each use.
2. It is essential to place this swing on level ground and not less than 6 feet from any obstruction; such as
fences, garages, houses, overhanging branches,laundry lines, or electrical wires.
3. Check the tightness of all of the nuts and bolts on a regular basis.
4. Make sure that the suspension springs are properly secured before each use.
5. Always remove the canopy in heavy wind conditions; otherwise the canopy may tip over and cause damage
to its parts.
6. The manufacturer will not accept responsibility for unauthorized repairs or modifications to the swing or its
parts.
7. Oil all of the metal parts that move regularly.
8. Weight limit is 500 lbs.
Warranty
• This product is covered by Courtyard Creations Inc.'s one–year limited warranty.
• Proof of purchase (dated register receipt) is required for warranty claims.
• It remains the customer’s responsibility for freight and packing charges to and from the service center.
The store where you made your purchase
does not stock parts for this item.
If you need parts,
whether they are missing or damaged,
STOP!
Missing A Part?
No Need To Go Back To
The Store
Call us between 9:00 AM and 4:30 PM
Eastern Time Monday through Friday
For further assistance,
please visit us at
[email protected]
Call Toll Free:
TEL: [phone]
FAX: [phone]
READ THESE INSTRUCTIONS COMPLETELY BEFORE STARTING ASSEMBLY
SEPARATE AND IDENTIFY ALL OF THE PARTS, MAKING SURE THAT
YOUHAVE ALL OF THEPARTSLISTED.
IF YOU DO NOTLOCATE ALL OF THE PARTS LISTED, INSPECT THE
PACKING MATERIAL FOR SMALL PARTSTHAT MAYHAVEBECOME
SEPARATED DURING SHIPMENT.
IF YOU EXPERIENCEANY DIFFICULTY DURING ASSEMBLYOR IF ANY
PARTS ARE MISSING OR DAMAGED,CALL THE HELP LINE AT
1-877-539-7436 BEFORERETURNING THIS ITEM TO THE STORE.
PROVIDE THEFOLLOWING INFORMATION WHEN CALLING:
1-MODEL NUMBER OF THEPRODUCT.
2-PARTNUMBER AND MATERIAL CODE OF THE PARTFROM THE PARTS
LIST.
MOST PROBLEMS CAN BERESOLVED WITHOUT RETURNING THIS
PRODUCT TO THERETAILER.
Step 10:
To assure stability, double check that all of the
bolts have been completely tightened.
E-2
