Courtyard Creations RTS498J User manual

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
INTENDED FOR RESIDENTIAL USE ONLY.
PAGE 1 OF 6 COURTYARD CREATIONS INC.
RTS498J
!
!
!
!
Do not discard of any of the packaging until you have checked that you have all of the
parts and fittings required.
Keep children away during assembly. This item contains small parts that can be
swallowed by children. Children should always be under direct adult supervision while
using this product.
Retain these assembly instructions for future reference.
Quote the following FQC NO. when contacting the service center.
SERVICE CENTER TOLL FREE NO.
TEL: [phone]
FAX: [phone]

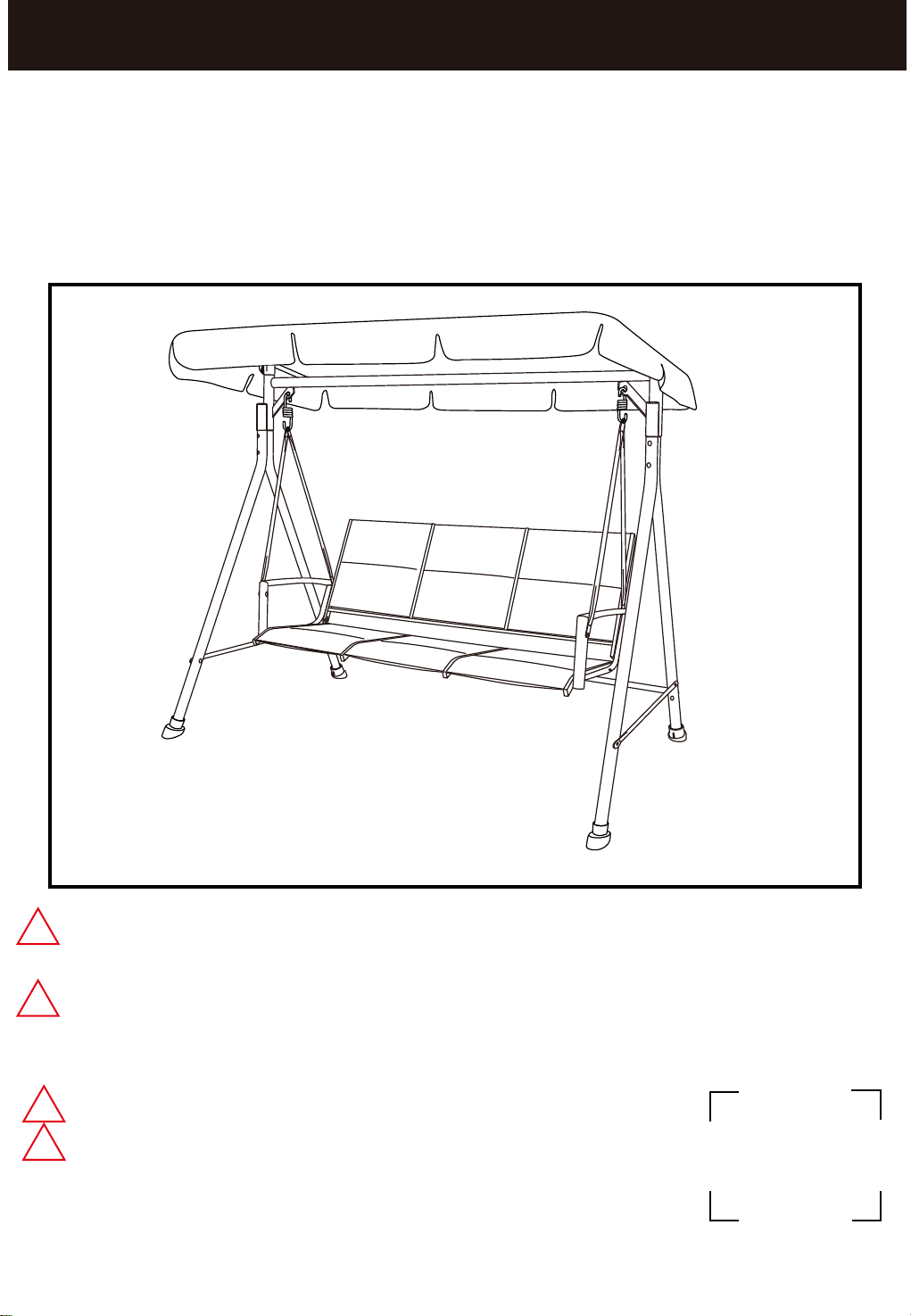

3 Person Padded Sling Swing

A. Read these instructions thoroughly and acquaint yourself with the parts and
the illustrations to ensure safe and proper assembly.
B. You will need the following tools
- Phillips Screwdriver
- Nut Wrench (See Part #25)
- Hex. Key Wrench (See Part #24)
C. Lay out all of the parts and match them with the table below.
PAGE 2 OF 6
PARTS LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
114
15
16
17
18
19
20
21
22
23
24
25
26 1
1
1
2
2
10
2
4
1
2
2
2
2
2
2
2
4
1
RTS498J-CS01
17C01A0821061Y4
17C01A0721091Y4
18000615004
17C17A1306001Y4
18000018001
17KAA0201----Y4
17KAB1201----Y4
61R498JD00001BA
BOLT M8*60
BOLT M6*60
SCREW ST4.2*16
PLASTIC SCREW
HEX.KEY WRENCH 6MM
NUT WRENCH 13&17MM
CANOPY
62RUS417SH101
62RUS497AI101
62RUS497AN101
62RUS497AN102
RTS498J-CS02
RTS498J-CS03
62RTS498HM101
62RUS4231I101
62RUS4040H102
17GC06043401-Y3
TOP CROSS BEAM W/ADJUSTABLE TEETH
REAR CROSS BRACE
LATERAL CROSS BRACE
FRONT UPRIGHT SUPPORT
REAR UPRIGHT SUPPORT
SWING ARM
SEAT ASSEMBLY
SWING ARM TUBE
FRONT/REAR CANOPY BRACE
U-SHAPED SIDE CANOPY BRACE
SUSPENSION SPRING
PART
NO. MATERIAL CODE PART Q’TY PART NO. MATERIAL CODE PART Q’TY
4
2808020102701
LEG CAP
20
10
17FA05050401-Y4 WASHER d6.5*D16*1.2
17FA08060601-Y4 WASHER d8.5*D17*1.6
8
4
18000C06001
18000C23001
PLASTIC NUT M8*P1.25
PLASTIC NUT M6*P1.0
CANOPY/FRAME CONNECTOR
2
17C01A0714003Y4 BOLT M6*40
4
17C01A0835011Y4
BOLT M8*105

PAGE 3 OF 6

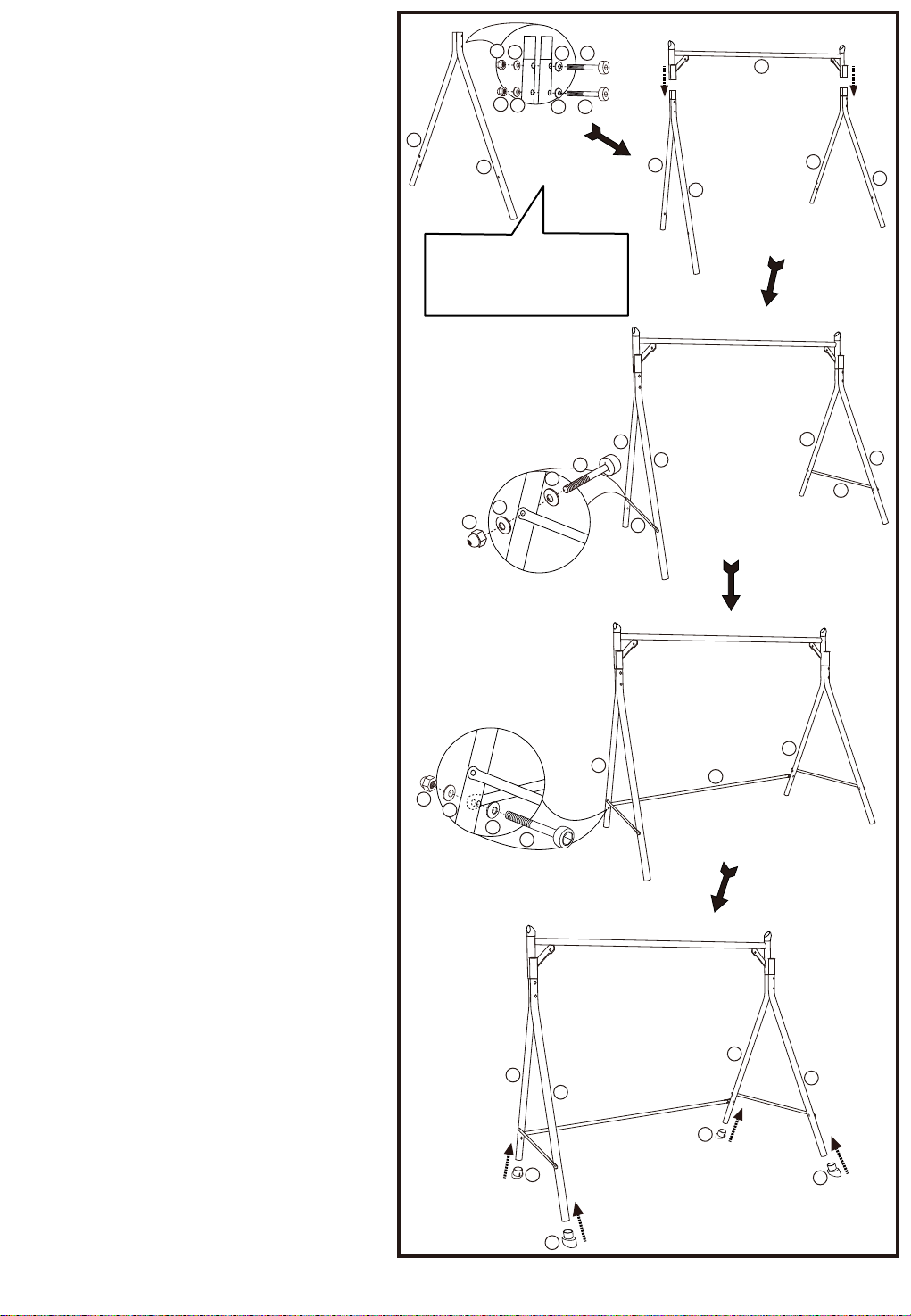

Fig. A
Note:
When fastening with bolts and nuts, always use
a washer (#18 and #19) between the tube and
the bolt and the tube and the nut.
Step 1:
Fasten the front and rear upright supports
(#4 and #5) at the top by using bolts (#13),
washers (#18), and plastic nuts (#20). Do the
same procedure for both sides. Keep the bolts
loose. See Fig. A – Step 1.
Step 2:
At both ends, insert the assembled upright
supports (#4 and #5) into the top cross beam
w/adjustable teeth (#1). Tighten all of the plastic
nuts and bolts. See Fig. A – Step 2.
Step 3:
Fasten the lateral cross braces (#3) to the
upright supports (#4 and #5) by using bolts
(#14), washers (#19), and plastic nuts (#21).
Do the same procedure for both sides.
See Fig. A – Step 3.
Step 4:
Fasten the rear cross brace (#2) to the rear
upright supports (#5) by using bolts (#14),
washers (#19), and plastic nuts (#21). Tighten
all of the plastic nuts and bolts.
See Fig. A – Step 4.
Step 5:
Insert the leg caps (#11) into all of the base feet.
See Fig. A – Step 5.
Step 1
Step 2
Step 3
Step 4
Step 5
Do not tighten the bolts
after Step 1. Fasten all
bolts after Fig A.
13
13
14
14
11
11
11
11
19
19
19
19
21
21
18
18
18 18
20
20
1
4
4
5
5
4
5
3
4
5
5
4
4
5
5
5
2
3
54

Step 6:
Open the seat assembly (#7) and fasten a
swing arm tube (#8) and a swing arm (#6) to
the seat back by using bolt (#14) and washer
(#19). Do the same procedure for both sides.
Fasten another swing arm tube (#8) to the
swing arm (#6) at the front bend by using bolt
(#14), washers (#19), and plastic nut (#21).
Do the same procedure for both sides. Fasten
the other end of the swing arm (#6) to the
front of the seat assembly (#7) by using bolt
(#16) and washer (#18). Do the same
procedure for both sides. Fasten the brace of
the swing arm (#6) to the seat assembly (#7)
by using bolt (#15) and washer (#19). Do the
same procedure for both sides. See Fig. B.
PAGE 4 OF 6
Step 7:
Hook the suspension spring (#12) into the
top of both swing arm tubes (#8). Do the
same procedure for both sides. See Fig. C.
Warning:
Make sure that both ends of the suspension
springs (#12) go completely through the
holes in the angled braces on the top cross
beam w/adjustable teeth (#1) and the swing
arm tubes (#8).

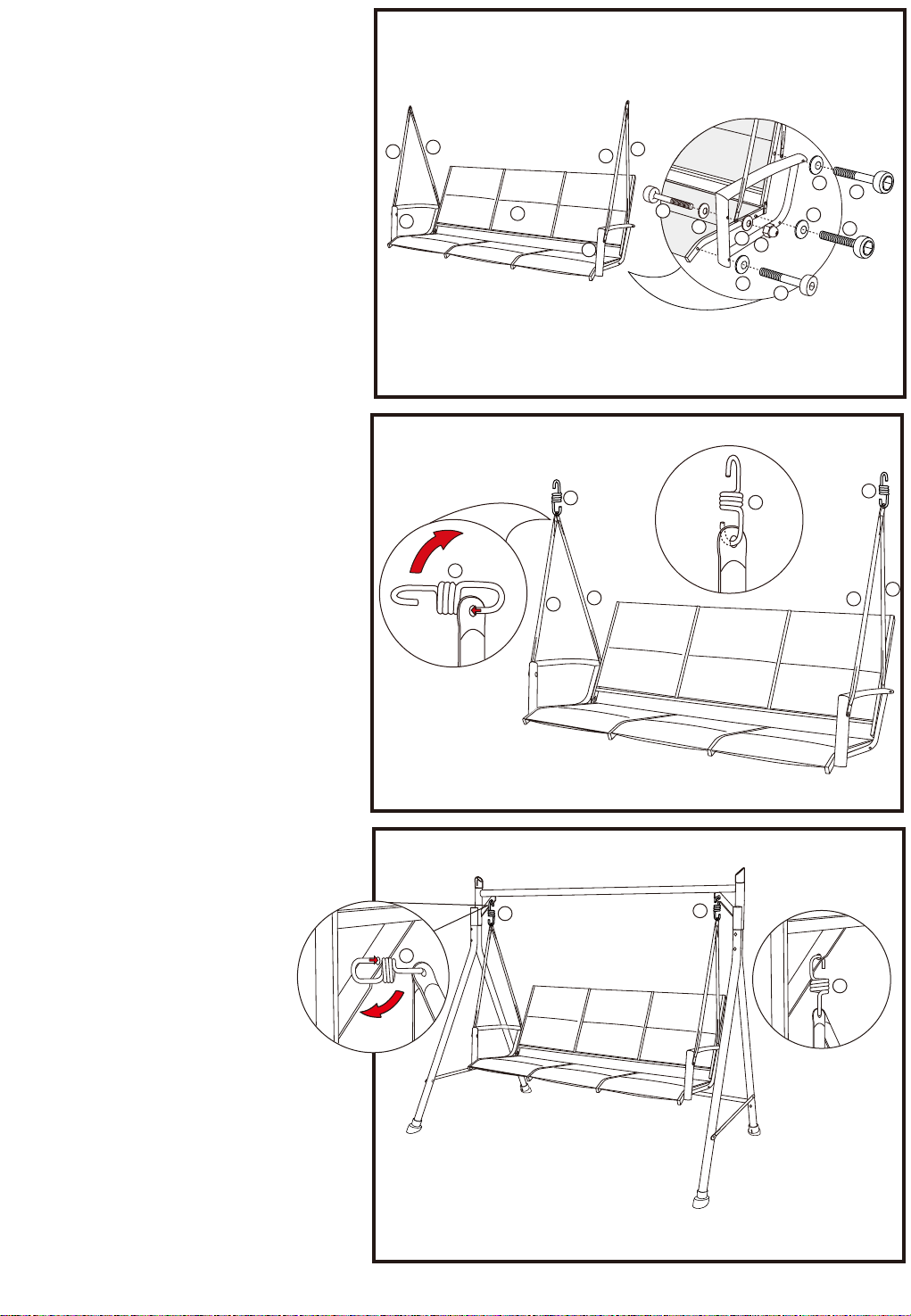

Fig. B
Fig. C
Fig. D
Step 8:
Hang the other side of the suspension
spring (#12) into the hole located on
the angled brace on the top cross
beam w/adjustable teeth (#1). Do
the same procedure for both sides.
See Fig. D.
14
14 15
16
18
19
19
19
19 21
12
12
12
12
12
12
12
12
88
7
8
88
88
8
6
6

PAGE 5 OF 6
Step 13:
Fasten the canopy/frame connectors (#22) on
the canopy assembly to the adjustable teeth
on both sides of the top cross beam (#1) by
using plastic screws (#23). See Fig. F.
Fig. E
Fig. F
Step 1
Step 3
Step 2
Step 4
Step 5
Step 9:
Slide the canopy/frame connectors (#22) onto
the U-shaped side canopy braces (#10) and
fasten into position by using screws (#17).
Make sure that the teeth of the canopy
connectors are facing towards the inside of the
swing. See Fig. E – Step 1 and Step 2.
Step 10:
Insert the front and rear canopy braces (#9)
into the sleeves of the canopy (#26).
See Fig. E – Step 3.
Step 11:
Insert the tube ends of the front and rear
canopy braces (#9) into the U-shaped side
canopy braces (#10). See Fig. E – Step 4.
Step 12:
Insert the corners of the U-shaped side canopy
braces (#10) into the pockets of the canopy
(#26). See Fig. E – Step 5.
10
1010
9
9
9
1
9
10
26
26
26
22 22
17
23 22 23
22
17
26

Cleaning and Maintenance
• Wash frame and fabric parts with mild soap and water, rinse thoroughly, and dry completely. Do not use bleach,
acid, or other solvents on the frame or fabric.
• The cushions and canopy may be surface washed with mild soap and water if necessary. Commercial foaming
upholstery cleaner may also be used. Rinse well and hang to dry. Do not machine wash or dry.
• We recommend the use of furniture covers to protect your swing when not in use.
• Inspect and tighten all bolts and fasteners on a regular basis to ensure proper performance and safety of
your swing.
• In order to prolong the life and beauty of your swing, we recommend that the cushions and fabric parts be
stored in a dry and protected area during off season periods (i.e. overnight or on rainy days)
Special Warnings
• The user of this swing should always inspect it before each use.
• It is essential to place this swing on level ground and not less than 6 feet from any obstruction; such as fences,
garages, houses, overhanging branches,laundry lines, or electrical wires.
• Check the tightness of all of the nuts and bolts on a regular basis.
• Make sure that the suspension springs are properly secured before each use.
• Always remove the canopy in heavy wind conditions; otherwise the canopy may tip over and cause damage to
its parts.
• The manufacturer will not accept responsibility for unauthorized repairs or modifications to the swing or its parts.
• Oil all of the metal parts that move regularly.
• Weight limit is 750lbs.
PAGE 6 OF 6
Note:
To avoid danger of suffocation, always keep
plastic bags or small parts away from babies
and children.
Fig. G
Step 14:
Re-check and re-tighten all of the nuts and
bolts to assure stability.
The store where you made your purchase
does not stock parts for this item.
If you need parts,
whether they are missing or damaged,
STOP!
MissingAPart?
No Need To Go Back To
The Store
Call us between 9:00 AM and 4:30 PM
Eastern Time Monday through Friday
Call Toll Free:
TEL: [phone]
FAX: [phone]
READ THESE INSTRUCTIONS COMPLETELY BEFORE STARTING ASSEMBLY
SEPARATE AND IDENTIFY ALL PARTS, MAKING SURE THAT YOU
HAVE ALL OF THEPARTSLISTED.
IF YOU DO NOTLOCATE ALL OF THE PARTS LISTED, INSPECT THE
PACKING MATERIAL FOR SMALL PARTSTHAT MAYHAVEBECOME
SEPARATED DURING SHIPMENT.
IF YOU EXPERIENCEANYDIFFICULTYDURING ASSEMBLYOR IF ANY
PARTS ARE MISSING OR DAMAGED,CALL THE HELP LINE AT 1-877-539-7436
BEFORERETURNING THIS ITEM TO THESTORE.
PROVIDE THEFOLLOWING INFORMATION WHEN CALLING:
1-MODEL NUMBER OF THEPRODUCT.
2-PARTNUMBER AND MATERIAL CODE OF THE PARTFROM THE PARTS LIST
MOST PROBLEMSCAN BERESOLVED WITHOUT RETURNING THIS PRODUCT
TO THERETAILER.
