Courtyard Creations RTS493F-WM User manual

PAGE 1 OF 6
RTS493F-WM
ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
INTENDED FOR RESIDENTIAL USE ONLY.
COURTYARD CREATIONS INC.
Use the correct bolts as indicated. Do not tighten any of the bolts until the swing is completely assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
Quote the following FQC NO. When contacting the service center.
SERVICE CENTER TOLL FREE NO.
TEL: [phone]
FAX: [phone]
!
!
!
!
!
STOP DON’T RETURN TO STORE!

PAGE 2 OF 6
1
2
3
4
5
6
7
8
9
10
11
12
13
14 6
4
2
2
4
1
1
2
2
1
2
2
2
1 15
16
17
18
19
20
21
22
23
24
25
26
27
28 1
1
1
4
2
2
2
4
10
28
8
4
8
4RTS493F-CS02
62RUS497AN102
62RUS497AN101
62RUS497AI101
62RUS4071H101
62RUS4860H105
RTS493F-CS01
RUS4851-CS03
RUS4851-CS02
62RUS4040M101
62RTS493FI101
62RUS4040H102
17C01A0835011Y4
17C01A0721091Y4 17KAB1201----Y4
17KAA0201----Y4
61R493FD00001BA
2808020102701
18000018001
18000615004
17GA06081101
18000C06001
18000C23001
17FA05050401-Y4
17FA08060601-Y4
17C17A0403001Y4
17C01A0714003Y4
17C01A0716072Y4
TOP CROSS BEAM
W/ADJUSTABLE TEETH
REAR UPRIGHT SUPPORT
FRONT UPRIGHT SUPPORT
LATERAL CROSS BRACE
REAR CROSS BRACE
SEAT AND BACK SUPPORT BRACE
SEAT ASSEMBLY
LEFT SWING ARM
RIGHT SWING ARM
SWING ARM TUBE
FRONT/REAR CANOPY BRACE
U-SHAPED
SIDE CANOPY BRACE
BOLT M8*105
BOLT M6*60 NUT WRENCH 13&17MM
HEX. KEY WRENCH 6MM
CANOPY
LEG CAP
PLASTIC SCREW
CANOPY/FRAME CONNECTOR
SUSPENSION SPRING
PLASTIC NUT M8*P1.25
PLASTIC NUT M6*P1.0
WASHER d6.5*D16*1.2
WASHER d8.5*D17*1.6
SCREW ST4.2*12
BOLT M6*40
BOLT M6*45

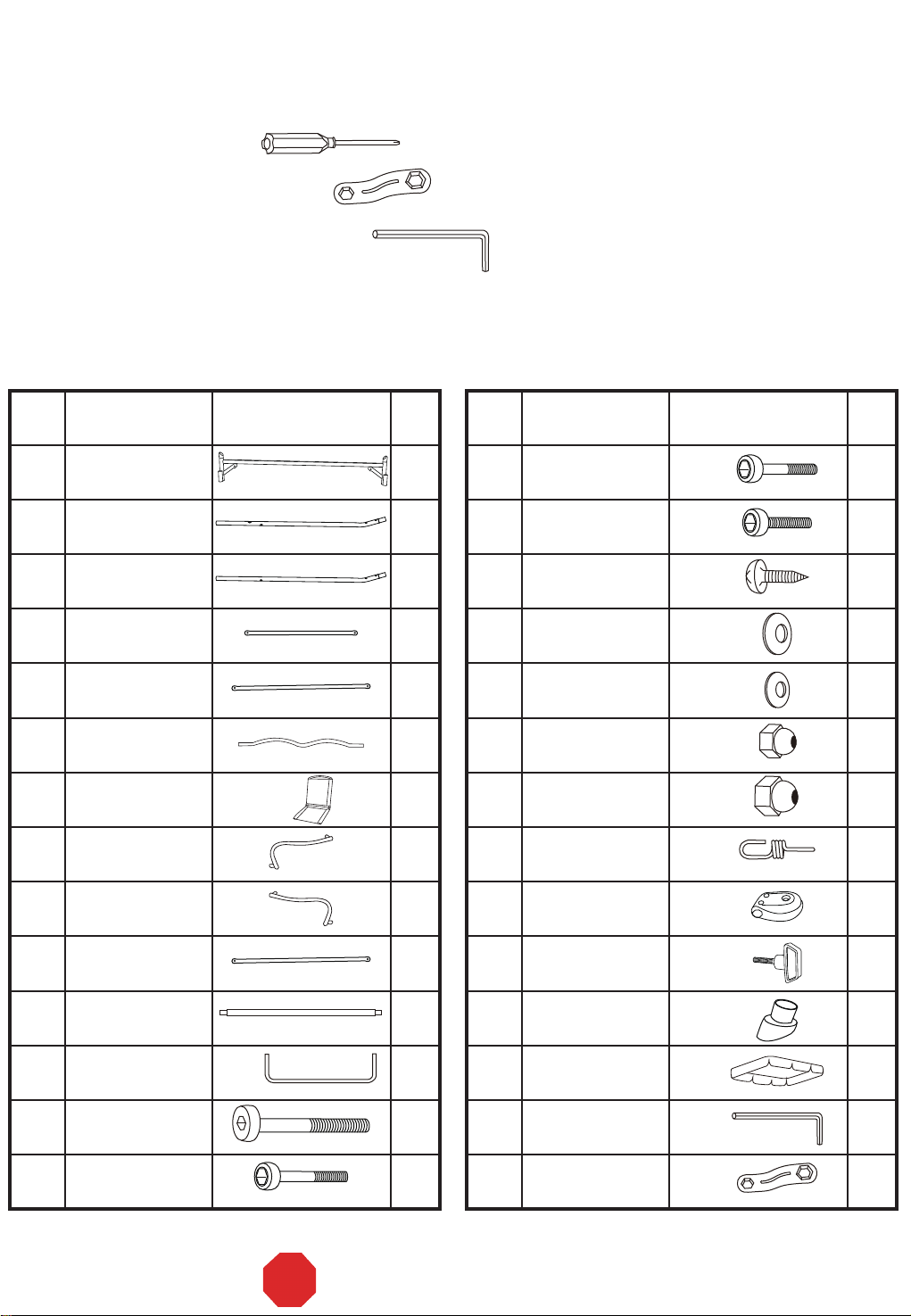

PARTS LIST
PART
NO. MATERIAL CODE Q’TYPART PART NO. MATERIAL CODE Q’TYPART
A. Read instructions thoroughly. Acquaint yourself with the inventory of parts and the
accompanying drawings to ensure safe and proper assembly.
B. You will need the following tools
- Phillips Screwdriver
- Nut Wrench (See Part #28)
- Hex.Key Wrench (See Part #27)
C. Lay out all parts on a flat surface and identify them using the table below.
STOP DON’T RETURN TO STORE!

Aaaembly(Note: For all nut and bolt
fastening, always use a washer (#18 and #19)
between the tube and bolt or the tube and
nut).
Step 1:
Attach the front and rear upright supports
(#2 and #3) at the top by using bolts (#13),
washers (#18) and plastic nuts (#21).
Repeat the procedure for the other side.
Do not tighten plastic nuts and bolts yet.
See Fig. A - Step 1.
Step 3:
Fasten the lateral cross braces (#4) to the
upright supports (#2 and #3) by using bolts
(#14), washers (#19) and plastic nuts (#20).
See Fig. A - Step 3.
Step 4:
Fasten the rear cross brace (#5) to the rear
upright supports (#2) by using bolts (#14),
washers (#19) and plastic nuts (#20).
Insert the leg caps (#25) to all base feet.
Tighten the plastic nuts and bolts now.
See Fig. A - Step 4 and Step 5.
Step 5:
Fasten one seat and back support brace (#6)
to the seat of two seat assemblies (#7) by
using bolts (#16) and washers (#19).
See Fig. B.
Note:
Make sure the two arcs of the seat and back
support brace (#6) should be facing outside.
PAGE 3 OF 6
Fig. B
Fig. A
Step 5
Step 4
Step 3
Step 1
Do not tighten bolts
after Step 1. Fasten
all bolts after Fig A.
Step 2
Step 2:
Attach the top cross beam w/adjustable
teeth (#1) to both ends of the upright
supports (#2 and #3). See Fig. A - Step 2.
STOP DON’T RETURN TO STORE!

Step 6:
Fasten another seat and back support
brace (#6) to the back of two seat
assemblies (#7) by using bolts (#16) and
washers (#19). See Fig. C.
Note:
Make sure the two arcs of the seat and
back support brace (#6) should be facing
outside.
Step 7:
Insert the left and right swing arms (#8
and #9) into the seat and back support
braces (#6). Fasten them by using bolts
(#16) and washers (#19).
See Fig. D and Fig. E.
Step 8:
Fasten the swing arm tubes (#10) to the
front hole of the seat swing arms (#8 and
#9) by using bolts (#15), washers (#19)
and plastic nuts (#20). Then fasten the
swing arm tubes (#10) to the back of the
seat swing arms (#8 and #9) by using
bolts (#15), washers (#19) and plastic
nuts (#20). See Fig. F.
PAGE 4 OF 6
Fig. E
Fig. D
Fig. C
R
L
Note:
The labels marked “L” and “R” on the
swing arms (#8 and #9) should coincide
with Fig. D to ensure proper assembly.
Fig. F
STOP DON’T RETURN TO STORE!

Step 9:

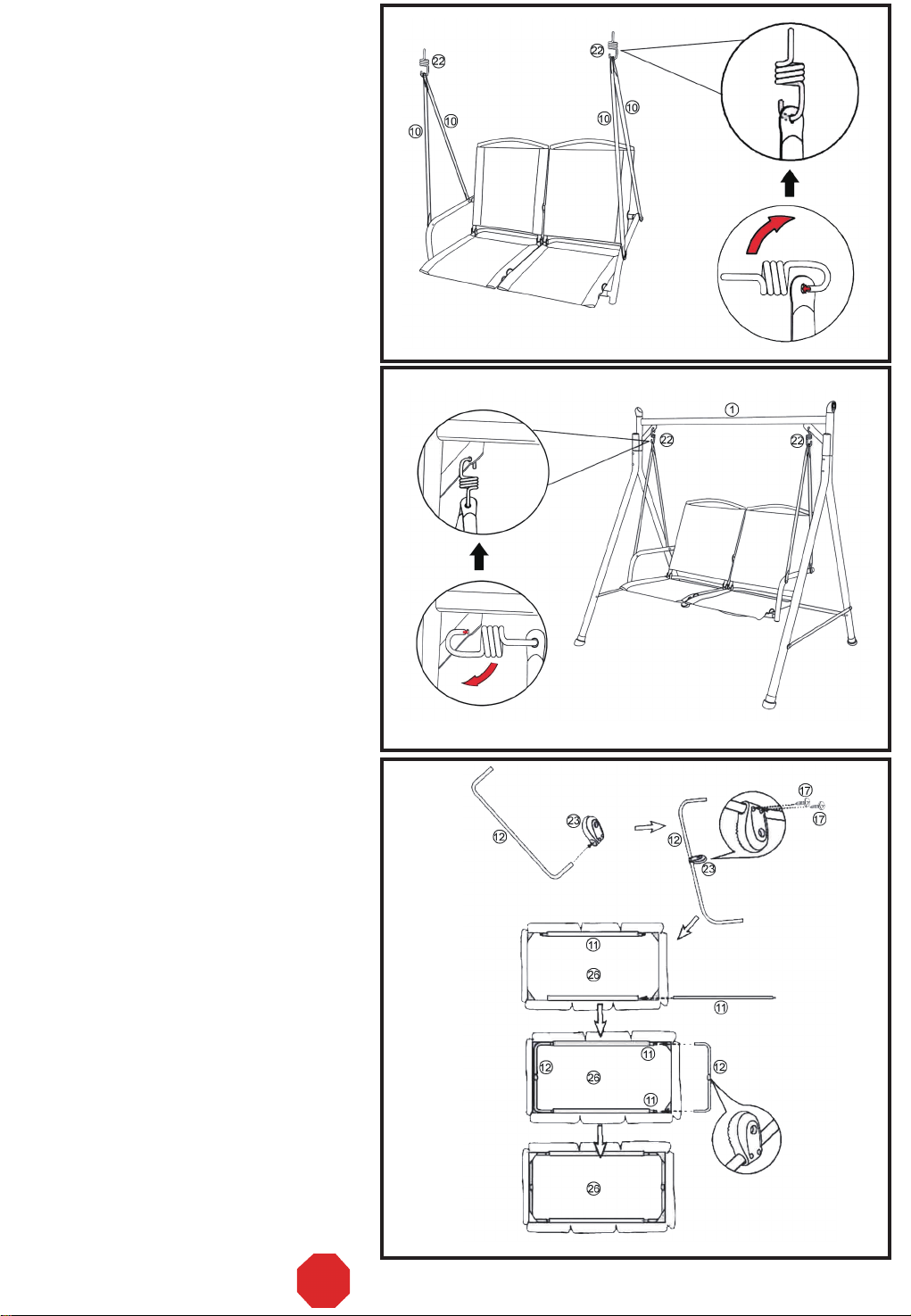

Hook the suspension spring (#22) to the
top of the swing arm tubes (#10), and do
the same for the other side. See Fig. G.
Step 10:
Hang the other side of suspension
spring (#22) into the hole of each side on
the angled braces of the top cross beam
w/adjustable teeth (#1). Do the same for
the other side. See Fig. H.
Warning:
Make sure that both ends of the suspension
springs (#22) go completely through the
holes of the angled brace on part (#1) and
swing arm tubes (#10).
Step 11:
Insert the canopy/frame connectors (#23)
into the U-shaped side canopy brace (#12)
and secure with screws (#17).
See Fig I - Step 1 and Step 2.
Note: Make sure that the teeth of cabopy/
frame connectors (#23) are facing towards
the inside.
Step 12:
Insert the front/rear canopy braces (#11)
into the sleeves of the canopy (#26).
See Fig I - Step 3.
Step 14:
Slip the four corners of U-shaped side
canopy brace (#12) into the pockets of the
canopy (#26). See Fig I - Step 5. Fig. I
Fig. H
Fig. G
PAGE 5 OF 6
Step 5
Step 4
Step 3
Step 1
Step 2
Step 13:
Insert the front/rear canopy braces (#11)
into the U-shaped side canopy brace (#12).
See Fig I - Step 4.
STOP DON’T RETURN TO STORE!

Cleaning and Maintenance
• Wash frame and fabric parts with mild soap and water, rinse thoroughly, and dry completely. Do not use
bleach, acid, or other solvents on the frame or fabric parts.
• The canopy may be surface washed with mild soap and water if necessary. Commercial foaming
upholstery cleaner may also be used. Rinse well and hang to dry. Do not machine wash or dry.
• We recommend the use of furniture covers to protect your swing when not in use.
• Inspect and tighten all bolts and fasteners on a regular basis to ensure the proper performance and
safety of your swing.
• In order to prolong the life and beauty of your swing, we recommend that it be stored in a dry and
protected area during off season periods.
Special Warnings
• The user of this swing should always inspect it before each use.
• It is essential to place this swing on level ground and not less than six feet from any obstruction, such as
fences, garages, houses, overhanging branches, laundry lines, or electrical wires.
• Check the tightness of all nuts and bolts on a regular basis.
• Always remove the canopy in heavy wind conditions, otherwise the canopy may tip over and cause
damage to its parts.
• Oil all of the metal parts that move regularly.
• The manufacturer will not accept responsibility for unauthorized repairs or modifications to the swing or
its parts.
• Weight limit is 500lbs.
PAGE 6 OF 6
Step 15:
Attach and fasten the canopy assembly
onto the adjustable teeth on top cross beam
W/adjustable teeth (#1) with plastic screws
(#24) to each side of canopy/frame
connectors (#23). See Fig. J and Fig. K.
Step 16:
Re-check and re-tighten all of the plastic
nuts and bolts to assure stability.
Note:
To avoid danger of suffocation, always keep
plastic bags or small parts away from babies
and children.
Fig. K
Fig. J
The store where you made your purchase
does not stock parts for this item.
If you need parts,
whether they are missing or damaged,
STOP!
Missing A Part?
No Need To Go Back To
The Store
Call us between 9:00 AM and 4:30 PM
Eastern Time Monday through Friday
Call Toll Free:
TEL: [phone]
FAX: [phone]
READ THESE INSTRUCTIONS COMPLETELY BEFORE STARTING ASSEMBLY
SEPARATE AND IDENTIFY ALL PARTS, MAKING SURE THAT YOU
HAVE ALL OF THEPARTSLISTED.
IF YOU DO NOTLOCATE ALL OF THE PARTS LISTED, INSPECT THE
PACKING MATERIAL FOR SMALL PARTSTHAT MAYHAVEBECOME
SEPARATED DURING SHIPMENT.
IF YOU EXPERIENCEANY DIFFICULTY DURING ASSEMBLYOR IF ANY
PARTS ARE MISSING OR DAMAGED,CALL THE HELP LINE AT
1-877-539-7436 BEFORERETURNING THIS ITEM TO THE STORE.
PROVIDE THEFOLLOWING INFORMATION WHEN CALLING:
1-MODEL NUMBER OF THEPRODUCT.
2-PARTNUMBER AND MATERIAL CODE OF THE PARTFROM THE PARTS
LIST.
MOST PROBLEMS CAN BERESOLVED WITHOUT RETURNING THIS
PRODUCT TO THERETAILER.
