Courtyard Creations RTS493V User manual
PAGE 1 OF 6
RTS493V
ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
INTENDED FOR RESIDENTIAL USE ONLY.
COURTYARD CREATIONS INC.
Use the correct bolts as indicated. Do not tighten any of the bolts until the swing is completely assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
Quote the following FQC NO. When contacting the service center.
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
!
!
!
!
!
STOP DON’T RETURN TO STORE!
PAGE 2 OF 6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
6
4
4
1
1
2
2
1
2
2
2
115
16
17
18
19
20
21
22
23
24
25
26
27
28
1
1
1
4
2
2
2
4
10
28
8
4
8
4
RTS493V-CS09-8
62RUS4040N201
62RUS4040N101
62RUS423EI101
62RUS4071H101
62RUS4851H101
RTS493V-CS11-1
RTS493V-CS01-2
RTS493V-CS01-3
62RUS4040M101
17C01A0844061Y4
17C01A0719072Y4
17KAB1201----Y4
17KAA0201----Y4
RTS493V-CS18-1
28000221044
18000018001
18000626024
17GA06081101
18000C06001
18000C23001
17FA05050401-Y4
17FA08060601-Y4
17C17A1306001Y4
17C01A0714003Y4
17C01A0716072Y4
TOP CROSS BEAM
W/ADJUSTABLE TEETH
REAR UPRIGHT SUPPORT
FRONT UPRIGHT SUPPORT
LATERAL CROSS BRACE
REAR CROSS BRACE
SEAT AND BACK SUPPORT BRACE
SEAT ASSEMBLY
LEFT SWING ARM
RIGHT SWING ARM
SWING ARM TUBE
BOLT M8*95
BOLT M6*55
NUT WRENCH 13&17MM
HEX. KEY WRENCH 6MM
CANOPY
LEG CAP
PLASTIC SCREW
CANOPY/FRAME CONNECTOR
SUSPENSION SPRING
PLASTIC NUT M8*P1.25
PLASTIC NUT M6*P1.0
WASHER d6.5*D16*1.2
WASHER d8.5*D17*1.6
SCREW ST4.2*16
BOLT M6*40
BOLT M6*45

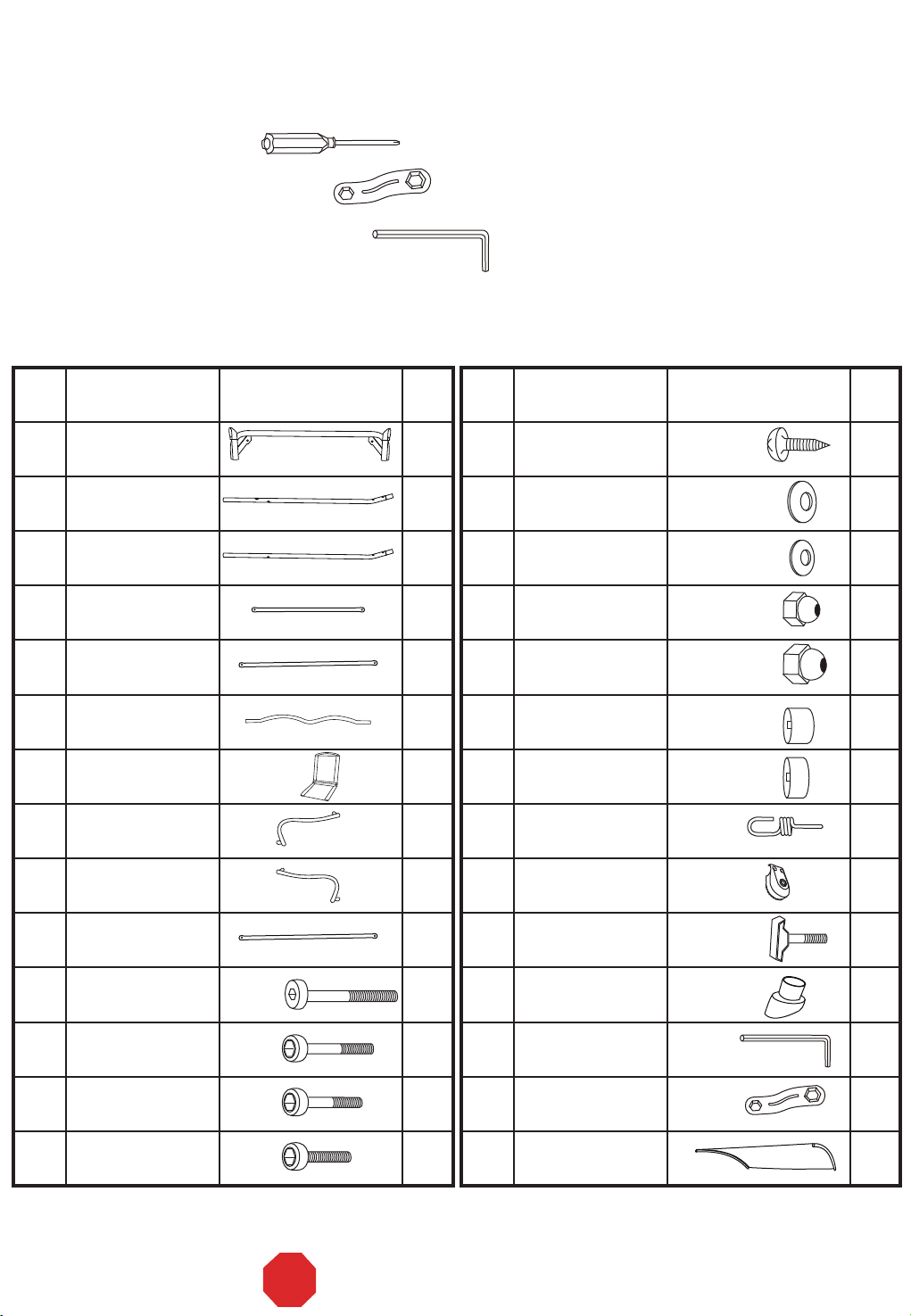

PARTS LIST
PART
NO. MATERIAL CODE Q’TYPART PART
NO. MATERIAL CODE Q’TYPART
A. Read instructions thoroughly. Acquaint yourself with the inventory of parts and the
accompanying drawings to ensure safe and proper assembly.
B. You will need the following tools
- Phillips Screwdriver
- Nut Wrench (See Part #27)
- Hex.Key Wrench (See Part #26)
C. Lay out all parts on a flat surface and identify them using the table below.
STOP DON’T RETURN TO STORE!
2218000337002
BOLT CAP M6
418000337005
BOLT CAP M8
STOP DON’T RETURN TO STORE!
Assembly(Note: For all nut and bolt
fastening, always use a washer
(#16 and #17) between the tube and bolt
or the tube and nut).
Step 1:
Attach the front and rear upright supports
(#2 and #3) at the top by using bolts (#11),
washers (#16) and plastic nuts (#19).
Repeat the procedure for the other side.
Do not tighten plastic nuts and bolts yet.
See Fig. A - Step 1.
Step 3:
Fasten the lateral cross braces (#4) to the
upright supports (#2 and #3) by using bolts
(#12), washers (#17) and plastic nuts (#18).
See Fig. A - Step 3.
Step 4:
Fasten the rear cross brace (#5) to the rear
upright supports (#2) by using bolts (#12),
washers (#17) and plastic nuts (#18).
Insert the leg caps (#25) to all base feet.
Tighten the plastic nuts and bolts now.
See Fig. A - Step 4 and Step 5.
Step 5:
Fasten one seat and back support brace
(#6) to the seat of two seat assemblies (#7)
by using bolts (#14) and washers (#17).
See Fig. B.
Note:
Make sure the two arcs of the seat and back
support brace (#6) should be facing outside.
Seat
Seat
PAGE 3 OF 6
Fig. B
Fig. A
Step 5
Step 4
Step 3
Step 1
Do not tighten bolts
after Step 1. Fasten
all bolts after Fig A.
Step 2
Step 2:
Attach the top cross beam w/adjustable
teeth (#1) to both ends of the upright
supports (#2 and #3). See Fig. A - Step 2.
323
2
32
2
2
2
2
2
52
3
1
4
4
2
12
12
17
17
14
20
20
20
20
14
25
25
25
25
18
18
3
1
2
11
11
21
21
16
16
16
16
19
19
17
17
17
17
7
7
6
Seat
Seat
Back
Back
Back
Back
STOP DON’T RETURN TO STORE!
Step 6:
Fasten another seat and back support
brace (#6) to the back of two seat
assemblies (#7) by using bolts (#14) and
washers (#17). See Fig. C.
Note:
Make sure the two arcs of the seat and
back support brace (#6) should be facing
outside.
Step 7:
Insert the left and right swing arms (#8
and #9) into the seat and back support
braces (#6). Fasten them by using bolts
(#14) and washers (#17).
See Fig. D and Fig. E.
Step 8:
Fasten the swing arm tubes (#10) to the
front hole of the swing arms (#8 and #9)
by using bolts (#13), washers (#17) and
plastic nuts (#18). Then fasten the swing
arm tubes (#10) to the back of the swing
arms (#8 and #9) by using bolts (#13),
washers (#17) and plastic nuts (#18).
See Fig. F.
PAGE 4 OF 6
Fig. E
Fig. D
Fig. C
Note:
The labels marked “L” and “R” on the
swing arms (#8 and #9) should coincide
with Fig. D to ensure proper assembly.
Fig. F
20
14
17
7
7
7
7
6
6
9
9
9
9
8
8
8
8
6
20
14
17
20
14
R
L
17
20
14
13
17
20
17
18
13
17
10 10 10
10
20
17
18
17

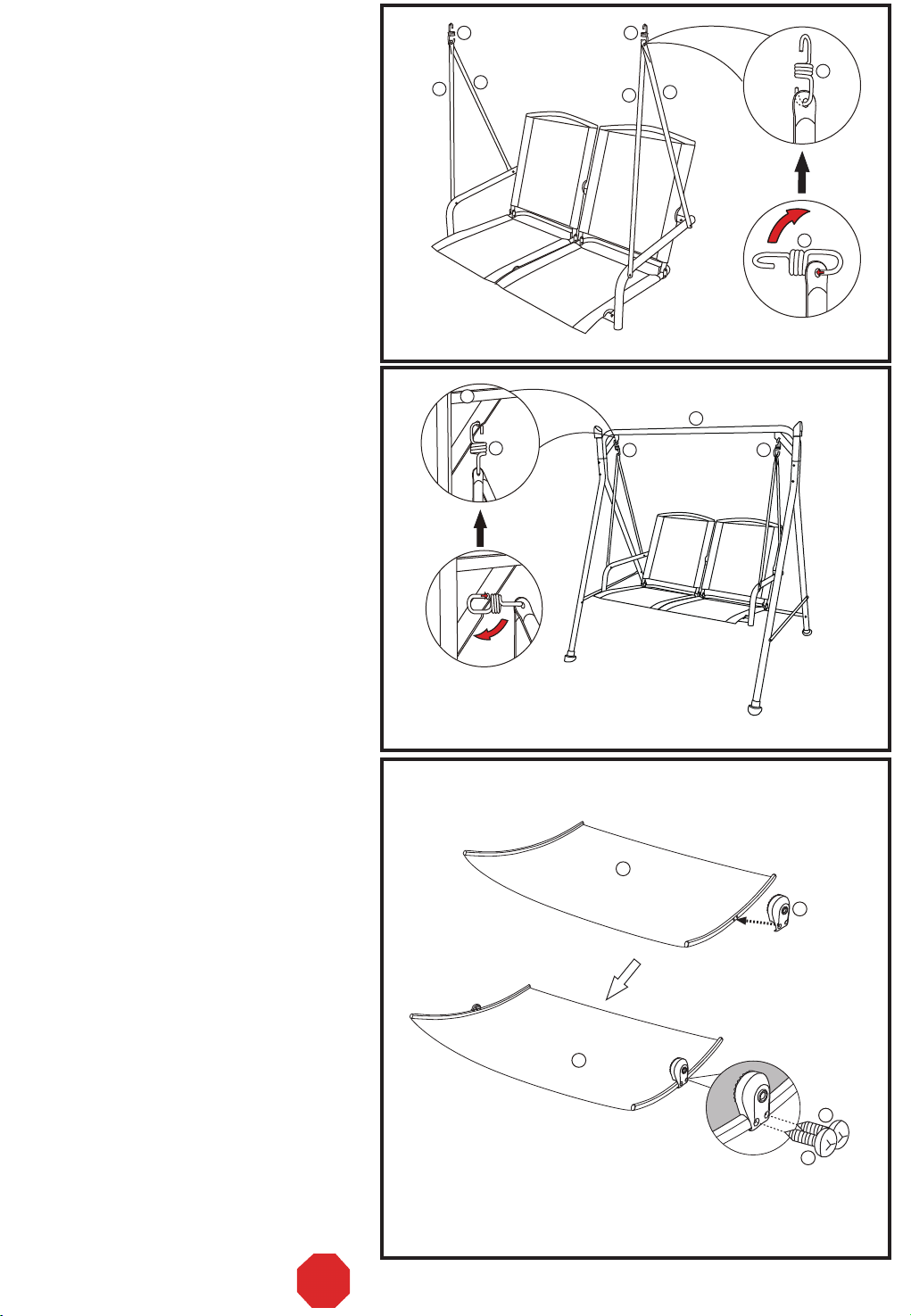

Step 9:
Hook the suspension spring (#22) to the
top of the swing arm tubes (#10) and do
the same for the other side. See Fig. G.
Step 10:
Hang the other side of suspension
spring (#22) into the hole of each side on
the angled braces of the top cross beam
w/adjustable teeth (#1). Do the same for
the other side. See Fig. H.
Fig. I
Fig. H
Fig. G
PAGE 5 OF 6
STOP DON’T RETURN TO STORE!
Step 1
Step 2
28
28
23
15
15
10 10
1
1
22 22
22
22
22
22 22
10
10
Step 11:
Slide the canopy/frame connectors (#23)
into the canopy (#28). Fasten them
together by using screws (#15) in the
pre-drilled holes. Make sure that the teeth
of the canopy/frame connectors are facing
toward the inside of the frame.
See Fig. I - Step 1 and Step 2.
Warning:
Make sure that both ends of the suspension
springs (#22) go completely through the
holes in the angled braces on the top cross
beam w/adjustable teeth (#1) and the swing
arm tubes (#10).
Cleaning and Maintenance
• Wash frame and fabric parts with mild soap and water, rinse thoroughly, and dry completely. Do not use
bleach, acid, or other solvents on the frame or fabric parts.
• The canopy may be surface washed with mild soap and water if necessary. Commercial foaming
upholstery cleaner may also be used. Rinse well and hang to dry. Do not machine wash or dry.
• We recommend the use of furniture covers to protect your swing when not in use.
• Inspect and tighten all bolts and fasteners on a regular basis to ensure the proper performance and
safety of your swing.
• In order to prolong the life and beauty of your swing, we recommend that it be stored in a dry and
protected area during off season periods.
Special Warnings
• The user of this swing should always inspect it before each use.
• It is essential to place this swing on level ground and not less than six feet from any obstruction, such as
fences, garages, houses, overhanging branches, laundry lines, or electrical wires.
• Check the tightness of all nuts and bolts on a regular basis.
• Always remove the canopy in heavy wind conditions, otherwise the canopy may tip over and cause
damage to its parts.
• Oil all of the metal parts that move regularly.
• The manufacturer will not accept responsibility for unauthorized repairs or modifications to the swing or
its parts.
• Weight limit is 500lbs.
PAGE 6 OF 6
Step 12:
Attach and fasten the canopy assembly
onto the adjustable teeth on top cross
beam w/adjustable teeth (#1) with plastic
screws (#24) to each side of
canopy/frame connectors (#23).
See Fig. J and Fig. K.
Step 13:
To assure stability, double check that all
of the bolts have been completely
tightened and cover them with bolt caps
(#20 and #21).
Note:
To avoid danger of suffocation, always
keep plastic bags or small parts away
from babies and children.
Fig. K
STOP DON’T RETURN TO STORE!
Fig. J
The store where you made your purchase
does not stock parts for this item.
If you need parts,
whether they are missing or damaged,
STOP!
Missing A Part?
No Need To Go Back To
The Store
Call us between 9:00 AM and 4:30 PM
Eastern Time Monday through Friday
For further assistance,
please visit us at
Call Toll Free:
TEL: 1-877-539-7436
FAX: 1-877-539-7439
READ THESE INSTRUCTIONS COMPLETELY BEFORE STARTING ASSEMBLY
SEPARATE AND IDENTIFY ALL PARTS, MAKING SURE THAT YOU
HAVE ALL OF THEPARTSLISTED.
IF YOU DO NOTLOCATE ALL OF THE PARTS LISTED, INSPECT THE
PACKING MATERIAL FOR SMALL PARTSTHAT MAYHAVEBECOME
SEPARATED DURING SHIPMENT.
IF YOU EXPERIENCEANY DIFFICULTY DURING ASSEMBLYOR IF ANY
PARTS ARE MISSING OR DAMAGED,CALL THE HELP LINE AT
1-877-539-7436 BEFORERETURNING THIS ITEM TO THE STORE.
PROVIDE THEFOLLOWING INFORMATION WHEN CALLING:
1-MODEL NUMBER OF THEPRODUCT.
2-PARTNUMBER AND MATERIAL CODE OF THE PARTFROM THE PARTS
LIST.
MOST PROBLEMS CAN BERESOLVED WITHOUT RETURNING THIS
PRODUCT TO THERETAILER.
28
24 24
23 23
1
