Coway AIRMEGA AIM User manual

USER MANUAL

Airmega AIM

QUICK START GUIDE
2
󾙓
󾙔
󾙘
󾙕
󾙖
󾙙
󾙗
COWAY AIRMEGA
QUICK START GUIDE
Before operating the product, you must remove the plastic wrapping of the inserted filter.
For details, see next page.
Do not operate the product until completing these steps first.

TABLE OF CONTENTS
01 BEFORE USING THE PRODUCT 4
SAFETY INFORMATION  4
FEATURE HIGHLIGHTS 10
02 PREPARATION  11
PARTS DIAGRAM 11
USE OF EACH FUNCTION BUTTON 13
USE OF REMOTE CONTROL 16
03 MAINTENANCE  17
CLEANING OF BODY SURFACE 17
FILTER INSTALLATION INSTRUCTIONS 18

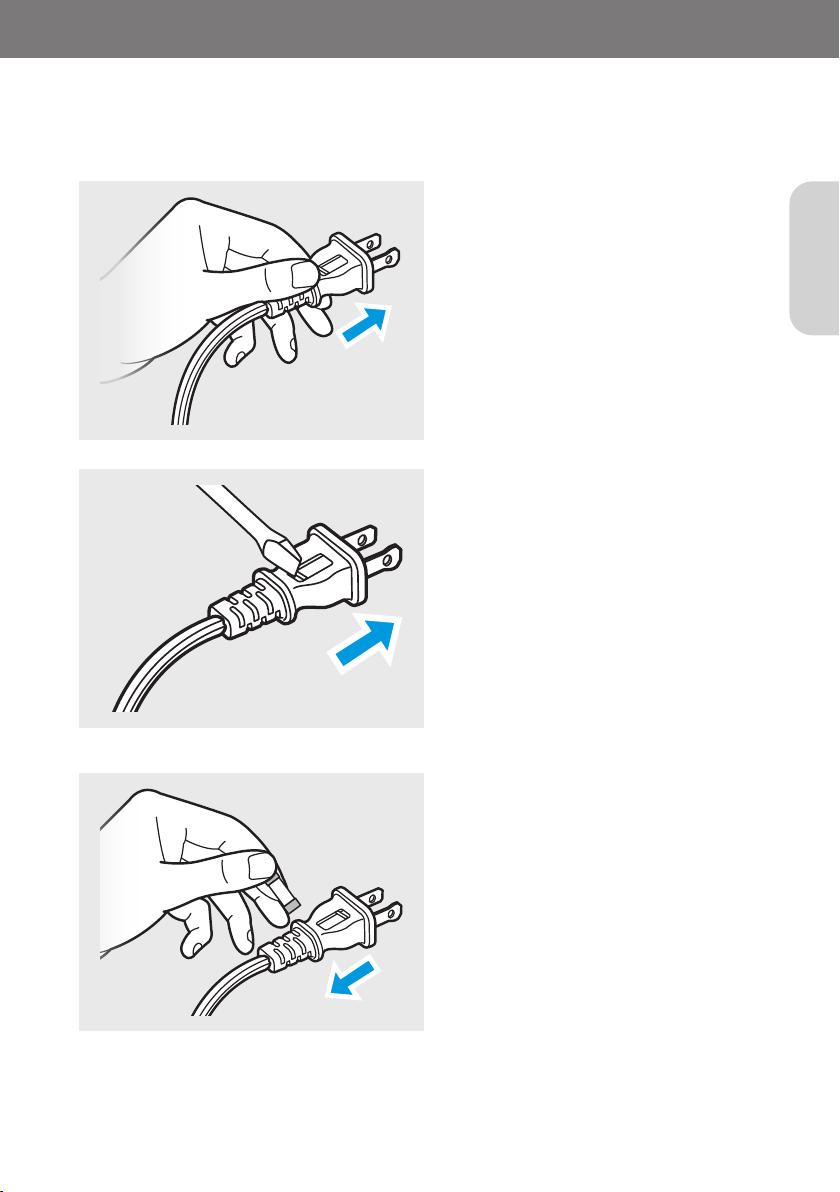

FUSE REPLACEMENT 19
04 APPENDIX  21
SPECIFICATION 21
ENVIRONMENTAL PROTECTION 21
LIMITED WARRANTY 22
3
EN

1. Do not exceed the voltage and power rating of
the power outlet or connection device. This may
generate excessive heat and cause electric shock or
fire.
2. Only use the appropriate type of electric socket for
the product. Connecting the product to an incorrect
socket may result in damage.
3. Do not immerse the product or any of its parts in
water. Operate the product only after a qualified
technical examines and replaces the parts that were
under water.
4. Do not touch the power plug with wet hands.
5. If the electric outlet is wet, do not connect the power
plug of the product. Wait till the electric outlet dries
completely before use.
6. Do not operate the product if the motor fan fails to
operate or is damaged.
7. Disconnect the power plug from the electric outlet
if strange sounds, smells, or smoke come from
the product. Contact the customer service center
immediately for instructions.
8. Disconnect the power plug from the electric outlet
when the product is not in use and before cleaning,
inspecting, or replacing parts.
9. Use a dedicated electric outlet for the product. Do
not connect the product to a power strip that has
connections to several other products.
10. Do not operate the product if the power plug or
cords are damaged.
4
01 BEFORE USING THE PRODUCT
SAFETY INFORMATION
Several warnings and precautions are given below to avoid the danger caused by misoperation and
make it more convenient to use this device.

11. Do not forcibly bend, twist, pinch, or damage the
power cord.
12. Do not force the power plug into an incorrect electric
outlet or into a loose electric outlet. Contact a
qualified technician to install a proper electric outlet.
13. A damaged power plug or cord must be replaced by
the manufacturer or a qualified technician
14. Remove the power plug from the electric outlet by
grasping the power plug and pulling it gently. Never
pull the cord to remove the power plug.
15. Keep the electric cord away from heat sources.
16. Do not repair the product unless this manual
recommends it. Doing so will void your warranty.
All repair work must be carried out by a qualified
technician.
17. This product has a polarized plug (one blade is wider
than the other). To reduce the risk of electric shock,
this plug is intended to fit in a polarized outlet only
one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a
qualified electrician. Do not attempt to defeat this
safety feature.
18. Do not use this product in industrial areas or
factories where oil, grease, or dust particles may be
present. This product is for household use only.
19. Do not change the filter while the product is
operating. Always turn off the product and unplug
the power plug before accessing the components
inside the product.
5
EN

20. Do not place the product near a humidifier or in
humid areas, such as bathrooms or laundry rooms,
where the product may come into contact with
water.
21. Do not place the product near flammable gases,
cigarettes, incense, and other combustible materials.
22. Do not place the product on a bed or against soft
objects, such as curtains.
23. Do not clean the product using detergents, paint
thinner, or other household solvents.
24. Do not spray insecticides or other flammable
materials near the product.
25. This product should not be used by children under 8
without supervision.
26. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
27. Children should be supervised to ensure that they
do not play with the appliance.
28. 

Speed Control Device.
29. Do not use an adapter or extension cord, as it may
cause fire, shock, or personal injury.
30. Do not use attachments or filters not recommended
by the manufacturer.
6
SAFETY INFORMATION
Several warnings and precautions are given below to avoid the danger caused by misoperation and
make it more convenient to use this device.
01 BEFORE USING THE PRODUCT

31. 

get stuck or scratched while servicing the product.
32. Do not insert any objects or finger into the openings
of the product. If any objects fall into the openings,
immediately turn off the product and unplug the
power plug. Contact a qualified technician or the
manufacturer to remove the object.
33. Do not wash or reuse the Max2 filter.
34. Do not block the air outlet of the product. Doing
so may decrease the efficiency of the product and
increase the risk of injury.
35. This product is for household use as described in
this manual. Using it in an industrial environment
or any other place not recommended by the
manufacturer and may result in electric shock, fire,
and injury to person.
36. Do not place anything on top of the product.
37. Do not run the power cord under carpets or cover it
with rugs.
38. Change the filters at the recommended intervals so
that excess dust does not accumulate.
7
EN

39. This product employs overload protection (fuse).

situation. If the fuse blows, unplug the product from
the outlet. Replace the fuse as per the user servicing
instructions (follow product marking for proper fuse
rating) and check the product. If the replacement

the product should be discarded or returned to an
authorized service facility for examination and/or
repair.
40. Do not operate any fan with a damaged cord or plug.
Discard fan or return to an authorized service facility
for examination and/or repair.
41. Do not run cord under carpeting. Do not cover cord
with throw rugs, runners, or similar coverings. Do not
route cord under furniture or appliances. Arrange
cord away from traffic area and where it will not be
tripped over.
42. 
away from children.
43. Do not place the product where the both sides of
product are blocked.
44. Do not place the product in direct sunlight.
45. Do not place the product next to or on windows.
46. Place the product on a firm, flat, and dry surface that
provides sufficient air circulation.
47. Keep the product and its cord out of way, where it
cannot be stepped on or tripped over.
8
SAFETY INFORMATION
Several warnings and precautions are given below to avoid the danger caused by misoperation and
make it more convenient to use this device.
01 BEFORE USING THE PRODUCT

48. The end user has to be informed to keep at least
20 cm separation with the antenna while this end
product is installed and operated.
49. Operation is subject to the following two conditions:


received, including interference that may cause
undesired operation.
50. Do not ingest battery, Chemical Burn Hazard;
-This product contains a coin / button cell battery. If
the coin / button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead to
death;
-Keep new and used batteries away from children.
-If the battery compartment does not close securely,
stop using the product and keep it away from children.
-If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate
medical attention.
-The batteries contain materials, which are hazardous
to the environment; they must be removed from the
appliance before it is scrapped and that they are
disposed of safely.
READ AND SAVE THESE INSTRUCTION
9
EN

FEATURE HIGHLIGHTS
1. 
2. Three airflow speed levels;
3. With IR remote control function;
4. 
5. Oscillation: horizontal automatically 80°, vertical oscillation by hand with five

6. 
7. 
default is high speed; after one minute of air quality detection with high
speed, it will switch to high level if the color is red, to middle level if the color
is yellow, and to low level if the color is green.
8. 
9. All lights will dim to 30% without operation in 1 minute (except for the tricolor
light)
10
01 BEFORE USING THE PRODUCT

PARTS DIAGRAM
Check the parts of the product (exterior in the front and top view and control panel) and how they function.
Exterior
Check the parts and functions of the exterior of the product.
Front / Back
Accessories
1
2
3
4
5
6
7
8
9
0
11
12
1Body Grille 2Front Grille 3Fan Blades 4Display Panel
5Button 6Bottom Cover 7Back Cover 8Remote Control
9Swing Bracket 0Swing Bracket
Cover
11
Base Cover
12
Power Cord
Manual Remote Control
11
EN
02 PREPARATION

Remote Control
1 Power Button 5 Auto Mode Button
6 Timer Button
2 Airflow Speed Button
3 Oscillation Button
4 Light On/Off Button
Control Panel
1 Power Button 4  2 Oscillation Button 6 Auto Purification Button
3 Airflow Speed Button 7 Light On/Off Button 5 
8 
Reset Button
02 PREPARATION
12
02 PREPARATION

USE OF EACH FUNCTION BUTTON
After plugging in the power supply, the power-on sound "Bi~Bi~" will be emitted and enter the standby state and all
function indicators will not light up. Except for the Power Button and the Timer Button, other buttons are invalid.
13
EN
1 Power Button
 to turn on the power. The
default state of power-on is:
a. Fan: low level airflow speed, display panel has no display.
b. Oscillation Off.
c. Timer: No.
d. Auto mode: Off
2 Oscillation Button
Press the Oscillation Button to start and stop oscillation function.
3 Airflow Speed Button
Press the Airflow Speed Button to increase and decrease the airflow speed.

The Airflow speed indicator is shown on the control panel corresponding to the set speed.
4 Timer (+) Button
 to reset the schedule function. The timer

state, press the button, LED flashes and displays the current set timer, and the LED “h”
lights up, which is the timer setting state; press the button again, the set working time
is increased by 1 hour, the timer indicator lights up and Display panel shows corresponding
digits. Press and hold the 
and the display changes accordingly.
In the standby state, press the timer/presetting button to set the scheduled start time.

state, press the button, LED flashes and the Led “h” lights up, which is the timer setting
state; press the button again to adjust the schedule time up, and the adjustment does
not cycle. During the setting process, LED flashes to display the currently set time; wait for


USE OF EACH FUNCTION BUTTON
After plugging in the power supply, the power-on sound "Bi~Bi~" will be emitted and enter the standby state and all
function indicators will not light up. Except for the Power Button and the Timer Button, other buttons are invalid.
14
6 Auto Mode Button
 button to turn on or off the auto mode function, and
the LED “AUTO” lights up when it is turned on.

operation depending on the indoor air quality detected by the sensor. The product requires
60 seconds to calibrate the sensors. The mode is intended for general users' convenience.

on the control panel.
Green - healthy
Yellow - moderate
Red - unhealthy
7 Light On/Off Button
Press the button to turn on/off the LED on the display panel.
02 PREPARATION
5 Timer (-) Button
 to reset the schedule function. The timer

state, press the button, LED flashes and displays the current set timer, and the LED
“h” lights up, which is the timer setting state; press the button again, the set working
time is reduced by 1 hour, the timer indicator lights up and the display panel displays the
corresponding digits. Press and hold the 
rapidly and the display changes accordingly.

button to adjust the schedule time down, and the adjustment will not cycle. When it is
adjusted to “00”, the timer function will be canceled. During the setting process, LED flashes


15
EN
8 Filter Replacement Reset Button
will pop up on the display panel when its time to replace the filter. After replacing the filter,
press and hold the 
9Child Lock Function
In the power-on state or schedule state, the fan enters the child-lock mode when you press

press and hold 
The child lock is automatically released after automatic shutdown
0 Coway Smart Features


settings (excluding the timer) before the product was shut off.

1
2
3
Open the battery cover and replace the
battery.
How to open the battery cover: first press and
hold in the direction of arrow 1 in the figure to
release the upper snap of the battery cover, and
then pull it out in the direction of arrow 2.
When using, please align the position of the
receiver.
Hold and press the latch as shown in the left
digram to release the battery.
Remove the battery.
Please make sure to use the correct
coin battery, CR2032 3V.
When replacing the battery, please pay
attention to the polarity, and then put away the
battery cover.

including keeping them away from children;
and

16
USE OF REMOTE CONTROL
02 PREPARATION

2
1
3
When the exterior is dirty, use a dry
cloth. Do not use detergents that
contain solvents, thinners, bleach,
chlorine, or abrasives.
Before cleaning the product, please be
sure to turn off the power and unplug
the machine.
Place the product in a well-ventilated
shade.
CLEANING OF BODY SURFACE
17
EN
03 MAINTENANCE

1
2
How to open and close the rear cover.
Grab the handle and turn clockwise to
close and turn counter clockwise to open
the rear cover.
Install the filter
Please take the used filter out and replace with a
new filter.
FILTER INSTALLATION INSTRUCTIONS
18
03 MAINTENANCE

1
2
3
Grasp plug and remove from the
receptacle or other outlet device. Do not
unplug by pulling on cord. (A)
Open the fuse (B) by sliding the fuse
cover on the top of the plug towards the
blades.
Remove fuse (C) carefully by gently
prying out the ends of the fuse from the
receptacle.
FUSE REPLACEMENT
19
EN

4
5
6
Risk of fire. Replace the fuse only with
2.5 Amp, 125 Volt fuse. Gently install
replacement fuse back into the pins that
will hold it in place. (D)
Close fuse cover (E) by sliding the fuse
cover back over the fuse box in the plug
until it is completely closed.
Plug the fan back in and resume use.
20
FUSE REPLACEMENT
03 MAINTENANCE
