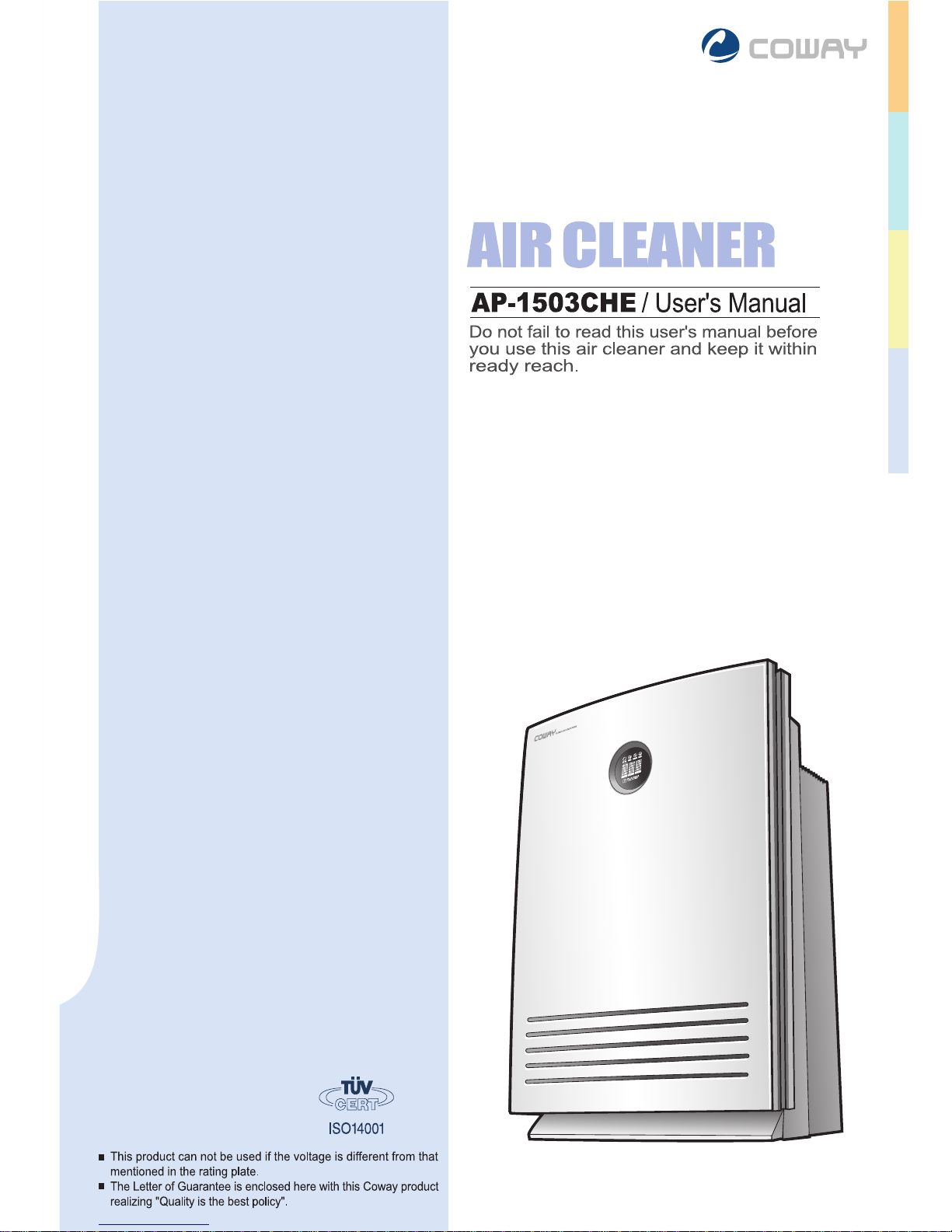

Coway AP-1503CHE User manual

01
02
First of all, we would like to thank you very much for purchasing this air
cleaner. This product is superior to the ones in the past in function and we
believe that it will provide you with clean and healthy air. We would like to
recommend you to read this User's Manual carefully for proper operation
and maintenance and keep this manual well together with the warranty. This
user's manual could help to solve your problem.
DEAR COWAY’S CUSTOMERS
Read this Manual
Inside this manual you will find
many helpful hints on maintaining
your air cleaner properly. Just a
little preventive care on your part
can save you a great deal of time
and money over the life of your
system.
Review the Section on
Troubleshooting Tips
You'll find many answers to
common problems here. If you
review this chart of Troubleshooting
Tips first, you may not need to call
for service at all.
If You Need Service
If you do need service, you can relax
knowing help is only a phone call
away.
Safety Information
Electricity Safety
Installation & Use Safety
26
24
02
07
09
11
10
13
14
15
18
22
Operating Instructions
Features of Air Cleaner
Names of Each Part
Indication Part
Names of Internal Filters
Operation Part
Pre - operation Instructions
How to Use
Cleaning Method
Filter Replacement
Troubleshooting Tips
Before Asking A/S
Customer Service
Safety Information
Operating Instructions
Troubleshooting Tips
Customer Service
Warranty Information
04

Safety Information Operating Instructions Troubleshooting Tips Customer Service
IMPORTANT SAFETY INFORMATION
For your safety, the information in this manual must be followed
to minimize the risk of property damage or personal injury.
WARNING
Electricity Safety
To avoid fire or shock hazard, plug the air
cleaner directly into a electrical outlet. And
be sure the unit is in a room to protect it
from the moisture.
●
Always unplug the air cleaner before
moving it, replacing the filter, cleaning
it or whenever the air cleaner is not in
use.
●
Read All Instructions Before Using.
Do not plug in or unplug the power
cord with wet hands or get the plug
wet to avoid electric shock.
●
Never operate the air cleaner if it has
a damaged cord or plug, if it is not
working properly, or if it has been
damaged. Have the unit serviced by
a qualified man.
●
Do not repeatedly plug in or unplug the
power cord.
●

03
04
Periodically remove dust from the power
plug with a dry cloth. Dust lay on the unit
can cause bad insulation and a fire may
occur due to it.
●
When unplugging the power cord,
never pull the cord to plug out.
Please carry the unit by using a
handle in the back of it.
●
Do not use to connect or transform
an electric wire without permission.
●
Be sure the power cord not to be
bend by force and do not put a heavy
object on it to avoid any electric
leakage or damage.
●
Please plug out, if you are not use the
unit for long time.
●
Don’t plug in a number of electrical
goods in an outlet at the same time.
Just use the outlet for only the air
cleaner.
●

Safety Information Operating Instructions Troubleshooting Tips Customer Service
Installation & Use Safety
Never splash the air cleaner with water
to avoid the risk of electric shock.
●
To avoid fire hazard, never put the cord
under rugs and near heat resistors,
radiator, stoves, or heaters.
●
Keep the air cleaner out of direct
sunlight. The sun's heat may distort
non-metallic parts and may damage
the electric components.
●
It should be installed more than
20㎝away from walls or objects,
and more than 30 ~ 60㎝low
from the ceiling. If it is too close to
walls or objects, it could cause
contamination in the
surroundings.
●

05
06
Do not install the air cleaner on the
inclined place and let it fall or impact.
It may cause a breakdown by an
electric shock.
●
Please have the unit serviced by the A/S
center if it makes smoke or a noise.
●
Do not put glasses, metals, others on the
unit.
●
Do not block the filter cover, the
ventilation inlet or outlet with a
paper or a cloth. It may cause the
lower performance of the product,
or the fire.
●
Do not let kids climb and hang on
the air cleaner.
●

Safety Information Operating Instructions Troubleshooting Tips Customer Service
Do not put acute objects such as
a gimlet in sensors of the unit.
●
Never use and put the flammable
gas or inflammable materials near
the air cleaner.
●
Never soak the unit in the water.
●
Do not modify, disassemble, or
repair this appliance by yourself.
●
Do not wipe this appliance with
benzene or paint thinner. Do not
use aerosol sprays near this
appliance.
●

07
08
FEATURES OF AIR CLEANER
AIR CLEANER AP-1503CHE
1. Powerful Air Cleaner
The filter system is optimized to remove
quickly pollutants. The unit contains the
HEPA filter made of Nano Silver and
Catechins which can be helpful for
removal of bacteria, minute particles.
2. Advanced Deodorizing Ability
The deodorizing ability is improved by using
AC deodorizing filter and RBD plasma
antibacterial catalysis system which can
eliminate not only harmful gases such as
volatile organic compounds(VOCs),
Ammonia, Aldehyde, but food and cigarette
odors and so on.
3. Rhythm Cleaning System by Turbo Fan
Turbo fan increases the air flow rate
and treats Indoor pollutants very quickly
by rhythm cleaning system.
4. Automatic Operation by Particle Sensor, Odor Sensor
It allows you to check the status of indoor
pollution through a particle sensor on a
real-time bases. Besides, it minimizes
electric consumption by automatically
adjusting fan speed according to the
indoor pollution degree.

Safety Information Operating Instructions Troubleshooting Tips Customer Service
5. Silent Operation at Night (Sleep Mode)
It is designed to be automatically switched
to the silent operation by sensing light to
provide a quiet and pleasant environment
at the dark.
※RBD Plasma Catalysis System generates plasma which is the 4th condition of materials.
RBD plasma system is made of the special silicon barrier for the stable electrical
discharge, and gives full play to the genius in the removal of the bacteria mold.
6. Safety Design for Customers
The operation of the air cleaner stops by
safety switch when the front cover is opened.
The ventilation inlet and outlet are designed
for the sake of safety to prevent the risk of
accidents.
7. RBD Plasma System &Antibacterial Catalysis Filtering
We complexly applies RBD Plasma system
and antibacterial catalysis filter which can
remove harmful gas, and the floating
bacteria. You can save the maintenance
cost because a regular cleaning can extend
the average life span of the filter, besides.
8. Natural Cluster Negative Ions
This air cleaner can materialize a plenty of
cluster negative ions which can make the
inside air more clean by eliminating the
activated oxygen and the static electricity.
9. Minimum of Expenses
You can cut down your expenses by using
BLDC Motor.

09
10
NAMES OF EACH PART
Side
Rear
Power Cord
▶
Odor Sensor
▶
Ventilation
outlet
▶
Particle
Sensor
▶
Handle
▶
Operation
Part
▶
Filter
Cover
▶
Indication
Part
▶
