Cradlepoint MBR1400 Series User manual

Business Continuity for Network Failover
setup guide
P A C K A G E I n c l u d e s
Business Wireless Router
Wall Charger (12v)
Ethernet Cable (5-feet)
Mounting Hardware (2x)
Setup Guide

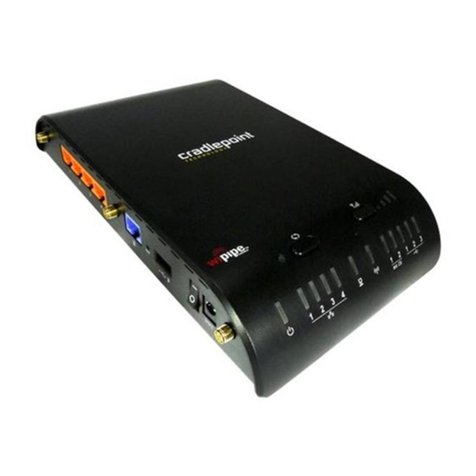

The CradlePoint Business Wireless Router
(MBR1400) is built to work in tandem with
our Business Modem and provides a network
connection effortlessly from its source to your
network.
You can also connect additional USB and
ExpressCard modems.
Designed for small businesses, branch offices,
and retail locations, the MBR1400 provides
primary connection via 4G/3G wireless
broadband networks as well as traditional wired
networks.
With features like failover/fail back, secure
VPN, multiple encryption modes, dual band
WiFi broadcast (2.4 GHz and 5 GHz), and
WiFi as WAN, your primary business router
has never been so flexible and affordable.
NOTE: MBR1400 itself does not build in WiMAX radio inside.

Warning:
Read me before plug in your modem card in to MBR1400W device
System can not activate more than two ports at a time.
System can enable one EC port and one USB port at a time.
** Tested 3G dongle (FCC ID:N7NAC880E) and Express card (FCC ID:QISE219) can be used with
the MBR1400. Other dongle(s)/card(s) have not been verified and may not comply with FCC relevant
rule(s).

Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination. The
firmware setting is not accessible by the end user.

Industry Canada statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts
de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire
de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible
de provoquer un fonctionnement indésirable.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
NOTE IMPORTANTE: (Pour l'utilisation de dispositifs mobiles)
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement
non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source
de rayonnement et votre corps.
Caution:
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference
to co-channel mobile satellite systems.
Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l'intérieur
afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference
to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for successful communication.
Conformement a la reglementation d'Industrie Canada, le present emetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inferieur) approuve pour l'emetteur par
Industrie Canada. Dans le but de reduire les risques de brouillage radioelectrique a l'intention des autres utilisateurs,
il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnee equivalente (p.i.r.e.) ne
depasse pas l'intensite necessaire a l'etablissement d'une communication satisfaisante.
This radio transmitter (the Canada certification numbr: 6921A-MBR1400 / IC: MBR1400 ) has been approved by
Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required
antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Le present emetteur radio (the Canada certification numbr: 6921A-MBR1400 / IC: MBR1400 ) a ete approuve par
Industrie Canada pour fonctionner avec les types d'antenne enumeres ci-dessous et ayant un gain admissible
maximal et l'impedance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou
dont le gain est superieur au gain maximal indique, sont strictement interdits pour l'exploitation de l'emetteur.
This device has been designed to operate with an antenna having a maximum gain of 5 dBi. Antenna having a higher
gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de 5 dBi. Une antenne à gain
plus élevé est strictement interdite par les règlements d'Industrie Canada. L'impédance d'antenne requise est de
50 ohms
