Craftsman 320.28102 User manual

Operator's Manuan _;_,: _Z_:_o_v_
20.0.-VOLT LITHIUM=aON CORDLESS
7 l/4°ino CmRCULAR SAW
with LASER TRAC TM
Model No.
320.28102
WARNING: To reduce
the risk of injury, the user
must read and understand
the operator's manual before
using this product.
"WARRANTY
oSAFETY
° ASSEMBLY
oDESCRIPTION
°OPERATION
oMAINTENANCE
CHARGE BATTERY
BEFORE FIRST USE
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www_sears.com/craftsman
Save this rnanuaa for future reference US

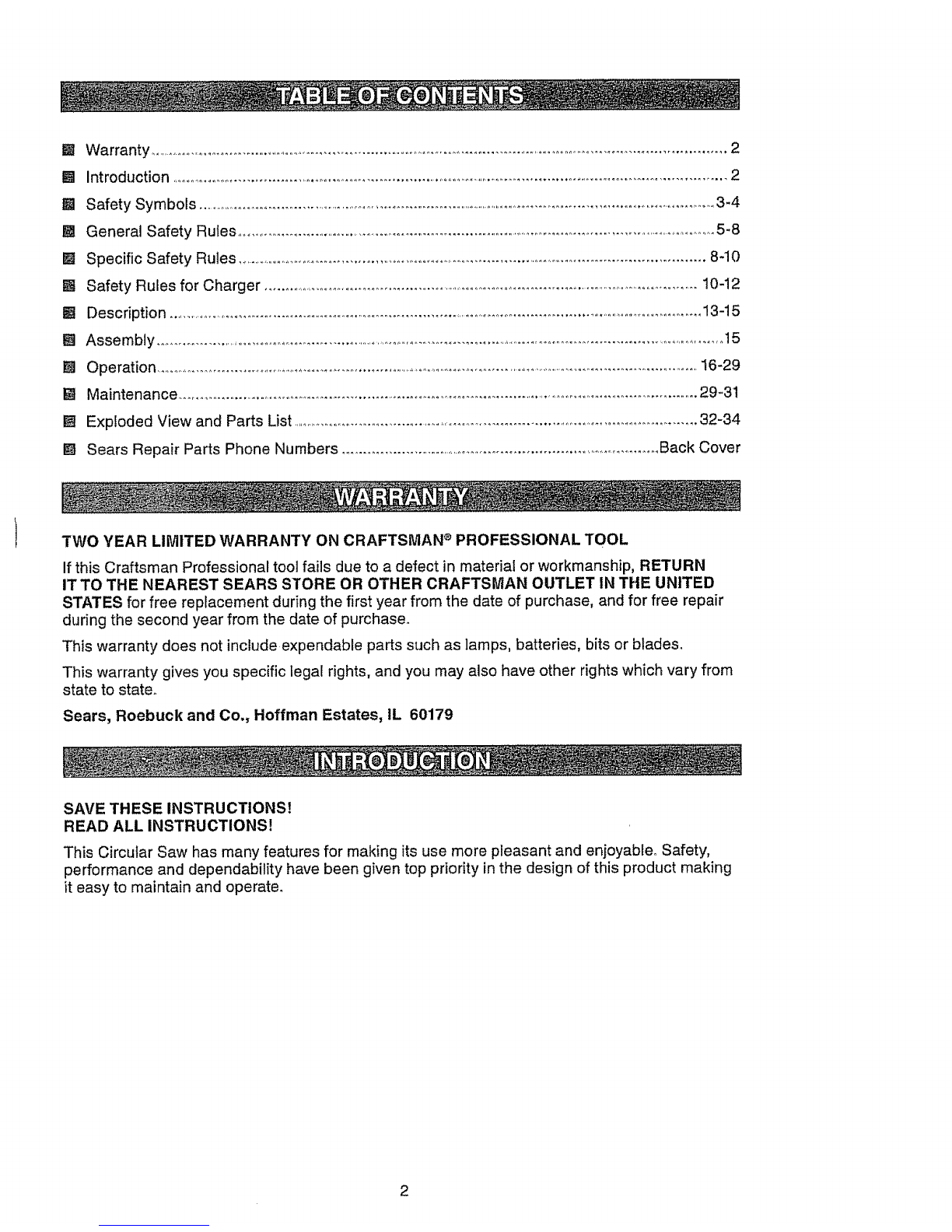

M Warranty .....................................................................................................................................................................2
Im Introduction ......................................................................................................................................................2
[] Safety Symbols ...................................................................................................................................................3-4
_! General Safety Rules ..................................................................................................................................5-8
[] Specific Safety Rules ..................................................................................................................................8-10
[] Safety Rules for Charger .........................................................................................................................10-12
[] Description .....................................................................................................................................................13-15
[] Assembly .......................................................................................................................................................15
[] Operation ...................................................................................................................................................................16-29
[] Maintenance ........................................................................................................................................29-3'1
!_ Exploded View and Parts List ...............................................................................................................32-34
[] Sears Repair Parts Phone Numbers ....................................................................................Back Cover
TWO YEAR LIMITED WARRANTY ON CRAFTSMAN ®PROFESSIONAL TOOL
If this Craftsman Professional tool fails due to a defect in material or workmanship, RETURN
IT TO THE NEAREST SEARS STORE OR OTHER CRAFTSMAN OUTLET IN THE UNITED
STATES for free replacement during the first year from the date of purchase, and for free repair
during the second year from the date of purchase,
This warranty does not include expendable parts such as lamps, batteries, bits or blades,
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state°
Sears, Roebuck and Co., Hoffman Estates, IL 60179
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS!
This Circular Saw has many features for making its use more pleasant and enjoyable° Safety,
performance and dependability have been given top priority in the design of this product making
it easy to maintain and operate,

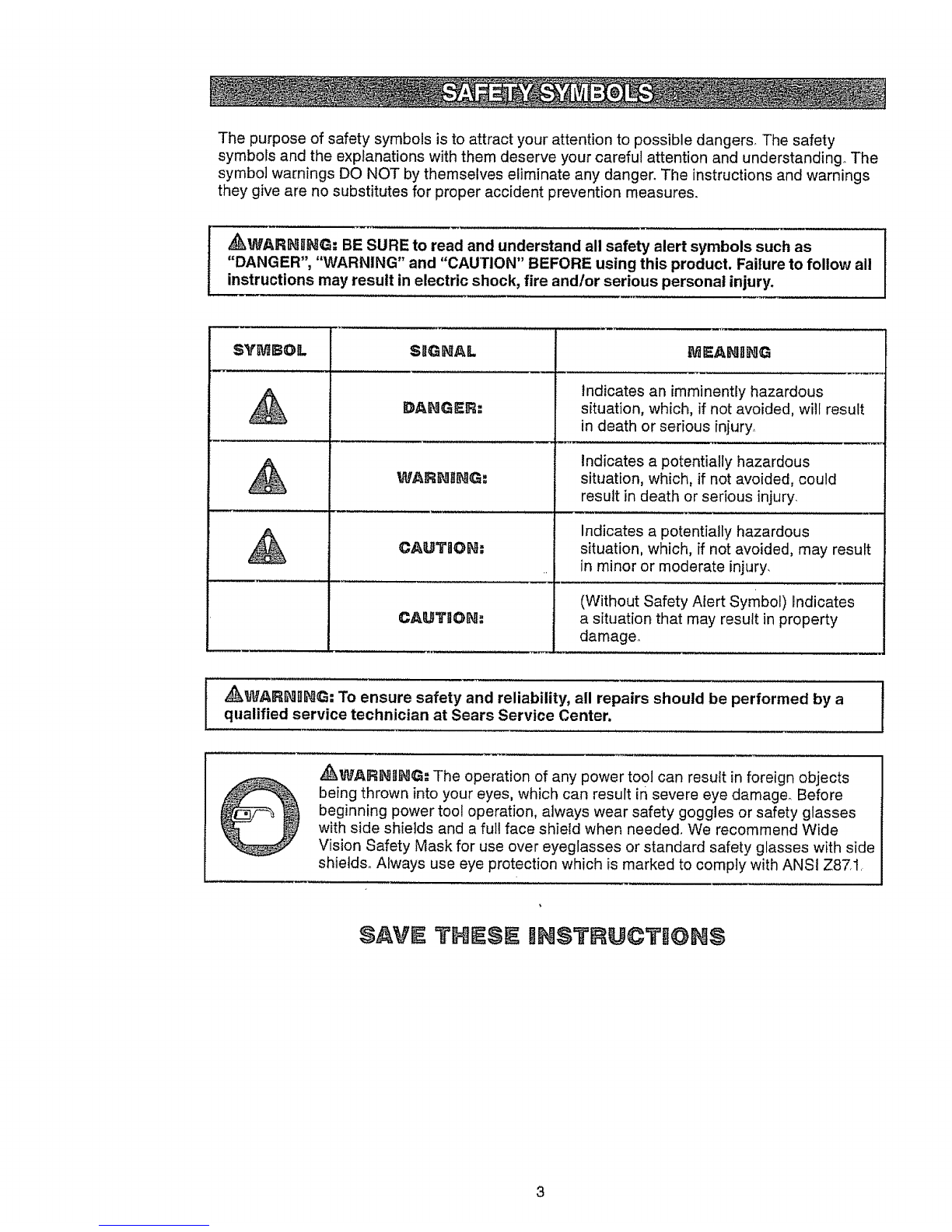

Thepurposeofsafetysymbolsistoattractyourattentiontopossibledangers.Thesafety
symbolsandtheexplanationswiththemdeserveyourcarefulattentionandunderstanding..The
symbolwarningsDONOTbythemselveseliminate any danger. The instructions and warnings
they give are no substitutes for proper accident prevention measures.
_WARNH_G: BE SURE to read and understand all safety alert symbols such as
"DANGER", "WARNING" and "CAUTION" BEFORE using this product. Failure to follow all
instructions may result in electric shock, fire andtor serious personal injury.
SYMBOL SlIGNAIL MEANliHG
Indicates an imminently hazardous
DANGER: situation, which, if not avoided, will result
in death or serious injury_
Indicates a potentially hazardous
WARNIIIR@: situation, which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardousCAUTIIOH: situation, which, if not avoided, may result
in minor or moderate injury,
(Without Safety Alert Symbol) Indicates
CAUTaO_: a situation that may result in property
damage.
I WARNtING: To ensure safety and reliability, all repairs should be performed by a
qualified service technician at Sears Service Center.
_t_ARIRti_IG: The operation of any power tool can result in foreign objects
being thrown into your eyes, which can result in severe eye damage. Before
beginning power tool operation, always wear safety goggles or safety glasses
with side shields and a full face shield when needed. We recommend Wide
Vision Safety Mask for use over eyeglasses or standard safety glasses with side
shields.. Always use eye protection which is marked to comply with ANSI Z871.
$AVE THESE JN$TR@CTII@N$
3

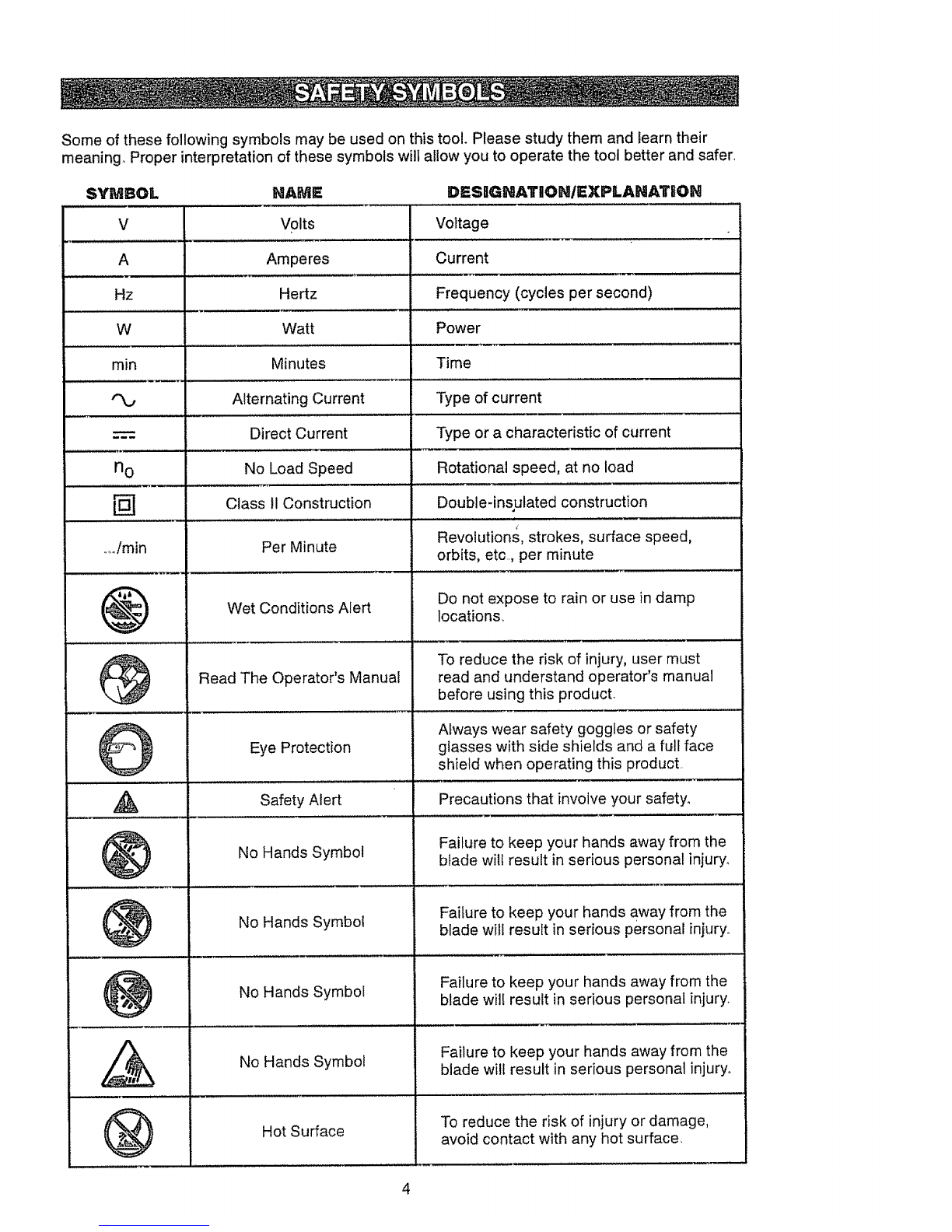

Some of these following symbols may be used on this tool. Please study them and learn their
meaning, Proper interpretation of these symbols wilt allow you to operate the tool better and safer,
SYMBOL NAME
V Volts
A
Hz
W
rain
n o
N
Amperes
Hertz
Watt
Minutes
Alternating Current
Direct Current
No Load Speed
Class II Construction
............ , ,,, ,,,,, ,, ,,,,,,.......
......Imin
@
0
©
Per Minute
Wet Conditions Alert
Read The Operator's Manual
Eye Protection
Safety Alert , ,,,,,,,,,,
DESEGNATION/EXPLANA'FBOH
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristic of current
A............ .................................
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed,
orbits, etc., per minute
Do not expose to rain or use in damp
locations.
,,,,, ,,,........ ,,,,,,,,, __
To reduce the risk of injury, user must
read and understand operator's manual
before using this product.
Always wear safety goggles or safety
glasses with side shields and a full face
shield when operating this product
Precautions that involve your safety,
, ,,,,, ,,,,,,,,,,,,,,,,,,, __
No Hands Symbol
........ | ,, ,, ,,,,,, ...............
@
@
,&
®
No Hands Symbol
No Hands Symbol
,, ,,,,,,,, .........
No Hands Symbol
Hot Surface
Failure to keep your hands away from the
blade will result in serious personal injury°
Failure to keep your hands away from the
blade will result in serious personal injury°
Failure to keep your hands away from the
blade will result in serious personal injury,
Failure to keep your hands away from the
blade will result in serious personal injury°
To reduce the risk of injury or damage,
avoid contact with any hot surface,
4

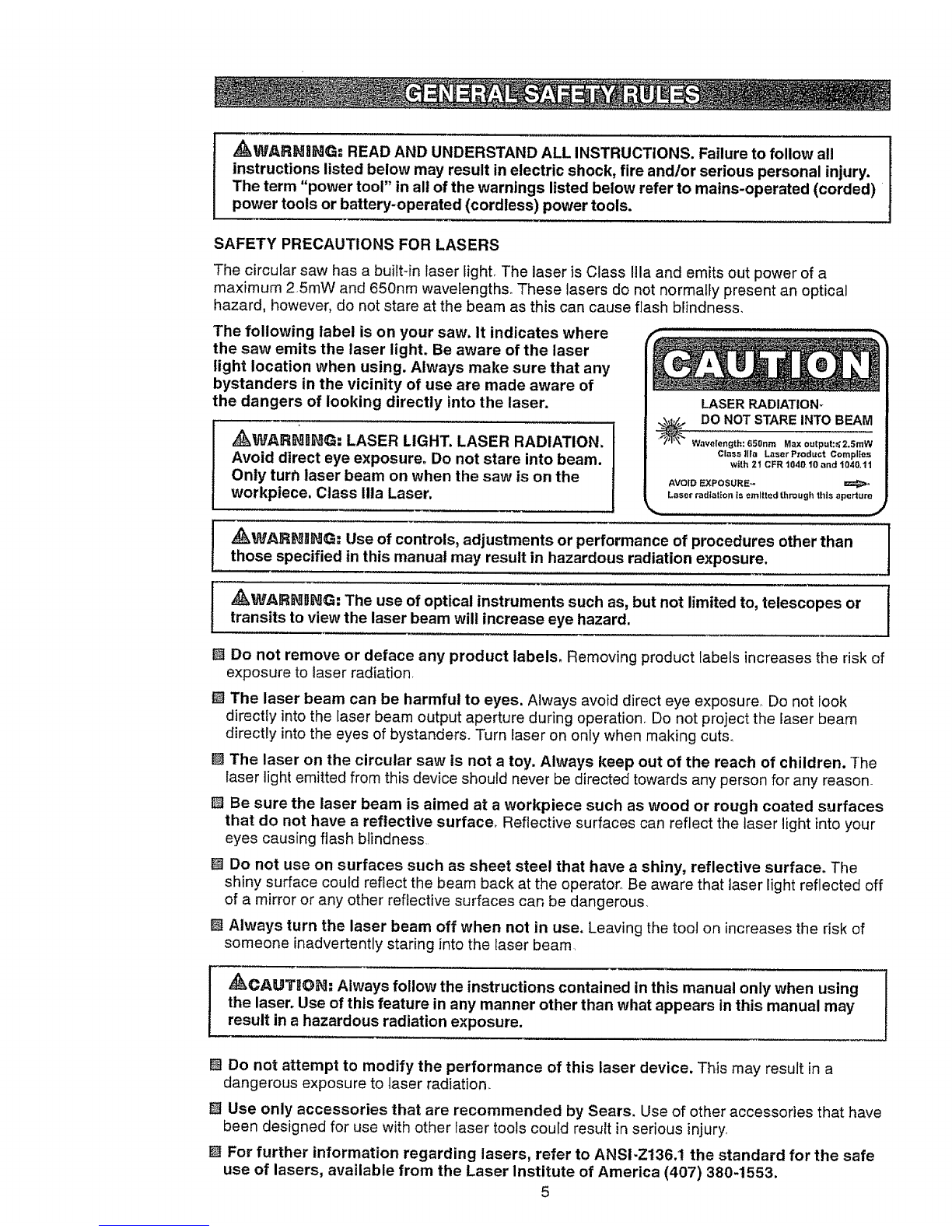

,_WARNIING: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all
instructions listed below may result in electric shock, fire andlor serious personal injury.
The term "power tool" in all of the warnings listed below refer to mains-operated (corded)
power tools or battery-operated (cordless) power tools.
SAFETY PRECAUTIONS FOR LASERS
The circular saw has a built-in laser iighL The laser is Class Ilia and emits out power of a
maximum 25roW and 650nm wavelengths. These lasers do not normally present an optical
hazard, however, do not stare at the beam as this can cause flash blindness,
The following label is on your saw. It indicates where
the saw emits the laser light. Be aware of the laser
light location when using. AIways make sure that any
bystanders in the vicinity of use are made aware of
the dangers of looking directly into the laser.
,_WARNJING-" LASER LIGHT. LASER RADIATION.
Avoid direct eye exposure. Do not stare into beam.
Only turn laser beam on when the saw is on the
workpiece. Class Ilia Laser.
LASER RADIATION.
DO NOT STARE INTO BEAM
_wavelength:650nm Max output:_2.SmW
Ciasstlfa L_serProduct Complies
wtLh 21 CFR 1040,10 and 1040,11
AVOID EXPOSURE.- =z_,
Laser radiation is emitted through this aperture
J
_WAR_Ji_NG: Use of controls, adjustments or performance of procedures other than
those specified in this manual may result in hazardous radiation exposure.
A_.WARND_]G: The use of optical instruments such as, but not limited to, telescopes or ]
transits to view the laser beam wilt increase eye hazard. /
[] Do not remove or deface any product labels, Removing product labels increases the risk of
exposure to laser radiation
mThe laser beam can be harmful to eyes. Always avoid direct eye exposure, Do not look
directly into the laser beam output aperture during operation° Do not project the laser beam
directly into the eyes of bystanders. Turn laser on only when making cuts.
[] The laser on the circular saw is not a toy, Always keep out of the reach of children. The
laser light emitted from this device should never be directed towards any person for any reason,
[] Be sure the laser beam is aimed at a workpiece such as wood or rough coated surfaces
that do not have a reflective surface, Reflective surfaces can reflect the laser light into your
eyes causing flash blindness
[] Do not use on surfaces such as sheet steel that have ashiny, reflective surface. The
shiny surface could reflect the beam back at the operator° Be aware that laser light reflected off
of a mirror or any other reflective surfaces can be dangerous,
[] Always turn the laser beam off when not in use. Leaving the tool on increases the risk of
someone inadvertently staring into the laser beam
_CAUTIOiR: Always follow the instructions contained in this manual only when using
the laser. Use of this feature in any manner other than what appears in this manual may
result in a hazardous radiation exposure,
[] Do not attempt to modify the performance of this laser device. This may result in a
dangerous exposure to laser radiation.
[] Use only accessories that are recommended by Sears. Use of other accessories that have
been designed for use with other laser tools could result in serious injury.
[] For further information regarding lasers, refer to ANSI-Z136,1 the standard for the safe
use of lasers, available from the Laser Institute of America [phone],
5

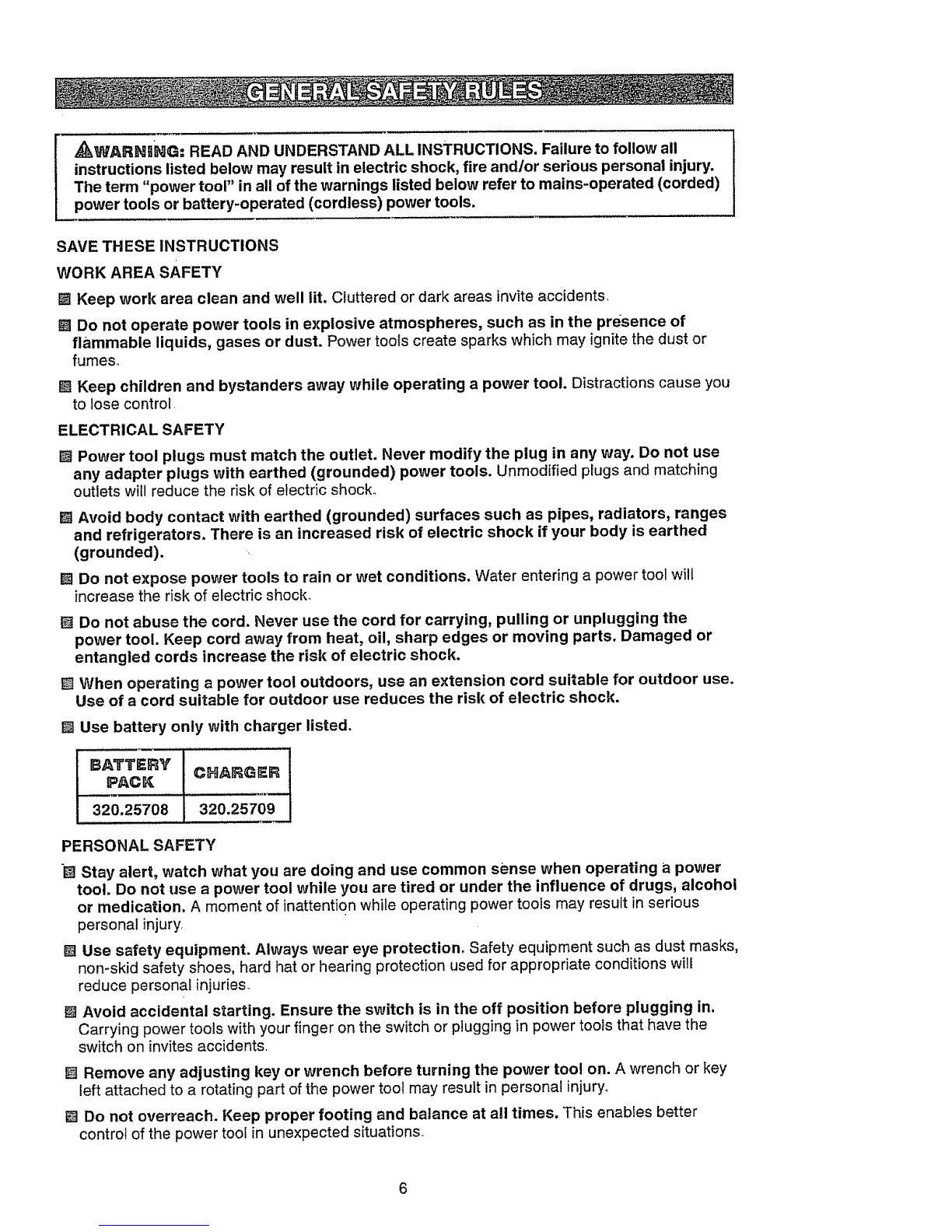

_WARNaNG: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious personal injury.
The term "power tool" in all of the warnings listed below refer to mains-operated (corded)
power tools or battery-operated (cordless) power tools.
SAVE THESE INSTRUCTIONS
WORK AREA SAFETY
I_ Keep work area clean and well lit. Cluttered or dark areas invite accidents,
[] Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
[] Keep children and bystanders away while operating a power tool. Distractions cause you
to lose control
ELECTRICAL SAFETY
[] Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching
outlets will reduce the risk of electric shock°
[] Avoid body contact with earthed (grounded) surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed
(grounded).
[] Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock_
[] Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
[] When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
[] Use battery only with charger listed,
BATTERY CHARGER
PACK
320.25708 320.25709
PERSONAL SAFETY
"1_Stay alert, watch what you are doing and use common sense when operating apower
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious
personal injury,
[] Use safety equipment. Always wear eye protection. Safety equipment such as dust masks,
non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will
reduce personal injuries,
Avoid accidental starting. Ensure the switch is in the off position before plugging in.
Carrying power tools with your finger on the switch or plugging in power tools that have the
switch on invites accidents
[] Remove any adjusting key or wrench before turning the power tool on. A wrench or key
left attached to a rotating part of the power toot may result in personal injury,
[] Do not overreach, Keep proper footing and balance at all times, This enables better
control of the power tool in unexpected situations°
6

[] Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving
parts
[] if devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of these devices can reduce dust-
related hazard&
[] Do not wear loose clothing or jewelry. Contain long hair. Loose clothes, jewelry or long
hair can be drawn into air vents.
[] Do not use on a ladder or unstable support. Stable footing on a solid surface enables
better control of the power tool in unexpected situations,
POWER TOOL USE AND CARE
[] Do not force the power toot. Use the correct power tool for your application, The correct
power toot witl do the job better and safer at the rate for which it was designated_
[] Do not use the power tool if the switch does not turn it on or off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
[] Disconnect the plug from the power source and/or the batter pack from the power tool
before making any adjustments, changing accessories or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally°
[] Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users,
[] Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool's operation, If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tool&
[] Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
[] Use the power toot, accessories and tool bits etc., in accordance with these
instructions and in the manner intended for the particular type of power tool, taking in
account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation
BATTERY TOOL USE AND CARE
[] Ensure the switch is in the off position before inserting battery pack. Inserting the
battery pack into power tools that have the switch on invites accidents
[] Recharge only with the charger specified by the manufacturer. A charger that is suitable
for one type of batter pack may create a risk of fire when used with another battery pack
Use power tools only with specifically designated battery packs. Use of any other battery
packs may create a risk of injury and fire,
[] When battery pack is not in use, keep it away from other metal objects like paper clips,
coins, keys, nails screws or other small metal objects that can make a connection from
one terminal to another, Shorting the battery terminals together may cause burns or a fire
[] Under abusive conditions, liquid may be ejected from the battery, avoid contact, if
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns
_WARHt]I_G: To reduce the risk of injury, user must read instruction manual j

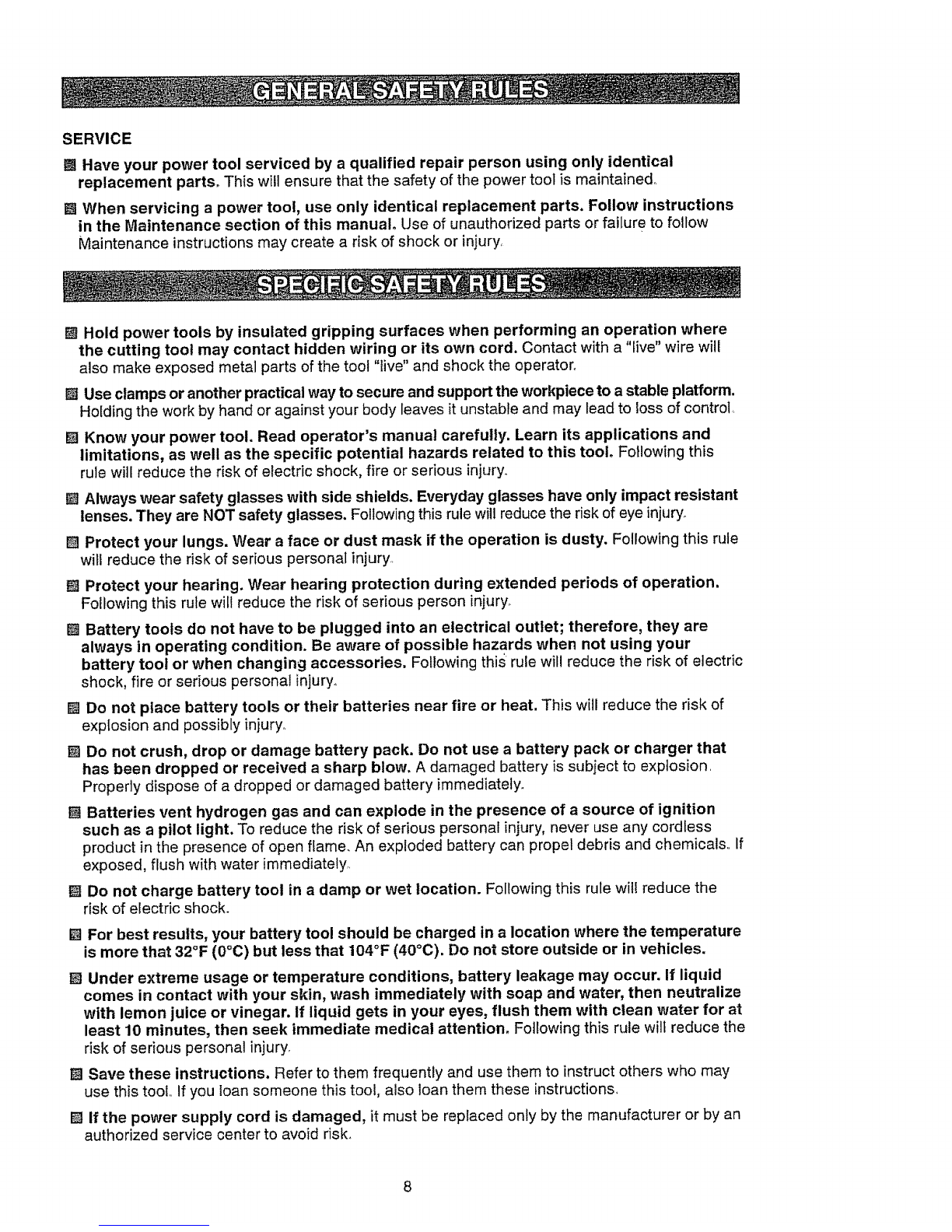

SERVICE
[] Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained_
[] When servicing apower tool, use only identical replacement parts. Follow instructions
in the Maintenance section of this manual. Use of unauthorized parts or failure to follow
Maintenance instructions may create a risk of shock or injury.,
[] Hold power tools by insulated gripping surfaces when performing an operation where
the cutting toot may contact hidden wiring or its own cord. Contact with a "live" wire will
also make exposed metal parts of the tool "live" and shock the operator°
[] Use clamps or another practical way to secure and support the workpiece to a stable platform.
Holding the work by hand or against your body leaves it unstable and may lead to loss of control,
[] Know your power tool. Read operator's manual carefully. Learn its applications and
limitations, as well as the specific potential hazards related to this tool. Following this
rule will reduce the risk of electric shock, fire or serious injury.
[] Always wear safety glasses with side shields. Everyday glasses have only impact resistant
lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury_
[] Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule
will reduce the risk of serious personal injury
[] Protect your hearing. Wear hearing protection during extended periods of operation.
Following this rule will reduce the risk of serious person injury°
[] Battery tools do not have to be plugged into an electrical outlet; therefore, they are
always in operating condition. Be aware of possible hazards when not using your
battery toot or when changing accessories. Following this rule will reduce the risk of electric
shock, fire or serious personal injury_
[] Do not place battery tools or their batteries near fire or heat. This will reduce the risk of
explosion and possibly injury_
[] Do not crush, drop or damage battery pack. Do not use a battery pack or charger that
has been dropped or received a sharp blow. A damaged battery is subiect to explosion.
Properly dispose of a dropped or damaged battery immediately.
I_I Batteries vent hydrogen gas and can explode in the presence of a source of ignition
such as a pilot light. To reduce the risk of serious personal injury, never use any cordless
product in the presence of open flame. An exploded battery can propel debris and chemicals, If
exposed, flush with water immediately
[] Do not charge battery tool in adamp or wet location. Following this rule will reduce the
risk of electric shock.
[] For best results, your battery tool should be charged in a location where the temperature
is more that 32°F (0°C) but less that 104°F (40°C). Do not store outside or in vehicles.
[] Under extreme usage or temperature conditions, battery leakage may occur. If liquid
comes in contact with your skin, wash immediately with soap and water, then neutralize
with lemon juice or vinegar. If liquid gets in your eyes, flush them with clean water for at
least 10 minutes, then seek immediate medical attention_ Following this rule wilt reduce the
risk of serious personal injury,
[] Save these instructions, Refer to them frequently and use them to instruct others who may
use this tool.. If you loan someone this tool, also loan them these instructions_
[] If the power supply cord is damaged, it must be replaced only by the manufacturer or by an
authorized service center to avoid risk.
8

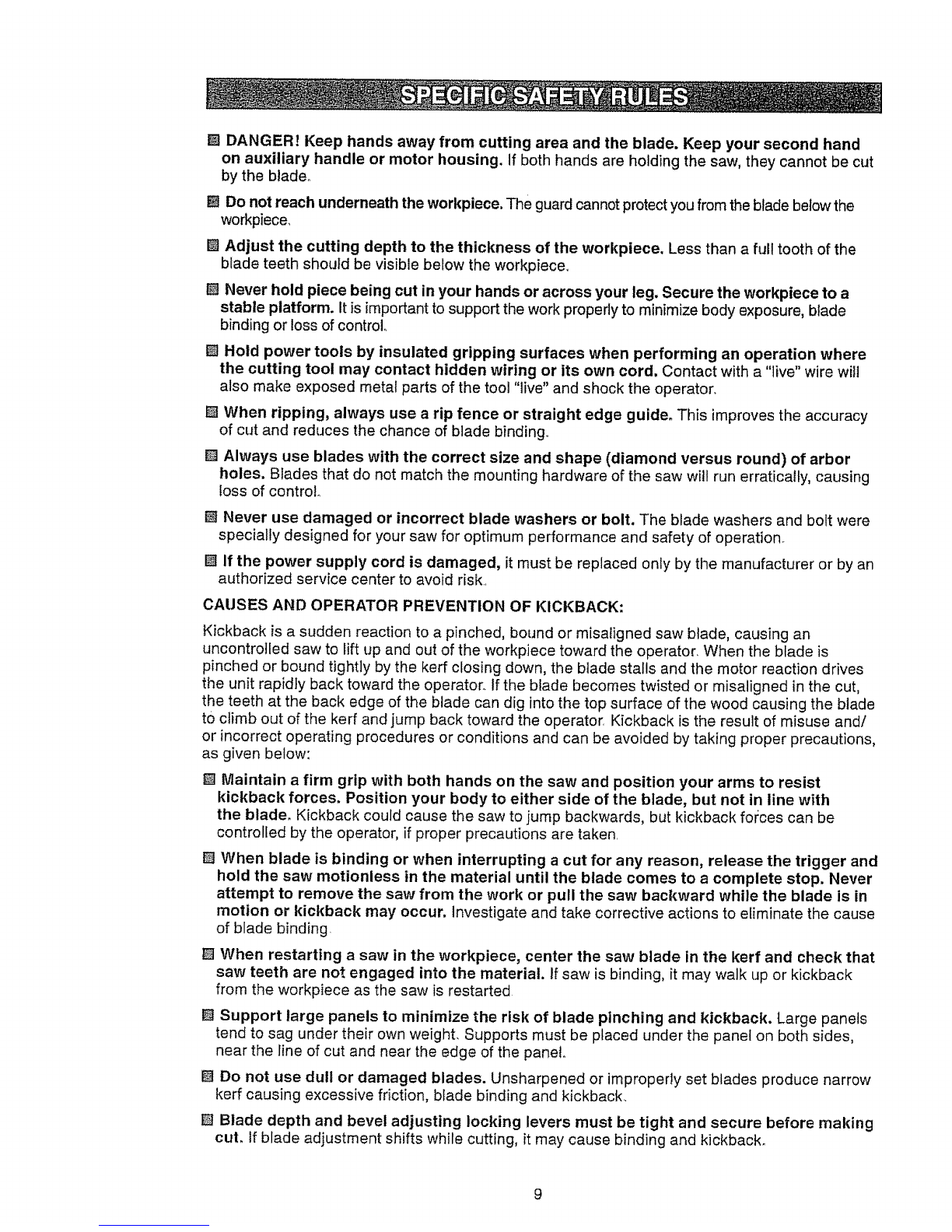

[] DANGER! Keep hands away from cutting area and the blade. Keep your second hand
on auxiliary handle or motor housing. If both hands are holding the saw, they cannot be cut
by the blade°
I_ Do not reach underneath the workpiece. The guard cannot protect you from the blade below the
workpiece.
[] Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the
blade teeth should be visible below the workpieceo
[] Never hold piece being cut in your hands or across your leg. Secure the workpiece to a
stable platform. It is important to support the work properly to minimize body exposure, blade
binding or loss of control
[] Hold power tools by insulated gripping surfaces when performing an operation where
the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will
also make exposed metal parts of the tool "live" and shock the operator.
[] When ripping, always use a rip fence or straight edge guide. This improves the accuracy
of cut and reduces the chance of blade binding
[] Always use blades with the correct size and shape (diamond versus round) of arbor
holes. Blades that do not match the mounting hardware of the saw will run erratically, causing
loss of control°
[] Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were
specially designed for your saw for optimum performance and safety of operation.
[] If the power supply cord is damaged, it must be replaced only by the manufacturer or by an
authorized service center to avoid risk
CAUSES AND OPERATOR PREVENTION OFKICKBACK:
Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an
uncontrolled saw to lift up and out of the workpiece toward the operator. When the blade is
pinched or bound tightly by the kerr closing down, the blade stalls and the motor reaction drives
the unit rapidly back toward the operator. If the blade becomes twisted or misaligned in the cut,
the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade
to climb out of the kerf and jump back toward the operator, Kickback is the result of misuse and/
or incorrect operating procedures or conditions and can be avoided by taking proper precautions,
as given below:
[] Maintain a firm grip with both hands on the saw and position your arms to resist
kickback forces. Position your body to either side of the blade, but not in line with
the blade. Kickback could cause the saw to jump backwards, but kickback forces can be
controlled by the operator, if proper precautions are taken
[] When blade is binding or when interrupting a cut for any reason, release the trigger and
hold the saw motionless in the material until the blade comes to a complete stop. Never
attempt to remove the saw from the work or pull the saw backward while the blade is in
motion or kickback may occur. Investigate and take corrective actions to eliminate the cause
of blade binding
[] When restarting a saw in the workpiece, center the saw blade in the kerf and check that
saw teeth are not engaged into the material. If saw is binding, it may walk up or kickback
from the workpiece as the saw is restarted
m Support large panels to minimize the risk of blade pinching and kickback. Large panels
tend to sag under their own weight. Supports must be placed under the panel on both sides,
near the line of cut and near the edge of the panel.
[] Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow
kerf causing excessive friction, blade binding and kickback_
[] Blade depth and bevel adjusting locking levers must be tight and secure before making
cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
9

[] Use extra caution when making a "plunge cut" into existing walls or other blind areas.
The protruding blade may cut objects that can cause kickback_
[] Check lower guard for proper closing before each use. Do not operate saw if lower
guard does not move freely and close instantly. Never clamp or tie the lower guard into
the open position. If saw is accidentally dropped, lower guard may be bent° Raise the lower
blade guard with the retracting handle. Make sure it moves freely and does not touch the blade
or any other part, in alt angles and depths of cut
[] Check the operation of the lower guard spring. If the guard and the spring are not
operating properly, they must be serviced before use. Lower guard may operate sluggishly
due to damaged parts, gummy deposits or a buildup of debris.
[] Lower guard should be retracted manually only for special cuts such as "plunge cuts"
and "compound cut." Raise lower blade guard by retracting handle. As soon as blade
enters the material, the lower guard must be released. For all other sawing, the lower
guard should operate automatically,
[] Always observe that the lower guard is covering the blade before placing the saw down
on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards,
cutting whatever is in its path° Be aware of the time it takes for the blade to stop after switch is
released,,
[] Know your power tool. Read operator's manual carefully. Learn its applications and
limitations, as well as the specific potential hazards related to this tool. Following this
rule will reduce the risk of electric shock, fire or serious injury.
[] Always wear safety glasses with side shields. Everyday glasses have only impact resistant
lenses. They are NOT safety glasses. Following this rule wellreduce the risk of eye injury_
[] Protect your lungs. Wear a face or dust mask If the operation is dusty. Following this rule
will reduce the risk of serious personal injury_
[] Protect your hearing. Wear hearing protection during extended periods of operation.
Following this rule will reduce the risk of serious person injury_
[] Battery tools do not have to be plugged into an electrical outlet; therefore, they are
always in operating condition. Be aware of possible hazards when not using your
battery tool or when changing accessories. Following this rule will reduce the risk of electric
shock, fire or serious personal injury_
]
_WARNgN@: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow allinstructions listed below may result in electric shock, fire andlor serious personal Injury. I
WBefore using battery charger, read all instructions and cautionary markings in this manual,
on battery charger, battery and product using battery to prevent misuse of the products and
possible injury or damage
,_kCAUTtI@_=" To reduce the risk of electric shock or damage to the charger and battery,
charge only lithium-ion rechargeable batteries as specifically designated on your charger.
Other types of batteries may burst, causing personal injury or damage.
[] Do not use charger outdoors or expose to wet or damp conditions. Water entering
charger will increase the risk of electric shock.
[] Use of an attachment not recommended or sold by the battery charger manufacturer
may result in a risk of fire, electric shock or injury to persons. Following this rule will
reduce the risk of electric shock, fire or serious personal injury.
10

[] Donotabusecordorcharger.Neverusethecordtocarrythecharger.Donotpullthe
chargercordratherthantheplugwhendisconnectingfromreceptacle,,Damage'tothe
\ ,
cord or charger could occur and create an electnc shock hazard Replace damaged cords
immediately,
[] Make sure cord is located so that it will not be stepped on, tripped over, come in
contact with sharp edges or moving parts or otherwise subjected to damage or stress.
This will reduce the risk of accidental falls, which could cause injury and damage to the cord,
which could result in electric shock.
[] Keep cord and charger from heat to prevent damage to housing or internal parts.
[] Do not let gasoline, oils, petroleum-based products, etc. come in contact with plastic
parts, They contain chemicals that can damage, weaken or destroy plastic+
[] An extension cord should not be used unless absolutely necessary. Use of improper
extension cord could result in arisk of fire and electric shock. If an extension cord must
be used, make sure:
1+That pins on plug of extension cord are the same number, size and shape as hose of plug on
charger,
2, That extension cord is properly wired and in good electrical condition; and
3, That wire size is large enough for AC ampere rating of charger as specified below:
Cord Length (Feet) 25' 50' 100'
CordSize (AWG) 16 16 16
NOTE: AWG = American Wire Gauge
[] Do not operate charger with adamaged cord or plug, which could cause shorting and
electric shock+ If damaged, have the charger repaired or replaced by an authorized service
technician at Sears Service Center,
[] Do not operate charger if it has received a sharp blow, been dropped or otherwise
damaged in any way. Take it to an authorized service technician at Sears Service Center for
an electrical check to determine if the charger is in good working order
[] Do not disassemble charger. Take it to an authorized service technician at Sears Service
Center when service or repair is required Incorrect reassembly may result in a risk of electric
shock or fire,,
[] Unplug charger from outlet before attempting any maintenance or cleaning to reduce
the risk of electric shock.
[] Disconnect charger from the power supply when not in use. This will reduce the risk of
electric shock or damage to the charger if metal items should fall into the opening., it will also
help prevent damage to the charger during a power surge+
[] Risk of electric shock. Do not touch uninsulated portion of output connector or uninsulated
battery terminal+
[] Save these instructions. Refer to them frequently and use them to instruct others who may
use this tool, If you loan someone this tool, loan them these instructions also to prevent misuse
of the product and possible injury,
11

[] SAVETHESEINSTRUCTIONS.Thismanualcontainsimportantsafetyandoperating
instructionsforbatterycharger320..25709andbatterypack32025708.
[] Beforeusingbatterycharger,readallinstructionsandcautionarymarkingsonbattery
charger,batteryandproductusingbattery_
[] CAUTION_Toreducetheriskofinjury,chargeonlylithium-ionrechargeablebatter[esoOther
typesofbatteriesmayburst,causingpersonalinjuryor damage_
_WARN !NG: Use of this product can generate dust containing chemicals known
to cause cancer,birth defects or other reproductive harm. Some examples of these
chemicals are:
[] Lead from lead-based paints
[] Crystalline silica from bricks and cement and other masonry products
Arsenic and chromium, from chemically treated lumber°
Your risk from these exposures varies, depending upon how often you do this type of
work. To reduce your exposure to these chemicals:
[] Work in a well-ventilated area,
[] Work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles
Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling and
other construction activities. Wear protective clothing and wash exposed areas with soap
and water. Allowing dust to get into your mouth, eyes or lay on the skin may promote absorption
of harmful chemicals
SAVE THESE I HSTRUCT O $
12

Fig. tLED Worklight/
Laser Switch
Front Handle
Laser
LEDAperture "\\.\\\
Worklight
Bevel Scale _\\
Edge Guide x,
Lock Knob
Bevel
Adjustment
Knob
Crosscut
Ruler
45°
Guide
0° Blade
Guide Notch
Lock-Off
Button Trigger Switch Rear Handle
Upper
Blade Guard
Battery
Lower Blade
Guard Lever
Blade
Base
Rip Ruler
Blade Screw
Lower Blade Guard
Edge Guide
DePshc'a_feCUt
Hex Key._
Lock-Off Laser
Caution Label
Spindle Lock Button
13

BladeDiameter
Motor
CuttingDepthat90°(0°)
CuttingDepthat45°
Bevel
NoLoadSpeed
Laser
SawWeight(withoutbattery)
BatteryType
BatteryVoltage
Chargerinput
OptimumChargingTemperature
71/4-in..
20VoltDC
23/8-in.
15!8-in.
Adjustable00-50°
25OORPM
ClassIlia650nmMax_output:_<25mW
7.76Ib&
Lithiumqon
20,0VoltDC
120-Volts,60HzAConly
32°F(0°C)-104°F(40°C)
KNOW YOUR CIRCULAR SAW (Fig. 1)
_WARNtlI_aG- The safe use of this product requires an understanding of the information on
the tool and in this operator's manual as well as a knowledge of the project you are attempting.
Before use of this product, familiarize yourself with alloperating features and safety rules.
MAGNESIUM UPPER AND LOWER BLADE GUARD WITH ANTI-SNAG FEATURE
Heavy_duty, lightweight blade guards provide protection from the blade° The self-retracting lower
blade guard features an anti-snag design for more efficient cutting.
ELECTRIC BRAKE
The saw has an electric brake to quickly stop the blade from rotating.
ALUMINUM BASE
The saw has an oversized, lightweight aluminum base to provide stability when cutting.
0° TO 50 ° BEVEL ADJUSTMENT
The bevel adjustment lever allows you to set the circular saw for bevel cuts from 0°to 50 °,
LASER TRAC TM LASER GUIDE
The laser guide projects a bright red beam onto the workpiece, aiding in alignment and accuracy.
LED WORKLIGHT
The fixed-position LED worklight, located on the front of the saw, allows better cut-line visibility.
INTEGRATED RIP AND CROSSCUT RUI.ER
The base has integrated rip and crosscut rulers for quick reference when making repetitive cuts°
EDGE GUIDE
The saw is equipped with an edge guide for accurate parallel cuts, The edge guide can be used
on either the left or right side of the saw blade..
HEX KEY STORAGE
The blade screw hex key is conveniently stored on board, behind the motor housing of the saw.
ERGONOMIC DESIGN
The design of the saw allows proper two hand control when cutting_ It has been designed to be
comfortable and easy to grasp..
14

SPINDLELOCK BUTTON
The spindle lock button allows you to secure the blade when turning the blade screw,,
LOCK-OFF BUTTON
The lock-off button reduces the possibility of accidental starting The button can be used on
either the left or right of the trigger switch,
DEPTH OF CUT ADJUSTMENT LEVER
The depth of cut adjustment lever adjusts the depth of cut a maximum of 0 to 2 3/8-ino at 90 °
and 0 to 1 5/8-in,, at 45 °,
_IJVARNt_'_IG." If any parts are broken or missing, DO NOT attempt to plug in the power
cord or operate saw until the broken or missing parts are replaced. Failure to do so
could result in possible serious injury.
A_kWARNtI_IG= Do not attempt to modify this saw or create accessories not
recommended for use with this saw. Any such alteration or modification is misuse and
could result in a hazardous condition leading to possible serious injury°
I _kWARINIING." To prevent accidental starting that could cause serious personal injury,always remove the battery pack from the drill when assembling parts.
UNPACKING
This product has been shipped completely assembled,
[] Carefully remove the tool and any accessories from the box, Make sure that al! items listed in
the packing list are included,,
Et inspect the tool carefully to make sure no breakage or damage occurred during shipping,,
[] Do not discard the packing material until you have carefully inspected and satisfactorily
operated the saw,
[] If any parts are damaged or missing, please refer to the numbers listed on the back page of
operator's manual.
PACKING LIST
7 1/4-in. Circular Saw, Saw Blade, Edge Guide, Hex Key and Operator's Manual
15

POWER BAR
[] This Lithium-Ion battery pack is equipped with a POWER BAR which is used to display the
battery pack's remaining run time_ Press the POWER BAR button to display the LED lights. The
LED lights will stay lit for approximately 4 seconds.
NOTE: The POWER BAR can be used when the battery is attached or removed from tool,J
Fig, 2 000@
0000
0000
0000
ooo÷
80-100%
Charge
60-79%
Charge
40-59%
Charge
20-39%
Charge
Under 10%
Charge
Completely
discharged
LOW CAPACITY WARNING
[] If one LED on the POWER BAR begins to flash, the battery pack's charge is under 10%
capacity and should be recharged_
[] Unlike other battery pack types, Lithium-ion battery packs deliver fade-free power for their
entire run time° The tool will not experience a slow, gradual toss of power as you work. To
signal that the battery pack is at the end of its run time and needs to be charged, power to the
toot will drop quickly.. The POWER BAR will begin to display four flashing LED lights when it is
comptetely discharged_ When this happens, remove the tool from the workpiece and charge
the battery pack as needed°
NOTE: The POWER BAR may also display four flashing LED lights due to an overload |
1
or high temperature situation (see SmartChip TM Battery protection). /
SmartChip TM BATTERY PROTECTION
SmartChip TM intuitivecircuitry protects the battery pack from extreme temperature, over-discharge
and over-charge. To protect the battery from damage and prolong its life, the battery pack's
SmartChip TM circuitry wilt turn off the battery pack if it becomes overloaded or if the temperature
becomes too high during use_This may happen in extremely high torque, binding and staliing
situations° This intelligent system will shutdown your battery pack ifits operating temperature
exceeds 176°F (80°C) and wilt begin normal operation when it returns to 32°F (0°C) - 122°F (50°C).
[] The POWER BAR wilt display four flashing LED lights if the SmartChip TM circuitry detects a
momentary overload° You can conveniently reset the battery pack by pressing the POWER
BAR button. Press the POWER BAR button again to display the remaining charge.
NOTE: If the POWER BAR continues to flash four LED lights after reset, place the I
I
battery pack on the charger to evaluate the battery condition (see Fig. 4). I
16

I. OTE: A significantly reduced run time after fully charging the battery pack indicates
that the batteries are near the end of their usable life and must be replaced.
COLD WEATHER OPERATION
[] This Lithium-Ion battery pack will provide optimal performance in temperatures between 32°F
(0°C) and 104°F (40°C)., When the battery pack is very cold, it may "pulse" for the first minute
of use to warm itself up. Put the battery pack on a tool and use the tool in a light application°
After about aminute, the battery pack wilt have warmed itself up and will operate normally.
WHEN TO CHARGE THE BATTERY PACK
The Lithium-Ion battery can be charged at any time and will not develop a "memory" when
charged after only a partial discharge. It is not necessary to run down the battery pack charge
before recharging Remove the battery pack from the tool when convenient for you and your job,_
[] Use the POWER BAR to determine when you need to recharge the battery pack.
[] You can "top-off" your battery pack's charge before starting a big job or long period of use,.
[] Due to Lithium-Ion's fade-free properties, the only time it is necessary to charge the Lithium-
Ion battery pack is when the pack has reached the end of itscharge. To signal the end of
charge, power to the tool will drop quickly. Charge the battery pack as needed.,
HOW TO CHARGE THE BATTERY PACK
!
NOTE: This Lithium-Ion battery pack is shipped partially charged, Before using it the [first time, fully charge the battery pack. I
A fully discharged battery pack with a temperature between 32°F (0°C) and 104°F (40°C) will
charge in about 50 minutes,
[] Charge the Lithium-lon battery pack only
with the correct charger
[] Connect the charger to a power supply.
[] Attach the battery pack to the charger by
aligning the raised ribs of the battery pack
with the slot in the charger, Slide the battery
pack onto the charger (Fig. 3)
[] The charger wilt communicate with the
battery pack's SmartChip TM circuitry to
evaluate the condition of the battery pack.,
[] The POWER BAR LED lights will cycle from
right to left during charging, This is part of the
normal charging operation.
[] After charging is complete, the green LED
on the charger will come on and the POWER
BAR LED lights will go offr The POWER BAR
LED lights will not be displayed when the
POWER BAR button is pressed while the
battery pack is on the charger.
[] The battery pack wilt fully charge, but will not
overcharge, if left on the charger.
NOTE: For your convenience, the charger can operate with most generators and
inverters rated at 300 watts or higher. 1
'I7

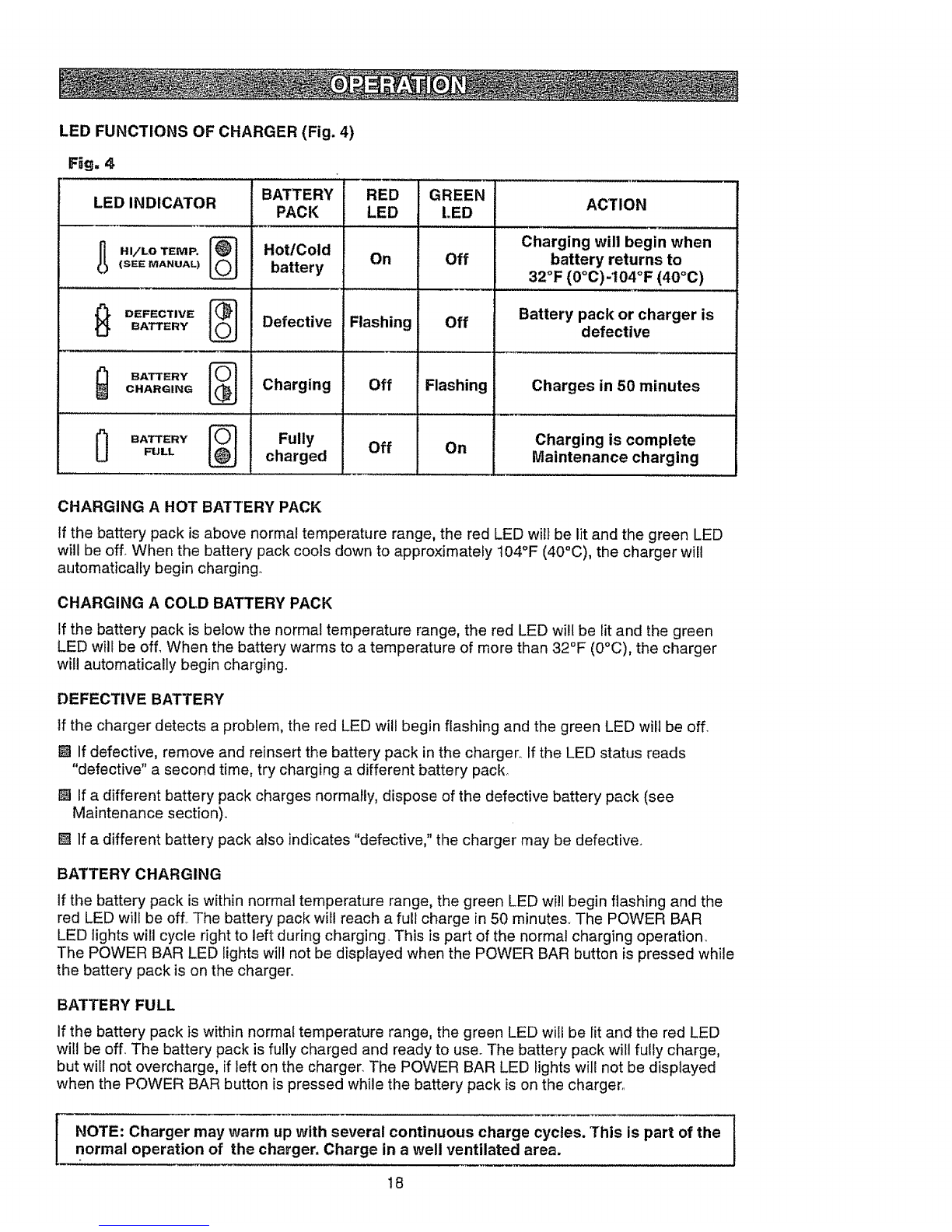

LED FUNCTIONS OF CHARGER (Fig. 4)
F_g. 4
LED INDICATOR
(n) HI/LO TEMP.
(SEE MANUAL)
DEFECTIVE
BATTERY
BATTERY
CHARGING
BATTERY
FULL
BATTERY RED
PACK LED
Hot/Cold On
battery
Defective Flashing
Charging Off
Fully Off
charged
GREEN
LED ACTIC
Charging will begin when
Off battery returns to
32°F (0°C).t0 , (40°0)
Off Battery pack ol charger is
defective
Flashing Charges in 5! minutes
I - Charging is complete
On I Maintenance charging
I
CHARGING A HOT BATTERY PACK
if the battery pack is above normal temperature range, the red LED will be lit and the green LED
will be off. When the battery pack cools down to approximately 104°F (40°C), the charger will
automatically begin charging.
CHARGING A COLD BATTERY PACK
If the battery pack is below the normal temperature range, the red LED will be lit and the green
LED will be off. When the battery warms to a temperature of more than 32°F (0°C), the charger
will automatically begin charging_
DEFECTIVE BATTERY
If the charger detects a problem, the red LED will begin flashing and the green LED will be off.
[] If defective, remove and reinsert the battery pack in the charger,. If the LED status reads
"defective" a second time, try charging a different battery pack.
[] if a different battery pack charges normally, dispose of the defective battery pack (see
Maintenance section).
[] If a different battery pack also indicates "defective," the charger may be defective.
BATTERY CHARGING
If the battery pack iswithin normal temperature range, the green LED will begin flashing and the
red LED will be off.. The battery pack will reach a full charge in 50 minutes,, The POWER BAR
LED lights will cycle right to left during charging, This is part of the normal charging operation_
The POWER BAR LED Iights will not be displayed when the POWER BAR button is pressed while
the battery pack is on the charger.
BATTERY FULL
if the battery pack is within normal temperature range, the green LED will be lit and the red LED
will be off The battery pack is fully charged and ready to use. The battery pack will fully charge,
but will not overcharge, if left on the charger. The POWER BAR LED lights will not be displayed
when the POWER BAR button is pressed while the battery pack is on the charger,,
NOTE: Charger may warm up with several continuous charge cycles. This is part of the I
1
normal operation of the charger. Charge in a well ventilated area. !
18

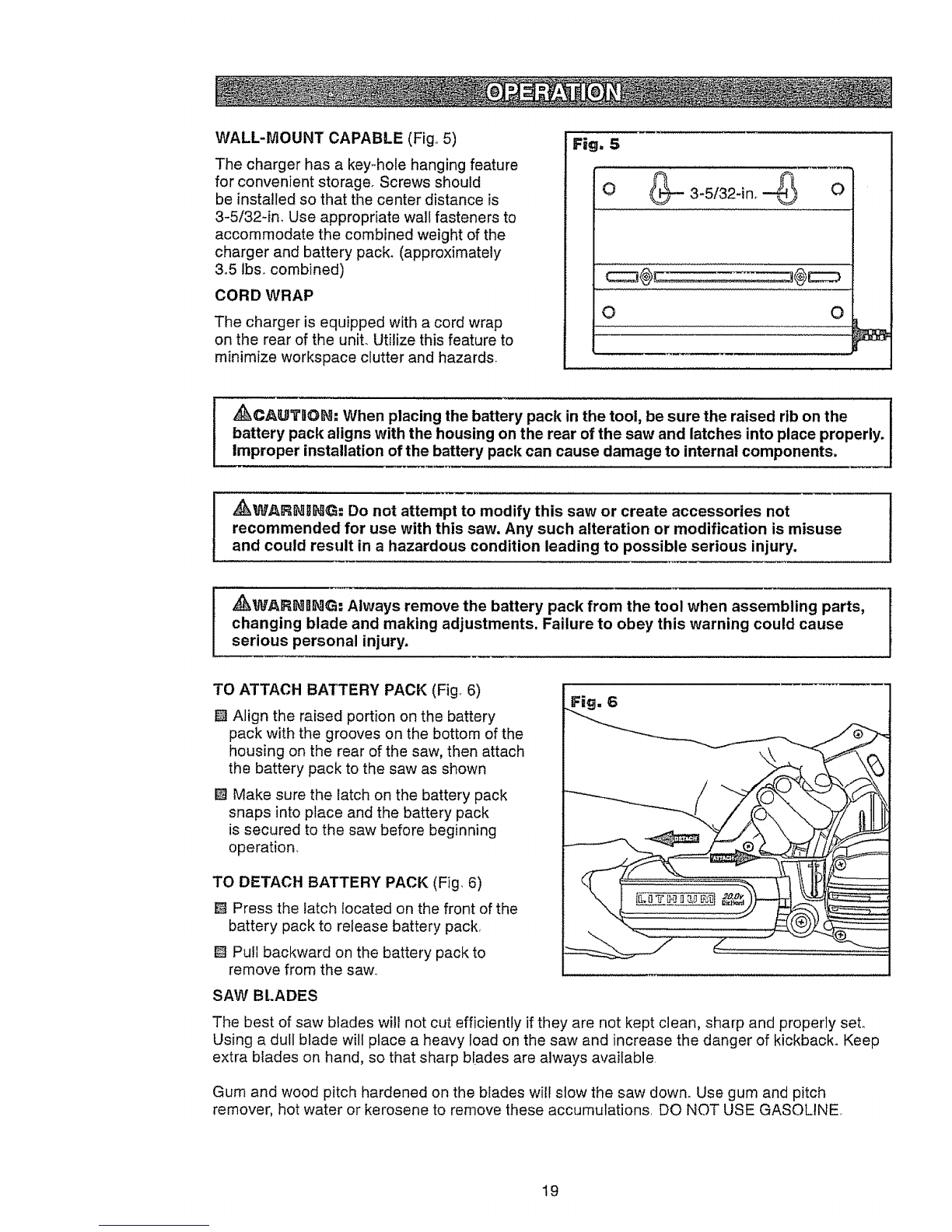

WALL-MOUNT CAPABLE (Fig,, 5)
The charger has a key-hole hanging feature
for convenient storage. Screws should
be installed so that the center distance is
3-5/32-in. Use appropriate wail fasteners to
accommodate the combined weight of the
charger and battery pack. (approximately
3.5 lbs_ combined)
CORD WRAP
The charger is equipped with a cord wrap
on the rear of the unit. Utilize this feature to
minimize workspace clutter and hazards.
Fig. 5
O {_ 3-5/32-in. -_ O
c::=®r-• 0c::
O O
_CAUTIION: When placing the battery pack in the tool, be sure the raised rib on the
battery pack aligns with the housing on the rear of the saw and latches into place properly.
Improper installation of the battery pack can cause damage to internal components.
_WARNgNG: Do not attempt to modify this saw or create accessories not
recommended for use with this saw. Any such alteration or modification is misuse
and could result in a hazardous condition leading to possible serious injury.
_WARNII_IG: Always remove the battery pack from the tool when assembling parts,
changing blade and making adjustments. Failure to obey this warning could cause
serious personal injury.
TO ATTACH BATTERY PACK (Fig 6)
[] Align the raised portion on the battery
pack with the grooves on the bottom of the
housing on the rear of the saw, then attach
the battery pack to the saw as shown
[] Make sure the latch on the battery pack
snaps into place and the battery pack
is secured to the saw before beginning
operation.
TO DETACH BATTERY PACK (Fig, 6)
[] Press the latch located on the front of the
battery pack to release battery pack,
[] Pull backward on the battery pack to
remove from the saw..
Fig. 6
SAW BLADES
The best of saw blades wilt not cut efficiently if they are not kept clean, sharp and properly set°
Using a dull blade will place a heavy load on the saw and increase the danger of kickback. Keep
extra blades on hand, so that sharp blades are always available
Gum and wood pitch hardened on the blades will slow the saw down. Use gum and pitch
remover, hot water or kerosene to remove these accumulations, DO NOT USE GASOLINE.
19

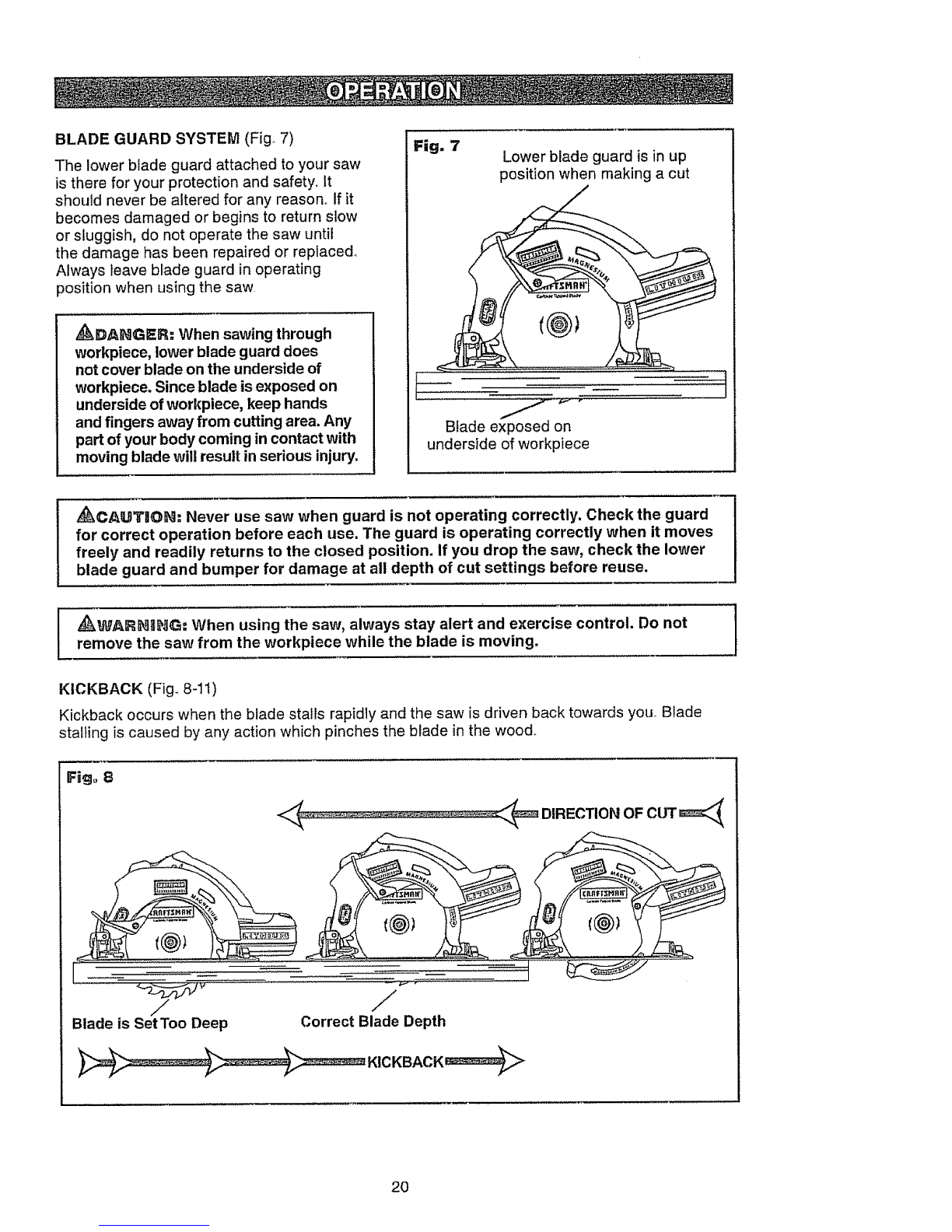

BLADEGUARD SYSTEM (Fig 7)
The lower blade guard attached to your saw
is there for your protection and safety, it
should never be altered for any reason,, If it
becomes damaged or begins to return slow
or sluggish, do not operate the saw until
the damage has been repaired or replaced.
Always leave blade guard in operating
position when using the saw
_DAHGI_R: When sawing through
workpiece, lower blade guard does
not cover blade on the underside of
workpiece. Since blade is exposed on
underside of workpiece, keep hands
and fingers away from cutting area. Any
part of your body coming in contact with
moving blade will result in serious injury.
Fig. 7 Lower blade guard is in up
position when making a cut
Blade exposed on
underside of workpiece
,_CAUT_ON: Never use saw when guard is not operating correctly. Check the guard
for correct operation before each use. The guard is operating correctly when it moves
freely and readily returns to the closed position. If you drop the saw, check the lower
blade guard and bumper for damage at all depth of cut settings before reuse.
_V#ARNItHG: When using the saw, always stay alert and exercise control. Do notremove the saw from the workpiece while the blade is moving.
KICKBACK (Fig_ 8-11)
Kickback occurs when the blade stalls rapidly and the saw is driven back towards you. Blade
stalling is caused by any action which pinches the blade in the wood,,
Fig_ B
/J
Blade is SetToo Deep Correct Blade Depth
2O
