Creality Ender 3 Pro User manual

Version 1.0

Creality Ender 3 Pro Assembly Instructions V1.0 2 www.rb42.blog
Ender 3 Pro Assembly Instructions
Version: 1.0
Release Date: 13.7.2021
Author: RB42
The following assembly instructions are for the Creality Ender 3 Pro desktop 3D printer. The
steps outlined in this manual are based on the following two manufacturers’ manuals:
• Ender-3 Pro assembly instruction_EN V-2-2
and
• Ender-3 Pro_EN V.2.2
Please reference these manufacturers manuals for further information regarding the
assembly process for this particular printer. Both documents are available from the Creality
website.
Use correct safety practices, appropriate tools (in good and working condition) and suitable
personal protective equipment while assembling the 3D printer as risk of personal injury or
property damage may result. The Author (RB42) takes no responsibility for injury or
property damage as a result of user error while following the steps outlined in this manual.
This document is the PDF version of assembly instructions originally published on the RB42
website. For further information please visit the assembly instruction website at the
following link: https://rb42.blog/creality-ender-3-assembly-instructions/
This document may be copied for personal use only, it may also be copied for educational
purposes with permission from the author and under licence agreement for commercial
use and for-profit purposes.
If you have any further questions or want to suggest an amendment, please contact the
author via email [email protected]

Creality Ender 3 Pro Assembly Instructions V1.0 3 www.rb42.blog
Table of Contents
4
Tools
4
Fixings
4
Consumables
5
Parts
9
Step 1 – Z-axis Profiles
12
Step 2 – Power Supply and Display
14
Step 3 – Z-axis limit switch
15
Step 4 – Z-axis lead screw
17
Step 5 – X-axis and Extruder (XE) stepper motor assembly
19
Step 6 – X-axis Synchronous Belt
21
Step 7 – Hot-end carriage and Z-axis passive block
23
Step 8 – X-axis idler pulley
25
Step 9 – Installing of X-axis gantry onto the Z-axis vertical uprights.
27
Step 10 – Top profile
29
Step 11 – Spool Holder
31
Step 12 – Wiring loom and Bowden tube
33
Step 13 – Powering up
34
Step 14 – Auto homing
35
Step 15 – Stepper motor directions
44
Step 16 - Loading filament and priming the hot-end
47
Step 17 - Levelling the bed
53
Step 18 - Slice and load G-code onto microSD
54
Step 19 - Load SD card and print G-code
56
Document Revisions

Creality Ender 3 Pro Assembly Instructions V1.0 4 www.rb42.blog
Tools
• M5 Hex Key (Allen Keys)
• M4 Hex Key (Allen Keys)
• M2.5 Hex Key (Allen Keys)
• Open Ended Wrench (included in kit)
• Side Cutters
• Square (machinist square, set square, rafters square etc.)
Fixings
QTY
Fixing
4
M5x45 hex socket cap screw
4
M5x8 hex socket button head screw
4
M5x25 hex socket cap screw
2
M5 T-Slot nut
2
M4x20 hex socket cap screw
4
M4x16 hex socket button head screw w/ captive washer
1
1.75mm Bowden Coupler fitting
Consumables
Loctite 222
*Optional
Cable ties (2.5mm x 100mm)

Creality Ender 3 Pro Assembly Instructions V1.0 5 www.rb42.blog
Parts
01
LCD display screen
02
Printer Base
03
Power supply
04
Z-axis passive block
05
Extruder carriage

Creality Ender 3 Pro Assembly Instructions V1.0 6 www.rb42.blog
06
XE stepper motor kit
07
X-axis idler pulley
08
Z-axis motor assembly
09
Z-axis limit switch kit
10
Spool holder tube

Creality Ender 3 Pro Assembly Instructions V1.0 7 www.rb42.blog
11
Spool holder frame
12
2020 Endcap (x2)
13
IEC mains power cable
14
Synchronous Belt (77cm)
15
Z-axis profile left (2040)

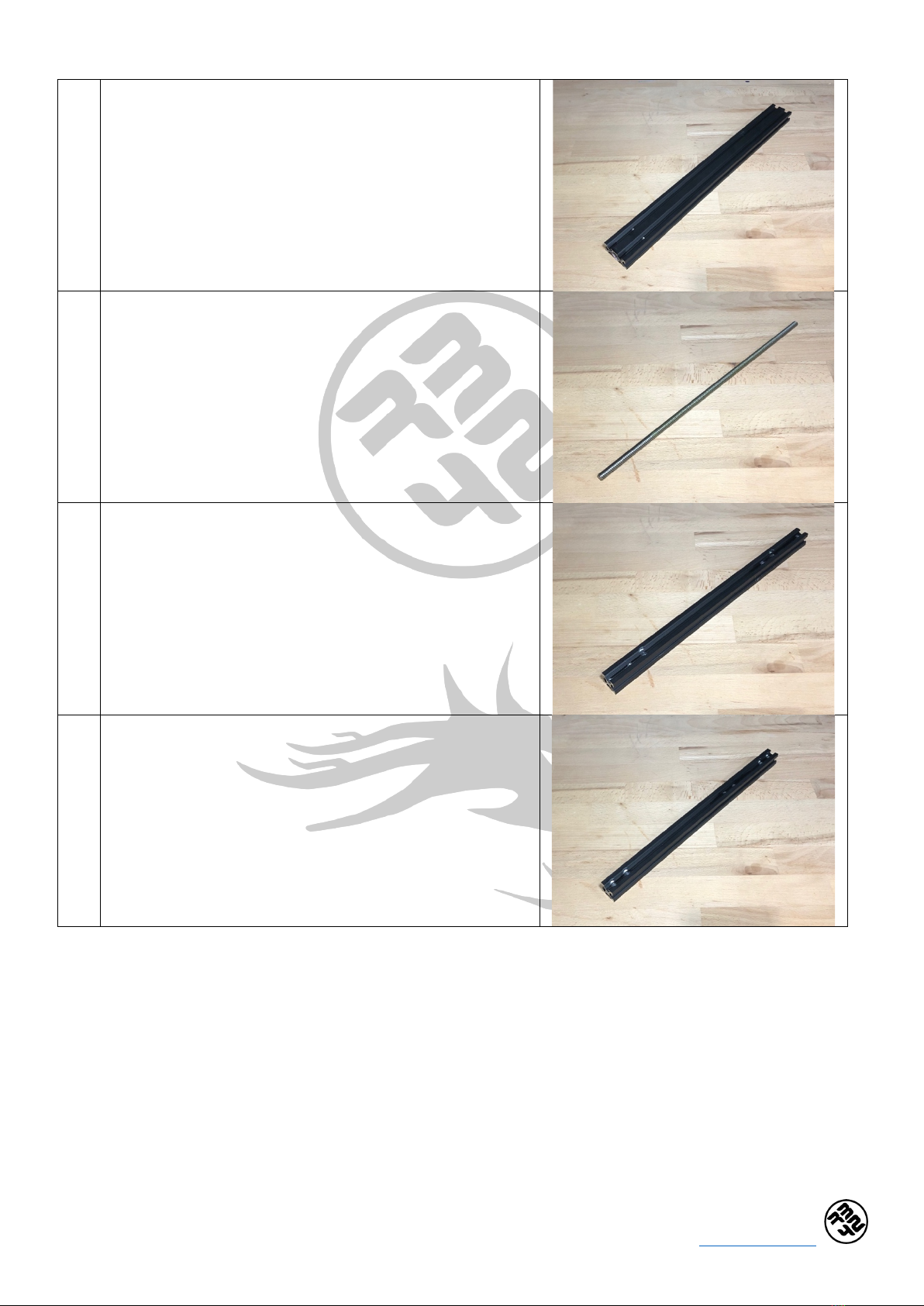

Creality Ender 3 Pro Assembly Instructions V1.0 8 www.rb42.blog
16
Z-axis profile right (2040)
17
Z-axis lead screw (T-type, T8xM8 370mm)
18
X-axis profile (2020)
19
Top profile (2020)

Creality Ender 3 Pro Assembly Instructions V1.0 9 www.rb42.blog
Step 1 - Z axis profiles
Tools for this
step
M4 Hex Key (Allen Key)
Square
Parts for this
step
1x (02) Printer Base
1x (15) Z-axis vertical profile left (2040)
1x (16) Z-axis vertical profile right (2040)
Fixings
4x M5x45 hex socket cap screw
Consumables
Loctite 222
Process
1.1
From the underside of the (02) Printer Base, insert 2x M5x45
hex socket cap screws through the predrilled holes on the left
of the frame, so the thread is sticking out through the top face
of the aluminium profile
1.2
Identify each of the Z-axis vertical profiles to be used in this
step: (15) Z-axis vertical profile left (2040) and (16) Z-axis
vertical profile right (2040). While they may look the same there
are subtle differences:
The (15) left vertical profile can be Identified as having two
threaded holes, one next to the other, positioned close to the
end. The end with these two holes is the base of the upright and
will be attached to the (02) Printer base;
The (16) right vertical profile features two threaded holes, one
on-top of the other. Positioning of these screw holes are not
symmetrical, with the hole closest to the end of the profile
being the bottom hole. This end, with the screw hole closest to
the end, is the base of the upright and will be attached to the
(02) Printer base.

Creality Ender 3 Pro Assembly Instructions V1.0 10 www.rb42.blog
1.3
Position (15) Z-axis profile left on the left-hand side of the (02)
Printer Base, directly above the two M5x45 cap screws (from
step 1.1) protruding through the base. Using an M4 hex key
(Allen key), proceed to screw the M5 cap screws into the base
of the Z-axis upright and tighten until upright held firmly in
position.
1.4
Repeat the process for the opposite side and (16) Z-axis profile
right. The process will remain the same albeit now on the right-
hand side of the base. Orient the upright so the channel with
the holes is closest to the printer bed

Creality Ender 3 Pro Assembly Instructions V1.0 11 www.rb42.blog
1.5
Confirm each of the Z-axis uprights are squared to the base by
using a Square (e.g. machinist square, set square, rafters square
etc.) to ensure an angle of 90°. If not exactly square, untighten
the screws and attempt to reseat the upright. If still not square
after this, additional frame bracing or gussets may be required.

Creality Ender 3 Pro Assembly Instructions V1.0 12 www.rb42.blog

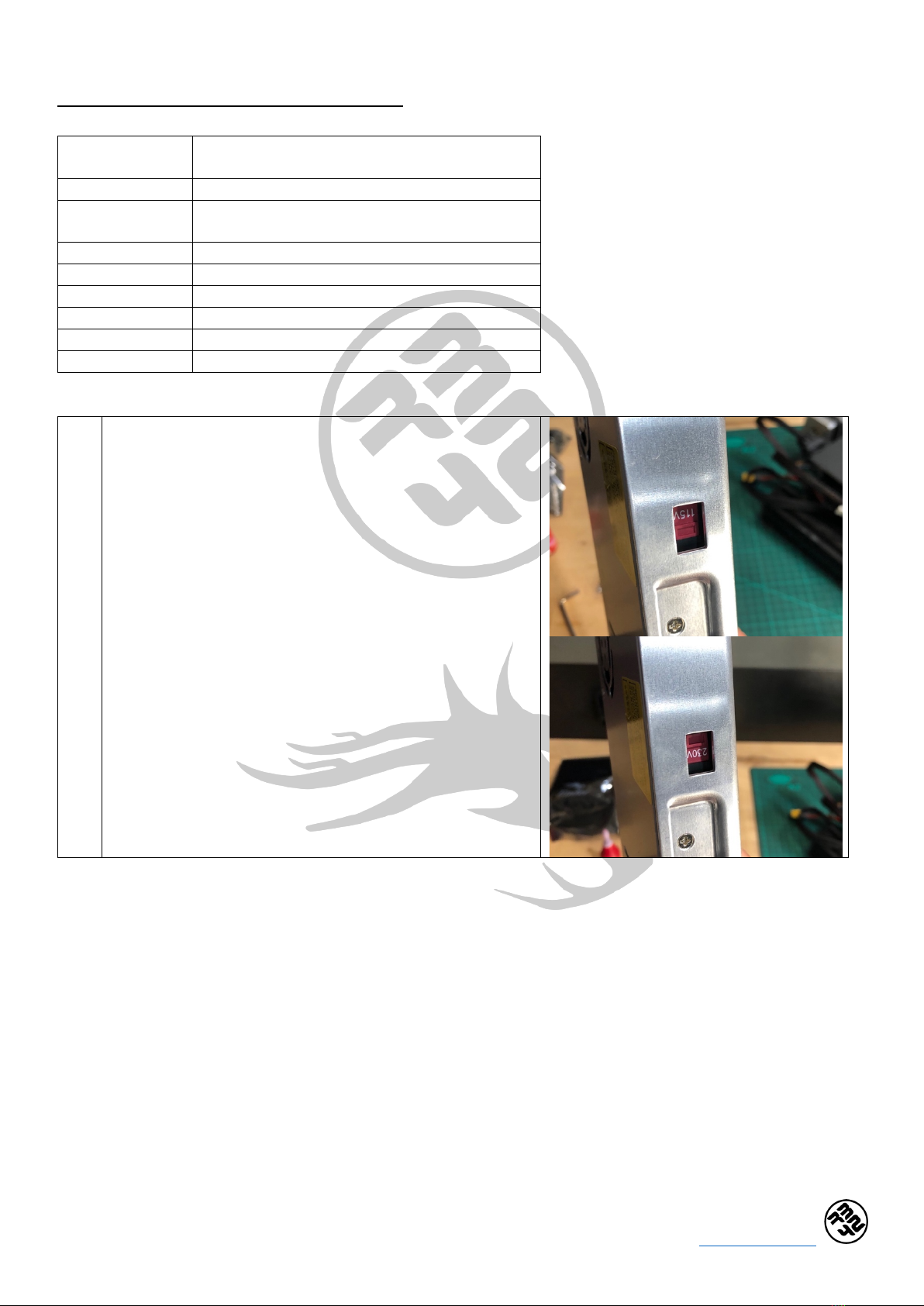

Step 2 - Power supply and display
Tools for this
step
M3 Hex Key (Allen Key)
Parts for this
step
1x (01) LCD display screen
1x (03) Power supply
Fixings
2x M5x8 hex socket button head screw
2x M4x20 hex socket cap screw
Consumables
Loctite 222
Process
2.1
Set the power supply to the required mains voltage. The
voltage is altered by toggling the red switch on the back of
the power supply from either reading 230v for 230v 50hz
mains supply or 115v for 115v 60hz mains supply. Ensure
voltage is set correctly as incorrectly selected voltage will
cause damage to the printer and may cause further electrical
hazards.

Creality Ender 3 Pro Assembly Instructions V1.0 13 www.rb42.blog

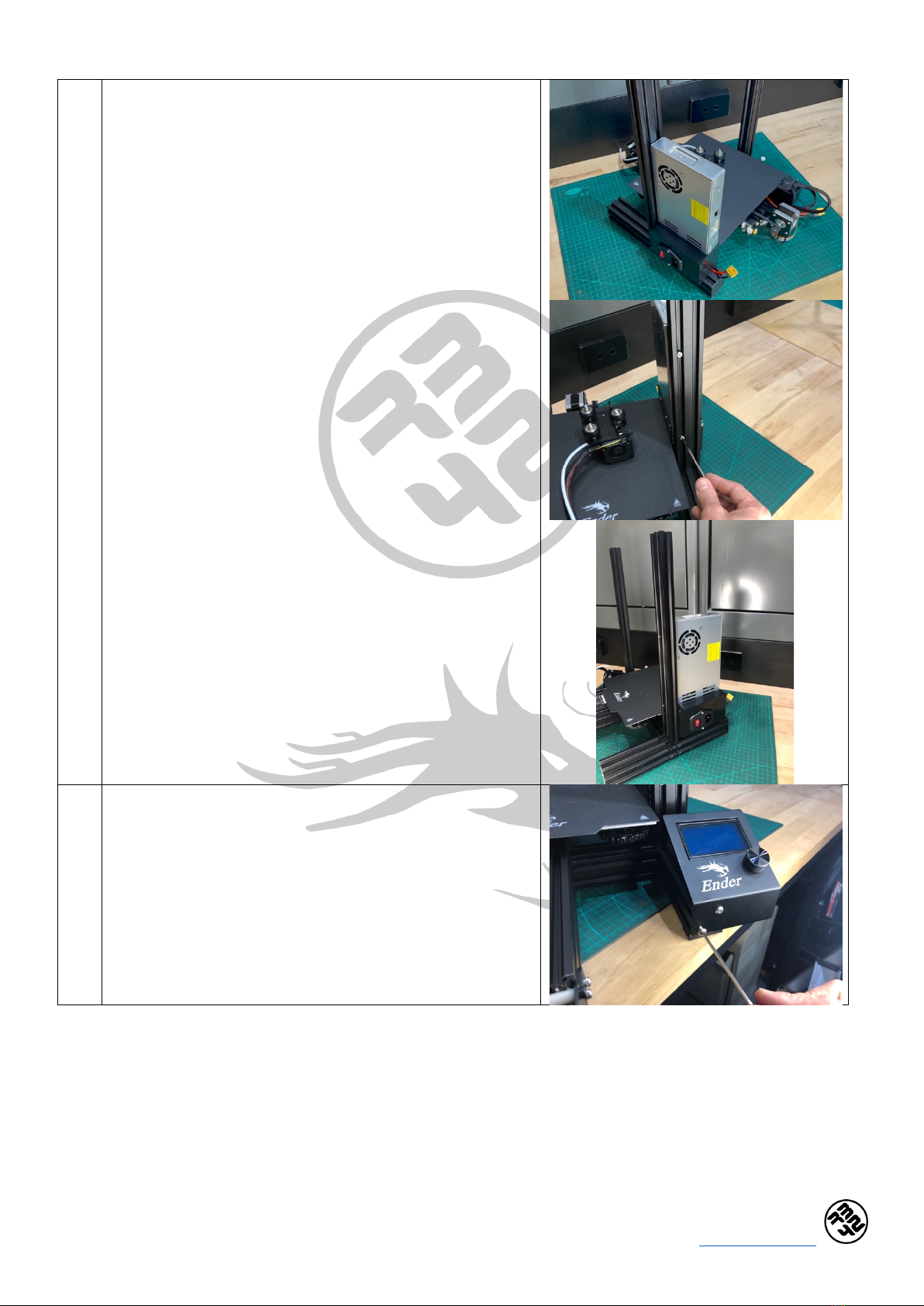

2.2
Mount the (03) power supply to the reverse side of (16) Z-
axis vertical profile right (from step 1.4), the power supply is
held in place with 2x M4x20 hex socket cap screw which are
inserted from the front face of the Z axis profile using a M3
hex key (Allen key).
2.3
Attach the (01) LCD display to the front face of (02) printer
base on the right-hand side with 2x M5x8 hex socket button
head screws using an M3 hex key (Allen key) to screw
securely in place.

Creality Ender 3 Pro Assembly Instructions V1.0 14 www.rb42.blog
Step 3 - Z axis limit switch
Tools for this
step
M3 Hex Key (Allen Key)
Parts for this
step
1x (09) Z axis limit switch assembly
Process
3.1
(09) Z axis limit switch assembly is installed on the left-hand
side of the frame, at the perpendicular junction where the
vertical (15) Z-axis vertical profile (left) and the horizontal
(02) printer base meet.
3.2
Insert the T-slot nuts of the (09) Z axis limit switch assembly
into the channel on the side of the Z-axis vertical profile by
rotating the nuts so that they are in the same orientation as
the channel on the profile so that they are placed into the
channel without obstruction.
3.3
Position the (09) Z axis limit switch assembly so that the
positioning tab is resting on top of (02) printer base
horizontal profile.

Creality Ender 3 Pro Assembly Instructions V1.0 15 www.rb42.blog
3.4
Once in the channel, using an M3 hex key (Allen key) rotate
the orientation of the T-slot nuts by 90 degrees, making
them perpendicular to the channel of the vertical profile.
Continue to tighten the hex socket cap screws so the limit
switch is firmly held in place. Confirm both the T-slot nuts
are remaining at 90 degrees to the vertical Z axis profiles
once the screws have been fully tightened.
Step 4 - Z axis lead screw
Tools for this
step
M2.5 Hex Key (Allen Key)
Parts for this
step
1x (08) Z-axis motor assembly
1x (17) Z-axis lead screw (T-type, T8xM8 370mm)
Fixings
2x M4x18P hex socket countersunk screw
Consumables
Loctite 222
Process
4.1
On the reverse face of the (15) Z-axis vertical profile (left),
position the (08) Z-axis motor assembly on the (02) printer
base with the stepper motor resting on the top surface of
the aluminium extrusion and shaft pointing directly
upwards.

Creality Ender 3 Pro Assembly Instructions V1.0 16 www.rb42.blog
4.2
Secure the stepper motor into place with the 2x M4x18P hex
socket countersunk screws and tightened into place using
the M2.5 hex key (Allen key). These screws are feed through
two holes on either side of the plastic mounting block
attached to the top of the stepper motor and screwed into
the matching threaded holes in the (15) Z-axis vertical profile
(left).
4.3
Insert the (17) Z-axis lead screw into the Z-axis shaft coupling
on top of the (08) Z-axis stepper motor.
4.4
Slightly torque the grub screws using an M2.5 hex key (Allen
key) enough so the lead screw is held in place. At this point
in the assembly process do not tighten too much as we will
need to set the final position of this screw in a later step
(step 9.3).

Creality Ender 3 Pro Assembly Instructions V1.0 17 www.rb42.blog
Step 5 - X-axis and Extruder (XE) stepper motor assembly
Tools for this
step
M2.5 Hex Key (Allen Key)
Kit Open Ended Wrench
Parts for this
step
1x (06) XE stepper motor kit
1x (18) X-axis profile (2020)
Fixings
2x M4x16 hex socket button head screw w/ captive
washer
1x 1.75mm Bowden Coupler fitting
Consumables
Loctite 222
Process
5.1
Attach the 1.75mm Bowden Coupler fitting to the (06) XE
stepper motor kit by screwing into the threaded hole on the
extruder housing attached to the top of the extruder stepper
motor. Tighten the coupler into place using the open-ended
wrench from the tool kit supplied with the printer.

Creality Ender 3 Pro Assembly Instructions V1.0 18 www.rb42.blog
5.2
Using an M2.5 Hex Key (Allen Key), fix the (06) XE stepper
motor kit on to the reverse side of the (18) X-axis profile using
the 2x M4x16 hex socket button head screws. Make sure the
XE motor kit is positioned correctly on the left-hand side (right
on the reverse) of the (18) X-axis profile, using the 2 predrilled
and threaded mounting holes.

Creality Ender 3 Pro Assembly Instructions V1.0 19 www.rb42.blog
Step 6 - X-axis Synchronous Belt
Parts for this
step
1x (14) Synchronous Belt (77cm)
Process
6.1
Feed the (14) Synchronous Belt (77cm) under the plastic cover
and around the X-axis pulley (GT2, 20 teeth). The easiest way
to wrap the belt around the pulley is to feed the belt through
the cover, going in one side and out the other, then bending
the belt around and feeding back through the cover once
again.

Creality Ender 3 Pro Assembly Instructions V1.0 20 www.rb42.blog
6.2
Loosely wrap the (14) Synchronous Belt (77cm) around the
opposite end of the (18) X-axis profile. At this point the build
there is no pulley for the belt to go on, it will be installed in
step 8.
6.3
Approximately position the (14) Synchronous Belt so that the
end tabs are in the centre of the X-axis profile. The belt should
roughly be in line with the centre channel of the X-axis profile.
