Cres Cor H138NPSCDOM CE Series Manual

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 1 of 12
Keep this manual for future reference.
OPERATING and MAINTENANCE INSTRUCTIONS
Models: H138NPSCDOM-CE Series Hot Cabinets
Cabinet model number:
Cabinet serial number:
Authorized Service Agency:
Ph: Fax:
H138NPSCDOM2MQCE H138NPSCDOM3MQCE

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 2 of 12
SUBJECT PAGE
INSTALLATION INSTRUCTIONS .........................................................................................3, 4
OPERATING INSTRUCTIONS ...............................................................................................4, 5
Illustration, Control Panel ...................................................................................................5
MAINTENANCE INSTRUCTIONS
How to Clean the Unit.....................................................................................................5, 6
Cabinet Maintenance...........................................................................................................6
Trouble Shooting Guide ......................................................................................................7
Replacement Parts (Electrical) ............................................................................................8
Replacement Parts (H138NPSCDOM2MQCE)..................................................................9
Replacement Parts (H138NPSCDOM3MQCE)................................................................10
Wiring Diagram.................................................................................................................11
SERVICE POLICY and AGENCY LIST ..........................................................................FL-1400
Model Identication:
Look for this label on the back of your cabinet. This information is needed when calling for
questions or service.
5925 HEISLEY RD. MENTOR, OHIO 44060
MOD.
HZ.
SER.
COMMERCIAL COOKING APPLIANCE
MADE IN USA
-211-CE
PH.
I.D. #
R
VOLTS
WATTS
H138NPSCDOM3MQCE
FAA-K5645C-001
230
1470
60
1
SAMPLE

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 3 of 12
INSTALLATION INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE
PERSONNEL ONLY
RISK OF FIRE OR ELECTRIC SHOCK
DO NOT OPEN
WARNING
INSTALLATION:
WARNING
SHOCK HAZARD
To avoid electrical shock, the cabinet must be adequately and safely grounded (earthed)
according to local electrical codes.
(FOR EQUIPMENT WITH CE MARK ONLY)
To prevent electric shock hazard, this appliance must be bonded to other appliances or
touchable metal surfaces in close proximity to this appliance with an equipotential bonding
conductor. This appliance is equipped with an equipotential lug for this purpose. The
equipotential lug is marked with the following symbol
Refer to the table below for electrical ratings:
ELECTRICAL SPECIFICATIONS:
Model No. Volts Watts Amps Hertz Phase
H138NPSCDOM2MQCE 230 1550 6.7 50 1
H138NPSCDOM3MQCE 230 2200 9.5 50 1
Note: The above model number is a basic model. It may include letters: L, GA, HT, or ending with S.

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 4 of 12
INSTALLATION & OPERATION INSTRUCTIONS
NOTE:
Our products have been evaluated to the WEEE directive. We have
also reviewed our products to determine if they comply with the
Restriction of Hazardous Substances directive (RoHS) and have
redesigned our products as needed in order to comply. To continue
complaince with these directives, this unit must not be disposed as
unsorted municipal waste. For proper disposal, please contact The
Authorized Agent:
INSTALLATION:
1. Remove all paper and packing material from inside
of cabinet.
2. Remove protective paper and vinyl material from
outside surfaces of cabinet.
3. Place the cabinet in a well-ventilated area.
4. Place cabinet on level oor.
5. Plug cord end into proper wall outlet.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with the
appliance.
OPERATION:
FIRST TIME START-UP:
1. Push the POWER switch to “ON”, and run the
cabinet for one hour.
NOTE: DO NOT PUT FOOD INTO THE CABINET!
This step is to burn off manufacturing oils and
excess adhesive.
2. Let the cabinet cool and wipe the inside clean with
detergent and hot water before rst use.
WARNING
WARNING
Blower inlet guard must be in place before
operating cabinet.
Do not reverse door openings.
It may result in injury.
Air is VERY HOT
when door is opened.
CAUTION
Eurocatering Equipment Limited
Unit 3 Turnpike Close, Off Bilton Way
Lutterworth Leicestershire, LE17 4YB
United Kingdom

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 5 of 12
OPERATING & MAINTENANCE INSTRUCTIONS
HOW TO HOLD:
1. Push POWER switch to “ON.” POWER LIGHT
will come on.
2. The control is preset to maintain an average
temperature of 82°C. Displayed termperatures will
change during loading and unloading of product.
3. Preheat cabinet for 45 minutes.
4. Put product into cabinet.
NOTE: Proper food holding temperature is
140°F/60°C or higher.

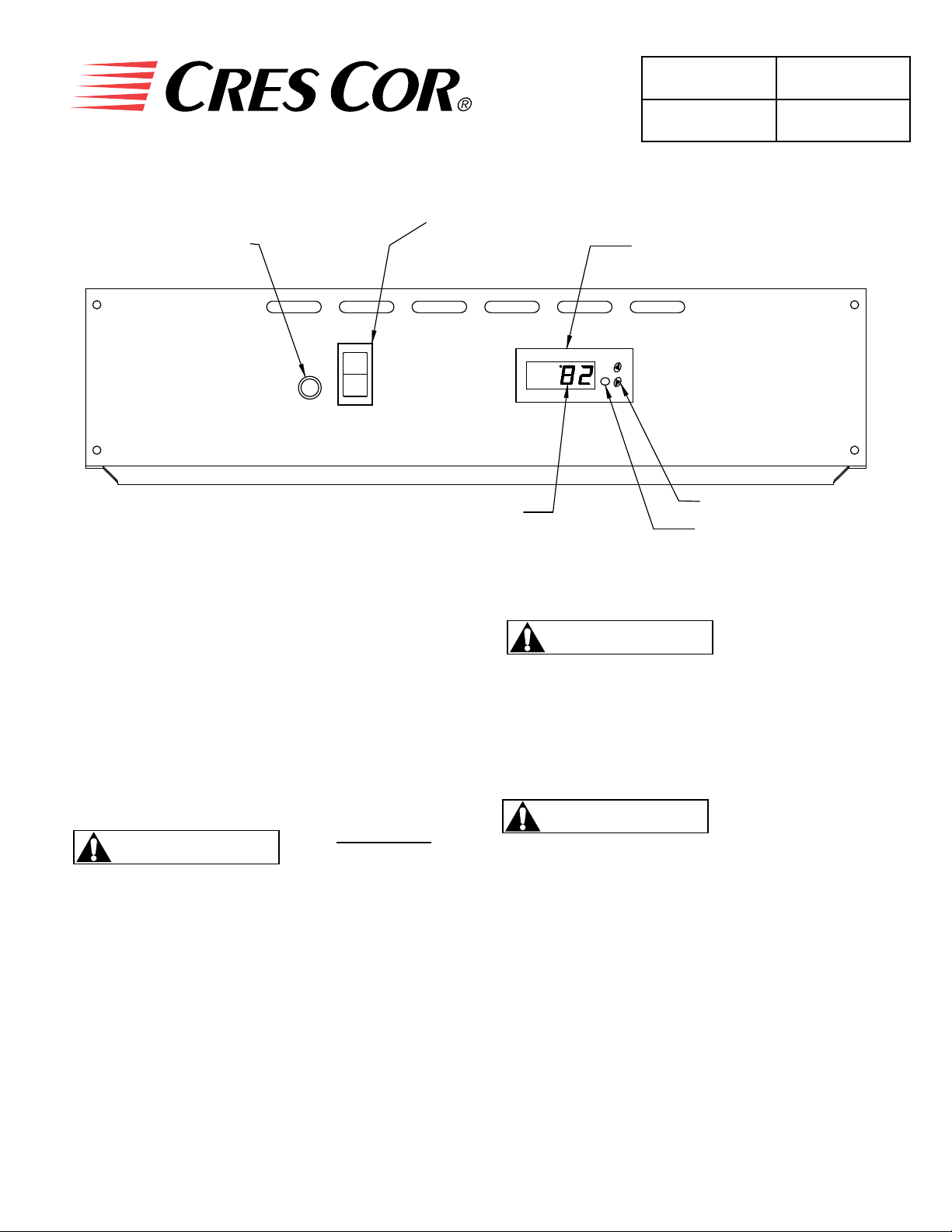

SET
POWER
OFF ( 0 )
ON ( I )
°C
POWER LIGHT
POWER SWITCH
TEMPERATURE
CONTROL
ADJUST BUTTONS
TEMPERATURE
DISPLAY "SET" BUTTON
WARNING
WARNING
Air is VERY HOT
when door is opened.
BEFORE cleaning the cabinet:
1. Turn off controls and disconnect from
power supply.
2. Allow cabinet to cool.
CAUTION
1. Do NOT use abrasives (steel wool) or harsh
chemicals (chlorine, bromine, iodine or ammonia).
2. Do NOT use water sprayer (pressure sprayer) to
clean the cabinet.
Cleaning hints:
1. Wipe up spills as soon as possible.
2. Clean cabinet daily to avoid heavy dirt build-up.
3. Make a test spot with cleaner:
a) Follow manufacturer’s directions on cleaner.
b) Do not mix cleaners.
c) Avoid drips and splashes
NOTE: Gaskets are removable for cleaning.
HOW TO CLEAN THE UNIT:

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 6 of 12
How to adjust/tighten the hinges:
1. Open the door 180°, lift it up and off. Lay it down
with the outside up.
2. Pop off hinge covers with a screwdriver.
3. Loosen the screws that hold hinges to the door.
Those holes are slotted for adjustment.
a) Push the hinge back for the door to close
easier; or
b) Pull the hinge forward to close the gap between
the door and the cabinet.
4. Tighten the screws and then test the door.
MAINTENANCE INSTRUCTIONS
Door
HINGE
ADJUSTMENT PLATE
HINGE COVER
HOW TO CLEAN THE UNIT (continued):
Soil Cleaner Method
CABINET
Inside and
Outside
(Stainless Steel)
DAILY CLEANING Mild detergent and hot
water.
1. Sponge on with cloth.
2. Rinse with water
3. Wipe dry
STUBBORN SPOTS
AND STAINS
Mild abrasive made for
stainless steel
1. Apply with damp sponge or cloth.
2. Rub lightly
3. Rinse with water and wipe dry.
BURNT-ON FOODS OR
GREASE
Chemical oven cleaner
for stainless steel
Follow oven cleaner’s manufacturer’s
directions.
HARD WATER SPOTS
and SCALE Vinegar 1. Swab or wipe with cloth. 2. Rinse dry.
*Mild detergents include soaps and non-abrasive cleaners.
Do not reverse door openings.
It may result in injury.
CAUTION

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 7 of 12
WARNING
IF UNIT GETS TOO HOT OR WON’T SHUT OFF, DISCONNECT
POWER AT BRANCH PANEL. DO NOT UNPLUG CORD!
MAINTENANCE INSTRUCTIONS
TROUBLE-SHOOTING GUIDE
SIMPLE TROUBLE-SHOOTING CHART:
FAILURE POSSIBLE CAUSE
1. POWER LIGHT does NOT light 1a. Switch is “OFF”
1b. Cord is unplugged from wall outlet.
1c. Circuit breaker/fuse to wall outlet tripped/blown.
2. Unit does not heat or not heating properly 2a. Temperature control is set too low.
2b. Switch is “OFF”.
2c. Doors are open too much.
2d. Gaskets are worn or torn.
2e. Thermometer not reading true temperature. Check cabinet
temperature with another thermometer.
3. Unit gets too hot or won’t shut off. 3a. Defective thermostat or blower.
4. Blower does not work or makes noise 4a. Defective blower.
5. GFCI device trips 5a. Plug the cabinet into a non-GFCI outlet and set the
temperature control to its maximum. Let the cabinet run
for about 1 hour to dry out the heating element from any
moisture that may have been absorbed. After drying the
heating element, plug cabinet into the GFCI receptacle; the
cabinet should run properly. If the GFCI device continues
to trip, call the factory Authorized service agent.
If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
If cause is none of the above, refer to our list of Authorized Service Centers, FL-1400

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 8 of 12

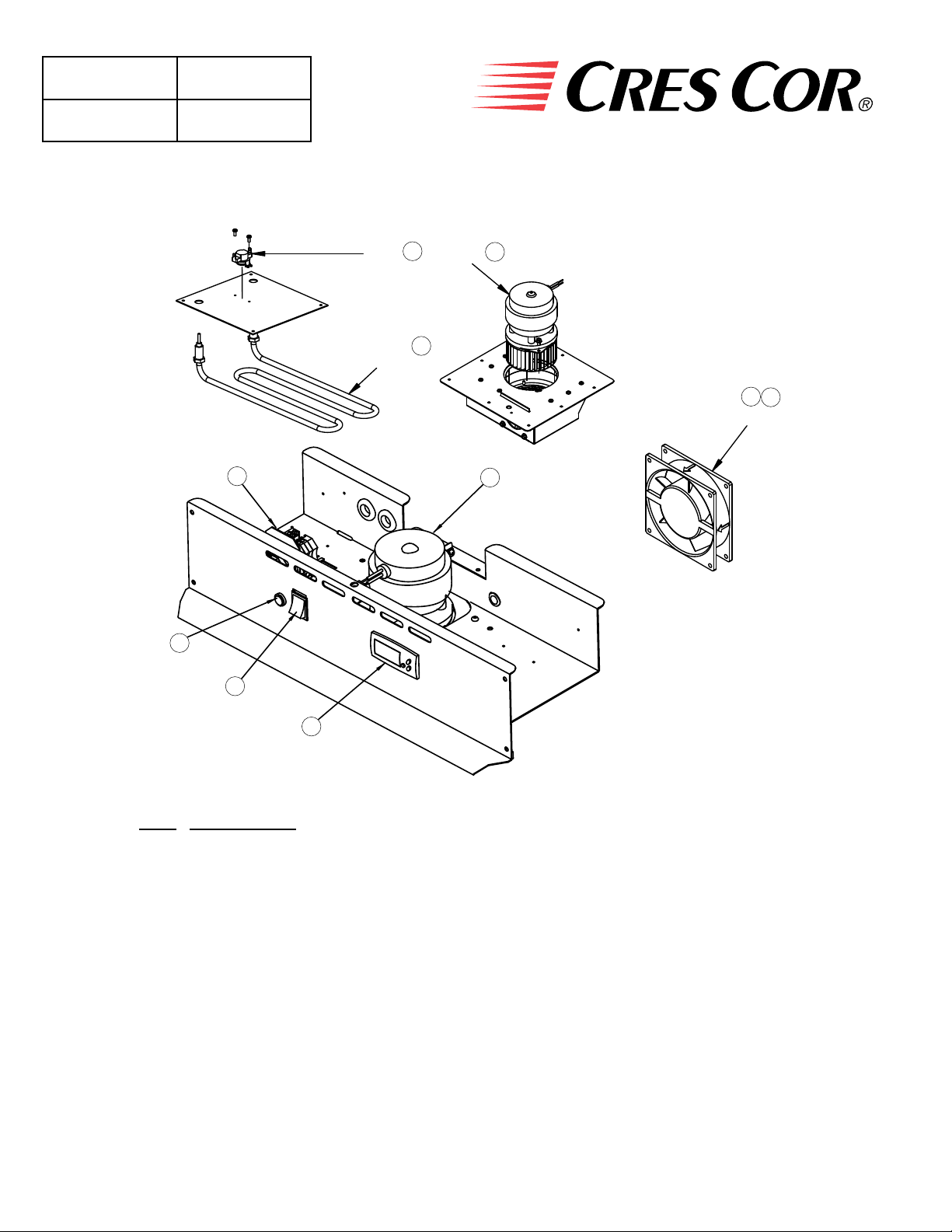

REPLACEMENT PARTS
Include all information on nameplate when ordering parts
ITEM DESCRIPTION
1 Blower Kit 0769-182-01-ALK
2Heater Kit, Air 1370 Watt 0811-289-K
2000 Watt 0811-256-K
3 High Limit 0848-085
4 Power Switch 0808-119
5 Power Light 0769-097
7 Temperature Control 0848-084-DOM-K
8 Terminal Block 0978-021
9 Vent Fan 0769-174
10 Fan Guard 0769-167
Power Cord, United Kingdom 10 Amp 0810-146
16 Amp 0810-174
Strain Relief 0818-082
1
1
2
3
4
5
7
910
8

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 9 of 12
REPLACEMENT PARTS
Include all information on nameplate when ordering parts
CABINET REPLACEMENT PARTS: H138NPSCDOM2MQCE
Item Description Part No. Item Description Part No.
1 Caster 0569-306-K 7 Wire blower inlet guard 1170-211
2 Caster with brake 0569-306-BK 8 Door, Front 1221-564
3 Gasket, doors 0861-264 9 Door, back 1221-565
4 Post, wire angle 0696-169 10 Handle, door 0911-112
5 Wire angle, set of 2 0621-281-K 11 Hinge Kit, lift off, set of 2 0519-114-K
6 Wire shelf 1170-005 12 Air Tunnel 0546-142
1
2
3
4
5
6
7
8
9
10
10
11
12

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 10 of 12

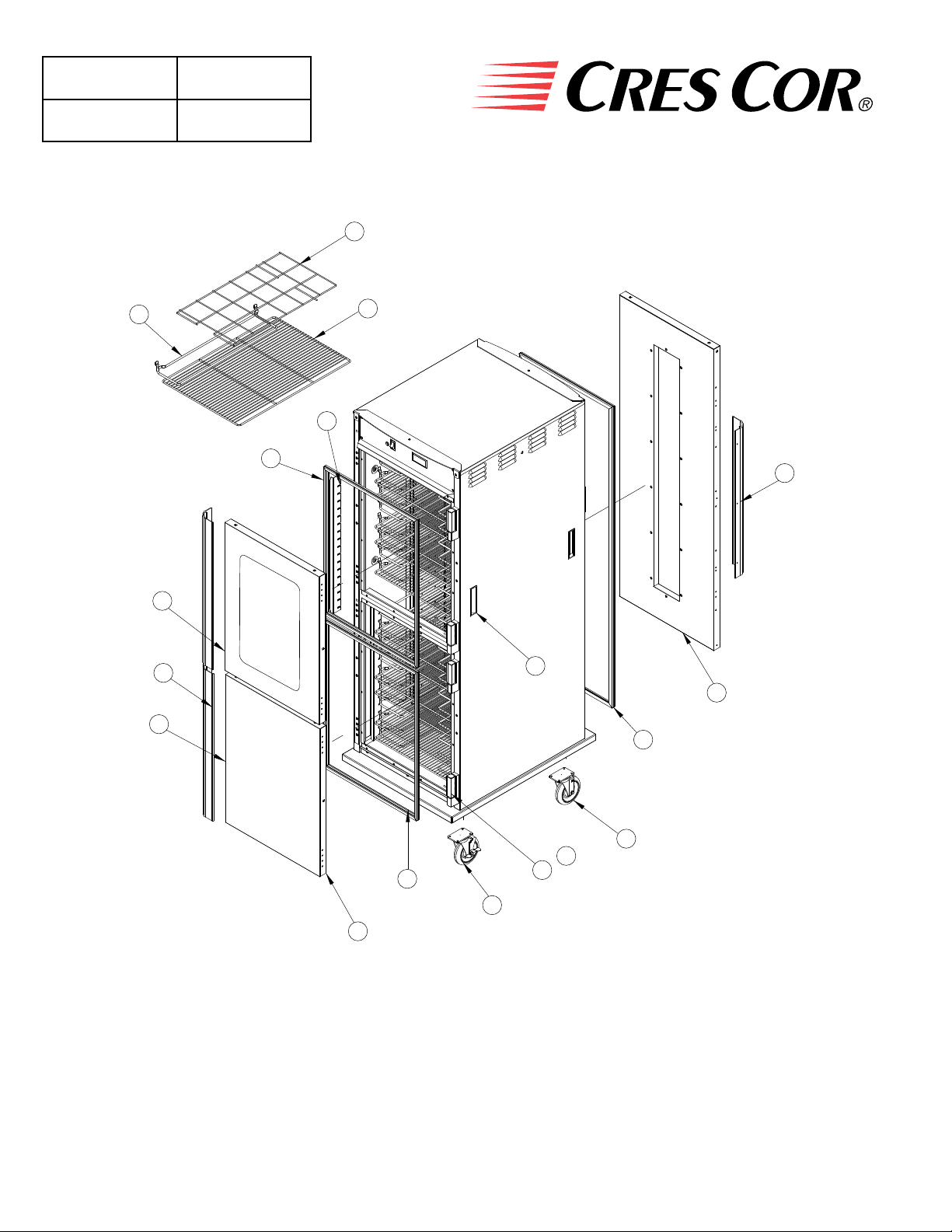

CABINET REPLACEMENT PARTS: H138NPSCDOM3MQCE
Item Description Part No. Item Description Part No.
1 Caster, rigid 0569-306-R 9 Door, front, window 1221-610
2 Caster with brake 0569-306-BK 10 Door, front, solid 1221-534
3 Gasket, front doors 0861-245-K 11 Door, back, window 1221-629
4 Gasket, back door 0861-246-K 12 Handle, door 0911-111
5 Wire shelf 1170-005 13 Pull Handle, black 0911-087
6Angle, Wire 0621-281-K 16 Hinge Kit, lift off, set of 2 0519-114-K
7 Post, rack 0696-228 17 Door stop 0553-740
8 Wire blower inlet guard 1170-211 18 Air tunnel 0546-120
1
2
3
3
4
5
6
7
8
9
10
10
11
12
12
13
17
16
REPLACEMENT PARTS
Include all information on nameplate when ordering parts

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 11 of 12

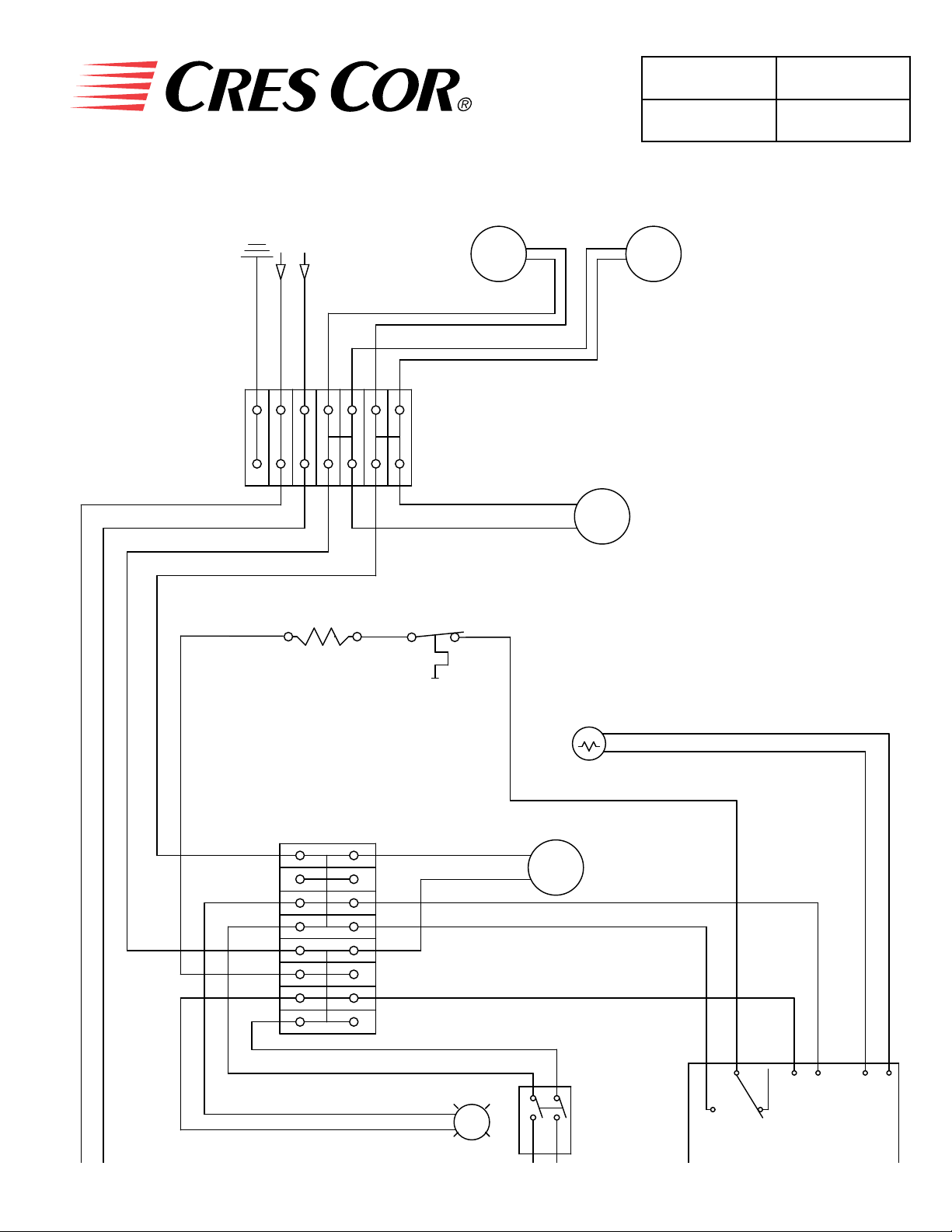

WIRING DIAGRAM
NO C
BLUE
BROWN
HEATER
AIR
GREEN/YELLOW
NC
t°
GVENT
FAN
VENT
FAN
BLOWER
MOTOR
HIGH
LIMIT
POWER
SWITCH
PILOT
LIGHT
BLOWER
MOTOR
TEMP.
CONTROL
POWER
SUPPLY
15
16
13
14
9
5
11
14
2
13
11
1
6
10
7
16
15
21
10 976

5925 Heisley Road • Mentor, OH 44060-1833
Holding Cabinet FL-2344-DOM
Rev. 4 (4/10) Page 12 of 12
NOTES:
