Crest Audio BFP1FM User manual

SAFETY FIRST
1. Installation of this TV Wall Mount will be easier with two people.
2. Some images in this guide may vary slightly from the actual
components supplied.
3. Ensure this instruction manual is completely read and
understood before attempting installation.
4. This TV Wall Mount MUST NOT be installed solely in
plasterboard, fibre cement and similar surfaces.
5. This TV Wall Mount MUST be installed in sound supporting
structures such as those made of timber, steel or masonry
using appropriate fasteners.
6. The supporting structure must be capable of sustaining
the combined weight of the TV Wall Mount and the display
otherwise the structure must be reinforced.
7. The fasteners supplied in this hardware pack allow for fixing
into timber and masonry only. If installing into a supporting
structure made of steel, appropriate fasteners must be used
and sourced from an appropriate supplier.
8. Use appropriate tools and safety equipment and ensure
adequate ventilation during installation.
9. If uncertain about any aspect of installation, contact
The Crest Company or an installation professional.
10. Please retain these instructions for future reference.
Hardware Kit Contents
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
M-A M4 x 14mm Bolt 4 M-J D4 Washer 4
M-B M4 x 30mm Bolt 4 M-K D5 Washer 4
M-C M5 x 14mm Bolt 4 M-L D6 Washer 4
M-D M5 x 30mm Bolt 4 M-M D8 Washer 4
M-E M6 x 14mm Bolt 4 M-N Small Spacer 8
M-F M6 x 35mm Bolt 4 M-O Large Spacer 4
M-G M8 x 20mm Bolt 4 W-A Lag Bolt (ST8 x 63mm) 6
M-H M8 x 40mm Bolt 4W-B Concrete Anchor 6
M-I Allen Key 2 W-C D8 Washer 6
W-D Rectangle Washer 8
Stud Finder with Spirit Level 1
BFP1FM
TV Wall Mount
Compatible TV Size
This TV Wall Mount fits 37– 80”
(93–203cm) TV screens
37- 80”
Maximum TV Weight
This TV Wall Mount supports TVs
weighing up to 60kg
HOLDS
60kg
Maximum Mounting Pattern
This TV Wall Mount has a mounting
hole pattern up to 400x800mm (HxW)
400x800mm
Built-in Spirit Level
This TV Wall Mount has been
designed with a built-in spirit level
Full Motion
This TV Wall Mount allows you to move
your TV at all angles and extends out
up to 47cm from your wall

Tools Required
DRYWALL INSTALLATION (TIMBER SUPPORTS):
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill
• High speed 5mm drill bit
• Pencil
MASONRY INSTALLATION:
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill with hammer function
• 10mm masonry drill bit
• Pencil
• Hammer

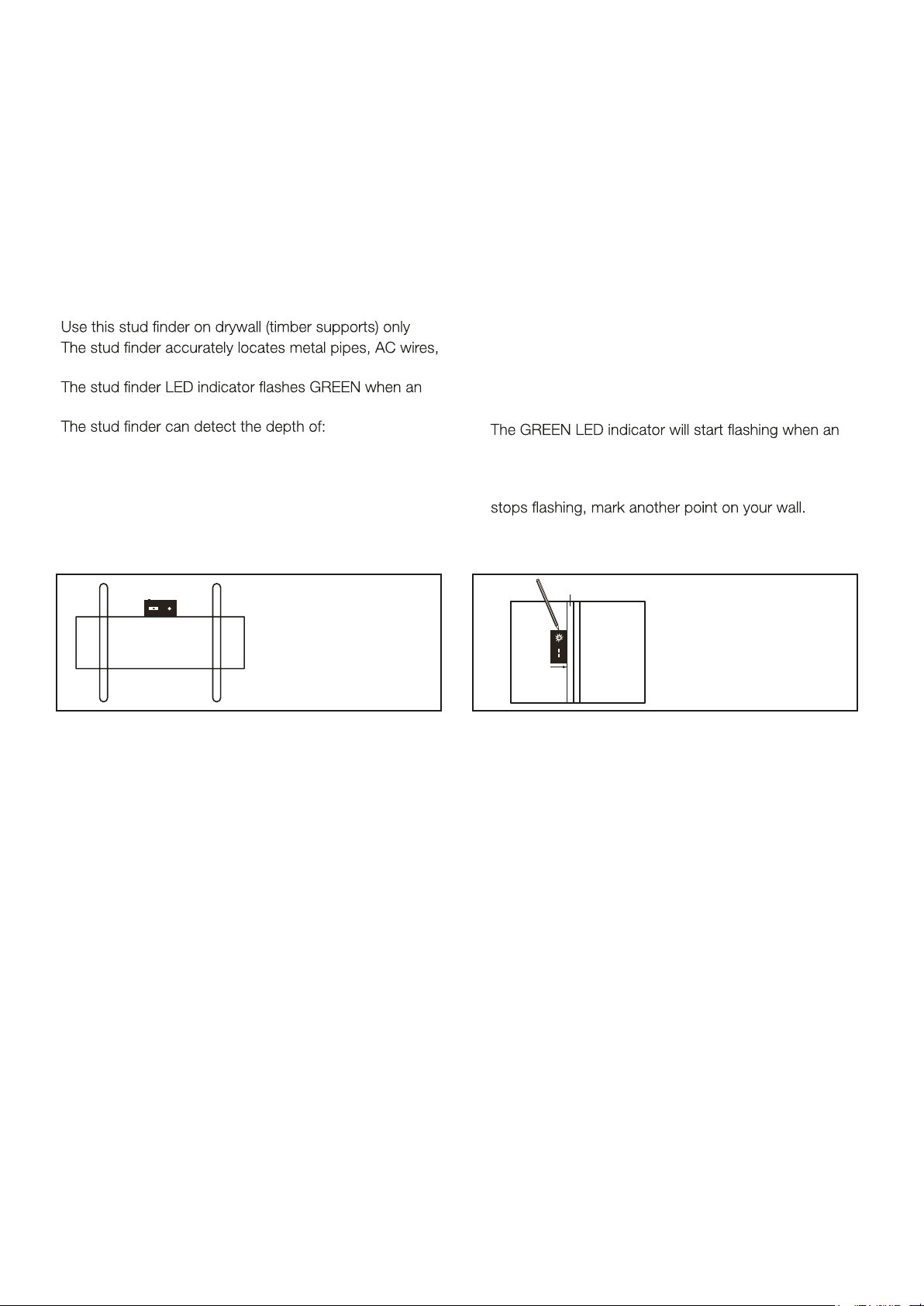

Using the Stud Finder with Spirit Level
HOW IT WORKS:
•
•
studs and wooden frames
•
object is detected
•
WOOD: up to 20mm, wood should be detected based
on the thickness of the drywall less than 20mm
METAL: up to 50mm, metal should be detected based
on the thickness of the drywall less than 50mm
VOLTAGE: up to 70mm, AC wires should be detected
based on the thickness of drywall less than 70mm
INSTRUCTIONS:
1. Keep the stud finder in touch with the drywall.
2. Press the ON/OFF button until the LED indicator turns
RED. Do not move the stud finder.
3. Wait 3 to 10 seconds until theLED indicator turns GREEN,
then start moving the stud finder slowlyon the drywall.
4.
object is detected.
5. Mark a point on the wall using your pencil, then continue
moving the stud finder until the GREEN LED indicator
6. The midpoint between the two marks on your wall
is the centre of the stud.
Use the supplied stud finder
with spirit level to level
your TV Wall Mount
before installation
Find the wood stud,
metal or voltage before
TV Wall Mount installation
STUD
Step 1: Fix Wall Plate to Wall
A. INSTALLING IN DRYWALL (TIMBER SUPPORTS)
WARNING: If attaching this TV Wall Mount using this method, you MUST spread the Wall Plate across 2 wall
studs. Wall studs can be 450mm or 600mm apart depending upon the position of the wall and the geographical
State you live in. The Crest Company will not accept any damages that may occur if only 1 stud is used.
1. Locate the centre of 2 adjacent timber studs using the supplied stud finder with spirit level.
(NOTE: You must use the centre of the stud to avoid cracking or splitting the timber during installation).
2. Mark a minimum of 4 fixing holes over stud centres using the Wall Plate as a guide - position 2 at either end of the
Wall Plate. Ensure plate is level.
3. Pre-drill holes to a minimum depth of 60mm using high speed 5mm drill bit (see Figure 1). If installing in hardwood,
larger diameter and deeper holes may be required.
4. Attach the Wall Plate by inserting lag bolts (W-A) through round washers (W-C) and then through the Wall Plate.
Do not over tighten.
B. INSTALLING IN MASONRY
WARNING: Ensure you have a minimum of 35mm of actual concrete or brick thickness in the hole for the anchors.
Do not drill into mortar joints. Installer must verify that the supporting surface will safely support the combined
weight of the Wall Mount and TV. The Crest Company holds no responsibility for incorrectly installed TV Wall Mounts.
1. Mark a minimum of 4 fixing holes (preferably 6)using the Wall Mount plate as a guide - position2at either end of the Wall Plate.
Ensure plate is level.
2. Pre-drill holes to a minimum depth of 60mm using an 10mm masonry drill bit. Clean out holes.
3. Fully insert the concrete anchors (W-B) into the drill holes. Tap in with hammer if required.
4. Attach the Wall Plate by inserting lag bolts (W-A) through round washers (W-C) into each concrete anchor (W-B).
Do not over tighten.

Step 2: Attach Mounting Arms to TV
1. Using a second person for assistance, lay your TV face down on something soft so as not to scratch the TV screen.
2. Check the back of your TV to find the appropriate mounting pattern.
3. Sort through the provided bolts (M-A to M-H) until you find the correct size that easily fits into the back of your TV and fits snugly
(the bolt must turn at least 3 full turns, do not tighten). If you feel resistance stop immediately and select a smaller bolt.
Once you have selected the correct bolt find the corresponding washer (M-J to M-M). If no bolts fit, you will need to go to
your local hardware supplier to find the correct bolt and washer sizes.
4. Gently put the mounting arms on the back of the TV so that the mounting pattern holes are showing through the holes
of the mounting arms. If the back of your TV is curved or recessed you will also need to use spacer (M-N or M-O)
depending on the amount of space you are trying to clear (see Figure 3). If using spacers you will now need to use longer
screws. Remember that the bolt needs to turn at least 3 full turns.
5. Using the correct mounting bolt size and length, insert these through the corresponding washers (M-J to M-M) to attach
mounting arms to the rear of the TV (see Figure 4). To avoid damaging TV, do not over tighten bolts.
The Crest Company is not responsible for any damage caused by screwing the bolt too far into theback of the TV.
6. Loosen the Safety bolt at the bottom of each mounting arm (see Figure 4).
Safety bolt
Figure 4
Figure 3
3-FLAT BACK TV with
M4/M5/M6/M8 Bolts
3-CURVED BACK TV
with M4/M5/M6 Bolts
3-RECESSED BACK TV
with M8 Bolts
M-J, M-K,
M-L, M-M
M-A, M-C,
M-E, M-G
M-B, M-D, M-F
M-J, M-K, M-L
M-N
M-H
M-M
M-O
Figure 1 Figure 2
TIMBER
FRAME
W-A
W-C
W-B
MASONRY
Mounting Arm
Mounting Arm Mounting Arm

5 YEAR WARRANTY
Olbertz Holdings Pty Ltd ACN 010 003 933 trading as The Crest Company of 165 South Pine Road, Brendale, Queensland, 4500, Ph: 1800 812 261,
www.crest.com.au, warrants that if this Crest product purchased by you from The Crest Company or a retail outlet is found by The Crest Company to be defective
in workmanship or materials within 5 years of the date of purchase, The Crest Company will (at its election) either repair that product, replace the product, supply
an equivalent product or pay the costs of repairing or replacing the product or acquiring an equivalent product.
This limited warranty will not extend to or cover any expenses associated with removing, demounting the original product or installing the repaired, replaced or
equivalent product or all or any of its components, you must bear these expenses. It also does not cover damage or loss resulting from intentional or unintentional
misuse of, tampering with, alterations to or incorrect installation of this product or use of this product for purposes other than that for which it is designed or in a
manner inconsistent with the product’s instructions. This limited warranty also does not apply to damage or loss resulting from fair wear and tear or events beyond
The Crest Company control including but not limited to natural disasters.
In order to claim under this warranty, you must contact The Crest Company and return to The Crest Company (via our nominated reply paid address) the product
and its components and proof of purchase (including the date and location of purchase) so that The Crest Company can verify the defect and your purchase.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure
and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure. The benefits given by this warranty are in addition to other rights and remedies which you
may have under a law in relation to the goods or services to which the warranty relates.
1323
PO Box 5658 Brendale
QLD Australia 4500
Customer Support
1800 812 261
www.crest.com.au
AUSTRALIAN OWNED
Proudly brought to you by:

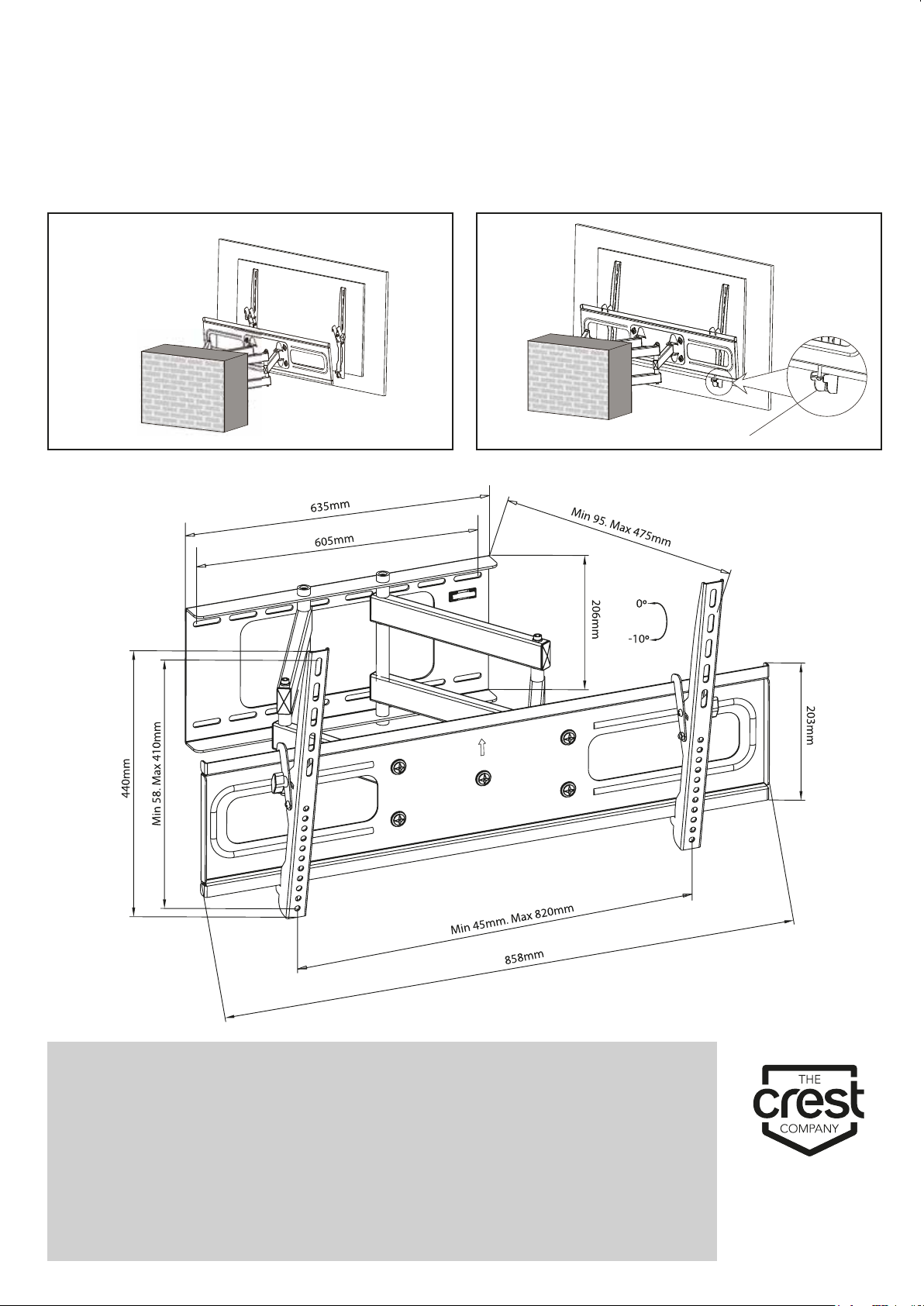

Step 3: Hook Mounting Arms over Wall Plate
1. Using a second person for assistance, carefully lift TV and hook the mounting arms over Wall Plate (see Figure 5).
2. Tighten Safety bolts at bottom of each mounting arm with a long neck Phillips head screwdriver.
This will help ensure that your TV does not fall off your wall mount during use (see Figure 6).
3. Your Full Motion TV Wall Mount is ready to use. You may now adjust the angle of your TV for the best viewing angle.
Check your TV Wall Mount is secure and safe to use at regular intervals (at least every three months).
Tighten Safety bolts
Figure 5 Figure 6
