SAFETY FIRST
1. Installation of this TV Wall Mount will be easier with two people.
2. Some images in this guide may vary slightly from the actual
components supplied.
3. Ensure this instruction manual is completely read and
understood before attempting installation.
4. This TV Wall Mount MUST NOT be installed solely in
plasterboard, bre cement and similar surfaces.
5. This TV Wall Mount MUST be installed in sound supporting
structures such as those made of timber, steel or masonry
using appropriate fasteners.
6. The supporting structure must be capable of sustaining
the combined weight of the TV Wall Mount and the display
otherwise the structure must be reinforced.
7. The fasteners supplied in this hardware pack allow for xing
into timber and masonry only. If installing into a supporting
structure made of steel, appropriate fasteners must be used
and sourced from an appropriate supplier.
8. Use appropriate tools and safety equipment and ensure
adequate ventilation during installation.
9. If uncertain about any aspect of installation, contact
The Crest Company or an installation professional.
Please retain these instructions for future reference.
Hardware Kit Contents
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
AM4 x 12mm Bolt 4EWasher ø18x6.5x1.5 4
AM4 x 30mm Bolt 4ESpacer 18x8x20 4
B M5 x 12mm Bolt 4FWasher ø20x8x1 8
B M5 x 30mm Bolt 4 F M8x60 Lag Bolt 8
CM6 x 12mm Bolt 4 F Concrete Anchor ø10x50 8
CM6 x 30mm Bolt 4 Wall Mount 1
DM8 x 16mm Bolt 4 Mounting Arm 2
DM8 x 30mm Bolt 4 1
Tools Required
DRYWALL INSTALLATION (TIMBER SUPPORTS):
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill
• High speed 3mm drill bit
• Pencil
MASONRY INSTALLATION:
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill with hammer function
• 10mm Masonry drill bit
• Pencil
MFP64FM
Compatible TV Size
This TV Wall Mount ts 37-80”
(94-203cm) TV Screens
37-80”
Maximum TV Weight
This TV Wall Mount supports TVs
weighing up to 50kg
HOLDS
50kg
Maximum Mounting Pattern
This TV Wall Mount has a mounting
hole pattern up to 600x400mm (WxH)
600x400mm
Full Motion
This TV Wall Mount allows you to move
your TV at all angles and extends out
up to 52cm from your wall
10.
Spirit Level

Step 2: Attach Mounting Arm to TV
1. Using a second person for assistance, lay your TV face down on something soft so as not to scratch the TV screen.
2. Check the back of your TV to nd the appropriate mounting pattern.
3. Sort through the provided bolts (A-D) until you nd the correct size that easily ts into the back of your TV and ts snugly (the bolt
must turn at least 3 full turns. If you feel resistance stop immediately and select a smaller bolt.)
The Crest Company is not responsible for any damage caused by screwing the bolt too far into the back of the TV.
Once you have selected the correct bolts, use the corresponding washer (E). If no bolts t you will need to go to your local
hardware supplier to nd the correct bolt and washer sizes.
4. Gently put your Mounting Arms on the back of the TV and align to the correct holes (see Figure 3).
5. Using the correct mounting bolt size and length, insert these through the corresponding washer to attach the Mounting Arms
to the rear of the TV. If one of the larger bolts is selected then use the hole spacers (E) to ll out the Wall Plate hole and reduce
its size for a snugger t. To avoid damaging TV, do not overtighten bolts.
Step 1: Attach Wall Plate to Wall
A. INSTALLING IN DRYWALL (TIMBER FRAME)
WARNING: If attaching this TV Wall Mount using this method, you MUST spread the wall plate across 2 wall studs.
Wall studs can be 450mm or 600mm apart depending upon the position of the wall and the geographical state
you live in. The Crest Company will not accept any damages that may occur if only 1 stud is used.
The Crest Company holds no responsibility for incorrectly installed TV Wall Mounts.
1. Locate the centre of 2 adjacent timber studs. Crest recommends the use of a stud nder (not included).
(NOTE: You must use the centre of the stud to avoid cracking or splitting the timber during installation).
2. Mark a minimum of 4 xing holes over stud centres using the wall plate as a guide - position 2 at either end of the wall
plate (see Figure 1). Ensure plate is level.
3. Pre-drill holes to a minimum depth of 30mm using a high speed 3mm drill bit. If installing in hardwood, larger diameter and
deeper holes may be required.
4. Attach the wall plate using the lag bolts through the washers (F). Do not over tighten.
B. INSTALLING IN MASONRY
WARNING: Ensure you have a minimum of 35mm of actual concrete/brick thickness in the hole for the anchors.
Do not drill into mortar joints. Installer must verify that the supporting surface will safely support the combined weight of
the TV Wall Mount and TV. The Crest Company holds no responsibility for incorrectly installed TV Wall Mounts.
1. Mark a minimum of 8 xing holes using wall plate as a guide - position 2 at either end of the wall plate (see Figure 2).
Ensure plate is level.
2. Pre-drill holes to a minimum depth of 60mm using 10mm masonry drill bit. Clean out holes.
3. Attach the wall plate using the concrete anchors and lag bolts through the washers (F). Do not over tighten.
Using Spirit Level
Use the supplied spirit level to level your TV Wall mount before installation.
Figure 1 Figure 2
FF
30mm(1.2”)
3mm(0.12”)
60mm(2.4”)
10mm(0.39”)

Figure 3
Step 3: Hook Arms over Wall Plate
1. Using a second person for assistance, carefully lift the TV and hook it over the top of the wall plate.
2. Tighten the two Safety bolts by using a Phillips head screwdriver to secure the bracket (see Figure 4).
3. Run cables through the cable management channels on the brackets arms (see Figure 5).
Figure 4 Figure 5
X
TVTV TV TV
OR
Option
A~D
E
A~D
E
Option
E

400mm
633mm
15mm
30mm
25mm
20mm
202mm
5 YEAR WARRANTY
Olbertz Holdings Pty Ltd ACN 010 003 933 trading as The Crest Company of 165 South Pine Road, Brendale, Queensland, 4500, Ph: 1800 812 261,
www.crest.com.au, warrants that if this Crest product purchased by you from The Crest Company or a retail outlet is found by The Crest Company to be defective
in workmanship or materials within 5 years of the date of purchase, The Crest Company will (at its election) either repair that product, replace the product, supply
an equivalent product or pay the costs of repairing or replacing the product or acquiring an equivalent product.
This limited warranty will not extend to or cover any expenses associated with removing, demounting the original product or installing the repaired, replaced or
equivalent product or all or any of its components, you must bear these expenses. It also does not cover damage or loss resulting from intentional or unintentional
misuse of, tampering with, alterations to or incorrect installation of this product or use of this product for purposes other than that for which it is designed or in a
manner inconsistent with the product’s instructions. This limited warranty also does not apply to damage or loss resulting from fair wear and tear or events beyond
The Crest Company control including but not limited to natural disasters.
In order to claim under this warranty, you must contact The Crest Company and return to The Crest Company (via our nominated reply paid address) the product
and its components and proof of purchase (including the date and location of purchase) so that The Crest Company can verify the defect and your purchase.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure
and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure. The benets given by this warranty are in addition to other rights and remedies which you
may have under a law in relation to the goods or services to which the warranty relates.
1682/4
PO Box 5658 Brendale
QLD Australia 4500
Customer Support
1800 812 261
www.crest.com.au
AUSTRALIAN OWNED
Proudly brought to you by:

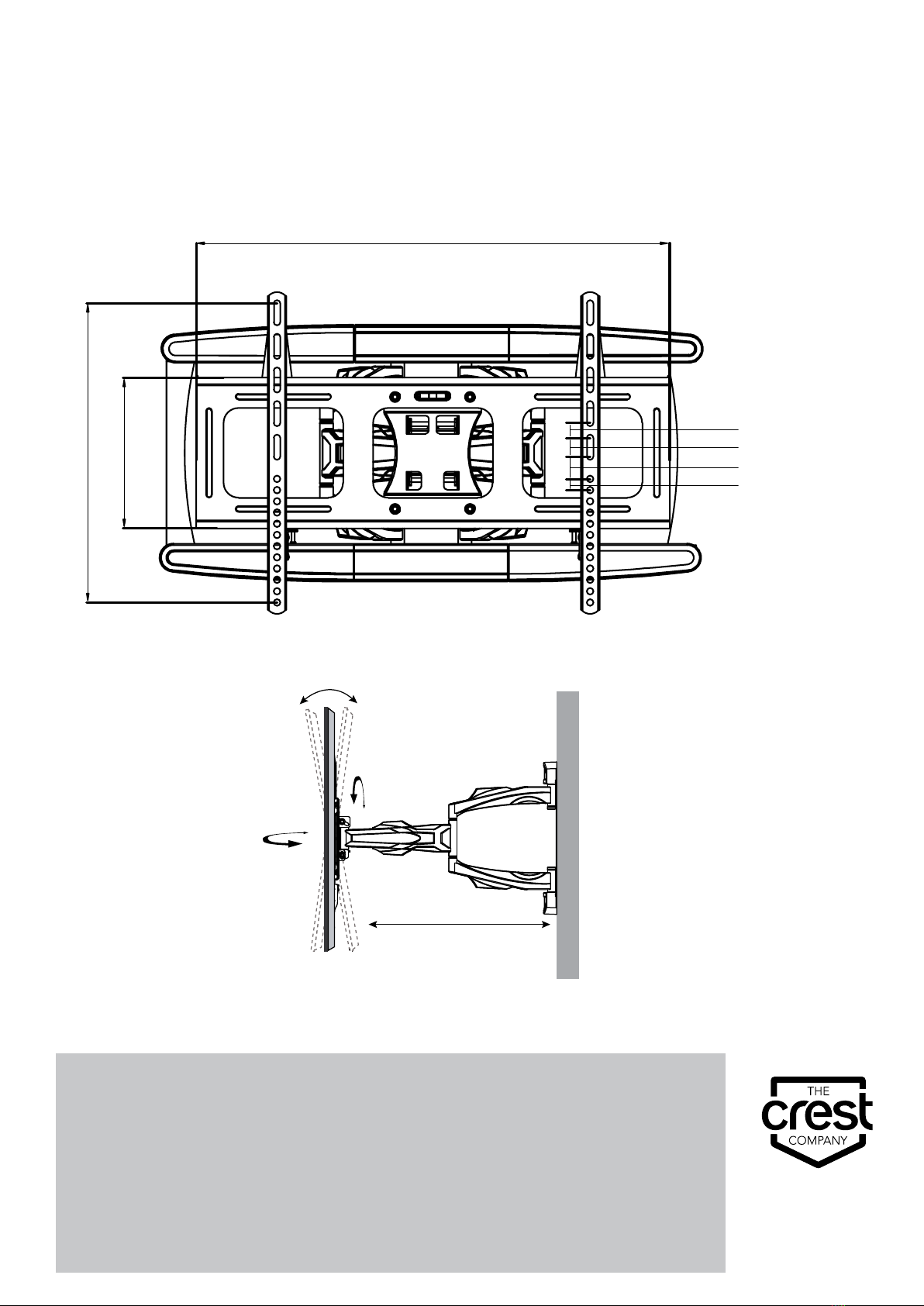

Step 4: Full Motion Adjustment & Maintenance
1. You can now adjust your TV to the desired viewing angle.
2. If your Wall Mount is too loose and moves around too easily or vice versa (too tight) please tighten or loosen as required.
WARNING: Do not loosen too much as the Wall Mount may fall apart.
Check your TV Wall Mount is secure and safe to use at regular intervals (at least every three months).
-10°/+5°
±2°
43-520mm/1.7-20.5”
120°
4
