Crestron FT2A-PWR-IT Series User manual

Suitable for use in Italy and other countries using Type L AC power outlets, the Crestron®
FT2A‑PWR‑IT‑1‑BASIC and FT2A‑PWR‑IT‑2 are modules designed for installation in Crestron
FT2 FlipTop™ cable management assemblies.
The outlet modules provide up to two Type L AC power outlets on top of the table. A
2.74 m (9 ft) power cord is fixed to the bottom of the module. The premium power module
(FT2A‑PWR‑IT‑2) provides two under‑the‑table receptacles for power switchers, HDBaseT®
transmitters, chargers, and other devices. Each module is rated for 10 A (total) at 220‑240 V,
50/60 Hz. The following table provides a size and feature comparison among models.
Module Model Module Slots Required Outlets on Top of the
Table
Outlets Beneath the
Table
FT2A‑PWR‑IT‑BASIC 2 1 None
FT2A‑PWR‑IT‑2 4 2 2

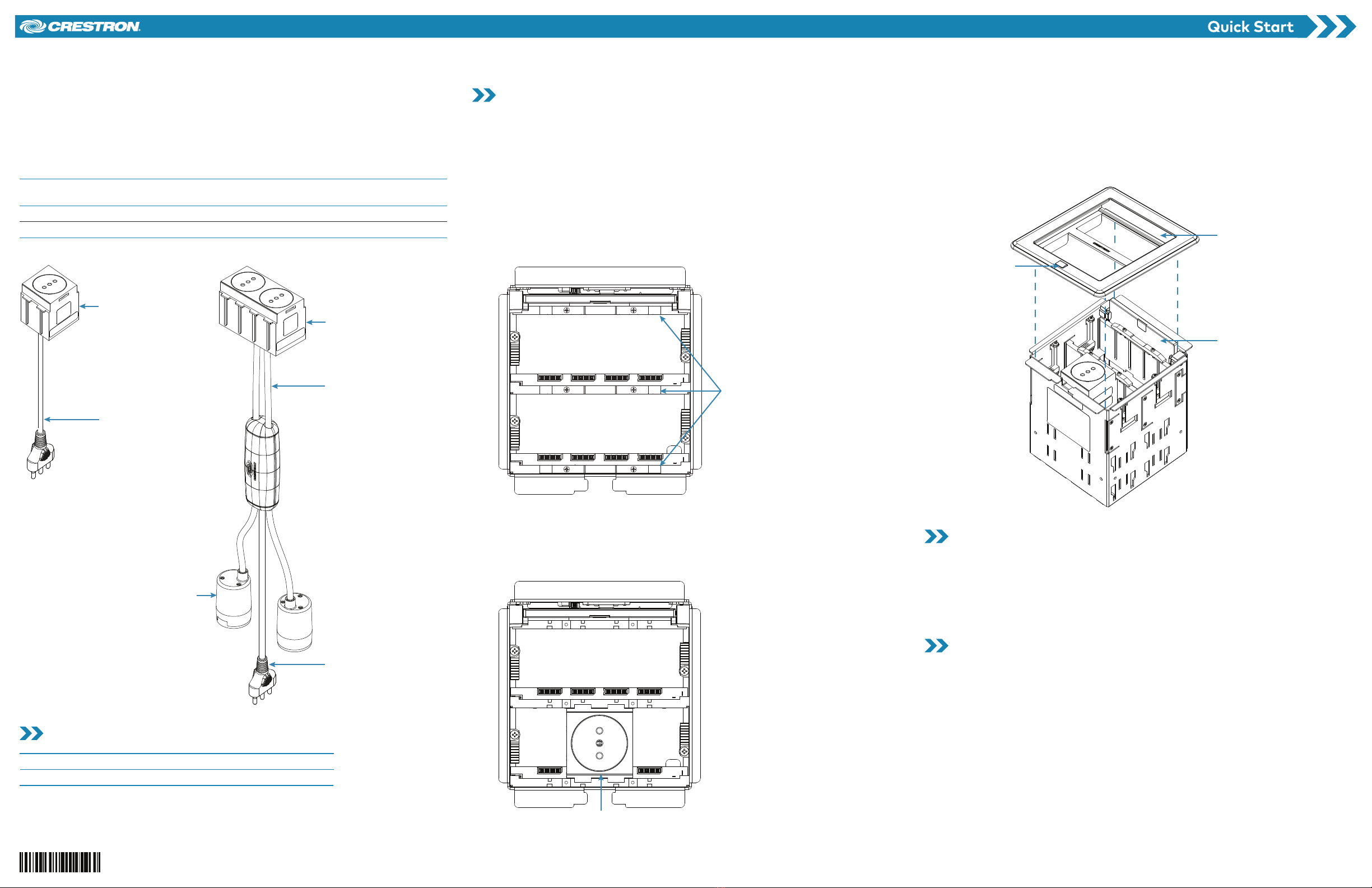

FT2A-PWR-IT-1-BASIC FT2A-PWR-IT-2
Power outlet module
Power cord
2.74 m (9 ft)
Power outlet module
Power cord
2.74 m (9 ft)
Power cable (2)
254 mm (10 in.)
Power receptacle (2)
457 mm (18 in.)
Check the Box
Item Qty
FT2A-PWR-IT-1-BASIC or FT2A-PWR-IT-2 1
Install the Module
Install the power module into the FT2 FlipTop assembly. If the bezel and locking bars have not
been installed on the FT2 FlipTop assembly, skip to step 5.
NOTE: For ease of installation, install power outlet modules before installing any other module.
To install the power outlet module:
1. Tap the lid retraction button to retract the one‑touch lid, which disappears into the FT2
FlipTop assembly. If the assembly has two lids, retract both.
2. Remove and retain the magnetic bezel from the FT2 FlipTop assembly by grasping the
inside of the bezel and firmly pulling it up and away from the assembly until the magnetic
hold is broken.
3. Use a manual torque screwdriver to unscrew, remove and retain the two locking bars on
either side of the module row where the module is to be installed.
Remove Two Locking Bars
Locking bars (3)
4. Lift and remove the modules to be replaced.
5. Insert the new module’s power cable(s) through the empty module slots.
6. Orient the module as shown in the following illustration and slide it down into the
appropriate module slots. Use the guide ribs on the front and rear of the module to help
position it in the assembly.
Position the Module (FT2A-PWR-IT-1-BASIC shown)
FT2A-PWR-IT-1-BASIC
7. Confirm that all modules are level with their surroundings and place the locking bars
(removed in step 3) into position so that the screws on either side engage the screw holes
in the assembly.
8. Use a manual torque screwdriver set to its lowest possible setting to tighten the locking
bar screws until the lock bars are secured to the FT2 FlipTop assembly.
9. Place the bezel (removed in step 2) onto the FT2 FlipTop assembly so that the retractable
lid fits inside the bezel opening. The bezel is held in place by magnets.
Attach the Bezel
The retractable
lid fits inside
this opening in
the bezel.
Retractable lid
Lid retraction button
Connect the Module
The FT2A‑PWR‑IT‑2 provides two Type L AC power receptacles beneath the table (the
FT2A‑PWR‑IT‑1‑BASIC does not). Use these receptacles to provide power to an electrical FT2
FlipTop assembly and to devices installed below the surface within the FT2 FlipTop assembly
system.
To activate the power outlet module, insert the three‑prong plug into a nearby AC wall or floor
outlet.
Operate the Module
To operate the power outlet module:
1. Tap the lid retraction button to retract the one‑touch lid, which disappears into the FT2
FlipTop assembly.
2. Connect the device needing power to one of the available outlets on the module.
3. Confirm that the power indicator on the device shows that the device is receiving power.
FT2A-PWR-IT
AC Power Outlet Modules for FT2 Series

Additional Information
Scan or click the QR code for detailed product information.
FT2A‑PWR‑IT‑1‑BASIC FT2A‑PWR‑IT‑2
