Crestron FlipTop FT2 Series User manual

The Crestron® FT2-700-ELEC-PTL FlipTop™ cable management system
installs into a table or other horizontal surface to provide modular
connectivity. It features a retracting lid that disappears within the
enclosure. When the lid is retracted, 12 module slots are arranged in two
rows of six. The flexible modular design may also be customized with an
assortment of Crestron accessories, and the pass-through lid style
allows cables to be fully extended while the lid is closed.
For more information about the accessories, please visit
www.crestron.com/Crestron-FlipTops. To configure your FlipTop, launch
the FlipTop Configuration Tool.
In the Box
1FT2-700-ELEC-PTL
Additional Items
3 Locking Bars with screws and gaskets (4532479)
1 Cable, DC Power Splitter (2050094)
1 Connector, Plug (2003575)
1 Holder, Power Supply (2048887)
1 Power Cord, 5 ft 10 in. (1.78 m) (2042043)
1 Power Pack, 24VDC, 2.5 A, 100-240VAC (2045873)
1Cutout Template (4527491)
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid
1

Mount the FlipTop Assembly
A mounting hole is required for an FT2-700-ELEC-PTL installation. Use
the included template to cut a mounting hole for new installations. The
FT2-700-ELEC-PTL may also replace an FT-600 FlipTop or Extron®
Cable Cubby® 700 Cable Access Enclosure using the existing mounting
hole.
When determining the location for the FT2 assembly, consider where
users will be seated and their proximity to the FT2 assembly's modules
and retractors. Refer to the FT2A-CBLR-1T and FT2A-CBLR-GR series
cable retractors for above-the-table cable pull-out lengths.
For a new mounting, follow sections Cut the Mounting Hole and Secure
the FlipTop Assembly. To use the mounting hole of an existing FT-600
FlipTop assembly, follow sections Replace the FT-600 FlipTop Assembly
and Secure the FlipTop Assembly.
Cut the Mounting Hole
A saw and the included cutout template are required to cut the
mounting hole.
1. Check the table surface and the area beneath the table. Clear any
obstructions that may impede the installation or functionality of the
FT2 assembly, retractors, and accessories.
2. Using the included cutout template, trace an outline of the mounting
hole onto the table.
3. Cut the mounting hole in the table with an appropriate saw.
Replace the FT-600 FlipTop Assembly
The FT-600 FlipTop assembly mounting hole is larger than the mounting
hole required for the FT2 assembly. FT2A-SPCR-MNT-10 plastic spacers
(sold separately) are used to help fill the gap between the mounting hole
and the FT2 assembly.
1. Loosen the four socket screws that secure the two mounting plates
and the FT-600 FlipTop assembly to the surface.
2. Remove the FT-600 FlipTop assembly.
3. Attach the four plastic spacers to each corner of the
FT2-700-ELEC-PTL.
4. Continue to prepare the FT2-700-ELEC-PTL by attaching the DC
power splitter cable. Refer to Secure the FlipTop Assembly.
2
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid

Secure the FlipTop Assembly
To prepare the FT2-700-ELEC-PTL and secure it to the table surface:
1. Gently remove the bezel before securing the FT2 assembly to the
table. It is held in place with magnets.
2. Locate the included DC power splitter cable.
3. On the underside of the FT2 assembly, locate the power bus and
connect the dual-connector ends of the DC power splitter cable to
the two barrel jacks of the power bus. The cable will be accessed later
in Connect the FlipTop Assembly.
4. Ensure that all four swiveling dogs are tucked inside of the FT2
assembly, and then insert the FT2 assembly into the mounting hole
until the top lip is flush with the table surface.
3
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid

5. Carefully tighten the four swiveling dogs in each corner of the FlipTop
assembly clockwise until the FT2 assembly is secured in place against
the table. Do not overtighten the swiveling dogs.
CAUTION: A screwdriver or manual torque screwdriver at its lowest
setting may be used to tighten the swiveling dogs. Avoid stripping
the swiveling dogs and damaging the table.
If removing the FT2-700-ELEC-PTL from the table, ensure that the
screwdriver rotation is set correctly before loosening the swiveling
dogs.
Connect the FlipTop Assembly
Access the two network connectors and two power bus barrel jacks on
the underside of the FT2 assembly.
4
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid

Connect the Network
Automate the one-touch retractors by connecting all retractors in an
FT2 assembly to a control system and a switch, or to a DMPS via a single
Cresnet® cable. Custom programming can trigger the retractors after
five minutes of no video detected.
Connect the FT2 assembly to a Crestron control system or DMPS3 via
the 3-pin connector using standard Cresnet cable. The red power lead is
not connected and should be terminated.
Connect and Place the Power Supply
The FT2-700-ELEC-PTL ships with one 24VDC power supply that is used
to supply power to the power bus in the FT2 assembly. There are six
possible locations to attach the power supply. Connect the power supply
prior to installing any modules.
NOTE: Two power supplies are required if installing two rapid charging
modules in the FT2-700-ELEC-PTL. For more information, refer to the
FT2A-CHGR-USBA-BASICQuick Start Guide (Doc.8423) or
FT2A-CHGR-USBA/CInstallation Guide (Doc.8219).
To connect the power supply to the power bus:
1. Underneath the FT2-700-ELEC-PTL, connect the power supply to the
bottom of the power bus.
lIf connecting one power supply, connect the power supply’s power
cord to the single connector end of the DC power splitter cable.
Refer to step 1 in Secure the FlipTop Assembly.
lIf connecting two power supplies, connect each power supply’s
power cord to a barrel jack in the power bus.
2. Use the two included tie wraps to dress the power cord.
3. Slide the power supply into the power supply holder until it is secured
in place.
5
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid

4. Align the four keyed tabs on the power supply holder with four keyed
slots on the FT2 assembly. Then, push the power supply holder up and
into the slots so that the keyed tabs engage the wide end of the slots.
5. Slide the holder downward until it is secured to the FT2 assembly.
6. Connect the included 5ft 10in. (1.78m) power cord to the power jack
on top of the power supply.
7. Connect the other end of the power supply to a power source only
after all other modules have been installed and all connections have
been made to the FlipTop assembly.
6
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid

Install the Modules
All modules are sold separately and not included with the
FT2-700-ELEC-PTL FlipTop assembly. Installation procedures for most
modules are available in separate product documentation. For more
information, refer to the specific product manual located at
www.crestron.com/manuals.
The following sections provide best practices and installation procedures
for pass-through cable modules and blank plate modules.
Module Best Practices
Follow the best practices below when performing module installation.
lPerform module installation in the following order:
1. AC Power Outlet Modules (FT2A-PWR-US,FT2A-PWR-EU,
FT2A-PWR-AU,FT2A-PWR-FR,FT2A-PWR-IS,FT2A-PWR-IT,
FT2A-PWR-SW,FT2A-PWR-UK, and FT2A-PWR-UN)
2. Retractor modules (FT2A-CBLR-1T series and FT2A-CBLR-GR
series)
3. All other modules (FT2A-CP series, FT2A-CHGR series,
FT2A-PLT-PT, and FT2A-PLT-BLANK)
lPlace the FT2A-CBLR-GR modules only at the ends of a module row.
lDress all cables after installing each module.
Pass-Through Cable Module
The FT2A-PLT-PT pass-through modules (sold separately) enable
FT2-CBL-PT pass-through cables (sold separately) and other types of
interface cables to be installed within the FT2-700-ELEC-PTL. Each
FT2A-PLT-PT cable module is packaged with a nylon grommet and a
cable plate. An empty module slot in the FT2-700-ELEC-PTL and an
FT2-CBL-PT series or other interface cable are required for installation.
Installing the Pass-Through Cable Module with 4K Cables
The included grommet is not needed when installing most 4K cables. If
the cable is 10 mm or thinner, the grommet may be used.
1. Push the connector end of the cable through the hole in the cable
plate.
2. Insert the cable plate into one of the three slots in the pass-through
module. Choose the appropriate slot based on the length of the cable
connector. The top of the connector must sit flush with the top of the
module.
NOTES:
lIf the connector extends past the top of the pass-through
module, the lid cannot close.
lEnsure that the cable moves freely in the module prior to
attaching the side plate. The plate is difficult to remove once it is
attached.
7
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid

3. Attach the side plate to the module by snapping the plastic clips on
the plate into the two slots on the module.
NOTE: When removing the side plate, use a flat-head screwdriver to
carefully pry the plastic clips off of the module near the two slots.
4. Feed the other end of the cable through an empty module slot in the
FT2 assembly.
5. Slide the pass-through cable module into the same module slot as
mentioned in the previous step. Use the guide ribs on the front and
rear of each module to help position the module in the FT2 assembly.
Installing the Pass-Through Cable Module with Non-4K
Cables
The grommet is recommended to use with cables that are 10 mm or
thinner.
1. Open the grommet.
2. Insert a cable into the grommet with the connector facing up toward
the user.
3. Press the grommet back together to secure the cable inside.
4. Push the grommet and cable through the hole in the cable plate.
5. Insert the cable plate into one of the three slots in the pass-through
module. Choose the appropriate slot based on the length of the cable
connector. The top of the connector must sit flush with the top of the
module.
NOTES:
lIf the connector extends past the top of the pass-through
module, the lid cannot close.
lEnsure that the cable moves freely in the module prior to
attaching the side plate. The plate is difficult to remove once it is
attached.
8
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid

6. Attach the side plate to the module by snapping the plastic clips on
the plate into the two slots on the module.
NOTE: When removing the side plate, use a flat-head screwdriver to
carefully pry the plastic clips off of the module near the two slots.
7. Feed the other end of the cable through an empty module slot in the
FT2 assembly.
8. Slide the pass-through cable module into the same module slot as
mentioned in the previous step. Use the guide ribs on the front and
rear of each module to help position the module in the FT2 assembly.
Install the Blank and Keystone Plate Module
Blank plate modules (sold separately) fill empty slots in module rows,
and keystone plate modules (sold separately) allow for cables
terminated with standard keystone jacks to be installed in the FT2
assembly. The blank and keystone modules each require one empty
module slot for installation.
To install a blank or keystone plate module into the FT2-700-ELEC-PTL:
lSlide the blank plate module down into the appropriate module slot.
Use the guide ribs on the front and rear of each module to help
position it in the FT2 assembly.
lFor the keystone plate module, complete the following steps.
1. Snap the cable’s keystone jack into the keystone opening in the
keystone plate module.
2. Feed the cable down through the empty module slot.
3. Slide the attached keystone plate module down into the same
module slot using the front and rear guide ribs to assist with
positioning.
9
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid

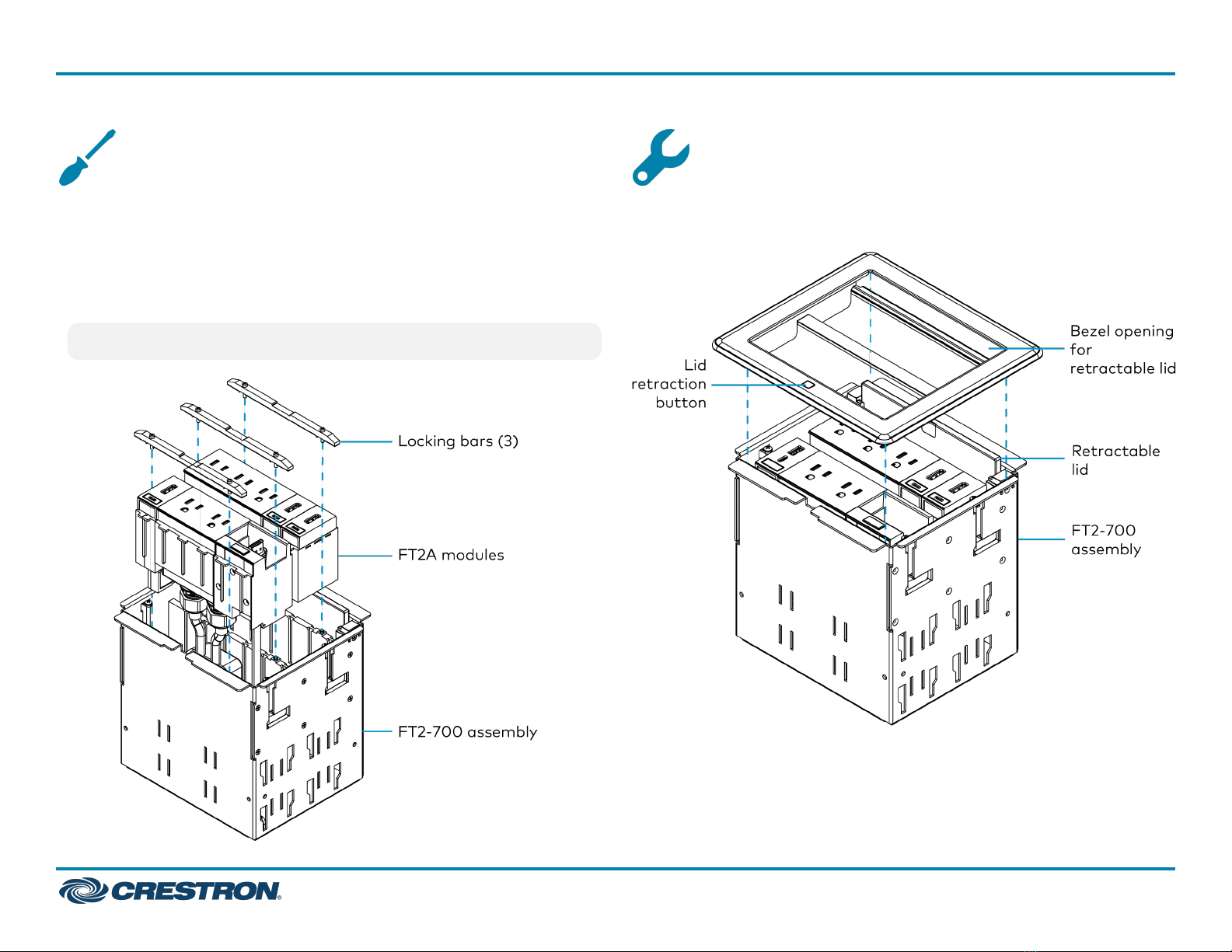

Install the Locking Bars
To install the locking bars:
1. Position the locking bars so that the gasket and screws attached to
the locking bars engage the screw holes in the FT2 assembly.
2. Use a screwdriver to secure the locking bar screws to the FT2
assembly.
CAUTION: Do not overtighten the locking bar screws.
Install the Bezel
Place the bezel onto the FT2 assembly so that the retractable lid fits
inside the bezel opening. The bezel is held in place using magnets.
10
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid

Operate the FlipTop Assembly
To operate the FT2-700-ELEC-PTL:
1. Open the lid by sliding the lid retraction button away from the FT2
assembly. The lid retracts into the assembly.
2. Access the modules in the FT2 assembly.
3. Close the lid by lifting it vertically and returning it over the FT2
assembly.
Visit the Product Page
Scan the QR code to visit the product page.
FT2-700-ELEC-PTL
www.crestron.com/model/6511978
Additional Information
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Regulatory Models: FT2-700-ELEC-AL, FT2-700-ELEC-B
Crestron product development software is licensed to Crestron dealers and Crestron
Service Providers (CSPs) under a limited nonexclusive, nontransferable Software
Development Tools License Agreement. Crestron product operating system software is
licensed to Crestron dealers, CSPs, and end-users under a separate End-User License
Agreement. Both of these Agreements can be found on the Crestron website at
www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit
www.crestron.com/opensource.
Crestron, the Crestron logo, Cresnet, and FlipTop are either trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and/or other countries.
Cable Cubby is either a trademark or registered trademark of Extron Electronics in the
United States and/or other countries. Extron is either a trademark or registered
trademark of RGB Systems, Incorporated in the United States and/or other countries.
Other trademarks, registered trademarks, and trade names may be used in this
document to refer to either the entities claiming the marks and names or their products.
Crestron disclaims any proprietary interest in the marks and names of others. Crestron
is not responsible for errors in typography or photography.
©2021 Crestron Electronics, Inc.
Doc. 9087A
11/04/21
11
FT2-700-ELEC-PTL QuickStart
FlipTop™ FT2 Series Cable Management System, 700 Size, Electrical, Pass-Through Lid
