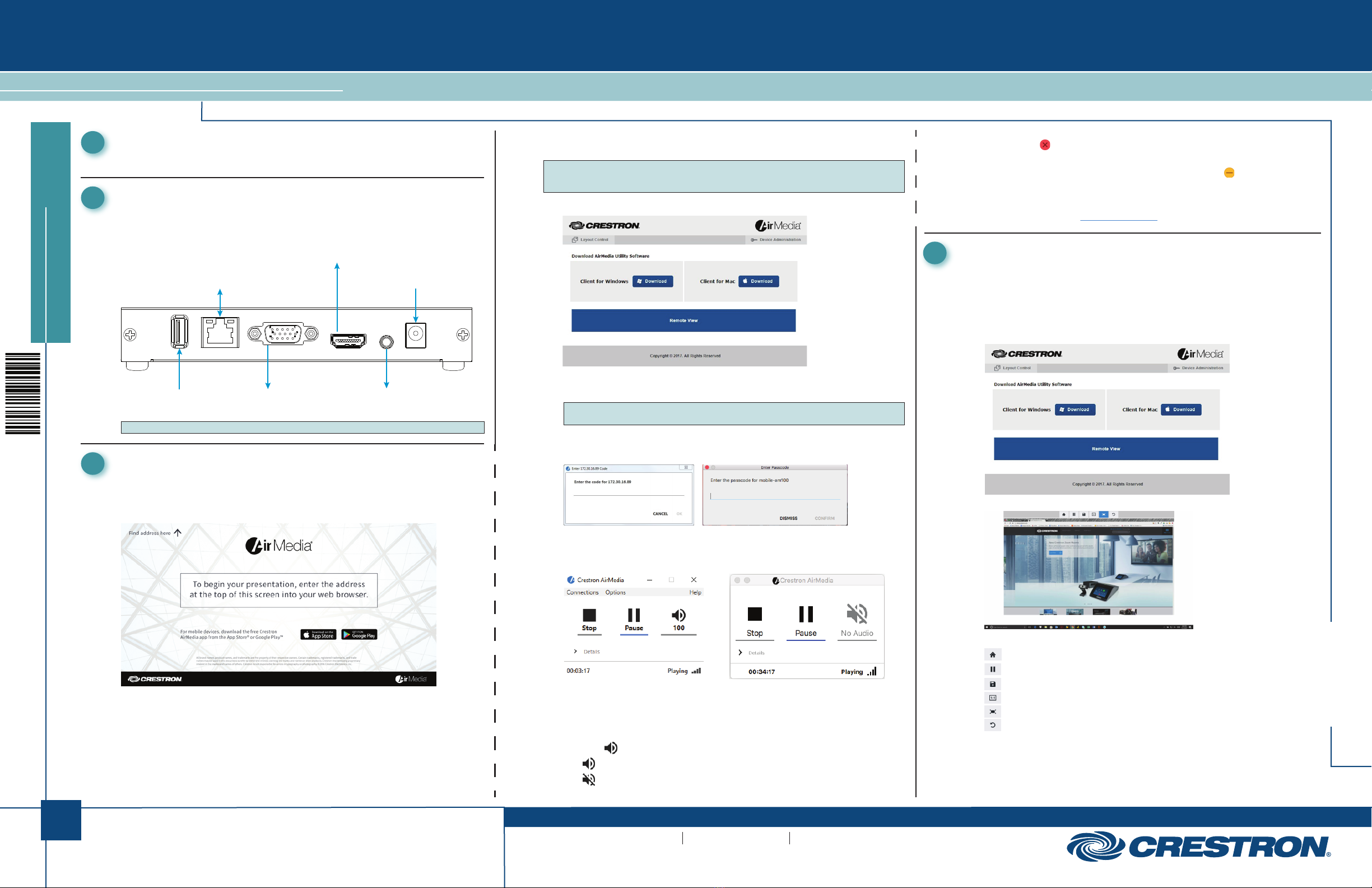

Crestron AM-100 AirMedia User manual

1
quickstart guide
AM-100
www.crestron.com
888.273.7876 201.767.3400
Specifications subject to
change without notice.
AM-100
For details, refer to the AM-100 Operations Guide,
Doc 7463.
QUICKSTART DOC. 7464E (2036013) 12.17
AirMedia®Presentation Gateway
• Click X to close the client application and the connection between the computer and the AM-100.
On a Mac, click to close the client application and the connection between the computer and
the AM-100.
• Click ― to minimize the presentation control screen. On a Mac, click to minimize the
presentation control screen.
Other Functions
Click Details to control remote viewing and video performance. For details, refer to the AM-100
Operations Guide (Doc. 7643) at crestron.com/manuals.
1
The AirMedia®Presentation gateway delivers a simple, low-cost wireless HD presentation solution.
Introduction Download the Client Application
The AM-100 can use a client application to share a PC or a Mac (hereafter referred to as a
“computer”) desktop. The computer should be able to access the AM-100 over the network.
NOTE: Mobile devices can share content using the AirMedia for AM-100 app, which is available for
iOS®and Android™ devices. Download the latest version from the App Store®app in iTunes®
software or the Google Play™ store.
1. On the computer, open a web browser, and navigate to the web address or IP address displayed
on the top left of the AM-100 welcome screen. The download screen is displayed.
2. Click the Download icon for the computer’s operating system to download the client application.
The client application requires no installation. The application can either be saved and run locally,
or run from the Internet.
NOTE: When used on a Mac® computer, the AirMedia client application must be run from within
the disk image file. Do not drag the application of the disk image file.
Share the Computer Desktop
1. Run the client application. The Enter Code (Enter Passcode on Mac) screen is displayed.
Enter Code (L-R, Windows®and Mac)
2. Enter the code displayed on the AM-100 welcome screen, and click OK (CONFIRM on Mac). The
client establishes a connection between the the computer and the AM-100 while displaying the
AirMedia controls on the computer.
Crestron AirMedia Controls (L-R, Windows and Mac)
2. Direct the presentation with the following controls:
• Click Ato stop showing the computer’s screen.
• Click Hto start showing the computer’s screen.
• Click b to freeze the computer’s screen.
• Hover over to show a volume slider control and drag the slider to raise or lower the volume.
• Click to mute the audio output.
• Click to unmute the audio output.
2
Make the necessary connections as called out in the illustration below. When making connections to the
AM-100, use Crestron®power supplies for Crestron equipment. Apply power after all connections have
been made.
NOTE: Typical Installation uses only the HDMI OUT or the VGA OUT-AUDIO OUT connection.
Hardware Hookup
3
This section provides instructions on sharing a desktop on a display device. For instructions on remotely
viewing a shared desktop, refer to section 4.
Make all connections as described in the “Hardware Hookup” above. The connected display shows the
AM-100 welcome screen.
Share a Presentation
SERVICE:
Not Used
LAN:
10BASE-T/100BASE-TX Ethernet to LAN
VGA OUT:
To display’s VGA input
(use with AUDIO OUT)
HDMI®OUT:
To Display’s HDMI Input
AUDIO OUT:
To display’s audio input
(use with VGA OUT)
5V 2.6A:
From AC Power Pack
4
This section provides instructions on remotely viewing a shared desktop. For instructions on sharing a
desktop, refer to “Share a Presentation.”
If Remote View is enabled, audience members can view desktop images via the AM-100’s built-in web
server. Perform the following procedure to remotely view images:
1. Open a web browser on a remote computer and navigate to the web address or IP address
supplied by the user or users that are sharing their desktops. The download screen is
displayed.
2. Click Remote View. The shared desktop is displayed in the web browser as a web page.
3. Use the following buttons when viewing the AM-100’s output in a web browser.
Exit remote viewing and return to the download screen.
Pause the currently displayed image.
Save the currently displayed image.
View the currently displayed image at actual size.
View the currently displayed image at full-screen size.
Refresh the image.
View a Presentation Remotely

2
quickstart guide
AM-100
www.crestron.com
888.273.7876 201.767.3400
Specifications subject to
change without notice.
AM-100
For details, refer to the AM-100 Operations Guide,
Doc 7463.
QUICKSTART DOC. 7464E (2036013) 12.17
