Cretors EG20 User manual

3243 North California Avenue, Chicago, IL 60618
DIGITAL GIANT
POPCORN MACHINE
SERVICE MANUAL
120/208 Volt,
Single and Three Phase, 60 Hz
120/240 Volt,
Single and Three Phase, 60 Hz
230 Volt,
Single Phase, 50 Hz
400 Volt,
Three Phase, 50 Hz.
100/200 Volt
Single Phase, 50/60 Hz
Included in this manual:
*One Pop Option
*Salt/Sugar Option
READ and UNDERSTAND these operating and safety
instructions before operating this popcorn machine!

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 2 BEGIN SERIAL NO: 00035540
TABLE OF CONTENTS
I. Safety Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
II. Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
III. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IV. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
A. Electric Specifications
B. Size Specifications
V. Purpose of Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
VI. Installation Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
A. Location
B. Power Supply
C. Connecting Machine to Power Supply
D. OEM Option Pedestals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
E. Pump Installation & Timer Adjustment for Salt/Sugar Machines
VII. Service Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
A. Parts
B. Kettle Temperature Control
1. Temperature Control
2. Digital Temperature Control Adjustment . . . . . . . . . . . . . . 9
3. Checking Temperature Control . . . . . . . . . . . . . . . . . . . . . . . 10
4. Salt Timer Adjustment
5. Salt/Sugar With One Pop Adjustment . . . . . . . . . . . . . . . . . 11
C. Kettle Removal
D. Kettle Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
E. Kettle Spring Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
VIII. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 3 BEGIN SERIAL NO: 00035540
I. SAFETY ALERT SYMBOL
The symbol shown below is used to call your attention to instructions concerning your
personal safety and the safety of others. Watch for this symbol. It points out important
safety precautions and procedures. It means "ATTENTION! Become Alert! Your
personal safety is involved!" Read the message that follows and be alert to the risk of
personal injury or death.
II. SAFETY FIRST
The information in this manual is essential for the safe installation and
service of your Cretors popcorn machine. The manual must be read and
understood before installing, or maintaining equipment, or equivalent
training must be provided.
"The employer must instruct each employee in the recognition and
avoidance of unsafe conditions, regulations applicable to his work
environment to control or eliminate any hazards or other exposure to
illness or injury". Ref.: 29 CFR 1926.20 (b)(4)(a)(2)
It is understood that safety rules within individual companies vary. If a
conflict exists between the safety procedures contained in this manual and
the rules of a using company, the more stringent rule should take
precedence.
III. INTRODUCTION
This manual is filled with time-saving and money-saving information regarding your
Cretors popcorn machine. There is nothing, however, more important than the safety
aids and warnings that are found throughout this document. The Safety Alert Symbol is
used to identify topics of primary safety concern wherever they appear. A separate
section has been included which deals exclusively with operation and accident
prevention.
If, after reviewing this manual, anything is unclear or technical problems are
encountered, contact the distributor from whom you purchased your machine. For
assistance and if there are any additional questions, feel free to contact our Customer
Service Department at the address and/or phone number listed on the last page of this
manual. Always have the model and serial number of your machine available to assist
in obtaining the correct information.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 4 BEGIN SERIAL NO: 00035540

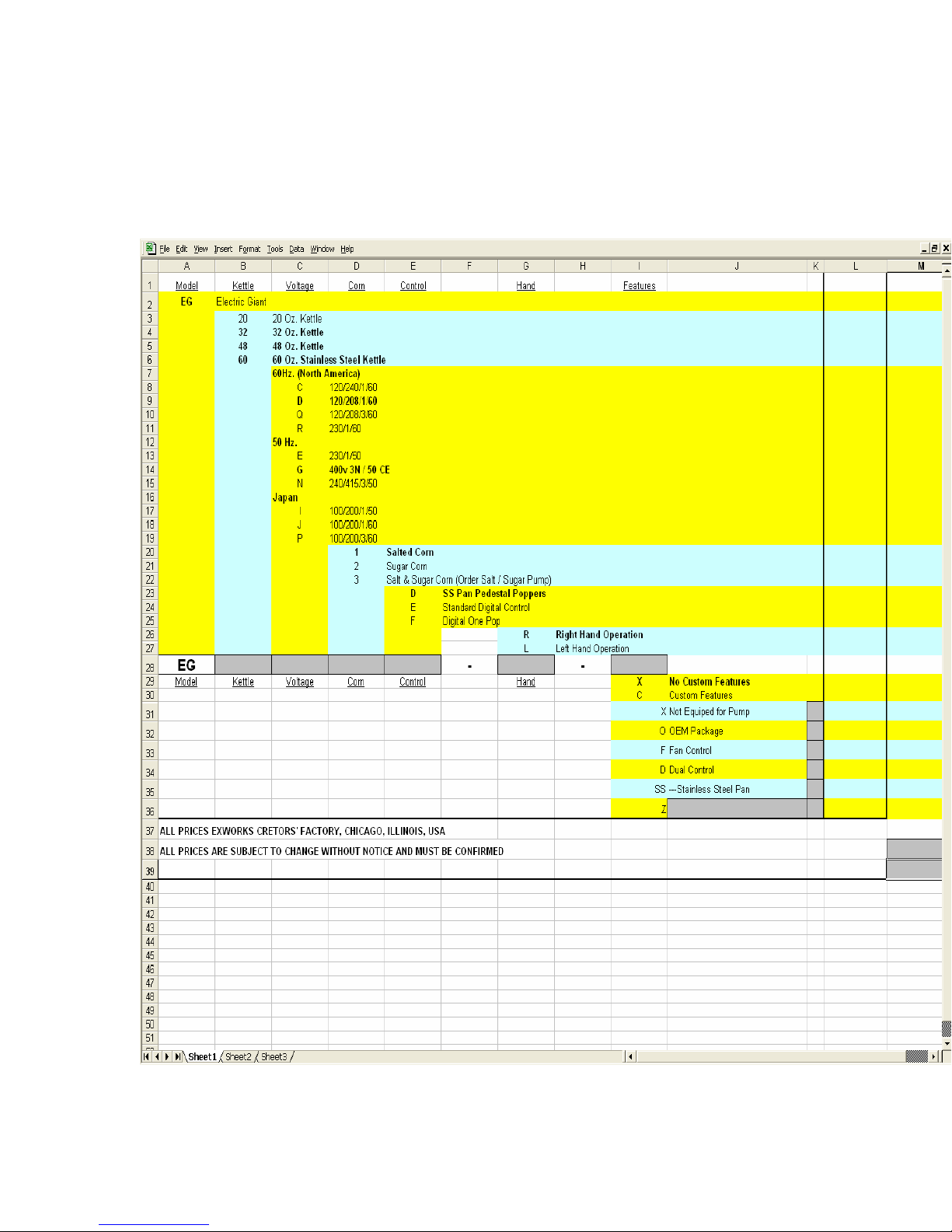

CONFIGURATOR PAGE

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 5 BEGIN SERIAL NO: 00035540
IV. SPECIFICATIONS
Giant Models: EG20, EG32, EG48, EG60
A. Electrical Specifications:
Giant Models are available in the following electrical configurations:
100/200 Volt, Single Phase, 50 or 60 Hz
120/208 Volt, 120/240 Volt, Single and Three Phase, 60 Hz
230 Volt, 400 Volts, Single and Three Phase, 50 Hz
B. Size Specifications:
MODEL EG20 GIANT 20 OZ. ELECTRIC WITH PUMP
Capacity: 20 oz. All-Steel Kettle, 400 one-ounce servings per hour.
Wattage: 2950 watts
Dimensions: 10-5/8”D x 10-1/2"W x 27-1/2" H - - - - 27 cm D x 26 cm W x 70 cm H
Net Weight: 63 lbs. (28.6 kg)
MODEL EG32 GIANT 32 OZ. ELECTRIC WITH PUMP
Capacity: 32 oz. All-Steel Kettle, 640 one-ounce servings per hour
Wattage: 4500 watts
Dimensions: 10-5/8"D x 10-1/2"W x 31-3/4" H - - - - 27 cm D x 26 cm W x 81 cm H
Net Weight: 74 lbs. (33.6 kg)
MODEL EG48 GIANT 48 OZ. ELECTRIC WITH PUMP
Capacity: 48 oz. All-Steel Kettle, 960 one-ounce servings per hour
Wattage: 6050 watts
Dimensions: 10-5/8"D x 10-1/2"W x 31-3/4"H - - - - 27 cm D x 26 cm W x 81 cm H
Net Weight: 74 lbs. (33.6 kg)
MODEL EG60 GIANT 60 OZ. ELECTRIC WITH PUMP
Capacity: 60 oz. Stainless- Steel Kettle, 1200 one-ounce servings per hour.
Wattage: 6050 watts
Dimensions: 10-5/8”D x 10-1/2"W x 31-3/2" H - - - - 27 cm D x 26 cm W x 81 cm H
Net Weight: 74 lbs. (33.6 kg)
V. PURPOSE OF MANUAL
This instruction manual is intended to familiarize owners with the servicing and safety
procedures associated with your Cretors popcorn machine.
This manual should be kept available to maintenance personnel.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 6 BEGIN SERIAL NO: 00035540
VI. INSTALLATION INSTRUCTIONS
A. Location
Choose a location for your Cretors popcorn machine that maximizes the ease of
operation and maintenance procedures. Giant pedestal popcorn machines are
designed to be installed on the customers counter or custom design cabinet.
OEM option machines are supplied with components that permit them to be
installed into a user’s cabinet and control the cornditioner, lights and exhaust in
the cabinet (see details below). Be sure to check your local building and fire
codes for location restrictions.
B. Power Supply
1. Check the nameplate to determine the required power supply.
Connect your popcorn popper only to the correct power source. Failure
to do so may result in personal injury or death and may damage your
popper.
2. C. Cretors and Company recommends dedicated circuits for the Giant
model popcorn machine. The Giant model poppers require a dedicated
circuit to avoid a voltage drop in the supply wiring. Check your local
electrical codes regarding fuse or circuit breaker requirements.
Make certain your popcorn machine is properly grounded. Failure to do
so may result in damage to your equipment or present a shock hazard.
C. Connecting Machine to Power Supply
1. Make certain that power supply circuit breakers are in the off position.
2. Locate the pedestal and bolt it down securely using the four bolt holes
provided in the base of the pedestal.
3. Power should be connected through one of the four large holes in the base
of the pedestal.
4. The electrical connection is made to the terminal strip, located to the right
of the main switch.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 7 BEGIN SERIAL NO: 00035540
D. OEM Option Pedestals
1. OEM OPTION machines are designed to supply power to the components
normally associated with the popcorn machine. The primary features are a
power cord with plug and a flexible armored cable to be connected to the
user’s cornditioner assembly (15 amps). In addition, a terminal strip inside
the pedestal provides a connection point to a switch (15 amps) that will
control a user’s exhaust fan. Mounting studs for fluorescent ballast and a
connection point for a light circuit are also supplied.
2. EXHAUST FAN CONTROL machines may be equipped with a time delay
fan control. This control provides a timer controlled switch that will turn
on a customers exhaust fan when the kettle heat is turned on. When the
heat is turned off the fan will continue to run for the time set on the timer in
the pedestal. This circuit only provides a switch, it does not supply any
power.
All electrical connections outside the pedestal must be done in accordance
with appropriate electrical codes and requirements.
E. Pump Installation & Timer Adjustment for Salt/Sugar Machines
Refer to the Service Manual included with the pump to be installed in the
machine. When the Giant is equipped with the salt/sugar option, also see below
for additional information.
1. For the Salt/Sugar machine the pump timers are located in the machine
not in the pump. One timer is marked “Salt”, the other “Sugar”. The
timers are located in the pedestal.
2. To adjust the pump time, use the following procedure:
a. There are two adjustments on the timer. The small adjustment knob
sets the maximum time the timer can run. Cretors will normally set
this adjustment for 10s.
10s = 0-10 seconds
1m = 0-1 minute
10m = 0-10 minutes
b. The larger adjustment knob sets the actual run time (percentage of
time allowed by the small adjustment knob). Example: If the
maximum setting is set for 10s and the large knob is set at .9, the timer
will run for 9 seconds. Adjust to taste for both timers.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 8 BEGIN SERIAL NO: 00035540
VII. SERVICE INSTRUCTIONS
In the case of improper operation, only a qualified person should perform
the following diagnostic checks, and, if necessary, corresponding
adjustments and repairs. Many of the following procedures present an
electrical shock hazard and can cause serious injury or death.
Perform work only on de-energized circuits. Failure to do so may lead to
electrical shock resulting in personal injury or death.
A. Parts
When ordering parts, refer to the parts diagram and/or wiring diagram included
in this manual. Always supply the serial number, model number, and voltage of
your popcorn machine.
B. Kettle Temperature Control
1. TEMPERATURE CONTROL OPERATION
a. The temperature control is installed as a safety device to prevent
overheating of the kettle if the machine should be left unattended
momentarily while in operation. The kettle indicator light indicates
the operation of the temperature control. If equipped, the indicator
light is located on the switch plate. The indicator light will turn off
10-20 seconds before the corn finishes popping and the kettle is
dumped. If the indicator light turns off 30 seconds or more before the
corn finishes popping, the temperature control is set too low and in
need of adjustment. If the indicator light remains on after corn has
finished popping the digital temperature control is set too high.
b. Salt/Sugar Option: The indicator lights on the switchplate will reflect
whether the Salt/Sugar switch is in the sugar mode or salt mode.
When the Salt/Sugar switch is in the sugar mode, the digital
temperature control alone controls the heat. When the switch is on
the salt side the digital temperature control works the same way with
one exception. When the digital temperature control opens, it
activates a timer which allows the heat to stay on for extra time
allowing the salted corn to pop.
c. Digital Control does not have a thermostat but a thermocouple
on the bottom of the pan.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 9 BEGIN SERIAL NO: 00035540
d. Cretors “CE” marked machines have been supplied with high limits for
years to comply with the European Directives but these high limits are not
resetting. Once they trip, they need to be replaced. This has not changed.
Beginning in May of 2006, Cretors and Company has started implementing
auto-resetting high limits into kettles and repair kettles as well. Again, the
end customer/user will not see any difference in the operation of their
machine but there is now an added level of safety so that the kettle
temperature will not be able to exceed a safe level, even if the normal
operating thermostat or temperature controller is adjusted to an unsafe level.
This high limit is preset and is NOT to be adjusted for any reason. New
wiring diagrams will be sent out with the new kettle assemblies for
reference.
2. DIGITAL TEMPERATURE CONTROL ADJUSTMENT
CAUTION: If the corn has dried out, it may not finish popping at normal
temperatures, and the light may appear to go out early. DO NOT
ADJUST KETTLE TEMPERAUTRE BASED ON POOR QUALITY CORN.
If set too high (over 500°F 260°C), the digital temperature control can
cause a serious fire hazard.
CAUTION: If the machine is equipped with the Salt/Sugar option, the
temperature control should only be adjusted when the switch is in the
sugar mode. When in salt mode, refer to “Salt timer adjustment” section.
a. Press the “set” button.
b. Use the up or down arrow buttons to adjust the temperature up or
down.
c. Press the “set” button again. (Note that for safety, this range is
limited)
d. The display will show the temperature go up or down.
e. You should only raise or lower the temperature 5-10 ºF at a time.
f. Set temperature so that the power to heat elements is cut off at the
correct temperature.
KETTLE SALTED CORN SUGAR CORN
20-60 OZ. 400-410º F. (204-210º C) 375-385º F. (190-193º C)

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 10 BEGIN SERIAL NO: 00035540
3. CHECKING TEMPERATURE CONTROL
There are two ways of checking that the temperature control is set
correctly.
a. Place the pyrometer over the thermocouple position and turn the
kettle heat on. Watch to see that the kettle heat shuts off at the correct
temperature. Make adjustments as needed.
b. The temperature control may be adjusted by observing the operation
of the indicator light as described in the “Temperature Control
Operation” section. Adjust the temperature control so that the kettle
heat is turned off 10 to 20 seconds before the corn finishes popping
and the kettle is dumped.
Do not adjust the temperature so high that the pan smokes at the end of
the popping cycle. If set too high (over 500°F or 260°C), the kettle can
become a serious fire hazard.
c. Observe two or three cycles of correct operation to be certain
everything is working correctly. Your final setting should allow the
indicator light to cycle off 10 to 20 seconds prior to dumping the kettle.
4. SALT TIMER ADJUSTMENT (For machines supplied with Salt/Sugar
Option only)
When the Salt/Sugar switch is in the sugar mode, the thermostat alone
controls the heat. When the switch is in the salt mode, the temperature
control works the same way with the exception that when the temperature
control opens, it activates a timer, which allows the heat to stay on for an
extended period of time allowing the salted corn to pop. The salt timer is
located in the pedestal of all Giants marked “Salt Timer”. In salt mode:
a. If the indicator light turns off 30 seconds or more before the corn
finishes popping, the timer is set too low and is in need of adjustment.
b. There are two adjustments on the timer. The small adjustment knob
sets the maximum time the timer can run. Cretors will normally set this
adjustment for 1m.
10s = 0-10 seconds
1m = 0-1 minute
10m = 0-10 minutes
c. The larger adjustment knob sets the actual run time (percentage of time
allowed by the small adjustment knob). Example: If the maximum
setting is set for 1m and the large knob is set at .5, the timer will run for
30 seconds. In this case, the heat will stay on 30 seconds after the
temperature control opens.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 11 BEGIN SERIAL NO: 00035540
5. SALT/SUGAR WITH ONE POP ADJUSTMENT
a. If the Salt/Sugar switch is in the sugar position, use the “Digital
Temperature Control Adjustment” section.
b. If the Salt/Sugar switch is in the salt position, the temperature is adjusted on
the One Pop Timer/Relay.

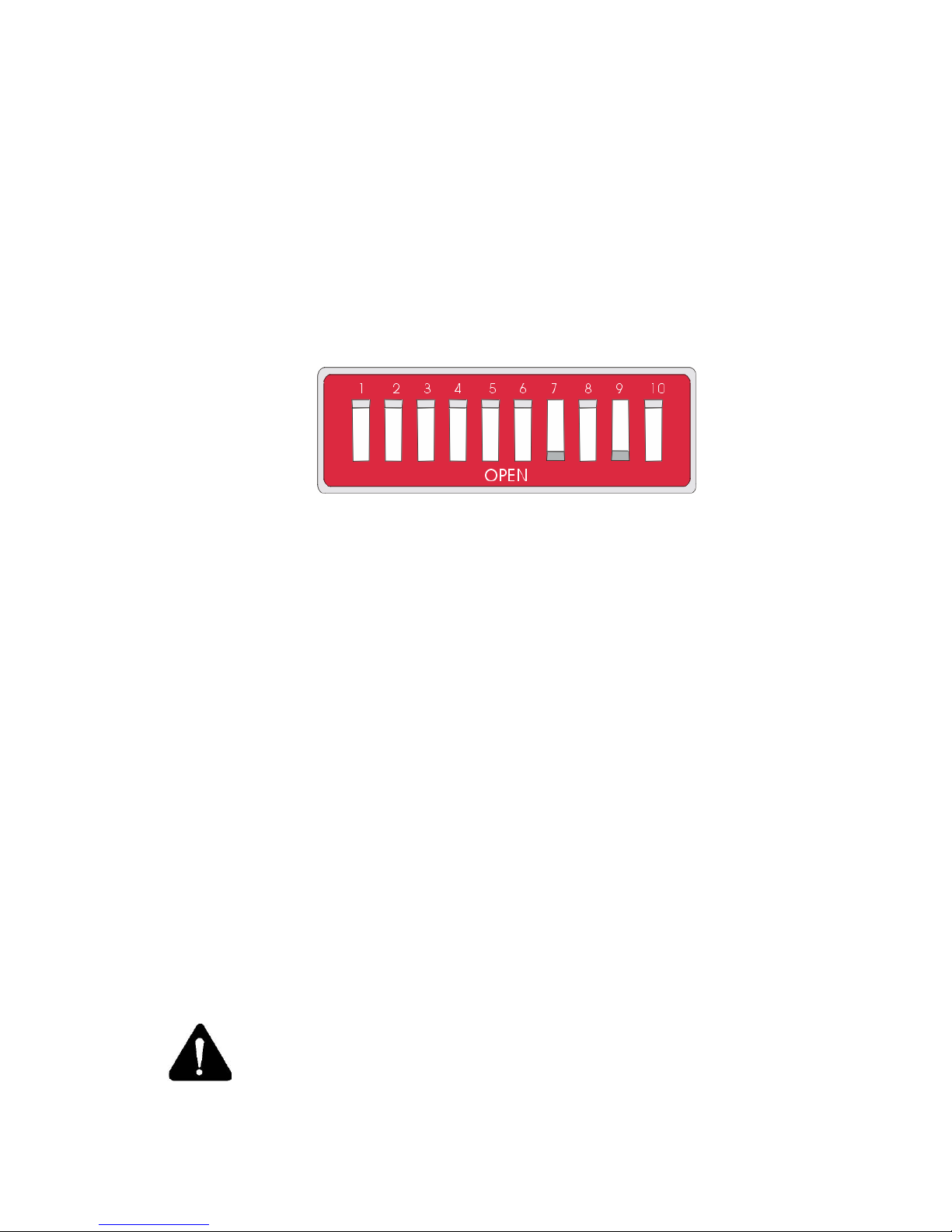

c. On the Relay there are dip switches very similar to the timer in our 7700-7900
pumps.
d. From the factory the dip switches 7 and 9 will be on. To turn the dip switches
ON the dip switch needs to be pressed down to the number side opposite of
the open side.
Switch #6 = 5 seconds
#7 = 10 seconds
#8 = 20 seconds
#9 = 40 seconds
Example: If you turn #7 and #9 on, the time delay will be 50 seconds.
C. Kettle Removal
To remove the kettle assembly, perform the following operations:
1. Unplug the popcorn machine from the power supply. Make sure the kettle
is not hot.
2. Remove the cover on the terminal box between the pan support legs.
3. Disconnect the three power leads, observing the color of the wires. Correct
color code is: Left to right, BLACK, RED, WHITE. (For 400V units BLUE,
BROWN, WHITE on front terminal left to right, Black on back terminal.)
4. Remove the two bolts on the side of the aluminum pan legs.
Using proper lifting techniques, when removing the kettle by lifting it
straight up.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 12 BEGIN SERIAL NO: 00035540
5. Turn the kettle upside down and remove the bolts that hold the dump
handle and retainer and lift the retainer off the kettle.
6. When removing nuts and spacers from the threaded studs on the bottom of
the pan, do not wipe off the silver lubricant. Without this lubricant
(NEVER SEEZ) the nuts may freeze on the studs and cause the studs to
break when the nuts are turned in an attempt to remove them.
D. Kettle Installation
1. When re-assembling the kettle, be sure all nuts and bolts are tight. Check
to make sure that all electrical connections are secure. A loose connection
can heat up and burn off the wires.
2. Set the kettle back in place and replace the two bolts in the pan legs.
3. Locate the kettle so that the clutch dog lines up with the motor drive head,
and tighten the two front bolts that hold the pan leg plate, then tip the
kettle and tighten the other two bolts.
4. Connect the three power leads, observing the color of the wires. Again,
correct color code is left to right, BLACK, RED, WHITE. (For 400V units
BLUE, BROWN, WHITE on front terminal left to right, Black on back
terminal.)
5. Replace the terminal box cover.
6. Turn on the agitator motor and dump the kettle. If the drive shaft does not
engage and dis-engages freely, readjust the kettle.
E. Kettle Spring Adjustment
The purpose of the kettle counter balance springs is to reduce the force required
to dump the kettle. The spring collars are held in place by set screws that fit into
holes drilled on the bottom of the cross shaft. The spring collars have five holes
that the spring fits into. By turning the collar around, there are five different
adjustment positions for spring tension adjustment.
When correctly adjusted the springs will neutralize the weight of the kettle. To
set the springs raise the kettle to a point where it is balanced. The long leg of the
1902 spring should be just beginning to touch the bar on the bottom edge of the
hinge casting and the 1903 spring will begin to move away from the bar. If the
springs press against the bar too soon the kettle will seem lighter but the springs
are fighting each other. This condition will shorten the life of the springs.
An important part of this assembly are the two washers between the 1902 spring
and the plate welded to the cross shaft. They act as both bearings and spacers;
without them the spring may have a short life.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 13 BEGIN SERIAL NO: 00035540
VIII. TROUBLESHOOTING
PROBLEM POSSIBLE
CAUSE
ACTION
Incorrect amount
of corn and oil is
used.
Refer to the chart located in the
Operations Manual.
Kettle indicator
light goes out
more than 30
seconds before the
corn finishes
popping.
Temperature is set too low. (Refer to
“Digital Temperature Control
Adjustment”).
If machine is equipped with
salt/sugar option and popping in salt
mode, timer may be set low. (Refer to
the “Salt Time Adjustment” or the
“Salt/Sugar One Pop Adjustment”
sections.
Popping is
slow.
Voltage may be
low.
Check the voltage at the circuit
breaker with the kettle heat on.
Extension cords or inadequate wiring
will provide full voltage, if no load is
applied. Once the kettle heat and
auxiliaries are turned on, the voltage
may drop 5 to 10 volts.
Use an ammeter to diagnose.Indicator light
stays on. Digital
Control never
reaches temp.
One of the elements
in a multi-element
pan may have failed. Check the amperage draw of the heating
elements, by using a clamp-on ammeter.
1. Remove the front cover by removing
the screws that hold the front cover to the
pedestal.
2. Turn on the kettle heat.
3. If machine has one-pop option shut off
the oil switch and press the one-pop
button.
4. Place the ammeter around the lead to
the popper kettle as listed. The following
current draws are normal. 120/208-240V
and 100/200V machines black or red
230V machines-blue or brown 400V
machines-black or brown.
CAUTION: If the corn has dried out, it may not finish popping at normal
temperatures, and the light may appear to go out early. DO NOT
ADJUST KETTLE TEMPERATURE BASED ON POOR QUALITY CORN.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 14 BEGIN SERIAL NO: 00035540
CAUTION: Do not adjust the temperature so high that the pan smokes at
the end of the popping cycle. If set too high (over 500°F or 260oC), the
kettle can become a serious fire hazard.
KETTLE
SIZE
AMPS @
200V
AMPS @
208V
AMPS @
230V
AMPS @
240V
20 oz. 12.5 13.0 10.8 11.2
32 oz. 19.6 20.4 17.0 17.7
48/60 oz. 26.8 28.1 23.4 24.4
380V – Place the ammeter around the black or brown lead to the popper kettle
KETTLE SIZE
32 oz.
48/60 oz.
AMPS @ 380V Brown
8
11
Black
9
13.2
PROBLEM POSSIBLE CAUSE ACTION
A low reading may indicate a problem in
the kettle. One or more of the heat elements
may not be functioning properly. If the
element is not functioning, the possible
causes are:
1. The element has burned out.
2. A lead wire has burned off
one of the element terminals
due to a loose connection.
In either case the kettle must be removed
and the problem identified.
1. Remove kettle. (See section Kettle
Removal for instructions.)
2. Check for short circuits inside the kettle.
3. If wires must be replaced, be sure to use
nickel wire supplied by Cretors
Conventional copper or “stove wire will
have limited life.
4. Make a visual check for broken, loose,
burned or heat damaged wires. If there are
no obvious broken or loose wires shorting
out on the kettle, the elements must be
checked.
5. Perform a continuity test on the
elements. It is possible that one of the
elements has burned through the
insulation and the casing is shorting out
directly to the kettle bottom.
Continuity Test and Ohms Test
When checking Ohms, make sure that the meter probes are making good contact on the
terminals. Remove the nickel buss bars that connect the electrical terminals on the heat
elements.
Using a multimeter, check each element between the following points:

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 15 BEGIN SERIAL NO: 00035540
Terminal to terminal Ohm readings should match chart listed
below.
If Ohm readings are not close, replace.
First terminal to element case Continuity to case from terminal indicates a
grounded element; replace.
No continuity – functioning properly.
Second terminal to element case Continuity to case from terminal indicates a
grounded element; replace.
No continuity – functioning properly.
Do not attempt electrical repairs on the power supply circuit unless you
are qualified to do so. The electrical shock associated with line voltages
can cause serious injury or death.
The following procedures are performed with the power on. As with any
electrical repairs, there is a shock hazard present.
Elements Coil Relay
(top to bottom)
BAD
GOOD
200 Volts 100 Volts 200 Volts 0 Volts
208 Volts 120 Volts 208 Volts 0 Volts
230 Volts 230 Volts 230 Volts 0 Volts
240 Volts 120 Volts 240 Volts 0 Volts
400 Volts 230 Volts 230 Volts (same pole) 0 Volts (same pole)
20 oz. - 208V elements 1983-D
1447-D
900 Watt – 48.1 Ω
1800 Watt – 24.0 Ω
2700 Watt - 16.0 Ω(total)
20 oz. – 240V elements 1983-C
1447-C
900 Watt – 64.0 Ω
1800 Watt – 32.0 Ω
2700 Watt - 21.3 Ω(total)

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 16 BEGIN SERIAL NO: 00035540
32 oz. – 208V elements 1448-D
1528-D
1043-D
750 Watt – 57.7 Ω
1500 Watt – 28.8 Ω
2000 Watt – 21.6 Ω
4250 Watt - 10.7 Ω(total)
32 oz. – 240V elements 1448-C
1528-C
1043-C
750 Watt – 76.8 Ω
1500 Watt – 33.4 Ω
2000 Watt – 28.8 Ω
4250 Watt - 13.6 Ω(total)
48 oz & 60 oz.. – 208V elements 1010-D
1808-D
1447-D
1043-D
750 Watt – 57.7 Ω
1250 Watt – 34.7 Ω
1800 Watt – 24.0 Ω
2000 Watt – 21.6 Ω
5800 Watt - 7.5 Ω(total)
48 oz. & 60 oz. – 240V elements
1010-C
1080-C
1447-C
1043-C
750 Watt – 76.8 Ω
1250 Watt – 46.1Ω
1800 Watt – 32.0Ω
2000 Watt – 28.8Ω
5800 Watt - 9.9 Ω(total)
Replace failed heat elements with identical units available from your local dealer or from
Cretors. Reassemble and reinstall kettle assembly onto the machine.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 17 BEGIN SERIAL NO: 00035540
PROBLEM POSSIBLE CAUSE ACTION
The motor, light or
any of the other
components do not
work.
Check power supply:
1. Is it plugged in?
2. Is the receptacle live?
3. Is the machine plugged into the proper voltage?
(Measure with voltmeter and compare to
specification on nameplate of machine.)
Problem is in the
machine.
Check the relay/contactor. The Giant
temperature control uses a relay/contactor to
control the power to the popper pan heat
elements. To check the relay/contactor, perform
the following operations:
1. To gain access to the relay/contactor, remove
the front switchplate by removing the six screws
on the sides of the switchplate.
2. Using a voltmeter, check the power to the relay
coil, that are the small terminals in the center.
3. With the popper switch on, at room
temperature, the temperature control should be
calling for heat and providing power to the
relay/contactor. If the coil reading is not 120
volts. (230 volts on 230V and 400V, 50Hz
machines) the problem is in the temperature
control.
4. If the coil reading is 120 volts, (230 volts on
230V and 400V machines) check the voltage
between the output terminal with wire #1 and the
output terminal with wire #3 from the kettle
support. If this does not have a reading of 208 or
240 volts, the relay/contactor is not functioning
and needs to be replaced.
Kettle will not
heat.
If machine has the
one-pop option.
Use the same procedure as above. Then check the
one-pop circuit.
1. With the power OFF. Check the one-pop
switch for continuity by pressing and holding it
down. Remove wires (mark wires for proper re-
installation) from switch and press and hold.
Using a multimeter, check for continuity from top
to bottom of switch. If no continuity, replace
switch.
2. Check the input (com) and output (no) on
timer/relay.
Thermocouple has
bad connections.
Check all connections.Digital
Temperature
Control
display shows
EO
Thermocouple is
bad. Should read 3-
5 ohms if good.
Replace thermocouple.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 18 BEGIN SERIAL NO: 00035540
PROBLEM POSSIBLE CAUSE ACTION
Agitator is not working. Check to be certain the
stirrer blade is on the
bottom of the pan and is
stirring the corn.
Check motor connections. Loose wire.
The motor is bad. Replace.
The correct amount of corn and oil
were not used.
See Operations Manual for
correct amounts.
Corn Burns
Temperature is set too high. Adjust temperature.
Kettle leaks
oil at
agitator.
If the kettle is not cleaned on a regular
basis the popping oil will build up and
turn to carbon on the inside of the
blade center. When this happens the
clearance between the blade center
and the pan center is reduced from
1/8” (3mm). As this clearance is
reduced, the oil will “wick” up the
narrow space and run down the
rotating shaft and it will appear that
the kettle is leaking for 20 oz. kettles.
When reassembling, lightly
coat the clutch dog shaft
with moly grease or a
comparable high
temperature lubricant.
Pump will
not heat.
Pump switch is on. Check pump switch.
Remove wires from switch
(mark wires for proper re-
installation.) Using a
multimeter, check for
continuity from top to
bottom of switch. If no
continuity, replace switch.

EG20/32/48/60-M-A/E-S
Last printed 9/10/2007 1:56:00 PM 19 BEGIN SERIAL NO: 00035540
This manual is filled with time-saving and money-saving information regarding your
Cretors popcorn popper. There is nothing, however, more important than the safety
aids and warnings found throughout this document.
If you have any questions, contact your local distributor and if there are any additional
questions, feel free to contact the Customer Service Department at C. Cretors and
Company.
Additional copies of this manual can be obtained from C. Cretors and Company at the
address listed below. Please provide model and serial number when requesting
additional copies of this manual. There will be a nominal charge for additional copies.
Cretors guarantees this machine to be free of defects in parts, materials and
workmanship for two years. Please take this time to fill out the factory registration card
and return it to the factory to activate your warranty. If you have any questions
concerning the Cretors' warranty, please contact your local distributor or the Customer
Service Department at C. Cretors and Company.
C. CRETORS AND COMPANY
3243 N. CALIFORNIA AVENUE
CHICAGO, IL 60618
PHONE [phone], FAX [phone]
WEB SITE: http://www.cretors.com Email: [email protected]
