Cretors CSW-ELV User manual

Counter Showcase Elevator Warmer
CSW-ELV
1
BEGIN SERIAL NO. 17070000
176 MITTEL DRIVE, WOOD DALE, IL 60191
COUNTER SHOWCASE
ELEVATOR WARMER
120 Volt,
Single Phase, 60 Cycle
100 Volt,
Single Phase, 50/60 Cycle
READ and UNDERSTAND these operating, servicing, and
safety instructions before operating or servicing this
machine

Counter Showcase Elevator Warmer
CSW-ELV
2
BEGIN SERIAL NO. 17070000
SAFETY FIRST
The information in this manual is essential for the safe installation and
maintenance of your Cretors warmer. The manual must be read and
understood before installing, operating or maintaining this equipment, or
equivalent training must be provided.
"The employer shall instruct each employee in the recognition and avoidance
of unsafe conditions and the regulations applicable to his work environment
to control or eliminate any hazards or other exposure to illness or injury".
Ref.: 29 CFR 1926.20 (b)(4)(a)(2)
It is understood that safety rules within individual companies vary. If a
conflict exists between the safety procedures contained in this manual and
the rules of a using company, the more stringent rule should take
precedence.
I INTRODUCTION
This manual is filled with time-saving and money-saving information regarding your Cretors
warmer. There is nothing, however, more important than the safety aids and warnings that are
found throughout this document. The Safety Alert Symbol is used to identify topics of primary
safety concern wherever they appear. Furthermore, a separate section has been included which
deals exclusively with operation and accident prevention.
If, after reviewing this manual, anything is unclear or technical problems are encountered, contact
the dealer from whom you purchased your machine for assistance and if there are any additional
questions, feel free to contact our Customer Service Department at the address and/or phone
number listed on the back cover of this manual. Always have the model and serial number of your
machine available to assist in obtaining the correct information.
II SAFETY ALERT SYMBOL
The symbol shown below is used to call your attention to instructions concerning your personal
safety and the safety of others. Watch this symbol. It points out important safety precautions. It
means "ATTENTION! Become Alert! Your personal safety is involved!" Read the message that
follows and be alert to the risk of personal injury or death.

Counter Showcase Elevator Warmer
CSW-ELV
3
BEGIN SERIAL NO. 17070000
III PURPOSE OF MANUAL
This instruction manual is intended to familiarize owners with the operation,
servicing and safety procedures associated with your Cretors warmer.
This manual should be kept available to operating and maintenance
personnel.
A person who has not read and understood all operating and safety
instructions is not qualified to operate the machine.

Counter Showcase Elevator Warmer
CSW-ELV
4
BEGIN SERIAL NO. 17070000

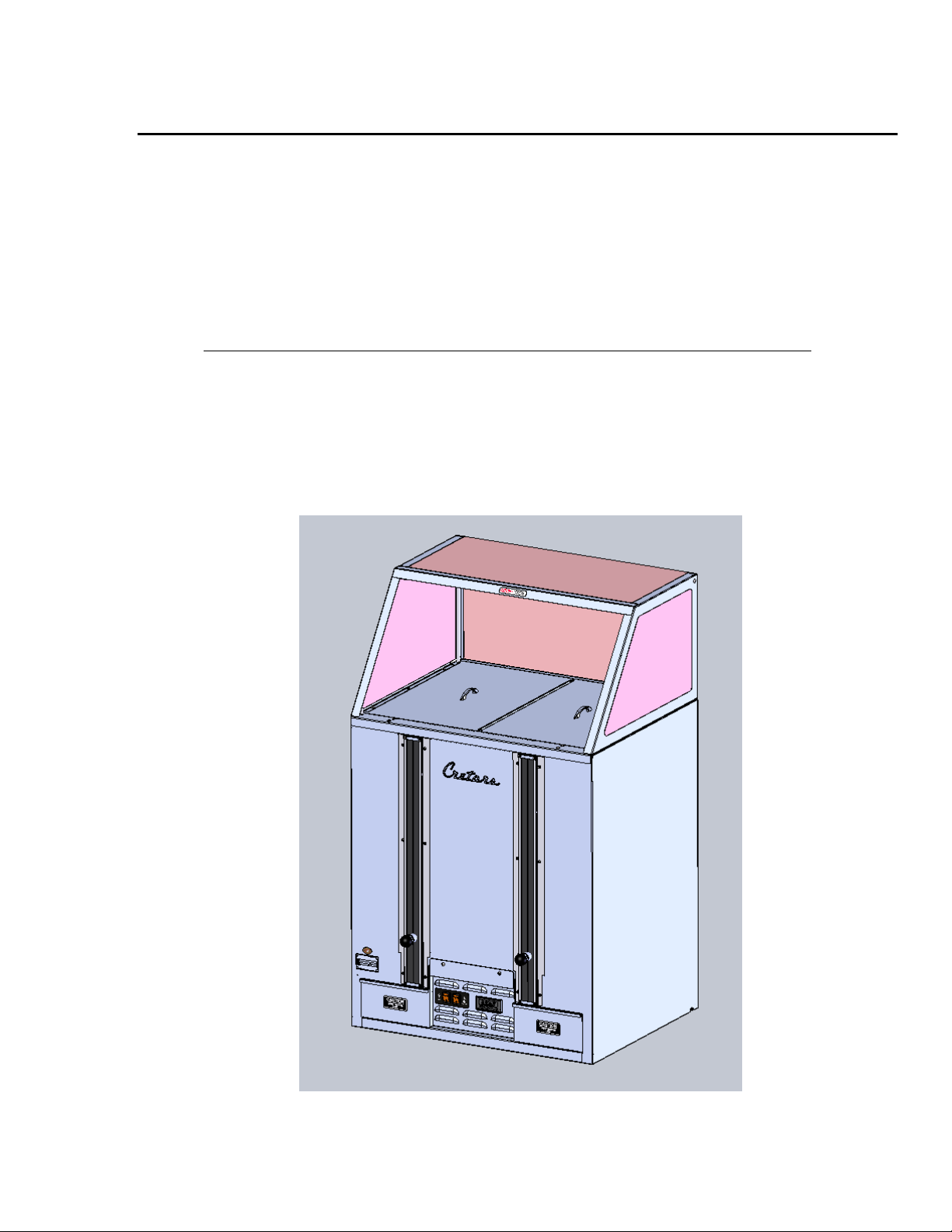

IV PRODUCT IDENTIFICATION
CRETORS COUNTER SHOWCASE WARMERS
ELECTRICAL SPECIFICATIONS: Counter Showcase Warmers are available in any of the
following electrical configurations:
100/120 Volt, Single Phase, 60 Cycle
SPECIFICATIONS:
MODEL
COUNTER SHOWCASE ELEVATOR WARMER –100/120V
50/60HZ
Electrical:
1250 Watts
Dimensions:
24"D x 30"W x 50" H - - - - 61.0 cm D x 76.2 cm W x 127.0 cm H

Counter Showcase Elevator Warmer
CSW-ELV
5
BEGIN SERIAL NO. 17070000
V THEORY AND OBSERVATIONS OF WARMER OPERATION
The Counter Showcase Elevator Warmer is designed to warm and display popped corn.
The warmer has two chambers with individual manual elevators allowing for the operator
to drop both shelves and fill warmer to maximum capacity. When corn is used from the top,
simply pull and lift handle up to raise the elevator to the next level tier (approximately mid-
level) for better access to the popcorn. The unit is designed with a heating element and
blower to circulate warmed air throughout the cabinet. Top LED lighting illuminates the
storage cabinet.
VI CONTROL SWITCHES
ROCKER SWITCH -Turns lights ON/OFF
ROCKER SWITCH -Turns Cornditioner ON/OFF
DIGITAL TEMPERATURE -Sets temperature of forced air going through the cabinet
CONTROLLER
VII INSTALLATION INSTRUCTIONS
1. Location
Choose a location for your Cretors machine to maximize the ease of operation and
maintenance procedures. Check your local building and fire codes for location restrictions.
The cabinet needs to be siliconed to the floor or to the counter to conform to NSF/ANSI 4
standard.
2. Power Supply
Check the nameplate to determine the required power supply.
Connect your warmer only to the correct power source. Failure to do so may result in
personal injury or death and may damage your warmer.
Make certain the Rocker Switches on the warmer are in the 'OFF' position when
plugging into power source. Failure to do so may result in personal injury or death
and may damage your warmer.
3. After Connecting Warmer to Power Supply
The unit's operation can be controlled by the backlit rocker switches located in the bottom
lower center position.

Counter Showcase Elevator Warmer
CSW-ELV
6
BEGIN SERIAL NO. 17070000
VIII OPERATING INSTRUCTIONS
Do not attempt to operate your Cretors warmer until you have read and understood
this manual. Failure to do so may result in serious injury or death.
Do not attempt to operate your Cretors warmer unless the installation instructions
have been strictly adhered to. Failure to do so may result in serious injury or death.
Operate your warmer only if it is in sanitary condition (SANITATION
INSTRUCTIONS). Failure to do so may result in illness to your customers.
1. Turn Rocker Switches “ON” to light cabinet and turn on the Cornditioner heating
system.
2. Set the temperature control to the desired temperature setpoint by pressing the set
button on the controller. Use the up or down arrows to raise and lower the
temperature setpoint. Once the desired setpoint is entered, press the set button one
more time to save the setting.

Counter Showcase Elevator Warmer
CSW-ELV
7
BEGIN SERIAL NO. 17070000
IX SERVICE INSTRUCTIONS
In the case of improper operation, qualified personnel only should perform the
following diagnostic checks, and, if necessary, corresponding adjustments and repairs.
Many of the following procedures present an electrical shock hazard and can cause
serious injury or death.
Parts
When ordering parts, refer to the attached parts diagram. Always supply the serial
number, model number, and voltage of your warmer.

Counter Showcase Elevator Warmer
CSW-ELV
8
BEGIN SERIAL NO. 17070000
X TROUBLE SHOOTING
Problem - Cabinet Will Not Heat
QUESTION: Do any of the other components work - blower, light, etc?
NO! Check power supply:
A. Is it plugged in?
B. Is the receptacle live?
C. Is machine plugged into the proper voltage? Measure with voltmeter and compare
to specification on nameplate of machine.
Do not attempt electrical repairs on the power supply circuit unless you are
qualified to do so. The electrical shock associated with line voltages can cause
serious injury or death.
YES!
If the temperature controller is on, but the blower is not running and there is no heat,
check the high limit by performing the following operation;
a) Unplug machine.
b) Remove Heat Box (see Sanitation Instruction section for removal)
c) Locate High Limit Switch.
a. Press the red button in the center of the high limit thermostat to reset.
b. Using a multimeter, check the continuity between the two terminals on
the high limit, but first remove the wires from the terminals. If the
reading is 0 the high limit is good. If it is does not measure 0 try
pressing the red reset button one more time and repeat test. If the reading
is still not 0 replace the high limit.
d) Using multimeter, check continuity of the heat element. Remove the wire from
one terminal. The meter should read 13 for 120-volt machine. If reading does
not match, replace the heat element.
If the blower is running but there is no heating, perform the following operation;
a) With the heat box removed using a multimeter check the resistance reading on
the heating element. First remove the wires on the terminals.
b) Reading should be 13 for a 120 volt machine. If the reading is 13 the element
is good and the temperature control will need to be checked and replaced. If the
reading is not 13 the heating element will need replacement.

Counter Showcase Elevator Warmer
CSW-ELV
9
BEGIN SERIAL NO. 17070000
XI SANITATION INSTRUCTIONS
Be certain the machine is turned ‘OFF’ and power is unplugged before sanitizing this
machine. Failure to do so could result in injury or death.
Do not clean heated surfaces until they have been given sufficient time to cool.
Failure to do so may result in serious burns.
1. Remove and empty the clean out drawers daily. Heavy or continuous operation of
the machine will require more frequent cleaning.
Failure to empty the clean out drawer regularly may result in a fire hazard do to
restricted air flow or if debris is allowed to overflow into heating area.
2. With clean out drawers removed, take out the heat box weekly by removing the two
screws located in the center of the bottom of the cabinet. Next, remove the heat box
by pulling out on the handle located just above the switches and temperature
controller. Make sure no chaff or debris has been able to accumulate in the heating
chamber. Also make sure that the bottom of the cabinet itself does not have an
accumulation of debris. If it does, clean out as required.
3. Perforated warmer bottom (both sides) should be removed daily to clean and
remove excess broken corn and debris.
4. The cabinet should be cleaned with any good grade glass or household cleaner
suitable for stainless steel surfaces. A cleaning agent that is acceptable for food
contact surfaces is recommended. Do this as required.
5. The glass can be cleaned with any good grade glass cleaner suitable for glass
surfaces.

Counter Showcase Elevator Warmer
CSW-ELV
10
BEGIN SERIAL NO. 17070000
SAFETY FIRST
This manual is filled with time-saving and money-saving information regarding your Cretors
machine. There is nothing, however, more important than the safety aids and warnings found
throughout this document.
If you have any questions, contact your local dealer and if there are any additional questions, feel
free to contact the Customer Service Department at C. Cretors and Company.
Additional copies of this manual can be obtained from C. Cretors and Company at the address
listed below. Please provide model and serial number when requesting additional copies of this
manual. There will be a nominal charge for additional copies.
Cretors guarantees this machine to be free of defects in parts, materials and workmanship for two
years. Please take this time to fill out the factory registration card and return it to the factory to
activate your warranty. If you have any questions concerning the Cretors' warranty, please contact
your local dealer or the Customer Service department at C. Cretors and Company.
C. CRETORS AND COMPANY
176 MITTEL DRIVE
WOOD DALE, IL 60191
PHONE [phone], FAX [phone]
WEB SITE: http://www.cretors.com Email: [email protected]om
Cretors joins the information age! Check out our links http://www.twitter.com
http://www.facebook.com/pages/Chicago-IL/C-Cretors-Co/90143449620

50.0
30.0 24.4
26.6
14.3
35°
NOTES:
XXX. 1.
REVISIONS
REV DC # APPROVED BY APPROVED ON
- - - -
- - - -
A - nvidojevic 08/11/2017

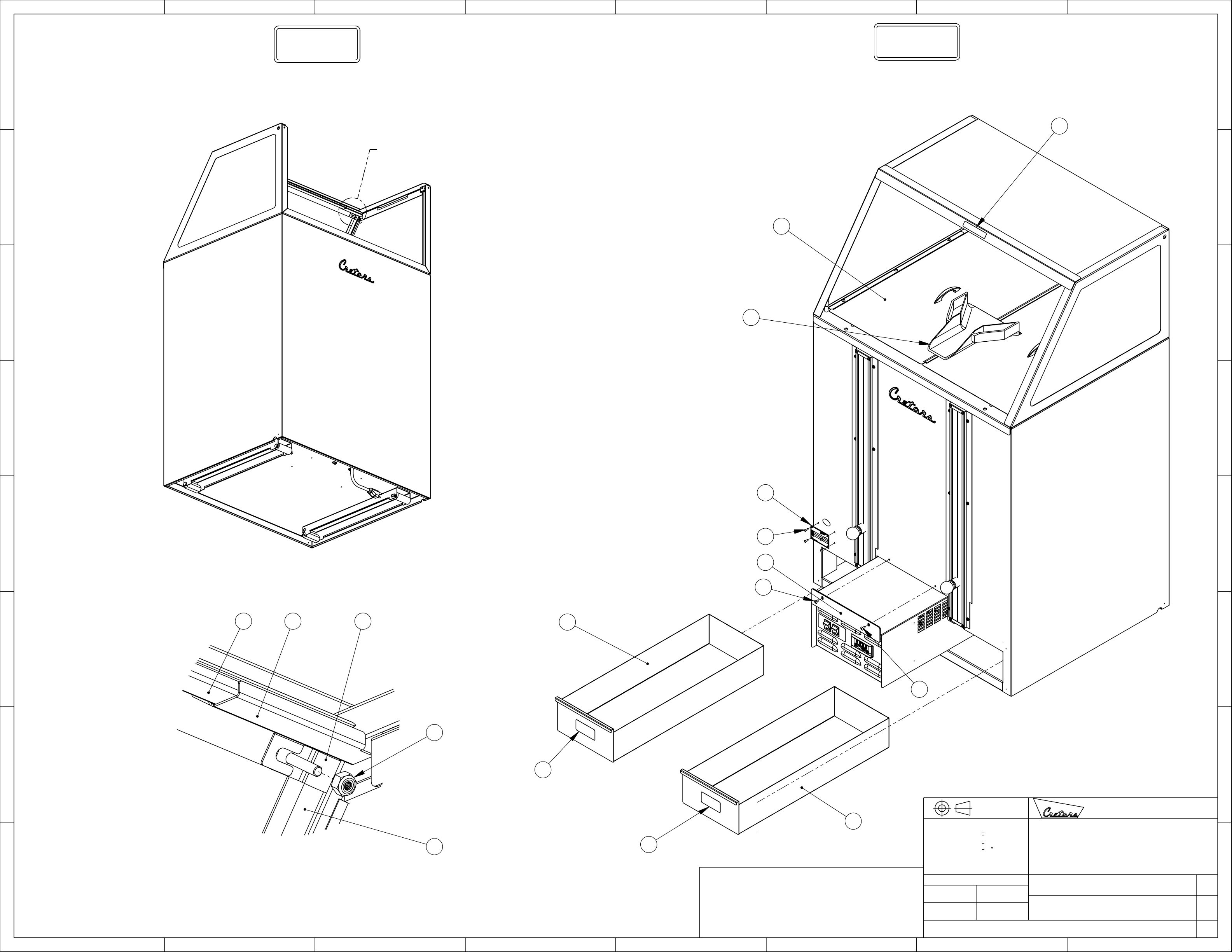

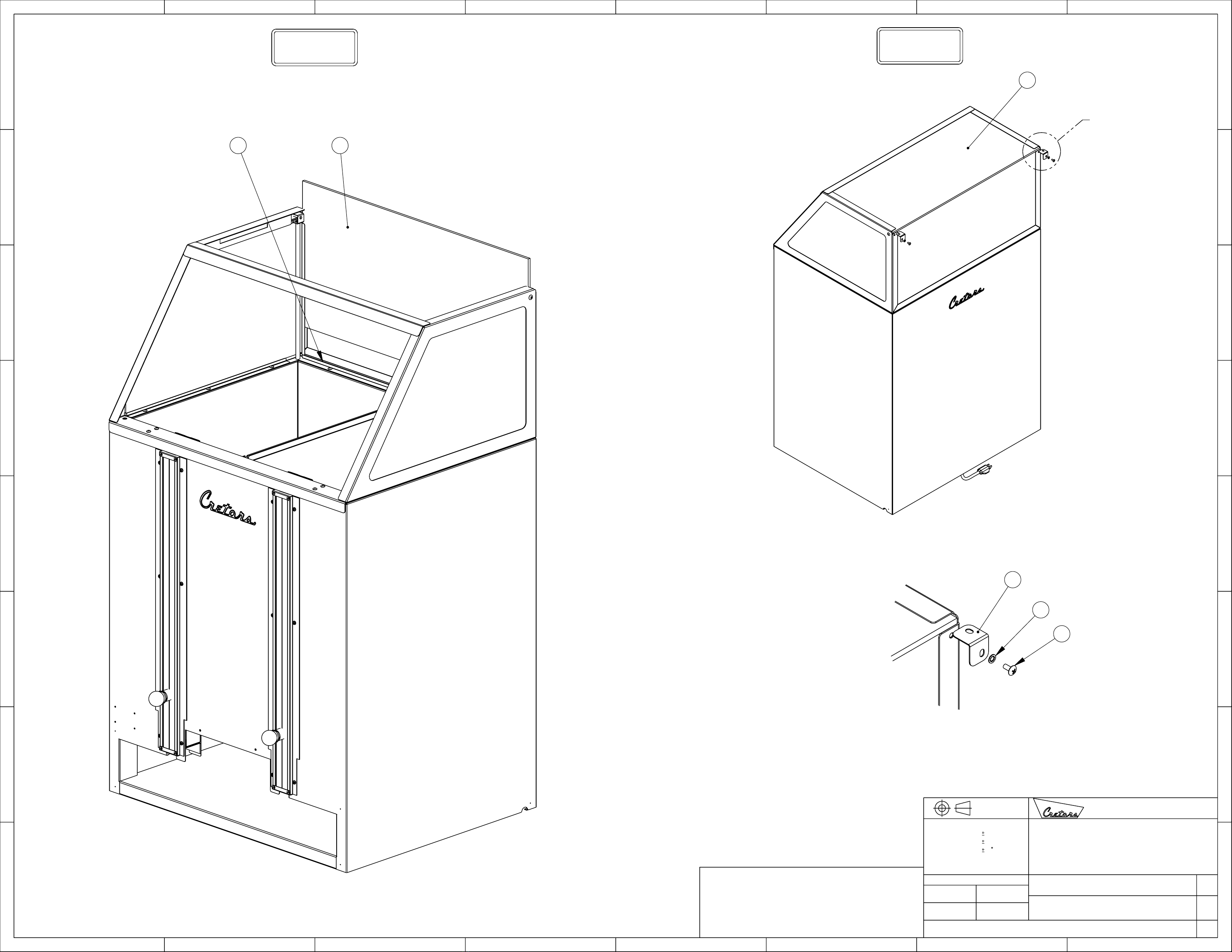

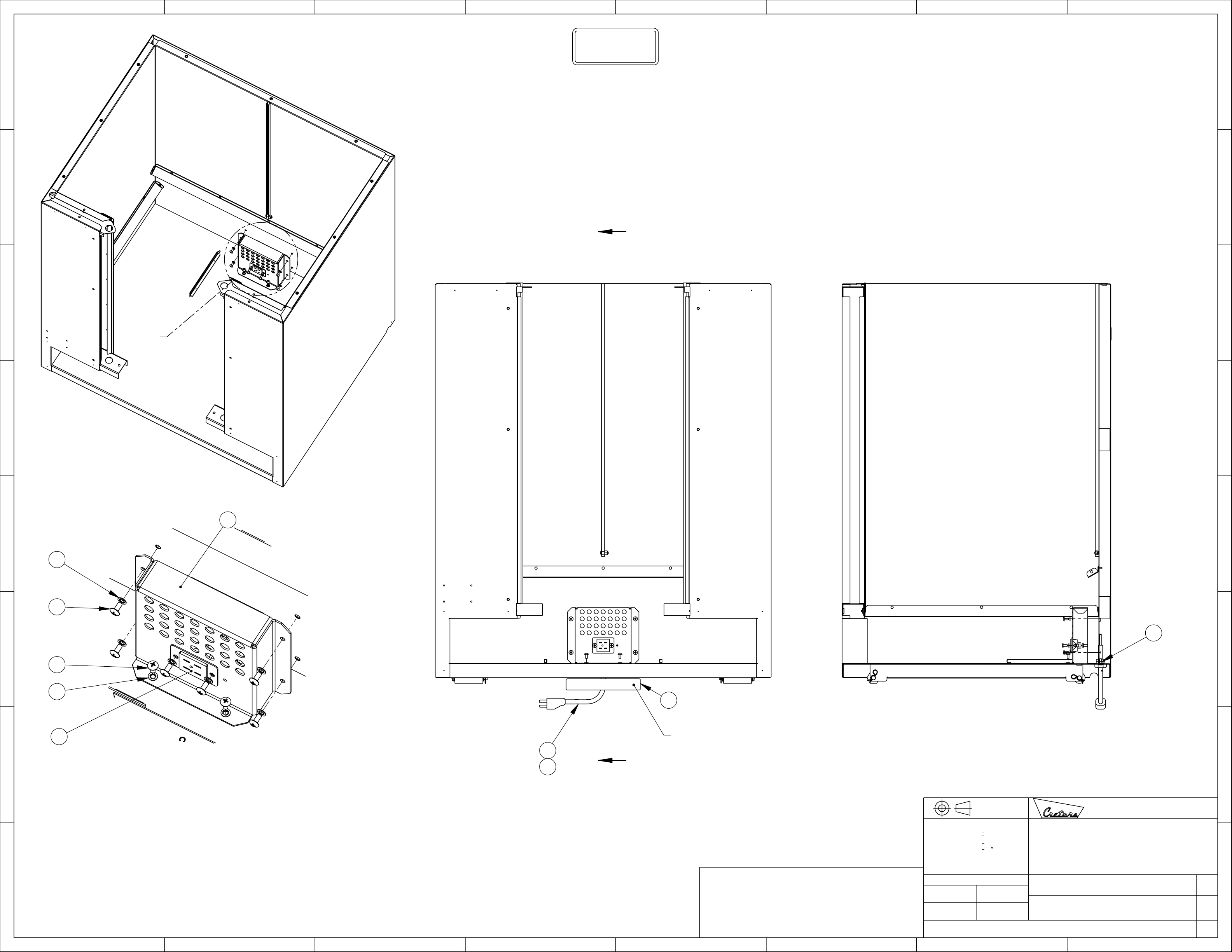

BILL OF MATERIALS
ITEM # QTY. P/N DESCRIPTION
1 1 20139 FRAME WELDMENT, OUTER WRAP, CSW-ELV
2 2 20153 WHEEL, ROUND, CSW-ELV
3 4 20155 PIN, CLEVIS W/ COTTER PIN, ZINC PLATED
4 2 20154 WHEEL, HEX, CSW-ELV
5 1 20575 INNER WRAP ASSY, CSW-ELV
6 28 7789 #8, INTERNAL TOOTH LOCKWASHER, STEEL NICKEL
7 30 7642 #8-32 X 3/8"LG FULLY THD, PHIL TRUSS HEAD MACHINE SCREW, 18-8 S.S.
8 1 20486 RECEPTACLE ENCLOSURE, CSW-ELV
9 1 5505 #8-32, SERRATED HEX FLANGE NUT, STEEL ZINC
10 1 5713 RECEPTACLE, 15AMP, 5 CONTACT
11 1 2165 BUSHING, HEYCO, #1247, 7/8"
12 1 1254 CORD, 15AMP, 14-3, NEMA 5-15P
13 1 20484 WALL ASSEMBLY, ELEVATOR FRONT, CSW-ELV
14 2 20149 ELEVATOR SLIDE, POPPER CASE, CSW-ELV
15 2 20147 SHAFT, POSITIONING, POPPER CASE, CSW-ELV
16 2 20148 PIN, POSITIONING SHAFT, CSW-ELV
17 2 20611 POPPER CASE ASSEMBLY, CSW-ELV
18 2 20151 DIVIDER, CSW-ELV
19 2 20366-L BRUSH HOLDER, LEFT, CSW-ELV
20 12 7891
#8-32 X 3/16"LG FULLY THD, SLOT PAN HEAD MACHINE SCREW W/NYLOCK
PATCH, 18-8 S.S.
21 2 20366-R BRUSH HOLDER, RIGHT, CSW-ELV
22 4 20340 CAP, CSW-ELV BRUSH
23 8 7775 #6-32 X 3/16"LG, SLOT BINDER HEAD MACHINE SCREW, STEEL NICKEL
24 4 20502 BRUSH STRIP, CSW-ELV
25 1 20140 FRAME WELDMENT, TOP, CSW-ELV
26 2 20141 GLASS, SIDE, CSW-ELV
27 4 20406 CHANNEL, GLASS, 13.75"
28 2 20407 CHANNEL, GLASS, 12.5"
29 2 20343 CHANNEL, GLASS, 21.75"
30 1 20476 RETAINER, SIDE GLASS, BOTTOM, LEFT
31 1 20439 RETAINER, SIDE GLASS, BOTTOM, RIGHT
32 2 20144 CLIP, SIDE GLASS, CSW-ELV
33 2 20438 BREATHER TUBE, CSW-ELV
34 2 16929 #10-32 X 1"LG FULLY THD, PHIL TRUSS HEAD MACHINE SCREW, 18-8 S.S.
35 1 15705 CHANNEL, FRONT GLASS BOTTOM, CSW-ELV
36 1 20143 GLASS, FRONT, CSW-ELV
37 1 20142 GLASS, TOP, CSW-ELV
38 2 20161 GLASS TAB
39 1 20550 LED STRIP, 26"LG, W/LEADS & POWER SUPPLY
40 1 20490 CONDUIT, CSW-ELV
41 1 2130 ROUTING CLAMP, PIPE, 3/8"
42 1 20602 COVER, LED TERMINALS, CSW-ELV
43 1 7865 #10-32, NM NYLON INSERT LOCKNUT, STEEL ZINC
44 1 20450 CORNDITIONER ASSY, CSW-ELV-A
45 2 20435 COVER, POPPER CASE, CSW-ELV
46 2 20150 DRAWER, CLEAN OUT, CSW-ELV
47 1 6018 DECAL-'CAUTN:CONS ALL SURFC HO
48 2 6012 DECAL, CAUTION, EMPTY DRAWER DAILY
49 1 2446 DECAL-CAUTION 120V/60HZ
50 1 1517 NAMEPLATE, SERIAL NO, BLANK
51 4 16066 #44, 1/8" RIVET, DOME HEAD, 0.188-0.250 GR, SS/SS
52 1 19489 POPCORN SCOOP, PLASTIC
APPROVED DATE
DRAWN DATE
C SIZE DRAWING
STANDARD NOTES:
REMOVE SHARP EDGES AND BURRS. 1.
UNLESS SPECIFIED ALL DIMENSIONS ARE IN INCHES. 2.
REFERENCE DIMENSIONS ARE INDICATED IN PARENTHESIS. 3.
CRITICAL DIMENSIONS THAT NEED INSPECTION ARE INDICATED IN OBROUND BOX. 4.
T.S.C. STAND FOR THEORITICAL SHARP CORNER & INS STAND FOR INSIDE. 5.
FOR SHEET METAL, UNLESS SPECIFIED ALL DIMENSIONS ARE OUTSIDE. 6.
FOR SHEET METAL, FLAT PATTERNS ARE FOR REFERENCE ONLY. 7.
APPROX.
WEIGHT
189.11
LBS
REFER INDIVIDUAL SUB-PARTS
MATERIAL
176 MITTEL DRIVE, WOOD DALE, IL 60191
www.cretors.com | www.flo-thru.com
DRAWN BY
A
ndarji
nvidojevic
08/11/2017
SHEET
CSW-ELV-A
DRAWING NUMBER
DESCRIPTION
APPROVED BY
THIS DRAWING CONTAINS INFORMATION PROPRIETARY TO C. CRETORS & CO. AND IS FURNISHED IN CONFIDENCE FOR
SOLE PURPOSE OF SUPPLYING THE RECIPIENT WITH NEEDED ENGINEERING DATA. THE CONTENTS SHOULD NOT BE
DISCLOSED OR REPRODUCED IN ANY MANNER WITHOUT WRITTEN CONSENT OF C. CRETORS & CO. ALL RIGHTS RESERVED.
REVISION
COUNTER SHOWCASE WARMER,
ELEVATOR
1 OF 8
TOLERANCES
08/11/2017
0.02
0.01
1
+0.005 / -0
125Ra
x.xx =
x.xxx =
ANGLES =
HOLES =
FINISH =
THIRD ANGLE
PROJECTION
A A
B B
C C
D D
E E
F F
G G
H H
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1

A
5
1
BEFORE INSERTING THE INNER WRAP,
COMPLETE THE WIRING BEHIND THE
INNER WRAP BY THE POWER CORD LOCATION,
AS PER WIRING DIAGRAM AND EXTRACT THE
GROUP OF WIRES THROUGH THIS LOCATION.
LATER THESE WIRES WILL BE USED FOR WIRING
THE LED LIGHT UNDER THE TOP GLASS FRAME.
STEP # 1
7
6
4
3
3
4
23
2
3
DETAIL A
SCALE 1 : 1
7
6
APPROVED DATE
DRAWN DATE
C SIZE DRAWING
STANDARD NOTES:
REMOVE SHARP EDGES AND BURRS. 1.
UNLESS SPECIFIED ALL DIMENSIONS ARE IN INCHES. 2.
REFERENCE DIMENSIONS ARE INDICATED IN PARENTHESIS. 3.
CRITICAL DIMENSIONS THAT NEED INSPECTION ARE INDICATED IN OBROUND BOX. 4.
T.S.C. STAND FOR THEORITICAL SHARP CORNER & INS STAND FOR INSIDE. 5.
FOR SHEET METAL, UNLESS SPECIFIED ALL DIMENSIONS ARE OUTSIDE. 6.
FOR SHEET METAL, FLAT PATTERNS ARE FOR REFERENCE ONLY. 7.
APPROX.
WEIGHT
189.11
LBS
REFER INDIVIDUAL SUB-PARTS
MATERIAL
176 MITTEL DRIVE, WOOD DALE, IL 60191
www.cretors.com | www.flo-thru.com
DRAWN BY
A
ndarji
nvidojevic
08/11/2017
SHEET
CSW-ELV-A
DRAWING NUMBER
DESCRIPTION
APPROVED BY
THIS DRAWING CONTAINS INFORMATION PROPRIETARY TO C. CRETORS & CO. AND IS FURNISHED IN CONFIDENCE FOR
SOLE PURPOSE OF SUPPLYING THE RECIPIENT WITH NEEDED ENGINEERING DATA. THE CONTENTS SHOULD NOT BE
DISCLOSED OR REPRODUCED IN ANY MANNER WITHOUT WRITTEN CONSENT OF C. CRETORS & CO. ALL RIGHTS RESERVED.
REVISION
COUNTER SHOWCASE WARMER,
ELEVATOR
2 OF 8
TOLERANCES
08/11/2017
0.02
0.01
1
+0.005 / -0
125Ra
x.xx =
x.xxx =
ANGLES =
HOLES =
FINISH =
THIRD ANGLE
PROJECTION
A A
B B
C C
D D
E E
F F
G G
H H
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1

STEP # 2
C
C
12
11
WRAP AROUND AND
ADHERE DECAL TO THE
POWER CORD
49
B
DETAIL B
SCALE 1 : 2
8
6
7
6
7
10
SECTION C-C
SCALE 1 : 5
9
USED TO MOUNT
GROUND CABLE
APPROVED DATE
DRAWN DATE
C SIZE DRAWING
STANDARD NOTES:
REMOVE SHARP EDGES AND BURRS. 1.
UNLESS SPECIFIED ALL DIMENSIONS ARE IN INCHES. 2.
REFERENCE DIMENSIONS ARE INDICATED IN PARENTHESIS. 3.
CRITICAL DIMENSIONS THAT NEED INSPECTION ARE INDICATED IN OBROUND BOX. 4.
T.S.C. STAND FOR THEORITICAL SHARP CORNER & INS STAND FOR INSIDE. 5.
FOR SHEET METAL, UNLESS SPECIFIED ALL DIMENSIONS ARE OUTSIDE. 6.
FOR SHEET METAL, FLAT PATTERNS ARE FOR REFERENCE ONLY. 7.
APPROX.
WEIGHT
189.11
LBS
REFER INDIVIDUAL SUB-PARTS
MATERIAL
176 MITTEL DRIVE, WOOD DALE, IL 60191
www.cretors.com | www.flo-thru.com
DRAWN BY
A
ndarji
nvidojevic
08/11/2017
SHEET
CSW-ELV-A
DRAWING NUMBER
DESCRIPTION
APPROVED BY
THIS DRAWING CONTAINS INFORMATION PROPRIETARY TO C. CRETORS & CO. AND IS FURNISHED IN CONFIDENCE FOR
SOLE PURPOSE OF SUPPLYING THE RECIPIENT WITH NEEDED ENGINEERING DATA. THE CONTENTS SHOULD NOT BE
DISCLOSED OR REPRODUCED IN ANY MANNER WITHOUT WRITTEN CONSENT OF C. CRETORS & CO. ALL RIGHTS RESERVED.
REVISION
COUNTER SHOWCASE WARMER,
ELEVATOR
3 OF 8
TOLERANCES
08/11/2017
0.02
0.01
1
+0.005 / -0
125Ra
x.xx =
x.xxx =
ANGLES =
HOLES =
FINISH =
THIRD ANGLE
PROJECTION
A A
B B
C C
D D
E E
F F
G G
H H
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1

STEP # 3
15
16 15
13
14
6
7
7
6
14
18
18
POSITION THIS PART
IN PLACE BEFORE
LOWERING THE
SHAFT THROUGH
CENTER FRAME AND
OUTER WRAP
AFTER INSERTING INTO
THE SHAFT INSERT THE
BENT PORTION INTO THE
SLOT ON CENTER FRAME
SLOT WHERE THE
BENT PORTION
OF PIN IS INSERTED
SLOT WHERE THE
BENT PORTION
OF PIN IS INSERTED
17
APPROVED DATE
DRAWN DATE
C SIZE DRAWING
STANDARD NOTES:
REMOVE SHARP EDGES AND BURRS. 1.
UNLESS SPECIFIED ALL DIMENSIONS ARE IN INCHES. 2.
REFERENCE DIMENSIONS ARE INDICATED IN PARENTHESIS. 3.
CRITICAL DIMENSIONS THAT NEED INSPECTION ARE INDICATED IN OBROUND BOX. 4.
T.S.C. STAND FOR THEORITICAL SHARP CORNER & INS STAND FOR INSIDE. 5.
FOR SHEET METAL, UNLESS SPECIFIED ALL DIMENSIONS ARE OUTSIDE. 6.
FOR SHEET METAL, FLAT PATTERNS ARE FOR REFERENCE ONLY. 7.
APPROX.
WEIGHT
189.11
LBS
REFER INDIVIDUAL SUB-PARTS
MATERIAL
176 MITTEL DRIVE, WOOD DALE, IL 60191
www.cretors.com | www.flo-thru.com
DRAWN BY
A
ndarji
nvidojevic
08/11/2017
SHEET
CSW-ELV-A
DRAWING NUMBER
DESCRIPTION
APPROVED BY
THIS DRAWING CONTAINS INFORMATION PROPRIETARY TO C. CRETORS & CO. AND IS FURNISHED IN CONFIDENCE FOR
SOLE PURPOSE OF SUPPLYING THE RECIPIENT WITH NEEDED ENGINEERING DATA. THE CONTENTS SHOULD NOT BE
DISCLOSED OR REPRODUCED IN ANY MANNER WITHOUT WRITTEN CONSENT OF C. CRETORS & CO. ALL RIGHTS RESERVED.
REVISION
COUNTER SHOWCASE WARMER,
ELEVATOR
4 OF 8
TOLERANCES
08/11/2017
0.02
0.01
1
+0.005 / -0
125Ra
x.xx =
x.xxx =
ANGLES =
HOLES =
FINISH =
THIRD ANGLE
PROJECTION
A A
B B
C C
D D
E E
F F
G G
H H
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1

STEP # 4 STEP # 5
D
E
19
21
20
DETAIL D
SCALE 1 : 1
22
23
24
24
19
21
DETAIL E
SCALE 1 : 1
24
24
21
20
20
23
22
25
7
7
7
6
6
6
APPROVED DATE
DRAWN DATE
C SIZE DRAWING
STANDARD NOTES:
REMOVE SHARP EDGES AND BURRS. 1.
UNLESS SPECIFIED ALL DIMENSIONS ARE IN INCHES. 2.
REFERENCE DIMENSIONS ARE INDICATED IN PARENTHESIS. 3.
CRITICAL DIMENSIONS THAT NEED INSPECTION ARE INDICATED IN OBROUND BOX. 4.
T.S.C. STAND FOR THEORITICAL SHARP CORNER & INS STAND FOR INSIDE. 5.
FOR SHEET METAL, UNLESS SPECIFIED ALL DIMENSIONS ARE OUTSIDE. 6.
FOR SHEET METAL, FLAT PATTERNS ARE FOR REFERENCE ONLY. 7.
APPROX.
WEIGHT
189.11
LBS
REFER INDIVIDUAL SUB-PARTS
MATERIAL
176 MITTEL DRIVE, WOOD DALE, IL 60191
www.cretors.com | www.flo-thru.com
DRAWN BY
A
ndarji
nvidojevic
08/11/2017
SHEET
CSW-ELV-A
DRAWING NUMBER
DESCRIPTION
APPROVED BY
THIS DRAWING CONTAINS INFORMATION PROPRIETARY TO C. CRETORS & CO. AND IS FURNISHED IN CONFIDENCE FOR
SOLE PURPOSE OF SUPPLYING THE RECIPIENT WITH NEEDED ENGINEERING DATA. THE CONTENTS SHOULD NOT BE
DISCLOSED OR REPRODUCED IN ANY MANNER WITHOUT WRITTEN CONSENT OF C. CRETORS & CO. ALL RIGHTS RESERVED.
REVISION
COUNTER SHOWCASE WARMER,
ELEVATOR
5 OF 8
TOLERANCES
08/11/2017
0.02
0.01
1
+0.005 / -0
125Ra
x.xx =
x.xxx =
ANGLES =
HOLES =
FINISH =
THIRD ANGLE
PROJECTION
A A
B B
C C
D D
E E
F F
G G
H H
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1

STEP # 6
30
6
7
6
7
34
32
33
27
29
27
26
HIDDEN BEHIND
SHEET METAL FRAME
28
HIDDEN BEHIND
THE TUBING
SLIDE THE PLASTIC
CHANNELS ON GLASS
BEFORE INSTALLING THE
GLASS IN PLACE
PUSH RETAINER AGAINST
THE GLASS BEFORE SECURING
THE MOUNTING SCREWS
HIDDEN BEHIND
THE RETAINER
34
32 26
33
7
6
7
6
31
PUSH RETAINER AGAINST
THE GLASS BEFORE SECURING
THE MOUNTING SCREWS
SLIDE THE PLASTIC
CHANNELS ON GLASS
BEFORE INSTALLING THE
GLASS IN PLACE
APPROVED DATE
DRAWN DATE
C SIZE DRAWING
STANDARD NOTES:
REMOVE SHARP EDGES AND BURRS. 1.
UNLESS SPECIFIED ALL DIMENSIONS ARE IN INCHES. 2.
REFERENCE DIMENSIONS ARE INDICATED IN PARENTHESIS. 3.
CRITICAL DIMENSIONS THAT NEED INSPECTION ARE INDICATED IN OBROUND BOX. 4.
T.S.C. STAND FOR THEORITICAL SHARP CORNER & INS STAND FOR INSIDE. 5.
FOR SHEET METAL, UNLESS SPECIFIED ALL DIMENSIONS ARE OUTSIDE. 6.
FOR SHEET METAL, FLAT PATTERNS ARE FOR REFERENCE ONLY. 7.
APPROX.
WEIGHT
189.11
LBS
REFER INDIVIDUAL SUB-PARTS
MATERIAL
176 MITTEL DRIVE, WOOD DALE, IL 60191
www.cretors.com | www.flo-thru.com
DRAWN BY
A
ndarji
nvidojevic
08/11/2017
SHEET
CSW-ELV-A
DRAWING NUMBER
DESCRIPTION
APPROVED BY
THIS DRAWING CONTAINS INFORMATION PROPRIETARY TO C. CRETORS & CO. AND IS FURNISHED IN CONFIDENCE FOR
SOLE PURPOSE OF SUPPLYING THE RECIPIENT WITH NEEDED ENGINEERING DATA. THE CONTENTS SHOULD NOT BE
DISCLOSED OR REPRODUCED IN ANY MANNER WITHOUT WRITTEN CONSENT OF C. CRETORS & CO. ALL RIGHTS RESERVED.
REVISION
COUNTER SHOWCASE WARMER,
ELEVATOR
6 OF 8
TOLERANCES
08/11/2017
0.02
0.01
1
+0.005 / -0
125Ra
x.xx =
x.xxx =
ANGLES =
HOLES =
FINISH =
THIRD ANGLE
PROJECTION
A A
B B
C C
D D
E E
F F
G G
H H
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1

STEP # 7 STEP # 8
3635
F
37
DETAIL F
SCALE 1 : 2
38
6
7
APPROVED DATE
DRAWN DATE
C SIZE DRAWING
STANDARD NOTES:
REMOVE SHARP EDGES AND BURRS. 1.
UNLESS SPECIFIED ALL DIMENSIONS ARE IN INCHES. 2.
REFERENCE DIMENSIONS ARE INDICATED IN PARENTHESIS. 3.
CRITICAL DIMENSIONS THAT NEED INSPECTION ARE INDICATED IN OBROUND BOX. 4.
T.S.C. STAND FOR THEORITICAL SHARP CORNER & INS STAND FOR INSIDE. 5.
FOR SHEET METAL, UNLESS SPECIFIED ALL DIMENSIONS ARE OUTSIDE. 6.
FOR SHEET METAL, FLAT PATTERNS ARE FOR REFERENCE ONLY. 7.
APPROX.
WEIGHT
189.11
LBS
REFER INDIVIDUAL SUB-PARTS
MATERIAL
176 MITTEL DRIVE, WOOD DALE, IL 60191
www.cretors.com | www.flo-thru.com
DRAWN BY
A
ndarji
nvidojevic
08/11/2017
SHEET
CSW-ELV-A
DRAWING NUMBER
DESCRIPTION
APPROVED BY
THIS DRAWING CONTAINS INFORMATION PROPRIETARY TO C. CRETORS & CO. AND IS FURNISHED IN CONFIDENCE FOR
SOLE PURPOSE OF SUPPLYING THE RECIPIENT WITH NEEDED ENGINEERING DATA. THE CONTENTS SHOULD NOT BE
DISCLOSED OR REPRODUCED IN ANY MANNER WITHOUT WRITTEN CONSENT OF C. CRETORS & CO. ALL RIGHTS RESERVED.
REVISION
COUNTER SHOWCASE WARMER,
ELEVATOR
7 OF 8
TOLERANCES
08/11/2017
0.02
0.01
1
+0.005 / -0
125Ra
x.xx =
x.xxx =
ANGLES =
HOLES =
FINISH =
THIRD ANGLE
PROJECTION
A A
B B
C C
D D
E E
F F
G G
H H
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1

STEP # 9
STEP # 10
G
DETAIL G
SCALE 1 : 1
39 42
43
41
40
47
45
50
51
44
7
7
46
46
48
48
52
APPROVED DATE
DRAWN DATE
C SIZE DRAWING
STANDARD NOTES:
REMOVE SHARP EDGES AND BURRS. 1.
UNLESS SPECIFIED ALL DIMENSIONS ARE IN INCHES. 2.
REFERENCE DIMENSIONS ARE INDICATED IN PARENTHESIS. 3.
CRITICAL DIMENSIONS THAT NEED INSPECTION ARE INDICATED IN OBROUND BOX. 4.
T.S.C. STAND FOR THEORITICAL SHARP CORNER & INS STAND FOR INSIDE. 5.
FOR SHEET METAL, UNLESS SPECIFIED ALL DIMENSIONS ARE OUTSIDE. 6.
FOR SHEET METAL, FLAT PATTERNS ARE FOR REFERENCE ONLY. 7.
APPROX.
WEIGHT
189.11
LBS
REFER INDIVIDUAL SUB-PARTS
MATERIAL
176 MITTEL DRIVE, WOOD DALE, IL 60191
www.cretors.com | www.flo-thru.com
DRAWN BY
A
ndarji
nvidojevic
08/11/2017
SHEET
CSW-ELV-A
DRAWING NUMBER
DESCRIPTION
APPROVED BY
THIS DRAWING CONTAINS INFORMATION PROPRIETARY TO C. CRETORS & CO. AND IS FURNISHED IN CONFIDENCE FOR
SOLE PURPOSE OF SUPPLYING THE RECIPIENT WITH NEEDED ENGINEERING DATA. THE CONTENTS SHOULD NOT BE
DISCLOSED OR REPRODUCED IN ANY MANNER WITHOUT WRITTEN CONSENT OF C. CRETORS & CO. ALL RIGHTS RESERVED.
REVISION
COUNTER SHOWCASE WARMER,
ELEVATOR
8 OF 8
TOLERANCES
08/11/2017
0.02
0.01
1
+0.005 / -0
125Ra
x.xx =
x.xxx =
ANGLES =
HOLES =
FINISH =
THIRD ANGLE
PROJECTION
A A
B B
C C
D D
E E
F F
G G
H H
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1

BEGINNING SERIAL NO:
17072871
FOR WIRING:
REFER TO CURRENT REVISION OF WIRING DIAGRAM: CSWELVA
REVISIONS
REV DC # APPROVED BY APPROVED ON
- - - -
- - - -
A - nvidojevic 08/04/2017
BILL OF MATERIALS
ITEM # QTY. P/N DESCRIPTION
1 1 20442 ENCLOSURE, CSW-ELV, CORNDITIONER
2 1 20601 DECAL, CORNDITIONER, CSW-ELV
3 2 5130 SWITCH, LIGHTED, 230V
4 1 14585-CG GUARD, CONTROL, HOT DOG GRILL
5 1 14585 TEMPERATURE CONTROLLER, DIGITAL, 120V
6 1 5601 HIGH LIMIT, 200 DEG
7 2 7727
#8-32 X 3/8"LG FULLY THD, SLOT ROUND HEAD MACHINE SCREW, STEEL
ZINC
8 2 7789 #8, INTERNAL TOOTH LOCKWASHER, STEEL NICKEL
9 1 1727-A HEAT ELEMENT, 1100W, 120V, 13.1 OHMS
10 1 7264 ELEMENT CLAMP, 1-5/8"
11 6 5505 #8-32, SERRATED HEX FLANGE NUT, STEEL ZINC
12 1 2123 BUSHING, HEYCO #2030, 1/4"
13 1 4709 SPACER, 0.21"ID X 0.3"OD X 5/8"LG, STEEL
14 1 7683 #10, SAE FLAT WASHER, 18-8 S.S.
15 1 16086 THERMOCOUPLE, RING TYPE, HOT DOG
16 1 5634 BLOWER, 115/230V, 50/60 Hz, 1/40 HP
17 8 5742 1/4", SAE FLAT WASHER, 18-8 S.S.
18 8 5743 1/4", MEDIUM SPLIT LOCKWASHER, 18-8 S.S.
19 8 10121 1/4-20 X 1/2"LG FULLY THD, HEX HEAD CAP SCREW, 18-8 S.S.
20 1 5712 PLUG, 15AMP, 5 CONTACT
21 2 7642 #8-32 X 3/8"LG FULLY THD, PHIL TRUSS HEAD MACHINE SCREW, 18-8 S.S.
22 2 14646 #8-32, KEPS NUT, STEEL NICKEL
23 1 20463 COVER, CSW-ELV CORNDITIONER
APPROVED DATE
DRAWN DATE
APP. WEIGHT
12.51
LBS
REFER INDIVIDUAL SUB-PARTS
MATERIAL
176 MITTEL DRIVE, WOOD DALE, IL 60191
Ph:[phone], [phone], Fax:[phone]
www.cretors.com, [email protected]
DRAWN BY
A
ndarji
nvidojevic
08/04/2017
SHEET
20450
DRAWING NUMBER
DESCRIPTION
APPROVED BY REVISION
CORNDITIONER ASSY, CSW-ELV-A
1 OF 5
08/04/2017

STEP # 1
A
DETAIL A
SCALE 1 : 2
21
22
20
ENSURE ORIENTATION
PRIOR TO ASSEMBLY
STEP # 2
16
17
18
19
APPROVED DATE
DRAWN DATE
APPROX.
WEIGHT
12.51
LBS
REFER INDIVIDUAL SUB-PARTS
MATERIAL
176 MITTEL DRIVE, WOOD DALE, IL 60191
Ph:[phone], [phone], Fax:[phone]
www.cretors.com, [email protected]
DRAWN BY
A
ndarji
nvidojevic
08/04/2017
SHEET
20450
DRAWING NUMBER
DESCRIPTION
APPROVED BY REVISION
CORNDITIONER ASSY, CSW-ELV-A
2 OF 5
08/04/2017
