Cross Technologies 2016-26 User manual

Instruction Manual Model 2016-26
Downconverter
February 2009 Rev A
MENU
EXECUTE
MODEL 2016
F = 2050 G = +10.0
POWERALARM
DOWNCONVERTER
REMOTE
CROSS TECHNOLOGIES INC.
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 2016-26 Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 6
2.0 Installation 9
2.1 Mechanical 9
2.2 Rear Inputs/Outputs 10
2.3 Front Panel Controls, Indicators 11
2.4 Installation/Operation 12
2.5 Menu Settings 13
2.6 Use Information 17
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2016-26 Manual, Rev. A Page 2 2/2/09

MODEL 2016-26 Downconverter
1.0 General
1.1 Equipment Description
The 2016-26 Downconverter converts 2000 to 2500 MHz to 140 ± 36 MHz in 1 MHz steps with low group
delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-
function push button switches select the RF frequency and gain. Front panel LEDs provide indication of DC
power (green), remote operation (yellow), and PLL alarm (red). Variable attenuators for the RF input provide a
gain range of 0 to +50 dB as adjusted by the front panel multi-function pushbutton switches. Frequency and
gain settings appear on the LCD display. Connectors are BNC female for RF, IF and optional 10 MHz Input and
Output signals (option E). The unit is powered by a 100-240 ±10% VAC power supply, and housed in a 1 3/4”
X 19“ X 16” rack mount chassis.
MENU
EXECUTE
MODEL 2016
F = 2050 G = +10.0
POWERALARM
DOWNCONVERTER
REMOTE
CROSS TECHNOLOGIES INC.
FRONT PANEL
AC
GND
J3
J10
J18
10 MHZ REF 10 MHZ
AND
MONITOR EXT REF
CONTROL
J1
IF OUT OUTPUT INPUT
15 234 6789
J2
RF IN
REAR PANEL
FIGURE 1.1 Model 2016-26 Front and Rear Panels
140
MHz
OUT
2.0
to
2.5
GHz
IN
CONTROLLER
F=2250 G=+10
EXT
10 MHz*
INT/EXT
10 MHz
INT
10 MHz
VAR
ATT
Block Diagram
FIGURE 1.2 Model 2016-26 Downconverter Block Diagrams
2016-26 Manual, Rev. A Page 3 2/2/09

1.2 Technical Characteristics
TABLE 1.0 2016-26 Downconverter Specifications*
Input Characteristics (RF)
Impedance/Return Loss 50 /12 dB
Frequency 2.0 to 2.5 GHz
Input Level -70 to -20 dBm
Input 1 dB compression -15 dBm
Output Characteristics (IF)
Impedance/Return Loss 75 /18 dB
Frequency 140 ± 36 MHz
Output level -30 to -20 dBm
Output 1 dB compression -15 dBm
Channel Characteristics
Gain range (adjustable) 0 to +50.0 dB
Image Rejection > 50 dB, min.
Spurious Response < -45 dBC in band
Frequency Response ±1.5 dB, 2.5 GHz; ± 0.5 dB, 36 MHz BW
Group Delay, max 0.01 ns/MHz2(parabolic), 0.03 ns/MHz (linear); 1 ns ripple
Frequency Sense Inverting or Non-inverting (selectable)
Synthesizer Characteristics
Frequency Accuracy ± 1.0 ppm max over temp (±0.01 ppm, option H)
Frequency Step 1.0 MHz minimum (500 kHz, option 5) (125 kHz, option X)
10 MHz Level (In/Out) +3 dBm ± 3 dB (option E)
-105-95-80-70-70
1MHz100kHz10kHz1kHz100 Hz
dBC/Hz
Phase Noise
@
Fre
q
Controls, Indicators
Frequency Selection Direct readout LCD; pushbutton switches
Gain Selection Direct readout LCD; pushbutton switches
Power Green LED
Alarm Red LED
Remote Yellow LED, RS 232C, 9600 baud (RS 422/485, option Q)
Other RF Connector BNC (female), 50 
IF Connector BNC (female), 75 
10 MHz Connectors BNC (female), 75(option E)
Alarm/Remote Conn. DB9 - NO or NC contact closure on Alarm
Size 19 inch, 1RU standard chassis 1.75”high X 16.0” deep
Power 100-240 ±10% VAC, 47-63 Hz, 45 watts max
Options
E Allows ext. 10 MHz ref input, 10 MHz ref can be inserted on the RF in
H High Stability (± 0.01 ppm) internal reference
Q RS-422/485 remote capability
X 125 kHz frequency steps
W1 Output Level Detector
5 500 kHz frequency steps
Connector options See TABLE 2.2
*+10˚C to +40˚C; Specifications subject to change without notice
2016-26 Manual, Rev. A Page 4 2/2/09

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485 - Option-Q)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port Male DB-9
2015/16/17 M&CPort
M&C Cable Diagram - Cross Technologies Frequency Converters
Connector: Rear panel, DB-9 male
J10 Pinouts (RS-232C/422/485)
J10 Pinouts (RS-232C/422/485)
Pin Function
1Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8NotUsed
9 Alarm Relay: Normally Closed
2016-26 Manual, Rev. A Page 5 2/2/09

B) Status Requests
Table 1.1 lists the status requests for the 2016-34 and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
TABLE 1.1 2016-26 Status Reequests
TABLE 1.1 2016-26 Status Requests
Command Syntax* Description
Command Status {aaS1} Returns {S1bbbbccIA} where:
• bbbb = Rx frequency (4 characters) OR
• bbbbb = Rx frequency (5 characters, option 5) OR
• bbbbbbb = Rx frequency (7 characters, option X)
• cc = Rx gain
• I = 0 - non-inverted Receiver; I = 1 - inverted
• A = Summary Alarm; 1=Alarmed, 0=Normal
10MHz Ref Status {aaS2} Returns {S2E} where:
(option E only)
• E = 1 - external 10 MHz switched in
2016-26 Manual, Rev. A Page 6 2/2/09

C) Commands
Table 1.2 lists the commands for the 2016-27 and briefly describes them. After a command is sent the 2016-27
sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only - option -Q)
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.2 2016-26 Comman
d
ds
Table 1.2 2016-26 Commands
Command Syntax* Description
Set Receiver Frequency {aaC2xxxx} where:
• xxxx = 4 characters (1 MHz steps)
• xxxxx = 5 characters (option 5, 0.5 MHz steps)
• xxxxxxx = 7 characters (option X, 125 kHz steps)
• Range: 2000 to 2500 MHz
Set Receiver Gain {aaC4xx} where:
• xx = 2 characters
• Range: 00 to 50 (0 dB to +50 dB, in 1 dB steps)
Enable Spectrum Invert {aaC7x} where x =:
• 0 to disable spectrum invert
• 1 to enable spectrum invert
Enable External 10MHz IN {aaCEx} where x =:
(option E only)
• 0 to disable External 10MHz ref signal
• 1 to enable External 10MHz ref signal
Enable Remote # Just # sign
Disable Remote {aaCR0} {CR and zero}
2016-26 Manual, Rev. A Page 7 2/2/09

2.0 Installation
2.1 Mechanical
The 2016-26 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis.
A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2016-26 can be
secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2016-26 is assembled.
POWER
SUPPLY
FIGURE 2.1 Model 2016-26 Downconverter Assembly
2016-26 Manual, Rev. A Page 8 2/2/09

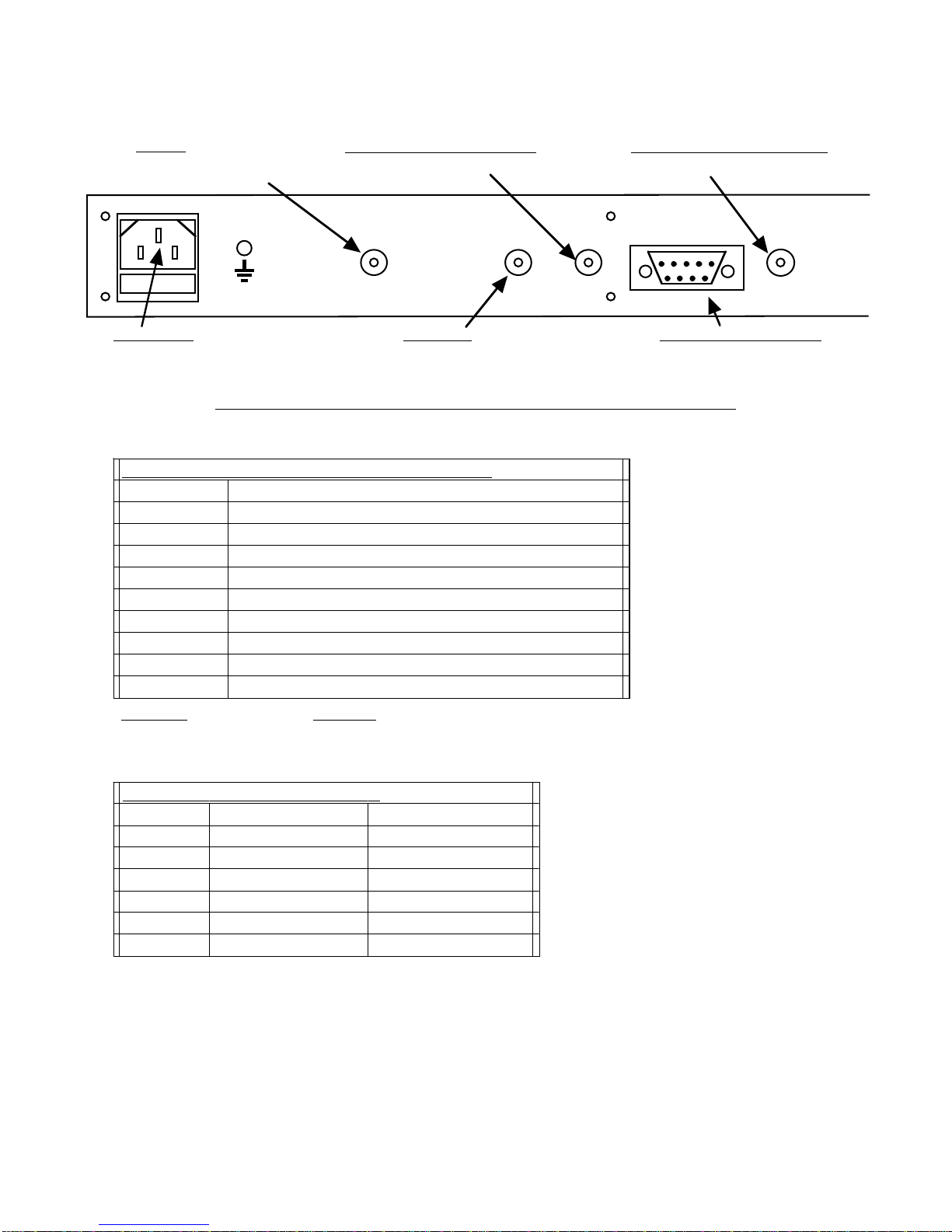

2.2 Rear Panel Input/Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.
AC
GND
J18
10 MHZ REF
OUTPUT
J10
AND
MONITOR
CONTROL
J10 - MONITOR AND CONTROL
DB9 female connector.
See Table 2.1.
J3
10 MHZ
EXT
REF
J1 - IF OUT A
140 MHz, -20 dBm output. 75, BNC
(female) - See Table 2.2 for other options.
INPUT
J2 - RF IN
2000-2500 MHz, -70 to -20 dBm
input. 50, BNC (female) - See
Table 2.2 for other options.
J3 - 10 MHz EXT REF INPUT (option E)
10 MHz external reference input, 0 ± 3 dBm,
75 BNC female connector.
J18 - 10 MHz REF OUTPUT (option E)
10 MHz reference output, 0 ± 3 dBm.
75 BNC female connector.
AC - POWER IN
AC input for switching power supply.
100-240 ±10% VAC, 47-63 Hz.
J1
IF OUT A
J2
RF IN
51234
9678
FIGURE 2.2 2016-26 Downconverter Rear Panel Inputs/Outputs
Table 2.1 J10 Pinouts (RS-485/RS-422/RS-232C)*
Table 2.1 J10 Pinouts (RS-485/RS-422/RS-232C)*
Pin Description
1Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5 Ground
6 Alarm Relay - Common
7 Alarm Relay - Normally Open
8 Output Level Detector, 0 to +5 VDC (option W1 ONLY)
9 Alarm Relay - Normally Closed
*Interface: DB-9 Female; Protocol: RS-485, RS-422, or RS-232C (selectable), 9600 baud rate,
no parity, 8 data bits, 1 start bit, 1 stop bit
TABLE 2.2
I
IF/RF Connector Options
TABLE 2.2 IF/RF Connector Optionns
TABLE 2.2 IF/RF Connector Options
Option IF RF
STD BNC, 50BNC, 50
B
BNC, 75BNC, 75
D
BNC, 50BNC, 50
N
BNC, 75Type N, 50
M
BNC, 50Type N, 50
SS
SMA, 50SMA, 50
Option W1 Level Detector - Provides 0 to +5 VDC level indication for -60 to -30 dBm 140 MHz output.
The DC voltage comes out on pin 8 of the DB9 connector, J10, with pin 5 being ground. The impedance of
the 0 to +5 VDC level indication signal is 1k. The relation between the change in output level and the
change in DC voltage is linear.
2016-26 Manual, Rev. A Page 9 2/2/09

2.3 Front Panel Controls and Indicators - The following are the front panel controls and indicators.
MENU
EXECUTE
F = 2050 G = +10.0
REMOTE POWER
LCD DISPLAY
Display shows frequency in MHz and Gain
in dB, and is used to change settings in
Program mode.
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function in
the normal display mode.
S3 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode.
ALARM
DS3 - ALARM LED
Red LED indicates
downconverter alarm.
FIGURE 2.3 2016-26 Front Panel Controls and Indicators
2016-26 Manual, Rev. A Page 10 2/2/09

2.4 Installation / Operation
2.4.1 Installing and Operating the 2016-26, Downconverter Section
1. Connect a -20 dBm to -140 dBm signal to RF In, J2 (Figure 2.2)
2. Connect the IF OUT, J1, to the external equipment
3. Connect 90- 260 VAC, 47 - 63 Hz to AC on the back panel.
4. Set the desired input frequency (See Section 2.5 Menu Settings).
5. Set the gain for 0 to +50 dB. Make sure the output stays within -20 to -30 dBm with the gain selected
and the input level provided. (See Section 2.5 Menu Settings).
6. Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.3).
7. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in the
drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot. If a fuse
continues to open, the power supply is most likely defective.
FUSE DRAWER
SPARE FUSE DRAWER
AC Fuse - 2 amp slow blow (Type T 2A GDC),
5 mm X 20 mm
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.4 Fuse and Spare Fuse Locations
2016-26 Manual, Rev. A Page 11 2/2/09

2.5 Menu Settings
2.5.1 Functions
This section describes operation of the front panel controls. There are three operator switches, the LCD display
and alarm indicator LEDs. All functions for the equipment are controlled by these components.
The functions are (see Figure 2.5):
Power Up
Normal Display
Menu 1 Frequency in MHz
Menu 2 Gain (0 to +50 dB)
Menu 3 Set Unit to Remote Operation (Note: the local controls still function when in REMOTE)
Menu 4 Select Non-inverting or Inverting Spectrum
Menu 5 Select External 10 MHz Ref (option E)
Menu 6 Select 10 MHz Output (option E)
Menu 7 Select RS232, RS422, or RS 485 Remote Operation (option Q)
Menu 8 Select Remote Address for Unit (RS485 only) (option Q)
Save Menu When “R” is selected in any above menu or the next menu item after Menu 8
Alarm indications appear on the LEDs (see figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
2016-26 Manual, Rev. A Page 12 2/2/09

2.5.2. Power On Settings
NOTE: The last status of a unit is retained even when power is removed. When power is restored, the unit
will return to it's previous settings.
When power is first applied, the LCD display goes through three steps.
1.The LCD goes black to show all segments are functioning.
2.The software version will be displayed.
REV 1.00
3.The present frequency and gain of the downconverter is shown.
F=2250 G=+00
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing
the Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor left
or right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
A. During frequency, gain changes, the vertical movement will raise or lower the selected number
in the direction of the arrows.
B. For other functions, the vertical switch will alternately turn the function on or off regardless
of the direction operated.
2016-26 Manual, Rev. A Page 13 2/2/09

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 12 seconds,
and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch
and select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
1. Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.5
for the sequence of menu options. The following display is for changing the downconverter frequency:
F = 2250 R
Pressing the Up/Down switch down will toggle the display to:
F = 2350 R
By using the horizontal rocker switch the cursor can be moved left or right .
F = 2350 R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES. THE CARRIER IS MUTED
WHEN FREQUENCY IS CHANGED.
When the display indicates the value desired you can push the Menu/Execute switch to the next item:
G = +00 R
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the default display:
F=2350 G=+00
Figure 2.5 shows all the menu items and how to make changes.
2016-26 Manual, Rev. A Page 14 2/2/09

2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 12 seconds, and the system will return to the normal operating mode.
To change the GAIN, first push the Menu/Execute switch to get to the gain setting:
Operate the Menu/Execute switch until you get to the menu item you want to change (see Figure 2.5 for
the sequence of menu options).
NOTE: CHANGES TAKE PLACE ON GAIN IMMEDIATELY BUT DO NOT GET SAVED UNTIL
YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.
Press the Up/Down switch to change the level in 1 dB steps and then push the Menu/Execute switch to
get to the Gain setting:
G = +00 R
Press the Up/Down switch to change the gain in 1 or 10 dB steps:
G = +10 R
By using the horizontal rocker switch the cursor can be moved left or right.
Pressing the Up/Down switch down will toggle the display digit selected until you have the desired gain.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW. DO NOT SET A GAIN THAT WOULD EXCEED 0 dBm OR HAVE LESS THAN -20 dBm
OUTPUT LEVEL. THE FIRMWARE PREVENTS YOU FROM THIS.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to:
F=2350 G=+10
Figure 2.5 gives the menu items and how to make changes
2016-26 Manual, Rev. A Page 15 2/2/09

2.5.5 Alarm Indications
An alarm condition for will occur if the local oscillator phase lock loop (PLL) comes out of lock.
The Mute LED will light if you select to mute the Tx Signal and the Remote LED will light when you select
the Remote mode.
ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
F=2050 G=+00
F = 2050
SCROLL <>
SCROLL
PUSH BUTTON
DNSPECTRUM NON
REMOTE OFF
EXT REF OFF
SCROLL <>
SCROLL
PUSH BUTTON
PUSH BUTTON
Power Up
Normal Display
Menu 1 Down Frequency
Menu 2 Down Gain (0 to +50)
Menu 3 Set Unit to Remote
Operation
Menu 4 Select Non-inverting or
Inverting Spectrum
Menu 5 Select External 10 MHz
Reference (option E)
Menu 6 Select 10MHz Output
(option E)
Menu 7 Select RS232, RS422, or
RS485 remote control (option Q)
Menu 8 Select remote address for
unit (RS485 only) (option Q)
Save? When “R” is selected from
any menu above, or at the end
G = +00
SCROLL <>
SCROLL
PUSH BUTTON
SAVE SETTINGS? Y N
SCROLL <>
PUSH BUTTON
R
R
R
R
R
R
RS232
DN REF OUT OFF R
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
RADDRESS = 00
SCROLL <>
SCROLL
PUSH BUTTON
FIGURE 2.5 Menu Display and Sequence
2016-26 Manual, Rev. A Page 16 2/2/09

2.6 Use Information
A.Elevated operating ambient temperature - if installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
B. Reduced air flow - Installation of the equipment in a rack should be such that the amount of
air flow required for safe operation of the equipment is not compromised. Additional space between
unit may be required.
C. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
D. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
E. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connection to the
Branch (use of power strips).
F. Top Cover - There are no servicable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE RE-INSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
2016-26 Manual, Rev. A Page 17 2/2/09

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2016-26 Manual, Rev. A Page 18 2/2/09
