INSTRUCTION MANUAL
MODEL 3116-7786-2150 Block Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 6
2.0 Installation 9
2.1 Mechanical 9
2.2 Rear Inputs and Outputs 10
2.3 Front Panel Indicators 10
2.4 Operation 11
2.5 Menu Settings 12
3.0 Environmental Use Information 17
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
3116-7786-2150 Manual, Rev. 0 Page 2 11/24/20

MODEL 3116-7786-2150 Downconverter
1.0 General
1.1 Equipment Description -The 3116-7786-2150 Downconverter converts 7.75 - 8.65 GHz (Fc = 7.9 - 8.5
GHz) to 2150 ± 150 MHz (non-inverted) in 1 MHz steps (100 kHz, 125 kHz steps optional) with a 5.75 - 6.35
GHz local oscillator. The gain is +35 dB maximum with a 30 dB adjustment in 0.5 ±0.5 dB steps. Front panel
LEDs provide indication of Remote operation, PLL Alarm and DC Power. Frequency and
internal/external/Auto reference mode selection are controlled by front panel switches or remote selection (via
RS-232C/485, standard; Ethernet Optional) and are viewable on the LCD Display. Connectors are Type N
female for the RF and BNC female for the L-Band and external reference input and reference output. In AUTO,
the 10 MHz reference stays in external if the external level is +3 dBm, ±3 dB. The 3116 is powered by a 100-
240 ± 10% VAC power supply, and housed in a 1 3/4” X 19” X 14” rack mount chassis.
MENU
EXECUTE
MODEL 3116
CROSS TECHNOLOGIES INC.
FC = 8200.000
G=+10.0 REF AUTO-I
POWER
REMOTE ALARM
DOWNCONVERTER

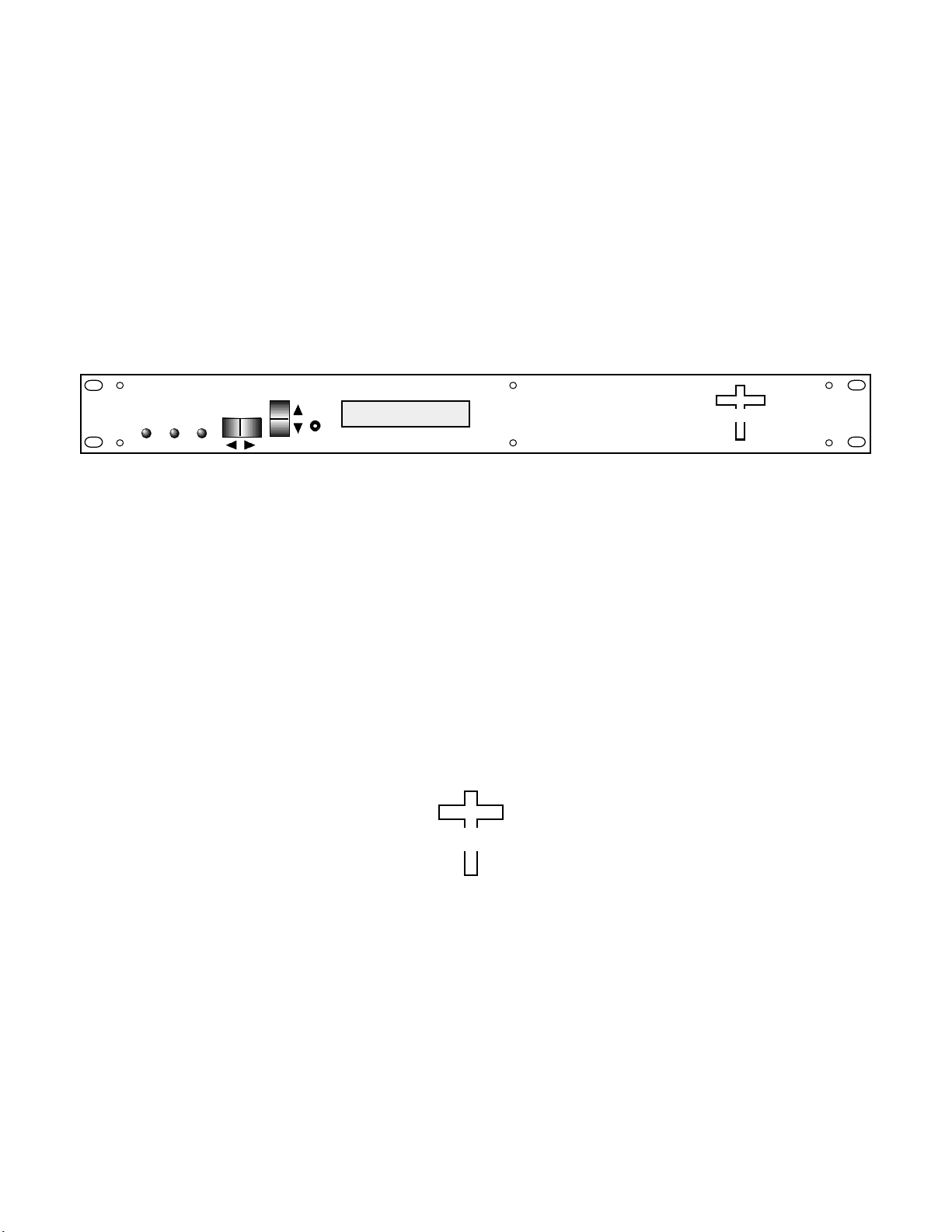

FRONT PANEL
AC RF INPUT
GND
J101
J8
10 MHZ REF
OUTPUT
J11
ALARM
15 234 6789
J2
EXT 10 MHZ
INPUT L-BAND
OUTPUT
J1
J14
REAR PANEL
FIGURE 1.1 Model 3116-7786-2150 Front and Rear Panels
(Shown with optional Ethernet)
2150
±150
MHz
OUT
7.75
to
8.65
GHz
IN
2150 MHz BP
CONTROLLER
7.75-8.65 GHz BP
5.75 -
6.35
GHz
EXT
10MHz
var
atten
INT
10MHz
3116-7786-2150 Block Diagram
AUTO
FIGURE 1.2 Model 3116-7786-2150 Downconverter Block Diagram
3116-7786-2150 Manual, Rev. 0 Page 3 11/24/20

1.2 Technical Characteristics
3116-7786-2150 Block Downconverter Specifications continued on page 5...
3116-7786-2150 Manual, Rev. 0 Page 4 11/24/20
3 dBm
,
±3 dB
,
with Auto-detect10 MHz Level
(
In / Out
)
±0.01
pp
m maximum over tem
p
. internal reference; external reference in
p
utFre
q
uenc
y
Accurac
y
±2.0 dB over the band, ± 1.0 dB 2150 ± 150 MHz out;
Fre
q
uenc
y
Res
p
onse
-55 to -35 dBmInput Level Range
Input Characteristics
Out
p
ut Characteristics
(
L-Band
)
Channel Characteristics
LO Characteristics
> 60 dB
,
minimumIma
g
e Re
j
ection
-20 to 0 dBm Out
p
ut Level Ran
g
e
TABLE 1.0 3116-7786-2150 Block Downconverter S
p
ecifications**
5.75 - 6.35 GHz, 1 MHz steps; 100 kHz, 125 kHz steps opt.LO Fre
q
uenc
y
Non-invertin
g
Fre
q
uenc
y
Sense
<-50 dBC for two carriers at 4 MHz spacing, each at -10 dBm out, at Gmax.Intermodulation
<-50 dBm (0.3-1.99 and 2.31-2.5 GHz Out)
S
p
urious, Out of Band
Signal Related <-45 dBC in band, 0 dBm out;
SIGNAL INDEPENDENT,<-55 dBm (2150 ±150 MHz Out), Gmax.
S
p
urious, In Band
+35 dB ±2 dB, max. gain; 30 dB adjustment in 0.5± 0.5 dB Steps (Fc = 7.9 - 8.5 GH
z
Gain, at Fc, Max.; adj.
+10 dBm at maximum
g
ainOut
p
ut 1 dB Com
p
ression
2150 ± 150 MHz Fre
q
uenc
y
50Ω/ 14 dBIm
p
edance/Return Loss
-25 dBmInput 1 dB Compression
12 dB maximum
g
ain
,
Gmax.Noise Fi
g
ure
,
Maximum 7.75 to 8.65 GHz
(
Fc = 7.9 - 8.5 GHzFre
q
uenc
y
50Ω/14 dBIm
p
edance/Return Loss
BNC
(
female
)
, 75Ω, works with 50 or 75 ohms10 MHz Connectors
19 inch, 1RU standard chassis, 1.75” hi
g
h x 14.0” dee
p
Size
Controls
,
Indicators
Other
BNC
(
female
),
50ΩL-Band Connector
100-240 ±10% VAC
,
47- 63 Hz
,
30 watts maximumPower
RS232C/RS485/422, 9600 Baud;
(
Ethernet O
p
tional
)
Remote
Direct readout LCD;
p
ushbutton switches or remoteFre
q
.; External Ref. Selection
DB9 - NO or NC contact closure on AlarmAlarm/Remote Connector
N-T
yp
e
(
female
)
, 50ΩRF Connector
Green LED
;
Red LED
,
Yellow LED
;
Yellow LEDPower
,
Alarm
,
Remote
,
Mute
-120
-100-80-80-75
-55 Standard dBC/Hz 1M
100K10K1K100
10
Phase Noise @ F
(
Hz
)
>

1.2 Technical Characteristics (continued from page 4.)
3116-7786-2150 Manual, Rev. 0 Page 5 11/24/20
Ethernet with direct TCP/IP Interface W28 -
Connector O
p
tions
Remote M&C Ethernet O
p
tions
W8
+ W18 + W28 W828 -
Ethernet with SNMP
(
and MIB
)
Interface W18 -
Ethernet with web browser Interface W8 -
100 kHz fre
q
uenc
y
ste
p
X1 -
125 kHz fre
q
uenc
y
ste
p
X -
Contact Cross Technolo
g
ies for other o
p
tions.
50Ω SMA
(
RF
),
50Ω SMA
(
L-Band
)
SS -
**+10˚C to +40˚C; S
p
ecifications sub
j
ect to chan
g
e without notice. © Cross Technolo
g
ies, Inc.
50Ω SMA
(
RF
),
75Ω BNC
(
L-Band
)
S7 -
50ΩN-type (RF), 50ΩSMA (L-BAND)
NS -
Available O
p
tions
(
3116-7786-2150
)
50Ω N-T
yp
e
(
RF
),
75Ω BNC
(
L-Band
)
N -

1.3 Monitor and Control Interface
A) Remote Serial Interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485)
Female DB-9
PC Com Port Male DB-9
2
1
3
4
5
6
7
8
9
2
1
3
4
5
6
7
8
9

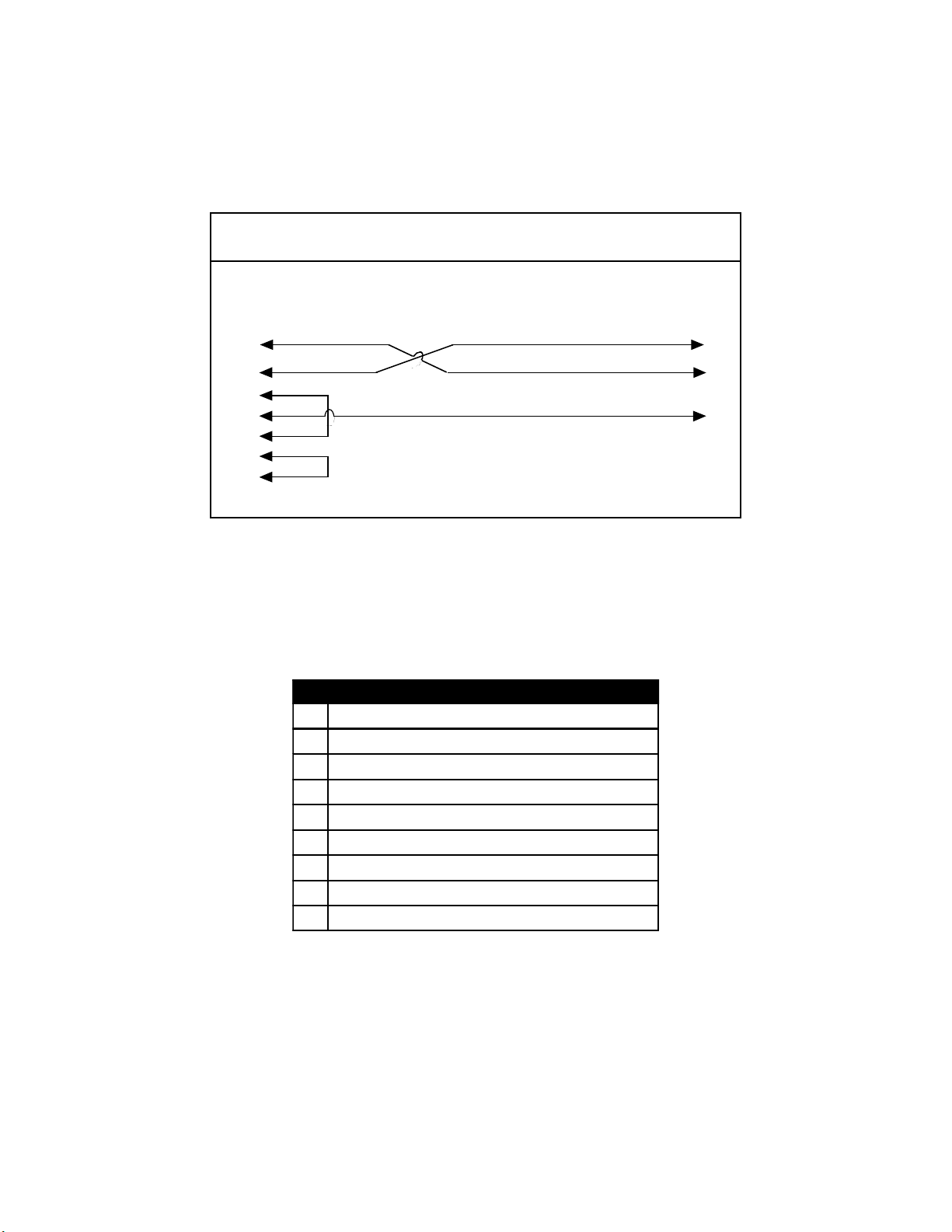

M&C Cable Diagram - Cross Technologies Frequency Converters and
Frequency Sources
Figure 1.3 M&C Cable Diagram
Connector Pinouts: Rear Panel, DB9 male.
Not Used
Alarm Relay: Normally Closed
Alarm Relay: Normally Open
Alarm Relay: Common
GND
RS422/RS485 Tx Data Out-
RS422/RS485 Tx Data Out+, RS232 Data Out
RS422/RS485 Rx Data In+, RS232 Data In
RS422/RS485 Rx Data In-
9
8
7
6
5
4
3
2
1
Table 1.1 J11 Pinouts (RS-232C/422/485)
3116-7786-2150 Manual, Rev. 0 Page 6 11/24/20

B) M&C Commands -
Table 1.1 lists the status requests for the 3116-7786-2150 and briefly describes them. After a
command is sent the 3116-7786-2150 sends a return “>” indicating the command has been received and
executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = Address (RS-485 only)
C = 1 character, either C (command) or S (status)
N = 1 character command or status byte
D = 1 character or more of data (depends on command)
} = stop byte
* PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
TABLE 1.1 3116-7786-21500 Status
3116-7786-2150 Status Requ
e
ests
TABLE 1.1 3116-7786-2150 Status Requests
Command Syntax * Description
Get Frequency {aaSF} returns: {aaSFxxxx}
where:
• xxxx = 4 characters standard, 7 characters options x, x1
• xxxx = Frequency in MHz, xxxxxxx = Frequency in kHz
Get Gain {aaSG} returns {aaSGxxx} where:
• xxx = Converter gain in 0.5 dB steps.
Get Internal 10 MHz Reference Offset {aaSO} Returns {aaSOxxxxx} where:
• xxxxxx = Internal 10 MHz reference frequency offset.
Get 10 MHz Reference Mode {aaSE} Returns {aaSEx} where:
• x = 0 if the converter's 10 MHz reference mode is set to Internal
• x = 1 if the converter's 10 MHz reference mode is set to External
• x = 2 if the converter's 10 MHz reference mode is set to Auto
Get Mute {aaSM} Returns {aaSMx} where:
• x = 0 if the converter's RF output is NOT muted (RF output is ON)
• x = 1 if the converter's RF output is muted (RF output is OFF)
Get 10 MHz Reference Status {aaSB} Returns {aaSBx} where:
• x = 0 if the currently selected 10 MHz reference is Internal
• x = 1 if the currently selected 10 MHz reference is External
Get IP Address {Si} Returns {Sixxx.xxx.xxx.xxx} where:
(Options W8, W18, W28 only) • xxx.xxx.xxx.xxx = IP address
Get Subnet Mask {Ss} Returns {Ssxxx.xxx.xxx.xxx} where:
(Options W8, W18, W28 only) • xxx.xxx.xxx.xxx = subnet mask
Get Product/Model info {SV} Returns {Sv3116-xxy..yverZZZZ} where:
• 3116-xx is the product model number
• y..y = list of options, if any
• '"ver" = separates model & options from firmware version
• ZZZZ = firmware version (e.g., 4.00)
Get Alarm Status {aaSA} Returns {aaSAx}where:
• x = 0 if alarm is off
• x = 1 if alarm is on
Get Output Path {aaSD} Returns {aaSDx}where:
(option W116) • x = 0 if selected output path is A.
3116-7786-2150 Manual, Rev. 0 Page 7 11/24/20

B) Status Requests
TABLE 1.2 3116-7786-2150 CCommands
3116-7786-2150 Commands
TABLE 1.2 3116-7786-2150 Commands
Command Syntax * Description
Set Frequency {aaCFxxxx} where:
• aa = unit address, range = 00 to 31,
only used if interface is RS485, otherwise omit.
• F = command code
• xxxx=frequency in MHz, range = 7900-8500,
xxxxxxx = frequency in kHz if option - X, X1
(7900 to 8500 MHz, 1 MHz steps)
• example: {CF8250}
Will set the unit's frequency to 8250 MHz
The unit will reply with the '>' character if the
command is successfully processed.
Set Gain {aaCGxxx} where:
• xxx = Converter gain in 0.5 dB steps
Range: 050 to 350 where 300 = 30.0 dB
Example: {CG255} sets the converter's gain to +25.5 dB
Set Internal 10 MHz Reference Offset {aaCOxxxxx} where:
• xxxxxx = Internal 10 MHz reference frequency offset.
Range: -2000 to +2000
Set 10 MHz Reference Mode {aaCEx} where:
• x = 0 if the converter's 10 MHz reference mode is set to Internal
• x = 1 if the converter's 10 MHz reference mode is set to External
• x = 2 if the converter's 10 MHz reference mode is set to Auto
Set Mute {aaCMx} where:
• x = 0 if the converter's RF output is NOT muted (RF output is ON)
• x = 1 if the converter's RF output is muted (RF output is OFF)
Set Output Path {aaCDx} Returns {aaSDx}where:
(option W116) • x = 0 if selected output path is A.
3116-7786-2150 Manual, Rev. 0 Page 8 11/24/20

2.0 Installation
2.1 Mechanical - The 3116-7786-2150 consists of one RF PCB housed in a 1 RU (1 3/4 inch high) by 14 inch
deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 3116-
7786-2150 can be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the 3116-7786-
2150 is assembled.
1
PS IN
PIN 1, +12 VDC
PIN 2, +5 VDC
PIN 3, +5 VDC
PIN 4, GROUND
PIN 5, GROUND
PIN 6, -12 VDC
PIN 7, +24 VDC
PIN 8, +24 VDC
POWER
SUPPLY
J10
J101 - Panel Mount
Type N Connector
BP FILTER/
ISOLATOR
A4
J6

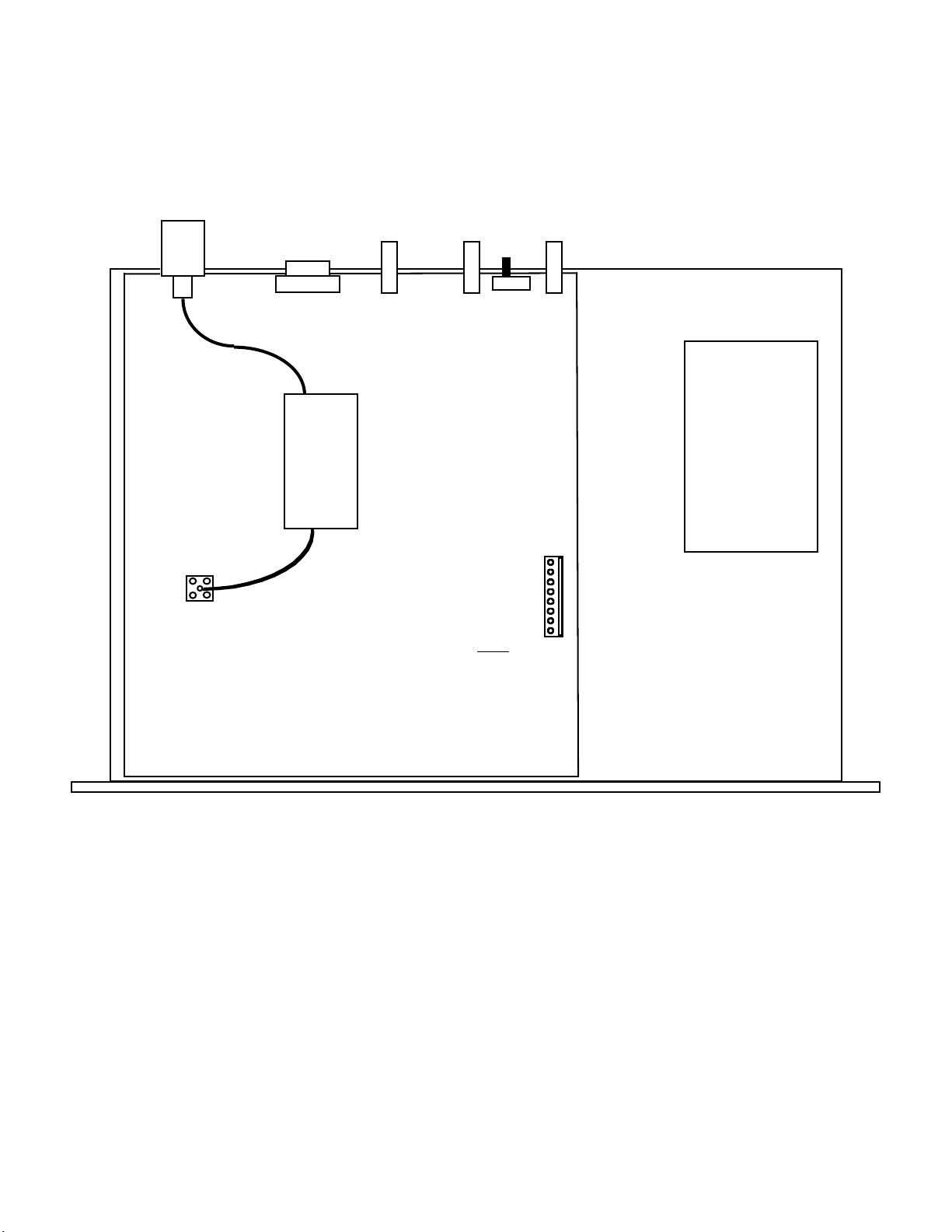

FIGURE 2.0 3116-7786-2150 Mechanical Assembly
3116-7786-2150 Manual, Rev. 0 Page 9 11/24/20

2.2 Rear Panel Input/Output Signals - Figure 2.1 shows the input and output connectors on the rear panel.
J101 - INPUT
7.75 to 8.5 GHz
-55 to -35 dBm
N Female
See Table 2.2
AC - POWER IN
AC input for switching power supply.
100-240 ±10% VAC, 47-63 Hz.
J1 - OUTPUT
2150 MHz to ±150 MHz
-20 to 0 dBm
Type BNC Female
See Table 2.2
J11 - ALARM
DB9 female connector.
See Table 2.1.
J8 - 10 MHz EXT REF OUTPUT
+3 ±3 dBm
BNC Female Connector
with auto-detect.
AC
GND
J2 - 10 MHz EXT REF INPUT
10 MHz external reference input,
BNC Female Connector
+3 ±3 dBm with auto-detect
RF INPUT
J101
J8
10 MHZ REF
OUTPUT
J11
ALARM
15 234 6789
J2
EXT 10 MHZ
INPUT
L-BAND
OUTPUT
J1
J14
J14 - Ethernet Connector
RJ45 Ethernet connector.
FIGURE 2.1 3116-7786-2150 Rear Panel I/Oʼs
TABLE 2.
1
1 Connector
2.1 Connector Optioons
Options
Option RF L-Band
-N 50ΩType N 75ΩBNC
-NS 50ΩType N 50ΩSMA
-S7 50ΩSMA 75ΩBNC
-SS 50ΩSMA 50ΩSMA
2.3 Front Panel Indicators - The following are the front panel indicators.
MENU
EXECUTE
MODEL 3116
CROSS TECHNOLOGIES INC.
FC = 8200.000
G = +10.0 REF AUTO-1
POWERALARM
DOWNCONVERTER
LCD DISPLAY
Display shows frequency in
MHz and Gain in dB, and is
used to change settings in
Program mode.
MENU/EXECUTE BUTTON
Press this to get into
Program mode and to
execute any changes.
POWER LED
Green LED indicates
presence of DC
power.
VERT. TOGGLE SWITCH
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function in
the normal display mode
REMOTE LED
Yellow LED
indicates remote
operation.
HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function
in the normal display mode
ALARM LED
Red LED indicates
downconverter alarm.
REMOTE
FIGURE 2.2 3116-7786-2150 Front Panel Controls and Indicators
3116-7786-2150 Manual, Rev. 0 Page 10 11/24/20

2.4 Installation / Operation
2.4.1 Installing and Operating the 3116-7786-2150 Downconverter
1.) Connect a -55 dBm to -35 dBm signal to RF INPUT, J101 (Figure 2.1).
2.) Connect the L-BAND OUTPUT, J1, to the external equipment.
3.) Connect 100-240 ±10% VAC, 47 - 63 Hz to AC connector on the back panel.
4.) Set the gain (+35 dB maximum with a 30 dB adjustment in 0.5 ±0.5 dB steps.)
Make sure the output stays within -20 to 0 dBm with the gain
selected and the input level provided. (See Section 2.5 Menu Settings).
5.) Be sure the green DC Power is on and the red Alarm is off (Figure 2.2).
6.) AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot
in the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot.
If a fuse continues to open, the power supply is most likely defective.
AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VA
C
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.3 Fuse Location and Spare Fuse
3116-7786-2150 Manual, Rev. 0 Page 11 11/24/20

2.5 Menu Settings
2.5.1 Functions
This section describes operation of the front panel controls. There are three operator switches, the LCD display
and alarm indicator LEDs. All functions for the equipment are controlled by these components. The functions
are (See Figure 2.4):
Power Up
Normal Display
Menu 1 Set Frequency
Menu 2 Set Gain
Menu 3 Set Mute
Menu 4 Set Reference Mode
Menu 5 Set Reference Offset
Menu 6 Set Remote
Menu 7 Set Remote Interface
Menu 8 Set RS-485 Address
Save Menu When “R” is selected from any above menu or at the end.
Alarm indications appear on the LEDs (see Figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 30 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
3116-7786-2150 Manual, Rev. 0 Page 12 11/24/20

2.5.2. Power On Settings
NOTE: THE LAST OPERATING PARAMETERS OF A UNIT ARE RETAINED EVEN WHEN
POWER IS REMOVED. WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO IT'S
PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1. The LCD goes black to show all segments are functioning.
2. The Model and Software version will be displayed.
3116-7786-2150
Rev. 1.00
3. The present frequency and gain of the upconverter is shown.
FC = 8200.000
G = +10 REF AUTO - I
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the
display cursor left or right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During gain changes, the vertical movement will raise or lower the number
in the direction of the arrows.
b. For other functions such Remote on/off, the vertical switch will alternately turn the function
on or off regardless of the direction operated.
3116-7786-2150 Manual, Rev. 0 Page 13 11/24/20

2.5.4 Gain Changes
When you get to this menu note that gain changes will be made as you make them but if you do not wish to save
the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the “SAVE
SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for approximately 30
seconds, and the system will return to the normal operating mode.
NOTE: THE GAIN WILL CHANGE AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW. DO NOT SET A GAIN THAT WOULD EXCEED 0 dBm OR HAVE LESS
THAN -20 dBm OUTPUT LEVEL.
Press the Up/Down switch to change the gain in 0.5 ±0.5 dB steps and then push the
Menu/Execute switch to get to the Save Settings Menu:
GAIN = +30.0
R
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS?
YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Figure 2.4 (page 17) gives the menu items and how to make changes.
3116-7786-2150 Manual, Rev. 0 Page 14 11/24/20

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 30 seconds,
and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch and
select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.5
for the sequence of menu options. The following display is for changing the downconverter frequency:
F = 8100.000 R
Pressing the Up/Down switch down will toggle the display to:
F = 8200.000 R
By using the horizontal rocker switch the cursor can be moved left or right .
F = 8200.000 R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO
THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.
When the display indicates the value desired you can push the Menu/Execute switch to get to the next item:
G = +30.0 R
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to this:
FC = 8200.000
G =+ 10.0 REF AUTO-1
Figure 2.4 gives the menu items and how to make changes.
3116-7786-2150 Manual, Rev. 0 Page 15 11/24/20

2.5.5 Alarm Indications
An alarm condition will occur if any local oscillator phase lock loop (PLL) comes out of lock.
The Remote LED will light when you select the Remote mode.
2.5.6 10 MHz Reference Mode Operation
Internal Mode: The unit uses its own built-in 10 MHz OCXO. The Internal Reference is present on the
Reference Output Connector, J8. REF = INT appears on the front panel display.
External Mode: The unit uses a 10 MHz Reference that is connected to the External Reference Input, J2.
REF = EXT appears on the front panel display. The External 10 MHz Reference level
must be +3dBm, ±3dB. If the External 10 MHz signal does not meet the unit’s
specified parameters then the unit will not function properly. The External Reference
is present on the Reference Output connector, J8.
Auto Mode: The unit defaults to the External 10 MHz Reference as long as the level meets the +3dBm,
±3dB specification. REF = AUTO - E appears on the front panel display where the -E
indicates that the unit is using the External 10 MHz Reference. The External Reference is
present on the Reference Output connector, J8.
If the external 10 MHz Reference signal level is less than -1dBm, the unit switches to
Internal 10 MHz Reference. REF = AUTO -I appears on the front panel display
where -I indicates that the unit is using the Internal 10 MHz Reference. The Internal
10 MHz Reference is present on the reference output connector, J8.
3116-7786-2150 Manual, Rev. 0 Page 16 11/24/20

2.5.8 Alarm Indications
An alarm condition will occur if any local oscillator phase lock loop (PLL) comes out of lock.
The Mute LED will light if you select Mute and the Remote LED will light when you select the Remote mode.
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
3116-7786-2150
Rev. 1.00
FC - 8200.000
G = +10.0 REF AUTO-I
SCROLL <>
SCROLL
PUSH BUTTON
PUSH BUTTON
Power Up 1:
Power Up 2:
Normal Display
Menu 1 Set Frequency
Menu 2 Set Gain
Menu 3 Set Mute
Menu 4 Set Reference Mode
Menu 5 Set Reference Offset
Menu 6 Set Remote
Menu 7 Set Remote Interface
Menu 8 Set RS485 Address
Save? When go to end
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
R
R
R
SCROLL <>
SCROLL
PUSH BUTTON
R
SCROLL <>
SCROLL
PUSH BUTTON
GAIN = 30.0
MUTE = ON
REF MODE = AUTO
INTERNAL FREQ ADUST
OFFSET = -1225
INTERFACE = RS232
RS485 ADDRESS = 0
R
R
SAVE SETTINGS? Y N
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
REMOTE = ON
R
SCROLL <>
SCROLL
PUSH BUTTON
= = = IP Addr = = =
192.168.123.002
ON POWER UP (1)
ON POWER UP (2)
R
FC = 8200.000
FIGURE 2.4 Menu Display and Sequences
3116-7786-2150 Manual, Rev. 0 Page 17 11/24/20

3.0 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between units
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connection to the
Branch (use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or
EGRESS emission problems.
3116-7786-2150 Manual, Rev. 0 Page 18 11/24/20

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed in USA
3116-7786-2150 Manual, Rev. 0 Page 19 11/24/20
