Cross Technologies 3117-3338 720 Series User manual

Instruction Manual Model 3117-3338#-720
Up/Downconverter
March 2022, Rev. 0
MENU
EXECUTE
MODEL 3117
CROSS TECHNOLOGIES INC.
U 3300 G=+10.0 REF=
D 3800 G=+18.0 AUT-E
MUTE
UPCONVERTER
DOWNCONVERTER
REMOTE
ALARM
POWER
ALARM
UP/DOWNCONVERTER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be
reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating
the equipment. Printed in USA.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 3117-3338#-720 Up/Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 5
2.0 Installation 8
2.1 Mechanical 8
2.2 Rear I/O’s 9
2.3 Front Panel Controls, Indicators 11
2.4 Operation 12
2.5 Menu Settings 15
3.0 Environmental Use Information 20
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s
obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,
replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be
liable for any special, indirect, or consequential damages. This warranty does not cover parts
or equipment which have been subject to misuse, negligence, or accident by the customer
during use. All shipping costs for warranty repairs will be prepaid by the customer. There are
not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
WEB www.crosstechnologies.com
E-MAIL [email protected]
3117-3338#-720 Manual, Rev. 0 Page 2 03/23/2022

MODEL 3117-3338#-720 Up/Downconverter
1.0 General
1.1 Equipment Description
The 3117-3338#-720 Up/Downconverter converts 0.72 to 3.3 and 3.8 to 0.72 GHz (±0.3 GHz) with non-inverting spectrums. Front
panel LEDs provide indication of Remote, DC Power, upconverter mute, and PLL Alarm. The maximum gain is +20 dB for the
upconverter and +20 dB for the downconverter (adjustable in 0.5 ± 0.5 dB steps). Gain and internal/external/Auto reference frequency
selection are controlled by front panel switches or remote selection (via RS-232C/485, standard; Ethernet Optional) and are viewable
on the LCD Display. Connectors are Type N female for the RF DOWN IN and RF UP OUT and BNC female for the RF UP IN, RF
DOWN OUT and external reference input and reference output. In AUTO, the 10 MHz reference stays in external if the external level
is +3 dBm, ±3 dB. The 3117 is powered by a 100-240 ± 10% VAC power supply, and in a 1 3/4” X 19” X 14” rack mount chassis.
MENU
EXECUTE
MODEL 3117
CROSS TECHNOLOGIES INC.
U 3300 G=+10.0 REF=
D 3800 G=+18.0 AUT-E
MUTE
UPCONVERTER
DOWNCONVERTER
REMOTE
ALARM
POWER
ALARM
UP/DOWNCONVERTER
FRONT PANEL
AC
UPCONVERTER
RF OUT
GND
DOWNCONVERTER
J4
J5
J3
J18
J2
RF IN
10 MHZ REF
10 MHZ
RF IN
EXT REF
J1
RF OUT
OUTPUT
INPUT
J10
AND
MONITOR
CONTROL
J20
1
5
2
3
4
6
7
8
9
REAR PANEL
Figure 1.1 Model 3117-3338#-720 Front & Rear Panels
3.30 ±0.3
GHz OUT
RF2 Out
3.80 ±0.3
GHz IN
RF1 In
PLL,ATT, CONTROL
3117-3338#-720 Up/Dowconverter Block Diagram
10 MHz
To PLLs
EXT 10 M
10 M
MON
0.72 ±0.3
GHz IN
RF2 In
3.30 ±0.3 GHz BP
1.1 GHz LP
0.72 ±0.3
GHz OUT
RF1 Out
3.80 ±0.3 GHz BP
1.1 GHz LP
Upconverter
Dowconverter
M&C
V
A
R
A
T
T
V
A
R
A
T
T
3.08 GHz
CONTROLLER
2.58 GHz
Figure 1.2 Model 3117-3338#-720 Up/Downconverter Block Diagram
3117-3338#-720 Manual, Rev. 0 Page 3 03/23/2022

1.2 Technical Characteristics
EQUIPMENT SPECIFICATIONS*
EQUIPMENT SPECIFICATIONS*
Input Characteristics
Input Characteristics
UP
DOWN
Impedance/Return Loss
50Ω/14 dB
50Ω/14 dB
Frequency
0.72 ±0.3 GHz
3.80 ±0.3 GHz
Noise Figure, Max.
15 dB @ max gain
15 dB @ max gain
Input Level range
-40 to -20 dBm
-40 to -20 dBm
Output Characteristics
Output Characteristics
Impedance/Return Loss
50 Ω/14 dB
50 Ω/14 dB
Frequency (GHz)
3.30 ±0.3 GHz
0.72 ±0.3 GHz
Output Level Range
-20 to 0 dBm
-20 to 0 dBm
1 dB comp, max gain
+10 dBm
+10 dBm
Mute @ 0 dBm out >50 dB N/A
Channel Characteristics
Channel Characteristics
Gain, max."at Fc
+20 ±1 dB
+20 ±1 dB
Gain, range, 0.5±0.5 dB steps
0 to +20
0 to +20
Image Rejection
>50 dBc
>50 dBc
Spurious, Inband, sig. rel., lvl
<-45 dBc, 0dBm
<-45 dBc, 0dBm
Spurious, Inband, sig. ind.
<-50 dBc, Gmax
<-50 dBc, Gmax
Spurious, Out of band, Fc±0.6G
<-50 dBm, Gmax
<-50 dBm, Gmax
2 tone Fc± 2MHz del, -10 ea
<-50 dBc, Gmax
<-50 dBc, Gmax
Frequency Resp. Fc ±0.3 GHz
±1.5 dB
±1.5 dB
Frequency Resp. 40 MHz
± 0.5 dB
± 0.5 dB
Frequency Sense
non-inverting
non-inverting
Available Options
R = Redundant AC Power Supply
Remote M&C Ethernet Options
W8 - Ethernet w/web browser Interface
W18 - Ethernet w/SNMP (and MIB) Interface
W28 - Ethernet w/direct TCP/IP Interface
W828 - Ethernet W8 +W18 +W28
Connector Options
N = 50ΩN-type (RF), 75ΩBNC (L-Band)
NN = 50ΩN-type (RF), 50ΩN-type (L-Band)
S = 50ΩSMA (RF), 50ΩBNC (L-Band)
S7 = 50ΩSMA (RF), 75ΩBNC (L-Band)
SS = 50ΩSMA (RF), 50ΩSMA (L-Band)
Contact Cross for other options
LO Characteristics
Frequency Step None; 2.58 GHz Up, 3.08 GHz Down fixed frequency LO
Frequency Accuracy ± 0.01 ppm max over temp internal reference; ext. ref. input
Phase Noise @ F (Hz) > 100 1K 10K 100K 1M
dBc/Hz - Standard -75 -80 -85 -95 -110
10 MHz In/Out Level 3 dBm, ± 3 dB, w/ Auto-detect
Controls, Indicators
Gain; Ext Ref Selection Direct readout LCD; pushbutton switches or remote
Power; Alarm; Remote Green LED; Red LED; Yellow LED;
Remote RS232C/RS485/422, 9600 baud
Other
RF In/Out, L-BAND Con. N-type (female), 50Ω/ BNC (female), 50Ω
10 MHz connectors BNC (female), 75Ωconnector; works with 50Ωor 75Ω
Alarm Connector DB9 - NO or NC contact closure on Alarm
Size 19 inch standard chassis 1.75” high X 16” deep
Power 100-240 ± 10% VAC, 47 - 63 Hz, 50 watts maximum
Connectors/Impedance See Table 2.2
*+10˚C to +40˚C; Specifications subject to change without notice
3117-3338#-720 Manual, Rev. 0 Page 4 03/23/2022

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port
Male DB-9
2015/16/17 M&CPort
M&C Cable Diagram - Cross Technologies Frequency Converters
RX
RX
TX
TX
DTR
SG
DSR
RTS
CTS
SG
Connector: Rear panel, DB-9 male
J10 Pinouts (RS-232C/422/485)
J10 Pinouts (RS-232C/422/485)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
3117-3338#-720 Manual, Rev. 0 Page 5 03/23/2022

B) Status Requests
Table 1.1 lists the status requests for the 3117-3338#-720 and briefly describes them.
*PLEASE NOTE: The two character aa (00-31) prefix in the table below
should be included ONLY when RS-485 is selected.
Table 1.1 3117-3338#-720 Status Requests
Table 1.1 3117-3338#-720 Status Requests
Table 1.1 3117-3338#-720 Status Requests
Command Syntax* Description
Status {aaS1} Returns {aaS1bbbcccdefg} where:
• bbb = Upconverter gain (000 to 200, 0 to 20.0 dB)
• ccc = Downconverter gain (000 to 200, 0 to 20.0 dB)
• d = Downconverter alarm (0 = alarm off; 1 = alarm on)
• e = Upconverter alarm (0 = alarm off; 1 = alarm on)
• f = Summary alarm (0 = alarm off; 1 = alarm on)
• g = Upconverter mute status (1 = muted)
10 MHz reference mode/status {aaS2} Returns {aaS2bc} where:
• b = 0 if internal reference mode is selected
• b = 1 if external reference mode is selected
• b = 2 if auto reference mode is selected
• c = 0 if internal 10 MHz is active
• c = 1 if external 10 MHz is active
IP Address (W8, W18, W28 only) {aaSi} Returns {aaSixxx.xxx.xxx.xxx} where:
• x...x is the IP address
Subnet mask(W8,W18,W28 only) {aaSs} Returns {aaSsxxx.xxx.xxx.xxx} where:
• x...x is the subnet mask
Unit ID {aaSU} Returns {aaSUx...x} where:
• x...x is the unit ID character string (max. 16 characters)
Product Info {aaSV} Returns {aaSV2017-xxxx ver y.yy} where:
2017-xxxx is the model with options; yyy is the firmware Rev.
3117-3338#-720 Manual, Rev. 0 Page 6 03/23/2022

C) Commands
Table 1.2 lists the commands for the 3117-3338#-720 and briefly describes them. After a command is sent the
3117-3338#-720 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only)
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character aa (00-31) prefix in the table below
should be included ONLY when RS-485 is selected
Table 1.2 3117-3338#-720 Commands
Table 1.2 3117-3338#-720 Commands
Command Syntax* Description
Set Upconverter Gain {aaC3xxx} where:
• xxx = 3 characters
• Range: 0 to 200 (0 dB to 20.0 dB in 0.5 dB steps, omit decimal
point.) Example: {C3155} sets the upconverter gain to 15.5 dB.
Set Downconverter Gain {aaC4xxx} where:
• xxx = 3 characters
• Range: 0 to 200 (0 dB to 20.0 dB in 0.5 dB steps, omit decimal
point.) Example: {C4155} sets the downconverter gain to 15.5 dB.
Set Upconverter Mute {aaCMx} where:
• x = 1 to mute the upconverter's output
• x = 0 to unmute the upconverter's output
Set Ext Reference Mode {aaCEx} where:
• x = 0 for internal reference
• x = 1 for external reference
• x = 2 for auto reference
Enable Remote # Just # sign
Disable Remote {aaCR0}* {CR and zero}
3117-3338#-720 Manual, Rev. 0 Page 7 03/23/2022

2.0 Installation
2.1 Mechanical
The 3117-3338#-720 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep
chassis.
A switching, ± 12, +5, +24 VDC power supply provides power for the assemblies. The 3117-3338#-720 can be
secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the 3117-3338#-720 is assembled.
POWER
SUPPLY

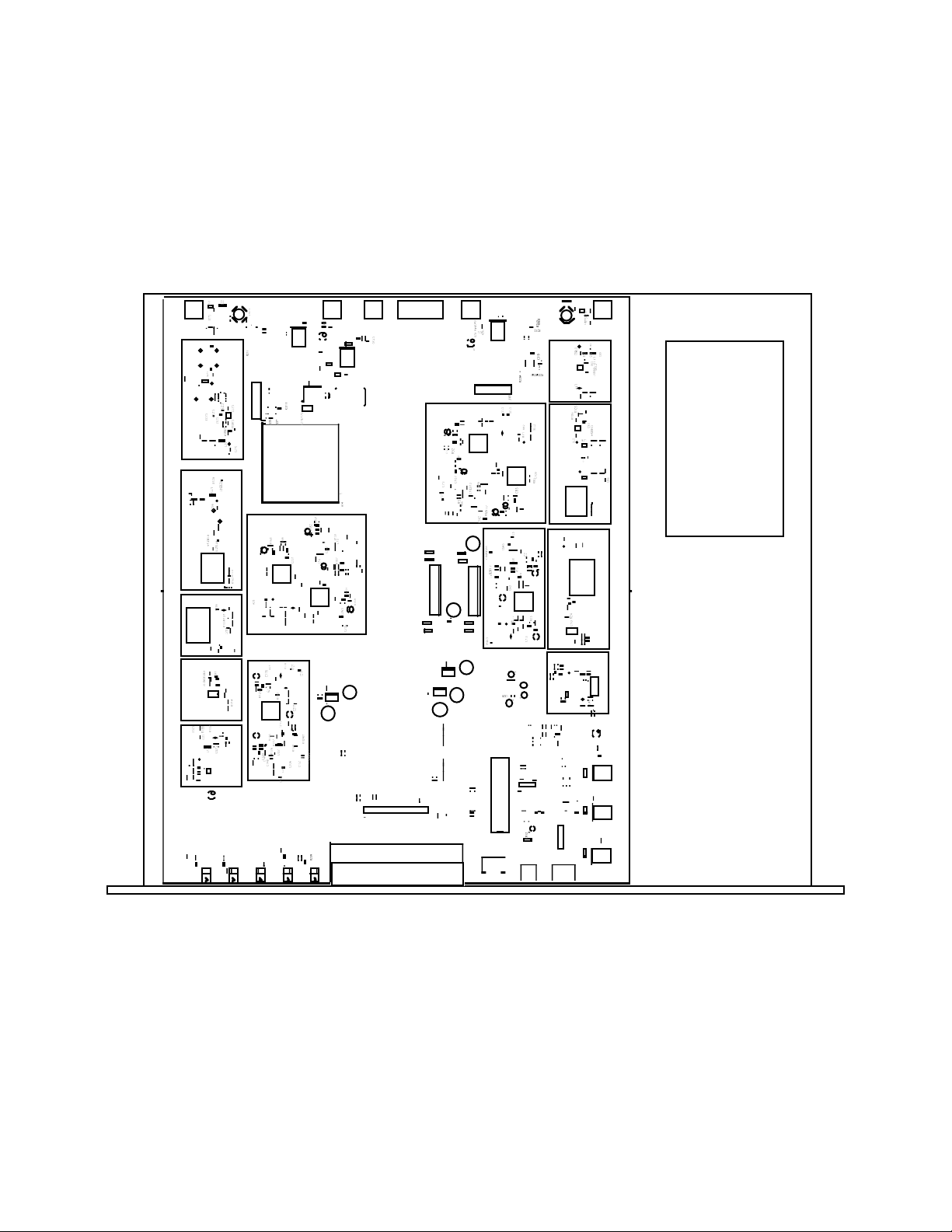

Figure 2.0 Model 3117-3338#-720 Mechanical Assembly
3117-3338#-720 Manual, Rev. 0 Page 8 03/23/2022

2.2 Rear Panel Input/Output Signals and Control -
Figure 2.2 shows the input and output connectors on the rear panel.
RF OUT
J4
J5
J3
10 MHZ
RF IN
EXT REF
J3 - 10 MHz EXT REF INPUT (Option -E)
10 MHz external reference input, +3 dBm ± 3 dBm, 75
ohms, BNC female connector.
J5 - RF OUT
3.3 GHz, +/- 0.3 GHz,
-20 to -0 dBm out,
see Table 2.2.
J4 - RF IN
0.72 GHz +/- 0.3 GHz
input, -40 to -20 dBm in,
see Table 2.2.
UPCONVERTER
INPUT
AC
GND
J18
J2
RF IN
10 MHZ REF
OUTPUT
AC1 - POWER IN
AC input for switching
power supply.
100-240 ±10% VAC, 47-63 Hz.
J2 - RF IN
3.8 GHz +/- 0.3 GHz input,
-40 to -20 dBm, see Table
2.2.
J1 - RF OUT
0.72 +/- 0.3 GHz
output,
see Table 2.2.
J10
AND
MONITOR
CONTROL
J10 - MONITOR AND CONTROL
DB9 female connector. see Table
2.1.
DOWNCONVERTER
J1
RF OUT
J18 - 10 MHz REF OUTPUT
10 MHz reference output. 75ΩBNC
female connector.
J20
J20 - ETHERNET
CONNECTION
RJ45 Ethernet Connector
1
5
2
3
4
6
7
8
9
Figure 2.1 Model 3117-3338#-720 Rear Panel I/O’s
TABLE 2.1 J10 Pinouts (RS-232C/422/485*)
TABLE 2.1 J10 Pinouts (RS-232C/422/485*)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
*Remote Serial Interface
Interface: DB-9 Male
Protocol: RS-232C (RS-232C/422/485), 9600 baud rate, no parity, 8 data bits,
1 start bit, 1 stop bit.
3117-3338#-720 Manual, Rev. 0 Page 9 03/23/2022

TABLE 2.2 IF/RF Connector Options
TABLE 2.2 IF/RF Connector Options
TABLE 2.2 IF/RF Connector Options
Option IF RF
STD BNC, 75ΩType F, 75Ω
-B BNC, 75ΩBNC, 75Ω
-C BNC, 75ΩBNC, 50Ω
-D BNC, 50ΩBNC, 50Ω
-N BNC, 75ΩType N, 50Ω
-M BNC, 50ΩType N, 50Ω
3117-3338#-720 Manual, Rev. 0 Page 10 03/23/2022

2.3 Front Panel Controls and Indicators - The following are the front panel controls and indicators.
MENU
EXECUTE
U 3300 G=+10.0 REF=
MUTE
REMOTE
ALARM
POWER
LCD DISPLAY
Display shows Up and
Downconverter frequency in MHz
and Gain in dB
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS3 - DOWN ALARM LED
Red LED indicates
downconverter alarm.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function in the
normal display mode
S3 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode
UPCONVERTER
ALARM
DOWNCONVERTER
D 3800 G=+18.0 AUT-E
DS5 - UP MUTE LED
Yellow LED indicates
upconverter mute.
DS2 - UP ALARM LED
Red LED indicates
upconverter alarm.
Figure 2.2 Model 3117-3338#-720 Front Panel Controls and Indicators
3117-3338#-720 Manual, Rev. 0 Page 11 03/23/2022

2.4 Installation / Operation
2.4.1 Installing and Operating the 3117-3338#-720, Upconverter Section
1.) Connect a -40 dBm to -20 dBm signal to RF In, J4 (Figure 2.1).
2.) Connect the RF OUT, J5, to the external equipment.
3.) Connect 100-240 ±10% VAC, 47 - 63 Hz to AC on the back panel.
4.) Set the gain (See Section 2.5 Menu Settings).
5.) Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).
2.4.2 Installing and Operating the 3117-3338#-720, Downconverter Section
1.) Connect a -40 dBm to -20 dBm signal to RF In, J2 (Figure 2.1).
2.) Connect the RF OUT, J1, to the external equipment.
3.) Connect 100-240 ±10% VAC, 47 - 63 Hz to AC on the back panel.
4.) Set the gain to get the desired output level.
5.) Be sure DS6 (green, DC Power) is on and DS3 (red, Alarm) is off (Figure 2.2).
6.) AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in
the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot. If a
fuse continues to open, the power supply is most likely defective.
3117-3338#-720 Manual, Rev. 0 Page 12 03/23/2022

2.4.3 External 10 MHz Reference Operation
Internal Reference Mode
When the internal reference mode is selected, the unit's internal 10 MHz reference will become the ‘primary’
source and the unit’s synthesizers will lock to this internal 10 MHz reference. The unit will ignore any external
10 MHz signal present on the external reference input (J3). The unit will also buffer the internal 10 MHz signal
and provide it on the Reference Out connector (J18) at +3 dBm, +/- 3 dB.
External Reference Mode
When the external reference mode is selected, the external 10 MHz reference (received on J3) will become the
‘primary’ source and the unit’s synthesizers will lock to this external 10 MHz reference. The unit must have a
10 MHz signal connected to the external reference input (J3) on the rear panel. The external 10 MHz signal
must be +3 dBm, +/- 3 dB. The unit will also buffer the external 10 MHz signal and provide it on the Reference
Out connector (J18) at +3 dBm, +/- 3 dB.
Auto Reference Mode
When the auto reference mode is selected the unit will detect and select the external 10 MHz signal if it is
present and at least +3 dBm. If the external 10 MHz signal falls below 1 dBm (+/- 1 dB) the unit will
automatically switch to the internal 10 MHz reference. The reference out connector (J18) provides a buffered
rendition of the selected 10 MHz signal at +3 dBm, +/- 3 dB.
3117-3338#-720 Manual, Rev. 0 Page 13 03/23/2022

AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
Figure 2.3 Fuse Location and Spare Fuse
3117-3338#-720 Manual, Rev. 0 Page 14 03/23/2022

2.5 Menu Settings
2.5.1 Functions - This section describes operation of the front panel controls. There are three operator
switches, the LCD display and alarm indicator LEDs. All functions for the equipment are controlled by these
components. The functions are (see Figure 2.2):
Power Up
Normal Display
Menu 1 Up Gain (0 to 20.0)
Menu 2 Down Gain (0 to 20.0)
Menu 3 Up Mute
Menu 4 Reference Mode
Menu 5 Remote
Menu 6 Interface
Menu 7 RS485 Address (0 to 31)
Menu 8 Reset Ethernet Settings
Save Menu When go to end
Alarm indications appear on the LEDs (see figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 30 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
3117-3338#-720 Manual, Rev. 0 Page 15 03/23/2022

2.5.2 Power-On Settings
NOTE: THE LAST STATUS OF A UNIT IS RETAINED EVEN WHEN POWER IS REMOVED.
WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO IT'S PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1. The LCD goes black to show all segments are functioning.
2. The model number with options software version will be displayed.
3117-3338#-720E1W8X
4.00
3. The present frequency, gain, and reference status of the up and downconverter is shown.
U 3300 G=+10.0 REF=
D 3800 G=+18.0 AUT-E
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by
pressing the Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor
left or right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During frequency , gain, input level changes, the vertical movement will raise or lower the
number in the direction of the arrows.
b. For other functions such Mute on/off, the vertical switch will alternately turn
the function on or off regardless of the direction operated.
3117-3338#-720 Manual, Rev. 0 Page 16 03/23/2022

2.5.4 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 30 seconds, and the system will return to the normal operating mode.
2.5.4.1 Upconverter Gain
To set the upconverter gain, first push the Menu/Execute switch to get to the gain setting:
Pressing the Up/Down switch to change the gain in 0.5 dB steps:
UP G = +14.5
R
By using the horizontal rocker switch the cursor can be moved left or right .
Press the Up/Down switch until you have the desired gain.
NOTE: THE GAIN WILL CHANGE AS YOU ADJUST THE NUMBERS. HOWEVER, THE VALUE
WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS WINDOW. DO
NOT SET A GAIN THAT WOULD EXCEED A 0 dBm OUTPUT LEVEL.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS?
YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :ert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :
U 3300 G=+10.0 REF=
D 3800 G=+18.0 AUT-E
Figure 2.4 shows all the menu items and how to make changes.
3117-3338#-720 Manual, Rev. 0 Page 17 03/23/2022

2.5.5.2 Downconverter Gain
To set the downconverter gain, first push the Menu/Execute switch to get to the gain setting:
Operate the Menu/Execute switch until you get to the menu item you want to change. See Figure 2.4
for the sequence of menu options.
The following display is for changing the downconverter gain. Set the gain to provide an
appropriate output level.
DN G = +12.5
R
Press the Up/Down switch to change the level in 0.5 dB steps. By using the horizontal rocker switch the
cursor can be moved left or right. Pressing the Up/Down switch down will toggle the display digit
selected until you have the desired gain.
NOTE: THE GAIN WILL CHANGE AS YOU ADJUST THE NUMBERS. HOWEVER,
THE VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE
SAVE SETTINGS WINDOW.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS?
YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :
U 3300 G=+10.0 REF=
D 3800 G=+18.0 AUT-E
Figure 2.4 shows all the menu items and how to make changes.
2.5.5 Alarm Indications
An alarm condition will occur if any local oscillator phase lock loop (PLL) comes out of lock.
3117-3338#-720 Manual, Rev. 0 Page 18 03/23/2022

ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
3117-3338#-720E1W8X
4.00
U 3300 G = +10.0 REF=
D 3800 G = +18.0 AUT-E
PUSH BUTTON
Power Up
Normal Display
Menu 1 Up Gain (0 to +20.0)
Menu 2 Down Gain (0 to +20.0)
Menu 3 Up Mute
Menu 4 Reference Mode
Menu 5 Remote
Menu 6 Interface
Menu 7 RS485 Address(0 to 31)
Menu 8 Reset Ethernet Settings
Save Settings? At the end or
when “R” is selected from any of
the above menus
UP G = 10.5
SCROLL <>
SCROLL
PUSH BUTTON
R
SCROLL <>
SCROLL
PUSH BUTTON
DN G = 12.0
R
REF = AUTO
SCROLL <>
SCROLL PUSH BUTTON
R
UP MUTE OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
REMOTE OFF
SCROLL <>
SCROLL PUSH BUTTON
R
INTERFACE RS232
SCROLL <>
SCROLL PUSH BUTTON
R
ADDRESS = 00
SCROLL <>
SCROLL PUSH BUTTON
R
SAVE SETTINGS? Y N
Reset Ethernet
Settings NO
SCROLL <>
SCROLL PUSH BUTTON
R
Figure 2.4 Menu Display and Sequence
3117-3338#-720 Manual, Rev. 0 Page 19 03/23/2022

3.0 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated operating ambient temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra (Maximum Recommended Ambient Temperature).
D. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between unit
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connection to the Branch
(use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
3117-3338#-720 Manual, Rev. 0 Page 20 03/23/2022
