INSTRUCTION MANUAL
MODEL 2017 Up/Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 5
1.4 Environmental Use Information 8
2.0 Installation 9
2.1 Mechanical 9
2.2 Rear I/O’s 10
2.3 Front Panel Controls, Indicators 11
2.4 Operation 12
2.5 Menu Settings 14
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies,
Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies,
Inc. shall not be liable for any special, indirect, or consequential damages. This warranty
does not cover parts or equipment which have been subject to misuse, negligence, or
accident by the customer during use. All shipping costs for warranty repairs will be
prepaid by the customer. There are no other warranties, express or implied, except as
stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2017-93 Manual, Rev D Page 2 05/19/10

MODEL 2017-93 Up/Downconverter
1.0 General
1.1 Equipment Description
The 2017-93 L-band Up/Downconverter converts 70 MHz to 950-1525 MHz (up) and 950-1525 MHz to 70
MHz (down) in 1 MHz steps with low group delay and flat frequency response. Synthesized local oscillators
(LO) provide frequency selection. Multi-function push button switches select the RF frequency, gain, and other
parameters. Front panel LEDs provide indication of DC power (green), PLL alarm for up and downconverters
(red), remote operation (yellow), and Upconverter mute (yellow). Gain is manually controlled over a -10.0 to
+30.0 dB range for the upconverter (in 0.1 dB steps) and over a 0 to +50 dB range for the downconverter (in 1
dB steps) as adjusted by the front panel multi-function push-button switches. Remote operation allows selection
of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display.
Connectors are BNC female for IF and the 10 MHz external reference input and output, and Type F female for
RF. LNB +24 VDC (down) and SSPB +24 VDC (up) are inserted on the RF lines when the corresponding rear
panel fuse is installed. The 10 MHz reference is also inserted on the RF lines. A high stability (±0.01ppm)
option is available. Powered by a 100-240 ±10% VAC power supply and housed in a 1.75” X 19“ X 16” rack
chassis.
MENU
EXECUTE
MODEL 2017
CROSS TECHNOLOGIES INC.
U F=1525 G=+10.2
D F=1525 G=+25.0
MUTE
UPCONVERTERDOWNCONVERTER
REMOTEALARM POWER ALARM
UP/DOWNCONVERTER
FRONT PANEL
AC UPCONVERTER
RF OUTSSPB FUSE
GND
DOWNCONVERTER
J4 J5J3J18J2
RF IN 10 MHZ REF 10 MHZ IF IN
EXT REF F2
LNB FUSE
F1
J1
IF OUT OUTPUT INPUT
DS8 DS7
VDC on RF VDC on RF
J10
AND
MONITOR
CONTROL
15 234 6789
REAR PANEL

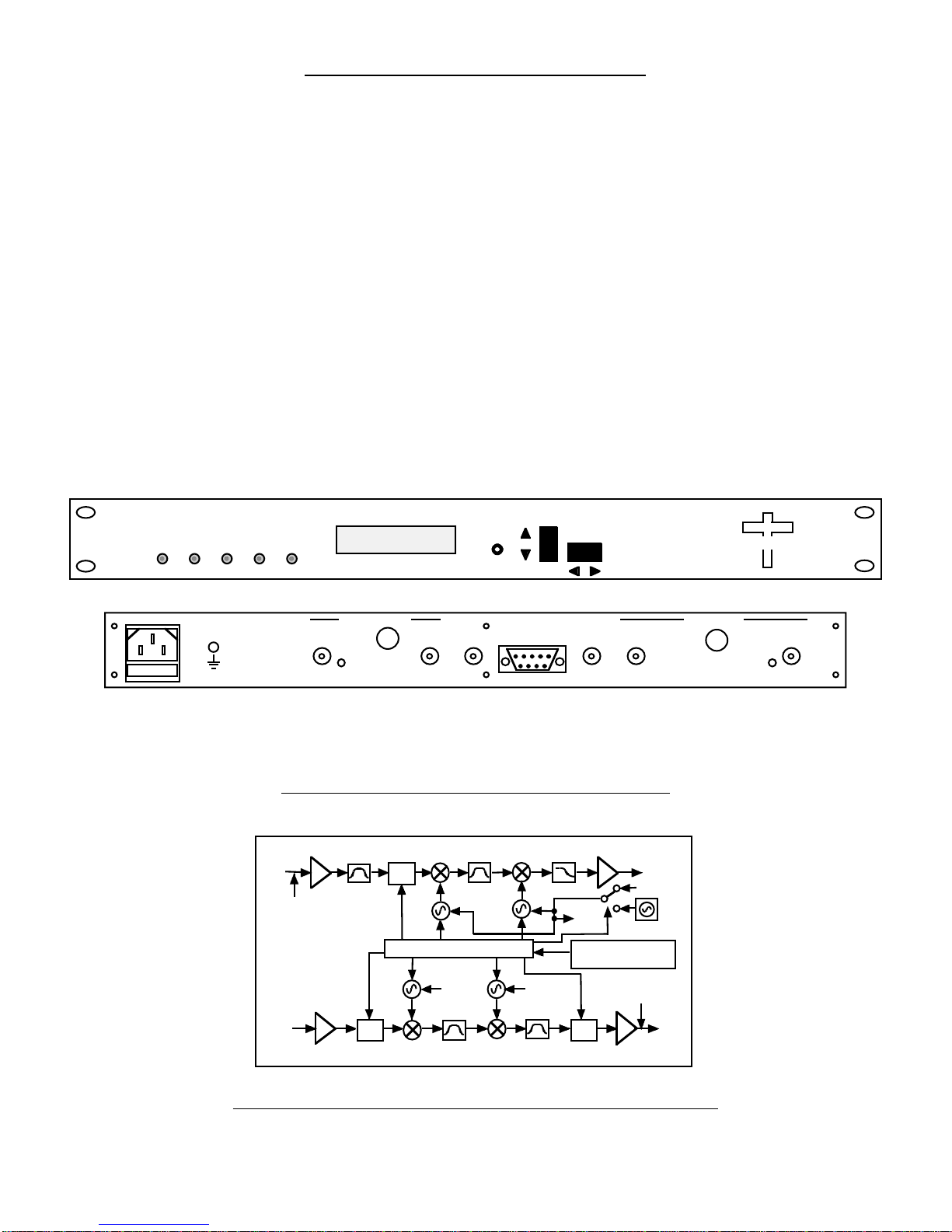

Figure 1.1 Model 2017-93 Front and Rear Panels
70
MHz
OUT
.95
to
1.525
GHz
IN
1750 MHz
BP
1820
MHz 2.7
to
3.3
GHz
.95 to 2 GHz
BP 120 MHz
LP
CONTROLLER U F=1525 G=+00.0
D F=1450 G=+25.0
.95 -2 GHz
BP
70
MHz
IN
.95
to
1.525
GHz
OUT
1750 MHz
BP
1680
or
1820
MHz
2.7
to
3.3
GHz
REF REF
REF TO
UP
VCOS
var
atten
10MHz
+24VDC
10MHz
+24VDC
EXT
10MHz
var
atten var atten
INT
10MHz
Figure 1.2 Model 2017-93 Up/Downconverter Block Diagram
2017-93 Manual, Rev D Page 3 05/19/10

1.2 Technical Characteristics
TABLE 1.0 2017-95 Up/Downconverter Specifications*
--------UPCONVERTER--------
Input Characteristics (IF)
Impedance/Return Loss 75/18 dB
Frequency 70 ± 18 MHz
Input Level -40 to -10 dBm
Output Characteristics (RF)
Impedance/Return Loss 75/10 dB
Frequency 950 to1525 MHz
Output level 0 to -20 dBm
Output 1 dB compression +5 dBm
Channel Characteristics
Gain range (adjustable) -10 to +30 dB, 1dB steps
Frequency Sense Non-inverting
--------UP AND DOWNCONVERTER--------
Channel Characteristics
Frequency Response ±1.5 dB, in band; ± 0.5 dB, 36 MHz BW
Spurious Response <-50 dBC
Group Delay (max.) 0.01 ns/MHz2parabolic; 0.03 ns/MHz linear; 1 ns ripple
Synthesizer Characteristics
Frequency Accuracy ± 1.0 ppm max. over temp (±0.01 ppm, option -H) internal reference
Frequency Step 1 MHz (125 kHz, option -X)
-100-90-80-70-70
1MHz100kHz10kHz1kHz100 MHz
dBC/Hz
Phase Noise
@
Fre
q
10 MHz Level (In or Out) 0 dBm ± 3 dB, 75 ohms (option -E)
Controls, Indicators
Frequency Selection Direct readout LCD; manual or remote selection
Gain Selection Direct readout LCD; manual or remote selection
Power Green LED
Down/Up Alarm Red LED
Up Mute Yellow LED
Remote Yellow LED; RS232C, 9600 baud (RS485, option -Q)
Other
RF Connectors Type F (female) (see Table 2.2 for connector options)
IF Connectors BNC (female) (see Table 2.2 for connector options)
10 MHz Connectors BNC (female) 50/75(option -E)
Alarm/Remote Connector DB9 (female) - NO or NC contact closure on Alarm
Size 19 inch, 1RU standard chassis 1.75”H X 16.0”D
Power 100-240 ±10% VAC, 47-63 Hz, 45 watts max.
-E External 10 MHz ref input & output with RF insertion
-H High Stability (±0.01ppm) internal reference
-L LNB Voltage, +24VDC, 0.4 amps
-V SSPB Voltage, +24VDC, 2.5 amps
-Q RS485 Remote Interface
-T Temperature Sensor
-W8 Ethernet M&C Remote Interface
-X 125 kHz frequency step
Connectors/Impedance See Table 2.2
*+10˚C to +40˚C; Specifications subject to change without notice
2017-93 Manual, Rev D Page 4 05/19/10
--------DOWNCONVERTER--------
Input Characteristics (RF)
Impedance/Return Loss 75/10 dB
Frequency 950 to 1525 MHz
Noise Figure (max.) 15 dB (max. gain)
Input Level -20 to -70 dBm
Input 1 dB compression -15 dBm
Output Characteristics (IF)
Impedance/Return Loss 75/18 dB
Frequency 70 ± 18 MHz
Output level/max. linear -20 dBm/-10 dBm
Output 1 dB compression -5 dBm
Channel Characteristics
Gain Range (adjustable) 0 to +50 dB, 1dB steps
Image Rejection > 50 dB, min.
Freq. Sense (selectable) Inverting/Non-inverting

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485 - option -Q)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port Male DB-9
2015/16/17 M&C Port

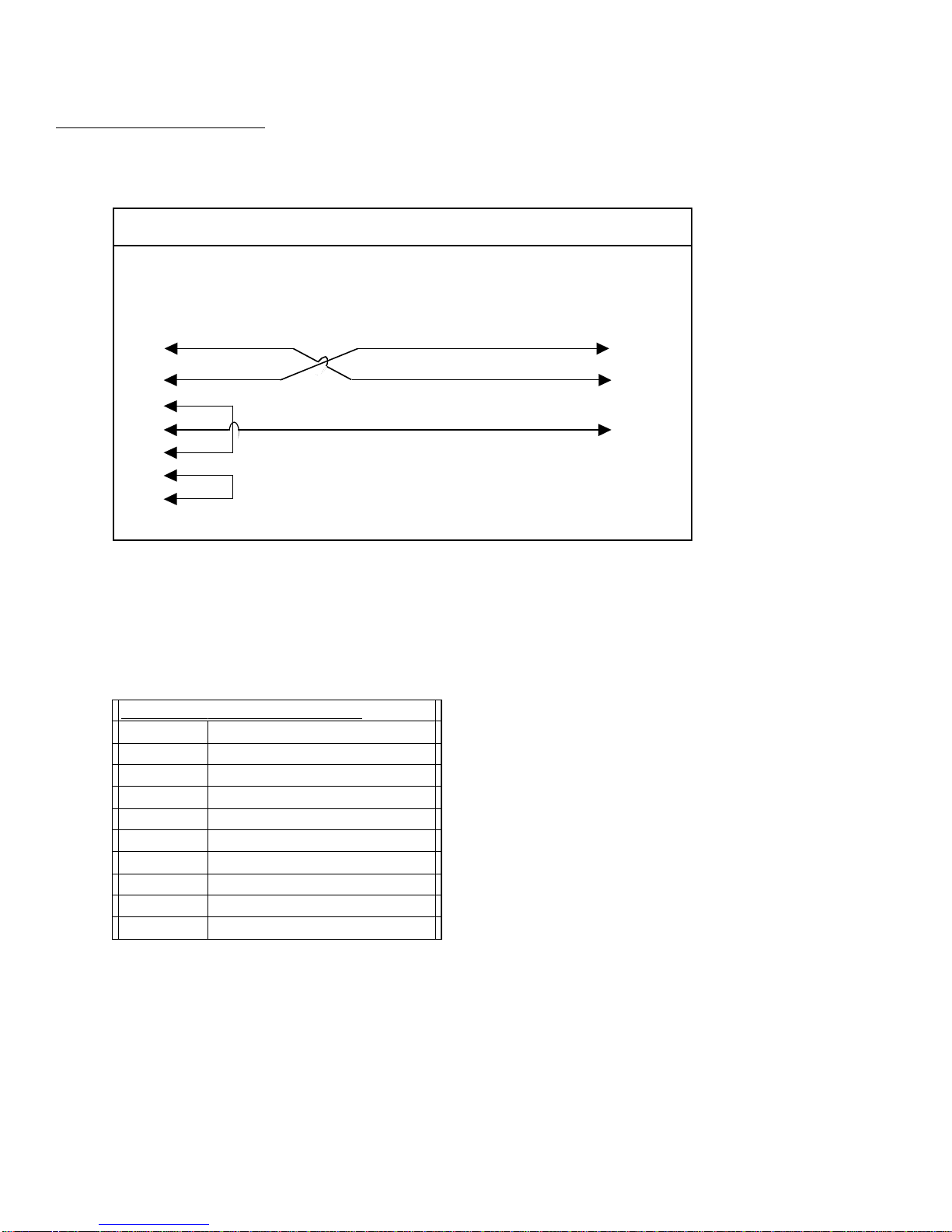

M&C Cable Diagram - Cross Technologies Frequency Converters
RX RX
TX TX
DTR
SG
DSR
RTS
CTS
SG
Connector: Rear panel, DB-9 male
J10 Pinouts
Pinouts (RS-232C/422/485)
Pin Function
1Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8NotUsed
9 Alarm Relay: Normally Closed
2017-93 Manual, Rev D Page 5 05/19/10

B) Status Requests
Table 1.1 lists the status requests for the 2017-95 and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
.
Table 1.1 2017-93 Status R
e
equests
Requests
Command Syntax* Description
Command Status {aaS1} Returns {aaS1bbbbccccddddeeeffLMNOP} where:
• bbbb = Tx frequency
• cccc = Rx frequency
• dddd = Tx gain (-100 to 300)
• eee = Rx gain (000 to 500)
• ff = Tx input level (10 to 40)
• L = 0 - non-inverted Receiver; L = 1 - inverted
• M = 0 - Receiver synth alarm
• N = 0 - Transmitter synth alarm
• O = 0 - Summary alarm
• P = 0 - Transmit signal disabled (muted)
External 10MHz {aaS2} Returns {aaS2bcd} where:
• b = 1 - External 10MHz selected
• c = 1 - 10MHz inserted on upconverter RF (J5)
• d = 1 - 10MHz inserted on downconverter RF (J2)
LNB Current {aaS3} Returns {aaS3bb} where:
• bb = LNB current, range 00 to 50 (0 to 500 ma)
SSPB Current {aaS4} Returns {aaS4bbb} where:
• bbb = SSPB current, range 000 to 250 (0 to 2500 ma)
* PLEASE NOTE: The Address (aa) should only be used when RS-485 is selected (option -Q ONLY)
2017-93 Manual, Rev D Page 6 05/19/10

C) Commands
Table 1.2 lists the commands for the 2017-93 and briefly describes them. After a command is sent the 2017-03
sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only option -Q)
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.2 2017-93 Commands
Command Syntax* Description
Set Transmitter Frequency {aaC1xxxx} where:
• xxxx = 4 characters
• Range: 0950 to 1525 MHz
Set Transmitter Input Level {aaCIxx} where:
• xx = 2 characters
• Range: 10 to 40 (-10 to -40 dBm)
Set Receiver Frequency {aaC2xxxx} where:
• xxxx = 4 characters
• Range: 0950 to 1525 MHz
Set Transmit Gain {aaC3xxxx} where:
• xxxx = 3 or 4 characters
• Range: -100 to 300 (-10.0 dB to 30.0 dB, in 1 dB steps)
Set Receiver Gain {aaC4xxx} where:
• xxx = 3 characters
• Range: 000 to 500 (00.0 dB to 50.0 dB, in 1 dB steps)
Enable Tx {aaCAx} where x =:
• 0 to disable Tx signal
• 1 to enable Tx signal
External 10MHz {aaCEx} where x =:
• 0 to disable External 10MHz ref signal
• 1 to enable External 10MHz ref signal
Insert 10MHz on UP RF {aaC5x} where x =:
• 0 to disable 10MHz upconverter insertion on RF (J5)
• 1 to enable 10MHz upconverter insertion on RF (J5)
Insert 10MHz on DOWN RF {aaC6x} where x =:
• 0 to disable 10MHz downconverter insertion on RF (J2)
• 1 to enable 10MHz downconverter insertion on RF (J2)
Downconverter Spectrum {aaC7x} where x =:
• 0 for non-inverted
• 1 for inverted
Enable Remote # Just # sign
Disable Remote {aaCR0} {CR and zero}
* PLEASE NOTE: The Address (aa) should only be used when RS-485 is selected (option -Q ONLY)
2017-93 Manual, Rev D Page 7 05/19/10

1.4 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between unit
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connection to the
Branch (use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
2017-93 Manual, Rev D Page 8 05/19/10

2.0 Installation
2.1 Mechanical - The 2017 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch
deep chassis. A switching, ± 12, +5, +24 VDC power supply provides power for the assemblies. The 2017 can
be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the 2017 is assembled.
POWER
SUPPLY
POWER
SUPPLY
Figure 2.0 Model 2017 Mechanical Assembly
2017-93 Manual, Rev D Page 9 05/19/10

2.2 Rear Panel Input/Output Signals and Level Control - Figure 2.1 shows the input and output connectors
on the rear panel.
UPCONVERTER
RF OUT
SSPB FUSE
J4 J5J3J10
10 MHZ IF INAND
MONITOR
EXT REF F2 CONTROL
5 4 3 2 1
9 8 7 6
AC
GND
DOWNCONVERTER
J1J2
RF IN 10MHZ REF
OUTPUT
LNB FUSE
F1
AC1 - POWER IN
AC input for switching power
supply. 90-260 VAC, 47-60
H
J2 - RF IN
950 - 1525 MHz input, -70
to -20 dBm. 75 Type F
female connector.
F1 - LNB FUSE
1A, Fast Blo, 1/4” Fuse. Installing
fuse places +24VDC, 500 ma,
max, on the RF IN (J2) center pin.
J10 - IF OUT
70 MHz output, -15 to -25
dBm. 75BNC female
J10 - MONITOR AND CONTROL
DB9 female connector. see Table 2.0. J3 - 10 MHz EXT REF 10 MHz external reference
input, 0 ±3 dBm. 75BNC
female connector.
F1 - SSPB FUSE
3A, Fast Blo, 1/4” Fuse. Installing
fuse places +24VDC, 2.5 amp, max
on the RF OUT (J5 ) center pin.
J1 - 10MHZ REF OUTPUT
10 MHz reference output, 0 ±3
dBm. 75 BNC female
J4 - IF IN
70 MHz input, -10 to -40
dBm. 75BNC female
J10
IF OUT
VDC on RF
DS7
DS8
VDC on RF
J5 - RF OUT
950-1525 MHz output, 0
to -20 dBm. 75 Type
F female connector.
DS7 - SSPB ALARM
Lights yellow when +24VDC
SSPB voltage is present on
the RF OUT (J5) center pin.
DS8 - LNB ALARM
Lights yellow when +24VDC
LNB voltage is present on
the RF IN (J2) center pin.
Figure 2.1 Model 2017 Rear Panel I/O’s
TABLE 2.1 JJ10
J10 Pinouts (RS-232C/422/485*)
Pin Function
1Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8NotUsed
9 Alarm Relay: Normally Closed
*Remote Serial Interface
Interface: DB-9 Male
Protocol: RS-232C (RS-232C/422/485 option -Q), 9600 baud rate, no parity,
8 data bits, 1 start bit, 1 stop bit.
2017-93 Manual, Rev D Page 10 05/19/10

TABLE 2.2
I
IF/RF
IF/RF Connector Optionns
Options
Option IF RF
STD BNC, 75Type F, 75
-B BNC, 75BNC, 75
-C BNC, 75BNC, 50
-D BNC, 50BNC, 50
-J BNC, 50Type F, 75
-N BNC, 75Type N, 50
-M BNC, 50Type N, 50
2.3 Front Panel Controls and Indicators - Figure 2.2 shows the front panel controls and indicators.
MENU
EXECUTE
UP F=1525 G=10.1
DN F=1525 G=25.0
MUTE
UPCONVERTERDOWNCONVERTER
REMOTEALARM POWER ALARM
LCD DISPLAY
Shows Up and Downconverter
status and menus.
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode and press
again to execute any changes.
DS3 - ALARM LED
Red LED indicates
downconverter alarm.
DS6 - POWER LED
Green LED indicates
presence of DC
DS1 - REMOTE LED
Yellow LED indicates remote
operation.
DS5 - MUTE LED
Yellow LED
indicates
DS2 - ALARM LED
Red LED indicates
upconverter alarm.
S2 - VERT. TOGGLE
Vertical toggle switch that adjusts
values in the various menus when
in Program Mode. Does not
function in the normal display
d
S3 - HORIZ. TOGGLE
Horizontal toggle switch that controls
which values are being adjusted
when in Program Mode. Does not
function in the normal display mode.

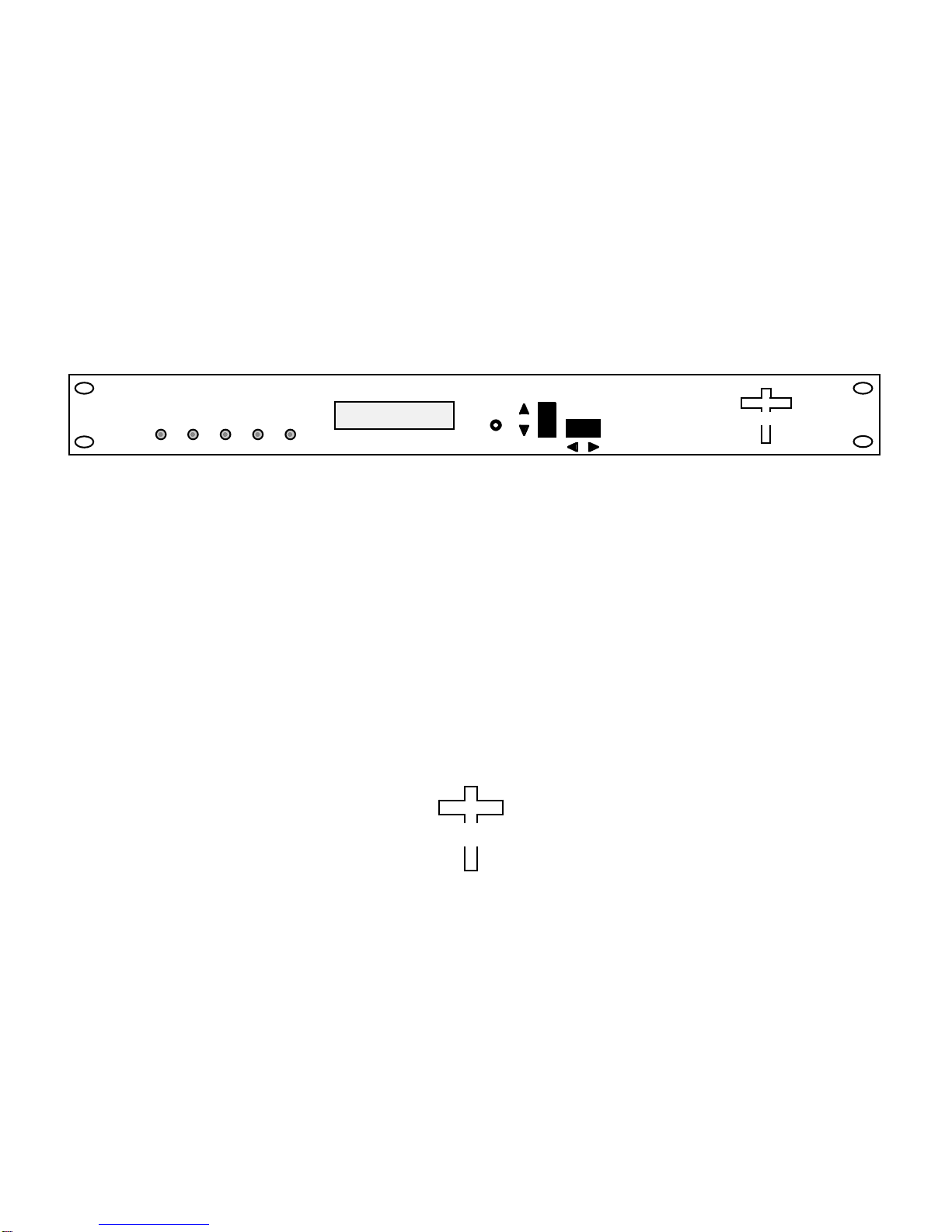

Figure 2.2 Model 2017 Front Panel Controls and Indicators
2017-93 Manual, Rev D Page 11 05/19/10

2.4 Installation / Operation
2.4.1 Installing and Operating the 2017, Upconverter Section
1.) Connect a -10 dBm to -40 dBm signal to IF In, J4 (Figure 2.1)
2.) Connect the RF OUT, J5, to the external equipment
3.) Connect 100-240 ±10% VAC, 47 - 63 Hz to AC1 on the back panel.
4.) Set the desired output frequency (See Section 2.5 Menu Settings).
5.) Set the input level (See Section 2.5 Menu Settings).
6.) Set the gain (See Section 2.5 Menu Settings).
7.) To power the SSPB (+24 VDC, 2.5 amps, max) from the 2017 install a 3 amp 1/4” fuse in F2.
CAUTION!!! INSTALLING A FUSE IN F2 PUTS +24 VDC, 2.5 AMP POWER
ON THE CENTER PIN AND MAY DAMAGE EQUIPMENT IF IMPROPERLY
CONNECTED TO EQUIPMENT THAT CANNOT HANDLE THIS VOLTAGE
OR HAS A DC PATH TO GROUND.
8.) Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).
2.4.2 Installing and Operating the 2017, Downconverter Section -
1.) Connect a -70 dBm to -20 dBm signal to RF In, J2 (Figure 2.1)
2.) Connect the IF OUT, J1, to the external equipment
3.) Connect 90- 260 VAC, 47 - 63 Hz to AC1 on the back panel.
4.) Set the desired input frequency (See Section 2.5 Menu Settings).
5.) Set the gain to get an output level in the 0 to -20 dBm range (See Section 2.5 Menu Settings).
6.) To power the LNB (+24 VDC, 2.5 amps, max) from the 2017 install a 1 amp 1/4” fuse in F1.
CAUTION!!! INSTALLING A FUSE IN F1 PUTS +24 VDC, 0.5 AMP POWER
ON THE CENTER PIN AND MAY DAMAGE EQUIPMENT IF IMPROPERLY
CONNECTED TO EQUIPMENT THAT CANNOT HANDLE THIS VOLTAGE
OR HAS A DC PATH TO GROUND.
7.) Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).
8.) AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in
the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot. If a fuse
continues to open, the power supply is most likely defective.
2017-93 Manual, Rev D Page 12 05/19/10

FUSE DRAWER
SPARE FUSE DRAWER
AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm

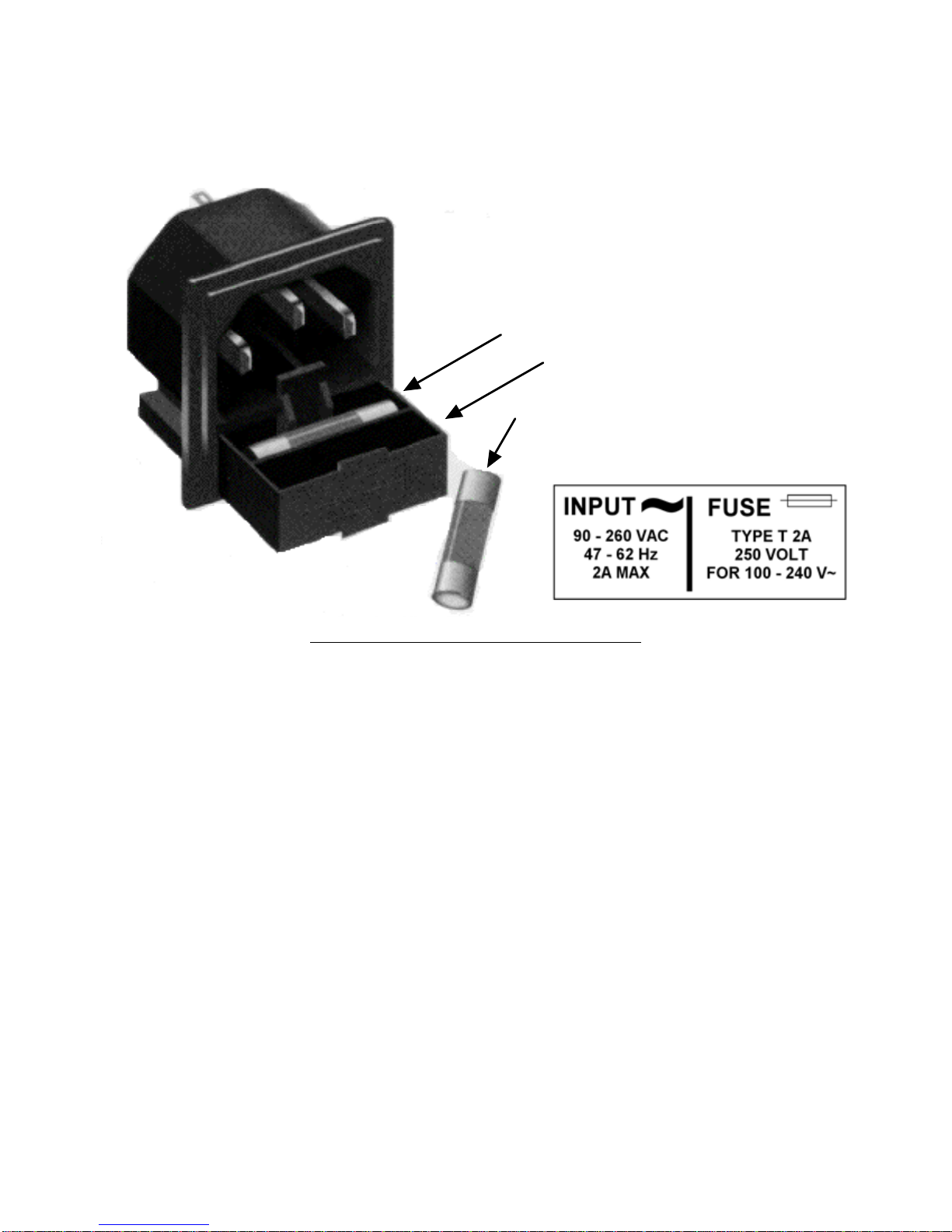

Figure 2.3 Fuse Location and Spare Fuse
2017-93 Manual, Rev D Page 13 05/19/10

2.5 Menu Settings
2.5.1 Functions - This section describes operation of the front panel controls. There are three operator
switches, the LCD display and alarm indicator LEDs. All functions for the equipment are controlled by these
components. The functions are (see Figure 2.4):
Power Up
Normal Display
Menu 1 Up Frequency in MHz
Menu 2 Up Input Lvl (Set from -40 to -10)
Menu 3 Up Gain (-10 to +30)
Menu 4 Down Frequency in MHz
Menu 5 Down Gain (set 0 to +50 for -20 to 0 dBm out range)
Menu 6 Up Mute
Menu 7 Set Unit to Remote Operation
Menu 8 Set Downconverter Spectrum Sense
Menu 9 Select External 10 MHz Ref
Menu 10 Upconverter Reference Out
Menu 11 Downconverter Reference Out
Menu 12 Set RS-485 mode (option -Q)
Menu 13 Set RS-485 address (option -Q)
Menu 14 View PCB Temperature
Menu 15 View LNB and SSPB Current
Save Menu When go to end
Alarm indications appear on the LEDs (see figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not
followed, none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
2017-93 Manual, Rev D Page 14 05/19/10

2.5.2 Power On Settings
NOTE:The last status of a unit is retained even when power is removed. When power is restored, the unit will
return to it's previous settings.
When power is first applied, the LCD display goes through three steps.
1.The LCD goes black to show all segments are functioning.
2.The software version will be displayed.
R E V 1 . 0 0
3.The present frequency and gain of the up and downconverter is shown.
U F = 14 5 0 G = + 1 0 . 0
D F = 13 5 0 G = + 2 5 . 0
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor left or
right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During frequency, gain, input level changes, the vertical movement will raise or lower the number in
the direction of the arrows.
b. For other functions such as TX MUTE ON/OFF, the vertical switch will alternately turn the function
on or off regardless of the direction operated.
2017-93 Manual, Rev D Page 15 05/19/10

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 12 seconds, and
the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch and
select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.4 for
the sequence of menu options. The following display is for changing the upconverter frequency:
U P F = 1 1 5 0 R
Pressing the Up/Down switch down will toggle the display to:
U P F = 1 2 5 0 R
By using the horizontal rocker switch the cursor can be moved left or right .
U P F = 1 2 5 0 R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.
When the display indicates the value desired you can push the Menu/Execute switch to the next item:
U P I N L V L = - 2 0 R
NOTE: CHANGES TAKE PLACE ON LEVEL AND GAIN IMMEDIATELY BUT DO NOT GET
SAVED UNTIL YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE
CHANGES.
OR you can scroll to “R”, push the Menu/Execute switch to get to:
S A V E S E T T I N G S ? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :
U F = 12 5 0 G = + 1 0 . 0
D F = 13 5 0 G = + 2 5 . 0
Figure 2.4 gives the menu items and how to make changes.
2017-93 Manual, Rev D Page 16 05/19/10

2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 12 seconds, and the system will return to the normal operating mode.
2.5.5.1 Upconverter Gain - To set the upconverter gain, first push the Menu/Execute switch to get to the gain
setting:
Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.4 for
the sequence of menu options.
The following display is for changing the upconverter input level. This is an important setting to
optimize spurious and should be made as accurately as possible:
U P I N L V L = - 2 0 R
Pressing the Up/Down switch to change the level in 1 dB steps and then push the Menu/Execute
switch to get to the Gain setting:
U P G = + 2 0 . 0 R
By using the horizontal rocker switch the cursor can be moved left or right .
Pressing the Up/Down switch down will toggle the display digit selected until you have the desired
gain.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW.DO NOT SET A GAIN THAT WOULD EXCEED A 0 dBm OUTPUT LEVEL.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
S A V E S E T T I N G S ? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :
U F = 12 5 0 G = + 1 0 . 0
D F = 13 5 0 G = + 2 5 . 0
2017-93 Manual, Rev D Page 17 05/19/10

2.5.5.2 Downconverter Gain - To set the downconverter gain, first push the Menu/Execute switch to get to the
gain setting:
Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.4 for
the sequence of menu options.
The following display is for changing the downconverter gain. This is an important setting to optimize
spurious and should be made as accurately as possible to provide an output in the -20 to 0 dBm level
range:
D N G = + 2 0 . 0 R
Pressing the Up/Down switch to change the level in 1 or 10 dB steps.
By using the horizontal rocker switch the cursor can be moved left or right .
Pressing the Up/Down switch down will toggle the display digit selected until you have the desired
gain.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW.DO NOT SET A GAIN THAT WOULD EXCEED A 0 dBm OUTPUT LEVEL:
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
S A V E S E T T I N G S ? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :
U F = 12 5 0 G = + 1 0 . 0
D F = 13 5 0 G = + 2 5 . 0
Figure 2.4 gives the menu items and how to make changes
2.5.5 Alarm Indications
An alarm condition for will occur if any local oscillator phase lock loop (PLL) comes out of lock.
2017-93 Manual, Rev D Page 18 05/19/10

ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
U F = 1450 G = +10.0
D F = 1350 G = +25.0
PUSH BUTTON
Power Up
Normal Display
Menu 1 Up Frequency
Menu 2 Up Input Level (Set from
-40 to -10)
Menu 3 Up Gain (-10 to +30)
Menu 4 Down Frequency
Menu 5 Down Gain (set 0 to +50
for -20 to 0 dBm out level)
Menu 6 Up Mute
Menu 7 Set Unit to Remote
Operation
Menu 8 Set Downconverter
Spectrum Sense
Menu 9 Select External 10 MHz
Reference
Menu 10 Select Upconverter
Reference Out
Menu 11 Select Downconverter
Reference Out
Menu 12 Set Remote Mode
(option -Q)
Menu 13 Set RS-485 Address
(option -Q)
Menu 14 View PCB Temperature
Menu 15 View LNB current and
SSPB current
Save Settings? At the end or
when “R” is selected from any of
the above menus
SAVE SETTINGS? Y N
SCROLL <>
PUSH BUTTON
UP F = 1450
SCROLL <>
SCROLL
PUSH BUTTON
R
SCROLL <>
SCROLL
PUSH BUTTON
UP INLVL = -20
R
DN F = 1350
SCROLL <>
SCROLL
PUSH BUTTON
R
UP G = +10.0
SCROLL <>
SCROLL
PUSH BUTTON
R
DN G = +25.0
SCROLL <>
SCROLL
PUSH BUTTON
R
UP MUTE OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
REMOTE OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
SCROLL <>
SCROLL
PUSH BUTTON
DNSPECTRUM NON
R
LNB DC = 0.32 A
R
SSB DC = 1.86 A
UP REF OUT OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
DN REF OUT OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
RS 485 OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
PUSH BUTTON
ADDRESS = 00
SCROLL <>
SCROLL
PUSH BUTTON
R
SCROLL <>
PUSH BUTTON
TEMP = 35 DEG
R
SCROLL <>
PUSH BUTTON
EXT REF OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
Figure 2.4 Menu Display and Sequence
2017-93 Manual, Rev D Page 19 05/19/10

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed in USA
2017-93 Manual, Rev D Page 20 05/19/10
