Cross Technologies 3016-2124 User manual

Instruction Manual Model 3016-2124
Downconverter
August 2012, Rev. 0
MENU
EXECUTE
MODEL 3016
CROSS TECHNOLOGIES INC.
REMOTE POWERALARM
DOWNCONVERTER
RF MONITOR
F=23123.125
G=+10 Ref = AUTO-I
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be
reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating
the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 3016-2124 Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 5
1.4 Environmental Use Information 8
2.0 Installation 9
2.1 Mechanical 9
2.2 Rear Panel Inputs & Outputs 10
2.3 Front Panel Controls & Indicators 10
2.4 Operation 11
2.5 Menu Settings 12
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
3016-2124- Manual_Rev.0 Page 2 8/02/12

MODEL 3016-2124-Downconverter
1.0 General
1.1 Equipment Description
The 3016-2124 Downconverter converts 21 to 24 GHz to 70 ± 18 MHz in 125 kHz steps (1 kHz opt -X1008).
This unit combines a multi-band block downconverter with a 3-4 GHz to 70 MHz agile downconverter to
obtain the wide tuning range. Synthesized local oscillators (LO) provide frequency selection. Multi-function
switches select the input frequency, gain, and other parameters. Front panel LEDs provide indication of DC
power, PLL alarm or Remote operation. Gain is adjustable manually (MGC) over a 0 to +30 dB range. The
frequency and gain are remotely selectable. Parameter selection and frequency and gain settings appear on the
LCD display. Connectors are 2.92 mm female for the RF, and BNC female for the IF and external 10 MHz
reference input and output. Other connector options are available. The unit is powered by a 100-240 ±10%
VAC power supply, and is contained in a 1 3/4” X 19” X 18” rack mount chassis.
MENU
EXECUTE
MODEL 3016
CROSS TECHNOLOGIES INC.
REMOTE POWERALARM
DOWNCONVERTER
RF MONITOR
F=23123.125
G=+10 Ref = AUTO-I
FRONT
AC
GND
J3
J10
J18
10 MHZ REF 10 MHZ
AND
MONITOR EXT REF
CONTROL
OUTPUT INPUT
J1
IF OUT
J2
RF IN
15 234 6789
J20
REAR

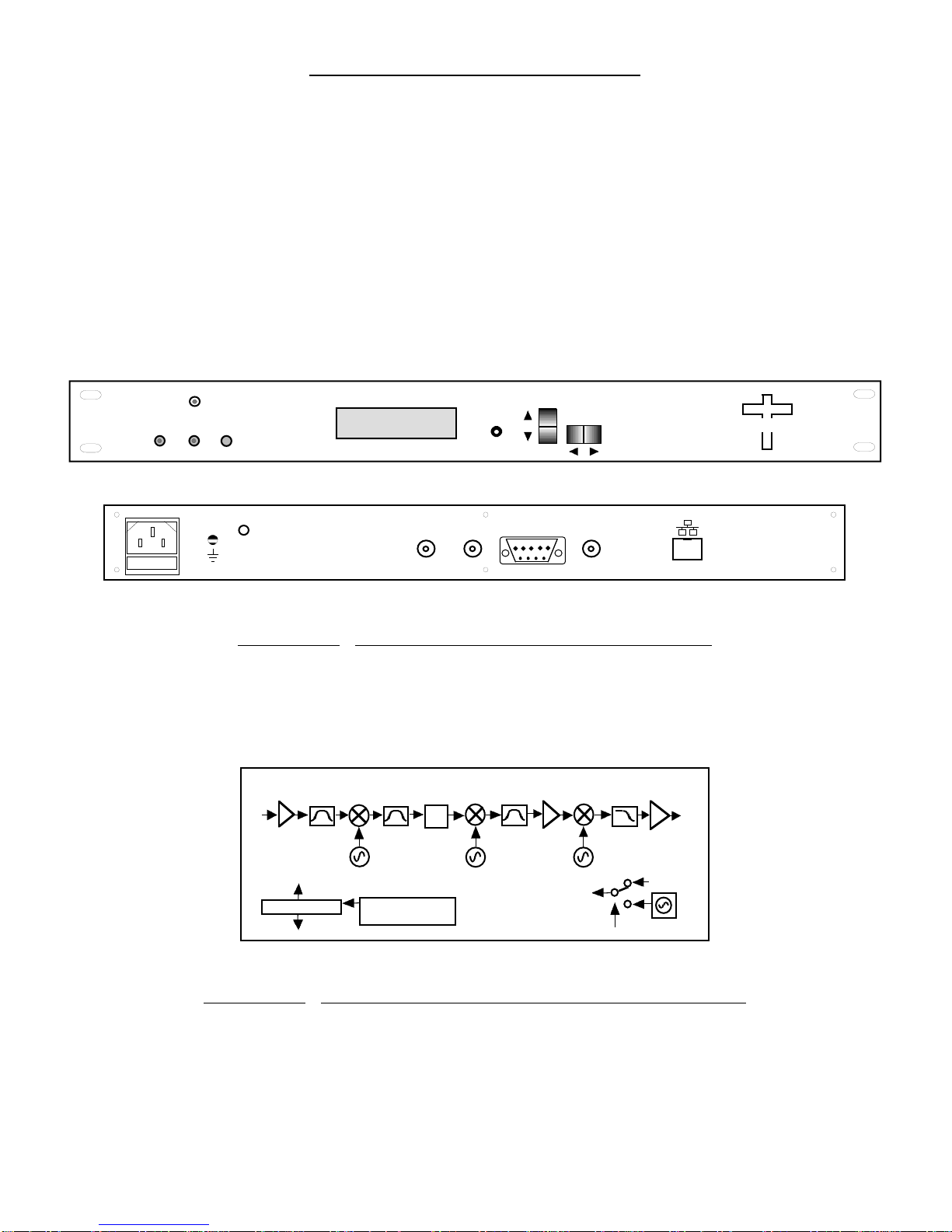

FIGURE 1.1 Model 3016-2124 Front and Rear Panels
3 to 4 GHz
BP 2400 MHz
BP
5.4
to
6.4
GHz
var
atten
3 to 4
GHz 70
MHz
OUT
2470
OR
2330
MHz
200 MHz
LP
18,19,20
GHz
21
to
24
GHz
IN
SW,PLL,ATT,VCC CONTROL
M&C
CONTROLLER 23123.125 MHz
G=10 REF=AUTO
EXT
10MHz
INT 10MHz
10MHz
TO
VCOs
3016-2124
Block Diagram
21 to 24 GHz
BP
FIGURE 1.2 Model 3016-2124 Downconverter Block Diagram
3016-2124- Manual_Rev.0 Page 3 8/02/12

1.2 Technical Characteristics
3016-2124- Manual_Rev.0 Page 4 8/02/12
Channel Characteristics
S
y
nthesizer Characteristics
< -50 dBC for two carriers each at -5 dBm out
Intermod
±3.0 dB, 21-24 GHz; ±1.5 dB, an
y
1 GHz band; ± 1.0 dB, 36 MHz BWFre
q
uenc
y
Res
p
onse <-50 dBc, in bandS
p
urious Res
p
onse
125 kHz minimum,
(
1 kHz O
p
t -X1008
)
Fre
q
uenc
y
Ste
p
Invertin
g
or Non-invertin
g
(
user selectable
)
Fre
q
uenc
y
Sense 0.02 ns/MHz2
p
arabolic
;
0.05ns/MHz linear
;
1 ns ri
pp
le
,
36 MHz BWGrou
p
Dela
y,
max.
3 dBm ± 3 dB10 MHz In/Out Level
± 0.01
pp
m max. over tem
p
internal ref.
;
ext. ref. in
p
utFre
q
uenc
y
Accurac
y
> 50 dB, min.Ima
g
e Re
j
ection 30 to +30.0 dB Max./ 0.0 to +30.0 dB ran
g
e
,
1 dB ± 1 dB ste
p
sGain Max./Ran
g
e
(
ad
j
ustable
)
Other
100-24 ±10% VAC
,
47-63 Hz
,
60 watts max.Power 19 inch
,
1RU Standard Chassis 1.75” hi
g
h X 18.0” dee
p
Size DB9
(
female
)
- NO or NC contact closure on AlarmAlarm / Remote Connector BNC
(
female
)
50Ω
,
works for 50 or 75 ohms10MHz Connectors 2.92 mm
(
female
),
BNC
,
75Ω
(
female
),
(
50ΩIF O
p
t - S29
)
RF
,
IF
10090807060
1MHz100kHz10kHz1kHz100 MHz
dBC/Hz
Phase Noise @ Frequency
Controls, Indicators
RS232C, 9600 baud
(
RS422/485/o
p
t. -Q, Ethernet/o
p
t -W8, -W18, -W28Remote
Direct readout LCD; manual or remote selectionFre
q
uenc
y
/Gain Selection Green LED
;
Red LED
,
Yellow LEDPower
,
Alarm
,
Remote
TABLE 1.1 3016-2124 Downconverter Specifications*
20 dB
(
max.
g
ain
)
Noise Fi
g
ure
,
max. -50 to -30 dBmIn
p
ut Level Ran
g
e
21 to 24 GHzFre
q
uenc
y
+10 dBmOut
p
ut 1 dB Com
p
ression -20 to 0 dBmOut
p
ut Level Ran
g
e
Out
p
ut Characteristics
(
IF
)
In
p
ut Characteristics
(
RF
)
70 ± 18 MHzFrequenc
y
50Ω/ 18 dB
(
50Ω
,
works for 50 or 75 ohms
)
Im
p
edance / Return Loss
50Ω/18 dB t
yp
.
,
14 dB min.Im
p
edance / Return Loss
RF Mon.
,
-3 ±3 dB
,
50 ohm- W73
IF Mon.
,
-20dB
,
50 ohm- W71
Available
O
p
tions
Test Data- W16
1 KHz Ste
p
s
Ethernet with TCP/IP
,
Telenet
Ethernet with Web Browser & SNMP
Ethernet with Web Browser
(
WB
)
See Table 2.2 - PG 9Connector / Im
p
edance
- X1008
- W28
- W18
- W8 RS485 Remote Interface-
Q
*+0 to +50 degrees C; Specifications subject to change without notice.
-01
S29
W8
W16
W70
X1008
Bundled
O
p
tions

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485 - option -Q)
Female DB-9
PC Com Port Male DB-9

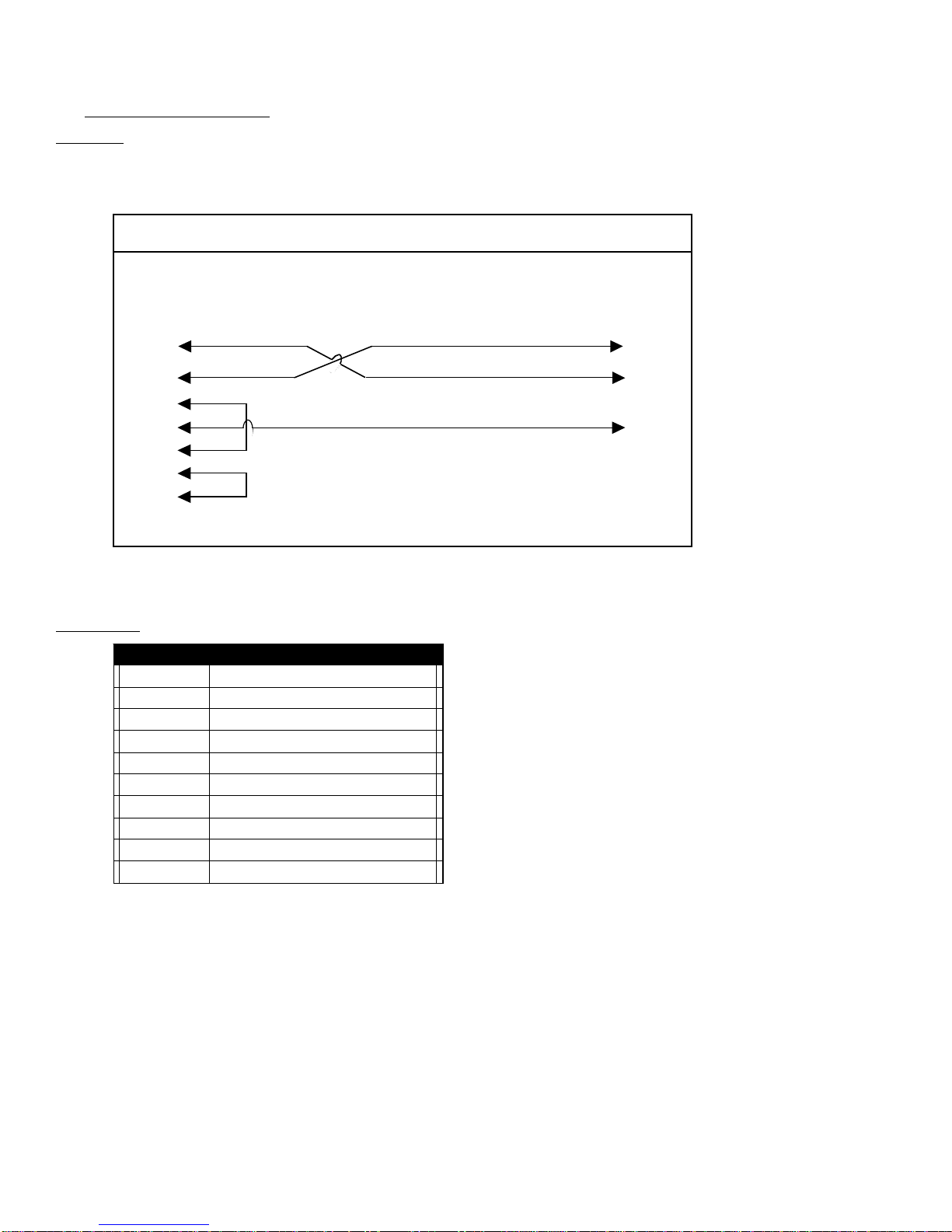

M&C Cable Diagram - Cross Technologies Frequency Converters
2
1
3
4
5
6
7
8
9
2
1
3
4
5
6
7
8
9
Connector: Rear panel, DB-9 female
J10 Pinouts (RS485/RS422)
J10 Pinouts (RS485/RS422)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
3016-2124- Manual_Rev.0 Page 5 8/02/12

B) Status Requests
Table 1.1 lists the status requests for the 2016-03 and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
TABLE 1.1 3016-2124 Statuss Requests
Status Requests
TABLE 1.1 3016-2124 Status Requests
Command Syntax* Description
Command Status {aaS1} Returns {S1bbbbbbbcccIA} where:
• bbbbbbb = Rx frequency (in kHz)
• ccc = Rx gain
• I = Spectrum invert; 1 = inverted, 0=normal
• A = summary alarm; 1 = alarmed, 0 = normal
10MHz Reference Status {aaS2}* Returns {aaS2xy} where:
• x = 0 if Internal reference mode is selected
• x = 1 if external reference mode is selected
• x = 2 if auto reference mode is selected
• y = 0 if the internal reference is active
• y = 1 if the external reference is active
3016-2124- Manual_Rev.0 Page 6 8/02/12

C) Commands - Table 1.1 lists the commands for the 3016-2124 and briefly describes them. After a
command is sent the 3016-2124 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only - option -Q)
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.2 3016-2124 Com
m
mands
Commands
Command Syntax* Description
Set Receiver Frequency {aaC2xxxxx} where:
• xxxxxxx = 5 characters
• Range: 21000 to 24000 kHz, in 125kHz steps
Set Receiver Gain {aaC4xx} where:
• xxx = 3 characters
• Range: 0 to 30 (0.0 dB to +30 dB, in 1.0 dB steps)
Set Spectrum Invert {aaC7x} where x =:
• 0 to disable spectrum invert
• 1 to enable spectrum invert
Enable External 10MHz IN {aaCEx} where x =:
• 0 to select Internal Reference Mode
• 1 to select External Reference Mode
• 2 to select Auto Reference Mode
Enable Remote # Just # sign
Disable Remote {aaCR0} {CR and zero}
3016-2124- Manual_Rev.0 Page 7 8/02/12

1.4 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated operating ambient temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
D. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between units
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connection to the Branch
(use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
3016-2124- Manual_Rev.0 Page 8 8/02/12

2.0 Installation
2.1 Mechanical
The 3016-2124 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis.
A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 3016-2124 can be
secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 3016-2124 is assembled.
POWER
SUPPLY
••••••••
•••••••••••••••

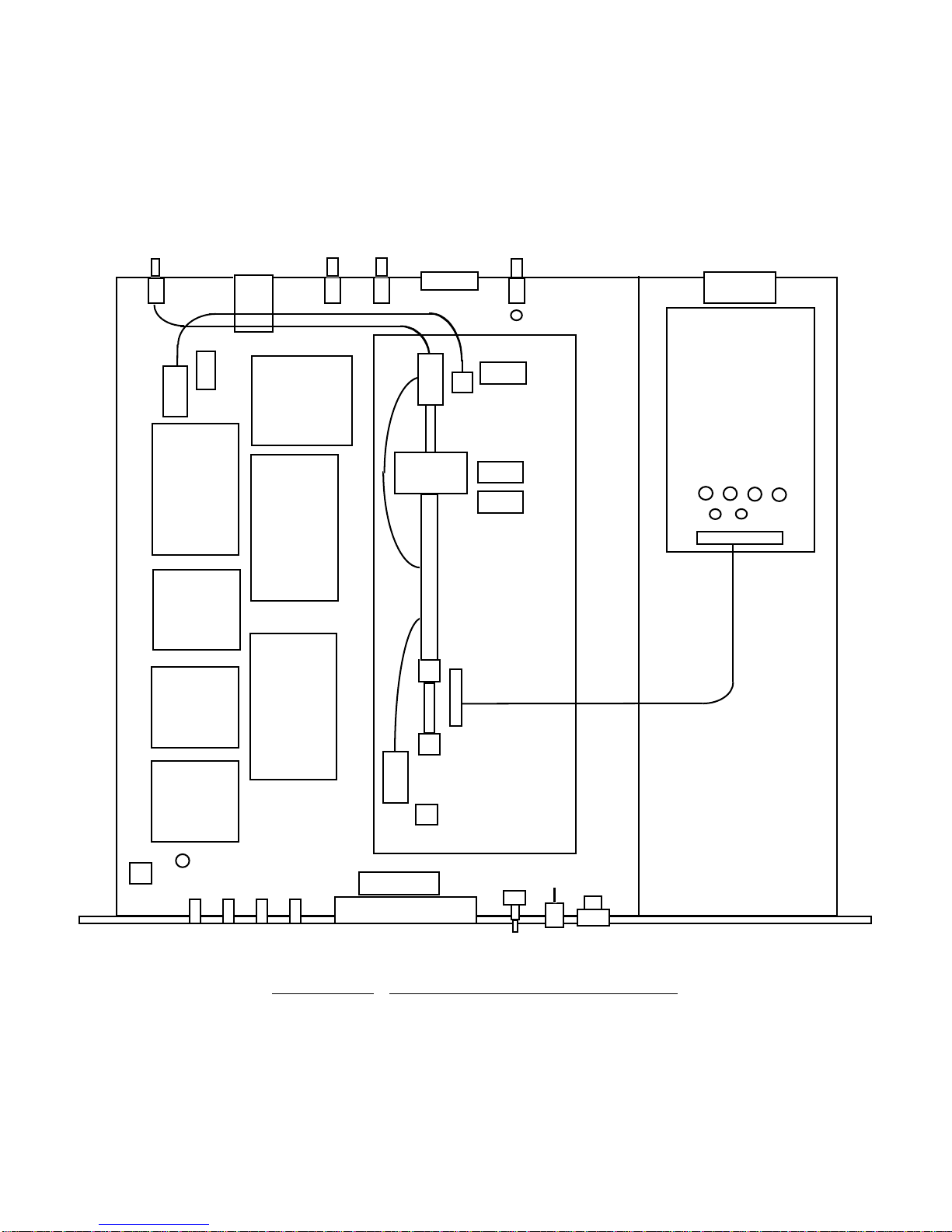

FIGURE 2.1 3016-2124 Mechanical Assembly
3016-2124- Manual_Rev.0 Page 9 8/02/12

2.2 Rear Panel Input/Output Signals

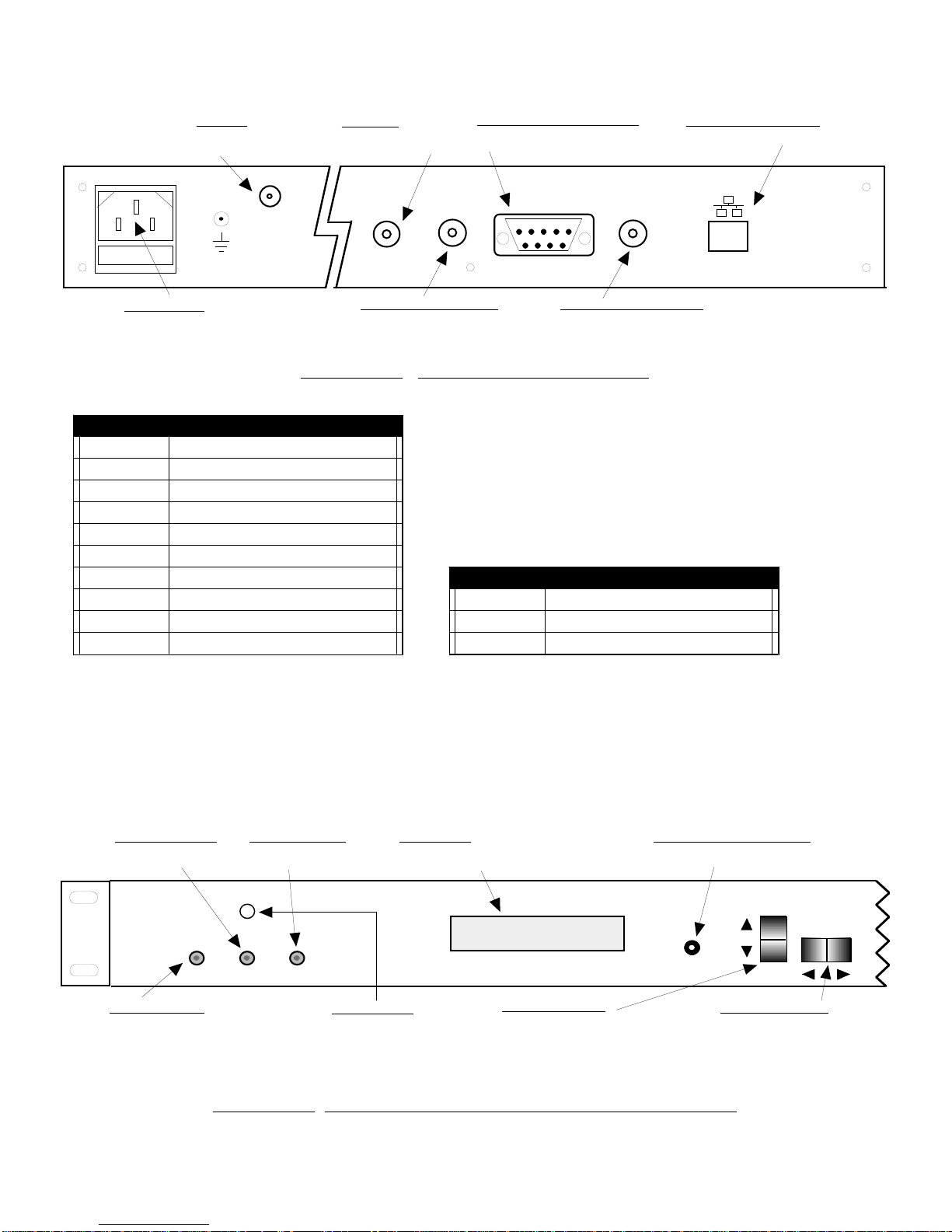

Figure 2.2 shows the input and output connectors on the rear panel.
AC
GND
J1 J10
AND
MONITOR
CONTROL
5 4 3 2 1
9 8 7 6
J10 - MONITOR AND CONTROL
DB9 female connector.
See Table 2.1.
RF IN
J18 J3
10 MHZ
EXT REF
J2 - RF IN
21 to 24 GHz
-50 to -30 dBm input
J1 - IF OUT
70 ±18 MHz
-30 to -10 dBm input
INPUT
J18 - 10 MHz REF OUTPUT
10 MHz reference output,
3 ± 3 dBm, 50 ohms
BNC (female) connector.
AC - POWER IN
AC input for switching power supply.
100-240 VAC, 47-63 Hz.
J20 - Ethernet Connection
RJ45 Ethernet Connector
Option -W8).
J20J2
J3 - 10 MHz EXT REF INPUT
10 MHz reference input,
3 ± 3 dBm, 75 ohms
BNC (female) connector.
IF OUT 10 MHZ
EXT REF
OUTPUT
FIGURE 2.2 3016-2124 Rear Panel I/Os
TABLE 2.1 JJ10
2.1 J10 Pinouts (RS-232C*)
Pin Function
1 Not Used
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4 Not Used
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Closed
8 Not Used
9 Alarm Relay: Normally Open
TABLE 2.2 Connectors/Impedance
2.2 Connectors/Impedance
S29 2.92mm (RF), 50 ohm BNC (IF)
SS29 2.92mm (RF), SMA (IF)
*Remote Serial Interface
Interface: DB-9 Female
Protocol: RS-232C, 9600 baud rate, no parity,
8 data bits, 1 start bit, 1 stop bit
2.3 Front Panel Controls and Indicators
Figure 2.3 shows the front panel controls and indicators.
MENU
EXECUTE
REMOTE POWER
LCD DISPLAY
Display shows frequency in MHz and Gain
in dB, and is used to change settings in
Program mode.
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS2 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function
in the normal display mode
S3 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode
ALARM
DS3 - ALARM LED
Red LED indicates
downconverter alarm.
RF MONITOR
F=23123.125
G=+10 Ref = AUTO-I
DS1 RF Monitor
-3 dB monitor of
RF In
FIGURE 2.3 3016-2124 Front Panel Controls and Indicators
3016-2124- Manual_Rev.0 Page 10 8/02/12

2.4 Operation
2.4.1 Installing and Operating the 3016-2124 Downconverter
1. Connect a -50 dBm to -30 dBm signal to RF IN, J2 (Figure 2.2, page 10).
2. Connect the IF OUT, J1, to the external equipment.
3. Connect 100-240 ±10% VAC, 47-63 Hz to AC on the back panel.
4. Set the input frequency (See Section 2.5 Menu Settings, page 16).
5. Set the gain for 0.0 to +30.0 dB (See Section 2.5 Menu Settings, page 16).
6. Be sure DS6 (green, DC Power) is on and DS3 (red, Alarm) is off (Figure 2.3, page 10).
7. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot
in the drawer below the AC input as shown in Figure 2.4 below. There is a spare fuse in the near slot.
If a fuse continues to open, the power supply is most likely defective.

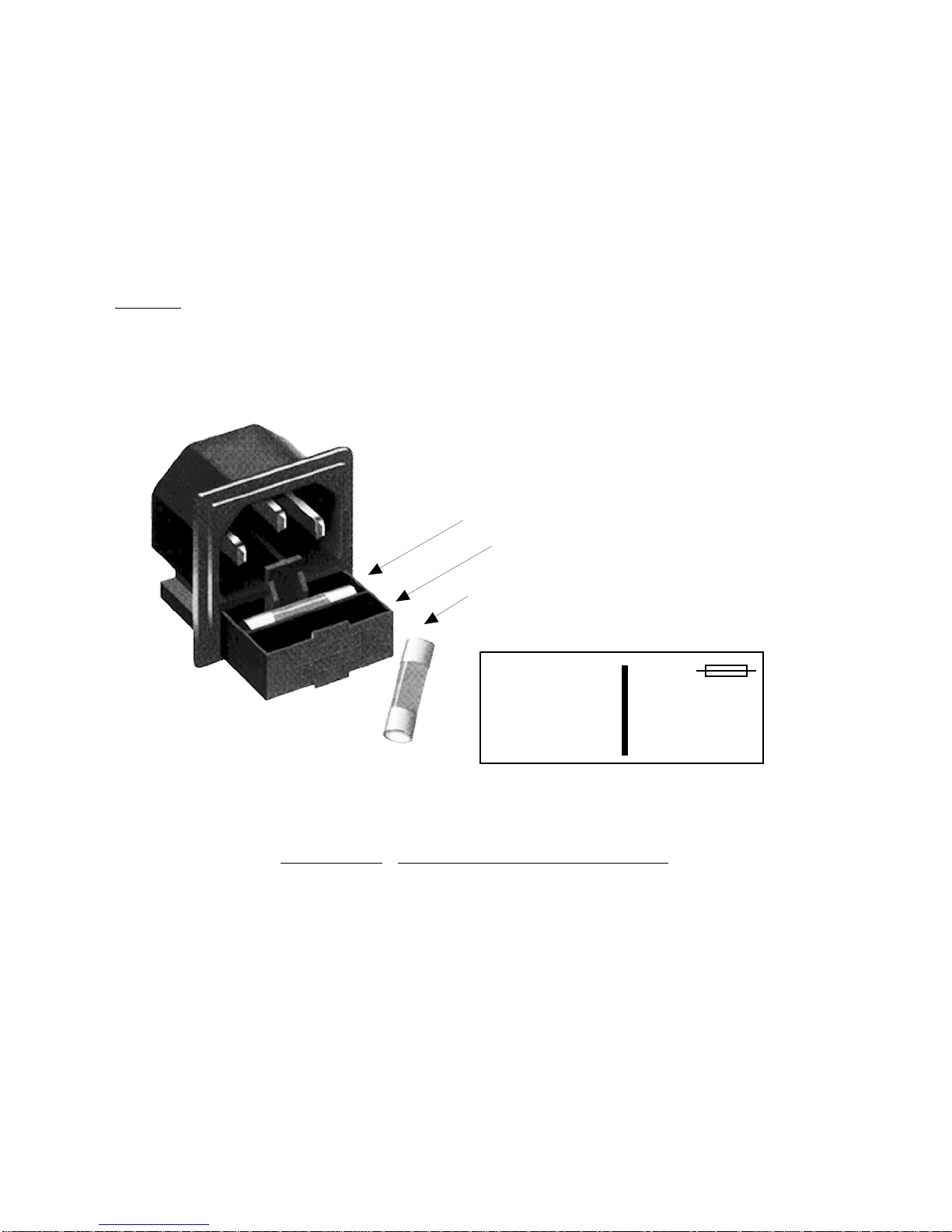

AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VA
C
47-63 Hz
2A MA
X
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.4 Fuse Location and Spare Fuse
3016-2124- Manual_Rev.0 Page 11 8/02/12

2.5 Menu Settings
2.5.1 Functions
This section describes operation of the front panel controls. There are three operator switches, the LCD
display and alarm indicator LEDs. All functions for the equipment are controlled by these components.
The functions are (see Figure 2.5):
Power Up
Normal Display
Menu 1 Frequency in MHz
Menu 2 Gain (0.0 to +30.0)
Menu 3 Set Spectrum Invert
Menu 4 Set Unit to Remote Operation
Menu 5 Select Frequency Step Size -1kHz minimum (option X1008)
Menu 6 Select External 10 MHz Ref
Menu 7 Set Remote Mode (option Q) (option W8, W18, W28)
Menu 8 Set RS-485 address (option Q)
Save Menu When “R” is selected in any above menu or at the end of the menu options.
Alarm indications appear on the LEDs (see figure 2.3).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 30 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
3016-2124- Manual_Rev.0 Page 12 8/02/12

2.5.2 Power On Settings
NOTE: THE LAST STATUS OF A UNIT IS RETAINED EVEN WHEN POWER IS REMOVED.
WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO ITS PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1. The LCD goes black to show all segments are functioning.
2. The software version will be displayed.
REV 1.00
3. The present frequency and gain of the downconverter is shown.
F = 23123.125
G=+10 Ref=AUTO=I
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by
pressing the Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the
cursor left or right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During frequency, gain changes, the vertical movement will raise or lower the
number in the direction of the arrows.
b. For other functions such Mute on/off, the vertical switch will alternately turn the
function on or off regardless of the direction operated.
3016-2124- Manual_Rev.0 Page 13 8/02/12

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 30 seconds, and
the system will return to the normal operating mode or scroll to “R” and push the Menu/Execute switch and
select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.5
for the sequence of menu options. The following display is for changing the downconverter frequency:
F = 24123.125 R
Pressing the Up/Down switch down will toggle the display to:
F = 24123.125 R
By using the horizontal rocker switch the cursor can be moved left or right .
F = 24123.125 R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.
When the display indicates the value desired you can push the Menu/Execute switch to get to the next item:
G = +10 R
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to this:
F = 23123.125
G=+10 Ref=AUTO=I
Figure 2.5 gives the menu items and how to make changes.
3016-2124- Manual_Rev.0 Page 14 8/02/12

2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the Menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 30 seconds, and the system will return to the normal operating mode.
To change the GAIN:
Push the Menu/Execute switch to get to the gain setting (See Figure 2.5 for the sequence of menu options):
G = +10 R
Pressing the Up/Down switch will change the gain in 1 or 10 dB steps depending on the cursor location:
G = +20 R
By using the horizontal rocker switch the cursor can be moved left or right. Pressing the Up/Down switch
will toggle the display digit selected until you have the desired gain:
G = +20R
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW.
When the display indicates the value desired you can push the Menu/Execute switch to get to the next item:
REMOTE OFF R
OR you can scroll to “R” and push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings. Pushing the
Menu/Execute switch then takes you to this:
F = 23123.125
G=+10 Ref=AUTO=I
Figure 2.5 gives the menu items and how to make changes.
3016-2124- Manual_Rev.0 Page 15 8/02/12

2.5.5 Alarm Indications
An alarm condition for will occur if any local oscillator phase lock loop (PLL) comes out of lock. The Mute
LED will light if you select Mute and the Remote LED will light when you select the Remote mode.
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
F = 23123.125
G = +10 Ref=AUTO=I
F = 23123.125
REMOTE OFF
EXT REF O
F
SCROLL <>
SCROLL
PUSH BUTTON
Power Up
Normal Display
Menu 1 Frequency
Menu 2 Gain (+30 to +50)
Menu 3 Set Spectrum Invert
Menu 4 Set Unit to Remote
Operation
Menu 5 Select Frequency Step
Size (option -X1008)
Menu 6 Select External 10 MHz
Reference (option-E)
Menu 7 Set Remote Mode
(opt.-Q) (opt.W8, W18, W28
Menu 8 Set RS-485 Address
(option Q)
Save? When “R” is selected or at
the end of the menu options
G = +10
SAVE SETTINGS? Y N
SCROLL <>
PUSH BUTTON
R
R
R
R
RS 485 OF
F
R
ADDRESS = 00 R
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
DNSPECTRUM NON
SCROLL <>
SCROLL
PUSH BUTTON
R
SCROLL <>
SCROLL
PUSH BUTTON
STEP = 125 KHZ
FIGURE 2.5 Menu Display and Sequence
3016-2124- Manual_Rev.0 Page 16 8/02/12

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
PRINTED IN USA
3016-2124- Manual_Rev.0 Page 17 8/02/12
