Cross Technologies 4117-14 User manual

Instruction Manual Model 4117-14
Block Up/Downconverter
Weather Resistant Unit
March 2017, Rev. J
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be
reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating
the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone] • FAX [phone] • Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 4117-14 Block Up/Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
2.0 Installation 6
2.1 Ethernet Interface Installation 7
2.1.1 Methods of Connection 7
2.1.2 Ethernet Configuration 7
2.1.3 Web Page M&C 9
2.1.4 SNMP Configuration 9

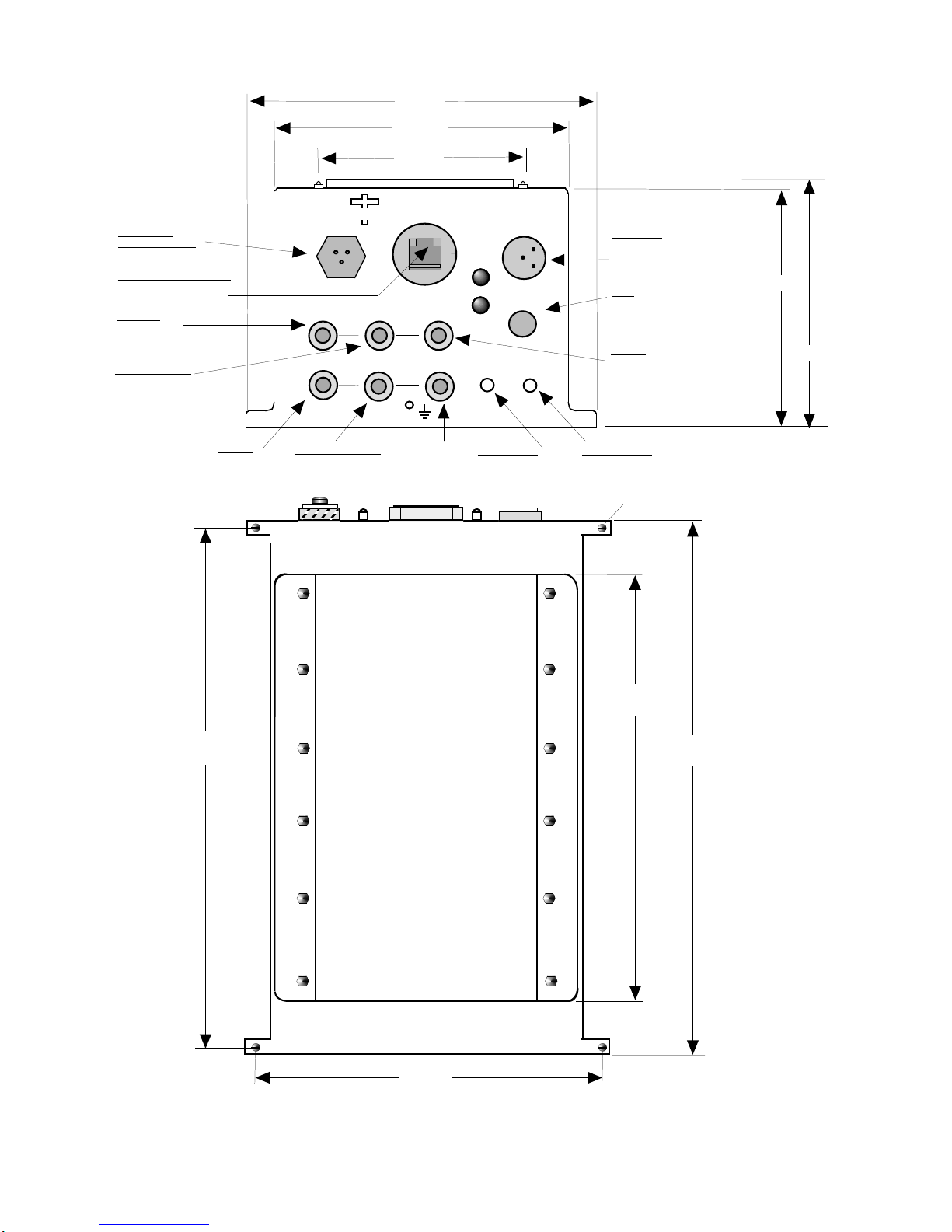

2.2 Up/Downconverter Outline Drawings 12
2.3 Physical Interface 13
2.4 Installation/Operation 14
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone] • FAX [phone] • Toll Free 888-900-5588
WEB www.crosstechnologies.com • E-MAIL [email protected]
4117-14 Manual, Rev. J Page 2 03/27/17

MODEL 4117-14 Block Up/Downconverter, Weather Resistant*
1.0 General
1.1 Equipment Description
The 4117-14 Block Up, Downconverter converts a 0.2 - 0.4 GHz block to 1.2 - 1.4 GHz and a 1.2 - 1.4 block
to 0.2 - 0.4 GHz. Front panel LEDs provide indication of DC Power, and PLL Alarms. The maximum gain is
+30 dB for the Up and Downconverter. Connectors are Type N female for the UHF, L-band and L-band
Monitor and SMA female for the external reference input. Gain, and internal 10 MHz frequency are controlled
by the Ethernet M&C. In AUTO, the 10 MHz reference stays in external if the external level is in the +2 to +8
dBm range. The 4117-14 is powered by a 100-240 ± 10% power supply, and is mounted in a 8” W X 6” H X
16” D Weather Resistant* Enclosure.
NOTE: *Weather Resistant enclosures are designed to be water resistant for installation in an outdoor enclosure/antenna hut OR
mounted outdoors on an antenna assembly at their specified temperature ranges. They are designed to be located “out in the
elements” (water, sleet, snow, etc.) but they are not designed to be “submerged under” water. If an extended temperature range is
required, there is an Extended Temperature option (Option W21; -30˚C to +60˚C) available at an additional cost. Contact Cross for
quote.
10M IN
J1 RF OUT
POWER
ALARM
J3 J4
10M OUT
FUSE
J8 AC IN
J7 ETHERNET
F1
MODEL 4117
UP/DOWNCONVERTER
CROSS TECHNOLOGIES INC.
DOWN-
CONV
UP-
CONV
J15 RF OUTJ21 RF IN MONJ11 RF IN
J2 RF OUT MON J5 RF IN
.
FIGURE 1.0 Model 4117-14 Block Up/Downconverter Front Panel
PLL,ATT, CONTROL
M&C
CONTROLLER
0.2 - 0.4 GHz
UHF OUT
1.2
to
1.4
GHz
IN
V
A
R
A
T
T
S
P
L
I
T
T
E
R
+10
L-band
MON
0.5 GHz LP
4117-14 Block Up / Downconverter Block Diagram
EXT
10 M
10 M
TO
PLLS
0.2
to
0.4
GHz
IN
2.375
GHz
2.075 GHz BP
V
A
R
A
T
T1.2-1.4 GHz
L-band
OUT
-20 dBC
L-band
MON
S
P
L
I
T
2.075 GHz BP
0.5 GHz LP
L > U Downconverter
U > L Upconverter
1.5 GHz LP
3.375
GHz
S
P
L
I
T
2.375 GHz
2.375 GHz3.375 GHz
3.375 GHz
1.5 GHz LP
FIGURE 2.0 Model 4117-14 Block Up/Downconverter Block Diagram
4117-14 Manual, Rev. J Page 3 03/27/17

1.2 Technical Characteristics
± 0.05
pp
m maximum over tem
p
internal reference
;
external reference in
p
ut Fre
q
uenc
y
Accurac
y
LO Characteristics
U
p
converter and Downconverter
In
p
ut = +2 dBm to + 8 dB in
,
50 ohms 10 MHz Level In
See Block Dia
g
ram
,
Translation is fixed LO Fre
q
uenc
y
-110-100-85-80-70 1MHz100kHz10kHz1kHz100 MHz dBC/Hz
Phase Noise @ Frequency (Hz) >
TABLE 1.0 4117-14 Block Up/Downconverter Specifications**
0 dBm Maximum In
p
ut No Dama
g
e
-40 to -25 dBm In
p
ut Level Ran
g
e
Non-invertingFrequency Sense
±0.5 dB Fre
q
uenc
y
Res
p
. 40 MHz
±2 dB Fre
q
uenc
y
Res
p
. Band
<-50 dBC
Intermod - 2 carriers
4 MHz S
p
ace @ -10 dBm
< -50 dBm
1 - 1.6 GHz Out
S
p
urious
,
Out of Band
> -55 dBm S
p
urious
,
Inband
,
si
g
. ind.
> 50 dBC
,
0 dBm S
p
urious
,
Inband
,
si
g
. rel.
> 55 dB
,
minimum Ima
g
e Re
j
ection
+30 to 0 dB Gain
,
ran
g
e
,
0.5±0.5 dB ste
p
s
+10 dBm Out
p
ut 1 dB com
p
. max.
g
ain
-20±3 dBC OUT Monitor Level
20 dB maximum
g
ain Noise Fi
g
ure Maximum
+30 ±3 dB Gain
,
max. at Fc
Channel Characteristics
> 60 dB Mute @ 0 dBm out
-15 to 0 dBm Out
p
ut Level Ran
g
e
0.2 to 0.4 GHz Fre
q
uenc
y
Out
p
ut Characteristics
(
UHF
,
L
)
In
p
ut Characteristics
(
UHF
,
L
)
1.2 - 1.4 GHz Fre
q
uenc
y (
GHz
)
50Ω / 14 dB Im
p
edance/Return Loss
50Ω / 14 dB Im
p
edance/Return Loss
UPCONVERTER
0 dBm Maximum In
p
ut No Dama
g
e
-50 to -30 dBm In
p
ut Level Ran
g
e
Non-invertin
g
Fre
q
uenc
y
Sense
±0.5 dB
Fre
q
uenc
y
Res
p
. 40 MHz
±2 dB
Fre
q
uenc
y
Res
p
. Band
< -50 dBC
Intermod - 2 carriers
4 MHz S
p
ace @ -10 dBm
< -45 dBm
0.1 - 0.6 GHz Out
S
p
urious
,
Out of Band
> 50 dBC
,
0 dBm
> 55 dBm
S
p
urious
,
Inband
,
si
g
. ind.
S
p
urious
,
Inband
,
si
g
. rel.
> 50 dB
,
minimum
Ima
g
e Re
j
ection
+10±3 dBC IN Monitor Level
+10 dBm Out
p
ut 1 dB com
p
. max.
g
ain
15 dB maximum
g
ain Noise Fi
g
ure Maximum
+30 to 0 dB Gain
,
ran
g
e
,
0.5±0.5 dB ste
p
s
Out
p
ut Characteristics
(
L
,
UHF
)
50Ω / 14 dB Im
p
edance/Return Loss
+30 ±3 dB Gain
,
max. at Fc
Channel Characteristics
N/A Mute @ 0 dBm out
-20 to 0 dBm Out
p
ut Level Ran
g
e
1.2 - 1.4 GHz Fre
q
uenc
y
In
p
ut Characteristics
(
L
,
UHF
)
0.2 - 0.4 GHz Fre
q
uenc
y (
GHz
)
50Ω / 14 dB Im
p
edance/Return Loss
DOWNCONVERTER
.2 - .4 GHz out ≥-40 dBc @ 0 dBm out
Downconverter 2nd Harm
1.2 Technical Characteristics (continued on page 5)
4117-14 Manual, Rev. J Page 4 03/27/17

1.2 Technical Characteristics (continued from page 4)
TABLE 1.0 2017-0416 Up/Downconverter Specifications* continued...
Controls
,
Indicators
Green LEDPower
Gain & internal 10 MHz fre
q
uenc
y
via Ethernet M&C of Status/Control ConnectorGain
,
Band
,
10M Fre
q
uenc
y
Red LED
,
External Contact ClosurePLL Alarm
Other
8” Wide x 6” High x 16” Deep Weather Resistant Enclosure
Size
100-24 ±10% VAC
,
47-63 Hz
,
25 watts maximumPower
SMA
(
female
),
50Ω10 MHz Connector
*10˚C to 40˚C; Specifications subject to change without notice.Cross Technologies, Inc. 2017
Status/Control Connector, MS3112E14-18S;
Mating Cable Connector MS3116F14-18P.
Ethernet Conector, RJF21B; Mating Cable Connector, RJF6G;
Cable interface, Standard RJ45.
AC Input Connector, Clipper Series, CL1M1102,
Mating Cable Connector, CL1F1101.
(Unless otherwise specified, the mating connector is provided preassembled onto a standard
NEMA 5-15 U.S. power cord.)
Weather Resistant*
Connectors
T
yp
e-N
(
female
),
50Ω
L-Band/UHF/
Monitor Port Connectors
*Weather Resistant enclosures are designed to be water
resistant for installation in an outdoor enclosure/antenna hut
OR mounted outdoors on an antenna assembly at their specified
temperature ranges. They are designed to be located “out in the
elements” (water, sleet, snow, etc.) but they are not designed to
be “submerged under” water.
If an extended temperature range is required, there is an
Extended Temperature option (Option W21; -30˚C to +60˚C)
available at an additional cost. Contact Cross for quote.
4117-14 Manual, Rev. J Page 5 03/27/17

2.0 Installation
The 4117-14 Block Up/Downconverter consists of a 8”W X 6”H X 16”D Weather Resistant* enclosure.
A switching, ± 12, +24, +5 VDC power supply provides power for the internal assemblies. The 4117-14 can be
secured to a mounting plate using the 4 holes on the bottom of the front and rear panels. See Figure 2.5 for
mounting dimensions.

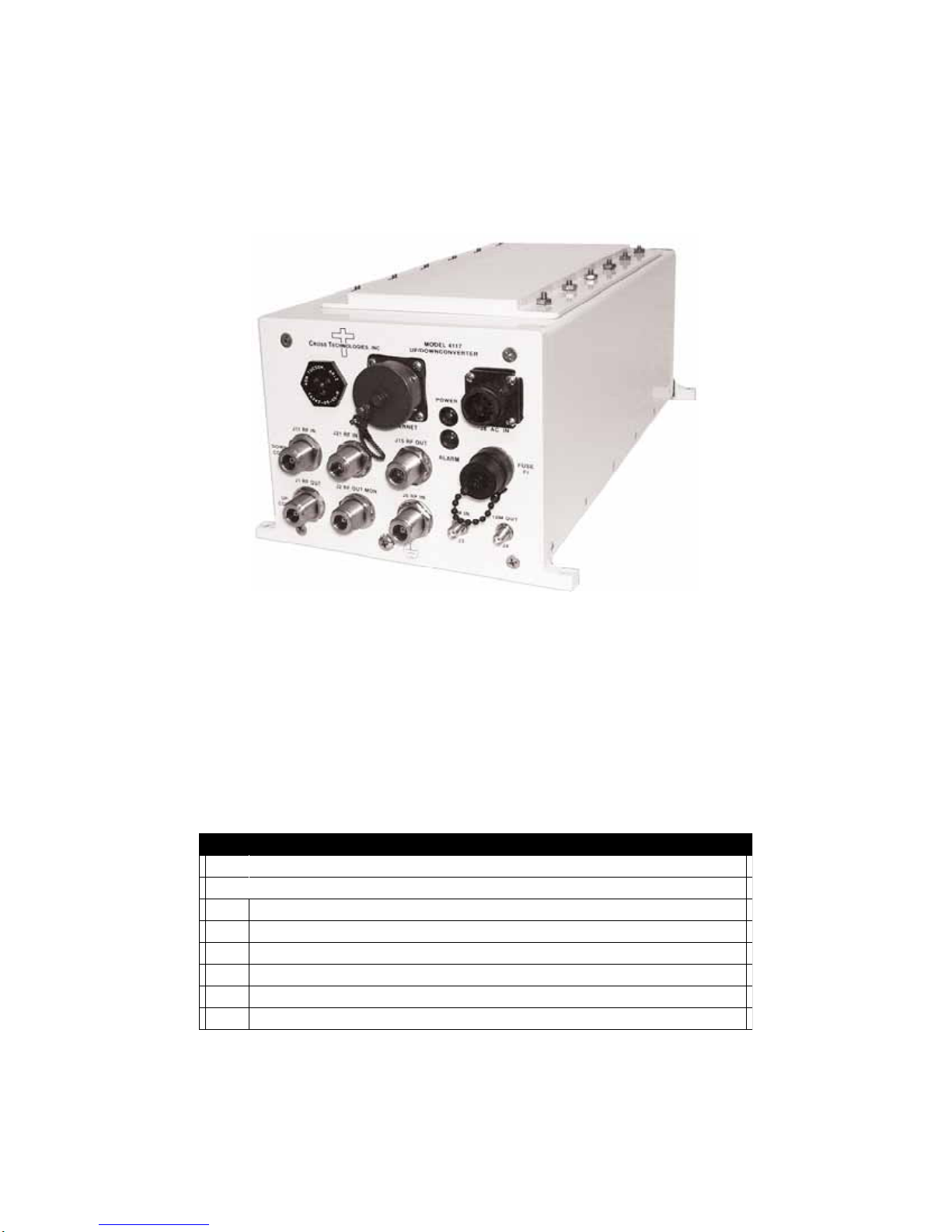

Figure 3.0: Model 4117-14 Up/Downconverter Front Panel
2.0.1 Connection to AC Input Power
The 4117-14 utilizes a pre-assembled AC power input cable as described below.
4117-
1
1
4 Power Input Connector, FCI Clipper Series, CL1M1102 & Crimp Pins
Matin
g
Mating Connector, Clipper Series, CL1F1101 and Crimp Pins
and CCL101021
and CL101021 Backshell
Pin Input Connector Pin Description
1 100-240 ±10% VAC, 47-63 Hz, 20 watts max.
2 Neutral
3 Ground
4117-14 Manual, Rev. J Page 6 03/27/17

2.1 ETHERNET Interface Installation and Operation
The 4117-14 frequency converter is equipped with a 10/100 Base-T compatible Ethernet interface for control
and monitoring of its operating parameters. An HTML script interface allows the user to monitor and control
the converter using a standard web browser. SNMP (Simple Network Management Protocol) is also supported.
Contact Cross Technologies for the SNMP MIB file.
2.1.1 Methods of Connection
Directly Connected to a PC:
For control from a local PC, attach the 4117-14’s Ethernet port to the Ethernet network connector on the
PC using a crossover RJ-45 cable.
LAN Connection
For LAN connections, attach the 4117-14 Ethernet port to the LAN using a normal RJ-45 cable.
Use any PC on the LAN to connect to the 4117-14.
2.1.2 Ethernet Configuration
Each 4117-14 must be configured with an appropriate IP address, Netmask, and Gateway assigned by your
network manager. The 4117-14 is set at the factory with a static address that is written on a tag attached to the
unit. The device server in the 4117-14 has a built in HTTP based configuration manager that is used to
configure network settings. To access the configuration manager open a web browser and enter the IP address
of the 4117-14 in the browser's address field. The window shown in Figure 4-A will appear. As delivered,
there is no password set. Choose your user name and password here or leave those fields blank and click OK
to proceed to the configuration manager web page.
NOTE: The default, Factory Set IP Address is: 192.168.123.2

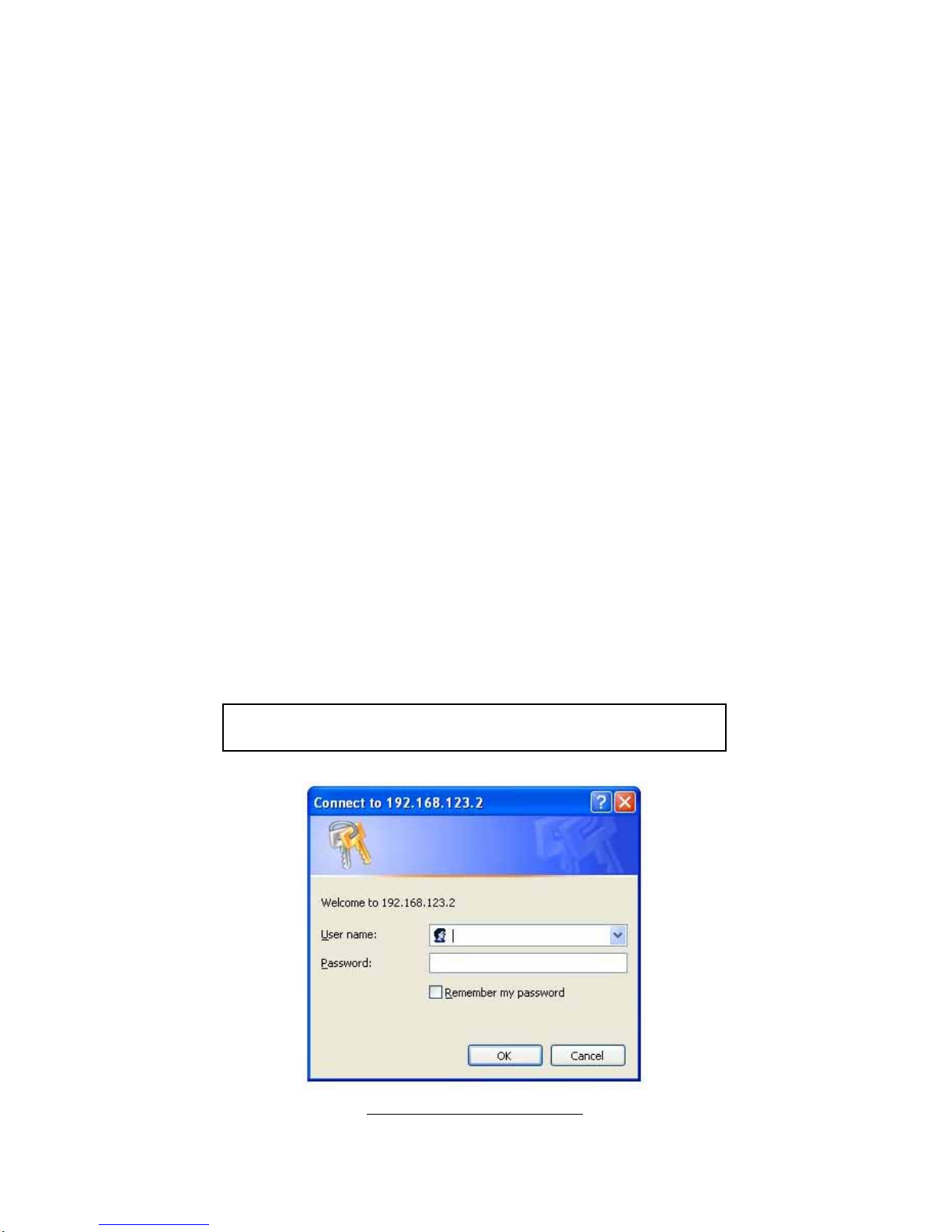

Figure 4-A: Password Screen
4117-14 Manual, Rev. J Page 7 03/27/17

Figure 4-B: Configuration Manager Screen
In the left frame of the configuration manager click on Network to display the Network Settings screen.
Enter the IP address, Subnet mask, and Gateway address with delimiter dots (example: 192.168.192.47).
Click apply settings in the left frame to apply the new settings in the network device.
4117-14 Manual, Rev. J Page 8 03/27/17

2.1.3 Web page M & C
Enter the following address in a web browser to access the M & C Web page:
http://<ip address of 41xx>/serial/0/setup.htm where <ip address> is the IP address
of the unit. Figure 4-C shows the web page from a model 4117-14 frequency converter.
Figure 4-C: Model 4117-14 Web page
2.1.4 SNMP Configuration
Setting of SNMP parameters such as Community Write and Community Read strings requires a Telnet®
connection to port 9999. The following instructions explain how to establish such a Telnet®connection using
Windows XP's Hyper Terminal utility .
Start the Hyper Terminal application and select “New Connection” from the “File” drop down menu. The next
screen is a “Connect To” dialog box. Select TCP/IP (Winsock) from the “Connect” using drop down menu.
Enter the IP address of the 4117-14 in the “Host Address:” field and 9999 in the “Port Number” field.

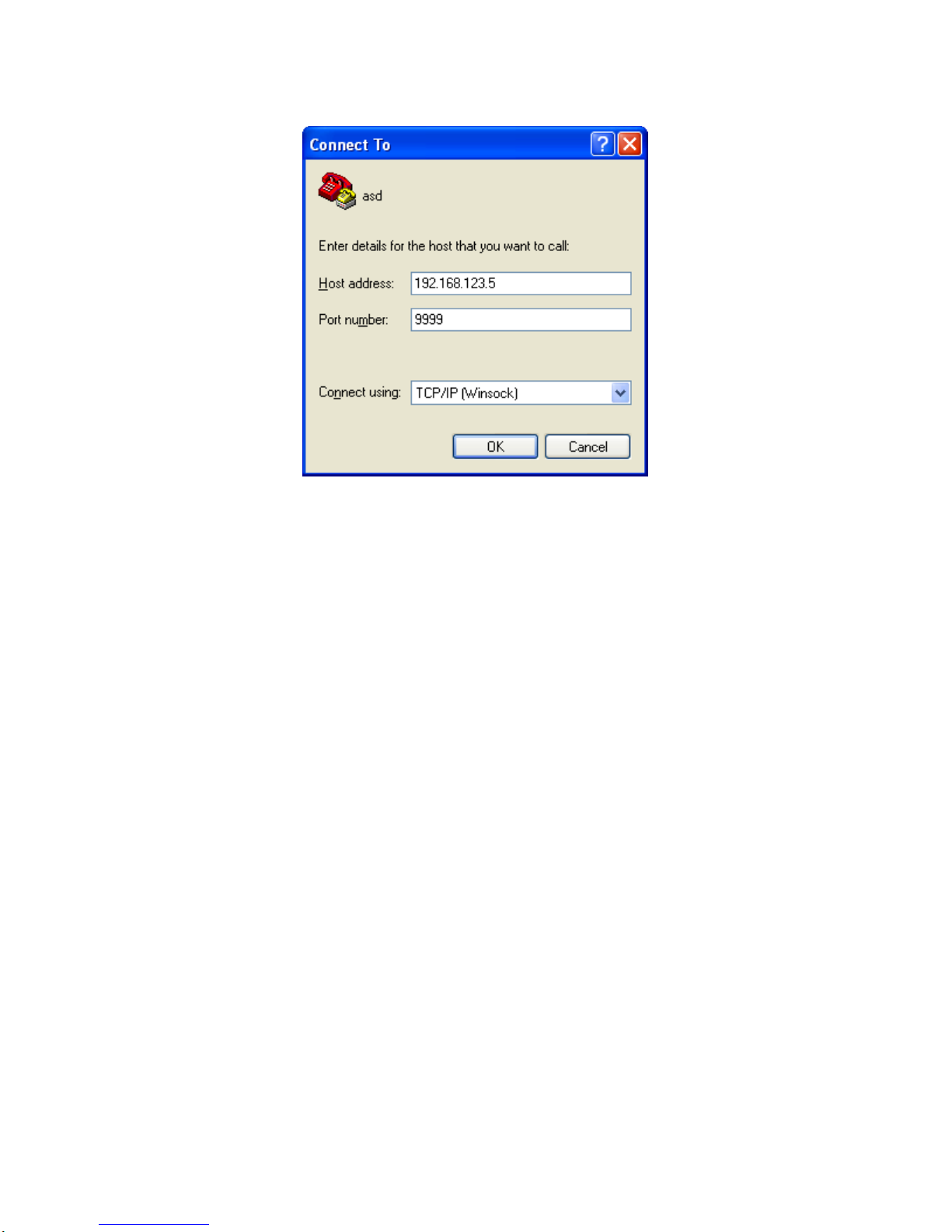

Figure 4-D shows an example of the Hyper Terminal settings required to access the SNMP configuration menu.
4117-14 Manual, Rev. J Page 9 03/27/17

Figure 4-D: Telnet®Settings in Hyper Terminal
Once the Telnet®connection is established you will be prompted to “Press Enter for Setup Mode.” Press enter
and a menu of device server configuration options will appear (see Figure 4-E). Select menu item 3, “SNMP
configuration.” You will be prompted to enter SNMP community read and write strings. After setting your
desired community strings you will be prompted to “Enter IP addresses for SNMP traps:” You must enter at
least one and up to four IP addresses of SNMP managers that will access the unit. This is required even though
SNMP traps are not implemented. The unit will not process SNMP SET and GET requests from an SNMP
manager unless the IP address associated with that manager is entered in the device server.
4117-14 Manual, Rev. J Page 10 03/27/17

Figure 4-E: Device Server Configuration Menu
NOTE: Planning Ethernet Access
It is recommended that IP knowledgeable customer personnel be consulted as a resource in the
installation and use of the Ethernet access features of the Cross Technologies product.
4117-14 Manual, Rev. J Page 11 03/27/17

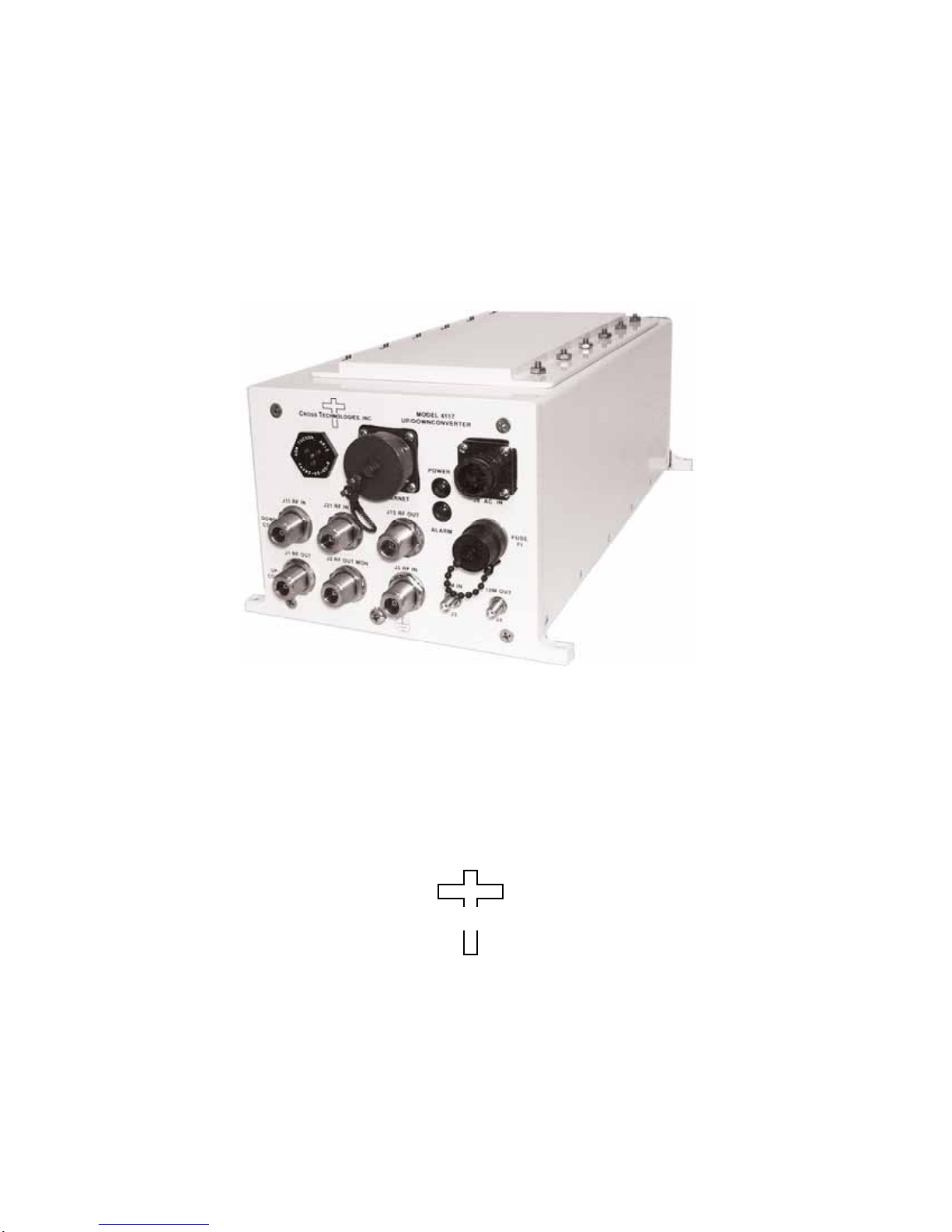

Figure 2.2 Shows front panel input and output connections, top view and base plate mounting dimensions.
10M IN
J1 RF OUT
POWER
ALARM
J3 J4
10M OUT
FUSE
J8 AC IN
J7 ETHERNET
F1
MODEL 4117
UP/DOWNCONVERTER
CROSS TECHNOLOGIES INC.
DOWN-
CONV
UP-
CONV
J15 RF OUTJ21 RF IN MONJ11 RF IN
J2 RF OUT MON J5 RF IN
7.88
6.62
4.2
5.500
5.775
POWER IN
AC input for switching power supply.
100-240 ±10%VAC 47-63 Hz.
Weatherized CL1F1101 Connector
(See Table 1.0)
Fuse
1.25” X .25”, 1.5 amp
slow blow (Type T).
PRESSURE
RELEASE VALVE
10MHz OUTPUT
SMA Connector, 50Ω
Loop-through.
10MHz INPUT
SMA Connector, 50Ω
+2 - +8 dBm Input
RF INPUT
1.2 to 1.4 GHz
L-Band Input RF OUT
0.2 - 0.4 GHz
UHF Output
RF IN MONITOR
+10 dB Monitor
.
RF OUT
1.2 to 1.4 GHz
L-Band Output
RF OUT MONITOR
-20 dB Down Monitor RF INPUT
0.2 to 0.4 GHz
UHF Input
ETHERNET CONNECTOR
Weatherized Standard RJ45
Ethernet Connector .
15.875
12.00
15.5
7.50
1/4-20 Tapped Thru, 4 Places
4117-14 Manual, Rev. J Page 12 03/27/17

2.3 Physical Interface
All 411x units provide a RS232/RS422/RS485 interface port and a 10/100 Base-T Ethernet port. Both ports are
available when the unit is installed and powered up. Commands may be sent to either port at any time and they
will be processed in the order that they are received. The RS232/RS422/RS485 signals connect via an 18-pin,
MS3112E14-18S connector. The Ethernet signals connect via a standard RJ45 connector, Part #RJF6G.
Monitor and Control Connector
Monit
o
Monitor and Control Connector Pinout
Conn
e
Connector part number MS3112E14-18S
Matin
g
Mating Cable Connector part number MS3116F14-18P
Pin Signal Description
A Chassis Ground
N Summary Alarm Normally Closed
P Summary Alarm Common
R Summary Alarm Normally Open
E RS422/RS485 Data Out-
F Signal Ground
C RS422/RS485 Data In-
D RS422/RS485 Data Out+, RS232 Data Out
B RS422/RS485 Data In+, RS232 Data In
4117-14 Manual, Rev. J Page 13 03/27/17

2.4 Installation/Operation
Installing and Operating the 4117-14 Block Up/Downconverter
1. Connect a -40 dBm to -15 dBm signal to UHF INPUT of the upconverter, (Figure 2.2).
2. Connect the upconverter’s L-BAND OUTPUT, to the external equipment.
3. Connect a -50 dBm to -30 dBm signal to the L-BAND input of the downconverter
4. Connect the downconverter’s UHF output to the external equipment.
5. Using the pre-assembled AC power input cable (furnished), connect 100-240 ±10% VAC, 47 - 63 Hz
to AC IN connector on the front panel.
6. If a custom length power cable must be made, refer to description below for connections.*
7. Be sure DS1 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).
8. Set the upconverter’s gain from 0 to 30 dB, insuring that the output level is always
in the range of -15 to 0 dBm.
9. Set the downconverter’s gain from 0 to 30 dB, insuring the output level is in the -20 to 0 dBm range.
10. Select either INT (for internal 10 MHz ref), AUTO (for internal 10 MHz ref UNLESS an external
10 MHz, +2 to +8 dBm signal is connected to J3), or EXT (for external 10 MHz, +2 to +8 dBm ref
that is inserted at J3).
11. Check that a 10 MHz signal is present at the 10 MHz REF OUTPUT at the same level as the input.
12. AC Fuse - The fuse is a 1.25” x .25” - 1.5 amp (slow blow) and is inserted in the fuse F1 position.
NOTE: If a fuse continues to open, the power supply is most likely defective.
CAUTION: When checking or replacing the fuse, do not over tighten the fuse holder cap.
This can displace the cap’s O-ring and the weatherproof seal will be lost.
2.5 Installation/Operation
The 4117-14 is furnished with a pre-assembled AC power input cable as described below.
4117-
1
4117-14 AC Power Input Connections
Conn
e
Connector, Clipper Series, CL1M1102 and crimp pins
Matin
g
Mating Connector, Clipper Series, CL1F1101 and crimp pins
Pin Input Connector Pin Description
1 100-240 ±10% VAC, 47-63 Hz, 20 watts max.
2 Neutral
3 Ground
Unless otherwise specified, the mating connector is provided reassembled onto a
standard

NEMA

5-15P

U.S. power cord.
4117-14 Manual, Rev. J Page 14 03/27/17

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed In USA
4117-14 Manual, Rev. J Page 15 03/27/17
