Cross Technologies 2016-25 User manual

Instruction Manual Model 2016-25
Downconverter
July 2022, Rev. M
MENU
EXECUTE
MODEL 2016
F = 2250.000
G = +10
POWER
ALARM
DOWNCONVERTER
REMOTE
CROSS TECHNOLOGIES INC.
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Instruction Manual
MODEL 2016-25 Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 5
1.4 Environmental Use Information 8
2.0 Installation 9
2.1 Mechanical 9
2.2 Rear Inputs/Outputs 10
2.3 Front Panel Controls, Indicators 11
2.4 Operation 12
2.5 Menu Settings 13
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2016-25 Manual, Rev. M Page 2 07/18/22
MODEL 2016-25 Downconverter
1.0 General
1.1 Equipment Description
The 2016-25 Downconverter converts 2000 to 2500 MHz to 70 ± 18 MHz in 1 MHz step (0.5 MHz to 1 kHz
step options available) with low group delay and flat frequency response. Synthesized local oscillators (LO)
provide frequency selection. Push button switches select the RF frequency, gain, and other parameters. Front
panel LEDs provide indication of DC power (green), remote operation (yellow), and PLL alarm (red). Variable
attenuators for the RF input provide a gain range of 0 to +50 dB as adjusted by the front panel pushbutton
switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and gain
settings appear on the LCD display. Connectors are BNC female for RF, IF and the optional external reference
input and output. The -E external 10 MHz option includes a 10 MHz output connector which contains either
the internal or external 10 MHz reference signal. A -H high stability (±0.01ppm) option is also available. The
unit is powered by a 100-240 ±10% VAC power supply, and housed in a 1 3/4” X 19” X 16” rack mount
chassis.
MENU
EXECUTE
MODEL 2016
F = 2250.000
G = +10
POWER
ALARM
DOWNCONVERTER
REMOTE
CROSS TECHNOLOGIES INC.
FRONT PANEL
AC
GND
J3
J10
J18
J2
RF IN
10 MHZ REF
10 MHZ
AND
MONITOR
EXT REF
CONTROL
J1
IF OUT
OUTPUT
INPUT
DS8
J20
1
5
2
3
4
6
7
8
9
REAR PANEL
FIGURE 1.1 Model 2016-25 Front and Rear Panels
70
MHz
OUT
2.0
to
2.5
GHz
IN
CONTROLLER
F=2250 G=+10
EXT
10 MHz*
INT/EXT
10 MHz
INT
10 MHz
VAR
ATT
FIGURE 1.2 Model 2016-25 Downconverter Block Diagrams
2016-25 Manual, Rev. M Page 3 07/18/22
1.2 Technical Characteristics
2016-25 Manual, Rev. M Page 4 07/18/22
Channel Characteristics
Synthesizer Characteristics
1.0 MHz (0.5 MHz to 1 kHz step options available)
Frequency Step
Inverting or Non-inverting (selectable)
Frequency Sense
0.015 ns/MHz parabolic; 0.05ns/MHz linear; 1 ns ripple
Group Delay, max.
<-45 dBC, in band
Spurious Response
±1.5 dB, 2.0 - 2.5 GHz; ±0.5 dB, 36 MHz BW
Frequency Response
3 dBm ± 3 dB, (option - E)
10 MHz In/Out Level
± 1.0 ppm internal reference (+0.01 ppm, option H)
Frequency Accuracy
> 50 dB, min.
Image Rejection
0.0 to +50.0 dB
Gain Range (adjustable)
Other Esterbal
100-24 ±10% VAC, 47-63 Hz, 45 watts max. (24 and 48 VDC Optional)
Power
19 inch, 1RU Standard Chassis 1.75” high X 16.0” deep
Size
DB9 (female) - NO or NC contact closure on Alarm
Alarm / Remote Connector
BNC (female) 75Ω, works with 50 or 75 ohms (option E)
10 MHz Connectors
50ΩBNC (female), 75ΩBNC (female)
RF, IF Connectors
Controls, Indicators
RS232C, 9600 baud (RS485, Ethernet Optional)
Remote
Direct readout LCD; manual or remote selection
Frequency / Gain Selection
Green LED, Red LED, Yellow LED, Red LED
Power, Alarm, Remote, Mute
TABLE 1.1 2016-25 Downconverter Specifications*
15 dB (Maximum Gain)
Noise Figure, Maximum
-70 to -20 dBm
Level Range
2.0 to 2.5 GHz
Frequency
-15 dBm
Output 1 dB Compression
-30 to -20 dBm
Output Level
Output Characteristics (IF)
Input Characteristics (RF)
70 ±18 MHz
Frequency
75Ω/ 18 dB
Impedance / Return Loss
50Ω/ 12 dB
Impedance / Return Loss
Available Options
1 kHz Step, includes Option -H
125 kHz Step Size
0.5 MHz Frequency Steps
High Stability (± 0.01ppm) internal ref.
See Table 2.2 - PG 10
Connector/Impedance
- X1004
- X
- 5
- H
External 10 MHz Ref. Input & Output
- E
*+0 to +50 degrees C; Specifications subject to change without notice.
Cross Technologies, Inc. 2015
Communication Interface/Std. RS232
Ethernet; with Web Browser & SNMP
- W18
Ethernet; with TCP/IP, Telnet®
Ethernet; with Web Browser
- W28
- W8
RS485 Remote Interface
- Q
-105
-95
-80
-70
-70
-55
1M
100K
10K
1K
100
10
Standard-1 MHz Steps: dBC/Hz
Phase Noise @ F (Hz) >
1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485 - option -Q)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port
Male DB-9
2015/16/17 M&CPort
M&C Cable Diagram - Cross Technologies Frequency Converters
Connector: Rear panel, DB-9 male
J10 Pinouts (RS-232C/422/485)
J10 Pinouts (RS-232C/422/485)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
2016-25 Manual, Rev. M Page 5 07/18/22
B) Status Requests
Table 1.1 lists the status requests for the 2016-25 and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
TABLE 1.1 2016-25 Status Requests
TABLE 1.1 2016-25 Status Requests
Command Syntax* Description
Command Status {aaS1} Returns {S1bbbbccIA} where:
• bbbb = Rx frequency (MHz)
• xxxx = 4 characters standard -
(7 characters - Option-X) (5 characters - Option-5)
• cc = Rx gain
• I = 0 - non-inverted Receiver; I = 1 - inverted
• A = Summary Alarm; 1=Alarmed, 0=Normal
10MHz Ref Status {aaS2} Returns {S2E} where:
(option E only) • E = 1 - external 10 MHz switched in
IF Frequenncy Select Status {aaSY} Returns {SYx} where:
(option W140/70 only) • x=0 - 70 MHz, x=1 - 140 MHz
2016-25 Manual, Rev. M Page 6 07/18/22
C) Commands
Table 1.2 lists the commands for the 2016-25 and briefly describes them. After a command is sent the
2016-25 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only - option Q)
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.2 2016-25 Commands
Table 1.2 2016-25 Commands
Command Syntax* Description
Set Receiver Frequency {aaC2xxxx} where:
• xxxx = 4 characters standard -
(7 characters - Option-X) (5 characters - Option-5)
• Range: 2000 to 2500 MHz
Set Receiver Gain {aaC4xx} where:
• xx = 2 characters
• Range: 00 to 50 (0 dB to +50 dB, in 1 dB steps)
Enable Spectrum Invert {aaC7x} where x =:
• 0 to disable spectrum invert
• 1 to enable spectrum invert
Enable External 10MHz IN {aaCEx} where x =:
(option E only) • 0 to disable External 10MHz ref signal
• 1 to enable External 10MHz ref signal
IF Frequency Select {aaCYx} where x =:
(option W140/70 only) • 0 to select 70 MHz
• 1 to select 140 MHz
Enable Remote # Just # sign
Disable Remote {aaCR0} {CR and zero}
2016-25 Manual, Rev. M Page 7 07/18/22
1.4 Environmnetal Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between units
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connection to the Branch
(use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
2016-25 Manual, Rev. M Page 8 07/18/22
2.0 Installation
2.1 Mechanical
The 2016-25 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A
switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2016-25 can be secured to
a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2016-25 is assembled.
POWER
SUPPLY
FIGURE 2.1 Model 2016-25 Downconverter Assembly
2016-25 Manual, Rev. M Page 9 07/18/22
2.2 Rear Panel Input/Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.
AC - POWER IN
AC input for switching
power supply.
100-240 ±10% VAC,
47-60 Hz.
2000-2500 MHz input
-70 to -20 dBm, BNC
female.
see Table 2.2.
J1 - IF OUT
-70 MHz, -20 dBm output.
75Ω, BNC (female) - see
Table 2.2 for other options.
J10 - MONITOR AND CONTROL
DB9 female connector
see Table 2.1
J3 - 10 MHz EXT REF INPUT (Option -E)
10 MHz external reference input
0 ± 3 dBm, 75 ohms,
BNC female connector.
J18 - 10 MHz REF OUTPUT (option -E)
10 MHz reference output, 0 ±3 dBm,.
75ΩBNC female connector.
AC
GND
J3
J10
J18
J2
RF IN
10 MHZ REF
10 MHZ
AND
MONITOR
EXT REF
CONTROL
J1
IF OUT
OUTPUT
INPUT
J20
1
5
2
3
4
6
7
8
9
J20 - ETHERNET
CONNECTION
RJ45 Ethernet Connector
FIGURE 2.2 2016-25 Downconverter Rear Panel Inputs/Outputs
Table 2.1 J10 Pinouts (RS-485/RS-422/RS-232C)*
Table 2.1 J10 Pinouts (RS-485/RS-422/RS-232C)*
Pin Description
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5 Ground
6 Alarm Relay - Common
7 Alarm Relay - Normally Open
8 Output Level Detector, 0 to +5 VDC (option W1 ONLY)
9 Alarm Relay - Normally Closed
*Interface: DB-9 Female; Protocol: RS-485, RS-422, or RS-232C (selectable), 9600 baud rate, no
parity, 8 data bits, 1 start bit, 1 stop bit
TABLE 2.2 IF/RF Connector Options
TABLE 2.2 IF/RF Connector Options
TABLE 2.2 IF/RF Connector Options
Option IF RF
STD BNC, 50ΩBNC, 50Ω
BBNC, 75ΩBNC, 75Ω
DBNC, 50ΩBNC, 50Ω
NBNC, 75ΩType N, 50Ω
MBNC, 50ΩType N, 50Ω
SS SMA, 50ΩSMA, 50Ω
Option W1 Level Detector - Provides 0 to +5 VDC level indication for -60 to -30 dBm 70 MHz output. The
DC voltage comes out on pin 8 of the DB9 connector, J10, with pin 5 being ground. The impedance of the 0 to
+5 VDC level indication signal is 1kΩ. The relation between the change in output level and the change in DC
voltage is linear.
2016-25 Manual, Rev. M Page 10 07/18/22
2.3 Front Panel Controls and Indicators - The following are the front panel controls and indicators.
MENU
EXECUTE
F = 2250
G = +10.0
REMOTE
POWER
LCD DISPLAY
Display shows frequency in MHz and Gain
in dB, and is used to change settings in
Program mode.
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function in
the normal display mode
S3 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode
ALARM
DS3 - ALARM LED
Red LED indicates
downconverter alarm.
FIGURE 2.3 2016-25 Front Panel Controls and Indicators
2016-25 Manual, Rev. M Page 11 07/18/22
2.4 Installation / Operation
2.4.1 Installing and Operating the 2016-25, Downconverter Section
1. Connect a -70 dBm to -20 dBm signal to RF In, J2 (Figure 2.2)
2. Connect the IF OUT, J1, to the external equipment
3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC on the back panel.
4. Set the desired input frequency (See Section 2.5 Menu Settings).
5. Set the gain for 0.0 to +50 dB. Make sure the output stays within -20 to -30 dBm with the gain
selected and the input level provided. (See Section 2.5 Menu Settings).
6. Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.3).
7. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot
in the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot.
If a fuse continues to open, the power supply is most likely defective.
AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.4 Fuse and Spare Fuse Locations
2016-25 Manual, Rev. M Page 12 07/18/22
2.5 Menu Settings
2.5.1 Functions
This section describes operation of the front panel controls. There are three operator switches, the LCD display
and alarm indicator LEDs. All functions for the equipment are controlled by these components. The functions
are (see Figure 2.5):
Power Up
Normal Display
Menu 1 Frequency in MHz
Menu 2 Gain (0 to +50 dB)
Menu 3 Set Unit to Remote Operation (Note: the local controls still function when in REMOTE)
Menu 4 Select Non-inverting or Inverting Spectrum
Menu 5 Select External 10 MHz Ref (option E)
Menu 6 Select 10 MHz Output (option E)
Menu 7 Select RS232, RS422, or RS 485 Remote Operation (option Q)
Menu 8 Select Remote Address for Unit (RS485 only) (option Q)
Save Menu When “R” is selected in any above menu or the next menu item after Menu 8
Alarm indications appear on the LEDs (see figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
2016-25 Manual, Rev. M Page 13 07/18/22
2.5.2. Power On Settings
NOTE: The last status of a unit is retained even when power is removed. When power is restored, the unit will
return to it's previous settings.
When power is first applied, the LCD display goes through three steps.
1. The LCD goes black to show all segments are functioning.
2. The software version will be displayed.
REV 1.00
3. The present frequency and gain of the downconverter is shown.
F=2250 G=+00
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor left or
right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
A. During frequency, gain changes, the vertical movement will raise or lower the selected number in
the direction of the arrows.
B. For other functions, the vertical switch will alternately turn the function on or off regardless of
the direction operated.
2016-25 Manual, Rev. M Page 14 07/18/22
2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 12 seconds,
and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch
and select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
1. Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.5
for the sequence of menu options. The following display is for changing the downconverter frequency:
F = 2250
R
Pressing the Up/Down switch down will toggle the display to:
F = 2350
R
By using the horizontal rocker switch the cursor can be moved left or right .
F = 2350
R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES. THE CARRIER IS MUTED
WHEN FREQUENCY IS CHANGED.
When the display indicates the value desired you can push the Menu/Execute switch to the next item:
G = +00
R
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS?
YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the default display:
F=2350 G=+00
Figure 2.5 shows all the menu items and how to make changes.
2016-25 Manual, Rev. M Page 15 07/18/22
2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 12 seconds, and the system will return to the normal operating mode.
To change the GAIN, first push the Menu/Execute switch to get to the gain setting:
Operate the Menu/Execute switch until you get to the menu item you want to change (see Figure 2.5 for
the sequence of menu options).
NOTE: CHANGES TAKE PLACE ON GAIN IMMEDIATELY BUT DO NOT GET SAVED UNTIL
YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.
Press the Up/Down switch to change the level in 1 dB steps and then push the Menu/Execute switch to
get to the Gain setting:
G = +00
R
Press the Up/Down switch to change the gain in 1 or 10 dB steps:
G = +10
R
By using the horizontal rocker switch the cursor can be moved left or right. Pressing the Up/Down
switch down will toggle the display digit selected until you have the desired gain.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW. DO NOT SET A GAIN THAT WOULD EXCEED 0 dBm OR HAVE LESS THAN -20 dBm
OUTPUT LEVEL. THE FIRMWARE PREVENTS YOU FROM THIS.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS?
YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to:
F = 2250.000
G = +30.0
Figure 2.5 gives the menu items and how to make changes
2016-25 Manual, Rev. M Page 16 07/18/22
2.5.5 Alarm Indications
An alarm condition for will occur if the local oscillator phase lock loop (PLL) comes out of lock. The Mute
LED will light if you select to mute the Tx Signal and the Remote LED will light when you select the Remote
mode.
ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
F = 2250
G = +00
F = 2250
SCROLL <>
SCROLL
PUSH BUTTON
DNSPECTRUM NON
REMOTE OFF
EXT REF OFF
SCROLL <>
SCROLL PUSH BUTTON
PUSH BUTTON
Power Up
Normal Display
Menu 1 Up Frequency
Menu 2 Down Gain (0 to +50)
Menu 3 Set Unit to Remote
Operation
Menu 4 Select Non-inverting or
Inverting Spectrum
Menu 5 Select External 10 MHz
Reference (option E)
Menu 6 Select 10MHz Output
(option E)
Menu 7 Select RS232, RS422, or
RS485 remote control (option Q)
Menu 8 Select remote address for
unit (RS485 only) (option Q)
Save? When “R” is selected from
any menu above, or at the end
G = +00
SCROLL <>
SCROLL PUSH BUTTON
SAVE SETTINGS? YN
SCROLL <> PUSH BUTTON
R
R
R
R
R
R
RS232
DN REF OUT OFF
R
SCROLL <>
SCROLL PUSH BUTTON
SCROLL <>
SCROLL PUSH BUTTON
SCROLL <>
SCROLL PUSH BUTTON
SCROLL <>
SCROLL PUSH BUTTON
R
ADDRESS = 00
SCROLL <>
SCROLL PUSH BUTTON
FIGURE 2.5 Menu Display and Sequence
2016-25 Manual, Rev. M Page 17 07/18/22
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed in USA • 2011
2016-25 Manual, Rev. M Page 18 07/18/22

Other Cross Technologies Media Converter manuals

Cross Technologies 3116-192 User manual

Cross Technologies

Cross Technologies 3116-192 User manual

Cross Technologies 4115-41-212 User manual

Cross Technologies

Cross Technologies 4115-41-212 User manual

Cross Technologies 2115-122 User manual

Cross Technologies

Cross Technologies 2115-122 User manual

Cross Technologies 2116-21-1014 User manual

Cross Technologies

Cross Technologies 2116-21-1014 User manual

Cross Technologies 2415-02 Series User manual

Cross Technologies

Cross Technologies 2415-02 Series User manual

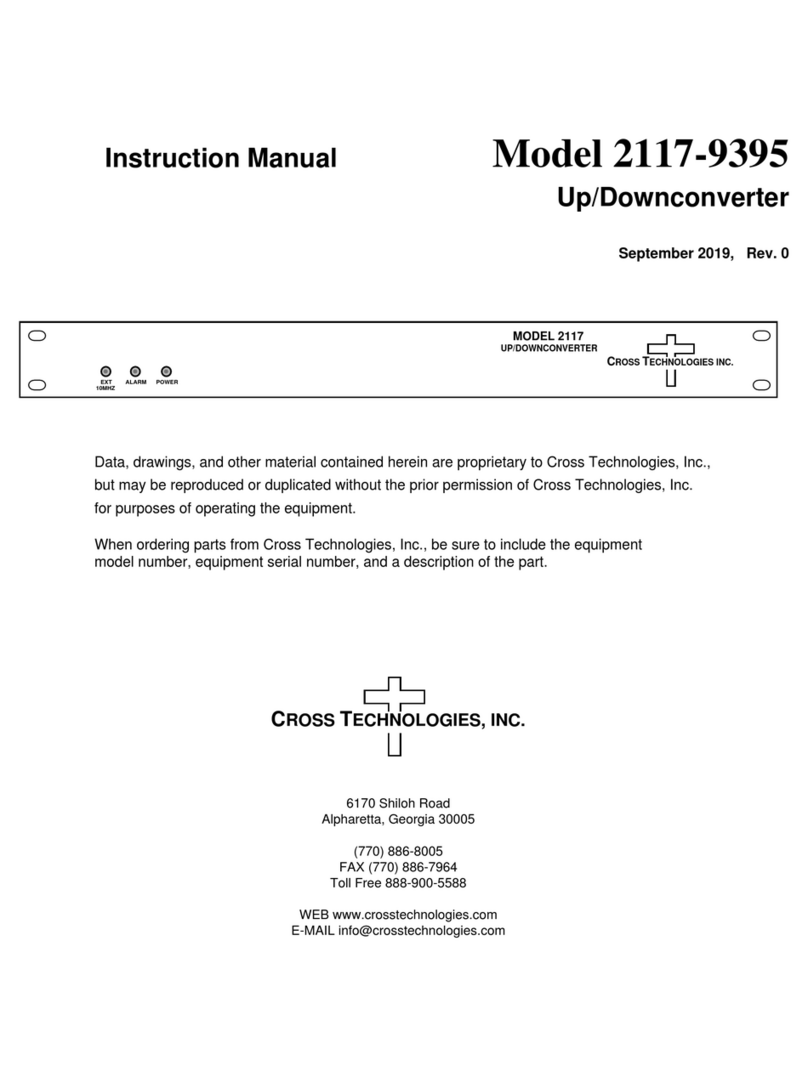

Cross Technologies 2117-9395 User manual

Cross Technologies

Cross Technologies 2117-9395 User manual

Cross Technologies 2116-300-1600 User manual

Cross Technologies

Cross Technologies 2116-300-1600 User manual

Cross Technologies 2016-12 User manual

Cross Technologies

Cross Technologies 2016-12 User manual

Cross Technologies 4116-31-184 User manual

Cross Technologies

Cross Technologies 4116-31-184 User manual

Cross Technologies 2016-03A User manual

Cross Technologies

Cross Technologies 2016-03A User manual

Cross Technologies 2016-95 User manual

Cross Technologies

Cross Technologies 2016-95 User manual

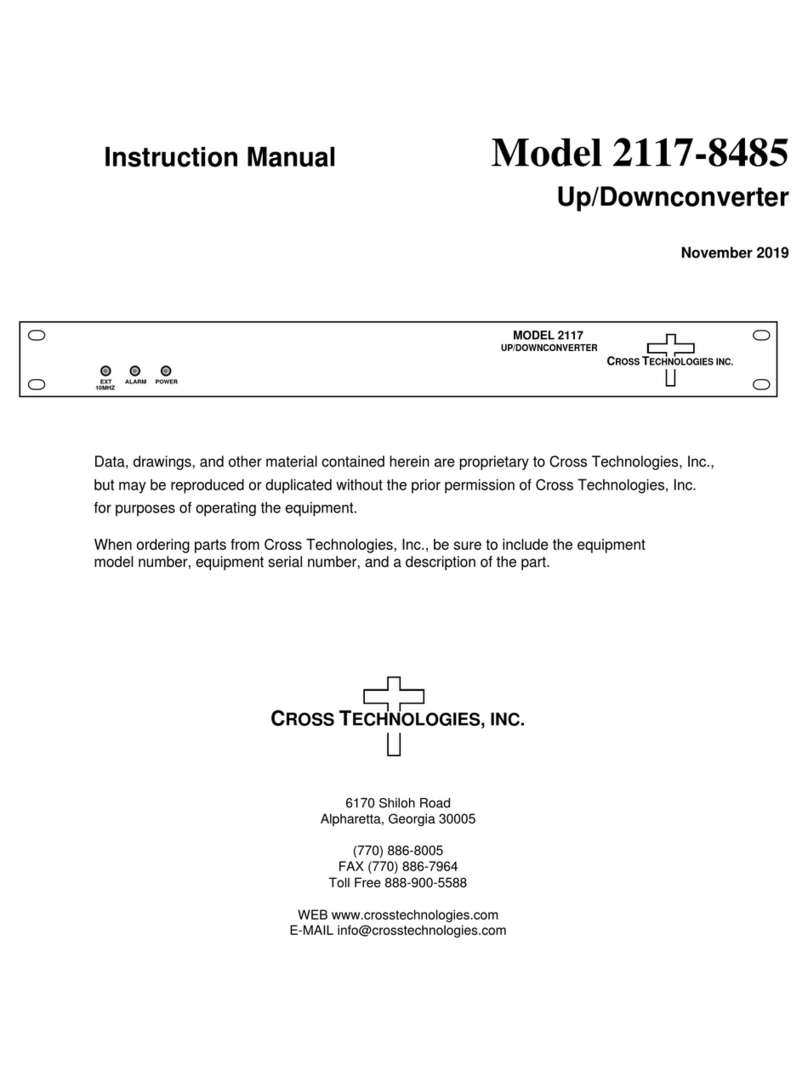

Cross Technologies 2117-8485 User manual

Cross Technologies

Cross Technologies 2117-8485 User manual

Cross Technologies 2015-123 User manual

Cross Technologies

Cross Technologies 2015-123 User manual

Cross Technologies 4116-285-2450 User manual

Cross Technologies

Cross Technologies 4116-285-2450 User manual

Cross Technologies 2015-05 User manual

Cross Technologies

Cross Technologies 2015-05 User manual

Cross Technologies 2415 0925 Series User manual

Cross Technologies

Cross Technologies 2415 0925 Series User manual

Cross Technologies 2016-26 User manual

Cross Technologies

Cross Technologies 2016-26 User manual

Cross Technologies 3116-7786-2150 User manual

Cross Technologies

Cross Technologies 3116-7786-2150 User manual

Cross Technologies 2017-14 User manual

Cross Technologies

Cross Technologies 2017-14 User manual

Cross Technologies 2015-26 User manual

Cross Technologies

Cross Technologies 2015-26 User manual

Cross Technologies 3117-3338 720 Series User manual

Cross Technologies

Cross Technologies 3117-3338 720 Series User manual

Cross Technologies 2017-03 User manual

Cross Technologies

Cross Technologies 2017-03 User manual

Cross Technologies 2415-x02 User manual

Cross Technologies

Cross Technologies 2415-x02 User manual

Cross Technologies 2117 User manual

Cross Technologies

Cross Technologies 2117 User manual

Popular Media Converter manuals by other brands

HBM SP4M Series Mounting instructions

HBM

HBM SP4M Series Mounting instructions

Christie Phoenix Quad-T quick start

Christie

Christie Phoenix Quad-T quick start

Interlogix MCR300-1T user manual

Interlogix

Interlogix MCR300-1T user manual

tbs electronics TBS8500 user guide

tbs electronics

tbs electronics TBS8500 user guide

Siemens SINAMICS G110M Original instructions

Siemens

Siemens SINAMICS G110M Original instructions

ADF Web HD67411 user manual

ADF Web

ADF Web HD67411 user manual

Chord Hugo TT 2 manual

Chord

Chord Hugo TT 2 manual

Brainlab 19179 quick start guide

Brainlab

Brainlab 19179 quick start guide

CTC Union FRM220-10 user guide

CTC Union

CTC Union FRM220-10 user guide

ABB ACS150 series Quick installation and start-up guide

ABB

ABB ACS150 series Quick installation and start-up guide

Z3 Technology HE4K-DCK-1X User instructions

Z3 Technology

Z3 Technology HE4K-DCK-1X User instructions

Pepperl+Fuchs KFD2-WAC2-Ex1.D instruction manual

Pepperl+Fuchs

Pepperl+Fuchs KFD2-WAC2-Ex1.D instruction manual

Lantech IPGC-0101GB user guide

Lantech

Lantech IPGC-0101GB user guide

C&C TECHNIC Smart View VSS-814PF user manual

C&C TECHNIC

C&C TECHNIC Smart View VSS-814PF user manual

FeinTech VSP01201 instruction manual

FeinTech

FeinTech VSP01201 instruction manual

TFT 3320 instructions

TFT

TFT 3320 instructions

FUTABA SBD-1 instruction manual

FUTABA

FUTABA SBD-1 instruction manual

Miteq 9400 Series manual

Miteq

Miteq 9400 Series manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
