Crowcon Gas-Pro User manual

M007
Issue 1 July 2021
Multi-Gas Monitor (For NATO)
Gas-Pro
User & Operator Manual
Click here for
contents
list
Click here for
navigation
instructions

NAVIGATION INSTRUCTIONS
The symbols in the left-hand margin of each page of the manual will enable you to carry out the
following functions:
Click on this button to display the Contents page.
Click on this button to display the previous page.
Click on this button to display the next page.
Click on this button to display the previous view (use it to return from a reference jump).
Click on this button to display next view (use it to return to a reference jump).
Click this button to print some or all of the document (specic pages can be chosen).
Exit
Click this button to exit the User and Operator Manual.
! Press the Esc key to display normal Acrobat©Controls.
Contents
Contents

3
CONTENTS
PROLOGUE .............................................7
Gas-Pro Overview ...............................................7
Safety Information........................................8
Unpacking .............................................11
1. Set-up ..............................................12
1.1 Prior to use.................................................12
1.2 Gas-Pro orientation ..........................................12
1.3 Charging...................................................13
1.4 Fitting a ow plate ...........................................14
1.5 Quick view .................................................15
2. Operation ...........................................16
2.1 General ....................................................16
2.2 Turn on ....................................................16
2.3 Pump test ..................................................20
2.4 Detecting gas ...............................................21
2.4.1 Diffusion monitoring .....................................21
2.4.2 Pumped mode ..........................................22
2.5 Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
2.5.1 Alarm Mute Settings .....................................23
2.5.2 Low battery alarm .......................................24
2.5.3 Instantaneous alarm .....................................24
2.5.4 Time weighted average alarm (TWA)........................24
2.5.4.1 TWA Resume function* (software versions 1V25 and higher) ...........24
2.5.5 Accepting and clearing alarms ............................26
Exit

4
2.5.6 Sensor types ...........................................26
2.5.6.1 Oxygen sensors ....................................26
2.5.6.2 Electro-chemical sensors.............................26
2.5.6.3 Pellistor sensors....................................26
2.5.6.4 Pellistor saver mode .............................27
2.5.6.5 PID .............................................28
2.6 Gas-Pro functions ...........................................29
2.6.1 Accessing the user menus ................................29
2.6.2 Home screen ........................................29
2.6.3 Manual zero .........................................30
2.6.4 Mute options ...........................................30
2.6.5 Time weighted average ................................30
2.6.6 Pre-entry check (PEC) .................................30
2.6.6.1 Starting a Pre-entry check ............................31
2.6.6.2 Carrying out a Pre-entry check ........................32
2.6.7 Peak review .........................................33
2.6.8 Pellistor Correction Factor (software versions 1V25 and higher) .........33
2.6.9 Settings ............................................34
2.6.9.1 User setting ....................................34
2.6.9.2 Pump setting ...................................34
2.6.9.3 Sounder volume .................................34
2.7 Shut down .................................................35
2.8 Additional Features ..........................................35
2.8.1 +ve Safety™ ............................................35
2.8.1.1 +ve Safety™ indicator meanings .......................35
2.8.2 Data and event logging...................................36
2.8.3 Bump/Pump functionality.................................36
Exit

5
2.9 Alarm Mute Function.........................................37
3. Gas testing and calibration .............................38
3.1 Introduction ................................................38
3.2 Bump Test Functionality......................................39
3.2.1 Speedy bump...........................................40
3.2.1.1 Procedure ........................................40
3.2.2 Smart bump ............................................40
3.2.2.1 Procedure ........................................40
3.2.3 Calibration after bump fail ................................41
3.2.3.1 Procedure ........................................41
3.3 New sensor calibration/service ................................41
3.4 Gas test screen ow .........................................42
4. Icon overview ........................................43
5. Service and maintenance ..............................44
6. PC interface and Portables Pro..........................45
6.1 General ....................................................45
6.2 PC interface cable ...........................................45
7. Accessories .........................................46
8. Specication .........................................47
9. Troubleshooting ......................................48
9.1 Pump test failure ............................................48
9.2 Fault screens ...............................................48
9.2.1 Fault Descriptions .......................................49
9.2.2 Fault codes ............................................51
Exit

6
10.Appendices ..........................................52
10.1 Sensors ..................................................52
10.1.1 Toxic .................................................52
10.1.2 Flammable Pellistor Sensors .............................52
10.1.3 Oxygen ...............................................52
10.1.4 PID ..................................................52
10.2 Sensor Limitations .........................................53
10.3 Charging and run times .....................................54
10.4 Contacts ..................................................55
Warranty ...............................................56
Exit

7
PROLOGUE
Gas-Pro Overview
Thank you for purchasing the new Gas-Pro. At Crowcon we recognise the need for reliable and
robust personal monitors which are sized to be worn and simple to use.
Gas-Pro is a portable monitor capable of detecting up to 5 gases in a compact and wearable design
featuring an optional internal pump. Focused on users and eet managers alike, Gas-Pro offers
application focused solutions giving greater operating time and reduced set up time.
Gas-Pro is classied for use in hazardous areas and gives loud and bright audible and visual alarm
indications as well as a vibrate alert. The top mount display is backlit for ease of use, and the simple
single button solution makes using and training quick and easy.
This manual covers the extra functions added for the military version of Gas-Pro, listed below:-
• The addition of Mute modes.
• Normal Mode (vibrator, LEDs and sounder active).
• Vibrator only mode (LEDs and sounder inactive).
• Full Mute mode (vibrator, LEDs and sounder inactive).
• Addition of Mute status to the main gas screen.
• Change of the user menu scheme so that Mute modes can be changed and accessed from the
top level.
In full mute mode the only remaining indication of hazardous gas is via the LCD screen.
CAUTION
A personal gas detector is a safety device to provide warnings about dangerous or potentially
dangerous gas hazards. Mute modes undermine some of the safety outputs thereby limiting the
warnings given to the user.
• Use Mute modes sparingly and re-enable outputs as and when it may be safe to do so.
• Be extra vigilant of the alarm indications on the LCD.
The device’s start up routine tests the audio and visual outputs of the device regardless of
selected ‘mute mode’, as safe practice. The pre-selected ‘mute mode’ will take effect again
after the start-up routine has completed.
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

8
Safety Information
• Gas-Pro is a hazardous area certied gas detector and as such must be operated and
maintained in strict accordance with the instructions, warnings and label information included in
the manual. Gas-Pro must be operated within the limitations stated.
• Read and understand all instructions in the operation section of the manual prior to use.
• Before use ensure that the equipment is in good condition, the enclosure is intact has not been
damaged in any way.
• If there is any damage to the equipment do not use, contact your local ofce or agent for repair/
replacement.
• Do not disassemble or substitute components as this may impair intrinsic safety and invalidate
safety certication.
• Only genuine replacement parts must be used; substitute components may invalidate
certication and warranty of the Gas-Pro and accessories, reference “Service and
Maintenance” section of the manual for details.
• No live maintenance is permissible.
• Observe all warnings and instructions marked on the unit and within the manual.
• Observe site health and safety procedures for gases being monitored and evacuation procedures.
• Understand the screen display and alarm warnings prior to use.
• If this product is not working properly, read the troubleshooting guide and/or contact your local
ofce or agent, for details reference the ‘Contacts’ section of the manual (see page 55).
• Ensure maintenance, service and calibration is carried out in accordance with the procedures in
the manual and only by trained personnel.
• Gas-Pro must not be charged or have communication to the device, at ambient temperatures
outside of the temperature range 0°C to 40°C.
• Only connect to Gas-Pro in a safe area for charging or communications.
• Charging cable assemblies, whilst nominally providing a voltage of 6.5V, must not exceed a
voltage of 9.1V as this may impair intrinsic safety and invalidate safety certication (Um=9.1V).
• Communication cable assemblies, whilst nominally operating at a voltage of 3.0V TTL, must not
exceed a voltage of 9.1V as this may impair intrinsic safety and invalidate safety certication
(Um=9.1V).
• The devices are intended for use in normal atmospheric conditions of temperature –20 °C to
+55 °C; pressure 80 kPa (0,8 bar) to 110 kPa (1,1 bar); and air with normal oxygen content,
typically 21 % v/v (volume/volume).
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

9
• Gas-Pro may be used in Zones 1 and 2, for Group llA, llB and llC gases and vapours and for
Temperature Classes T1, T2, T3 and T4. (See Certication labels below).
• Certication labels
The certication marking is as follows:
• Gas-Pro is certied for use in ambient temperatures in the range -20°C to +55°C (-4 to 131°F).
• Applicable Standards
Refer to equipment marking for conrmation of applicable certication before use.
IECEx
IEC 60079-0: 2013, 6th Edition
Explosive atmospheres – Part 0: Equipment – General requirements
IEC 60079-1:2014 7th Edition
Explosive atmospheres – Part 1: Equipment protection by ameproof enclosures “d”
IEC 60079-11: 2012, 6th Edition
Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i”
Ex db ia IIC T4 Gb Tamb -20°C to +55°C
IECEx ULD 11.0004X
ATEX/ certification labelIECEx MED certification label
UL certification label
CH4
1180
Um = 9.1V
WA RNING -
DO NOT CHA RGE THE BATTERY O R
CONNECT TO THE EQUIPMENT IN A
HAZARDOUS LOCATION.
REA D A ND UNDERSTAND THE MA NUAL
B EFORE USE.
172 BROOK DRIVE
MILTON PARK, ABINGDON
OX14 4SD
UNITED KINGDOM
66Y6
T4 Tamb: -20°C to +55°C
FOR USE IN HA ZA RDOUS
LOCATIONS, CLA SS I, DIVISION 1,
GROUPS A , B, C & D.
ONLY AS TO INTRINSIC SA FETY
1180
II 2 G
0038/
CH4
IECEx UL D 11.0004X
DEMKO 11ATEX1031772X
WA RNING
DO NOT CHA RGE THE BATTERY OR CONNECT
TO EQUIPMENT IN A HA ZA RDOUS L OCATION.
REA D A ND UNDERSTAND THE MA NUA L
B EFORE USE.
172 BROOK DRIVE
MILTON PARK, ABINGDON
OX14 4SD
UNITED KINGDOM
Um = 9.1V
Ex db ia IIC T4 Gb -20°C ≤ Ta ≤ +55°C
CH4
II 2 G
IECEx ULD 11.0004X
DEMKO 11ATEX1031772X
WARNING
DO NOT CHARGE THE BATTERY OR CONNECT
TO EQUIPMENT IN A HAZARDOUS LOCATION.
READ AND UNDERSTAND THE MANUAL
BEFORE USE.
172 BROOK DRIVE, MILTON PARK, ABINGDON
OX14 4SD, UNITED KINGDOM
Um = 9.1V
Ex db ia IIC T4 Gb -20°C ≤ Ta ≤ +55°C
1180
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

10
ATEX
EN 60079-0: 2012 + A11: 2013
Explosive atmospheres – Part 0: Equipment – General requirements
EN 60079-1:2014
Explosive atmospheres – Part 1: Equipment protection by ameproof enclosures “d”
EN 60079-11: 2012
Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i”
II 2 G Ex db ia IIC T4 Gb Tamb -20°C to +55°C
DEMKO 11 ATEX 1031772X
UL
Gas detector use in hazardous locations Class 1 Division 1, Groups A, B, C and D only as to
intrinsic safety.
UL 913 Applicable Edition of the UL standard
UL60079-0 Applicable Edition of the UL standard
UL60079-11 Applicable Edition of the UL standard
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

11
Unpacking
Remove the Gas-Pro from the packaging. The standard accessories are under the supporting trays.
The following items will be included as standard:
Box contents
• Gas-Pro
• Quick Start Guide
• Calibration report
• 10m Sample Tubing (incl. Luer Fitting for connection to Flow Plate)
The following items are optional:
Optional items
• Charger cradle
• Charger lead (see Power & Communication Cables Technical Data)
• Flow plate (standard for pumped units)
i If you have ordered a charger and/or cradle this will also be included in the box.
Further accessories are available but will not be contained in the box (see Section 7).
i Gas-Pro in the off state can be left on charge indenitely
i Should the unit be deep discharged, the charging indication will not be shown until the
unit has been charging for 1 hour and the operator button has been pressed.
i When on and charging a warning will advise the user to turn the Gas-Pro off after 12
hours or remove from charge.
i Store the battery in a full state and recharge at least once every 3 months.
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

12
1. Set-up
1.1 Prior to use
Before use, the Gas-Pro should always be checked for any signs of physical damage.
Gas-Pro uses a Lithium Ion (Li-ion) battery pack and should arrive with sufcient charge to be used
straight out the box. However, if this is the rst time of use, you may need to charge the battery to
attain the full operating time (see Charging on page 13).
For battery run times, see the table on page 54.
i The actual operating time will depend on the types of sensor installed.
1.2 Gas-Pro orientation
Figure 1: Gas-Pro
ÀD-ring à Sounder ÆSensor apertures É Charging cable
ÁAlarm bars Ä Operator button Ç Dual colour LCD display Certication label
 +ve Safety™ indicator Å Pump inlet/outlet* È Alligator clip
* Blanked for non-pumped unit.
À
Ç
Ã
É
È
Ä
Â
Å
Æ
Á
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

13
1.3 Charging
Charging should only take place in non-hazardous (safe) areas. To charge, simply plug the cable Àinto
the charging socket Áon the Gas-Pro and turn on the mains supply (see Figure 2 below). If a charging
cradle or vehicle cradle is being used, ensure the Gas-Pro ts rmly on to the power connector.
i The charger must be able to supply 6.5V@ 450mA with an output voltage that does not
exceed 9.1V (Um).
Figure 2: Charger connection
When off, to show the Gas-Pro is charging, both LEDs within the alarm bars will ash red and will change
to green once fully charged. This state will continue until the trickle charge is complete. Charging will then
terminate showing no indication. The screen will also show the battery icon lling in the middle of the
screen when the Gas-Pro is off, and in the bottom left-hand corner when it is on. The battery icon contains
a maximum of six segments to indicate the battery’s state of charge. For example, with three segments
shown and a fourth ashing, the battery is 50% charged À, and when all six are shown, the battery is fully
charged Á(see Figure 3 below).
Figure 3: Charging indications
À
Á
À Á
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

14
1.4 Fitting a ow plate
A ow plate can be used for a number of applications including pumped operation (remote sampling),
manual gas test/calibration or for manual sampling. If the pumped ow plate is attached before turning
the Gas-Pro on and the Gas-Pro includes a pump, a pump test will commence as part of the start up
process (see Pump test on page 20).
There are different types of ow plate available for Gas-Pro (NATO) instruments: one for use with
the internal pump, and a non-magnetic version for PC calibration. Although there is no difference to
the attachment procedure, they are not interchangeable (see Figure 4). The pumped ow plate has
the ‘Circle’ pump symbol in the top left corner, and the calibration ow plate has ‘crossed out’ magnet
symbol, to aid recognition.

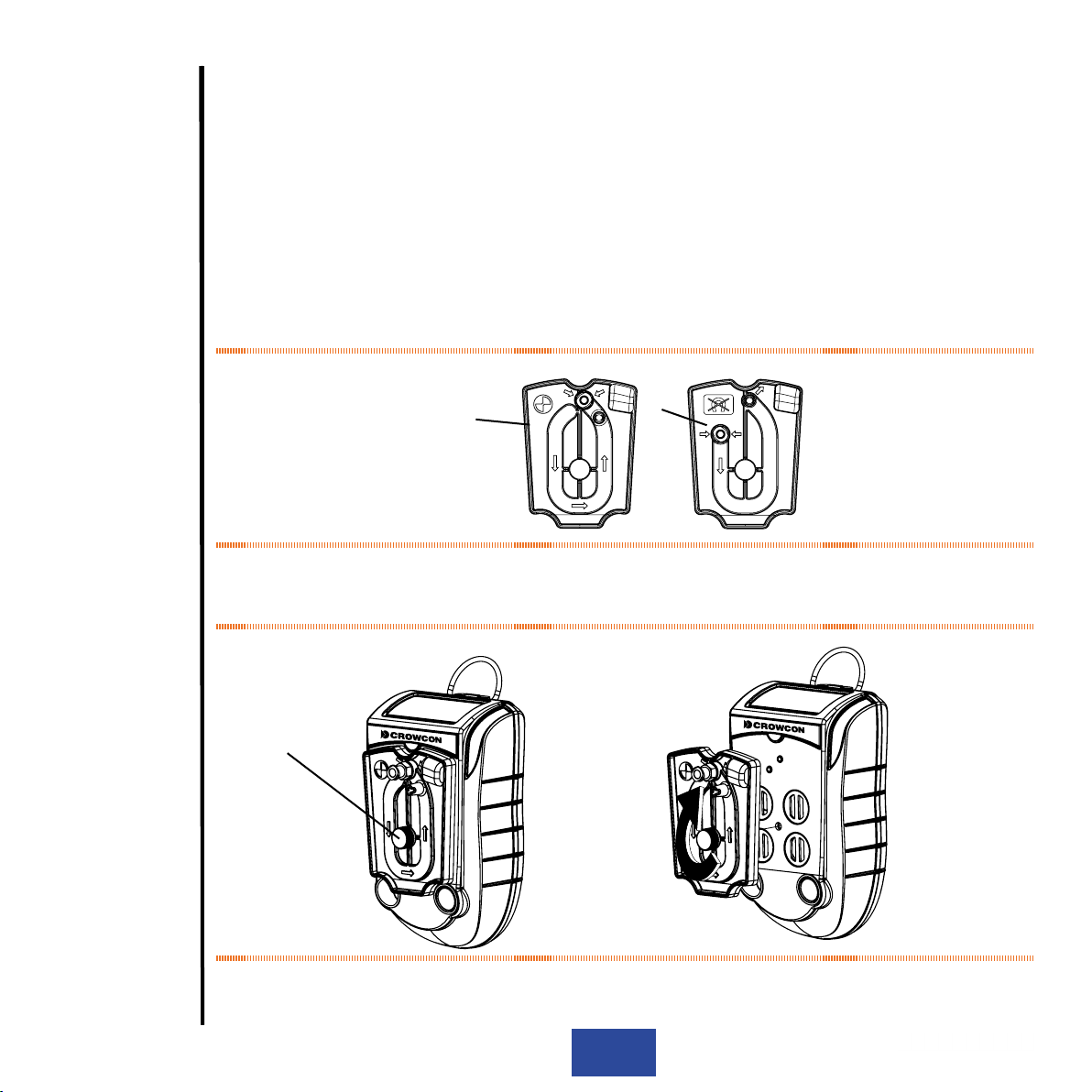

Figure 4: Pumped ow plates
À Pumped ow plate
Á PC Cal/Test Flow Plate
Check the ow plate’s gasket is free from dirt and has not been damaged prior to tting. To t a ow
plate, locate it over the Gas-Pro sensors as shown in Figure 5 and tighten the securing screw À.
Figure 5: Fitting a ow plate
The ow plate includes a quick connect tting for attaching sample tubes and probes.
ÀÁ
À
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

15
1.5 Quick view
Even when the detector is off, users can display details about the conguration of the Gas-Pro by
momentarily pressing the operator button for one audible blip. The LED to the left of the display will
ash red once and the Quick view screen shown in Figure 6 below will be displayed for 10 seconds.
Figure 6: Quick view display
ÀGas type and unit detected
ÁBattery status
ÂQuickview icon
à ID or serial number
i The +ve Safety™ LED status is also shown (see Figure 1).
Ã
Á
À
Â
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

16
2. Operation
2.1 General
!Before turning the Gas-Pro on, ensure it is in ‘clean air’ (i.e. outside, in normal air, away
from any plant process or suspected gas location). This will allow the Gas-Pro to be
zeroed using clean air as the base point. If the Gas-Pro is zeroed in contaminated air a
false gas reading can result, or the zero could fail.
2.2 Turn on
In ‘clean air’, turn on the Gas-Pro by holding down the operator button for 3 audible blips. The Gas-
Pro will warm up, going through a series of automatic processes as follows:
Firstly a test screen pattern will be generated. Watch this to ensure there are no missing pixels on
your display screen.
Whilst the Gas-Pro is warming up, two screens will be displayed.
Figure 7: Initial screens at turn on
After a successful test cycle the LCD screen will remain green, the sounder and LEDs will indicate
the Gas-Pro is healthy.
i A Gas-Pro tted with a pump is congured as standard to start the pump automatically
when switched on, provided that a ow plate is tted. Such a Gas-Pro tests the pump
automatically at this point (for more details on this, see Pump test on page 20).
i If the battery level is low, an alarm will sound, and the battery icon on the screen will be partial.
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

17
If the Gas-Pro is congured for regular Gas Testing (Bump Test), the date of the last Gas Test will
also be shown (for more information on Gas Testing, see Gas testing and calibration on page 38).
Figure 8: Gas test due screen
The next screen indicates when the Gas-Pro was last calibrated. It also indicates when the next calibration
is due with a warning symbol next to the number of days left, if this is fewer than 30 days. If the
calibration due date has expired, the number of days gure is not displayed and the warning symbol
ashes.
Figure 9: Calibration due screen
If the calibration due lockout feature has been enabled the lockout icon will be displayed and the
Gas-Pro will not proceed past this point.
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

18
The next screen (Figure 10) will display the current detector settings (for more information on these
settings, see Gas-Pro functions on page 29).
Figure 10: Current settings screen
The Autozero Conrm screen will be displayed next.
Figure 11: Autozero conrm screen
An Autozero should not be performed unless the Gas-Pro is in clean air. Press the operator button to
enter the Autozero mode, otherwise the countdown will progress and will not perform a zero.
If the operator button is not pressed the countdown will complete and this function will be skipped.
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

19
When the autozero has nished or been skipped, the next screen is the home screen (Figure 12)
and displays the gas levels.
i Figure 12 shown below is for 5 gases in clean air.
Figure 12: Home screen
ÀGas type
ÁUnit
 Level
ÃHome Screen icon
ÄBattery level
ÅPump present
(rotating when on)
ÆAlarm Mute Status
In ‘clean air’, CO2 and Oxygen levels are typically 0.04% and 20.9% respectively. In zero mode,
these gases will actually run an ‘offset’ zero.
The Gas-Pro is now ready for use.
!EN60079-29 part 1 has been harmonised under the ATEX directive (2014/34/EU). Therefore
to comply with the ATEX directive, portable apparatus sensing ammable gases should
have a functional check with ammable gas before each day of use (see Gas testing and
calibration on page 38). Other testing regimes may be employed depending on local
circumstances.
À Á
Â
Ã
ÄÅ
Æ
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up

20
2.3 Pump test
In the default conguration, a pumped Gas-Pro with a ow plate attached (see Fitting a ow plate on
page 12) will run a pump test during the start up process. A pump test will also be run whenever a
ow plate is attached during normal operation.
i If the Gas-Pro is congured for Bump functionality, the Bump/Pump prompt will be
displayed if a ow plate is attached and a gas bump test is due or the Gas-Pro is placed in
a Q-Test module during normal use (see Bump/Pump functionality on page 36).
i Prior to tting, the ow plate’s gasket should be checked for any damage.
i This function incorporates an audible alarm which will be sounded briey at the end of
the pump test
The pump test ensures accurate sealing as well as monitoring pump performance.
The user will need to cover the pump inlet À(see Figure 13 below) when prompted to do so by the
symbol on the screen.
Figure 13: Pump inlet
When the test has nished, the pump will either pass or fail .
If the pump test takes place during start-up and the Gas-Pro passes, the pump will remain on and
the start-up process will continue as normal. If the test is passed during normal use, the Gas-Pro will
remain in the pumped mode until the ow plate is removed.
On failing the pump test the fail screen will persist with an audible alert until the button is pressed
and the test repeats OR the ow plate is removed and the Gas-Pro returns to non-pumped
operation. For further detail on failing a pump test see Pump test failure on page 48.
À
Contents
Exit
Prologue
Operation
Gas testing
Maintenance
PC software
Accessories
Specication
Troubleshooting
Appendices
Warranty
Set-up
