Vision 3 from Crystal Vision is a 3U, 19” mount rack frame that holds any mixture of up to 20
Vision cards and has powerful redundancy features including dual Ethernet connections, dual
analogue reference inputs and dual power supplies. A hinged front panel drops down for easy
access to the cards and power supplies, all of which can be hot plugged. The front panel itself
has a LCD display that allows full control and status monitoring of the cards and frame.
Vision cards are vertically mounted and plug directly into the rear modules and the PCIe bus on
the back plane. The rear modules provide the I/O interface and by connecting directly to the rear
module much higher I/O video bandwidth is achievable. The cards are held in place when the
hinged front panel is shut. To remove a card, firstly lower the front panel by pressing in the two
black buttons on the side of the front panel and then using the ring at the bottom of the card pull
the card out. The white tab at the top of each card is a label marker only and should not be
pulled.
Each card has a green and red LED. The green LED is on when the on-card voltage regulators
are working correctly. The red LED is currently undefined.
The frame controller processor (FCP) is mounted horizontally underneath the Vision cards and
can be removed, if necessary, by undoing the retaining screws and pulling on the ring pull at the
left hand side corner. Care must be taken when re-inserting the FCP to ensure that the
Vision 3 User Manual R1.2 4 26 February 2020

Crystal Vision Introduction
connectors are correctly lined up and not forced. The FCP monitors the status of the frame and
cards and contains sufficient memory to back up the configuration of every card.
Holding both reset push buttons down simultaneously will reset the CPU on the FCP if
necessary.
There are four cooling fans mounted on the front panel and one in each power supply. Every
card has a temperature sensor which controls the speed of the front panel fans to regulate the
frame temperature. Normally, the fans run at a fixed speed but if one of the following conditions
apply, the fans will enter ‘fault’ mode and run at full speed:
A card or controller processor temp exceeds 65 degrees (fans will return to normal
speed once temp reaches 60 degrees).
Any one of the front panel fans fail.
Either of the PSU fans fail.
Either of the PSUs fail.
The fault conditions above will also activate the alarm relays on the rear of the frame and turn
the front panel LED red.
The frame should be operated with the front panel shut to prevent overheating, but the front
panel can be opened for short periods to change cards or power supplies etc. To change the
fan, the frame should be de-powered as this operation may take too long to prevent the frame
from overheating. The frame should continue to work reliably if a single fan only fails but the
faulty fan must be replaced as soon as the frame can safely be de-powered for maintenance.
The frame will work reliably with a single PSU only but a faulty PSU should be replaced as soon
as possible. The frame need not be de-powered to change a PSU; simply pull out the front IEC
mains lead, lift the green locking tab and remove the PSU by pulling on the handle mounted in
front of the fan. The front panel should be closed straight afterwards to maintain temperature
regulation.
Vision 3 User Manual R1.2 5 26 February 2020

Crystal Vision Introduction

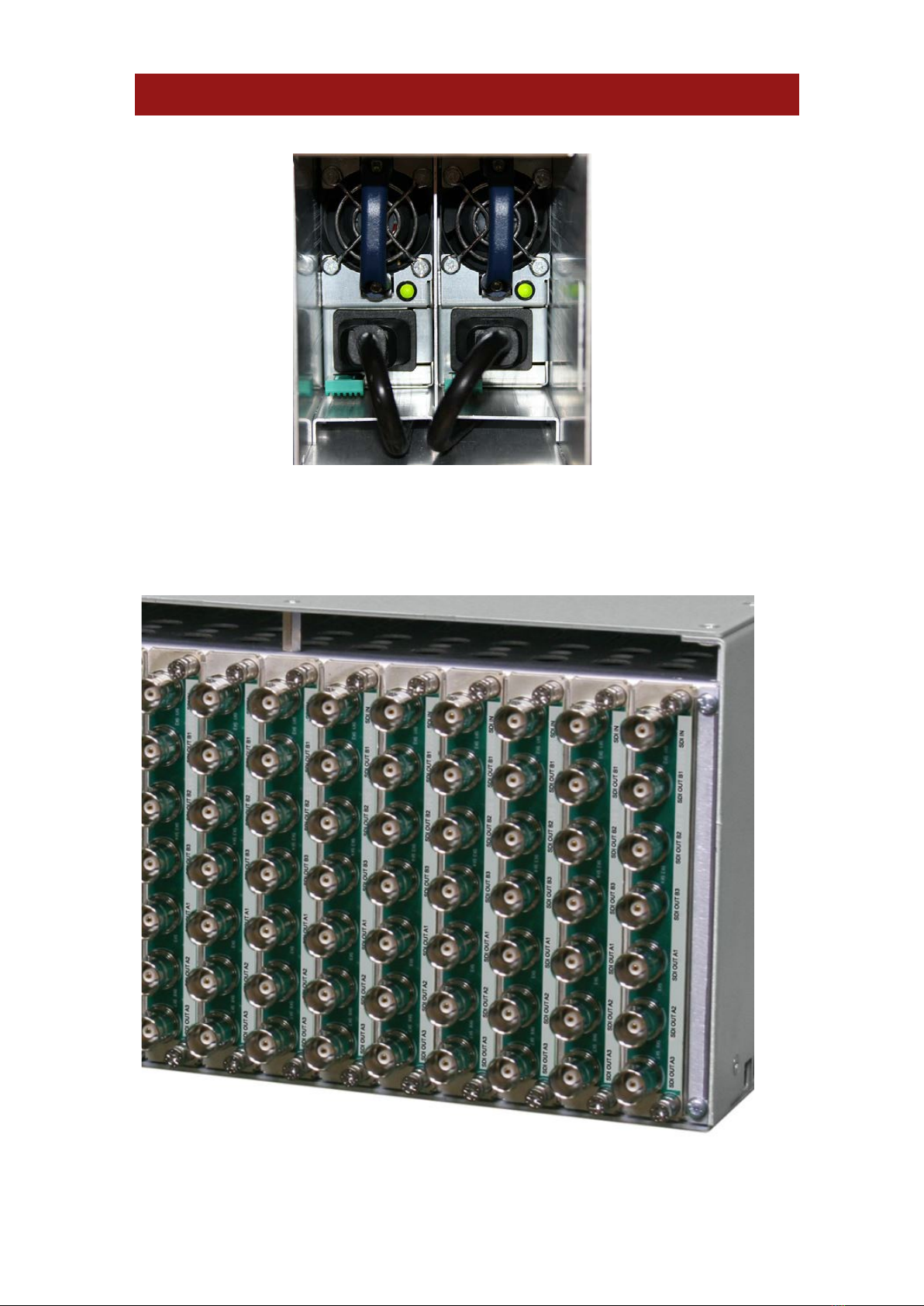

Close up of PSU3-VF power supplies
Each Vision card type can use a variety of rear module types and these are listed in the card’s
User Manual. A card can be plugged into any position in the frame but the appropriate rear
module must be fitted to the same slot position.
Rear of Vision 3 frame showing plug-in rear modules
Vision 3 User Manual R1.2 6 26 February 2020

Crystal Vision Introduction
A rear module can have up to seven BNC connectors which can be inputs or outputs depending
on the associated card. BNC connectors are normally used for video and unbalanced AES
audio. ‘D-Type’ connectors are used for balanced AES and analogue audio. Some rear modules
may have optical I/O connectors. The function of each connector of the rear module is explained
in the User Manual of every card.
The front panel is fitted as standard with an LCD display and several buttons that can be used
to step through several menus to display and control the configuration of each card and the
frame itself. The function of each button and the menu tree is explained later in this manual.
Vision 3 front panel close up showing LCD and buttons
Next to the left-hand row of front panel buttons is a USB connector which, although powered,
has no current function.
On the rear panel, can be found: mains inputs for both PSUs and fuses; two RJ45 Ethernet
ports which can be set to respond to different or the same IP address; two external analogue
reference inputs which are fed to all card positions and those cards that require a reference can
be programmed to use either one then automatically use the other in case of failure; two
identical relay alarm outputs that both change state after a power supply or fan failure.
Rear view showing mains supply, alarm, Ethernet and reference connectors
Vision 3 User Manual R1.2 7 26 February 2020

Crystal Vision Installation
2 Installation
2.1 General Safety Summary
The following warnings are intended for user guidance and safety.
Ground This product must be grounded through the grounding conductor of the power
cord.
Power
cable Use only power cords that meet the required specification for this product.
Fuses To avoid fire hazard, use only fuses of the type and rating specified.
Service These servicing instructions are for use by qualified personnel only. To reduce
the risk of electric shock, do not perform any servicing other than that
contained in this manual unless you are qualified to do so. Refer all servicing to
qualified service personnel.
Apart from procedures described in this manual there are no user serviceable
parts within the frame. If the frame requires any other servicing it should be
returned to the manufacturer or dealer.
On no account should the unit be powered whilst any covers are removed.
Ventilation The unit must have adequate ventilation. Installation should be in standard 19"
racks with cool air circulation available at the front. The lower side and upper
rear ventilation grilles must not be obstructed. The front panel should only be
open for short periods.
EMC To comply with EMC regulations, the following guidelines should be observed:
Do not operate this unit for extended periods with the front panel open.
Do not use the frame unless all the rear connector positions are filled, either
with Crystal Vision rear modules, or with Crystal Vision blanking plates.
Do not operate the equipment with covers or panels removed.
General To avoid electric shock do not operate this product in wet or damp conditions.
To avoid injury or fire hazard do not operate this product in an explosive
atmosphere.
Only use this rack in conjunction with Crystal Vision -VF modules designed for
that purpose.
Vision 3 User Manual R1.2 8 26 February 2020

Crystal Vision Installation
The Vision 3 frame can house the Crystal Vision range of optical
modules. Although these modules are not capable of causing
personal injury, care should be exercised when exposing unshielded
optical signals not to look directly into the light beam.
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at their own
expense.
2.2 Rack mounting and ventilation
The unit must have adequate ventilation. Install in standard 19" racks with cool air circulation at
the front and with both lower side and upper rear ventilation slots unobstructed.
Vision 3 airflow
Install the Vision 3 frame in a standard 19” rack as follows:
Mount the frame and secure via the rack ears.
Allow adequate space for the fan intakes at the front and exhaust through the left, right
and rear openings.
Vision 3 User Manual R1.2 9 26 February 2020

Crystal Vision Installation
2.3 Frame connectors
All frame connectors are grouped together behind the PSUs at the rear of the frame. The
connectors are in two groups labelled 1 and 2. Group 1 connectors are on the right hand side
when viewed from the rear.
Vision 3 rear connectors showing Ethernet interface connectors 1 & 2
The following connectors are available at the rear of the frame:
Connector Function Notes
IEC connector (2) Left hand (viewed from rear)
AC mains input. 90-264 Vac, 6.3A (T) fuse under flap.
IEC connector (1) Right hand (viewed from rear)
AC mains input. 90-264 Vac, 6.3A (T) fuse under flap.

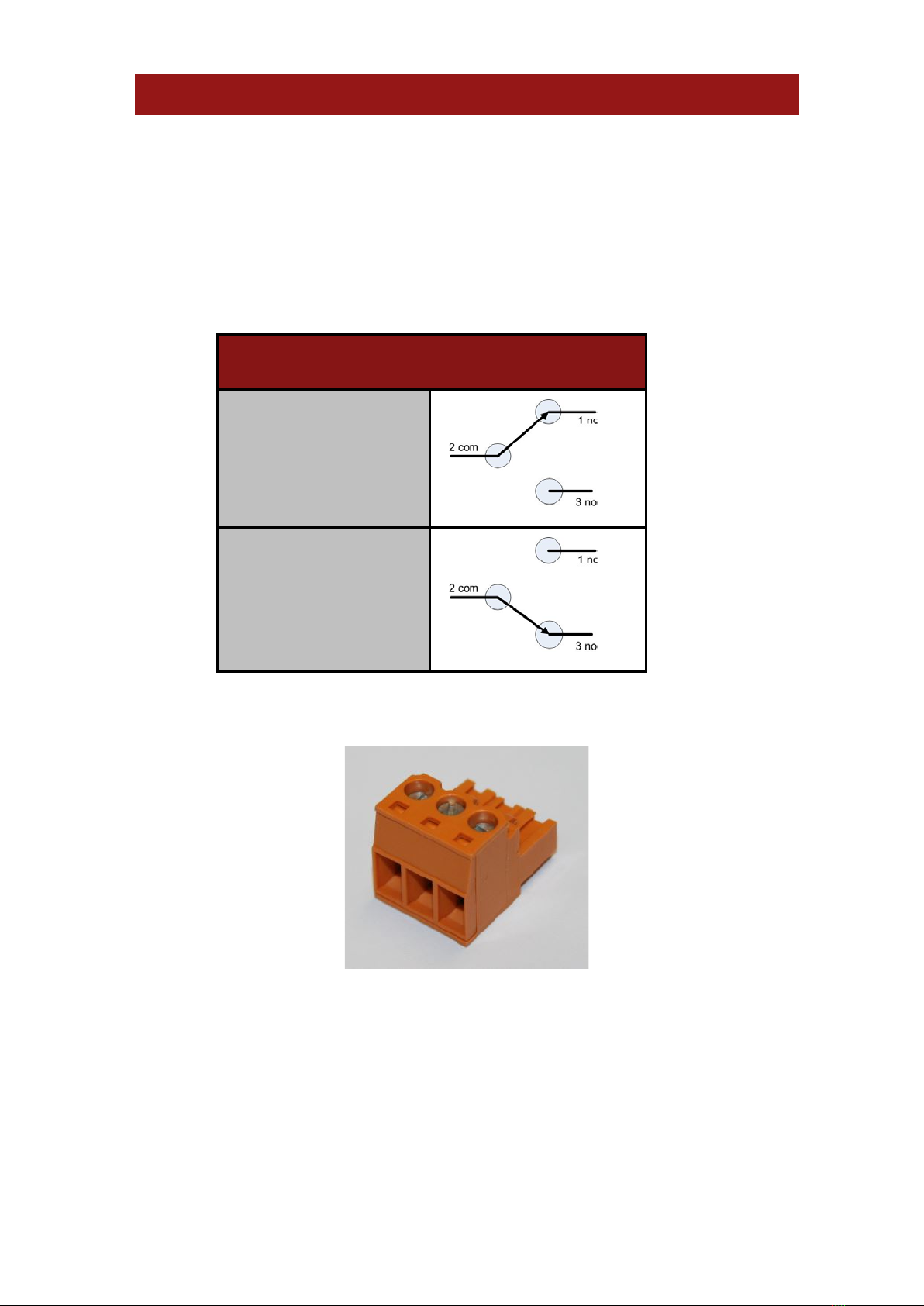

Alarm connector (2) Alarm relay output.
See pin-out tables. Relay
contacts 1->2 (nc->com) are
open during normal
operation and closed during
fault or power off condition.
Ethernet connector (2) Ethernet Interface 2 control
using CAT5 cabling. See pin-out tables.
Ext Ref connector (2) Analogue reference input 2. Black & Burst or tri-level
syncs.
Vision 3 User Manual R1.2 10 26 February 2020

Crystal Vision Installation
Alarm connector (1) Alarm relay output. Same
function as left connector. As Alarm connector (left).
Ethernet connector (1) Ethernet Interface 1 control
using CAT5 cabling. See pin-out tables.
Ext Ref connector (1) Analogue reference input 1. Black-burst or tri-level sync.
Connecting mains cables
To connect the Vision 3 frame to AC mains proceed as follows:
Power the unit by connecting IEC power cord(s) to the left and right IEC connectors.
Vision 3 PSUs are fused at 6.3A (T) so mains distribution must be able to safely
withstand the maximum fault current before the fuse blows.
Mains cables should be fitted with an IEC 320 female connector which includes a
protective ground connection and meets relevant local safety standards.
To reduce the risk of electric shock consider using mains distribution with separate
service grounds for either PSU.
Note: The fuse holder is part of the mains inlet. The mains cable must be
disconnected before the fuse can be accessed. Replace the fuse only with one
of the same type and rating. Refer to the Maintenance section of the
Troubleshooting guide for more information.
Vision 3 User Manual R1.2 11 26 February 2020

Crystal Vision Installation
2.4 Connector pin-outs
Alarm relay connections
Vision 3 has a changeover relay to indicate if the frame is in an alarm state caused by a power
supply problem or a fan stopping. Both alarm connectors operate together. Note that the alarm
relay will be in the fault condition when the frame is de-powered.
Description Relay condition
Fault or power off
No fault and power on
The screw terminal wired mating connector (below) for the alarm connectors are normally
supplied with the frame.
Vision 3 User Manual R1.2 12 26 February 2020

Crystal Vision Installation
RJ45 Ethernet connectors
Pin number
Function
1 TD+
2 TD-
3 RD+
4 and 5 Not used – 75 ohm resistor to GND in frame
6 RD-
7 and 8 Not used – 75 ohm resistor to GND in frame
2.5 Vision 3 PSUs
The Vision 3 frame is supplied with two 460W 12V PSU3-VF modular power supplies. In the
event of mains or PSU failure the frame will continue to run on a single PSU but the frame will
enter ‘fault’ mode, where the fans will increase to full speed, the front panel LED will turn red
and the alarm relays on the rear of the frame will be activated. The green LED on the power
supply module may also extinguish.
PSU3-VF
The power supply modules can be removed and re-plugged with mains power applied. To
remove a power supply firstly lower the front panel by pressing on the buttons on each edge.
Vision 3 User Manual R1.2 13 26 February 2020

Crystal Vision Installation
Remove the mains IEC cable from the front of the PSU and then lift the green locking tab on the
power supply module to release it – this may require a flat bladed object. Remove the module
by pulling on the handle fixed above the fan. Close the front panel as soon as possible to
prevent overheating.
The power supply modules are fitted with an internal fan.
The green LED should normally be on when mains voltage is applied; if off, then the AC mains
voltage may be below the minimum turn-on voltage or the main output is disabled and not
delivering power.
2.6 Installing Crystal Vision cards
Crystal Vision cards can be inserted and removed with power still applied to the frame. To
access the cards firstly unhinge the front panel by pressing on each of the right-hand side
buttons and carefully lower the panel. Cards can then be removed by pulling on the ring at the
bottom of each card. The white label carrier at the top of each card is not a handle and should
not be pulled. When inserting a card excessive force should not be required. The front panel
must be shut as soon as possible to prevent overheating and should not be left open for long
periods.
When replacing a card ensure that the card is within the guides before pushing home.
There are 20 slot positions for cards that are numbered 1-20 from left to right looking at the
front of the frame.
Vision 3 User Manual R1.2 14 26 February 2020

Crystal Vision Installation
2.7 Fitting rear modules
Vision rear modules are fitted into the back of the frame and Vision
cards plug directly into them from the front. Each rear module has
two frame connectors – one that plugs into the Vision card directly
and another into the frame back plane PCB for mechanical location.
The frame need not be de-powered before removing or inserting rear
modules. Ensure alignment is correct before inserting.
Rear modules are removed by firstly removing the associated card
then unscrewing the screws at the top and bottom of the module
before carefully pulling out.
2.8 Video References
Vision 3 frames have two analogue video reference inputs on BNC connectors labelled ‘Ext
Ref’. The reference signal can be either Black & Burst or tri-level syncs. Looking at the rear of
the frame, the left-hand reference connector is Reference 2 and the right hand is Reference 1.
Vision 3 User Manual R1.2 15 26 February 2020

Crystal Vision Installation
Vision cards can use either reference input and offer options to use the other reference input in
case one fails. The following is a grab from a SYNNER-VF VisionWeb GUI showing the
reference status:
SYNNER-VF VisionWeb GUI showing the ‘Reference’ status page
This typical card offers the option of switching to the backup reference if the reference is lost,
and when the original reference is restored the card can automatically switch back.
Vision 3 User Manual R1.2 16 26 February 2020

Crystal Vision Control
3 Control
The Vision 3 frame supports ping, FTP, SSH, HTTP, SNMP and ASCII control protocols.
From frame software version V1.5 build 16216, it is possible for a user to disable all services
except ping in order to prevent unwanted access. It is also possible to remove the Network
Configuration, SNMP Configuration and Software Upgrade menus should restricted access
be required to these settings. Please contact [e-mail] for further information
including the necessary frame login credentials.
Ethernet control is provided by the Vision 3 frame. This allows PC control of many Vision
series frames over a local area network by VisionWeb, VisionPanel or by SNMP.
Control of Vision 3 frames over Ethernet
Vision 3 User Manual R1.2 17 26 February 2020

Crystal Vision Control
3.1 Ethernet connections
Vision 3 has two Ethernet connectors – labelled Ethernet 1 and Ethernet 2, which can be set to
different IP addresses or ‘bonded’ to use the same. When ‘bonded’, Ethernet 1 is the primary
network connector and Vision 3 will automatically switch to Ethernet 2 should Ethernet 1’s
connection be lost. When not ‘bonded’, Vision 3 will respond to network traffic on both
connectors such that if one fails the other will continue to control the frame. Although both
network connections can use addresses in the same sub-net, it is recommended for network
redundancy that the two connections are on separate networks i.e. the combination of IP and
netmask address of one would not be accessible by the other.
3.2 Setting up and connecting
The frame can be connected to a network port or directly to a PC from either rear panel RJ45
port labelled ‘Ethernet’. Usually, if connecting directly to a modern computer, a straight CAT5
cable only is needed. A crossover cable might be necessary with older equipment.
Frames are shipped with a default Ethernet 1 address 10.0.0.201 and Ethernet 2 IP address
10.0.1.201 which will need changing if another network device has the same address. The
frame’s IP addresses can be changed at any time by:
Selecting the ‘Configuration/Network’ menu from the front panel. (See Front Panel
operation for more information.)
Accessing the frame’s internal VisionWeb’ pages with an Internet browser using the
frame’s current IP address which is visible on the front panel LCD display. (See
VisionWeb for more information.)
Set up the PC’s Local Area Connection
Set the PC’s LAN controller’s sub-mask (usually 255.255.255.0) and its IP address to within
the frame’s address range (e.g. 10.0.0.250 if the frame’s IP address was 10.0.0.201). For
Windows users, this is most easily achieved from the Network and Sharing Centre:
Vision 3 User Manual R1.2 18 26 February 2020

Crystal Vision Control
Setting up the PC’s LAN controller with Windows 7
It is worth noting here that Windows does allow LAN controllers to operate with several IP
addresses and sub-masks simultaneously, which can be useful if several frames need to be set
up. Once a frame is programmed with its final IP address it may be that the PC will no longer be
able to control the frame without changing its LAN controller’s IP address. In this case setting an
additional IP address could save time if many frames are to be configured. Additional IP
addresses can be added via the ‘Advanced’ tab in Windows 7, or the ‘Alternate’ tab in Windows
10:
Windows 7 Advanced TCP/IP settings Windows 10 Alternate Configuration
Vision 3 User Manual R1.2 19 26 February 2020
