Cuckoo CAC-F3010FW User manual

안전상의 경고안전상의 경고
CAC-F3010FW
USER MANUAL
AIR PURIFIER

2
To our customers!
Thank you for choosing Cuckoo Air Purier.
Please keep this User Manual for your reference.
This manual will guide you when you have any questions or when the product
does not work properly.
Merits of Cuckoo Air Purier
Air Purication
This product lters out ne dust that is airborne using an Ultra PM 2.5 lter mounted at the inlet of the product.
Fan Speed Control
Set your preferred fan speed.
Set Timer
Set a custom timer for your air purier. Perfect for automatic On/Off function.
Toxic Gas purication
Removes harmful gas and odors that are airborne to make sure your home is safe.
Smart operation feature using ne dust sensor and TVOC sensor
This product uses the fine dust sensor and TVOC sensor to comprehensively judge the indoor air quality and
automatically controls the air volume depending on the environment to set up a pleasant indoor environment.
Mood lamp feature indicating the indoor air quality
This function indicates the indoor air quality, which has been comprehensively judged by the ne dust sensor and
TVOC sensor, through a mood lamp, and raises the level of interior senses.The lamp may be turned ON and OFF by
pressing the Air Quality button.

●
Merits of Cuckoo Air Purier
Warnings for Safe Use

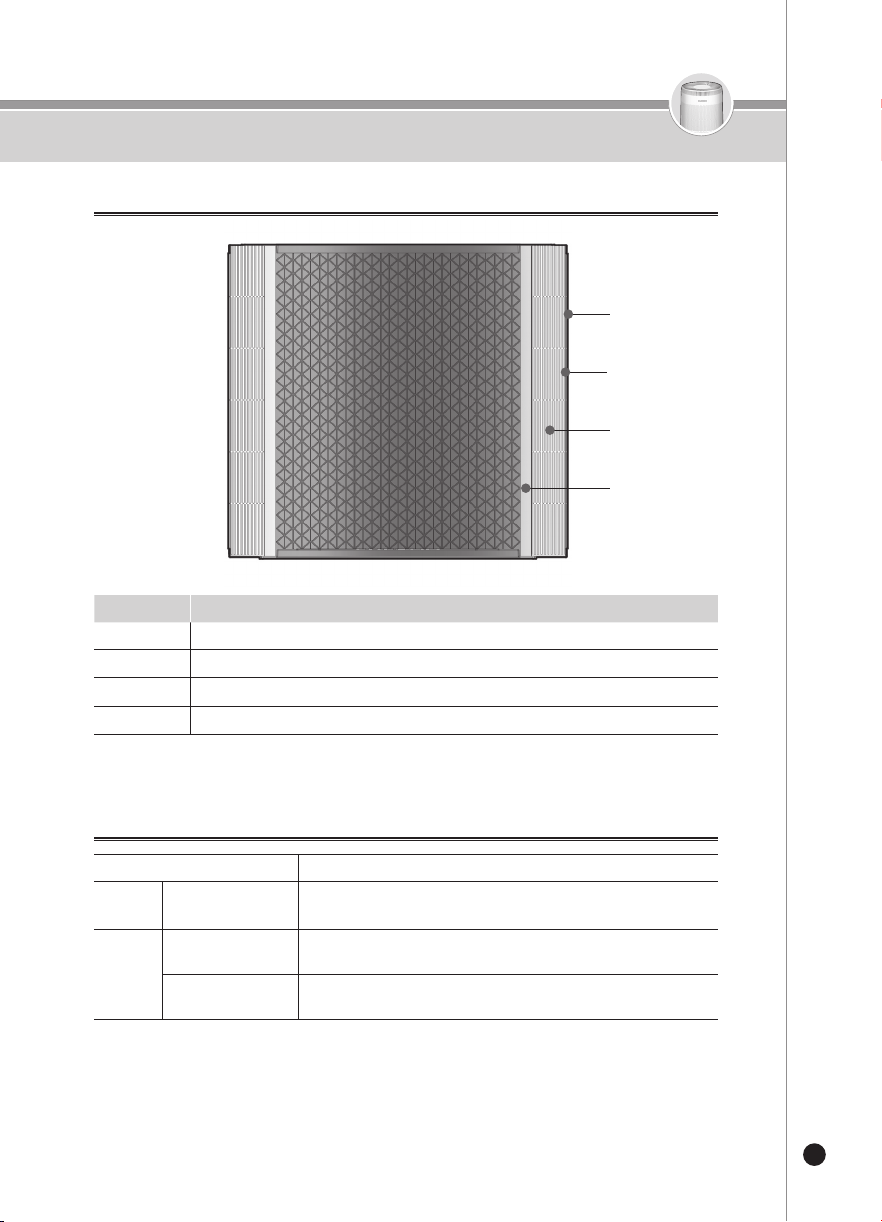

Name of Parts / Accessories
●
Details to read Before Use
Names and Functions of Control & Display Panel

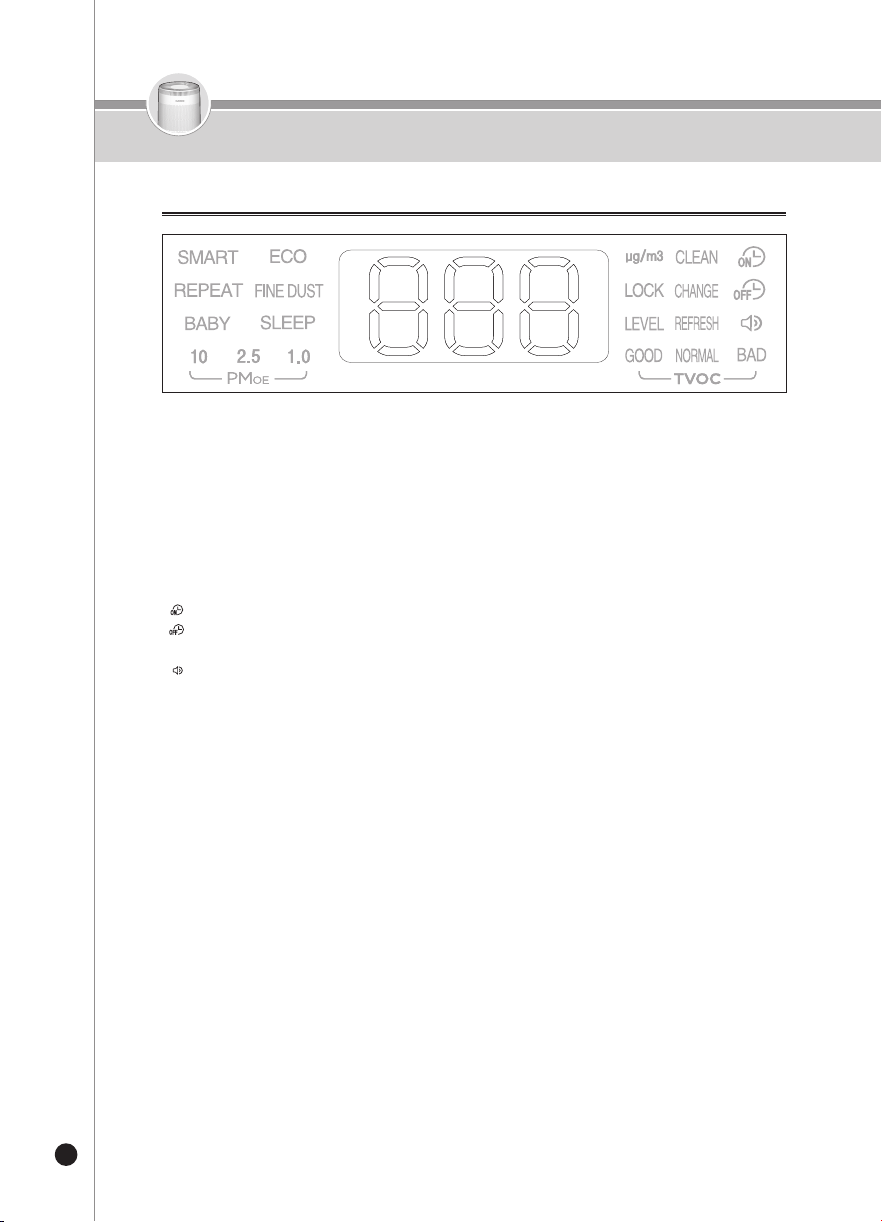

Names and Functions of Display Panel & Cleanliness Indicator

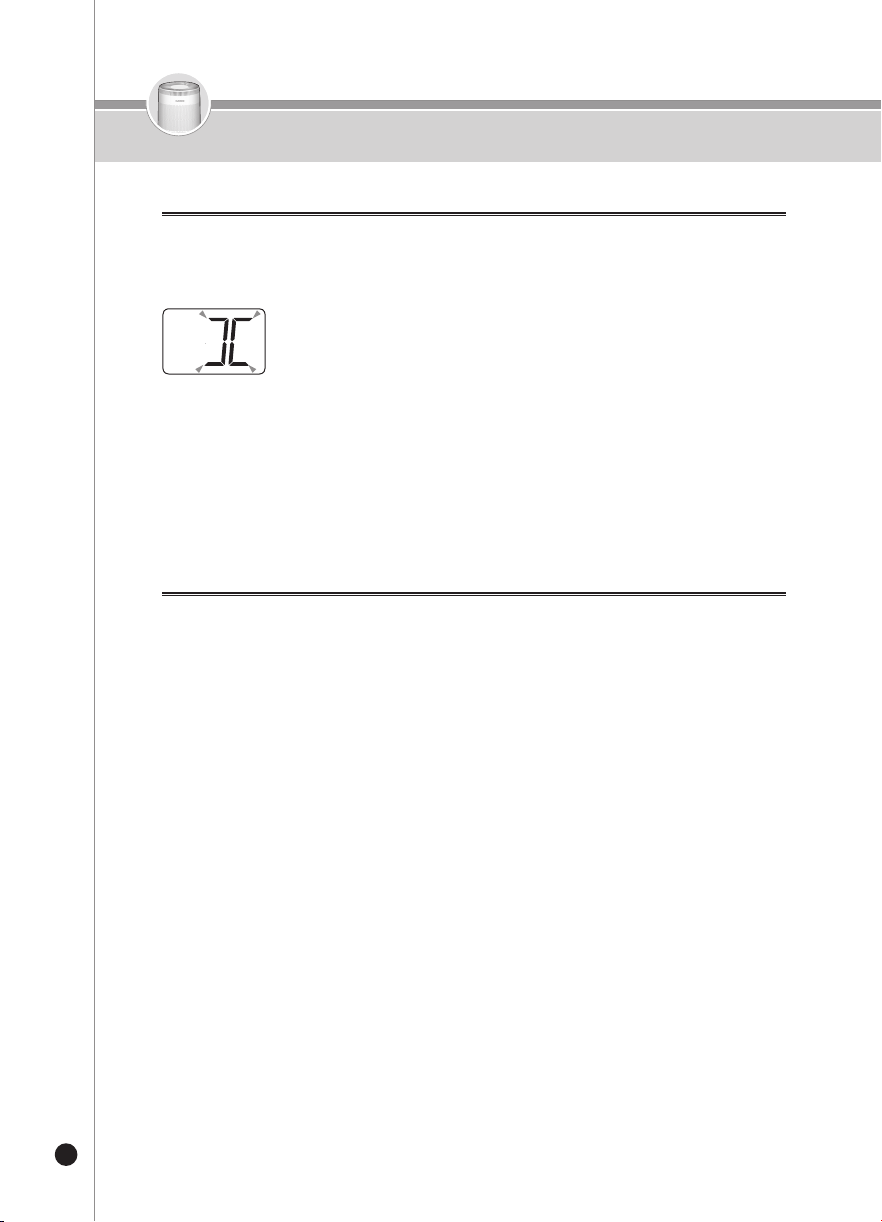

Self Diagnostic Mode / Basic Operations
Basic Operations

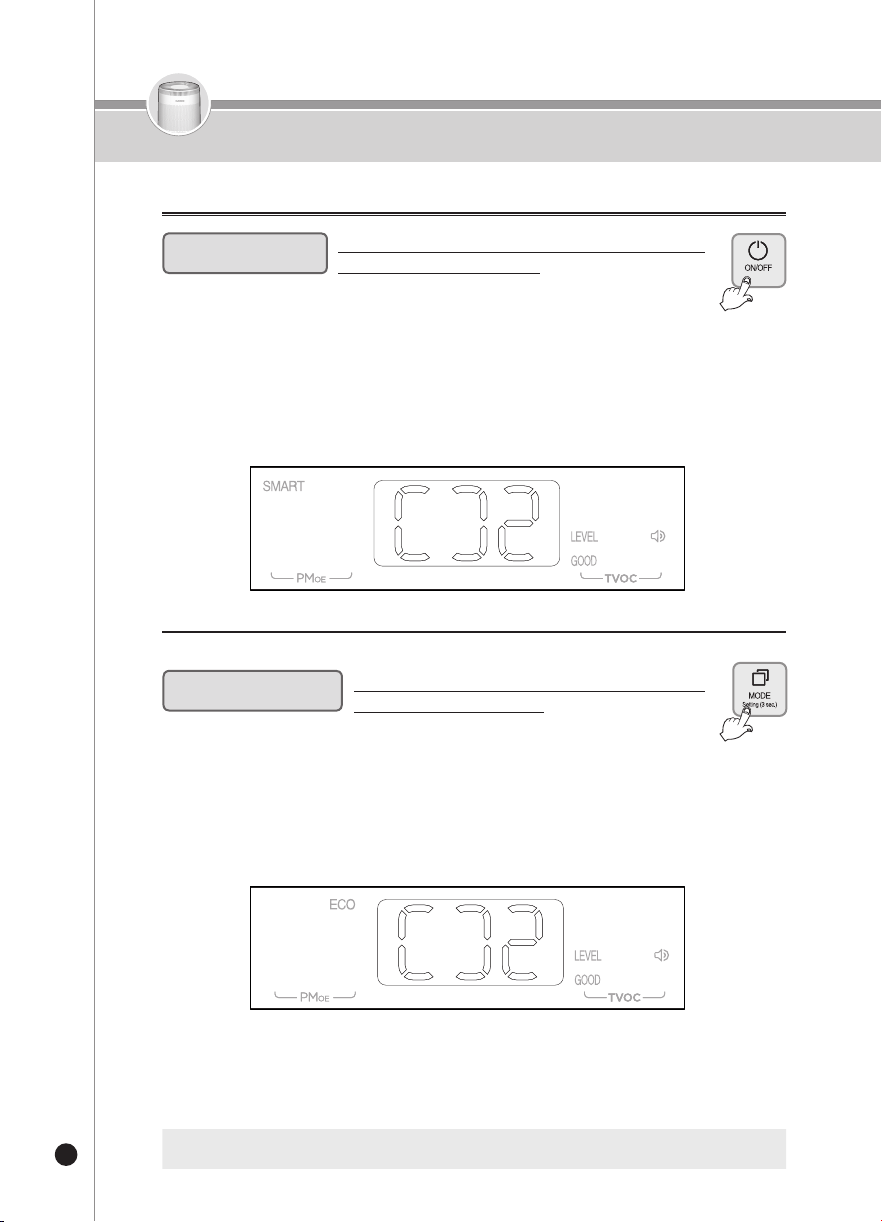

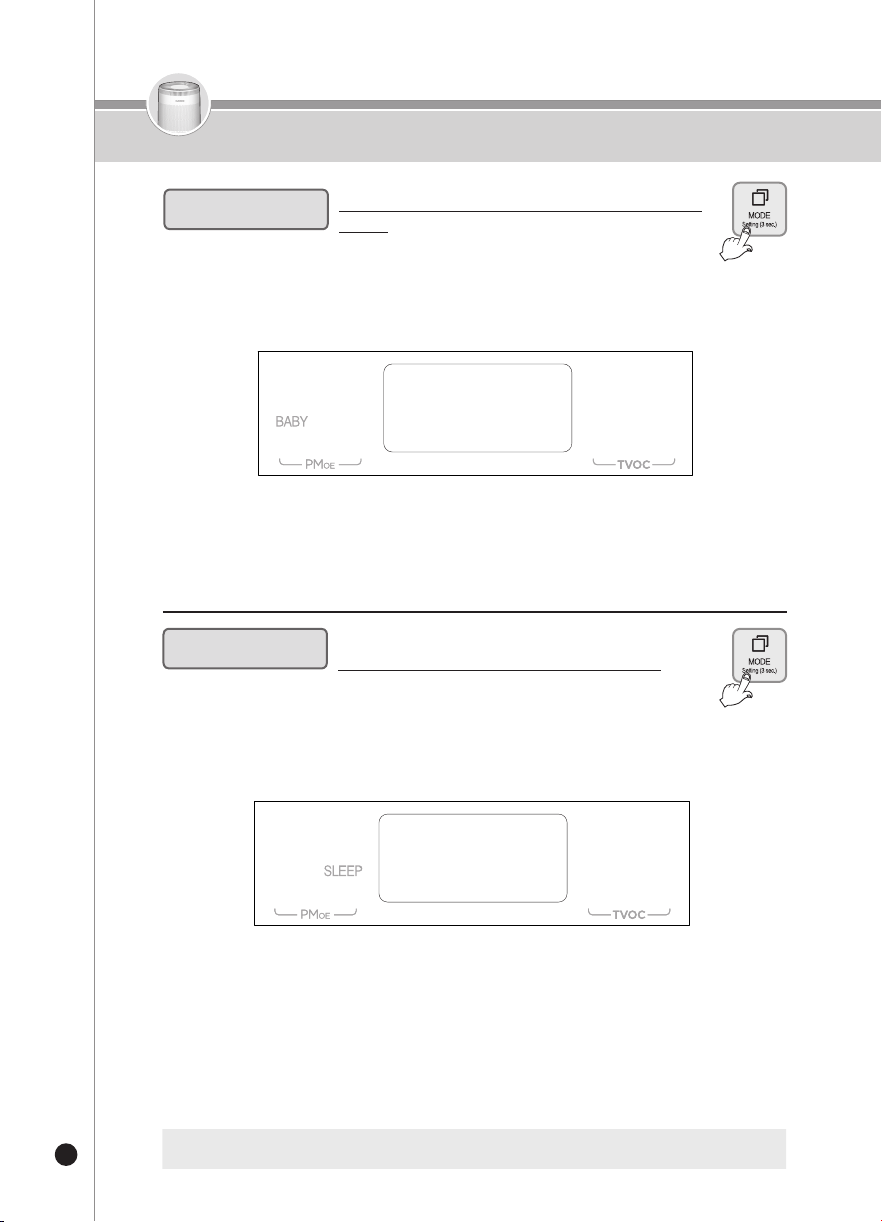

Operating Modes
Operation Status by Modes
Other Settings
Cleaning and Maintenance Guide
How To Replace Filters
●
Please check before asking for Support
● Product Specications and Inquiry about Malfunction
Before Use
How to Use
Before Asking for
Support
Service Guide
2
4 ~ 7
8 ~ 9
10
11 ~ 12
13
14
15
16 ~ 19
20 ~ 22
23 ~ 26
27 ~ 29
30
31
32
CONTENTS
Air Purication
This product lters out ne dust that is airborne using an Ultra PM 2.5 lter mounted at the inlet of the product.
Fan Speed Control
Set your preferred fan speed.
Set Timer
Set a custom timer for your air purier. Perfect for automatic On/Off function.
Toxic Gas purication
Removes harmful gas and odors that are airborne to make sure your home is safe.
Mood lamp feature indicating the indoor air quality
This function indicates the indoor air quality, which has been comprehensively judged by the ne dust sensor and
TVOC sensor, through a mood lamp, and raises the level of interior senses.The lamp may be turned ON and OFF by
pressing the Air Quality button.

Warnings for Safe Use
4
About Power Supply
● Please comply with the ‘Warnings for Safe Use’ as they are provided to ensure safe and proper use of
the device and prevent accidents and dangerous situations.
● The 'Warnings for Safe Use' section is divided into 'Warning' and 'Caution' which are defined as follows.
Do not bend, tie or pull the power
cord by force.
●
This may cause electric shock or
fire due to a short circuit.
Please check the state of the
Power Cord frequently.
Stop the use and contact
Customer Service when the
power cord or plug is damaged or
the power outlet is loose.
When putting in or pulling out the
Power Plug, first remove
moisture from your hands and then
put in or pull out the Power Plug by
holding the Power Plug.
Please unplug the device before
cleaning the machine.
● If the sheath of the Power Cord is peeled off or
chopped during use due to negligence, it may cause fire or electric shock.
Thus, please check the state of the Power Cord, Power Plug and
Power Outlet frequently.
●To replace the damaged power cord or plug, please visit CUCKOO
website and contact Customer Service to prevent dangerous situations.
●We strongly recommend that the damaged parts be repaired
or replaced.
●Otherwise, this may cause electric shock or fire due to a short circuit.
●
Pulling out the Power Plug with wet hands can cause electric shock.
●Pulling the power cord by force can damage the cord and may cause a
short circuit or electric shock. Please check the state of the power cord
and plug frequently.
●
Otherwise it may cause electric shock or
malfunction. Please check the state of the
Power Plug and the Power Cord frequently.
Plug the power plug into a
120V outlet with at least a
rating of 10A and power surge
protection. Do not plug in
multiple devices into the same
power outlet or extension cord
simultaneously.
●
When multiple devices are plugged into the same power outlet or if
the device is plugged into an inappropriate power input, it may cause
heating, fire and electric shock.
●
If there is a foreign substance or water on the power plug, please wipe
it clean before plugging it into the socket.
●
Use an extension cord of 10A or higher.
Use 120V power input only.
●
This may cause electric shock or fire.
●
The device will not operate properly.
●
Please check the state of the power cord
and plug frequently.
Wipe off any foreign substance from
the Power Plug with a dry cloth.
●
This may cause electric shock or fire.
Please check the state of the power plug frequently.
Potentially dangerous situation that can cause
serious injuries or death if not avoided.
Potentially dangerous situation that can cause
minor injuries if not avoided.
Warning
Caution
● This symbol is to remind you to be cautious about a
potentially dangerous situation under special
circumstances.
● Please read the details carefully and follow the
instructions to avoid dangerous situations.
● This symbol is used to indicate actions that are prohibited.
● This symbol is used to indicate ‘instruction’ actions.
Warning Do not
Do not pull the Power Cord when
unplugging the product.
●
Force applied to the power cord may
cause electric shock or fire. Please check
the state of the power cord and plug frequently.

Warnings for Safe Use
5
●
If the power cord is damaged, it may cause
electric shock or fire. Please check the state
of the power cord frequently.
Make sure the power cord is not
under a heavy object or near
sharp objects. Please ensure
that it is not damaged by your pet.
Do not keep or use insecticides,
combustible gas, inflammables,
or toxic substances near the product.
●This may cause fire or a deformation or
malfunction of the product.

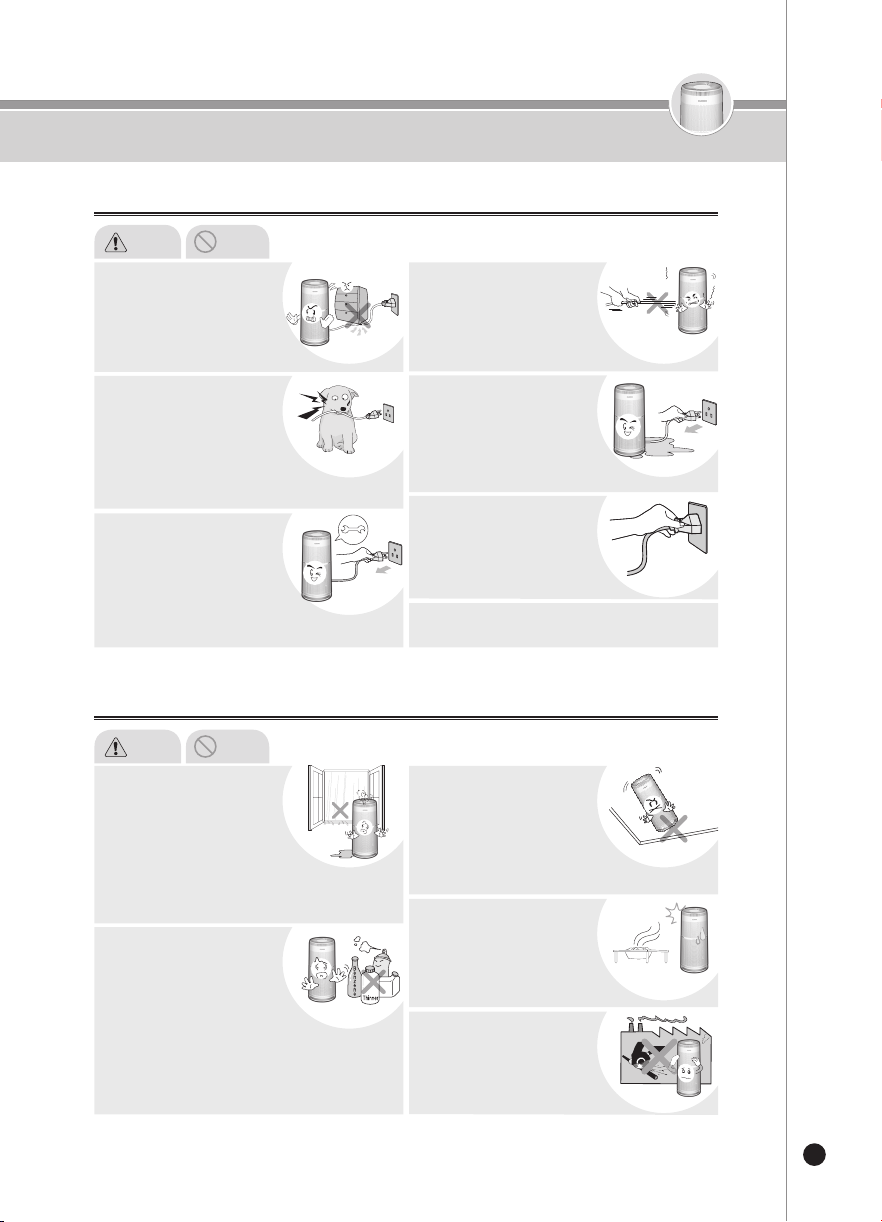

About Power Supply
Installation Guide
●This may cause damage to the Power
Cord that could lead to fire, electric
shock, or fall of the product.
●
This may cause electric shock or breakdown.
Please check the state of the power cord
frequently.
Do not put the product or anything
heavy on the Power Cord.
Do not use the product outdoors
where the product may get in
contact with direct sunlight, rain
or snow or places with moisture such
as a laundry room or a bathroom.
● This may cause fire or electric shock due to heating and short circuit.
Please turn off the product by pressing
the power button. Also, unplug the
product before inspection, repair or
replacement of its components.
Warning Do not
Warning Do not
When moving the product,
do not pull the Power Cord.
● It may cause a damage to the product,
electric shock, or fire.
Please check the state of the
Power Cord frequently.
Do not place it in a bumpy or
slanted area. Do not place it on
a rug, cushion or vinyl flooring.
●This may cause malfunction, unwanted noise or
injury. Please check the state of the product frequently.
If the power supply area is wet,
unplug the product and let it dry
completely before use.
● This may cause electric shock or fire.
Please check the state of the Power Plug
and the Power Cord frequently.
Do not use the product where
smell, smoke, or oil is generated
such as a restaurant or a barbecue
restaurant.
● This may cause a decrease in the performance.
Do not put in and pull out the
Power Plug continuously.
● This may cause electric shock or fire.
Do not install the product in a place
with excessive oil or smoke for
industrial purposes or metallic dust.
●
This may cause fire or a malfunction of the product.
Do not modify the original power cord.
● This may cause electric shock or fire.

● This may cause poor performance, abnormal
noise, or malfunction of the product.
Do not put any obstruction around
the Air Inlet or the Air Outlet of the
product.
Do not put heat of fire near the product.
●This may cause a malfunction or deformation of the product or fire.
●
This may cause fire, burns, or injury.
If there is abnormal noise, smoke,
or smell is emitted from the product,
first pull out the Power Plug, and
then contact our Customer Service
Center.
Do not put your finger or any
other foreign substances such as
a stick into the Air Inlet or the
Air Outlet.
●
You may get injured by the fan rotating at
a high speed.
●
This may cause a malfunction of the product.
Do not clean the interior of the
purifier yourself please contact
Customer Service for technical
support.
●
Otherwise it may cause malfunction of the
product or an electric shock.
Please check if there is any obstacle
around the product to ensure good
air circulation.
Warnings for Safe Use
6
Installation Guide
During Use
Do not use the product for anything other than its intended
purpose, e.g. preserving artworks, maintaining precision
instruments and animal breeding.
●
If you do not do so, it may cause electric shock or fire.
Do not use the product as a ventilating fan or hoods for
gas stove or electric ranges in the kitchen.
●
This may cause poor performance of the product and filters.
20inch 20inch
80inch
www.cuckoorental.com
Warning Caution
Warning Do not
● This may cause a radio interference.
Place it at least 80inch away from
electronic products such as a TV.
●
The Pollution Sensor may not work properly.
Do not install or use the product
near a curtain.
Do not use the product to remove toxic gases such
as carbon monoxide.
●This may cause a malfunction of the product.
● Keep these distances for optimal performance.
Place the product at least 20inch
away from the wall.
Open the windows for ventilation
before using gas appliances,
combustibles and other
inflammables.
● There is a risk of explosion or fire.
Do not inject a toxic substance such as smoke of a cigarette
into the porous part on the side of the product, or poke with
a sharp object.
● This may cause a malfunction of the product, fire or electric shock.
Service
Center
Service
Center
Air
Circulation

When turning off the product, be sure to press the power
button to turn product off.
●
This may cause product malfunction.
After cooking, ventilate sufficiently before operating the
product to purify air in the room.
Warnings for Safe Use
7

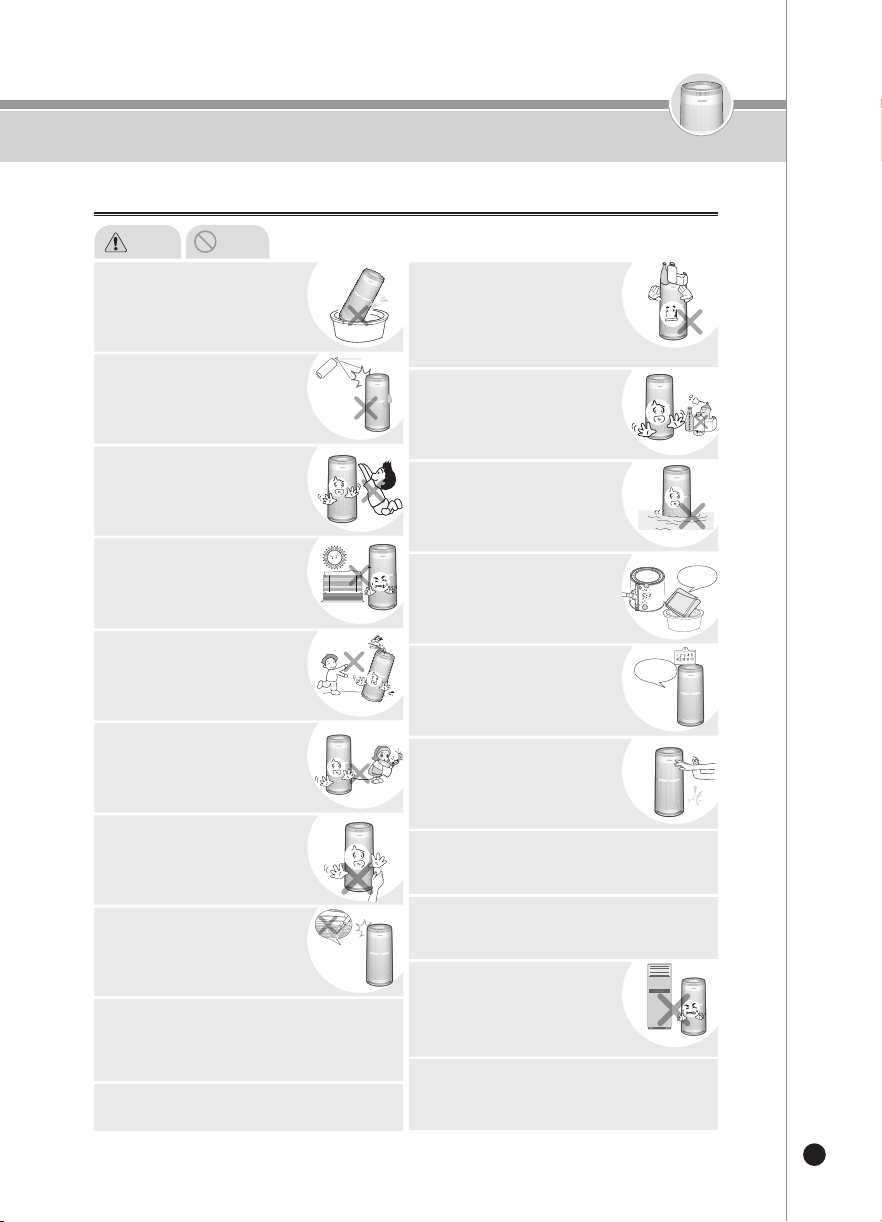

During Use
Warning Do not
●
There is a risk of electric shock.
Never soak the product in water.
●This may cause fire or poor performance of the
product.
Do not sprinkle inflammables such as
an insecticide or an air freshener to
the Air Inlet.
●This may cause a malfunction of the product or
injury due to fall or damages.
Do not stand on top of the product
or put anything heavy.
●This may cause fire or electric shock.
Please avoid using it near a heating
device.
●
Otherwise it may cause electric shock or injury.
Keep out of the reach of children.
●
This may cause an electric shock or malfunction
of the product.
Do not turn OFF by pulling the plug.
●This may cause fire or electric shock or partial
damage to the product.
Do not move the product while it is
working.
●
This may cause an injury or malfunction of the product.
When opening the Filter Cover, please be
careful not to let your body or any other
foreign material get stuck in the product.
Be careful of any raised spot or obstruction on the floor when
moving the product that may cause a scratch or damage to it.
●
Although wheels are mounted on the bottom of the product for its
mobility, the product has fairly low floor for its design.
● There is a risk of malfunction or electric shock.
If it’s wet, contact our Customer Service
Center.
●
This may cause poor performance of the product.
Please replace the filters in a timely
manner.
●
If spilled, the products may cause electric shock,
fire, or damage.
Do not place a bowl with water, drugs,
foods, small metallic materials,
inflammables, etc. on top of the product.
●
Otherwise it may cause malfunction of the product.
After cleaning, please make sure to put the parts in their
original position.
● This may cause malfunction of the product.
Do not lay the product for use.
Do not clean the product by spraying
water or wiping out with benzene, thinner,
etc.
● Otherwise it may cause a reduced performance
of the product.
● Dry it in the shade.
Wash the Pre-Filter with water on a
regular basis and dry it well before use.
● This may cause an injury or malfunction of the
product.
Do not push nor lean on the product.
It may fall to the ground.
● This may cause malfunction of the sensors.
Do not put the product near a window
or places where the wind of an air
conditioner or a heater can reach.
Dry after
cleaning!!
Replace with
genuine filter

8
Name of Parts / Accessories
Name of Parts
Accessories
User Manual
Allergen Filter
※ The picture may differ from the actual product.
Fine Dust Sensor
Air Purifying Filter
Filter Case
Back
Cleanliness
Indicator
Handle
Control & Display Panel
Filter Cover
Air Outlet
Front

9
Name of Parts
Air Filters
Filter Functions
Pre-Filter Filters large dust, hair, pet fur, etc.
Functional
Filter Allergen Filter Filters allergic substances from the air.
Ultra-Deo
PM 2.5
Filter
True HEPA H13
Filter Filters mites, pollens, fine dust, and smoke.
Active Carbon
Deodorization Filter Filter removes odors, harmful gas, cigarettes, animal fur, NO2.
※ The picture may differ from the actual product.
True HEPA H13 Filter
Pre-Filter
Allergen Filter
Active Carbon
Deodorization Filter
Section Air Filter
Level 1 Pre-Filter
Level 2 Allergen Filter
Level 3 True HEPA H13 Filter
Level 4 Active Carbon Deodorization Filter

10
Details to read Before Use
Installation
Open the Filter Cover.
▶
Open the Filter Cover from the upper left and upper right
side of the unit.
※
Do not forcefully remove from the bottom of the unit.
Caution
Caution: When the product is not in use, please unplug the unit. This product is exclusively for 120V 60Hz.
Apply appropriately.
Take out the filter and remove the
vinyl wrapping.
▶
After removing the packaging vinyl,
please insert in product.
▶
Insert the filter with the filter handle facing
the opposite direction of the filter insertion.
Reassemble the Filter Cover onto the product.
▶
Be careful not to get any of your body or foreign material stuck in the product
when reassembling the cover.
Otherwise, It may cause injury or malfunction of the unit.
Connecting the power
▶
This product is exclusively for 120V. Please connect the product to
the appropriate Power Outlet.
Press the "On/Off" button to operate the unit. Also, Press the
"Mode" button to set the desired option.
※ Make sure the filter is assembled correctly before operating the product.
Press the "On/Off" button to shut off the unit.
▶
Once the unit is shut off, allow 10 seconds for the fan to completely shut off.
▶
All the indicators on the Display Panel will be turned OFF.
AC120V
❷
❶
❸
❹
❺
❻

11
Names/Functions of the Control/Display Panel
Control Panel
• ON/OFF : To turn the unit on and off.
• Fan Speed : Adjust the fan speed in manual mode.
※ Each time the button is pressed, the speed setting changes in the order of Level 1,Level 2,Level 3,
Level4, Level 5,Level 6,Level 7 and Level 8.
※To activate the "Button Lock" function hold down the button for 3 seconds or more.
• TURBO PLUS : Select the TURBO PLUS mode.
※ Press this button to turn on Turbo plus mode. To return to the previous mode,
press the "TURBO PLUS" button again.
• MODE : Select the desired mode.
※ Each time the button is pressed, the mode changes in the order of SMART, ECO,REPEAT, FINE DUST,
BABY, and SLEEP.
• Air Cleanliness Display : Displays current air quality
※ Each time the button is pressed during operation, the corresponding fine dust concentration is
displayed. (PM10
→
PM2.5
→
PM1.0
→
PM10 ...)
※ PM10: Fine dust (particle size less than 10
㎛
)
PM2.5: Ultra fine dust (particle size less than 2.5
㎛
)
PM1.0: Super fine dust (particle size is less than 1
㎛
)
※ This indicator goes on when the button is pressed for three seconds or longer while the unit is in operation
and goes off when the button is pressed for another three seconds.
TIME
Lock
POWER SAVING
TIME
Lock
POWER SAVING
TIME
Lock
POWER SAVING
TIME
Lock
POWER SAVING
TIME
Lock
POWER SAVING

12
Names/Functions of the Control/Display Panel
Names/Functions of Display Panel &
Cleanliness Indicator
Display Panel
• SMART - This indicates the product is in SMART air purification mode.
• FINE DUST - This indicates the product is in fine dust air purification mode.

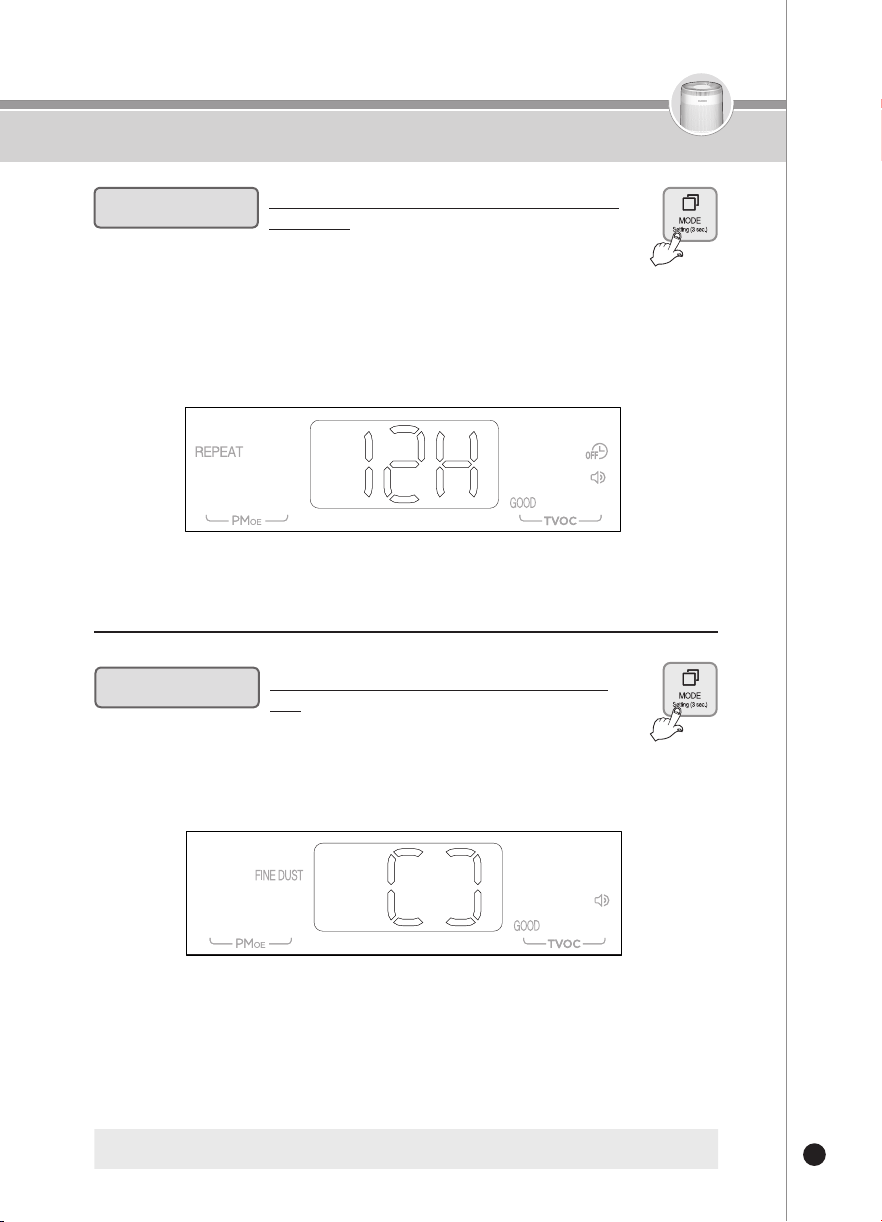

• REPEAT - This indicates the product is in repeated air purification mode.
• ECO - This indicates the product is in ECO air purification mode.
• BABY - This indicates the product is in air purification for baby mode.
• SLEEP - This indicates the product is in air purification during sleep mode.
• PM 1.0 / 2.5 / 10 - This indicates the corresponding fine dust concentration level.
• ug/m3 - This indicates the fine dust concentration.
• CHANGE - This indicates when filter needs to be replaced.
• LOCK - This indicates when the Button Lock function is set.
• - This indicates when the AUTO ON function is set.
• - This indicates when the AUTO OFF function is set.
• LEVEL - This indicates operation status, time and step according to mode.
• - This indicates the Voice function is on. (voice setting function)
• REFRESH - It comprehensively detects the levels of embodied carbon dioxide (eCO2) and volatile
organic compounds (VOCs) indoors and provides an alert for the need of refresh.
• GOOD / NORMAL / BAD - It is lighted to display Good, Normal or Bad depending on the TVOC
environment.
- TVOC environment display requires time to stabilize after supplying power or
opening and closing the filter door.
- During the stabilization time, it does not display the TVOC environment (Good/
Normal/Bad).

13
Names/Functions of the Control/Display Panel
Names/Functions of Display Panel &
Cleanliness Indicator
Display Panel
※ If you do not operate the product in any way after connecting the Power Plug, no display will show.
Press the ON/OFF button to start operating the product.
※ Make sure you hear a beeping noise when pressing the button. The Control & Display Panel may look
different from the actual appearance on the product.
※ Different fan speeds may affect the product performance for air purification.
※ When selecting Sleep Mode, the purification display lamp is automatically turned off.
※ When selecting Baby Mode, the purification display lamp is lighted as the baby mood lamp feature.
※ To display air cleanliness, press the AIR CLEANLINESS button for three seconds. The settings are
applied until the operation is shut.
※ If multiple air cleaning products are being used in the same room, the ultrafine dust indicator readings
may not be accurate.
※ The cleanliness color and the fine dust concentration value may be different to detected air pollution.
※ The color of the purification display lamp is affected by not only fine dust but also volatile gases.
Cleanliness Indicator
• Cleanliness Indicator: This displays the cleanliness of the surrounding area with colors.
※ Level of purification is displayed in different colors in each of the 8 stages.
(Polluted) Red
→
Purple
→
Orange
→
Yellow
→
Light Green
→
Green
→
Blue-green
→
Blue (Clean)
• ON/OFF : This indicates operation of the product. It goes off when the product stops operating.
• MODE : Each time this button is pressed, the mode changes in the order of SMART, ECO, REPEAT,
FINE DUST, BABY, and SLEEP.
• FAN SPEED : This indicates the manual operation function is on.
• TURBO PLUS : This indicates the product is in TURBO PLUS mode.
• AIR CLEANLINESS : This indicates for five seconds when AIR CLEANLINESS is selected.

14
Self Diagnostic Mode / Basic Operation
When the unit is not working properly, the display panel will show an alert.
If there is an alert that will not disappear, please contact our customer service center.
Insert the plug into a wall outlet.
▶ The product will enter standby mode with a beeping sound.
❶
Press the ON/OFF button.
▶ ON/OFF and SMART icons are lit up on the Display Panel, and the fan starts operating.
The 3-digit display shows the current fan speed.
※ It runs in the previous operating mode. (Except TURBO PLUS)
※ If the Filter Cover is not mounted, an error code will show on the 3-digit display.
❷
Press MODE to select the desired operating mode.
▶
Each time the button is pressed, the mode changes in the order of SMART, ECO, REPEAT,
FINE DUST, BABY and SLEEP.
❸
Press FAN SPEED to select the desired fan speed.
▶
Pressing FAN SPEED changes the operating mode to MANUAL. Each time the button is
pressed, the speed setting changes in the order to Level 1, Level 2, Level 3, Level4, Level 5,
Level 6, Level 7 and Level 8.
❹
Basic Operation
Self Diagnostic Mode
This indicates a malfunction of the Filter Cover.
Remount the Filter Cover.
If the issue is not fixed, please contact our Customer Service Center.

15
Basic Operation
Press TURBO PLUS to change the operating mode.
▶ Select this mode to speed up the air purification for the maximum fan speed.
※ TURBO PLUS indicator is turned on when this mode is selected.
※ To return to the previous operating mode, press the button again.
❺
Press AIR CLEANLINESS button for three or longer seconds to select the cleanliness
indicator.
▶ Each time the button is pressed for three or longer seconds, the cleanliness indicator is turned on
or off.
❼
To stop the unit, press the ON/OFF button again.
▶ All the lights of the Display Panel and the Front Display Panel will be turned OFF, and the product
will enter standby mode.
❽
Press AIR CLEANLINESS to gauge the ultra-fine dust concentration.
▶
Each time the button is pressed during operation, the corresponding fine dust concentration
is displayed.
(PM10
→
PM2.5
→
PM1.0
→
PM10 …)
※ PM10: Fine dust (particle size less than 10㎛)
PM2.5: Ultra fine dust (particle size less than 2.5㎛)
PM1.0: Super fine dust (particle size is less than 1㎛)
❻

16
Operating Modes
※ The control and display panel may appear different than the image above.

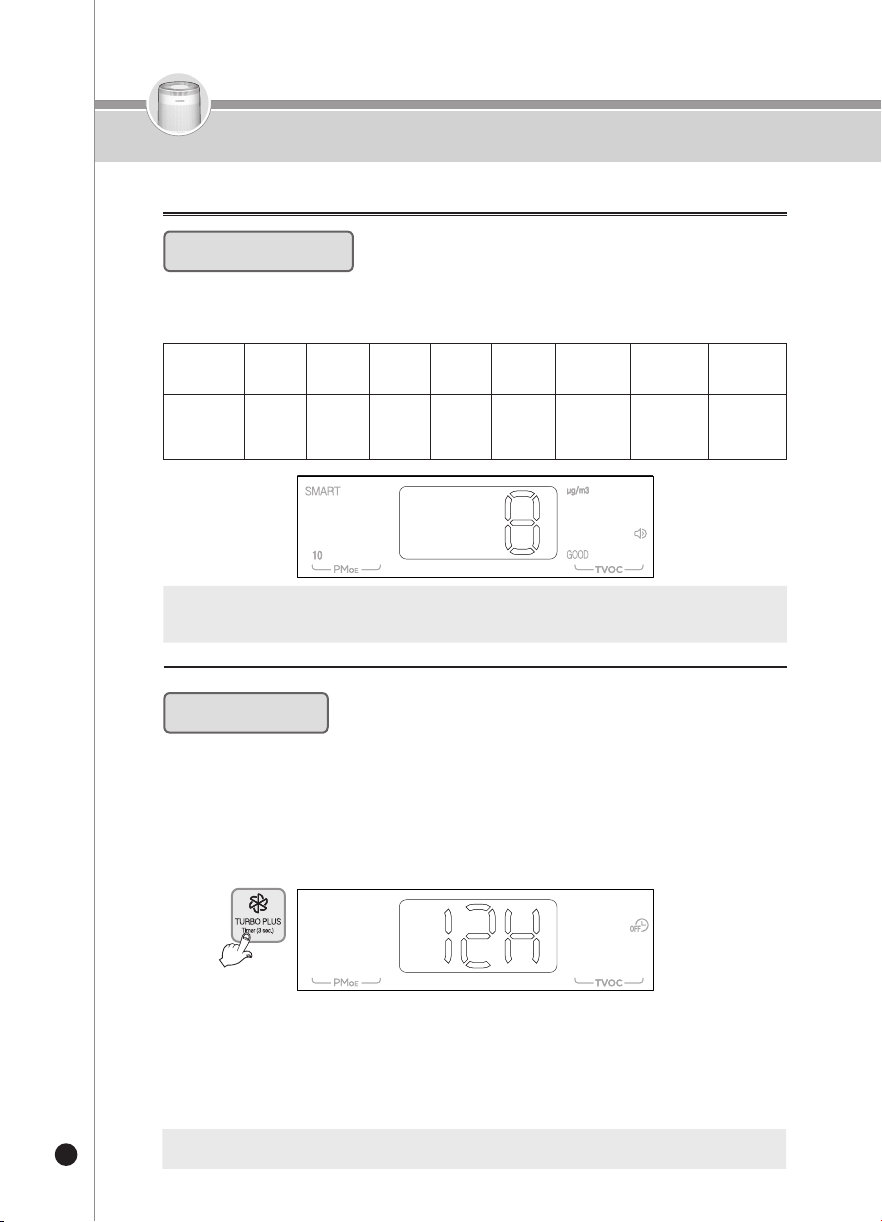

• In the standby mode, press the ON/OFF button once.
Initially, the unit will run in SMART mode. If a different mode was selected it will
maintain your selected operating mode.
• It senses the air quality and adjusts the fan speed.
• Shows current fan speed and cleanliness of air during the operation.
• Press the AIR CLEANLINESS button for at least three seconds to activate or deactivate
the cleanliness indicator.
SMART
Operating Modes
SMART mode detects the air quality and will automatically
adjust the necessary fan speed.
• It enters when pressing the Mode button once in SMART mode.
• This mode runs while minimizing energy consumption and controls the fan operation
depending on the level of purification and surrounding brightness.
• If the indoor air is maintained in a clean state for a specific period, all LEDs except "Eco"
are turned off.
• The purification display lamp may be turned on or off depending on the settings.
ECO
Mode in which the air is maintained in a clean state and
energy is efficiently controlled.

17
Operating Modes
※ The control and display panel may appear differently than the image above.
• In SMART mode, press the MODE button three times.
• It auto controls the fan speed using the preset algorithm.
• It shows the current fan speed and cleanliness of air during operation.
• The purification display lamp may be turned on or off depending on the settings.
FINE DUST
Is a setting that automatically adjusts to eliminate fine
dust.
• It enters when pressing the Mode button twice in SMART mode.
• Press the Turbo Plus button for over 3 seconds to set the Repeat Operation time (it is
possible to set between 1 to 12 hours in 1-hour steps).
• It runs and stops repeatedly for the set time (the initial value is 12 hours).
• The operation is identical to Smart Air Purification.
• The purification display lamp may be turned on or off depending on the settings.
REPEAT
Mode in which it runs and stops on its own according to
the set time.

18
Operating Modes
※ The control and display panel may appear differently than the image above.
• It enters when pressing the Mode button 5 times in SMART mode.
• It minimizes the air volume and runs quiet air purification for sound sleep.
• When selecting the mode, the purification display lamp is turned off.
• The purification display lamp may be turned on or off depending on the settings.
SLEEP
Operation mode minimizing air volume and display.
• It enters when pressing the Mode button 4 times in SMART mode.
• It minimizes the air volume and activates the baby mood lamp to help babies get healthy sleep.
• When selecting the mode, the baby mood lamp is lighted.
• The baby mood lamp may be turned on or off depending on the settings.
BABY
Mode for babies with minimal noise and baby mood lamp
feature.

19
Operating Modes
※ The control and display panel may appear differently than the image above.
• When the Energy Eye Night Sensor senses darkness during operation, all indicators
including the cleanliness indicator are turned off, and the Power Saving option is turned on.
• Power saving is activated when light is detected. Manual activation is also available.
※ Please refer to Other Settings in page 25 for how to set the Energy Eye function.
ENERGY SAVE
Detects indoor lighting and adjusts accordingly
• Press the FAN SPEED.
• Press the FAN SPEED button to set the desired wind speed (1-speed to 8-speed).
• The FAN SPEED is displayed.
• The purification display lamp may be turned on or off depending on the settings.
MANUAL
Mode that operates by selecting the desired fan strength
• Press the TURBO PLUS button to activate.
• The fan will speed up to the maximum speed to purify the air.
• The purification display lamp may be turned on or off depending on the settings.
• The operation time of the Turbo Plus mode may be changed through settings so please refer to Other
Settings
(p. 26).
TURBO PLUS
Quickly remove dust with maximum performance.

20
※ The control and display panel may appear differently than the image above.
Operation Status by Modes
• See the status of the air quality by pressing AIR CLEANILESS button during
operation.
AIR CLEANLINESS
※ When different products are used in the same room, the air cleanliness and pollution level
may differ due to the air flow.
Pollution
Level
Level 1
(Clean) Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 (Pollution)
Air
cleanliness
Indicator
Blue Blue
Green Green Light Green Yellow Orange Purple Red
Operation Status by Modes
• When pressing the Turbo Plus button for over 3 seconds during an operation, it enters the
Auto Off time settings page.
• The time increases by 1 hour every time the Turbo Plus button is pressed, and it is possible
to set up to 12 hours.
• It automatically stops after operating as much as the set time.
AUTO OFF
