Cuisinart COH-300 User manual

DO NOT RETURN YOUR PATIO
HEATER TO THE STORE
Before visiting your local retailer, call our customer service
department at 1-866-994-6390 from 9:00 am
to 5:00 pm Eastern time, Monday through Friday.
Model NO: COH-300
STAINLESS STEEL
PROPANE PATIO HEATER
Customer Service Hotline
1-866-994-6390
mDANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
mWARNING
For outdoor use only.
mWARNING
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
mWARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the
installation, operating and maintenance
instructions thoroughly before installing or
servicing this equipment.
CALIFORNIA PROPOSITION 65 WARNING:
• WARNING: This product can expose you to
lead, which is known to the State of California
to cause cancer and birth defects or other
reproductive harm. For more information go
to www.P65Warnings.ca.gov
Igniter
push
HIGH
PUSH
OFF
LOW

TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
2
Product Specification 2
-----------------------------------------------------------------------------------
Safety Information 3
-----------------------------------------------------------------------------------
Package Contents 5
-----------------------------------------------------------------------------------
Hardware Contents 6
-----------------------------------------------------------------------------------
Assembly Preparation 7
-----------------------------------------------------------------------------------
Assembly Instructions 7
-----------------------------------------------------------------------------------
Safety Check 11
-----------------------------------------------------------------------------------
Operation Instructions 11
-----------------------------------------------------------------------------------
Care and Maintenance 12
-----------------------------------------------------------------------------------
Troubleshooting 14
-----------------------------------------------------------------------------------
Replacement Part List 15
-----------------------------------------------------------------------------------
Warranty 16
-----------------------------------------------------------------------------------
Certification CSA
Height Overall 86.6 inches
Reflector Diameter 31.50 inches
Rated Heat Input 48,000 BTU/HR
Fuel Propane-LP
Gas Supply 20-Lb LP-Gas cylinder
Manifold Pressure 11 inches W.C
Injector Size (diameter) 2.14 mm
Safety Features Thermocouple & Tilt Switch
Gas Supply Pressure Max 150 PSI, Min 5 PSI
Manufacturer:
Guangdong Chant Group Inc.No.42 Xiaolan Industrial Road South Zhongshan, Guangdong 528415, China

SAFETY INFORMATION
3
Please read and understand this entire manual before attempting to
assemble, operate or install the product.
1. The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 /NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage
and Handling Code, B149.2.
2. Minimum clearance to the combustible materials is 3.61 ft(1100mm).
3. Perform a leak test with a soapy solution:
(a) To check gas connections.
(b) After connecting a new cylinder.
(c) Upon re-assembly after disassembly.
Please refer to the leak test procedure indicated in this instruction manual on page 11.
Replace the hose assembly prior to the appliance being put into operation if there is evidence of excessive
abrasion or wear, or if the hose is damaged. The pressure regulator and hose assembly supplied with the
appliance must be used. The replacement hose assembly/ regulator shall be that specified by the manufacturer.
4. If you don’t feel the heater is on a stable surface, use a ground screw to fix the base of the heater on the
surface where the heater is installed. Fix the base on an incline no wider than 15 degrees.
5. Place the propane hose with regulator assembly out of pathways where people may trip over it or in areas
where the hose will not be subjected to accidental damage.
6. Materials or items when stored under the heater will be subjected to intense heat and could be seriously
damaged.
7. Clothing or other flammable materials should not be hung on the heater, or placed on, under or near the
heater.
8. Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
9. Young children should be carefully supervised when they are in the area of the heater.
10. Any guard or other protective device removed for servicing the heater must be replaced prior to operating
the heater.
11. Installation and repair should be done by qualified service person, the heater should be inspected before
use and at least annual by a qualified service person.
12. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners
and circulating air passageways of the heater to kept clean.
13. Keep the appliance area clear and free from combustible materials, gasoline and other flammable vapors
and liquids.
14. Do not obstruct the flow of combustion and ventilation air.

SAFETY INFORMATION
4
15. Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris. Use this appliance in a
well-ventilated space only. Do not use it in a building, garage, or any other enclosed area.
Use this appliance in outdoor areas described below:
(a) With walls on all sides, but at least one permanent opening at ground level and no overhead cover.
(b) Within a partial enclosure that includes overhead cover and no more than two walls. These walls may
be parallel, or at right angles to each other.
(c) Within a partial enclosure that includes overhead cover and no more than two walls. The following
shall apply:
(i) One wall that is equivalent to at least 25% of the total wall area is completely open.
(ii) 30% or more in total of the remaining wall area is open and unrestricted.
16. The LP-gas supply cylinder to be used must be:
(a) Constructed and marked in accordance with the Specifications for LP-gas cylinders of the U.S.
Department of Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable;
(b) Provided with a listed overfilling prevention device; and
(c) Provided with a cylinder connection device compatible with the connection for the appliance.
17. Disconnect the cylinder when the appliance is not in use.
18. Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the
appliance.
19. Store the cylinder outdoors in a well-ventilated area (not in a building, garage, or other enclosed area) out of
the reach of children.
20. The cylinder used must include a collar to protect the cylinder valve.
21. Do not store a spare LP-gas cylinder under or near this appliance;
22. Never fill the cylinder beyond 80 percent full;
23. Place the dust cap tightly on the cylinder valve outlet whenever the cylinder is not in use. Install only the type
of dust cap on the cylinder valve that is provided with the cylinder valve. Other types of caps or plugs may result
in a propane leak.
24. Inspect the visible portion of the hose before each use of the appliance.
25. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners
and circulating air passageways of the heater be kept clean.
26. Every part of the heater shall be secure against displacement and shall be constructed to maintain a fixed
relationship between essential parts under normal and reasonable conditions of handling and usage. Parts not
permanently secured shall be designed so they cannot be incorrectly assembled and cannot be improperly
located or misaligned in removing or replacing during cleaning or other servicing.
CALIFORNIA PROPOSITION 65 WARNING:
(a) Combustion by-products produced when using this product contain chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
(b) Handling the brass material on this product exposes you to lead, a chemical known to the State of California
to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
(c) This product contains chemicals, including lead and lead compounds, known by the State of California to
cause cancer, reproductive harm, or other birth defects.
(d) Wash your hands after using this product.

PACKAGE CONTENTS
5
Part Description Quantity
A Top Dome 1 pc
B KD Dome 1 pcs
C Burner Assembly 1 pc
D Upper Pole 1 pc
E Beauty Ring 1 pc
F Lower Pole Assembly 1 pc
G Cylinder Housing Assembly 1 pc
H Base 1 pc
I Wheel Assembly 1 pc
A
B
C
D
E
F
G
H
I

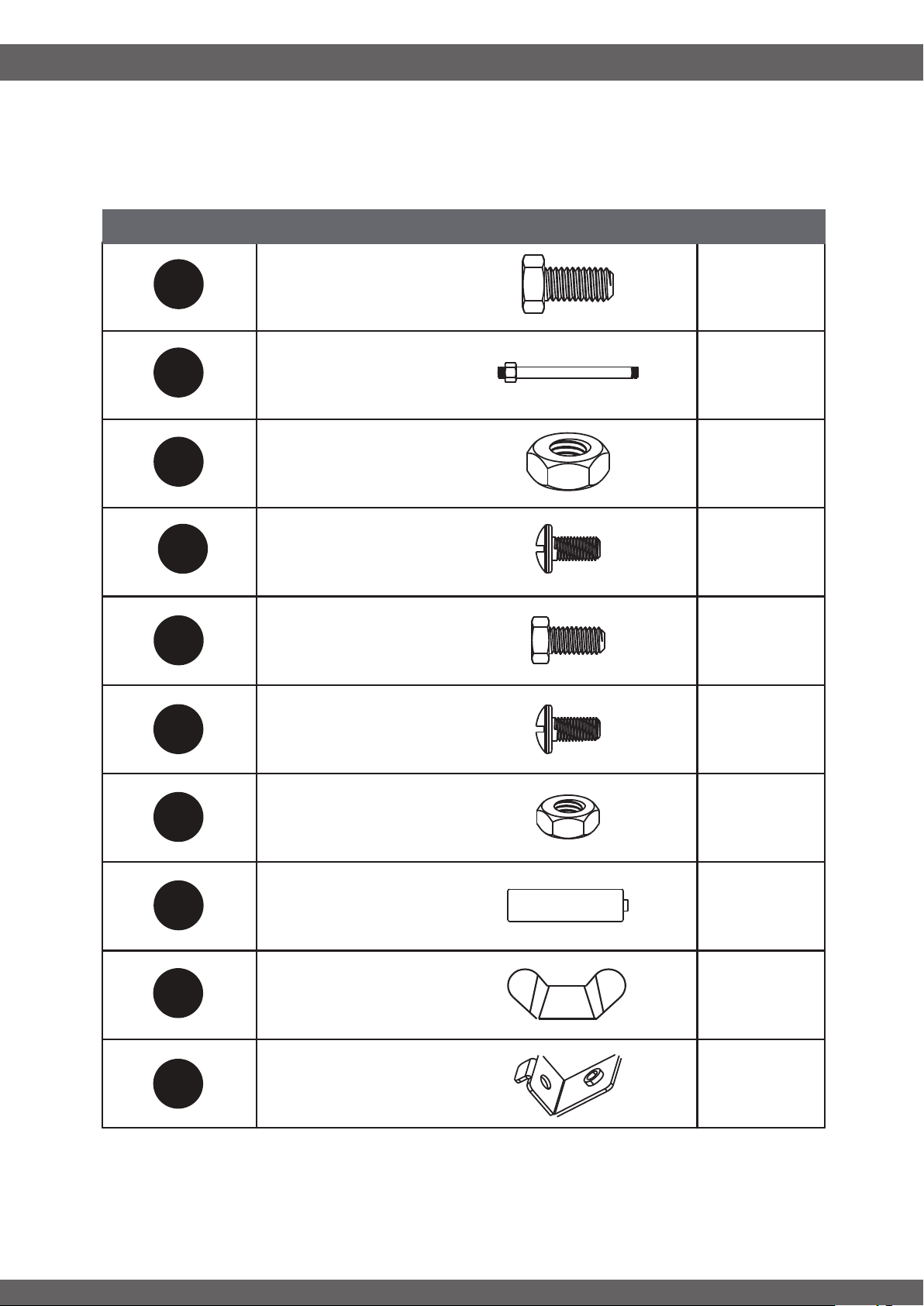

HARDWARE CONTENTS
6
M8 x 15 mm Bolt
Reflector Spacer
M8 Nut
M5 x 8 mm Bolt
M6 x 10 mm Bolt
M5 x 8 mm Silver Bolt
M5 Nut
AAA Battery
Wing Nut
BB (x3)
(x2)
(x12)
(x4)
(x16)
(x2)
(x1)
(x12)
(x3)
AA
CC
DD
EE
FF
GG
HH
II
Shroud Fix Bracket (x5)
JJ
HARDWARE DESCRIPTION QTY

M5 x 8 mm Bolt (x5)
DD

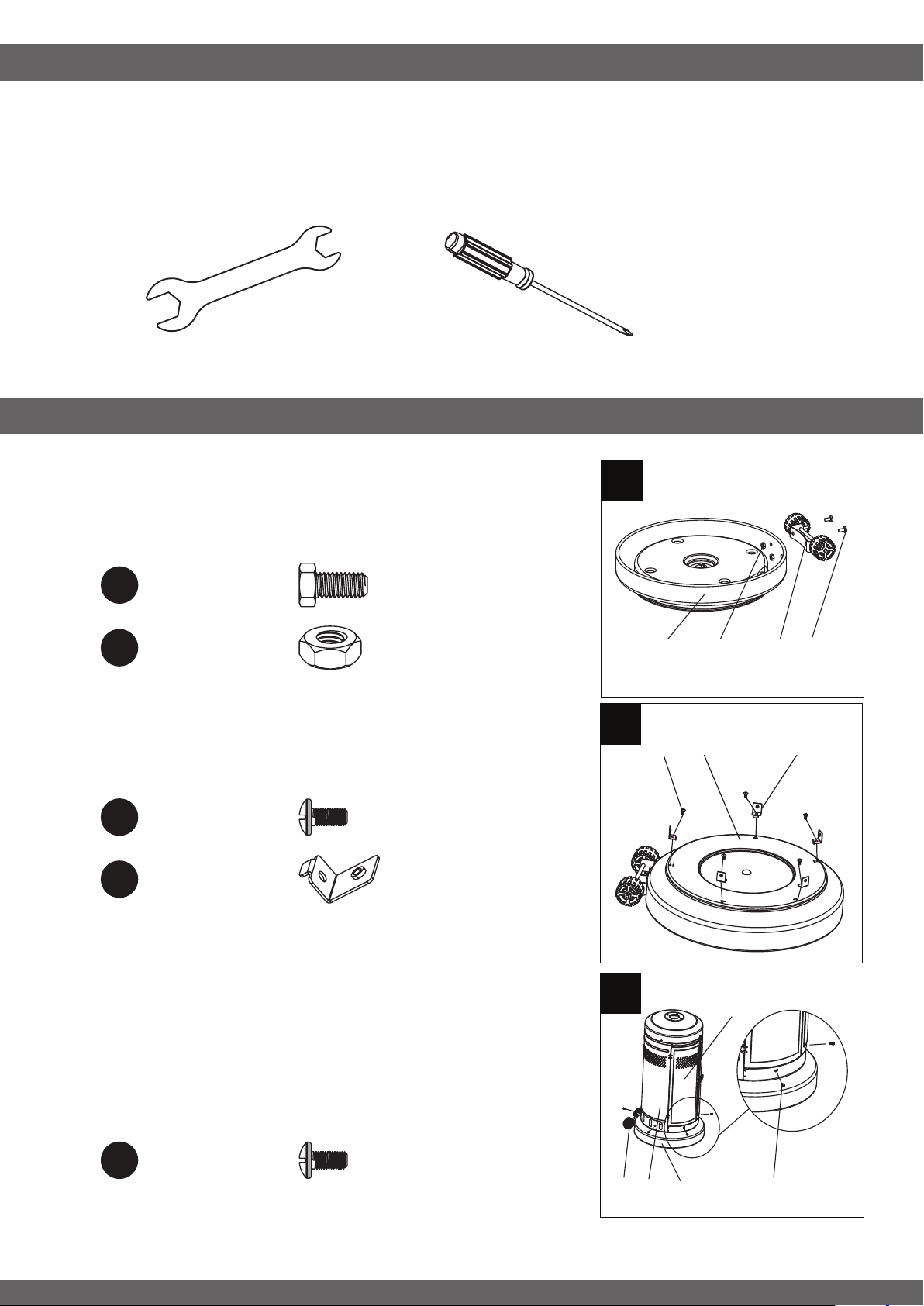

STEP 1
-------------------------------------------
With the Base (H) upside down, attach Wheel Assembly (I)
using M8 x 15 mm Bolts (AA) and M8 Nuts (CC).
STEP 2
-------------------------------------------
Reverse the Base (H), attach Shroud Fix Brackets (JJ)
using M5 x 8 mm Bolts (DD).
STEP 3
-------------------------------------------
Attach Cylinder Housing assembly (G) to base using
M5 x 10 mm bolts (DD) through Shroud Fix Brackets
(brackets will be on the inside).
Note: The door on the cylinder assembly (G) should be on
the opposite side of the wheel assembly (I).
M5 x 8 mm Bolt (x5)
DD
ASSEMBLY PREPARATION
ASSEMBLY INSTRUCTIONS
7
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents
list and diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact
customer service for replacement parts.
Estimated Assembly Time: 30 minutes
Tools required: Wrench, Magnetic Head Phillips Screwdriver (Not included)
Included Not Included
H CC I AA
DD H JJ
I G H DD
1
2
3
M8 x 15 mm Bolt (x2)
AA
M8 Nut (x2)
CC
Shroud Fix Bracket (x5)
JJ

STEP 4
-------------------------------------------
Attach Lower Pole assembly (F) to Cylinder Housing
Assembly (G) using M6 x 10 mm bolts (EE),and then put
Beauty Ring (E) through the Lower Pole assembly on top
of Cylinder Housing Assembly (G).
STEP 5
-------------------------------------------
Screw Reflector Spacers (BB) into the top of Burner
Assembly (C).
STEP 6
-------------------------------------------
Feed the valve and gas hose and connect the Burner
Assembly (C) to the Upper Pole (D).
Feed the valve and gas hose into and go through the
Upper Pole (D).
Align the screw holes and secure Burner Assembly (C)
onto Upper Pole (D) with M5 x 8 mm Bolts (DD).
Notes:
a. Open the igniter cap by unscrewing the cap counter
clock wise.
b. Take out the AAA-battery included in
the pack with instruction manual.
c. Insert the AAA-battery to the igniter.
d. Screw the igniter cap back clockwise
M5 x 8 mm Bolt (x3)
DD
ASSEMBLY INSTRUCTIONS
8
G
EE
E
F
Back
BB
C
DD
C
DIgniter
Battery
4
5
6
M6 x 10 mm Bolt (x4)
EE
BB (x3)

M5 x 8 mm Bolt (x3)
DD
ASSEMBLY INSTRUCTIONS
9
STEP 7
-------------------------------------------
Feed the valve and gas hose and connect Upper Pole (D)
to the Lower Pole Assembly (F).
Feed the valve and gas hose into and go through the
Lower Pole Assembly
Screw Upper Pole (D) onto Lower Pole Assembly (F) until
the holes on Upper Pole (D) is aligned to the holes on top
of Lower Pole Assembly (F). Fix them by using three M5 x
8 mm Bolts (DD). Ensure they are fully tightened.
STEP 8
-------------------------------------------
Attach the four KD Domes (B) using M5 x 8 mm Silver
Bolts (FF) and M5 Nuts (GG). Then, complete dome
assembly by attaching Top Dome (A) to KD Domes (B)
with M5 x 8 mm Silver Bolts (FF) and M5 Nuts (GG).
STEP 9
-------------------------------------------
Attach dome assembly to Burner Assembly (C) by
securing wing nuts (KK) to Reflector Spacers (BB).
Take out the AAA-battery included in
the pack with instruction manual.
Insert the AAA-battery to the igniter.
Screw the igniter cap back clockwise.
DD
F
D
B
GG
FF
A GG
FF
BB
C
KK
7
8
9
M5 x 8 mm Silver Bolt (x12)
FF
M5 Nut (x12)
GG
Wing Nut (x3)
II

ASSEMBLY INSTRUCTIONS
10
STEP 10
-------------------------------------------

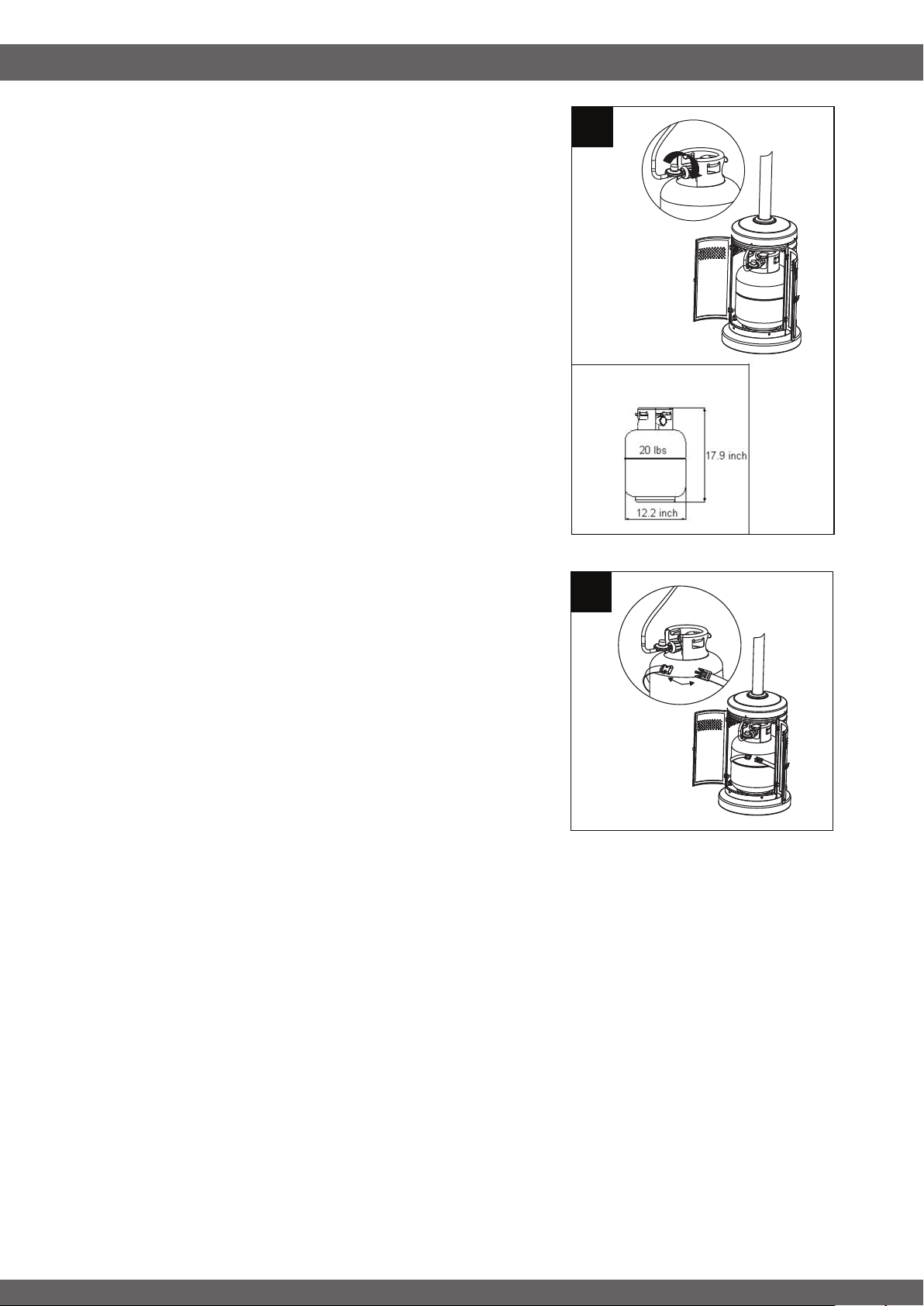

Connect Hose & Regulator Assembly to 20lb.LP-gas
cylinder (sold separately).
Line up threads on fitting with those on regulator and
rotate clockwise until tighten. HAND TIGHTEN ONLY.
DO NOT USE ANY HAND TOOLS TO MAKE THIS
CONNECTION. Be careful not to cross threads when
screwing in fitting.
To disconnect the LP-Gas cylinder, first make sure the
cylinder valve is “OFF”.
Then, turn the knob on the regulator counterclockwise
until it is loose.
Warning:
Before connecting, be sure that there is no debris caught
in the head of the LP gas cylinder head of the regulator
valve or in the head of the burner and burner ports.
Check for leaks after connecting the gas cylinder every
time according to the “Checking for Leaks” section on
page 11.
STEP 11
-------------------------------------------
11. Attach strap inside of Cylinder Housing Assembly (G)
to secure cylinder. Then, close door on Cylinder Housing
Assembly (G) to complete installation.
10
11

SAFETY CHECK
OPERATION INSTRUCTIONS
11

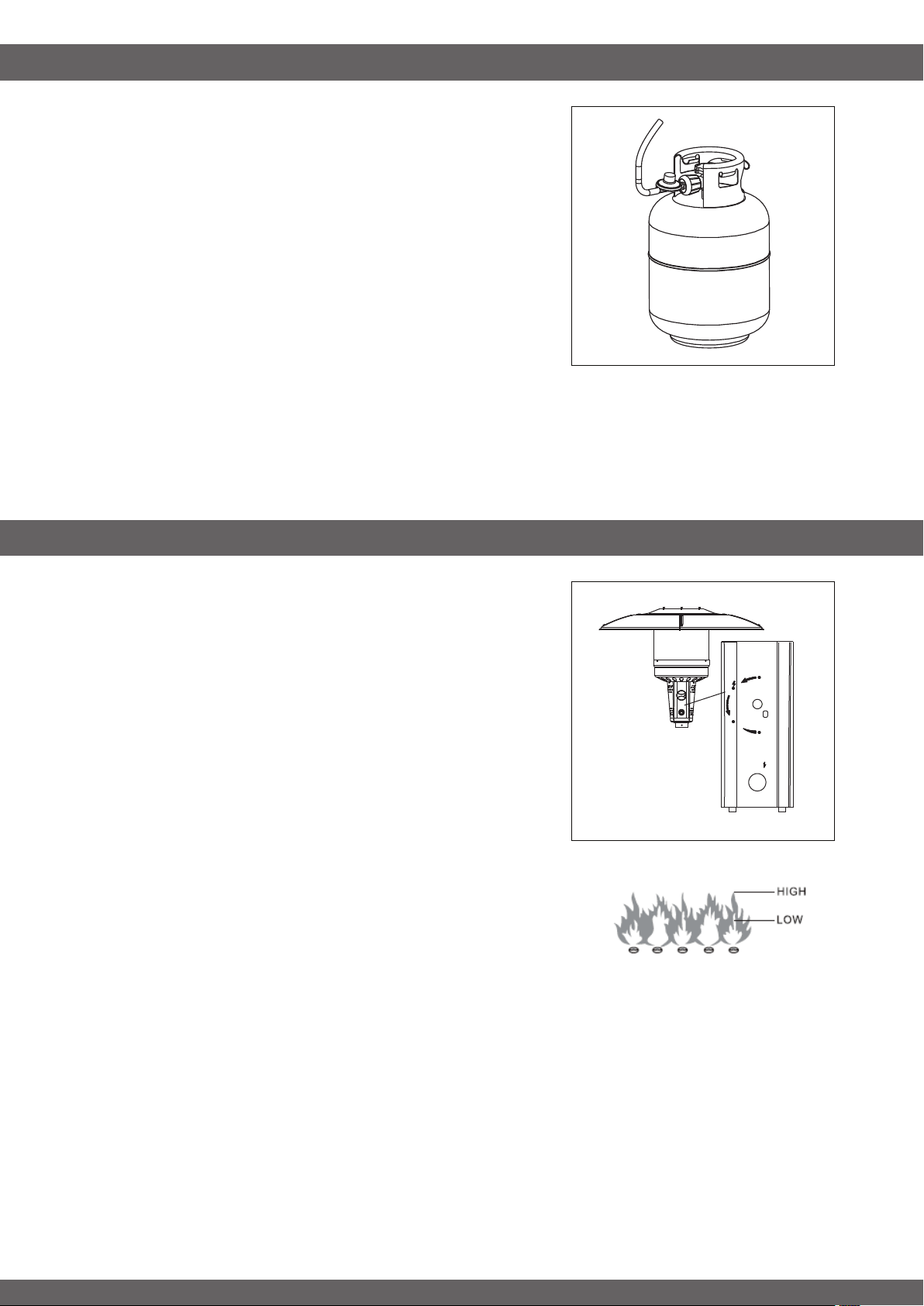

Checking for Leaks
Your patio heater has been checked at all factory
connections for leakage. To check the connection at the
gas hose/regulator/cylinder:
a. Make leakage solution by mixing 1part liquid dish soap
and 3 part water.
b. Spoon or brush several drops (or use squirt bottle) of
the solution onto the gas hose/regulator and regulator/
cylinder and hose connection.
c. Turn on gas cylinder valve. Inspect the connections and
look for bubbles.
d. If no bubbles appear, the connection is safe.
e. If bubbles appear, there is leakage. Loosen and re-
tighten this connection.
Lighting Instructions
1. Ensure that the LP gas tank valve is OFF.
2. Push the control knob in, turn to OFF, and wait 5 minutes for any
gas to clear.
3. Turn the LP tank valve ON.
4. Push control knob in and slowly rotate to HIGH. This will activate
the built-in igniter and light the burner. Once burner is lit, hold control
knob in for 30 seconds and then release. If the burner fails to remain
lit or becomes extinguished, repeat step 4 before attempting to
relight.
5. Turn the control knob from LOW to HIGH to the desired heat
setting.
For complete shutdown
1. Please turn the knob to LOW first, then push and turn to OFF for
complete shut off.
2. Turn the LP gas tank valve OFF before removing the LP gas tank.
If you experience any ignition problem, turn off the heater and gas
supply, and consult “Troubleshooting” on page 16.
Visually check the burner flame against the illustrations below:
Flame should be blue with slight yellow tips.
You should see a smaller flame in LOW position than seen on HIGH.
Perform flame check prior to each use. If only low flame is seen, refer
to “Burner flame is low” in the “TROUBLESHOOTING” on page 14.
!"#$
%&&
'()*
+%,
-./0123
*-4*

12
OPERATION INSTRUCTIONS
CARE AND MAINTENANCE
In any case of failure of normal ignition, please use a Lighter gun
(Sold Separately) to reach the burner for ignition through the hole on
the bottom of burner diffuser.
WARNING
FOR YOUR SAFETY:
If at any time you are unable to light burner and smell gas, wait 5
minutes to allow gas to dissipate before attempting to light heater.
WARNING
FOR YOUR SAFETY:
DO NOT touch or move heater for at least 45 minutes after use.
Allow emitter and dome to cool before touching.
CAUTION:
Avoid inhaling fumes emitted from the heater’s first use. Smoke and
odor from the burning of oils used in manufacturing will appear. Both
smoke and odor will dissipate after approximately 30 minutes. The
heater should NOT produce thick black smoke.
• Abrasive cleaners will damage this product.
• Never use oven cleaner to clean any part of heater.
• Do not clean any heater part in a self-cleaning oven. The extreme heat will damage the finish.
• More frequent cleaning may be required as necessary. It is imperative that control
compartment, burners and circulating air passageways of the heater be kept clean.
• Spiders and insects can create a dangerous condition that may damage heater or make it
unsafe. Keep burner area clean of all spiders, webs or insects. Clean burner holes by using a
heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
• Inspect heater before each use.
• Have heater inspected annually and repairs should be made by a qualified service person.
• Check heater immediately if any of the following conditions exist:
a. The smell of gas in conjunction with extreme yellow tipping of burner flames.
b. Heater does not reach proper temperature.
c. Heater’s glow is excessively uneven.
d. Burner makes popping noises during use.
Note: A slight pop is normal when burner is extinguished.
• Carbon deposits may create a fire hazard. Keep dome and emitter clean at all times.
• Do not clean heater with combustible or corrosive cleaners. Use warm, soapy water.
• This heater should be thoroughly cleaned on a regular basis.
• After a period of storage and/or no use, check for leaks, burner obstructions and inspect for
any abrasion, wear, cuts to the hose.

CARE AND MAINTENANCE
13
Cleaning
• Wipe surfaces clean with mild dish detergent or baking soda.
• For stubborn surfaces use a citrus-based degreaser and a nylon scrubbing brush.
• Rinse clean with water.
Note: While cleaning the unit, be sure to keep the area around the burner and pilot assembly
dry at all times. Do not submerge the control valve assembly. If the gas control is submerged
in water, do NOT use it. It must be replaced.
TIP: Use high-quality automobile wax to help maintain the appearance of the heater. Apply to
exterior surfaces from the pole down. Do not apply to emitter screen or domes.
Maintenance
• Keep exterior surfaces clean.
• Air flow must be unobstructed. Keep controls, burner and circulating air passageways
clean.
Signs of possible blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Note: In a salt-air environment (such as near an ocean) corrosion occurs more quickly than
normal. Frequently check for corroded areas and repair them promptly.
Storage
Between uses or during periods of extended inactivity:
• Turn control knob to “OFF”.
• Disconnect LP cylinder and move to a secure, well-location outdoors.
• Store heater upright in an area sheltered from direct contact with inclement weather (such
as rain, sleet, hail, snow, dust and debris).
Note: Never leave LP gas tank exposed to direct sunlight or excessive heat.
• If desired, use cover (Sold Separately , Model Number CHC-301) to protect the heater and
help prevent buildup in air passages.
CAUTION: Wait until heater is cool before covering.

TROUBLESHOOTING
14
Problem Possible Cause Corrective Action
Burner won’t light. • Gas pressure is low.
• The orice is blocked.
• Control knob is not in “High”
position.
• Turn tank valve “OFF” and replace
the tank.
• Clear blockage.
• Turn control knob to “High”.
Burner ame is low. • Gas pressure is low.
• The control knob is not
positioned at “High”.
• The burner jet may be partially
blocked.
• Outdoor temperature is less than
40°F and tank is less than 1/4
full.
• Supply hose is bent or kinked.
• Turn tank valve “OFF” and
replace the tank.
• Position the control knob at
“High”.
• Clear blockage.
• Use a full tank.
• Straighten the hose.
Carbon build-up. • Build-up of carbon can
accumulate over time.
• Wipe o before lighting.
Thick black smoke. • Blockage in burner. • Remove blockage and clean
burner inside and outside.

REPLACEMENT PARTS LIST
15
Part Description
A Top Dome
B KD Dome
C Burner Assembly
C1 Burner Chamber Assembly
C2 Insulation Plate
C3 Control Panel
C4 Knob
C5 Igniter
C6 Thermocouple
C7 Ignition Pin
C8 Tilt Switch
D Upper Pole
E Beauty Ring
F Lower Pole Assembly
G Cylinder Housing Assembly
HShroud Fix Bracket
I Base
J Wheel Assembly
K Weight Plate
LHardware Pack
A
B
C
C6
C1
C2
C3
C4
C5
C8
C7
D
E
F
G
H
I
J
K
L

For troubleshooting, FAQs or customer service, visit us at
www.cuisinart.com/outdoorgrilling or contact us at 1-866-994-6390
Model # COH-300
North American Distributor:
The Fulham Group
Newton, MA 02466
WARRANTY
16
1-Year Limited Warranty
-----------------------------------------------------------------------------------
The appliance has been manufactured under the highest standards of quality and workmanship. We warrant
to the original consumer / purchaser that all aspects of this product will be free of defects in material and
workmanship for one (1) year from the date of purchase. A replacement for any defective part will be supplied
free of charge for installation by the consumer. Defects or damage caused by the use of other than genuine
parts are not covered by this warranty. This warranty shall be effective from the date of purchase as shown in
the purchaser’s receipt. This warranty is valid for the original consumer purchaser only and excludes industrial,
commercial or business use of the product, product damage due to shipment or failure which results from
alteration, product abuse, or product misuse, where performed by a container, service company, or consumer.
We will not be responsible for labor charges and/or damage incurred in installation, repair or replacement, nor for
incidental or consequential damage. This warranty gives you specific legal rights, and you may also have the other
rights that vary from state to state.
