NOTICE: Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.
Systems certified for cyst reduction may be used on disinfected water that
may contain filterable cysts.
Check with your public works department for applicable local plumbing and sanitation
codes. Follow your local codes if they differ from the standards used in this manual.
Operational, maintenance and replacement requirements are essential for this product to
perform properly. The Aqua-Cleer®Good Water Machine™contains replaceable
particulate and activated carbon filters. It also includes a replaceable reverse osmosis
membrane filter which is critical for the effective reduction of Total Dissolved Solids.
The filtered water should be tested periodically to verify that the system is performing
properly.
CULLIGAN INTERNATIONAL COMPANY
One Culligan Parkway
Northbrook, Illinois USA 60062-6209
847/205-6000
www.culligan.com

1
Safety/Warnings ............................................................................ ii
System Specifications ................................................................... 1
Introduction
About Your System ........................................................3
Component Description.................................................3
Certified Performance ....................................................3
How to Use Your System ..............................................5
Performance Check ........................................................5
Installation
Application Guidelines ..................................................6
Servicing Your System
Service Schedule .............................................................8
Filter Replacement..........................................................8
Parts List........................................................................ 13
Service Log ................................................................................. 14
Warranty ...................................................................................... 18
Table of Contents

2
System Specifications
System Flow Sequence ........................................Particle Filter, Activated Carbon Filter,
...........................................................Reverse Osmosis Membrane Filter, Storage Tank,
...........................................................Polishing Filter, Dispensing Faucet
Particle Filter .........................................................5 Micron Spun Polypropylene
Activated Carbon Filter.......................................Solid Carbon Block
Reverse Osmosis Membrane Filter ................... Culligan®Aqua-Cleer®Thin Film Composite
System Daily Production Rate to
Pressurized Storage Tank ....................................9.6 gpd (36.3L) (3 gallon)
Product Production Rate without storage
tank to atmosphere1- H-30 S-R Models......... 30 gpd (114 L/day)
Ratio of Product to Flush Flow2
Soft Water Applications ................2:33
Hard Water Applications ..............1:3 - 1:5
Polishing Filter ......................................................Cullar G Activated Carbon
Dispensing Faucet ................................................Culligan Aqua-Cleer Faucet Rotary Operation,
Stainless Steel and Resin Flow Passages, with
Built-in Siphon Break
Colors ..............................................Polished Chrome or White
Storage Capacity Tank .........................................3 gallons
Dimensions - Filter Assembly ............................7"W x 4.3"D x 16.3"H
- Storage Tank ................................9" Diameter x 14"H
1Rating at 50 psi, 77°F, 500 mg/L TDS Influent, Without Storage Tank to atmosphere. This is a factory
specification for membrane production. Actual production rate and TDS rejection will depend on
temperature, water pressure, TDS level, membrane variation and usage pattern.
2May vary with pressure. See Technical Manual for all hard water applications and applications where
TDS exceeds 1000 mg/L (ppm).
3Except nitrate models.

3
Introduction
Thank you for choosing a Culligan®Aqua-Cleer®Good Water Machine™drinking water
system. Your new system is designed to bring you years of healthful, deliciously crystal-
clear Culligan®water. With its special faucet installed on your sink, it’s like getting
bottled water straight from your kitchen tap.
With three separate filter technologies and its unique space-saving design, the
Aqua-Cleer Good Water Machine is the most advanced drinking water system available
today from Culligan.
ABOUT YOUR SYSTEM
The reverse osmosis method of water treatment has long been regarded as one of the
most efficient and effective ways to reduce impurities. It’s the technology we’ve used to
build your new Culligan Aqua-Cleer Good Water Machine. In addition, we’ve incorpo-
rated activated carbon and fine particle filtration to bring you one of the most effective
systems available today.
AQUA-CLEER GOOD WATER MACHINE SYSTEM COMPONENTS
Refer to Figure 1, page 7
Particle Filter
The particle filter screens out dirt, sand, rust, and other microscopic particles 15 times
smaller than a grain of sand.
Activated Carbon Filter
The activated carbon filter gets rid of bad tastes and odors, including chlorine. If present
in your untreated water supply.
Reverse Osmosis Membrane Filter
The reverse osmosis (RO) membrane filter squeezes out dissolved substances, including
radium, lead and many others. These substances may not be in your water. See Perfor-
mance Data Sheet for list of substances and removal percentages.
Manifold Assembly
The manifold serves as the functional hub of the system, directing and regulating the
flow through each of the system’s components. It makes the
Good Water Machine extremely space efficient and simplifies filter changes.

4
Introduction (cont’d)
Polishing Filter
The Aqua-Cleer®Good Water Machine™includes a second activated carbon filter as
added assurance that your water will be crystal clear.
Faucet
The special drinking water faucet mounts conveniently on your kitchen sink. A simple
twist of the handle is all it takes to enjoy refreshing Culligan drinking water.

5
HOW TO USE YOUR SYSTEM
With the Aqua-Cleer®Good Water Machine™, you’ll get a continuous supply of clear,
refreshing water for drinking and cooking. But Culligan improves a lot more than just
water. Crystal clear Culligan®water is ideal for:
• coffee • recipes • pasta
• tea • baby formula • ice cubes
• soup • houseplants • steam irons
• juice • pets • drink mixes
• everything you make with water
PERFORMANCE CHECK
This system contains a replaceable treatment component, critical for the effective reduc-
tion of Total Dissolved Solids, and that product water shall be tested periodically to
verify that the system is performing properly.
To check the performance of your Aqua-Cleer Good Water Machine, it is necessary to
measure the total dissolved solids (TDS) level of the filtered water. This simple test
can be done quickly by your dealer.
The Good Water SentryTM Water Quality Monitor is another way to keep track of your
system’s performance. This optional accessory checks your drinking water each time you
use the special faucet, and signals when the membrane filter may need to be replaced.
If the water quality of your system seems to have declined, drain the storage tank and
allow the system to refill. If the problem persists, call your Culligan Man for service.

6
Installation
This Owner’s Guide provides visual assembly reference only. Since specialized skills are
required in the assembly of the drinking water system, we recommend that you contact
your local independently operated Culligan dealer to complete this installation.
APPLICATION GUIDELINES
The Aqua-Cleer®Good Water Machine™is designed for use on potable water supplies
meeting the guidelines outlined in Table 1. The system should be installed on your
home’s cold water line. The flushing stream should discharge through an approved
siphon break as illustrated in Figure 1. Installation of this system must comply with
state and local laws and regulations.
TABLE 1
Influent Water Characteristic
Pressure 40 - 120 psi (280 - 827 kPa)
Temperature 33 - 100°F (1 - 38°C)
Total Dissolved Solids (TDS)10 - 2500 ppm ( 0 - 2500 mg/L)
pH 5 - 10
Chlorine20 - 3 ppm ( 0 - 3 mg/L)
Chloramine 0 - 3 ppm ( 0 - 3 mg/L)
Turbidity 0 - 10 NTU
Hardness 0 - 20 gpg
Iron 0 - 1 ppm (0 - 1 mg/L)
Bacterial Quality Potable
1 See the Technical Manual for all applications where TDS exceeds 1000 ppm (1000 mg/L). A booster pump is
strongly recommended.
2 The reverse osmosis membrane filter used in this system may be damaged by chlorine. This system includes
activated carbon which protects this element by reducing chlorine. Influent chlorine should not exceed 3 mg/L.
3 A softener is strongly recommended for water over 10 gpg.

7

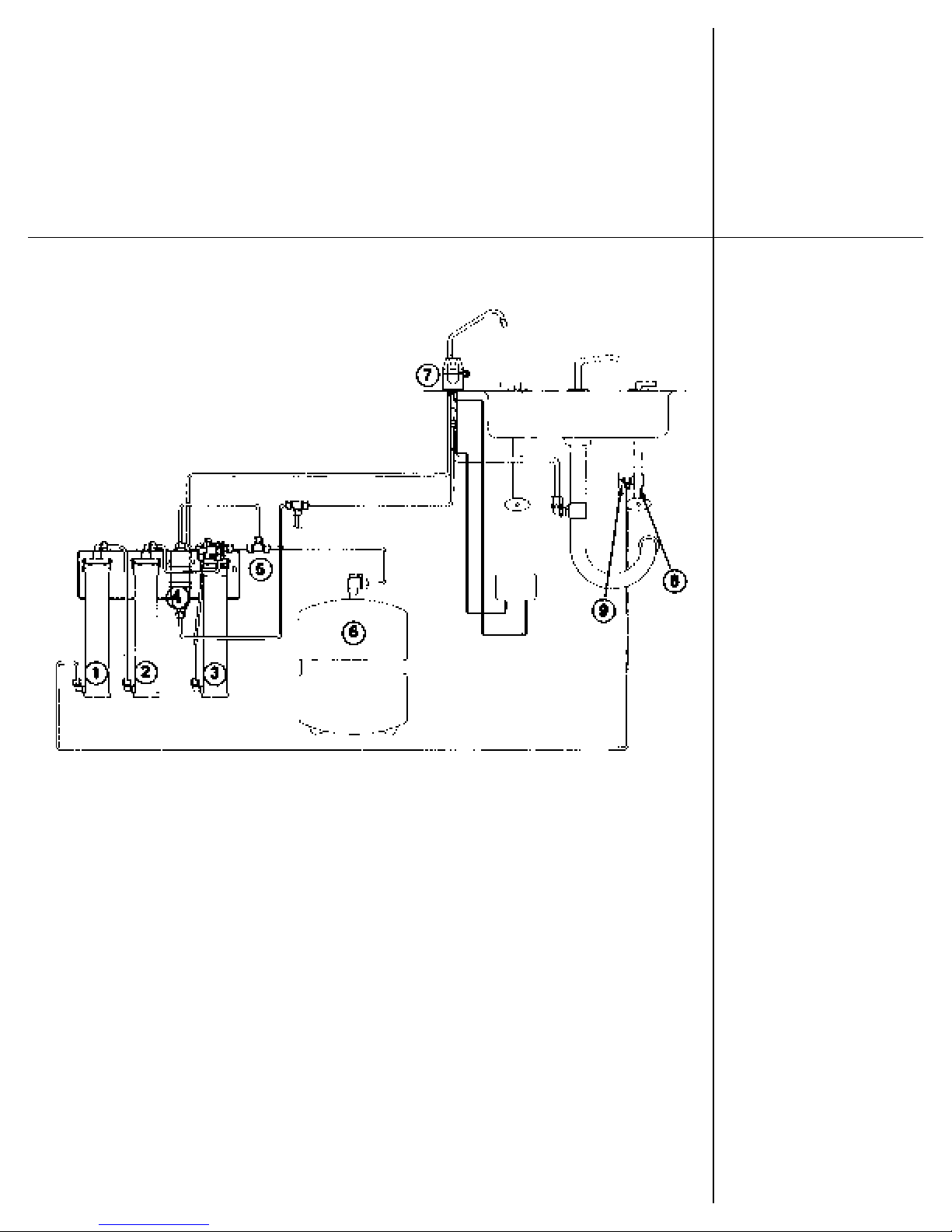

1. Particle Filter*
2. Activated Carbon Filter*
3. Reverse Osmosis Membrane Filter
4. Polishing Filter
5. Tubing Tee
6. Storage Tank
7. Faucet
8. Cold Water Line
9. Water Shutoff
* Combined Particulate/Activated Carbon Filter on Model H-30S-R

8
Servicing Your System
SERVICE SCHEDULE
When properly maintained, your Aqua-Cleer®Good Water Machine™will give you
years of dependable service. Use the following as a guide to get the most out of your
system. Service frequency may vary depending on your local water conditions. High
sediment, chlorine, turbidity, or hardness levels may require more frequent service.

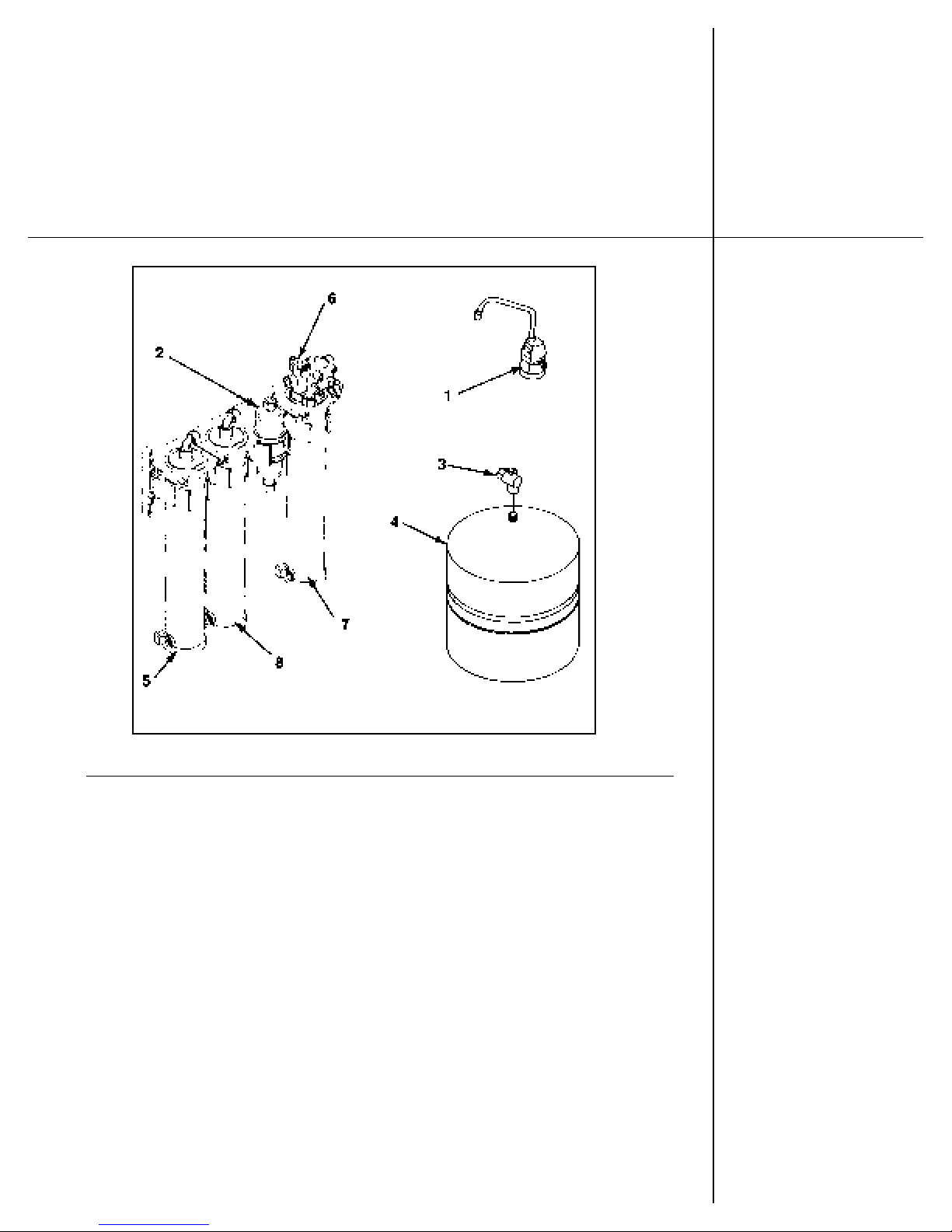

Refer to Figures 3 & 4.
At Least Once Per Year
Replace:
• Particle Filter (1)
• Activated Carbon Filter (2)
• Polishing Filter (4)
Check:
• RO Membrane Filter (3)
- TDS Reduction Performance
- Flow Rates
• Capillary Assembly
Sanitize the System.
Use the convenient chart inside the back cover of this booklet to keep track of your
system’s maintenance.
FILTER REPLACEMENT
Culligan recommends that you have your Aqua-Cleer Good Water Machine serviced by
your local Culligan Man. You can rely on his or her experience and expertise to keep
your system in top operating condition.
If you wish to service your system, the filters are available from your Culligan dealer.
For replacement components, please contact your local Culligan Dealer or
1-800-205-6000 for the dealer near you. See the Parts List at the end of this section for
replacement numbers.
Cartridge Conditioning
The activated carbon, reverse osmosis, and polishing filter cartridges must be
conditioned as follows prior to installation into the Good Water Machine. Your
Culligan Man can do these important procedures at the time of purchase.
Activated Carbon Cartridge - 2 gallon flush to remove carbon dust
RO Membrane Filter - 24 hour flush to remove preservative solution
Polishing Filter - 2 gallon flush to remove carbon dust.
