Culligan US-EZ User manual

Easy-Change Under-Sink Drinking Water Filter System
Installation and Operating Instructions
Model US-EZ
Specifications

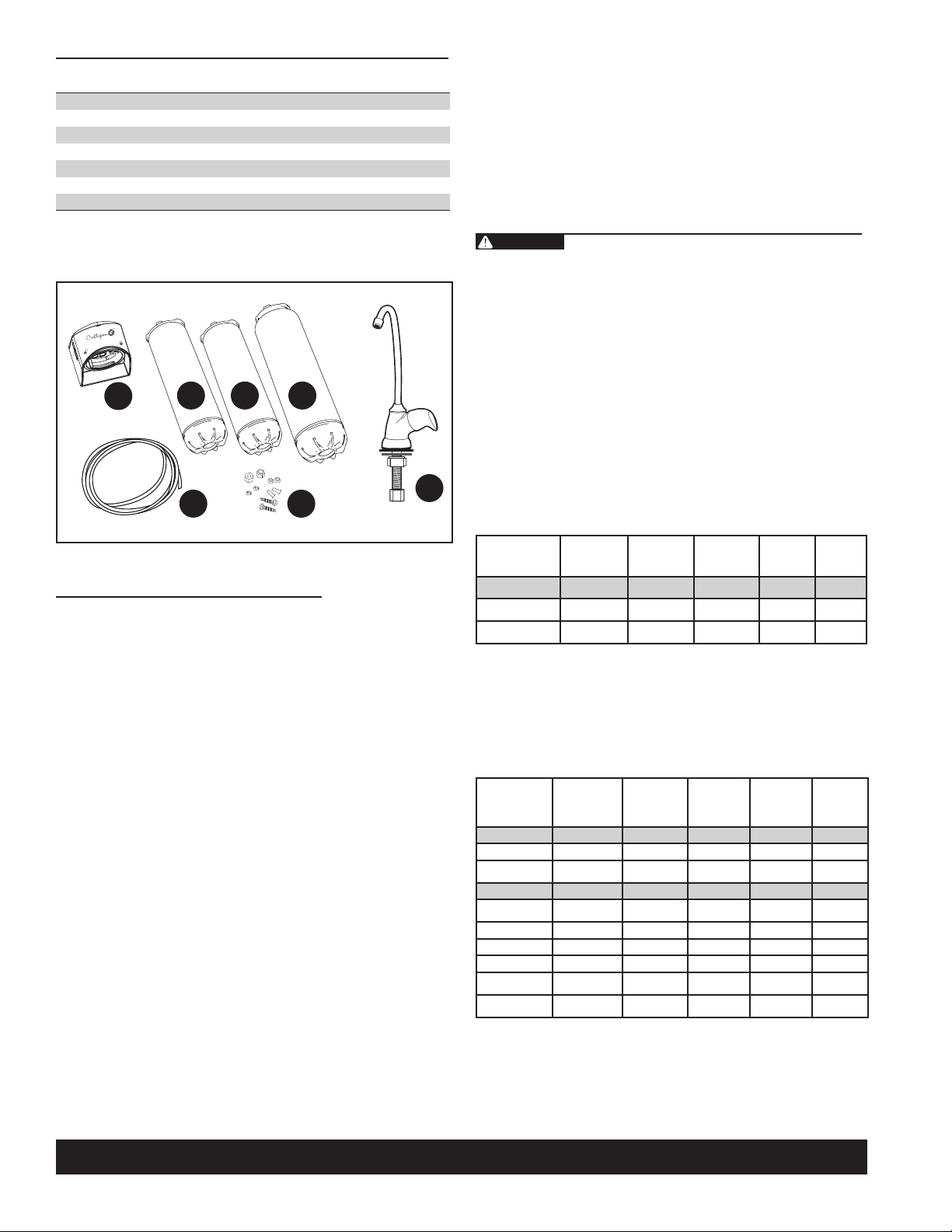

Parts Included:
• filter head with built-in bracket
• filter cartridge
• mounting screws
• water supply adapter
• lead-free faucet and fittings
• faucet battery (available for EZ-3 and EZ-4 models)
• 1⁄4-inch plastic tubing
• cartridge change reminder sticker
Precautions
Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection before or after the
system. Systems certified for cyst reduction may be used on disinfected
waters that may contain filterable cysts.
This filter must be protected from freezing, which can
cause cracking of the filter and water leakage.
Because of the product’s limited service life and to prevent
costly repairs or possible water damage, we strongly recommend that
the head of the filter be replaced every ten years. If the head of your
filter has been in use for longer than this period, it should be replaced
immediately. Date the top of any new head to indicate the next recom-
mended replacement date.
Turn off water supply to head without cartridge if it must
be left unattended for an extended period of time.
NOTE:
• For cold water use only.
• Make certain that installation complies with all state and local
laws and regulations.
• The contaminants or other substances removed or reduced by
the selected cartridge are not necessarily in your water.
• After prolonged periods of non-use (such as during a vacation) it
is recommended that the system be flushed thoroughly. Let water
run for 10 minutes before using.
• The filter cartridges used with this system have a limited service
life. Changes in taste, odor, and/or flow of the water being
filtered indicate that the cartridge should be replaced.
The US-EZ-1 is certified by IAPMO R&T to NSF/ANSI
Standard 42 for the aesthetic reduction of Chlorine Taste
and Odor and Nominal Particulate Class III.
Tools Required
• phillips screwdriver • adjustable wrench
• hand or electric drill (cordless
recommended) • safety glasses
• utility knife (for plastic tubing) • Teflon®tape
• towel • center punch
• pencil • 1/4-inch & 9/16 or 5/8-inch
drill bits
• tape measure • file
Optional Materials
• 3" x 3" x 1/2" wood block
• 1/8-inch drill bit
Range / Capacity Level 1 Level 3 Level 4
Pressure Range: 30 – 100 psi (2.1 – 6.9 bar)
Temperature Range: 40–100 ° F (4.4 – 37.7 ° C)
Rated Service Flow: 0.5 gpm (1.9 Lpm)
Filter Capacity: 3000 gallons (11,356 L) 500 gallons (1893 L)
Turbidity: 5 NTU max
The US-EZ-4 is certified by IAPMO R&T to NSF/ANSI Standard 42 for the
aesthetic reduction of Chlorine Taste and Odor, Chloramines and Nominal
Particulate Class 1, Standard 53 for the reduction of Cysts, Lead, Mercury, VOC,
MTBE, Turbidity, Perfluorooctanoic acid (PFOA) and Perfluorooctane sulfonate
(PFOS) AND Standard 401 for the reduction of Phenytoin, Ibuprofen, Naproxen,
Estrone, Bisphenol A and Nonylphenol.
The US-EZ-3 is certified by IAPMO R&T to NSF/ANSI Standard
42 for the aesthetic reduction of Chlorine Taste and Odor and
Nominal Particulate Class 1 and Standard 53 for the reduction
of Cysts, Turbidity, Lead, Lindane and Atrazine.
WARNING:
CAUTION:
CAUTION:
CAUTION:
US-EZ Drinking Water Systems 01020893 Rev H 01/20

Technical Support: 1-800-721-7360, Monday-Friday, 8:00 a.m. – 4:30 p.m., CST
Installation
• For standard installation on 1/2-inch-14 NPS threads (most common thread on
US kitchen faucets) cold water line.
• Please read all instructions and precautions before installing and using the US-
EZ water filter.
• Numbered diagrams correspond with numbered steps.
1. Selecting the Faucet Location
NOTE: The drinking water faucet should be positioned with function, convenience and
appearance in mind. An adequate flat area is required to allow faucet base to rest
securely. The faucet fits through a 9/16-inch hole. Most sinks have pre-drilled 13⁄8" or
11⁄2" diameter holes that may be used for faucet installation. If these pre-drilled holes
cannot be used or are in an inconvenient location, it will be necessary to drill a 9/16-
inch or 5/8-inch hole in the sink to accommodate the faucet.
This procedure may generate dusts which can cause severe irritation
if inhaled or come in contact with the eyes. The use of safety glasses and respirator for
this procedure is recommended.
DO NOT ATTEMPT TO DRILL THROUGH AN ALL-PORCELAIN SINK.
If you have an all-porcelain sink, mount the faucet in pre-drilled sprayer hole or drill
through counter top next to sink.
When drilling through a counter top make sure the area below the
drilled area is free of wiring and piping. Make certain that you have ample room to
make the proper connections to the bottom of the faucet.
Do not drill through a counter top that is more than 1-inch thick.
Do not attempt to drill through a tiled, marble, granite or similar counter
top. Consult a plumber or the counter top manufacturer for advice or assistance.
A. Line bottom of sink with newspaper to prevent metal shavings, parts or tools from
falling
down the drain.
B. Place masking tape over the area to be drilled to prevent scratches if drill bit slips.
C. Mark hole with center punch. Use a 1/4-inch drill bit for a pilot hole, then, using
a 9/16-inch or 5/8-inch drill bit, drill a hole completely through the sink. Smooth
rough edges with a file.
2. Mounting the Faucet
A. Insert spout Ainto faucet body B. Tighten by screwing the spout nut Conto
the threads on the faucet body.
B. Slide black rubber gasket Donto threaded faucet stem. Lower faucet stem
through hole in sink.
C. Accessing the faucet from underneath the sink, slide metal washer Eup the fau-
cet stem, followed by the white plastic stem nut F. Tighten with fingers to secure
faucet to sink.
NOTE: do not use pliers to tighten stem nut. Pliers may strip the threads of the faucet
stem.
3. Installing the Water Supply Adapter
The supply adapter fits 1/2-inch-14 NPS supply threads.
A. Turn off cold water supply line.
B. Turn on the cold water faucet and allow all water to drain from line.
C. Disconnect cold water line from 1/2-inch-14 NPS threaded stub on bottom of
main faucet.
NOTE: If it is too difficult to access the threaded stub on the bottom of the cold
water faucet, see Alternate Installation on page 4.
D. Apply Teflon®tape onto male threads of faucet stub and supply adapter. Screw
the water supply adapter to the threaded faucet stub as shown.
E. Using the nut that previously connected the cold water line to the faucet, screw
the cold water line to the male supply adapter threads. Hand tighten nut and snug
with wrench.
WARNING:
CAUTION:
CAUTION:
CAUTION:
CAUTION:
2
1
A
B
C
A
B
F
D
E
C
3
A
B
C
D
E
2

Technical Support: 1-800-721-7360, Monday-Friday, 8:00 a.m. – 4:30 p.m., CST
4. Mounting the Filter System
A. Select a location under the sink to mount the filter assembly. Choose a location
where the filter will be easily accessible.
NOTE: Allow 11⁄2-inches (38 mm) clearance below housing or 12-inch (305 mm) below
filter head to enable filter cartridge changes.
NOTE: Filter head should be mounted in vertical position, use mounting bracket as a
template to mark screw locations. Mount filter head in marked location using screws.
Filter head should be mounted on a stud or firm surface. The mounting
bracket will support the weight of the filter and help prevent strain on the cold water
line.
B. If filter assembly is mounted on a side wall next to drawers, remove drawers.
Cabinet wall may be too thin to support filter assembly. We recommend that a
3" x 3" x 1/2" wood block be used on the back side of the cabinet to allow the
screws to penetrate through the cabinet and into the wood block. This will allow
the filter assembly to be fully supported. Using the filter head assembly as a tem-
plate, drill two 1/4-inch holes in the side wall. Position the block of wood behind
these two holes and drill two 1/8-inch holes into the block. Use the two screws
provided to mount filter assembly head to side wall and on the block of wood.
5. Connecting the Supply Adapter and Inlet of Filter
A. Determine the length of plastic tubing needed to connect the inlet (left) side of the
filter with the supply adapter. Be sure to allow enough tubing to prevent kinking
and cut the tubing squarely. Place a mark 5/8-inch (16 mm) from both ends of
the tubing.
B. Wet tubing with water and insert into the supply adapter, 5/8-inch (16 mm) until
mark is flush with fitting.
C. Wet tubing with water and insert into the filter inlet, 5/8-inch (16 mm) until mark
is flush with fitting.
NOTE: Disconnecting the Tubing from the Quick-Connect Fittings. Routine maintenance
and cartridge replacement will not require that you disconnect the tubing from the filter
system; however, tubing may be quickly and easily removed from the fitting if neces-
sary. First, turn off the water supply to the filter. Open faucet, then press in the grey
collar around the fitting while pulling the tubing with your other hand.
6. Connecting the Faucet
Do not over-tighten compression nut. Use caution not to bend or crimp
tubes when securing.
A. Determine the length of plastic tubing needed to connect the outlet (right) side of
the filter with the faucet. Cut the tubing squarely.
Do not bend or crimp tube when inserting.
B. Slide plastic compression nut Aover tubing followed by the ferrule B, make
sure the ferrule is oriented properly, then place insert Cinto the end of tubing.
C. Push the tubing firmly into the end of the faucet stem Dand hand-tighten the
compression nut onto threads until secure. Then tighten approximately 1/2 turn
with a wrench.
D. Remove spare battery from side of filter cartridge and put inside the slot Ejust
below the Culligan logo. Once the battery is inserted correctly, the LED will blink
red for about 30 seconds then it will shut off. To indicate the filter needs to be
changed within the next 30 days, it will flash yellow. When the filter needs to be
changed immediately, it will flash red. The battery will need to be changed every
time a filter is changed.
7. Installing the Cartridge
Hold cartridge from the bottom when installing or changing the cartridge. Use caution
not to scrape knuckles on bracket when locking the cartridge into place. Line up the
arrow on the cartridge with unlocked padlock symbol on head. Insert cartridge and turn
arrow to locked padlock symbol. See the diagrams in Filter Cartridge Replacement on
page 4.
CAUTION:
CAUTION:
CAUTION:
3
4A
5/8"
(16mm)
5
5/8"
(16mm)
A
B
Insert
Inlet Outlet
5C
Cabinet Wall
Wood
Block
4B
6
ABD
C
ferrule
orientation
E

Technical Support: 1-800-721-7360, Monday-Friday, 8:00 a.m. – 4:30 p.m., CST
8. Putting the Filter into Operation
A. Turn on water supply valve. Check for leaks. If it leaks, see Troubleshooting.
B. Rotate handle of drinking water faucet counter-clockwise to “on” position. Allow
water to run for 10 minutes to flush air and carbon fines (very fine black powder).
C. Check for leaks before leaving installation. If it leaks, see Troubleshooting.
Filter Cartridge Replacement
NOTE: It is recommended that the EZ-1 filter be replaced every year and the EZ-3/EZ-4
every 6 months, or when you notice a change in taste, odor, or flow of the water being
filtered.
1. Relieve Water Pressure
A) Turn off water supply to the filter and dispense water from drinking water
faucet until water flow stops to relieve pressure.
2. Remove Old Cartridge
NOTE: Place towel under the system to catch any water drips.
A) Turn arrow from locked to unlocked position.
B) Gently pull down to remove cartridge.
3. Install New Cartridge
A) Line up arrow with unlocked position on head and insert cartridge.
B) Turn to locked position.
C) Turn on water and check for leaks. If it leaks, see Troubleshooting.
D) Flush water through drinking water faucet for 10 minutes to remove
carbon fines. Check for leaks before leaving installation. If it leaks, see
Troubleshooting.
4. Replace Battery
A) Remove battery located in the slot just below the Culligan logo.
B) Remove spare battery from side of filter cartridge and put inside the slot
just below the Culligan logo. See diagram 6 in “Connecting the Faucet” on
page 3.
C) Once the battery is inserted correctly, the LED will blink red for about 30
seconds then it will shut off. To indicate the filter needs to be changed within
the next 30 days, it will flash yellow. When the filter needs to be changed
immediately, it will flash red. The light will keep flashing red until the battery
dies. The battery will need to be changed every time a filter is changed.
Alternate Installation
This alternate installation will require the purchase of additional fittings to be used with
the water supply adapter. It will be necessary to remove a section of the cold water
line to the main faucet. This cold water line is typically 1/2-inch inner diameter and
5/8-inch outer diameter plastic tubing. Adapter fittings for this tubing can be either
barb type (based on the inner diameter), or compression or quick connect (based on the
outer diameter).
See Illustration A for possible fitting combination. If barb fittings are used, hose clamps
must accompany them. If compression fittings are used, tube inserts should also be used.
Always use Teflon®tape on all male threaded connections.
a
R2
b
R3
a
b
Illustration A
Cold Water Line
Hose Clamp
Barb Adaptor
Female/Female
Adaptor
Barb Adaptor
Hose Clamp
Cold Water Line
Line to inlet of
filter head
Supply
Adaptor
(included)
4

Replacement Parts
US-EZ
1 head assembly
2 RC-EZ-1 filter cartridge Level 1 filtration
3 RC-EZ-3 filter cartridge Level 3 filtration
4 RC-EZ-4 filter cartridge Level 4 filtration
5 lead-free faucet
6 clear 1/4 inch tubing
7 small parts pack
Contact your area retailer or local water treatment professional for re-
placement cartridge pricing. For replacement parts, contact your nearest
Culligan water filter retailer or call 1-800-721-7360.
Troubleshooting
Leaks:
...between head and cartridge
1. Turn off the water supply to the filter and dispense water from
drinking water faucet until water and airflow stops.
2. Remove cartridge and inspect o-rings to make sure they are in
place and clean.
3. Install cartridge and turn on water supply. If it still leaks,
contact Technical Support at 1-800-721-7360 M-F 8:00 AM
- 4:30 PM CST.
...from fittings
Turn off water supply to the filter and turn on drinking water faucet to
release pressure in system. Press in the grey collar around the fitting while
pulling the tubing with the other hand. Check if tubing is cut squarely or
scratched. If tubing is scratched or uneven, cut off 1/2” to 5/8” and re-
install per step five of the installation; connecting the supply adapter and
inlet of filter. Open the water supply valve, then close faucet and check
for leaks. If the leaks persist, or if there are other leaks on the unit, turn off
the water supply then call Technical Support at 1-800-721-7360.
...on supply adapter connection
Turn off water supply valve and turn on drinking water faucet to release
pressure in system.
Loosen leaking threaded fitting on supply adapter or pull out leaking
tubing from fitting. Inspect to see if plastic tubing is scratched or supply
adapter was properly attached. If tubing is scratched, cut off 1/2-inch to
5/8-inch and reinstall per Step Five: Connecting the Supply Adapter and
Inlet of Filter. Reconnect tubing or tighten compression nut with fingers,
then tighten nut snugly 1/2-turn with wrench. Turn on water supply valve
and check for leaks.
Troubleshooting, continued
...on faucet/tubing connection
Turn off water supply valve and turn on drinking water faucet to release
pressure. Loosen and remove compression nut fitting on faucet stem.
Check if tubing is cut squarely. Make sure tubing is inserted firmly into
end of faucet stem, then retighten compression nut with fingers until se-
cure, then tighten nut snugly 1/2-turn with wrench. Turn on water supply
valve, then close faucet and check for leaks.
NOTE: If leaks persist, or if there are other leaks on system, turn off wa-
ter supply. Call our Technical Support Department at 1-800-721-7360.
Performance Data
Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection before or after the
system. Systems certified for cyst reduction may be used on disinfected
waters that may contain filterable cysts.
NOTE: Substances reduced are not necessarily in your water. Filter
must be maintained according to manufacturer’s instructions, including
replacement of filter cartridges.
Model US-EZ
Important Notice: Read this performance data and compare the
capabilities of this system with your actual water treatment needs. It is
recommended that, before installing a water treatment system, you have
your water supply tested to determine your actual water treatment needs.
RC-EZ-1 Cartridges
This system has been tested according to NSF/ANSI 42 for the reduc-
tion of the substances listed below. The concentration of the indicated
substances in water entering the system was reduced to a concentration
less than or equal to the permissible limit for water leaving the system,
as specified in NSF/ANSI 42.
Substance
Influent
Challenge
Concentration
Maximum
Permissible
Product Water
Concentration
Reduction
Requirements
Minimum
Reduction
Average
Reduction
Standard 42
Aesthetic Chlorine 2.0 mg/L±10% ≥50% 94.8% 97.4%
Particulates
(5µm to<15µm)-Class III
at least 10,000
particles/mL ≥85% 99.8% 99.9%
Flow Rate=0.5 gpm (1.89 Lpm) Capacity=3000 gallons (11,356 L) or 12 months
Testing was performed under standard laboratory conditions, actual performance may vary.
RC-EZ-3 Cartridges
This system has been tested according to NSF/ANSI 42 and 53 for
the reduction of the substances listed below. The concentration of the
indicated substances in water entering the system was reduced to a
concentration less than or equal to the permissible limit for water leaving
the system, as specified in NSF/ANSI 42 and 53.
Substance
Influent
Challenge
Concentration
Maximum
Permissible
Product Water
Concentration
Reduction
Require-
ments
Minimum
Reduction
Average
Reduction
Standard 42
Aesthetic Chlorine 2.0 mg/L±10% ≥50% 96.2% 97.4%
Particulates
(0.5 to<1µm)-Class I
at least 10,000
particles/mL ≥85% 99.8% 99.9%
Standard 53
Cyst Minimum
50,000/L 99.95% 99.95% 99.9%
Turbidity 11 mg/L ± 1 NTU 0.5 NTU 96.4% 98.5%
Lead (pH 6.5) 0.15 mg/L ± 10% 0.010 mg/L 99.3% 99.3%
Lead (pH 8.5) 0.15 mg/L ± 10% 0.010 mg/L 94.8% 98.3%
Atrazine 0.009 mg/L
± 10% 0.003 mg/L 94.1% 94.1%
Lindane 0.002 mg/L
± 10% 0.0002 mg/L 94.5% 98.2%
Flow Rate=0.5 gpm (1.89 Lpm) Capacity=500 gallons (1893 L) or 6 months
Testing was performed under standard laboratory conditions, actual performance may vary
RC-EZ-4 Cartridges
This system has been tested according to NSF/ANSI 42, 53 and 401
for the reduction of the substances listed below. The concentration of
the indicated substances in water entering the system was reduced to a
Technical Support: 1-800-721-7360, Monday-Friday, 8:00 a.m. – 4:30 p.m., CST
WARNING:
5
2 3
7
6
4
5
1

Technical Support: 1-800-721-7360, Monday-Friday, 8:00 a.m. – 4:30 p.m., CST
6
Performance Data - cont.
Organic Chemicals Included by Surrogate Testing:
Applies to US-EZ-4 Only
Substance Influent Challenge
Concentration mg/L
Maximum permissible
product water concentra-
tion mg/L
alachor 0.050 0.001
atrazine 0.100 0.003
benzene 0.081 0.001
carbofuran 0.190 0.001
carbon tetrachloride 0.078 0.0018
chlorobenzene 0.077 0.001
chloropicrin 0.015 0.0002
2,4-D 0.110 0.0017
dibromochloropropane (DBCP) 0.052 0.00002
o-dichlorobenzene 0.080 0.001
p-dichlorobenzene 0.040 0.001
1,2-dichloroethane 0.088 0.0048
1,1-dichloroethylene 0.083 0.001
cis-1,2-dichloroethylene 0.170 0.0005
trans-1,2-dichloroethylene 0.086 0.001
1,2-dichloropropane 0.080 0.001
cis-1,3-dichloropropylene 0.079 0.001
dinoseb 0.170 0.0002
endrin 0.053 0.00059
ethylbenzene 0.088 0.001
ethylene dibromide (EDB) 0.044 0.00002
haloacetonitriles (HAN):
bromochloroacetonitrile 0.022 0.0005
dibromoacetonitrile 0.024 0.0006
dichloroacetonitrile 0.0096 0.0002
trichloracetonitrile 0.015 0.0003
haloketones (HK):
1,1-dichloro-2-propanone 0.0072 0.0001
1,1,1-trichloro-2-propanone 0.0082 0.0003
heptachlor 0.25 0.00001
heptachlor epoxide 0.0107 0.0002
hexachlorobutadiene 0.044 0.001
hexachlorocyclopentadiene 0.060 0.000002
lindane 0.055 0.00001
methoxychlor 0.050 0.0001
pentachlorophenol 0.096 0.001
simazine 0.120 0.004
styrene 0.150 0.0005
1,1,2,2,-tetrachloroethane 0.081 0.001
tetrachloroethylene 0.081 0.001
toluene 0.078 0.001
2,4,5-TP (silvex) 0.270 0.0016
tribromoacetic acid 0.042 0.001
1,2,4-trichlorobenzene 0.160 0.0005
1,1,1-trichloroethane 0.084 0.0046
1,1,2-trichloroethane 0.150 0.0005
trichloroethylene 0.180 0.0010
trihalomethanes (includes):
chloroform (surrogate chemical)
bromoform 0.300 0.015
bromodichloromethane
chlorodibromomethane
xylenes (total) 0.070 0.001
concentration less than or equal to the permissible limit for water leaving
the system, as specified in NSF/ANSI 42, 53 and 401.
Substance
Influent
Challenge
Concentration
Maximum
Permissible
Product
Water
Concentration
Reduction
Requirements
Minimum
Reduction
Average
Reduction
Standard 42
Aesthetic Chlorine 2.0 mg/L±10% ≥50% 96.2 97.0%
Aesthetic Chloramines 3.0 mg/L ± 10% 0.5 mg/L 97.6% 98.0%
Particulates
(0.5 to <1µm)-Class I
at least 10,000
particles/mL ≥85% 99.9% 99.9%
Standard 53
MTBE 0.015 ± 20% 0.005 mg/L 69% 96.8% 96.9%
Cyst Minimum 50,000/L 99.95% 99.95% 99.9%
Turbidity 11 mg/L ± 1 NTU 0.5 NTU 96.6% 98.0%
Lead (pH 6.5) 0.15 mg/L ± 10% 0.010 mg/L 99.3% 99.3%
Lead (pH 8.5) 0.15 mg/L ± 10% 0.010 mg/L 94.1% 99.3%
Mercury (pH 6.5) 0.006 mg/L ± 10% 0.002 mg/L 96.7% 96.7%
Mercury (pH 8.5) 0.006 mg/L ± 10% 0.002 mg/L 96.6% 96.6%
Chloroform (VOC
surrogate chemical) 0.300 mg/L ± 10% 0.015 mg/L 99.8% 99.8%
Perfluorooctanoic acid
(PFOA) and
Perfluorooctane sulfonate
(PFOS)
1.5 μg/L ± 10% 0.07 μg/L > 95.8%
Standard 4011
Phenytoin (Dilatin2) 200 ng/L ± 20% 30 ng/L > 95.6%
Ibuprofen (Motrin2) 400 ng/L ± 20% 60 ng/L > 95.4%
Naproxen (Aleve2) 140 ng/L ± 20% 20 ng/L > 96.4%
Estrone (Estrogen) 140 ng/L ± 20% 20 ng/L > 96.5%
Bisphenol A (BPA) 2,000 ng/L ± 20% 300 ng/L > 98.9%
Nonylphenol (Surfactant) 1,400 ng/L ± 20% 200 ng/L > 97.5%
Flow Rate = 0.5 gpm (1.89 Lpm); Capacity = 500 gallons (1893 L) or 6 months
Testing was performed under standard laboratory conditions, actual performance may vary.
1NSF/ANSI Standard 401 are considered incidental contaminants and emerging compounds.
2Dilantin is a registered trademark of Pfizer Inc. Motrin is a registered trademark of Johnson & Johnson Consumer
Inc. Aleve is a registered trademark of Bayer.
Test Conditions:
Flow Rate = 0.5 gpm
Inlet Pressure = 60 psi (4.1 bar)
pH = 7.5 ± 1
Temperature = 68° F ± 5° F (20° C ± 2.5° C)
Operating Requirements:
Pressure = 30 - 100 psi (2.1 - 6.9 bar)
Temperature = 40° - 100° F (4.4° -37.7° C)
Turbidity = 5 NTU Max
Do not use with water that is microbiologically unsafe
or unknown quality without adequate disinfection before or after the
system.
NOTE: Substances reduced are not necessarily in your water. Filter
must be maintained according to manufacturer’s instructions, including
replacement of filter cartridges.
NOTE: To Maintain product certification and ensure uniform perfor-
mance the product is retested on a consistent basis.
WARNING:

© 2020 Culligan International Company, Printed in U.S.A. US-EZ Drinking Water Systems 01020893 Rev H 01/20JT
Limited Warranty
This limited warranty applies to the Filter Housings only. It does
NOT apply to any disposable filter cartridge, which has a life
expectancy that varies with the water being filtered. This limited
warranty covers defects in materials and workmanship only for two
full years from original date of delivery. Culligan will replace any
part which in Culligan’s opinion is defective, unless: (1) any part of
the system has been subjected to any type of tampering, alteration,
or improper use after delivery, or (2) any part of the system has
been repaired by anyone not approved by Culligan. Our obliga-
tion does not include the cost of shipment of materials. Culligan is
not responsible for damage in transit, and claims for such damage
should be presented to the carrier by the customer.
This product has been designed solely for use as a housing for a
disposable filter cartridge. It is NOT warranted against freezing,
and neither this product nor its parts is warranted against defects
or deterioration caused by uses for which this product was not
expressly intended.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES, EXPRESSED OR IMPLIED, WHETHER ORAL
OR ARISING BY USAGE OF TRADE OR COURSE OF DEALING,
INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF
FITNESS OR MERCHANTABILITY. THIS WARRANTY IS THE PUR-
CHASER’S SOLE AND EXCLUSIVE REMEDY. IN NO EVENT SHALL
CULLIGAN BE LIABLE FOR ANY ANTICIPATED OR LOST PROF-
ITS, INCIDENTAL DAMAGES, CONSEQUENTIAL CHARGES OR
OTHER LOSSES, WHETHER BASED ON BREACH OF CONTRACT,
TORTIOUS CONDUCT OR ANY OTHER THEORY, INCURRED IN
CONNECTION WITH THE PURCHASE, INSTALLATION, REPAIR
OR OPERATION OF THE OPAQUE FILTER HOUSING. CULLIGAN
DOES NOT AUTHORIZE ANYONE TO ASSUME FOR IT ANY
LIABILITY OR MAKE ON ITS BEHALF ANY ADDITIONAL WARRAN-
TIES IN CONNECTION WITH THE OPAQUE FILTER HOUSING OR
ANY PART THEREOF.
For servicing under this warranty, return any defective part to YOUR
RETAILER within the two-year period referred to above.
IOWA RESIDENTS ONLY:
Store or seller’s name:
Address:
City: State: Zip:
Telephone:
Seller’s signature:
Customer’s signature: Date:
Culligan International Company
Rosemont, Illinois 60018
www.culligandiy.com
Customer Service M-F 8:00 a.m. – 4:30 p.m. CST
Phone: [phone]
e-mail: [email protected]
