Curtis 1POLXP1000RP Operating instructions

1 of 6
INSTALLATION & OWNER’S MANUAL
Polaris Ranger 1000 Rear Panel Kit
Kit p/n:1POLXP1000RP
Fits UTV Models:
POLARIS RANGER 900, XP 900, 1000 &
XP 1000
Rev. A, 06/30/2021
p/n: IM-1POLXP1000RP
(*=Not including accessories)
Approximate Installation Time *
Experienced Dealer Technician – 15 minutes
Average Dealer Technician – 20 minutes
Do-It-Yourself – 30 minutes
Approximate Product Specifications
Weight: 10.75 lbs.
The contents of this envelope are the property of the owner. Leave with the owner when installation is complete.
Register your new product quickly online at
Curtiscab.com/product-registration/
Download a digital copy of your installation
instructions online at Curtiscab.com/literature/
Curtis encourages all customers to register their
Curtis products. However, failure to do so will not
diminish right to warranty. Curtis Industries does not
sell or share your information with anyone else.
Curtis strives to continuously improve our products,
technical documentation, etc. Therefore, the
installation manual for this product may have been
updated after your product was packaged. The
latest revision of the installation manual can always
be found at the website above.
Available Options:
1. Door Kit (P/N: 1POLXP1000DR)
2. Windshield Kit (P/N: 1POLXP1000WS)
3. Roof Kit (P/N: 1POLXP1000RF)
4. Front Wiper Kit (P/N 1POLXP1000WK)
5. Side View Mirrors (P/N: 9PM5)

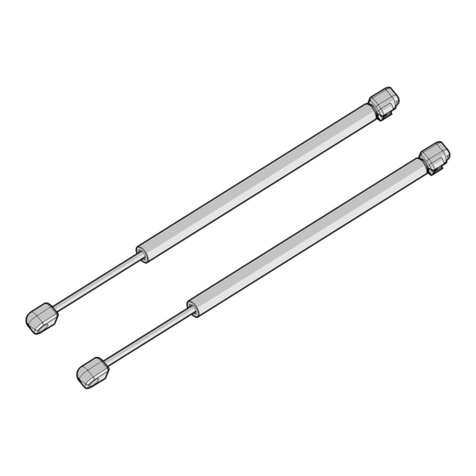

6. Door Restraint Kit (P/N: 1POLXP1000GS)

2 of 6
Curtis cabs, kits, and accessories feature an assembly of parts designed for your vehicle which require
adjustment and alignment of components to accommodate vehicle variations and provide proper weather
protection. For accurate installation, proper operation, and years of satisfaction, please read and understand the
installation and owner’s manual fully prior to installing the rear panel.
From all of us at Curtis, we thank you for choosing our product.

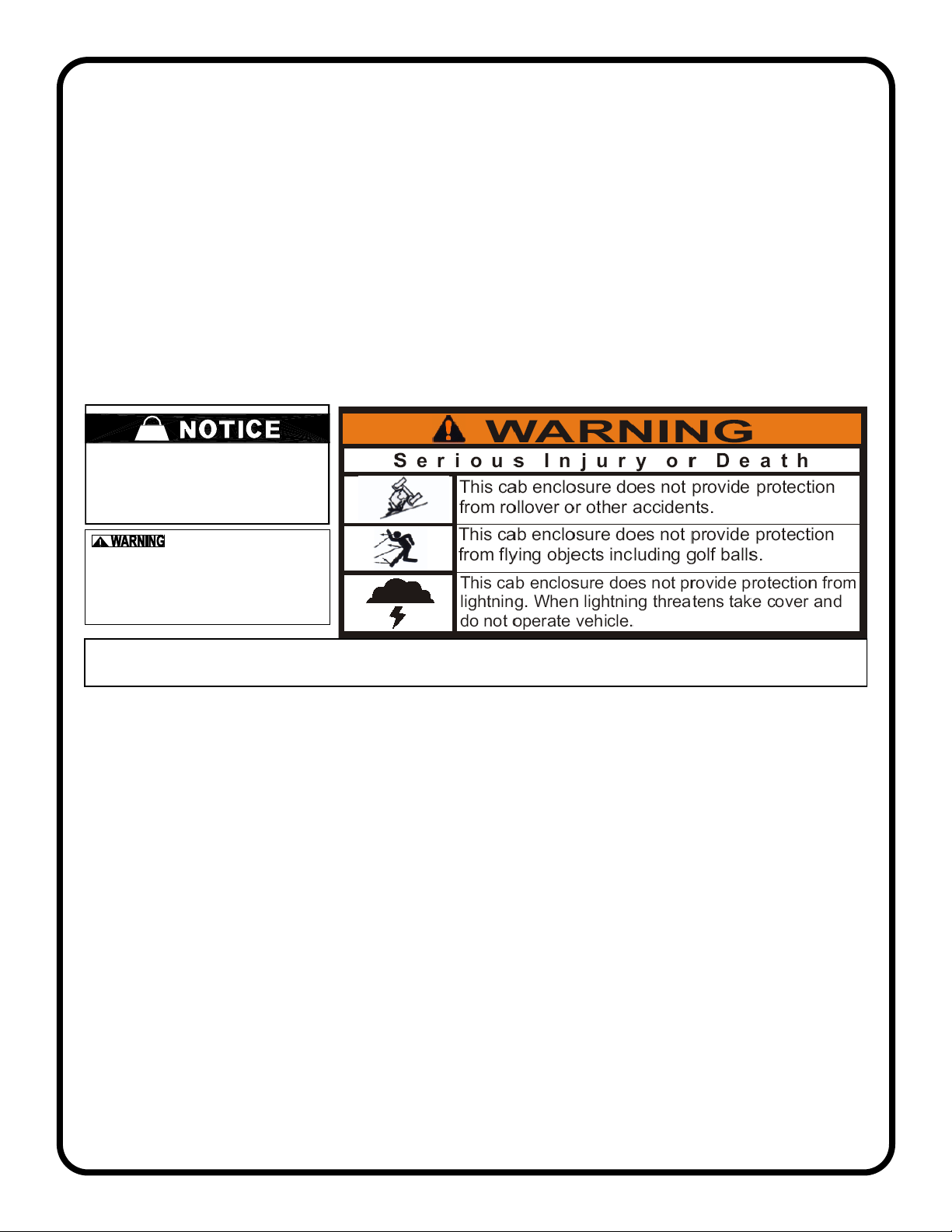

HELPFUL HINTS:
•Refer to parts diagram found in the service parts section of this manual to help identify parts
during the assembly process.
•To assist with the rear panel installation, leave all fasteners loose for later adjustment unless
otherwise specified.
•Read and understand all instructions before beginning.
•Apply a silicone sealant to seal any minor gaps that may occur due to vehicle variations.
•Before installing parts with factory installed rubber, make sure the rubber is fully installed onto the
parts for proper fit and sealing.
driver and passenger.
Curtis accessory weights are listed in product
add additional weight to the base vehicle. All
Curtis Cabs, blades and general accessories
ADDED
WEIGHT
brochures. Deduct the accessory's total weight
from the vehicle's rated capacity and never
exceed the vehicle's rated capacity including
Exposure to Carbon Monoxide
can Cause illness, serious injury or
death. Never operate vehicle if suspicious of Carbon Monox-
ide. Inspect exhaust system for leaks monthly. Leaks can
result from loose connections, corrosion, cracks or other
damage to the exhaust manifold. If leaks are found, repair or
replace exhaust system. Do not use vehicle until repair or
replacement is complete.
•Set of Standard and Metric Sockets (3/8” Drive)
•3/8” Drive Ratchet and Long Drive Extension
•Set of Standard and Metric Open-End Wrenches
•Snips
WARNINGS, TIPS, & REQUIRED TOOLS
TOOLS REQUIRED:
GENERAL INFORMATION BEFORE YOU START
California Health and Safety Proposition 65 Warning: This product may contain chemicals
known to the state of California to cause cancer and birth defects or other reproductive harm.
TABLE OF CONTENTS
WARNINGS, TIPS, & REQUIRED TOOLS...................................................... 2
KIT INSTALLATION ........................................................................................ 3
CARE AND MAINTENANCE........................................................................... 4
SERVICE PARTS ........................................................................................... 4
BOLT TORQUE SPECIFICATIONS ............................................................. 5-6

KIT INSTALLATION
3 of 6
STEP 1: (KIT INSTALLATION)
If installing multiple Curtis Polaris Ranger 1000 kits,
install in the following order.
1.Doors
2.Windshield
3.Rear Panel
4.Roof
1.1 Per figure 1.1, install both lower mounting bracket
assemblies to the inside surface of the rear panel
using hardware listed below. Make sure that the
rubber washer is against the outside surface of the
rear panel.
Hardware Used Qty
5/16-18 X 1 Hex Head Flange Screw 4
5/16-18 Hex Flange Nut 4
5/16 X 1-1/4 Steel Washer 4
5/16 X 1-1/4 Rubber Washer 4
Tools required
1/2” socket and wrench
1.2 Per figures 1.2a and 1.2b, install rear panel with
brackets onto the vehicle’s frame behind the seat
back. Then flex the rear panel and hook it around
the rear panel header. If the rear panel is loose in
the vertical position, adjust the lower mounting
brackets to take up the vertical play.
Tools required
1/2” socket and wrench
1.3 Per figure 1.3, install 2 clamp bracket assemblies to
the inside of the rear panel making sure that the
bracket is touching the inside surface of the ROPS.
Hardware Used Qty
5/16-18 X 1 Hex Head Flange Screw 2
5/16-18 Hex Flange Nut 2
5/16 X 1-1/4 Steel Washer 2
5/16 X 1-1/4 Rubber Washer 2
Tools required
1/2” socket and wrench
1.4 Per figure 1.4, if the Curtis Roof is being installed
on this vehicle, a piece of 3/4" side bulb rubber with
2 wipers will need to be installed on the rear flange
of the roof (rubber should be facing forward). If not,
this kit installation is now complete.
Fig. 1.1 (Install Brackets onto Rear Panel)
Fig. 1.2a (Hook Rear Panel onto Frame)
Fig. 1.2b (Flex rear panel into the inside of header)
Fig. 1.3 (Install Clamp Brackets)
Clamp Bracket
Fig. 1.4 (Install rubber on roof, if roof is being installed)
Rubber from Kit
Rubber
this side
Rubber Facing Forward
Vehicle’s Frame
Hook Behind
This Lip
Hook to inside of header

4 of 6
POLARIS RANGER 1000 REAR PANEL KIT

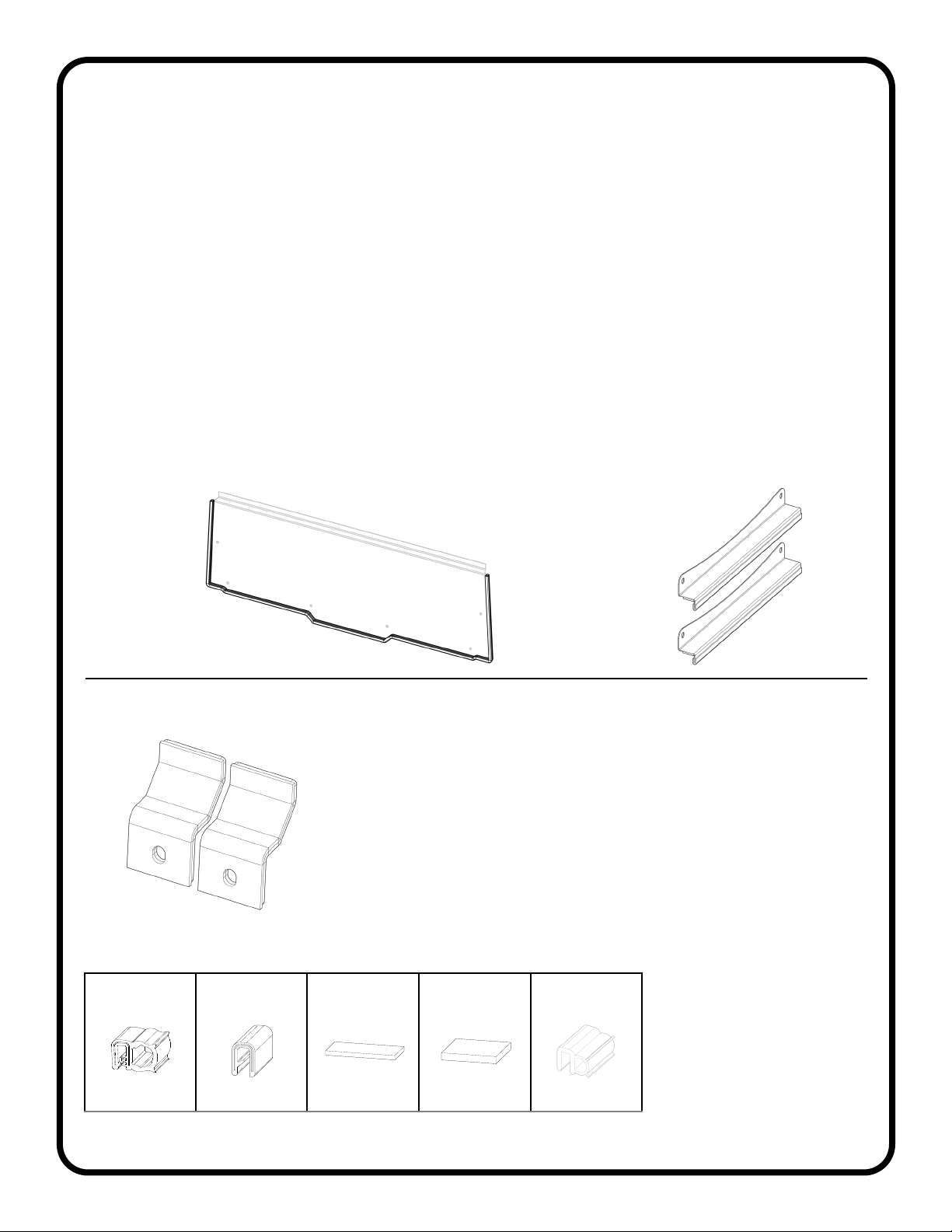

SERVICE PARTS
REAR PANEL W/ RUBBER
P/N: 8SV-P-00136
LOWER MNT BRACKET ASSY (SET OF 2)
P/N: 8SV-113-00243
CLAMP BRACKET ASSEMBLY (SET OF 2)
P/N: 8SV-110-00093
CARE AND MAINTENANCE
•Check and tighten hardware after 40 hours of operation. Periodically inspect and tighten hardware for the
remainder of the unit’s life.
• DO NOT clean polycarbonate windows with harsh chemicals. It will damage the plastic. Mild soap and water should be
used on the rear panel.
9SV-PR17-5
3/4" SIDE BULB,
1/16" GRIP
TRIM LOK, STD,
1/16" - 1/8" GRIP
9SV-PRO1-20 9SV-PR35-5
FOAM TAPE,
1/8" X 2"
9SV-PR39-5
FOAM TAPE,
1/8" X 1"
9SV-PR58-10
7/16" SIDE BULB,
1/8" GRIP

5 of 6
Torque Specs. for Structural Bolts
This page is for use primarily when dealing with high-strength vehicle fasteners such as ROPS hardware that hold the
structure together for safety. This page can also be used for other solid metal-to-metal joints. Do not use these high torque
values on any of the following applications involving: tubing, plastic, nylon or rubber washers, threaded inserts, etc.. See next
page regarding less critical fasteners.
The values below apply to fasteners that are dry or lubricated with normal engine oil. They do not apply if special graphited or
moly disulphide greases or other extreme pressure lubricants are used. This applies to both UNF and UNC threads.
Remember to always use the same grade or property class when replacing bolts.
IMPORTANT: on all PLATED GRADE 8 bolts, reduce torque 15% from listed bolt torque specification.
Size of Screw Property Class
Course Thread Fine Thread
Pitch (mm) Pounds Feet Newton-Meters Pitch (mm) Pounds Feet Newton-Meters
M6
5.6
1.0
3.6-5.8 4.9-7.9
-
- -
8.8 5.8-9.4 7.9-12.7 - -
10.9 7.2-10 9.8-13.6 - -
M8
5.6
1.25
7.2-14 9.8-19
1.0
12-17 16.3-23
8.8 17-22 23-29.8 19-27 25.7-36.6
10.9 20-26 27.1-35.2 22-31 29.8-42
M10
5.6
1.5
20-25 27.1-33.9
1.25
20-29 27.1-39.3
8.8 34-40 46.1-54.2 35-47 47.4-63.7
10.9 38-46 51.5-62.3 40-52 54.2-70.5
M12
5.6
1.75
28-34 37.9-46.1
1.25
31-41 42-55.6
8.8 51-59 69.1-79.9 55-68 75.9-92.1
10.9 57-66 77.2-89.4 62-75 84-101.6
M14
5.6
2.0
49-56 66.4-75.9
1.5
52-64 70.5-86.7
8.8 81-93 109.8-126 90-106 122-143.6
10.9 96-109 130.1-147.7 107-124 145-168
M16
5.6
2.0
67-77 90.8-104.3
1.5
69-83 93.6-112.5
8.8 116-130 157.2-176.2 120-138 162.6-187
10.9 129-145 174.8-196.5 140-158 189.7-214.1
M18
5.6
2.0
88-100 119.2-136
1.5
100-117 136-158.5
8.8 150-168 203.3-227.6 177-199 239.8-269.6
10.9 175-194 237.1-262.9 202-231 273.7-313
M20
5.6
2.5
108-130 146.3-176.2
1.5
132-150 178.9-203.3
8.8 186-205 252-277.8 206-242 279.1-327.9
10.9 213-249 288.6-337.4 246-289 333.3-391.6
METRIC BOLT TORQUE SPECIFICATIONS 5.6 8.8 10.9
SAE Grade No.
Bolt head identification
mark as per grade.
NOTE: Manufacturing
Marks Will Vary
TORQUE TORQUE TORQUE
Bolt Size Pounds Feet Newton-Meters Pounds Feet Newton-Meters Pounds Feet Newton-Meters
Inches Millimeters Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
1/4 6.35 5678911 12 15 12 15 16 20
5/16 7.94 10 12 14 16 17 20.5 23 28 24 29 33 39
3/8 9.53 20 23 27 31 35 42 48 57 45 54 61 73
7/16 11.11 30 35 41 47 54 64 73 87 70 84 95 114
1/2 12.70 45 52 61 70 80 96 109 130 110 132 149 179
9/16 14.29 65 75 88 102 110 132 149 179 160 192 217 260
5/8 15.88 95 105 129 142 150 180 203 244 220 264 298 358
3/4 19.05 150 185 203 251 270 324 366 439 380 456 515 618
7/8 22.23 160 200 217 271 400 480 542 651 600 720 814 976
125.40 250 300 339 406 580 696 787 944 900 1080 1220 1464
1-1/8 25.58 - - - - 800 880 1085 1193 1280 1440 1736 1953
1-1/4 31.75 - - - - 1120 1240 1519 1681 1820 2000 2468 2712
1-3/8 34.93 - - - - 1460 1680 1980 2278 2380 2720 3227 3688
1-1/2 38.10 - - - - 1940 2200 2631 2983 3160 3560 4285 4827
*Thick Nuts must be used with Grade 8 bolts
58*
2

6 of 6
Tightening of Non-Structural Bolts
For light or medium duty fastening, Curtis recommends using a general industry standard of tightening until snug and then
giving an additional one quarter turn of the tool as deemed reasonable for the application (i.e.: at the installer’s discretion).
If torque values are required, the examples listed below are intended as a reasonable reference for use in the majority of
non-structural fastener applications such as: small diameter fasteners; bolts passing thru tubing, glass, plastic, nylon or
rubber washers, threaded inserts, etc.
If more than one application below applies, use the lower torque value.
FASTENER
SIZE:
FASTENER
TYPE:
WASHER
MATERIAL: APPLICATION:
TORQUE
(INCH-POUNDS)
(±5)
#10 Machine Screws - in Nylon P-Clamps 20
#10 Machine Screws - Strobe Light
(plastic base) 35
M5 Set Screws - Wiper Arm 20
1/4” Cap Nut - Windshield Wiper 20
1/4” Bolts - Tubing
(5/8” to 3/4” wide) 132
1/4” Bolts Rubber - 60
1/4” Bolts Nylon / Plastic - 72
1/4” Bolts - Factory Installed
Threaded Inserts 132
5/16” Bolts - Tubing (1” or wider) 60
5/16” Flat Head Bolts - Plastic Windshield
Hinge 79
5/16” Bolts Rubber - 120
5/16” Bolts Nylon / Plastic - 150
5/16” Ball Studs - - 150
5/16” Bolts - Factory Installed
Threaded Inserts 240
3/8” Bolts - Tubing 120
M12 Door Striker Pins - - 120
