Cyber Power CPS1000EILCD User manual

Power Inverter
CPS1000EILCD
CPS1200EILCD
CPS2200EILCD
User’s Manual

2

3
TABLE OF CONTENTS
1 IMPORTANT SAFETY INSTRUCTIONS…………………………..4
2 INSTALLATION……..………………………………………………..5
2-1 Unpacking………………………………………………………............5
2-2 Product Overview & Outlook…………………………………………..5
2-3 Power Requirements of Your Equipment…...………………………..7
2-4 Hardware Installation Guide……..…………………………………….7
3 DEFINITIONS FOR ILLUMINATED LCD INDICATORS…...........9
4 OPERATION & CONFIGURATION……………………………….11
Power On/Off..……………………………………………………………...11
Function Setup…………...………………………………………………...11
Audible Alarm…………………….…...…………………….….................11
Function Setup Guide…..………….…...……………………..................11
Charger Control…..……………………………......................................13
Input Voltage Range Selector…..…………………………….................13
5 TROUBLESHOOTING……………………………………………..14
6 TECHNICAL SPECIFICATIONS.………………………………….16

4
1 IMPORTANT SAFETY INSTRUCTIONS
(SAVE THESE INSTRUCTIONS)
Before attempting to unpack, install, or operate the product, please read and follow all instructions
carefully.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled
indoor area free of conductive contaminants. (Please see Technical Specifications section for
acceptable temperature and humidity range.)
CAUTION! The product must be installed in a protected environment away from heat-emitting
appliances such as a radiator or heat register. The location should provide adequate air flow around the
product for proper ventilation.
CAUTION! To reduce the risk of injury, use cables come with the product. Use appropriate and certified
external battery cables.
CAUTION! To reduce risk of damage and injury, use batteries with good quality.
CAUTION! Risk of electric shock. DO NOT remove the cover. No user serviceable parts inside.
CAUTION! Provide adequate ventilation for the battery compartment. The battery enclosure should be
designed to prevent accumulation and concentration of hydrogen gas at the top of the compartment.
CAUTION! A battery can present a risk of electrical shock and high short circuit current. When working
on batteries, remove watches, rings, or other metal objects. Use tools with insulated handles.
CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power
is disconnected.
CAUTION! To avoid electrical shock, turn off the unit and unplug it from theAC power source before
installing equipment or servicing the battery. Servicing the battery can only be performed by trained
personnel.
DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! Do not use in any circumstance that
would affect the operation and safety of life support equipment, medical applications, or patient care.
DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire or electric shock, do not use
with or near an aquarium. Condensation from the aquarium can cause the unit to short out.
DO NOT USE THE PRODUCT ON ANY TRANSPORTATION! To reduce the risk of fire or electric
shock, do not use the unit on any transportation such as airplanes or ships. The effect of shock or
vibration caused during transit and the damp environment can cause the unit to short out.

5
2 INSTALLATION
2-1 Unpacking
Inspect the product upon receipt. The box should contain the following:
(a) This product; (b) User Manual; (c) Input Power Cord
2-2 Product Overview & Outlook
CyberPower Inverter ensures home/office users the always-on power supply with the exceptional
power performance. Featuring the high-efficiency conversion design, the Power Inverter supplies
long-lasting and reliable power to various appliances and provide longer backup for equipment. These
units can be installed in either a horizontal or wall-mounted placement to make the most of your space.
Power Inverter
Input Power Cord
User Manual

6
CPS1000EILCD / CPS1200EILCD / CPS2200EILCD
Application Diagram

7
2-3Power Requirements of Your Equipment
1. Ensure that the equipment plugged into the AC outlet does not exceed the product’s rated
capacity (1000VA/680W for CPS1000EILCD; 1200VA/780W for CPS1200EILCD; 2200VA/1320W
for CPS2200EILCD). If rated unit capacities are exceeded, an overload condition may occur and
cause the unit to shut down or the circuit breaker trip.
2. There are many factors that can affect the amount of power that your appliances will require. For
optimal system performance keep the load below 80% of the unit’s rated capacity.
2-4 Hardware Installation Guide
Step 1 Connect the Battery
For optimal battery life and reasonable recharging time, make sure the batteries capacity no less than
100Ah. Use batteries with same brand, type, and capacity.
Connect DC input cables of this product to external batteries:
Red “+”cable to the battery’s Positive “+”polarity
Black “-”cable to the battery’s Negative “-”polarity

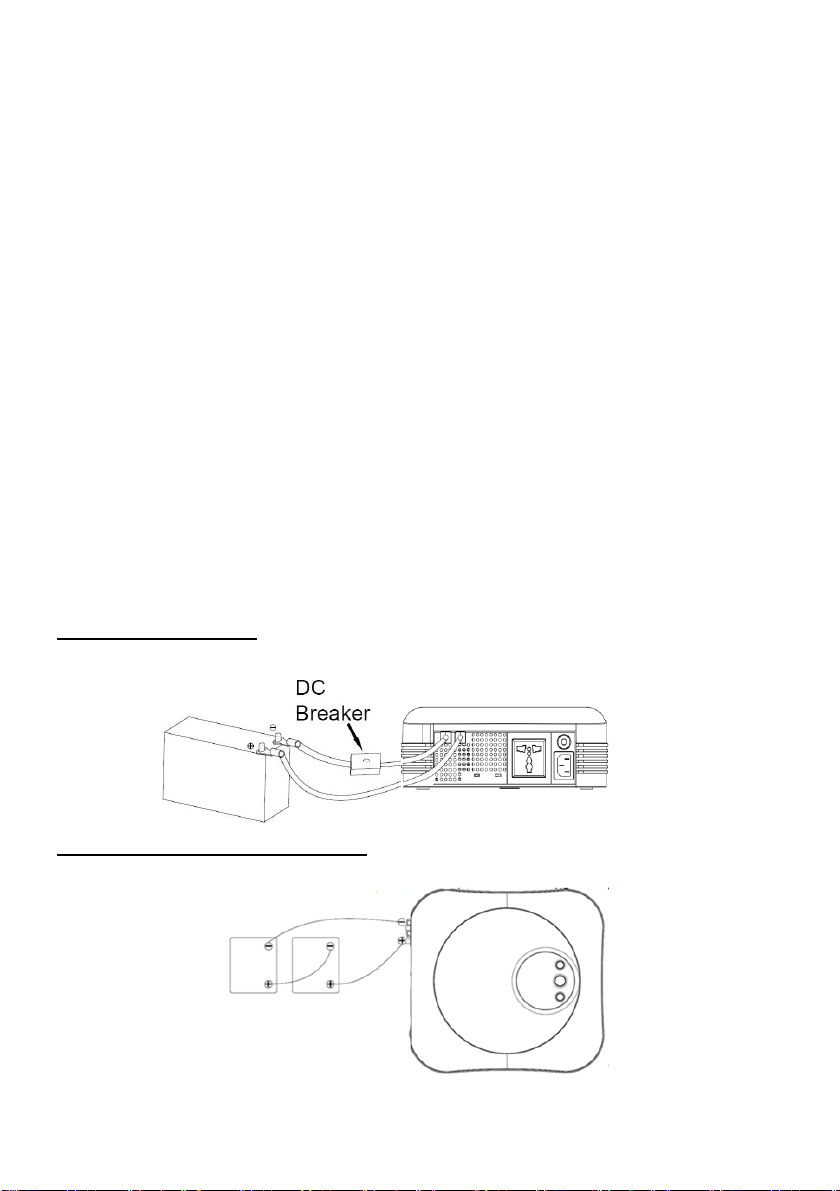

Single Battery Connection
Single battery voltage must be equal to DC voltage of the unit.
Multiple Batteries Connection –in Series
Connect two batteries in series can double the voltage. Sum of voltages must be equal to DC voltage of
the unit.

8
Multiple Batteries Connection –in Parallel
Connect multiple batteries in parallel can increase total battery capacity but still keep terminal voltage
as single battery voltage.
Step 2 Connect the Product to Utility
Connect the product to a wall outlet. Charging the battery for at least 8 hours is recommended to
ensure that the battery’s maximum charge capacity is achieved. To recharge the battery and maintain
optimal battery charge, simply leave the unit plugged into a wall outlet at all times. The battery can be
charged whether the unit is turned on or off.

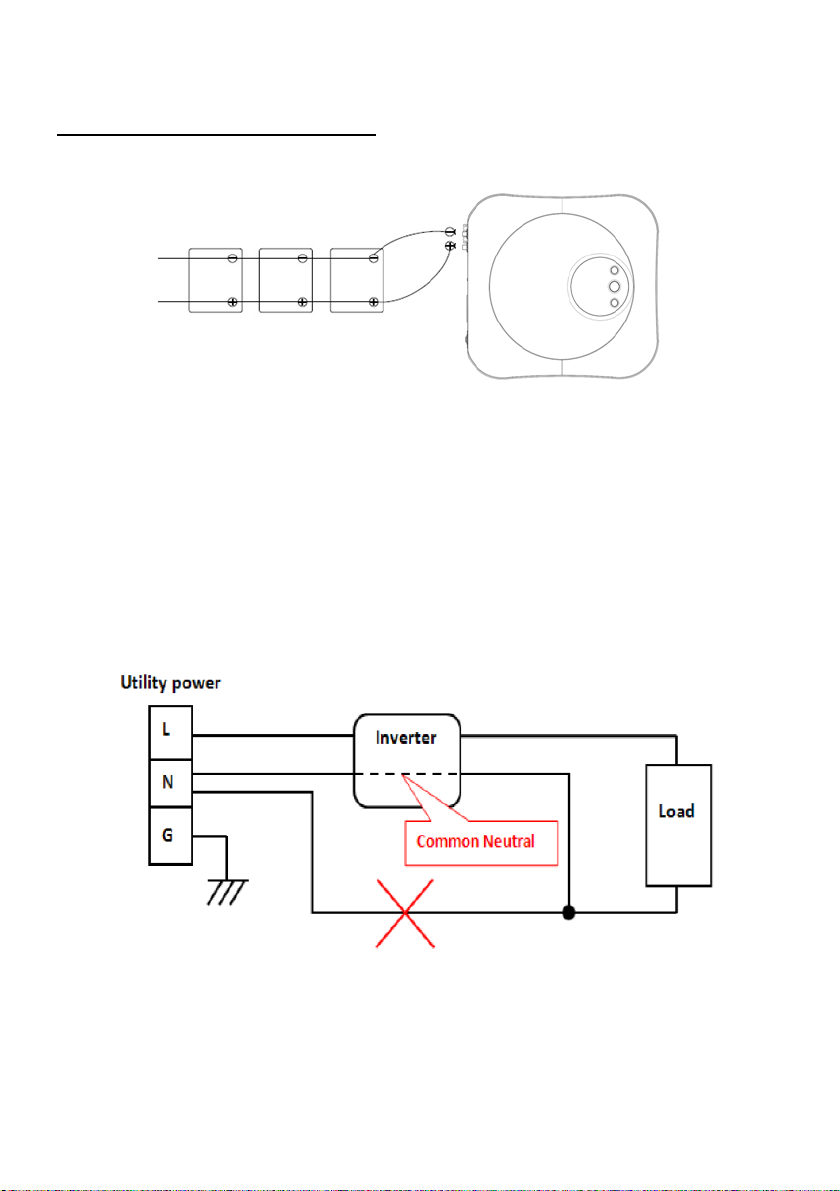

DO NOT connect Neutral of the Power Distribution Box to (a) the OUTPUT Neutral of this product, or (b)
the INPUT Neutral of connected equipment. Otherwise, reversed polarity will damage the product and
connected equipment.
Step 3 Connect the Load
Connect the load to the unit’s outlet. Make sure that the total loads of your appliances are below 80% of
the unit’s rated capacity.
(請請請請請)

9
3 DEFINITIONS FOR ILLUMINATED LCD INDICATORS
LCD Display

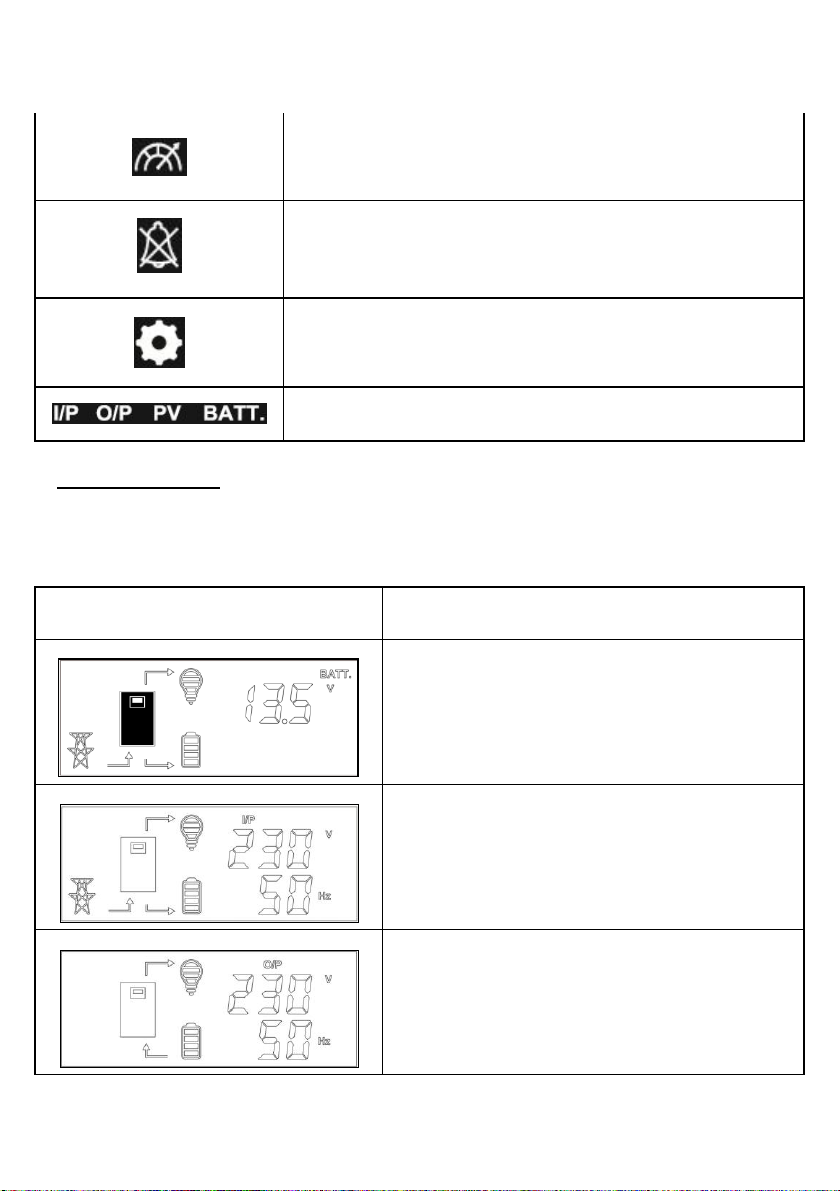

The left half of the LCD screen displays the energy flow direction and the status of the Power Inverter.
The right half of the LCD screen displays the input, output, and battery information.
Icon
Description
Normal Mode (Power On)
The Power Inverter is turned on.
Standby Mode (Power Off)
The Power Inverter is off while the LCD display remains on.
Utility Power
Utility power source supplies AC power.
Load Capacity
The approximate load capacity of the unit’s outlet. (in 25% increments)
Battery Capacity
The approximate battery capacity and charging status. (in 25%
increments)
Fault
This icon appears if there is a problem with the unit.

10
Overload
This icon appears and an alarm sounds to indicate the outlet is
overloaded.
Mute
This icon appears whenever the unit is in silent mode. However, when
there is a problem with the unit, the alarm will still beep even in silent
mode.
Setup Mode
This icon appears whenever the unit is in Setup Mode.
Input / Output / Battery Information
It indicates input, output, and battery information.
Operation Modes
There are three types of modes regarding to the operation of the Power Inverter. The corresbonding
LCD displays are as shown below.
LCD Display
Operation Mode
Standby Mode
In Standby Mode, the Power Inverter is off and the Utility
power bypasses to output and in the meantime charges
the battery. The LCD is on to show battery status.
Line Mode
The Power Inverter is turned on and AC input power is
normal. It supplies power to the load (connected
equipment).
Battery Mode
During a severe brownout or blackout, the Utility Power is
absent and the Power Inverter switches to Battery Mode.
The battery will supply power to the load (connected
equipment).

11
4 OPERATION & CONFIGURATION
Power On/Off
Power On：Press the POWER button to turn on the unit.
Power Off：Press the POWER button again to turn off the unit.

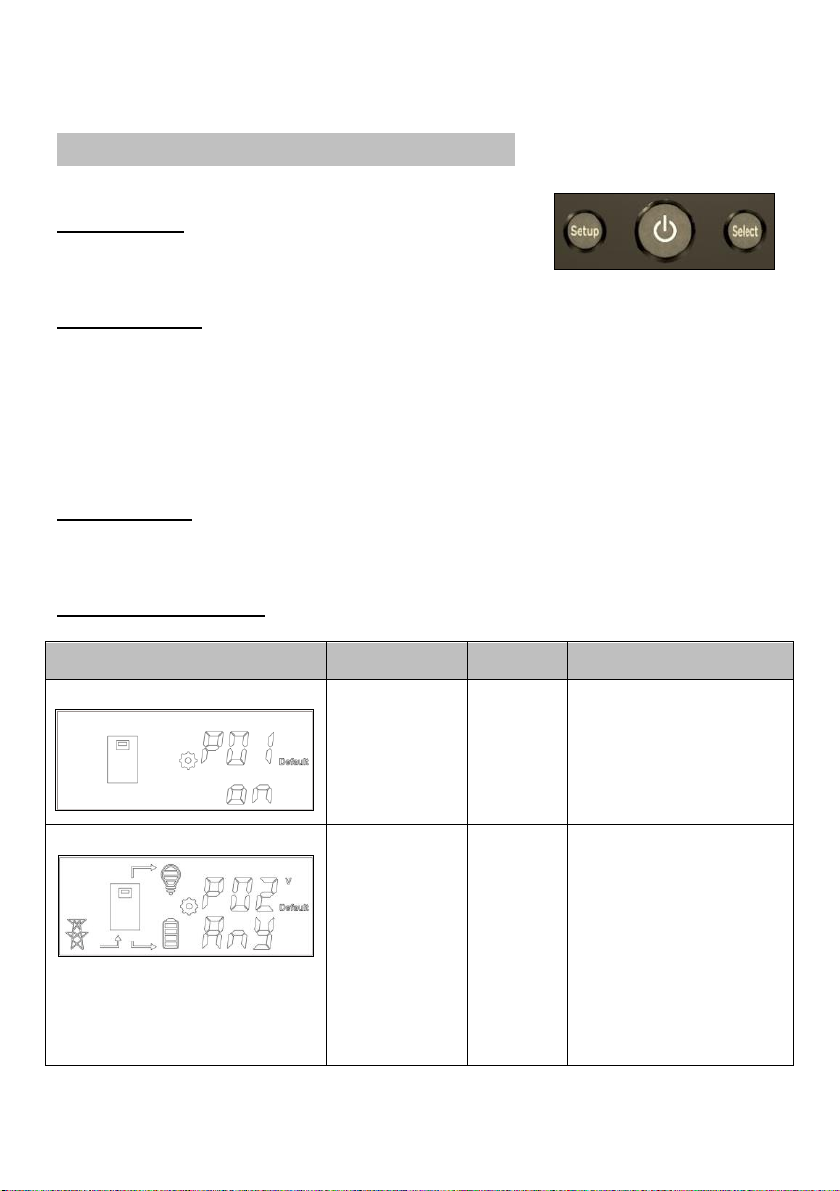

Function Setup
Press the SETUP button for 4 seconds to access the setup mode’s 7 functions: Audible Alarm, Auto
Restart Voltage, Low Battery Shutdown Voltage, LCD Auto Sleep, Cycling Display, Back to Default,
and Return to Status Display. Short press the SELECT button to view the functions. When a function is
selected, short press the SETUP button to access the function’s options. Short press SELECT button
to view the options. When the desired option is selected, short press SETUP button to confirm the
setting. The unit will leave Setup Mode if there is no operation in 60 seconds.
Audible Alarm
Press SELECT button for 2 seconds to enable the audible alarm (beeps once) or disable (beeps twice)
the audible alarm. The MUTE icon will appear on the LCD display when the audible alarm is disabled.
Function Setup Guide
Function
Options
Default
Description

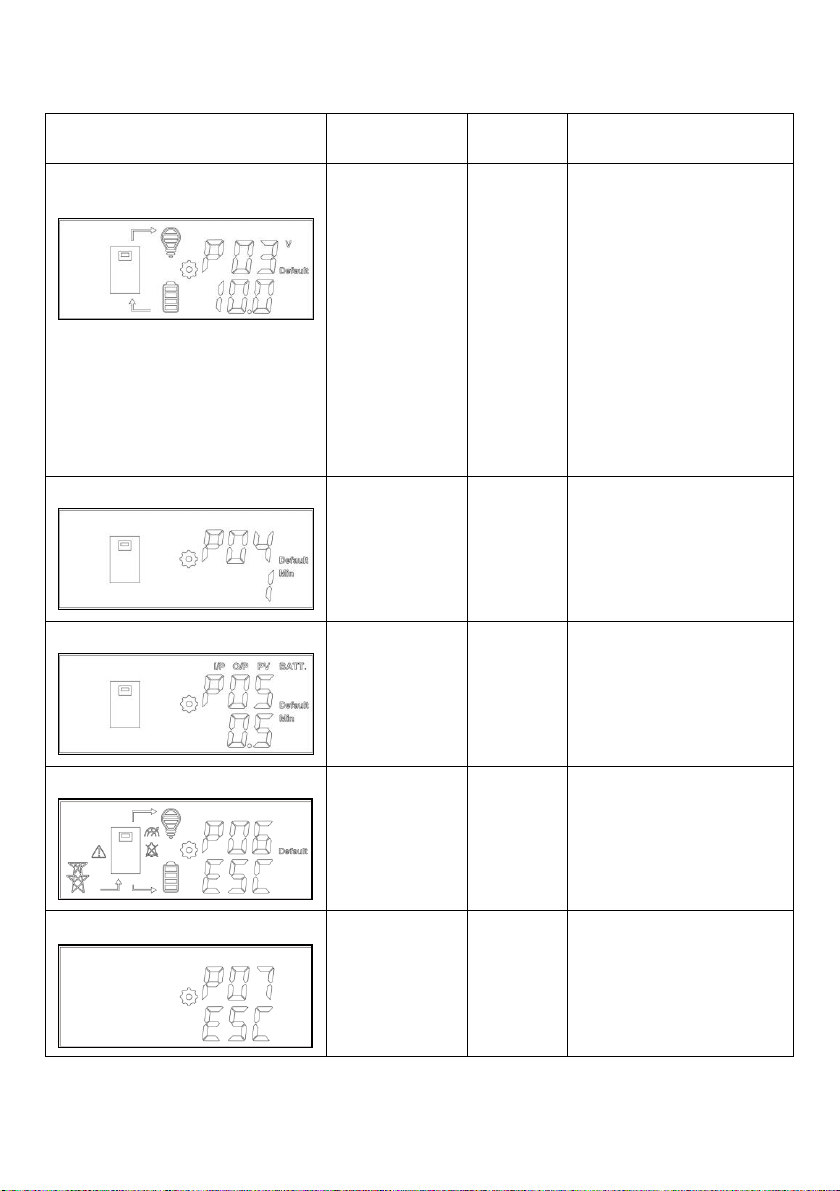

Page 1 - Audible Alarm
On
Off
ESC
On
If Off is selected, the unit will
mute alarms and the Mute
icon will appear on the LCD
display.
Page 2 –Auto Restart Voltage
CPS1000/1200E
ILCD:
Any/10.5/11.0/
/11.5/12.0/12.5/
13.0/FUL
CPS2200EILCD:
Any/21.0/22.0
/23.0/24.0/25.0
/26.0/FUL
Any
When the utility power
comes back and starts to
charge the battery, the
Power Inverter will auto
restart at the setting battery
voltage.

12
ESC
Page 3 –Low Battery Shutdown
Voltage
CPS1000/1200E
ILCD:
10.0
/10.2/10.4
/10.6/10.8/11.0V
CPS2200EILCD:
20.0
/20.4/20.8
/21.2/21.6/22.0V
ESC
10.0V
(20.0V for
CPS2200
EILCD)
The Power Inverter will shut
off if the battery voltage is
decreasing to the setting
value.
Page 4 –LCD Auto Sleep
Off
0.5/1/2 Min
ESC
1 Min
If Auto Sleep is selected, the
LCD display will shut off after
0.5/1/2 minutes if no activity.
Page 5 –Cycling Display
Off
0.5/1 Min
ESC
0.5 Min
If the buttons are not
touched in 0.5/1 minute, the
LCD will start cycling the
Inverter information.
Page 6 –Back to Default
ESC
Yes
ESC
Select Yes to restore the
factory default settings.
Page 7 –Return to Status Display
-
-
Press the Setup button to go
back to the status display.

13

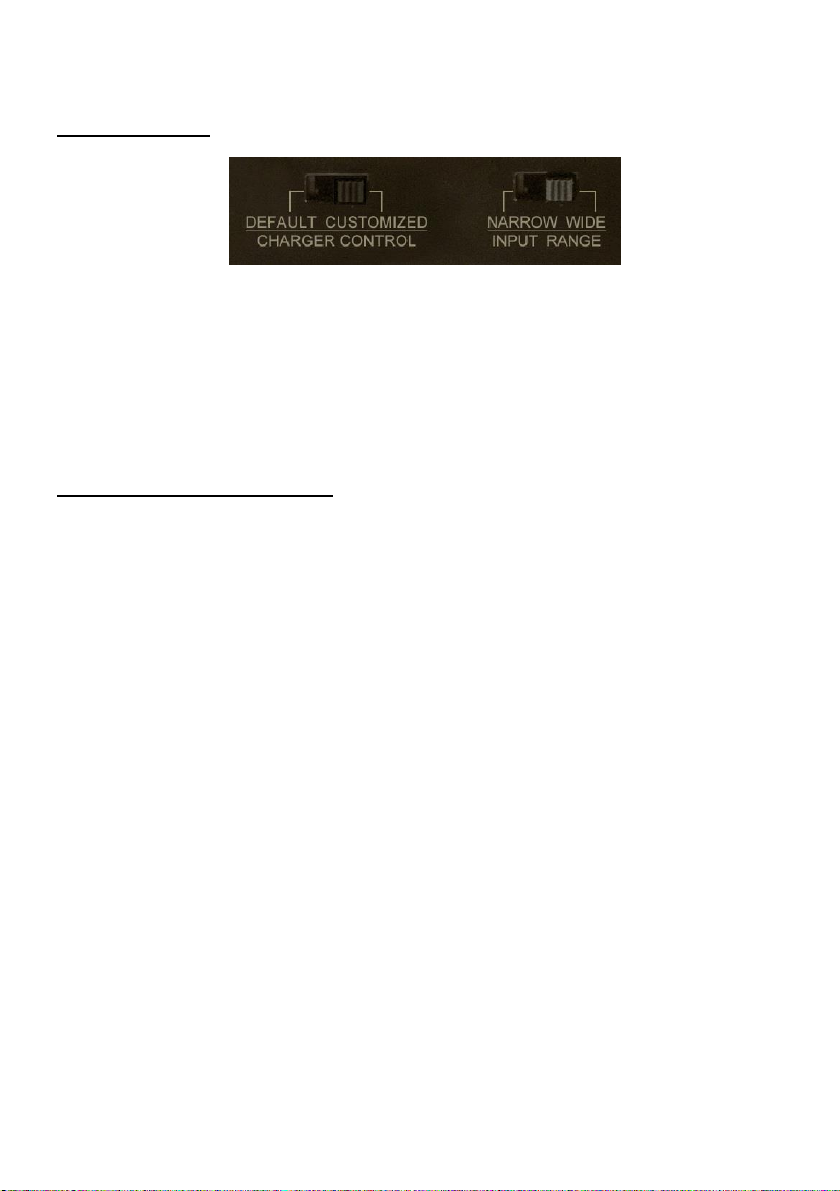

Charger Control
CAUTION! The setting should be performed by trained personnel. Incorrect operation will damage the
battery.
Default: The charging voltage is 13.7V for CPS1000EILCD/CPS1200EILCD and 27.4V for
CPS2200EILCD.
Customized (for poor battery condition): The charging voltage is 13.3V for
CPS1000EILCD/CPS1200EILCD and 26.6V for CPS2200EILCD. If the battery is aging, lower
the charging voltage to enhance the charging capability.
Input Voltage Range Selector
Input voltage range is defined in specification section. Output voltage is the same as input voltage inAC
mode.
Narrow (190-260Vac): For connected equipment that are sensitive to the fluctuation of voltage
range, narrow the input voltage range and the output voltage will follow.
Wide (100-280Vac): For connected equipment that are less sensitive to the fluctuation of
voltage range, set the input voltage range wider and the output voltage will follow.
Note: The transfer time will increase while the input voltage gets lower. If the connected
equipment is sensitive to the transfer time, power interruption condition may occur.

14
5 TROUBLESHOOTING
Problem
Possible Cause
Solution
The product will not turn on.
The unit is not connected to an
AC wall outlet.
The unit must be connected to a
220/230V outlet.
The battery is worn out.
Replace the batteries.
Mechanical problem.
Contact CyberPower Systems.
Outlet does not provide power to
connected equipment.
Circuit breaker has tripped
due to an overload.
Turn the unit off and remove some
of the connected equipment. Wait
10 seconds, reset the circuit
breaker by depressing the button,
and then turn the unit on.
DC fuse is blown due to
overload.
Servicing of the DC fuse should
only be performed by trained
personnel. For more information on
DC fuse replacement, contact
CyberPower Systems.
Batteries are discharged.
Recharge the unit for at least 8
hours.
The product may require
service.
Contact CyberPower Systems.
There is no LCD display.
The product is not turned on.
Press the power button.
Batteries are discharged.
Recharge the unit for at least 8
hours.
The LCD is defective.
Contact CyberPower Systems.
Utility power is normal but the
unit is in Battery Mode.
AC input is missing.
Make sure the AC input is
well-connected.
Input protector is tripped.
Reset the input protector.
The audible alarm beeps
continuously.
The unit is in Fault Mode.
Refer to Fault Code Table for
further information. Contact
CyberPower Systems.

15
Fault Code Table
Fault Code
Event
Audible Alarm
A64
Overload
Rapid beeping every 1/2 second
E07
Output Voltage High
Constant tone
E09
Output Short
Constant tone
E14
Overload Fault
Constant tone
E18
Fan Fail
Constant tone
E13
Over Charge
Constant tone
E25
Output Unbalance
Constant tone

16
6 TECHNICAL SPECIFICATIONS
Model
CPS1000EILCD
CPS1200EILCD
CPS2200EILCD
Power Rating (VA/Watt)
1000VA/680W
1200VA/780W
2200VA/1320W
Input
Input Voltage Range
Narrow Mode: 190 - 260Vac
Wide Mode: 100 - 280Vac
Input Frequency
50/60Hz (Auto-sensing)
Output
Output Voltage
230Vac
Output Frequency
50/60Hz
Outlet Type
(1) UN
(1) UN
(1) UN
Transfer Time
< 8ms (Typical Narrow Mode)
Battery
Battery Voltage
12V
24V
24V
Charging Current
20A
20A
15A
Environmental
Operating Temperature (°C)
0C to 40C
Operating Relative Humidity
0 to 90% (non-condensing)
Physical
Dimensions (WxHxD) (mm.)
250 x 90 x 265
250 x 90 x 265
250 x 90 x 265
Weight (kg.)
2.05
2.2
2.2
For more information, visit www.cyberpower.com
All rights reserved. Reproduction without permission is prohibited.
